3D PRO Adj. Focus
3D PRO Adj. FocusStructured-light laser for 3D metrology, Ø19mm, up to 100 Mw.
- Wavelength range
- 375–950 nm
- Max output power
- Up to 100 mW
- IP rating
- IP54
About the 3D PRO Adj. Focus

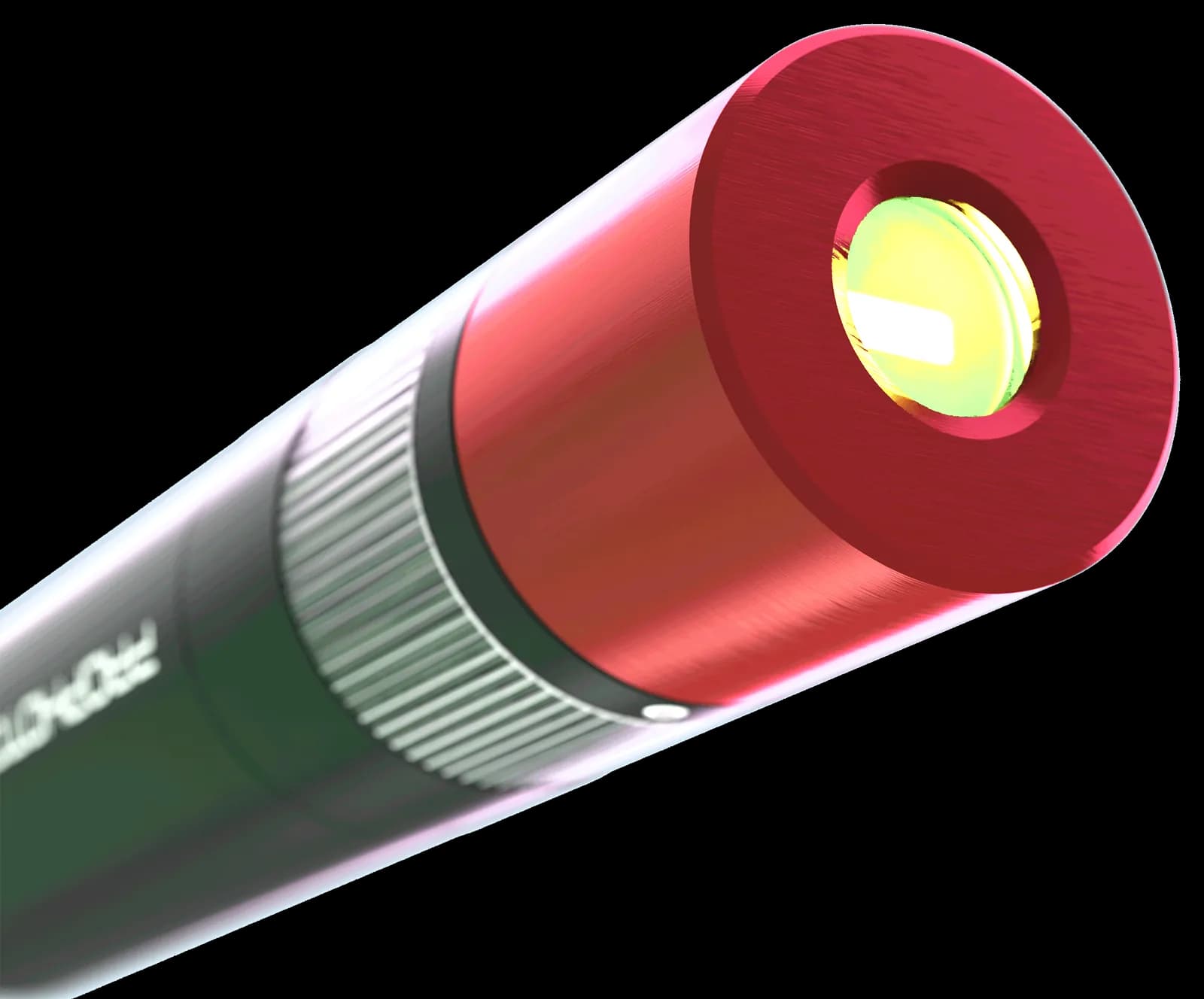

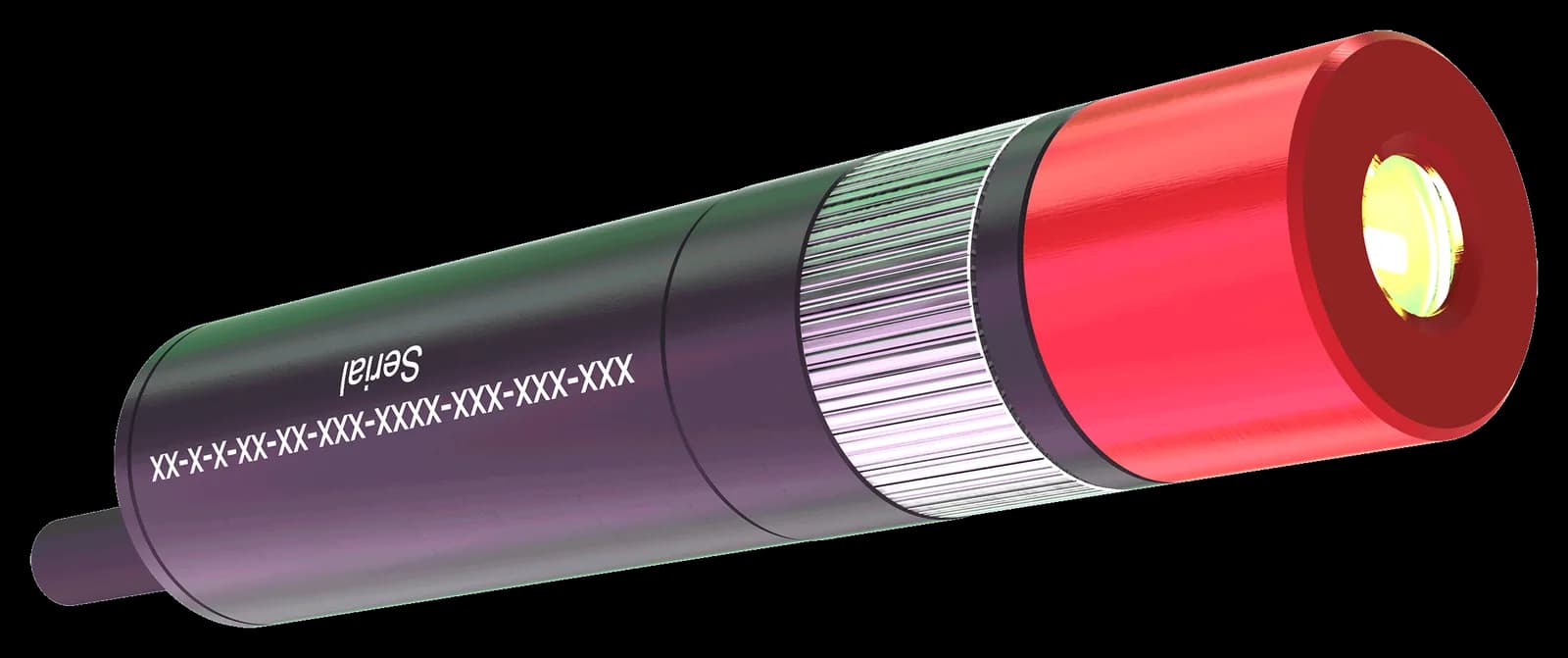

The 3D PRO Adjustable Focus Laser applies the structured light platform to machine vision work where the working distance is not set at the design stage. Rather than a focus fixed in manufacture, the module is externally focusable and designed for smooth adjustment, with a lock-in mechanism that holds the desired focal distance once it has been determined.
Line widths of 30um at 120mm serve inspection applications that demand a high degree of accuracy, with a standard uniformity option of 22.5% and a higher uniformity option of 12.5%. With a diameter of 19mm, and a length of 88.5 to 89.5mm, the laser weighs below 48g.
Wavelengths cover 375nm to 940nm, with diode powers up to 100mW and fan angles between 10 and 90 degrees. Line and diffractive optics run from a single line through 5, 7 and up to 65 lines to spot and crosshair. Modulation up to 100kHz and Analog power control are available, in an IP54 anodized aluminum housing rated from -10 to +40 degrees C.
Specifications
Optical
- Wavelength range
- 375–950 nm
- Max output power
- Up to 100 mW
- Beam shapes
- Line
- Line quality
- Uniform
Safety
- Laser class
- OEM
Thermal
- Operating temperature
- -10°C to +40°C
Mechanical
- IP rating
- IP54
- Dimensions
- Ø19 mm × 89.5 mm
- Weight
- 48 g
Electrical
- Control
- Digital
- Interface
- Digital — Fixed / Analog / TTL (0–100 kHz)
Performance
- Pointing stability
- ±3%
- Boresight accuracy
- <3 mrad
Application
- Best for
- 3D scanning, adjustable working distance
Media
Request a quote or talk to an applications engineer
Tell us about your application and we will confirm the right product and configuration, or specify a variant outside the catalogue.
