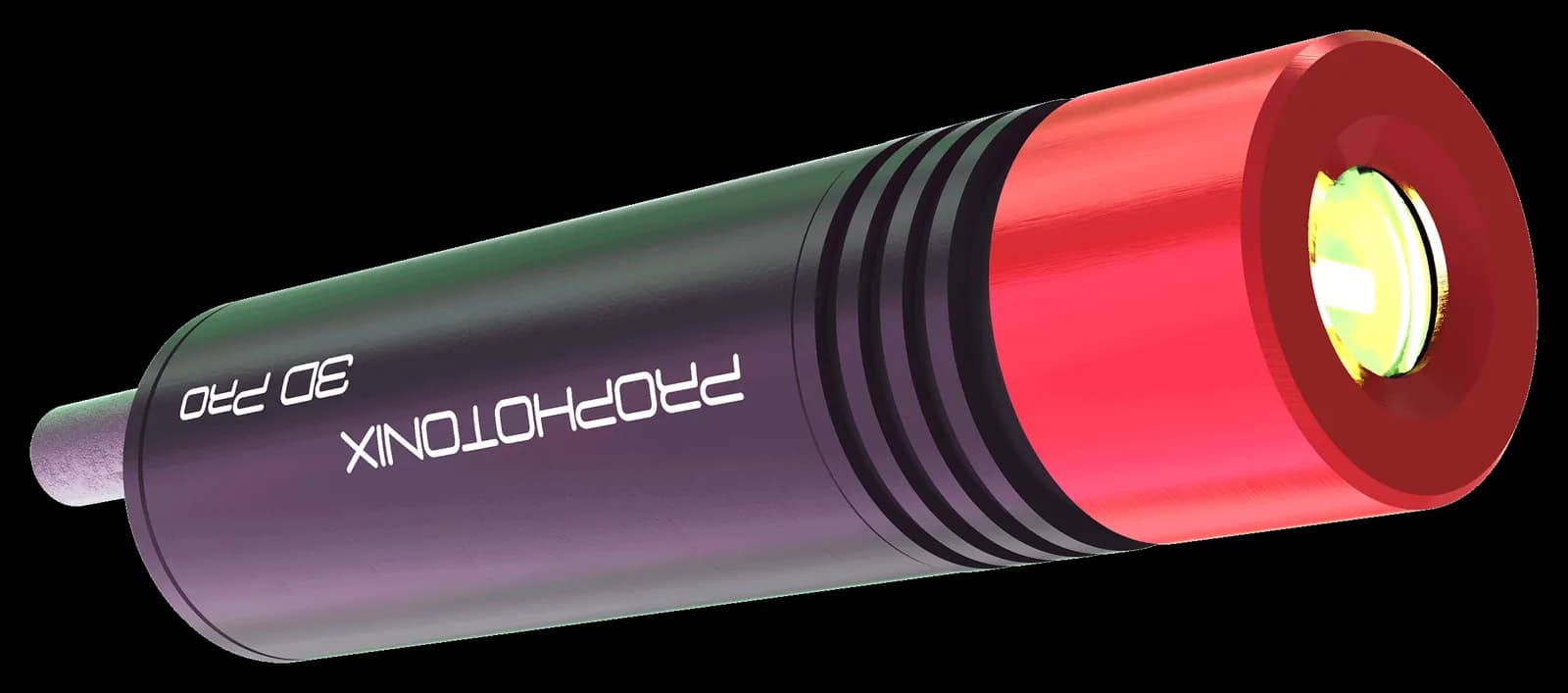

3D PRO Fixed Focus
3D PRO Fixed FocusStructured-light laser for 3D metrology, Ø19mm, up to 100 Mw.
- Wavelength range
- 375–950 nm
- Max output power
- Up to 100 mW
- IP rating
- IP56
About the 3D PRO Fixed Focus
Introduction
3D PRO Fixed Focus is the same uniform line as the adjustable version, with the focus set during manufacture to your working distance.
Fixing it buys three things: 75 mm instead of 89.5, 45 g instead of 48, and IP56 instead of IP54 — because a focus ring is a moving joint, and a moving joint is where water gets in.
Specify the working distance
Because focus is set in manufacture, the working distance is part of the order, not a commissioning step. Getting it wrong means a new module rather than an adjustment.
Where it fits
Choose this over 3D PRO Adjustable Focus when the distance is known and the installation is wet or dusty. 3D PRO Mini goes smaller again at 12 g, with tighter boresight but far less power.
Specifications
Optical
- Wavelength range
- 375–950 nm
- Max output power
- Up to 100 mW
- Beam shapes
- Line
- Line quality
- Uniform
Safety
- Laser class
- OEM
Thermal
- Operating temperature
- +10°C to +40°C
Mechanical
- IP rating
- IP56

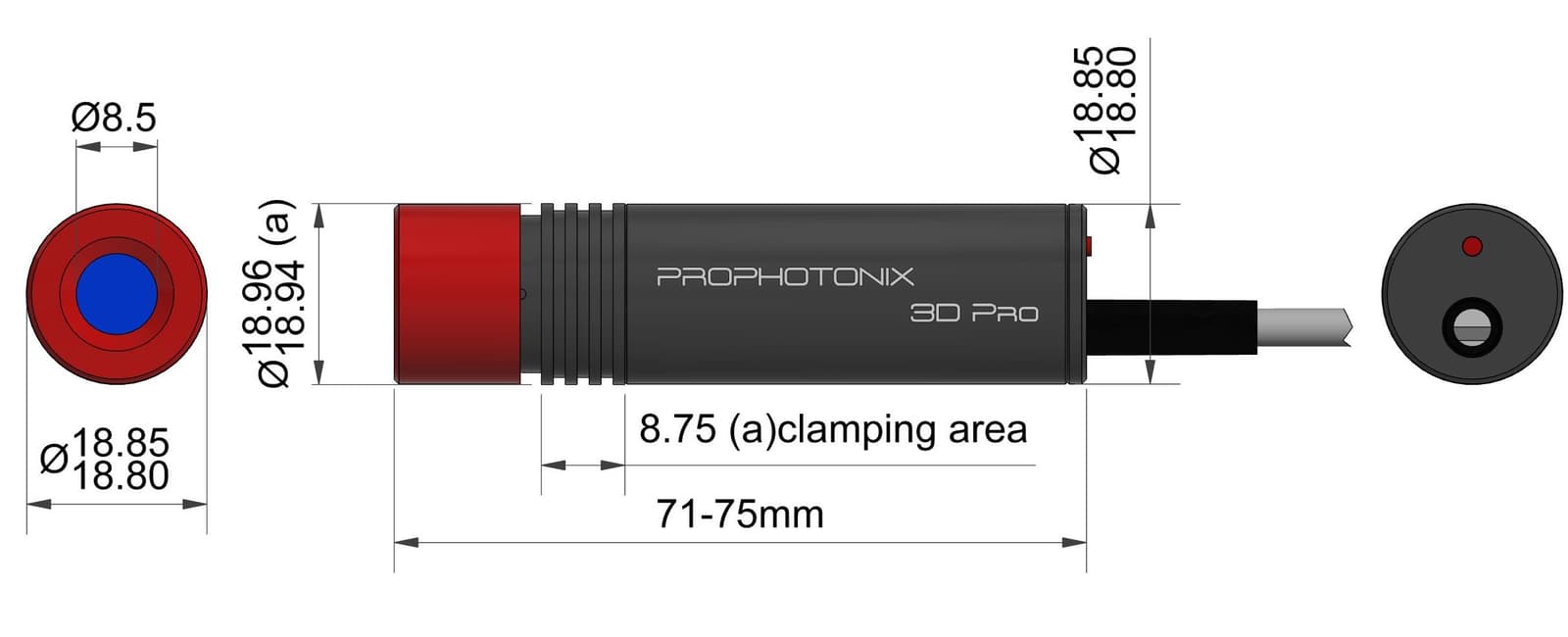

- Dimensions
- Ø19 mm × 75 mm
- Weight
- 45 g
Electrical
- Control
- Digital
- Interface
- Digital — Fixed / Analog / TTL (0–100 kHz)
Performance
- Pointing stability
- ±3%
- Boresight accuracy
- <3 mrad
Application
- Best for
- 3D scanning, fixed working distance
Media
Request a quote or talk to an applications engineer
Tell us about your application and we will confirm the right product and configuration, or specify a variant outside the catalogue.
