Advanced Illumination · BAR LIGHTS
AL116 High Dispersion Wide Bar Light
AI-AL116-WWide-body bar for broad area coverage, 18,300 Lux, polarizer options - diffuse-style bar lighting
- Wavelengths available
- WHI, 365 - 940
- Supply voltage
- 24V DC
- Ip rating
- IP50 or IP65
About the AI-AL116-W

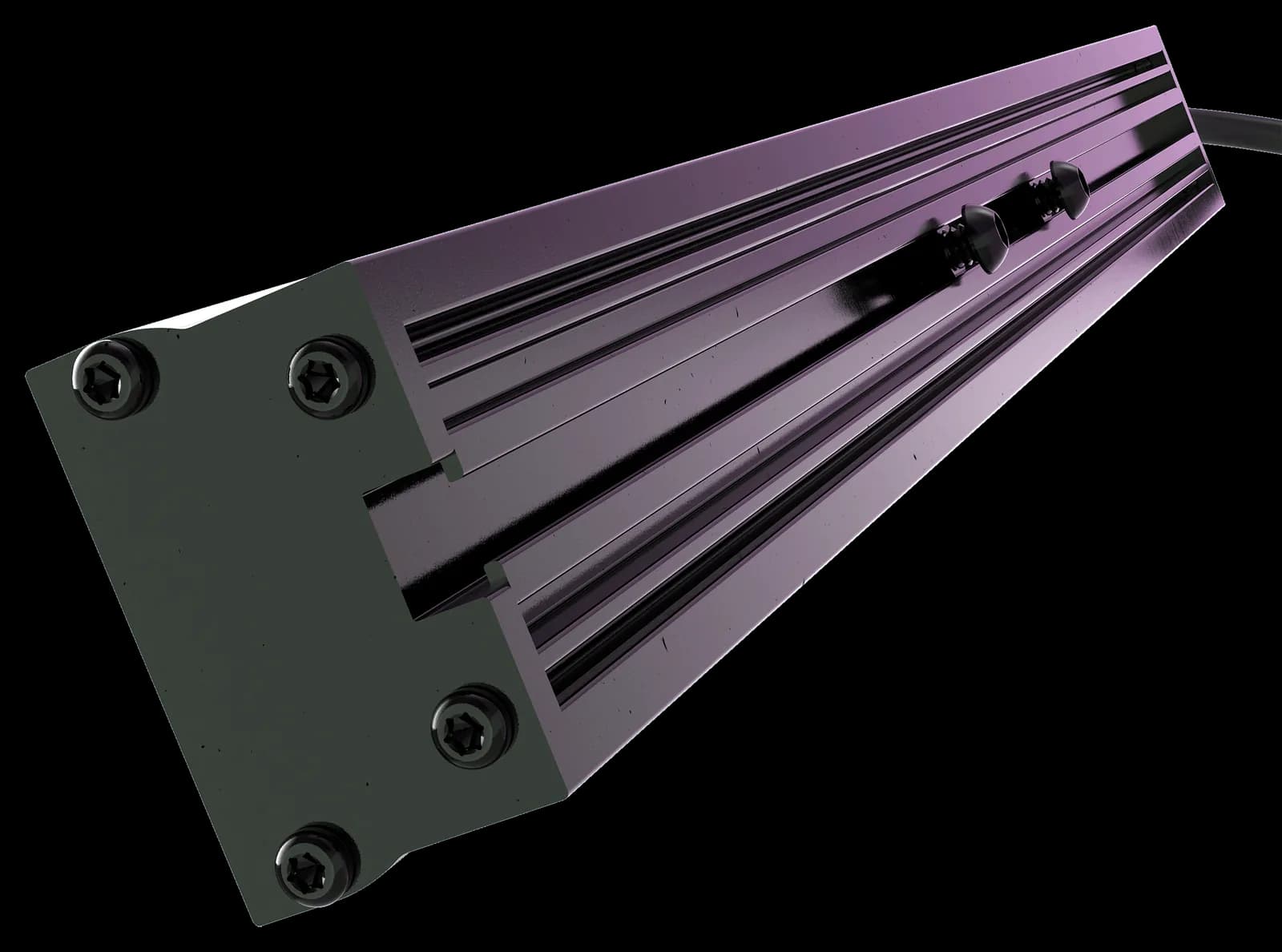

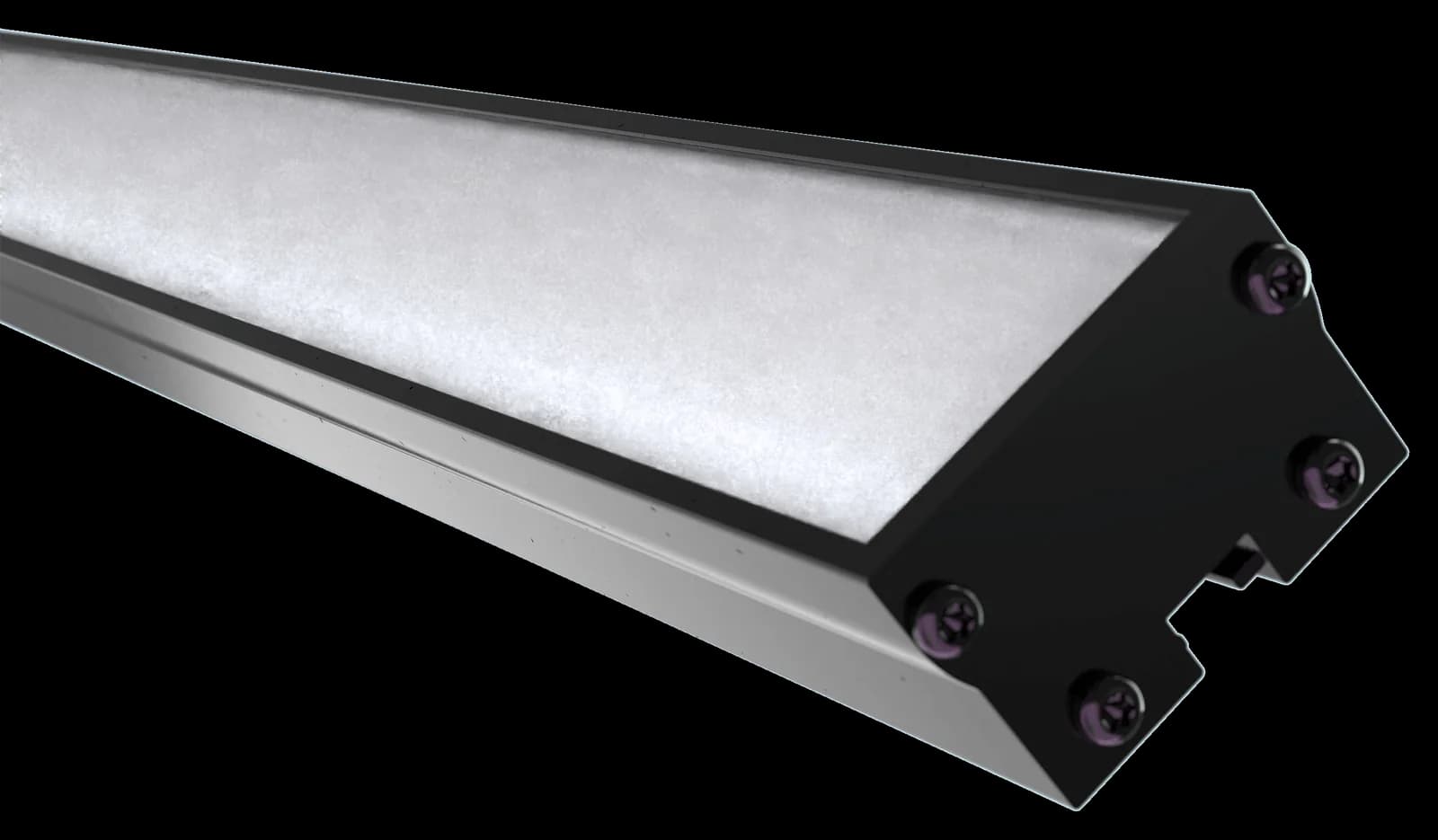

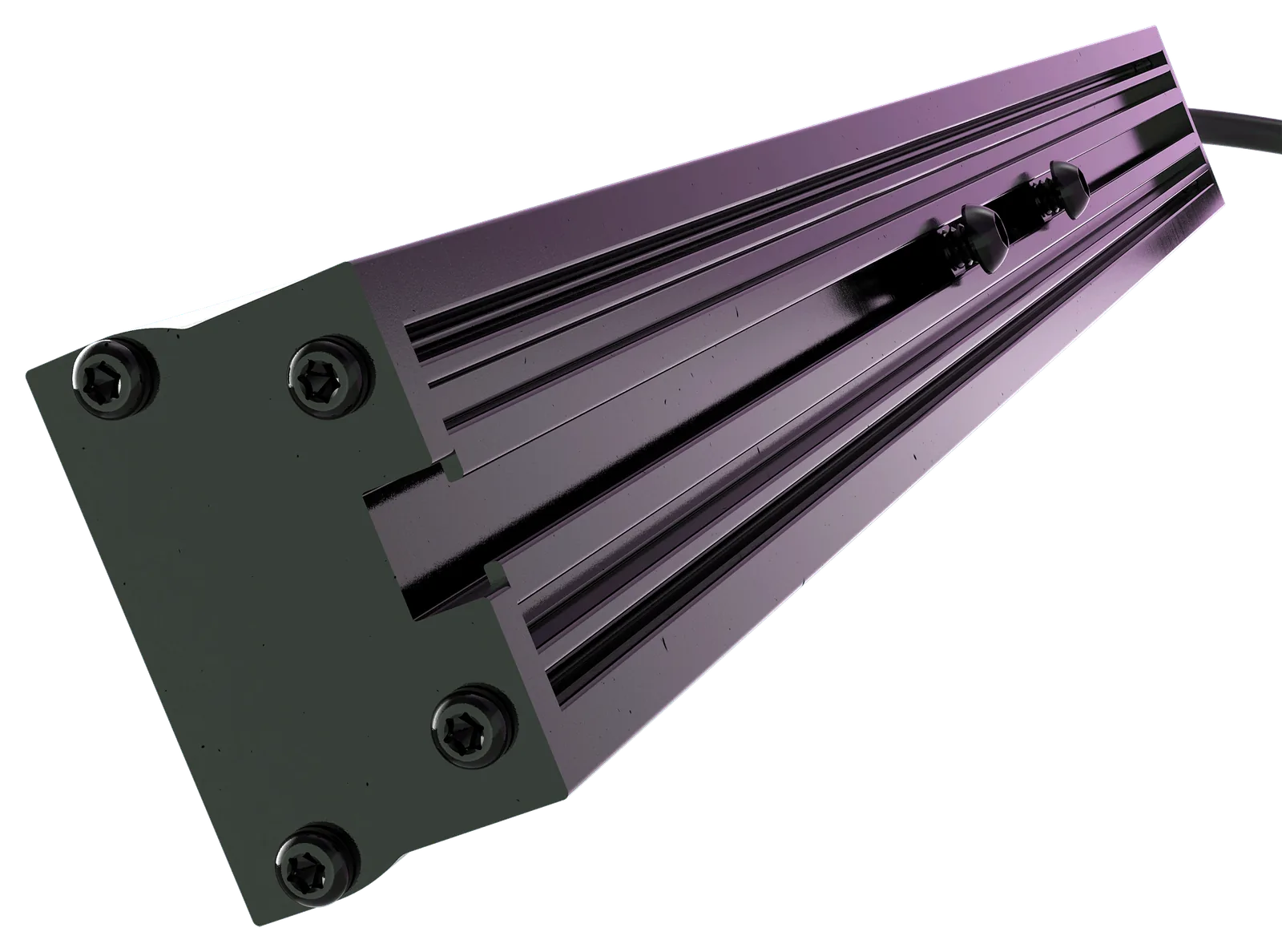

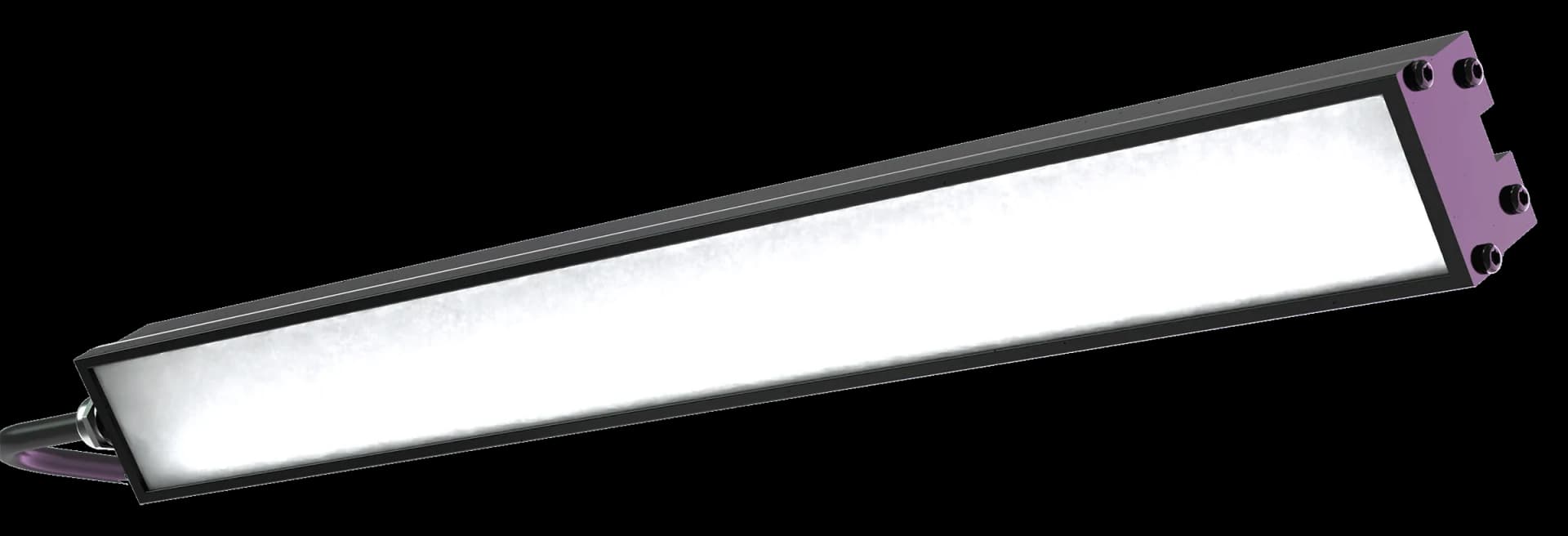

The AL116 is a high dispersion wide bar light for machine vision applications that are sensitive to harsh shadows and specular reflections. Its extrusion-based aluminium housing scales across the length range while holding structural rigidity, so a long light stays straight and keeps its alignment on a frame.
The AL116 carries twice the LED count of the narrower AL126 in a 32.2 by 20.0 mm profile, giving more intensity across a wider area. Its diffuse output suits close working distances, with no intensity hotspots on the target. Lengths run 80.1 to 537.2 mm, and an M4 mounting nut channel on the base allows position to be adjusted anywhere along the run.
Thirteen wavelengths are available from 365 to 940 nm plus white, with a diffuser or polarizer for further control. Weight is about 852 g per 4 inch of length. The AL116 range is rated for 25 to 60 degrees C case and 0 to 35 degrees C ambient, carries CE, RoHS and IEC 62471, holds L70 at 50,000 hours on white, and is offered unsealed or at IP65.
Specifications
Maximum Illuminance / Irradiance
- Max illuminance typ klux
- 32.3 klx @ 100mm (White, IC) — 12-in unit
- Max irradiance typ wm2
- 110.3 W/m² @ 100mm
- Measurement reference
- 12-in white AL116 @ 100mm
Available Wavelengths
- Wavelengths available
- WHI, 365, 375, 385, 395, 405, 455, 470, 530, 590, 625, 850, 940 (13 WL)
Lens / Optics
- Lens type
- No lenses (high dispersion) — 70° beam angle
- Light conditioning options
- Diffuser (D), Polarizer (P)
- Min working distance
- 12mm
- Working distance range
- 12–600mm shown
Mechanical
- Unit length range
- 3.15–21.15 in (80–537 mm), 10 sizes
- Width
- 32.2 mm
- Height
- 20.0 mm
- Weight per unit
- ~852 g per 4-in unit
- Ip rating
- IP50 or IP65
- Mounting
- M4 mounting nut channel
- Lumen maintenance
- L70 = 50,000 Hours
Electrical
- Input voltage
- 24V DC nom.
- Operating temp
- 0–60°C
- Current 24v uv vis
- 0.006A/linear in (24V); 0.120A/linear in (controller)
- Current 24v red ir
- Same — 0.006A/in (24V) / 0.120A/in (controller)
- Std cable length
- 2m
- Cable spec
- 2m ±150mm, 105°C PVC jacket, foil shield w/ drain
- Supply voltage
- 24V DC
Control Interfaces
- Control options
- C1, C5, IC, I3, I3S, I4, 24V
- Analogue control
- Yes (IC/I3/I3S/I4)
- Strobe capability
- Yes — I3/I3S/I4 (5×) or C5 Pulsar 320E (10×)
- Connector options
- Flying leads (std); M12 (IC/I3/I3S/I4/24V); M8 (IC/I3/I3S/I4/24V)
- Compliance
- CE, RoHS, IEC 62471
Optical
- Wavelength / colour
- White, 365, 375, 385, 395, 405, 455, 470, 530, 590, 625, 850, 940 nm
- Beam
- Wide dispersion
- Intensity
- Med
- Irradiance
- 18,300 Lux
Environmental
- Operating temperature
- 0 to +60°C
Application
- Applications
- Inspection / Machine Vision
