AL126
AI-AL126-WNarrow high-dispersion bar, 60° beam, diffuser/polarizer.
- Wavelengths available
- WHI, 365 - 940
- Ip rating
- IP50 or IP65
- Lumen maintenance
- L70 = 50,000 Hours
About the AI-AL126-W

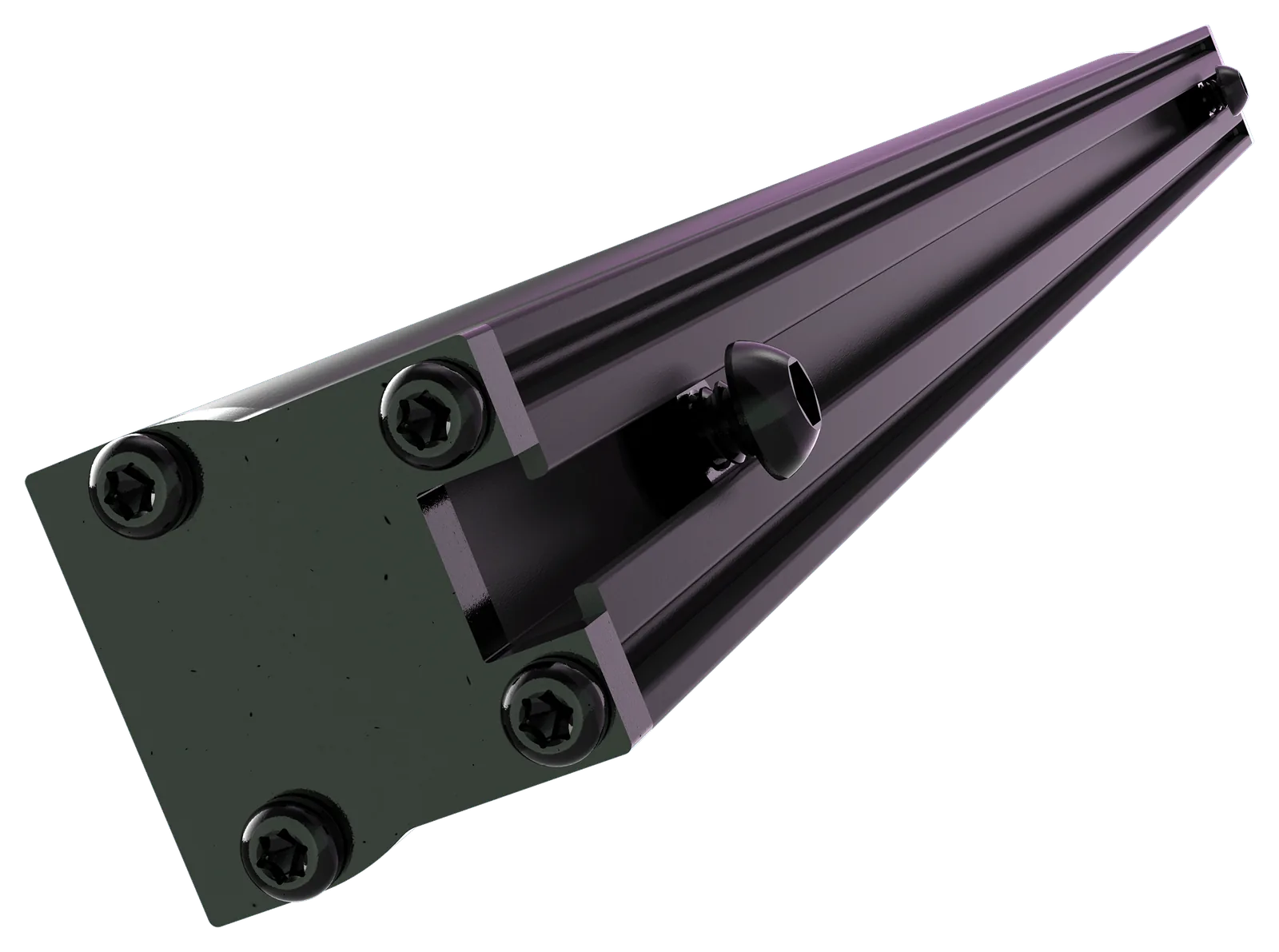

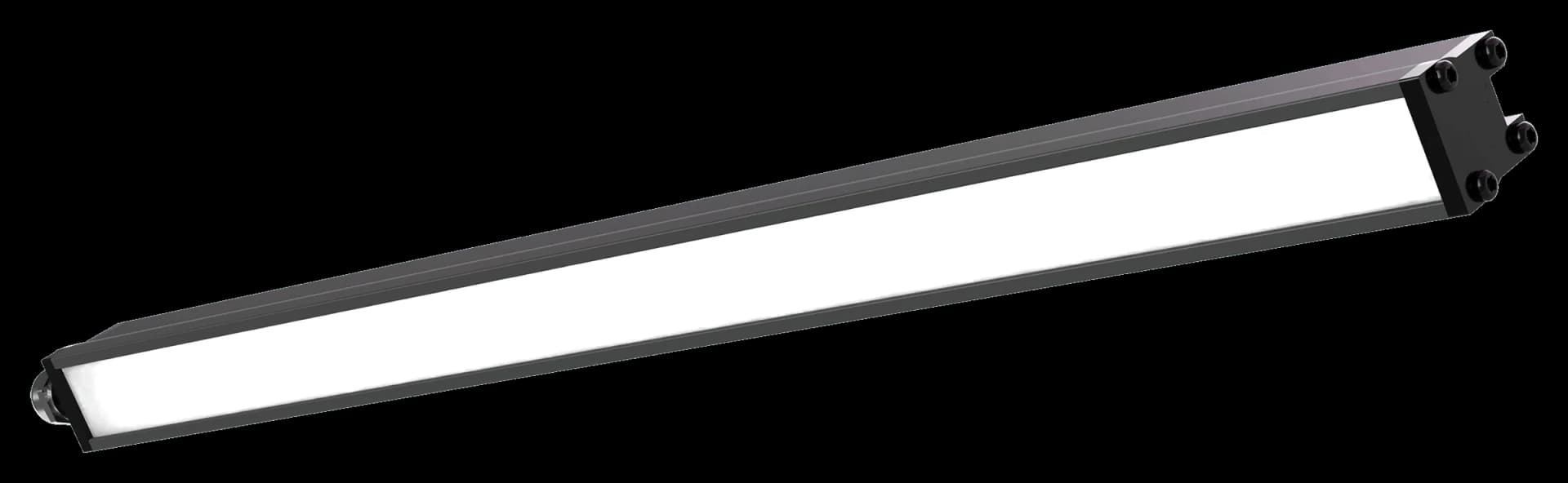

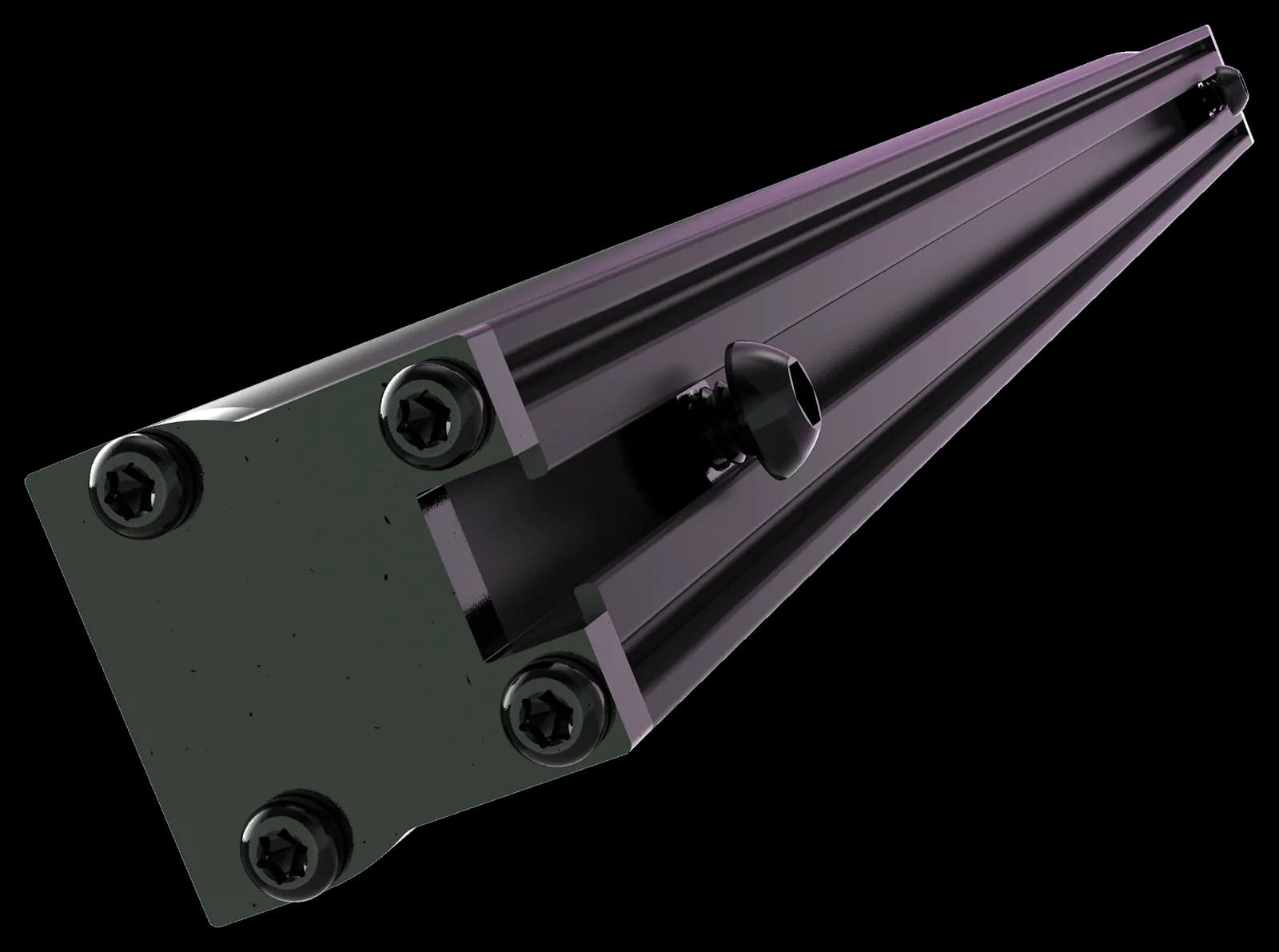

The AL126 is a high dispersion narrow bar light for machine vision work that needs soft, scattered illumination from a slim fixture. A 20.0 by 20.0 mm profile fits the tight gaps beside a conveyor or inside a machine guard where a wider bar will not go.
Weight is about 63 g per 4 inch of length, light enough to mount on a robot arm or a moving gantry without a bracket redesign. Lengths run 80.1 to 537.2 mm on an M4 mounting nut channel, so the emitting length can be matched to the part and the fixture positioned anywhere along its own base.
Thirteen wavelengths are available from 365 to 940 nm plus white, with a diffuser or polarizer to cut specular return. The AL126 range is rated for 25 to 60 degrees C case and 0 to 35 degrees C ambient, carries CE, RoHS and IEC 62471, holds L70 at 50,000 hours on white, and comes at IP50 or IP65 for wash-down positions.
Specifications
Maximum Illuminance / Irradiance
- Max illuminance typ klux
- 14.1 klx @ 100mm (White, IC) — 12-in unit
- Max irradiance typ wm2
- 48.2 W/m² @ 100mm
- Measurement reference
- 12-in white AL126 @ 100mm
Available Wavelengths
- Wavelengths available
- WHI, 365, 375, 385, 395, 405, 455, 470, 530, 590, 625, 850, 940 (13 WL)
Lens / Optics
- Lens type
- No lenses (high dispersion) — 60° beam angle
- Light conditioning options
- Diffuser (D), Polarizer (P)
- Min working distance
- 12mm
- Working distance range
- 12–600mm shown
Mechanical
- Unit length range
- 3.15–41.15 in (80–1045 mm), 20 sizes
- Width
- 20.0 mm
- Height
- 20.0 mm
- Weight per unit
- ~63 g per 4-in unit
- Ip rating
- IP50 or IP65
- Mounting
- M4 mounting nut channel
- Lumen maintenance
- L70 = 50,000 Hours
Electrical
- Input voltage
- 24V DC nom.
- Operating temp
- 0–60°C
- Current 24v uv vis
- 0.012A/linear in (UV 365–405nm); 0.012A/linear in (vis 455+)
- Current 24v red ir
- 0.012A/linear in (all wavelengths)
- Std cable length
- 2m
- Cable spec
- 2m ±150mm, 105°C PVC jacket, foil shield w/ drain
Control Interfaces
- Control options
- C1, C5, IC, I3, I3S, I4, 24V
- Analogue control
- Yes (IC/I3/I3S/I4)
- Strobe capability
- Yes — I3/I3S/I4 (5×) or C5 Pulsar 320E (10×)
- Connector options
- Flying leads (std); M12 (IC/I3/I3S/I4/24V); M8 (IC/I3/I3S/I4/24V)
- Compliance
- CE, RoHS, IEC 62471
Media
