Advanced Illumination · BAR LIGHTS
AL150
AI-AL150-WBALA broad-area bar light for wide-field lighting, one continuous fixture up to 2,095mm; six wavelengths.
- Wavelengths available
- WHI, 395 - 880
- Ip rating
- IP50
- Lumen maintenance
- L70 = 50,000 Hours
About the AI-AL150-W

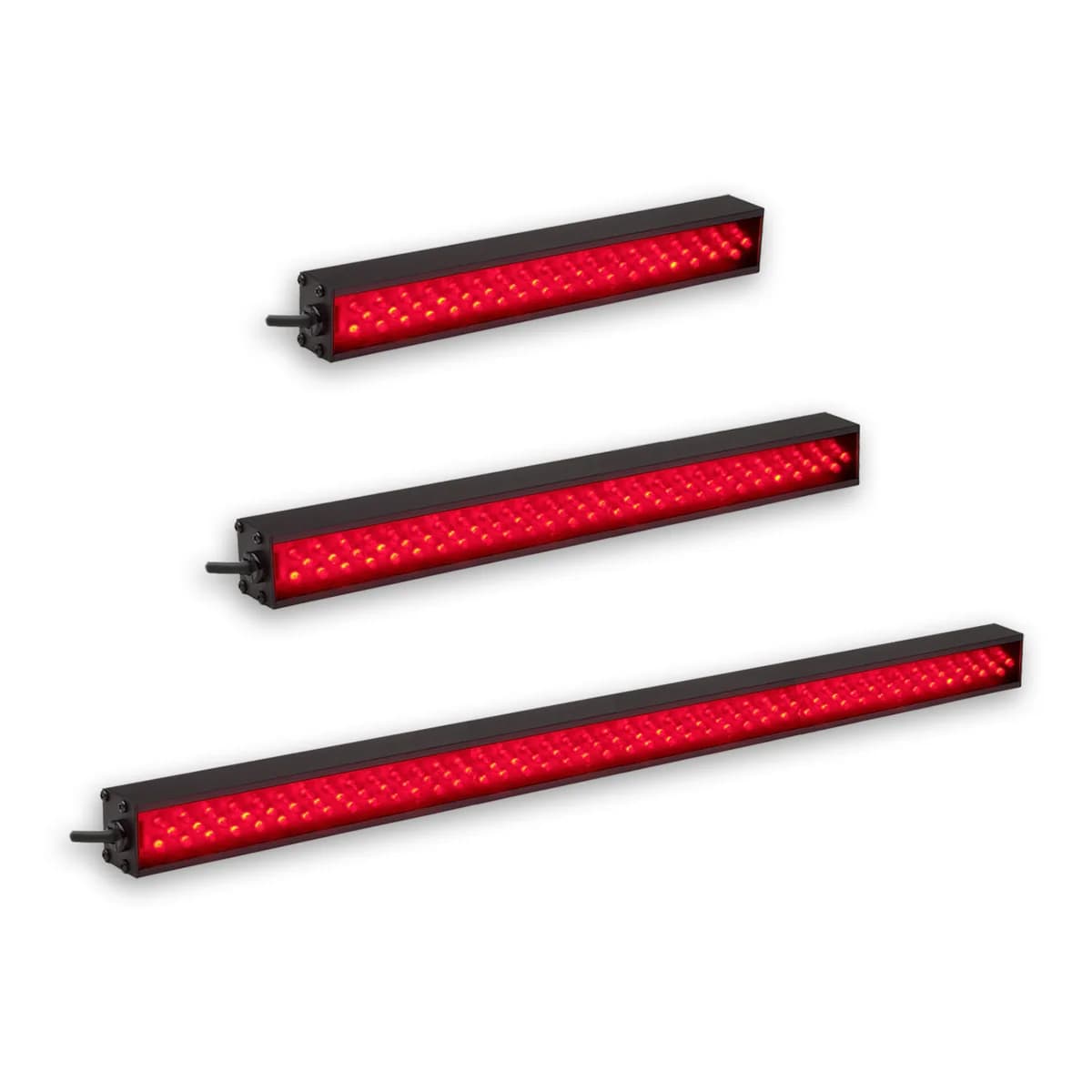

The AL150 is a BALA bar light for inspection lines that need one continuous strip of illumination across a wide target. Lengths reach 2095.1 mm in a single fixture, so a web, a conveyor or a long assembly is lit without butting several lights together and dealing with the seams between them.
A 38.8 by 28.4 mm extrusion gives the mass to spread heat along the run, and an M6 mounting nut channel takes the heavier brackets a long light needs. The shortest length is 47.6 mm, so the same series covers a small station and a full-width web.
Six wavelengths are available, white plus 395, 470, 520, 625 and 880 nm, with a diffuser or polarizer for shadow and reflection control. The AL150 is rated IP50 and runs at 25 to 60 degrees C case and 0 to 35 degrees C ambient. It carries CE, RoHS and IEC 62471, and white versions hold L70 at 50,000 hours.
Specifications
Maximum Illuminance / Irradiance
- Max illuminance typ klux
- 6.2 kLux typ @ 25mm (660nm, C5) — AL4554
- Max irradiance typ wm2
- 96 W/m² @ 25mm
- Measurement reference
- AL4554-660C5 @ 25mm
- Strobe multiplier
- Up to 5× (I3/I3S/I4); up to 10× (Pulsar 320E / C5)
Available Wavelengths
- Wavelengths available
- WHI, 395, 470, 520, 625, 880
- Wavelength notes
- 395nm not available with diffuser or polarizer
- Colour temp white k
- 6000K
Lens / Optics
- Lens type
- Aimed (no lens code) — oblique illumination
- Light conditioning options
- Diffuser (D), Polarizer (P)
- Min working distance
- 12.5mm
- Working distance range
- 12.5 - 75mm
Mechanical
- Unit length range
- 1.5–82.1 in (38–2086 mm), 80 sizes
- Width
- 33.8 mm
- Height
- 28.4 mm
- Weight per unit
- Varies by size
- Ip rating
- IP50
- Mounting
- M6 nut channel
- Lumen maintenance
- L70 = 50,000 Hours
Electrical
- Input voltage
- 24V DC nom.
- Operating temp
- 0–60°C
- Current 24v uv vis
- 0.08A (395,470,520,WHI)
- Current 24v red ir
- 0.10A (625,660,880nm)
- Std cable length
- 2m
- Cable spec
- 2m ±150mm, 105°C PVC jacket, foil shield w/ drain
Control Interfaces
- Control options
- C1, C5, IC, I3, I3S, I4, 24V
- Analogue control
- Yes (IC/I3/I3S/I4)
- Strobe capability
- Yes — I3/I3S/I4 (5×) or C5 Pulsar 320E (10×)
- Connector options
- Flying leads (std); M12 (IC/I3/I3S/I4/24V); M8 (IC/I3/I3S/I4/24V)
- Compliance
- CE, RoHS, IEC 62471
