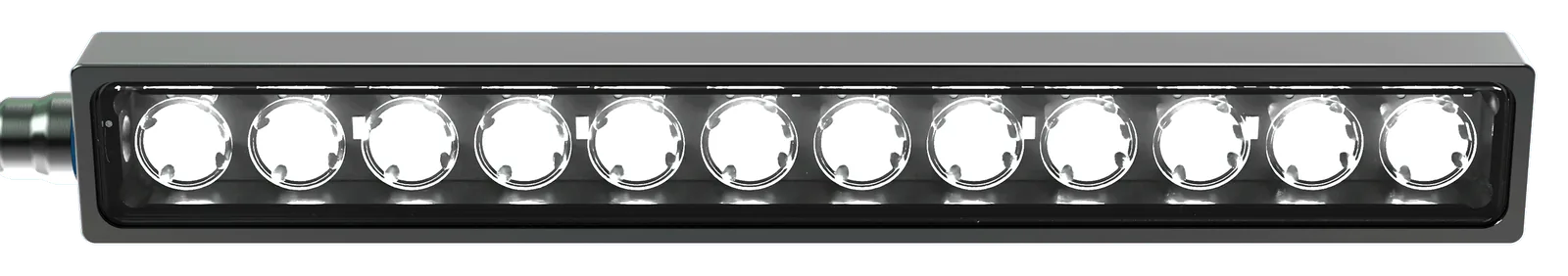

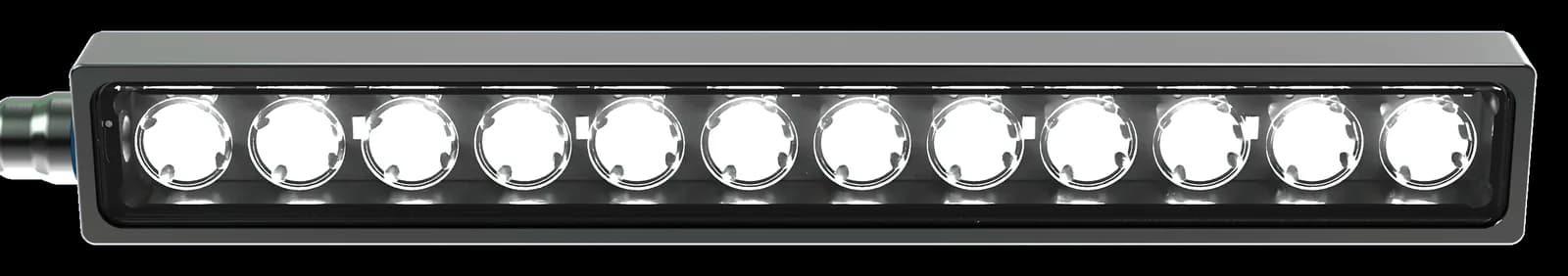

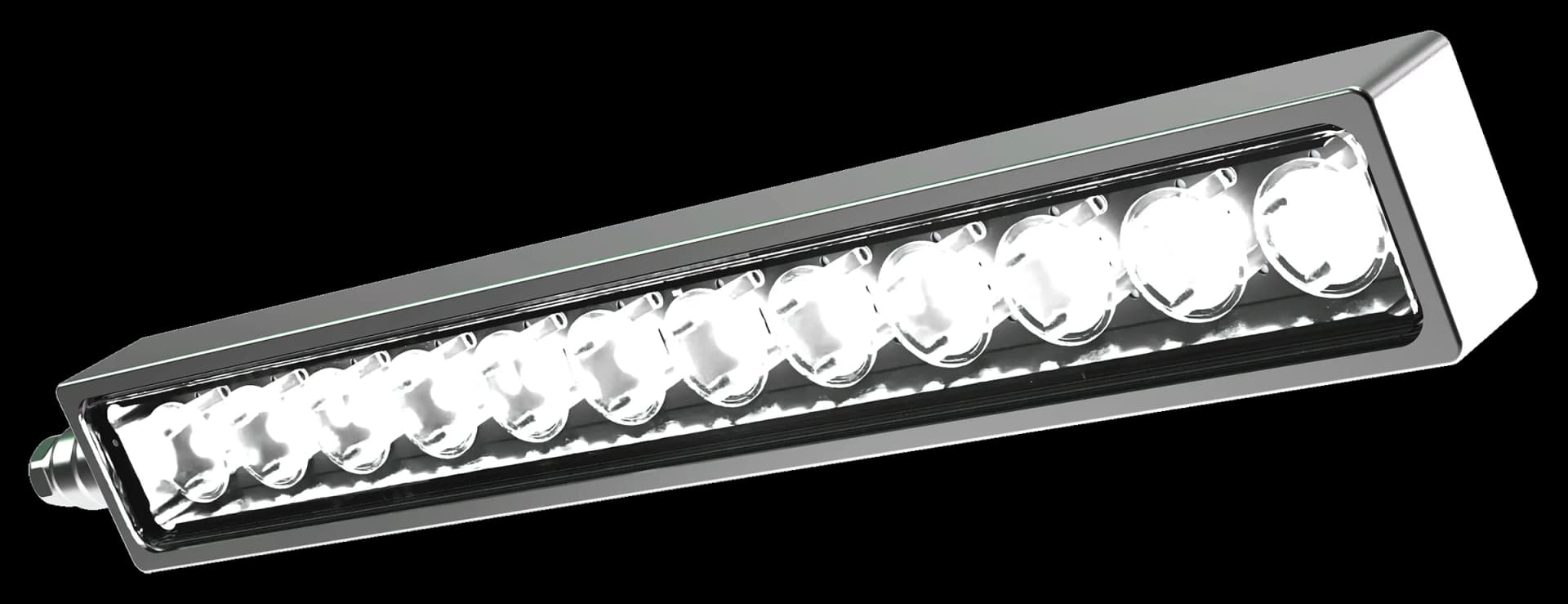

AL247 UltraSeal™ Bar Light
AI-AL247-WBar light engineered for extreme washdown.
- Wavelengths available
- WHI, 455 - 940
- Supply voltage
- 24V DC
- Ip rating
- IP69K
About the AI-AL247-W
The AL247 is an UltraSeal bar light for food, beverage and pharmaceutical lines where the fixture is cleaned with the equipment around it. An IP69K rating covers high-pressure hot water wash-down, so the light stays in place through a full sanitation cycle.

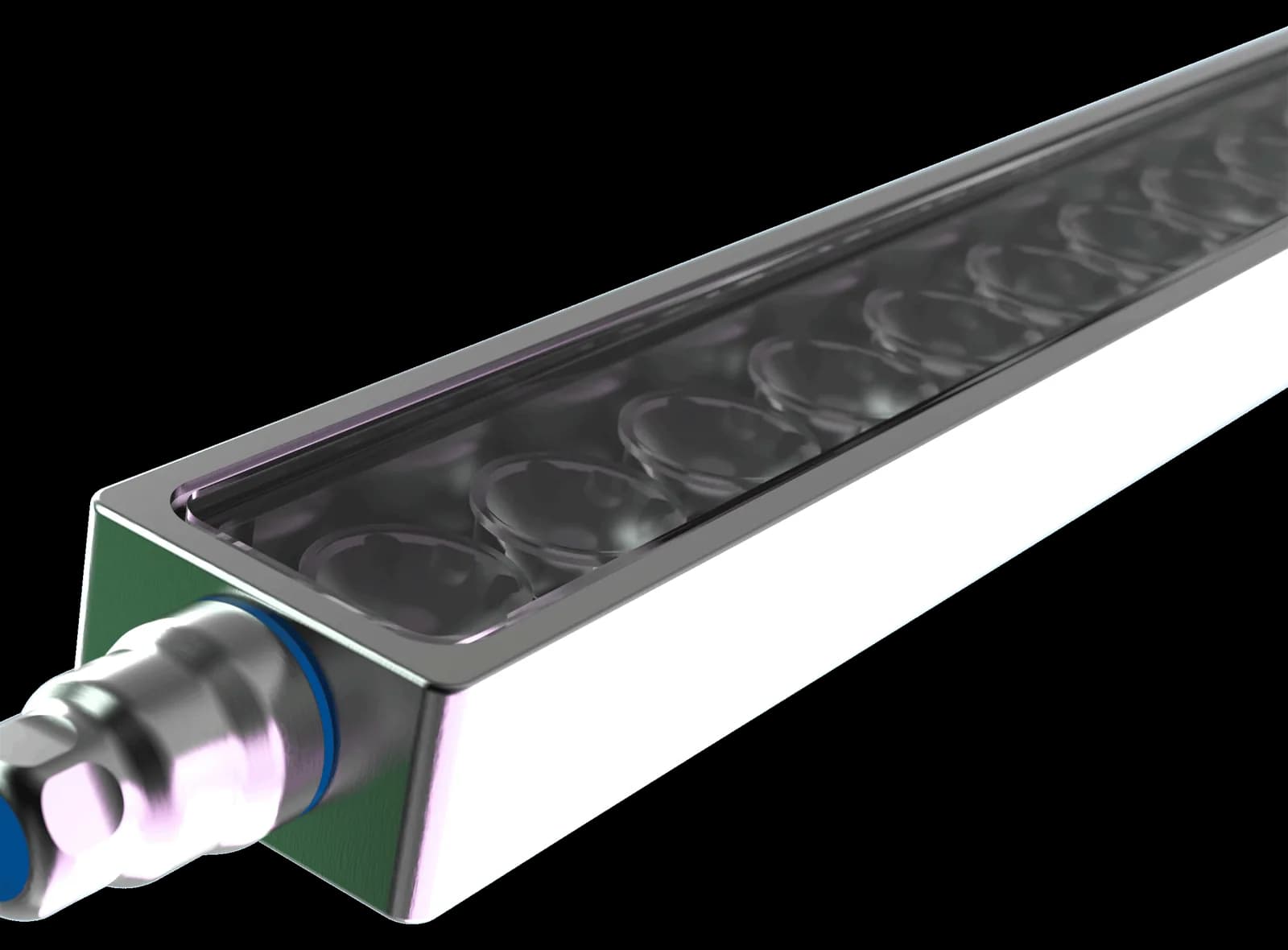

A stainless steel housing option with 18-8 stainless fasteners, a stainless strain relief and rubberised epoxy sealing suits the detergents used in those plants. The 42.9 by 24.0 mm body runs 206.25 to 663.45 mm long on M4 mounting holes, and weighs about 417 g per 6 inch of length.
Eleven wavelengths are available, white plus 455, 470, 505, 530, 590, 625, 660, 730, 850 and 940 nm. Lensing comes in narrow at 10 degrees, medium at 25 degrees or wide at 40 degrees, which sets how tightly the output falls on the belt at the working distance. The AL247 runs at 25 to 60 degrees C case and 0 to 35 degrees C ambient, carries CE, RoHS and IEC 62471, and holds L70 at 50,000 hours on white.
Specifications
Maximum Illuminance / Irradiance
- Max illuminance typ klux
- 67 klx @ 100mm (White, Medium, 12-in)
- Max irradiance typ wm2
- 218 W/m² @ 100mm
- Measurement reference
- 12-in white AL247M @ 100mm
Available Wavelengths
- Wavelengths available
- WHI, 455, 470, 505, 530, 590, 625, 660, 730, 850, 940 (11 WL)
Lens / Optics

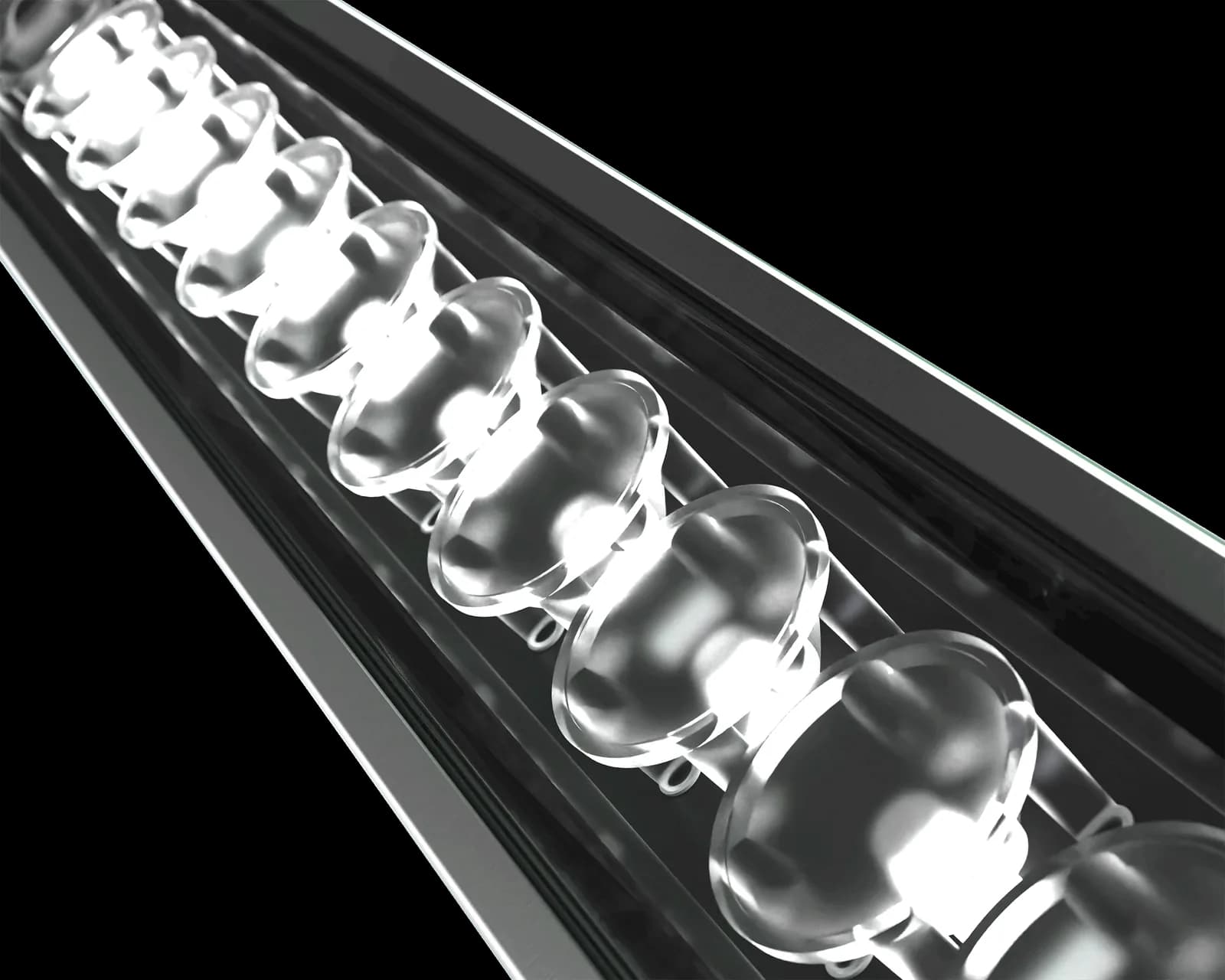

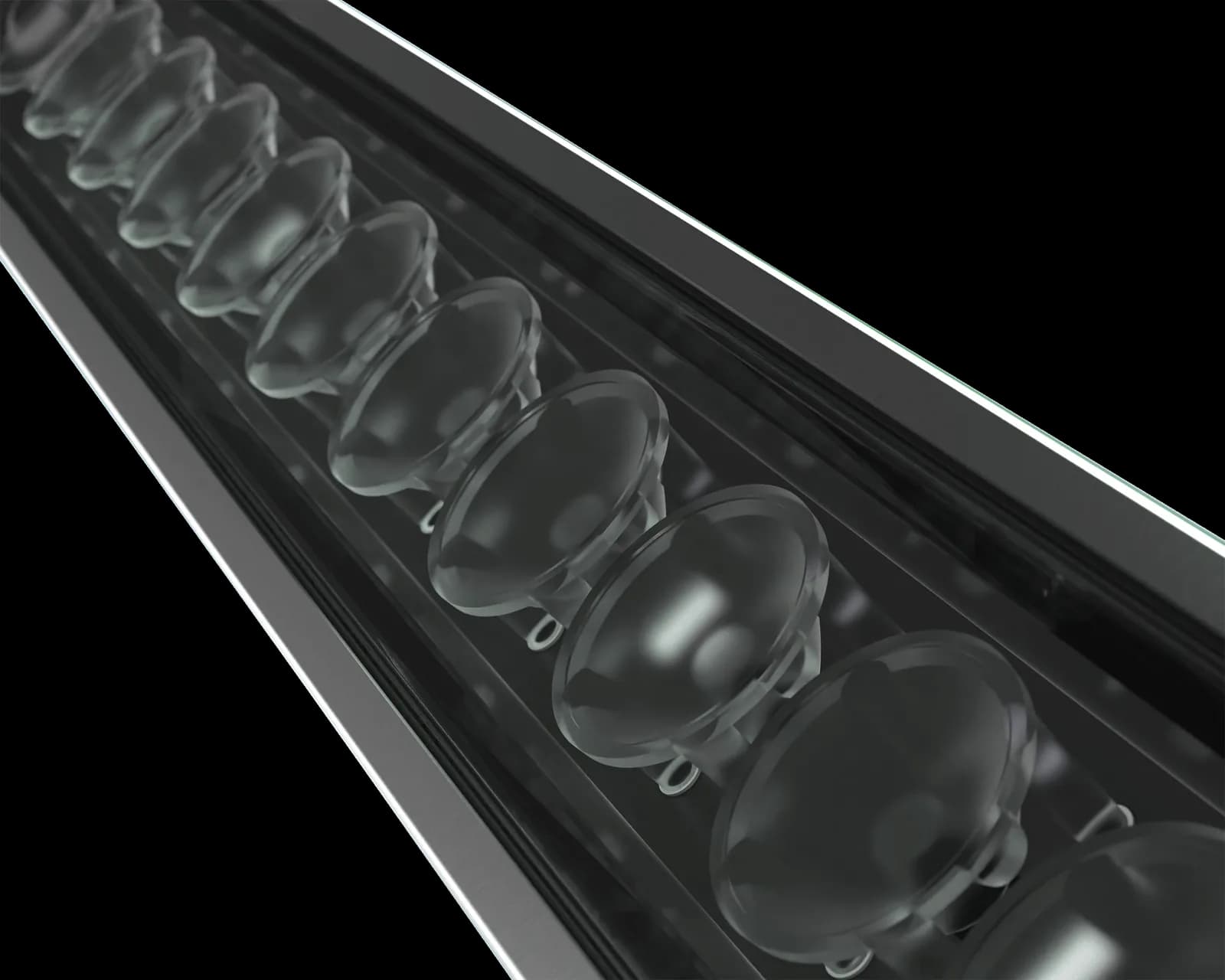

- Lens type
- Narrow (N) 10°, Medium (M) 25°, Wide (W) 40°
- Min working distance
- 37mm (Wide lens)
- Working distance range
- 37–600mm shown
Mechanical
- Unit length range
- 8.12–26.12 in (206–663 mm), 4 sizes
- Width
- 42.9 mm
- Height
- 24.0 mm
- Weight per unit
- ~417 g per 6-in unit
- Ip rating
- IP69K
- Mounting
- 4× M4 mounting holes
- Lumen maintenance
- L70 = 50,000 Hours
Electrical
- Input voltage
- 24V DC nom.
- Operating temp
- 0–60°C
- Current 24v uv vis
- 0.062A/linear in (WHI,455–530nm)
- Current 24v red ir
- 0.064A/linear in (625–940nm)
- Std cable length
- 2m
- Cable spec
- 2m ±150mm, 105°C PVC jacket, foil shield w/ drain
- Supply voltage
- 24V DC
Control Interfaces
- Control options
- C1, C5, IC, I3, I3S, I4, 24V
- Analogue control
- Yes (IC/I3/I3S/I4)
- Strobe capability
- Yes — I3/I3S/I4 (5×) or C5 Pulsar 320E (10×)
- Connector options
- Flying leads (std); M12 (IC/I3/I3S/I4/24V); M8 (IC/I3/I3S/I4/24V)
- Compliance
- CE, RoHS, IEC 62471
Optical
- Wavelength / colour
- White, 455, 470, 505, 530, 590, 625, 660, 730, 850, 940 nm
- Beam
- Scalable linear
- Intensity
- Ultra
- Irradiance
- 70,200 Lux
Environmental
- Operating temperature
- 0 to +60°C
Application
- Applications
- Inspection / Machine Vision
