Advanced Illumination · BAR LIGHTS

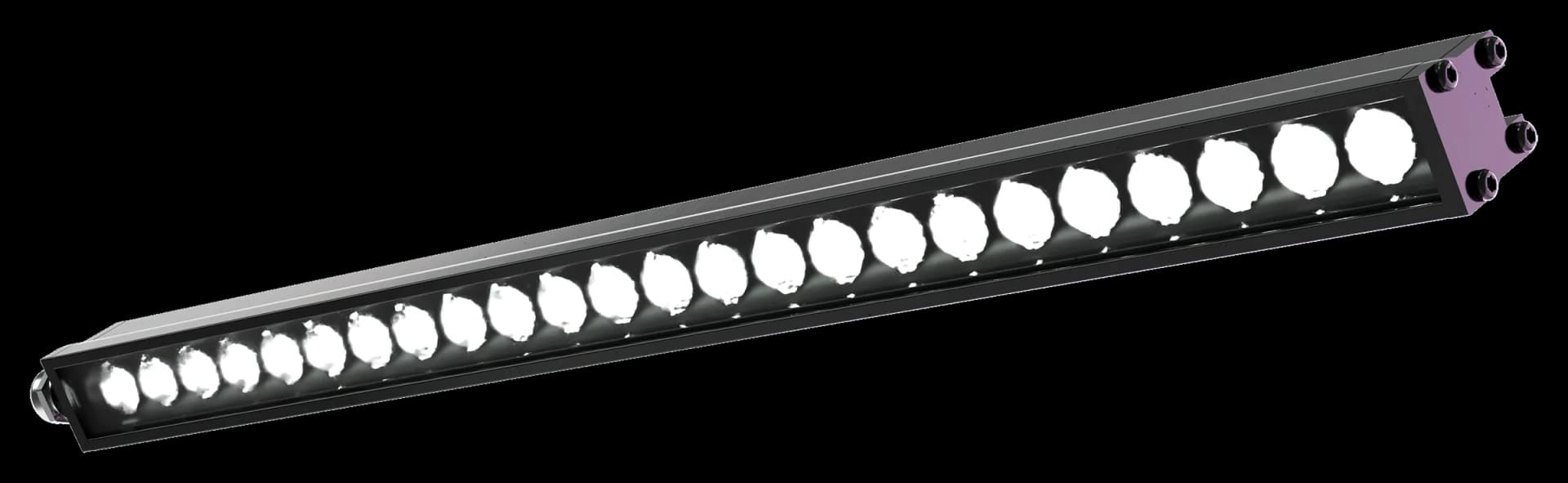

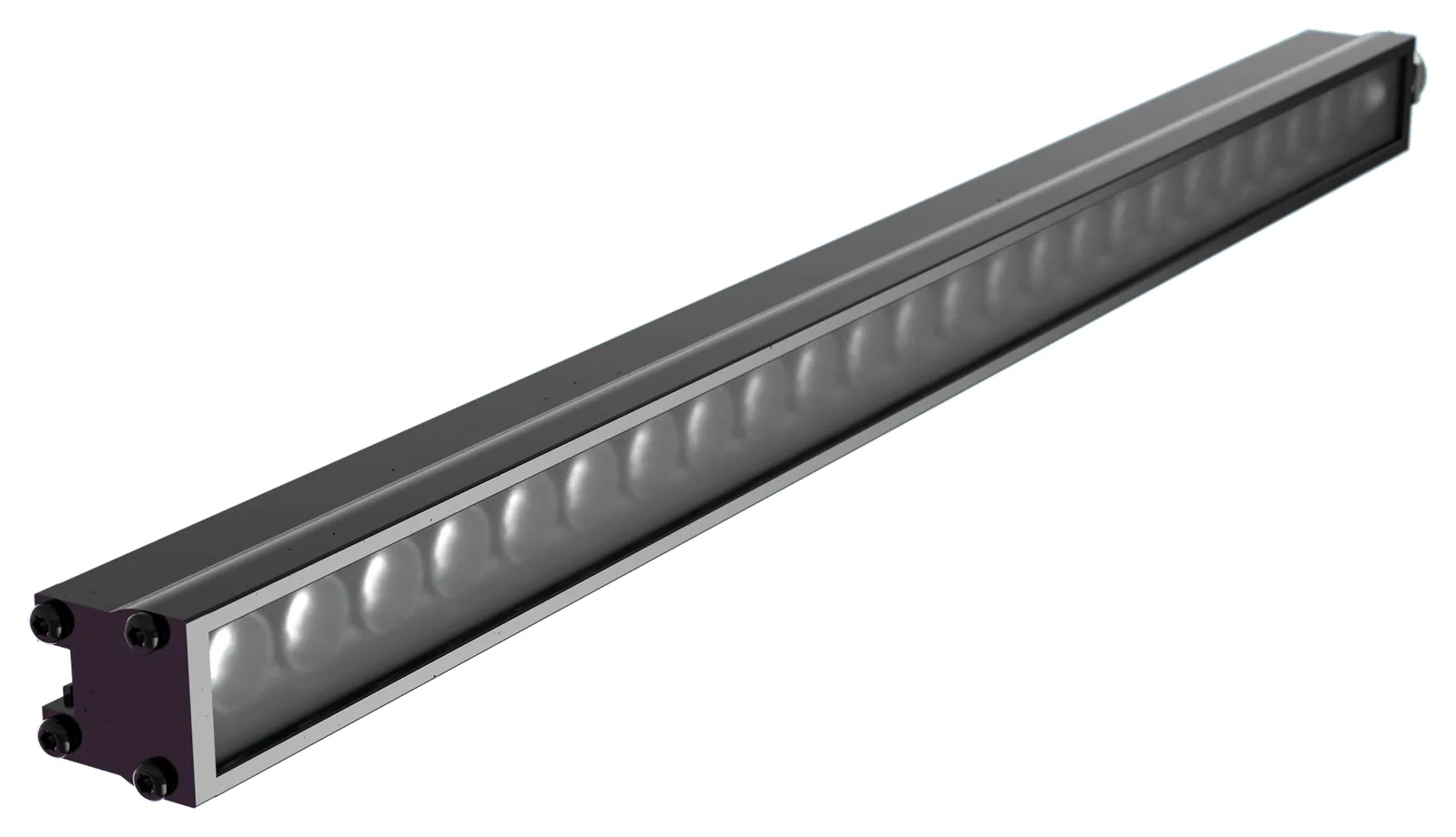

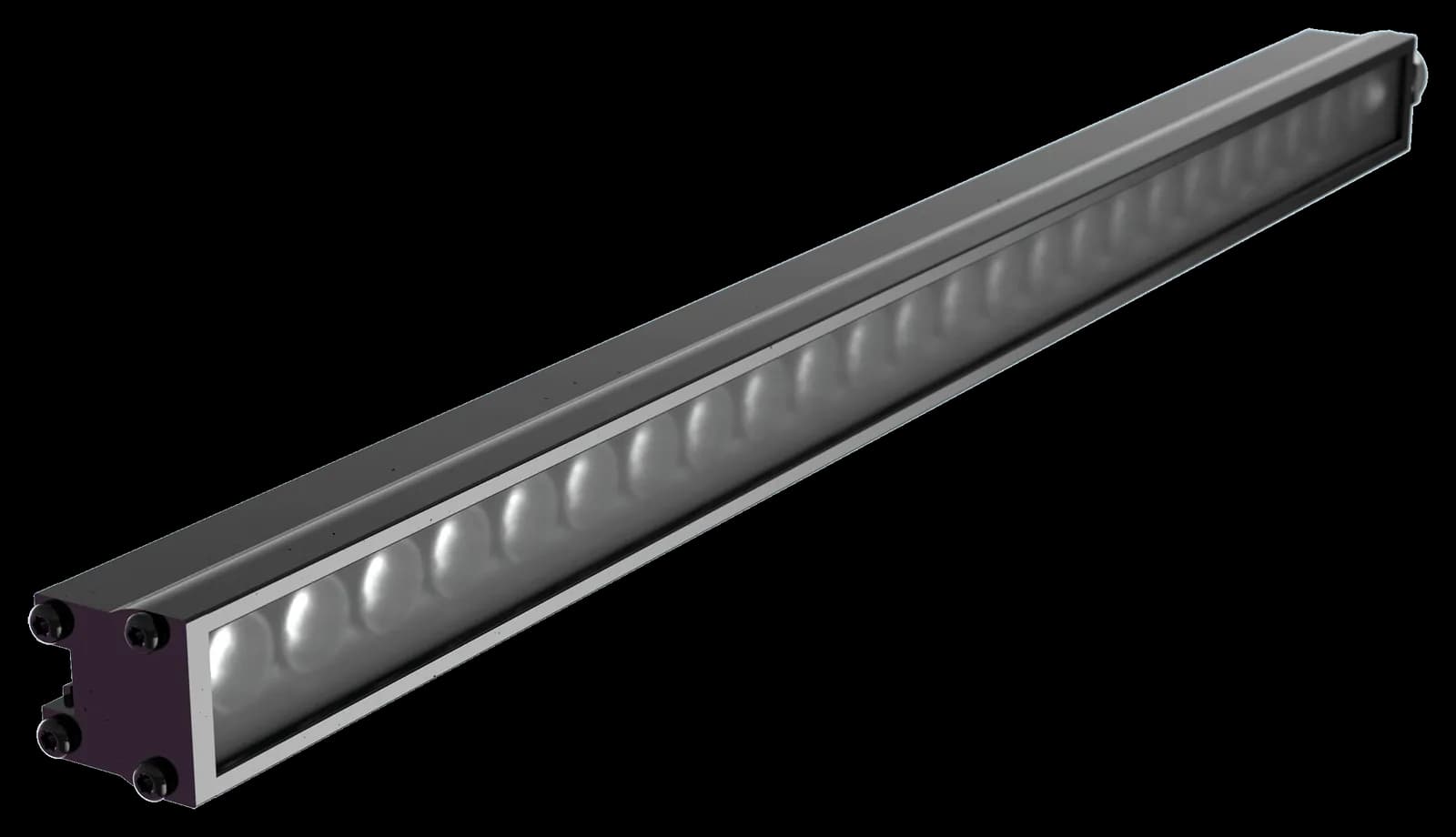

AL295 MicroBrite™ Bar Light
AI-AL295-WHigh-intensity, miniaturised bar light for short to long working distances.
- Wavelengths available
- WHI, 365 - 940
- Supply voltage
- 24V ,DC
- Ip rating
- IP50
About the AI-AL295-W
The AL295 is a MicroBrite bar light that puts high-intensity illumination into a compact, space-saving form factor. A 20.0 by 20.0 mm profile fits where a full-size bar light will not, letting the light sit close to the part inside a machine or beside a narrow conveyor.

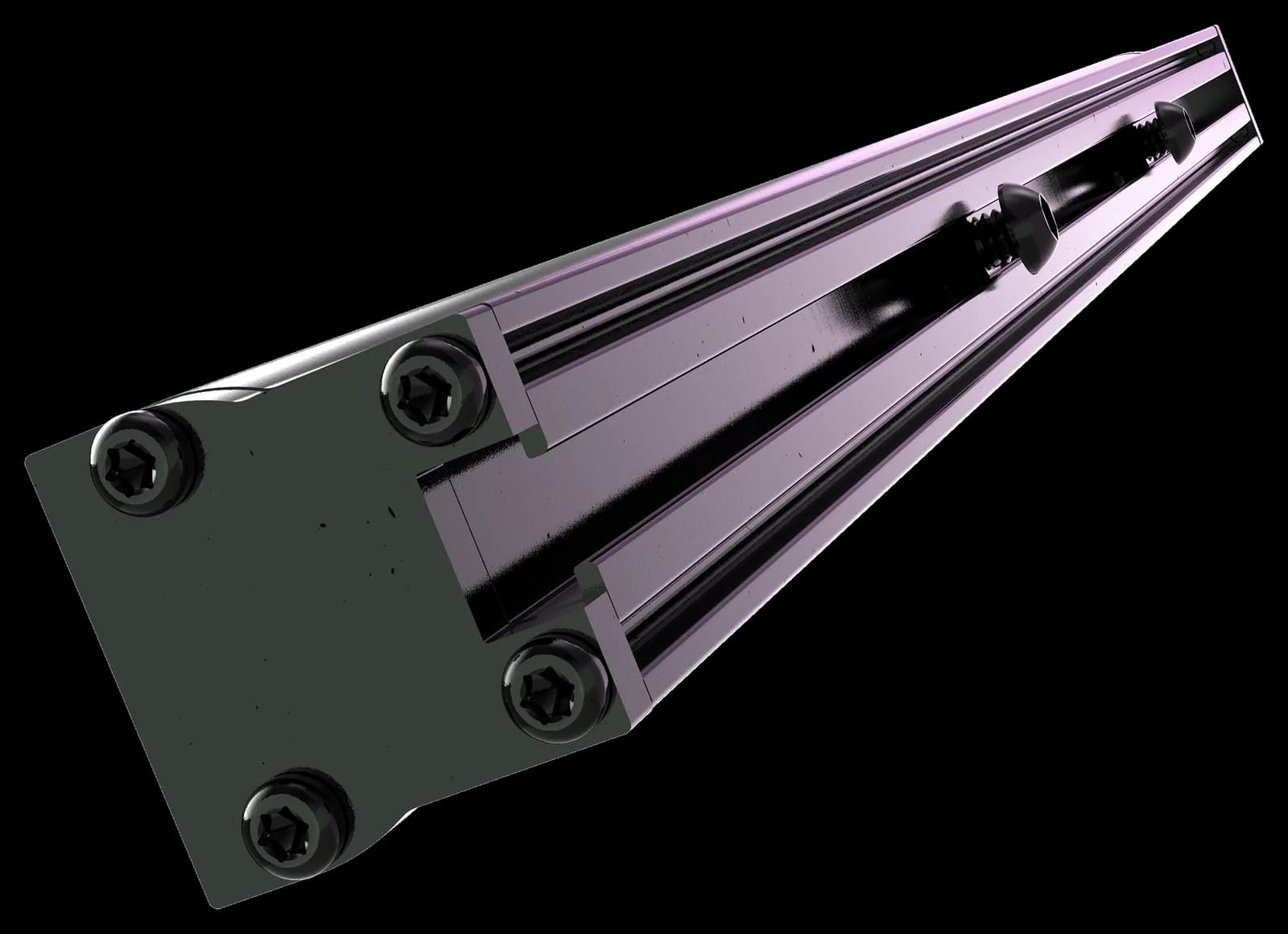

Lengths run 105.2 to 486.2 mm on an M4 mounting nut channel, so the emitting length matches the field and the fixture slides to position without drilling a new bracket. Weight is about 762 g per 150 mm of length.
Fifteen wavelengths are available from 365 to 940 nm plus white, the widest choice in the MicroBrite family, which covers UV fluorescence work through to infrared. Lensing comes as medium at 20 degrees or wide at 32 degrees, with a diffuser option to soften the output. The AL295 is rated IP50, runs at 25 to 60 degrees C case and 0 to 35 degrees C ambient, carries CE, RoHS and IEC 62471, and holds L70 at 50,000 hours on white.
Specifications
Maximum Illuminance / Irradiance
- Max illuminance typ klux
- 88 klx @ 100mm (White, Medium, 300mm unit)
- Max irradiance typ wm2
- 288 W/m² @ 100mm
- Measurement reference
- 300mm white AL295M @ 100mm
Available Wavelengths
- Wavelengths available
- WHI, 365, 375, 385, 395, 405, 455, 470, 505, 530, 590, 625, 660, 850, 940 (15 WL)
- Wavelength notes
- UV (365–405nm) not available with Wide (W) lens
Lens / Optics
- Lens type
- Medium (M) 20°, Wide (W) 32°
- Light conditioning options
- Diffuser (D) only
- Min working distance
- 25mm (Wide lens)
- Working distance range
- 25–600mm shown
Mechanical
- Unit length range
- 4.14–43.15 in (105–1096 mm), 14 sizes
- Width
- 20.0 mm
- Height
- 20.1 mm
- Weight per unit
- ~762 g per 150mm unit
- Ip rating
- IP50
- Mounting
- M4 mounting nut channel
- Lumen maintenance
- L70 = 50,000 Hours
Electrical
- Input voltage
- 24V DC nom.
- Operating temp
- 0–60°C
- Current 24v uv vis
- 0.150A per 75mm (UV); 0.230A per 75mm (vis/WHI)
- Current 24v red ir
- 0.340A per 75mm (625,660,730nm); 0.270A per 75mm (850,940nm)
- Std cable length
- 2m
- Cable spec
- 2m ±150mm, 105°C PVC jacket, foil shield w/ drain
- Supply voltage
- 24V ,DC
Control Interfaces
- Control options
- C1, C5, IC, I3, I3S, I4, 24V (no 24V voltage drive)
- Analogue control
- Yes (IC/I3/I3S/I4)
- Strobe capability
- Yes — I3/I3S/I4 (5×) or C5 Pulsar 320E (10×)
- Connector options
- Flying leads (std); M12 (IC/I3/I3S/I4 only); M8 (IC/I3/I3S/I4 only)
- Compliance
- CE, RoHS, IEC 62471
Optical
- Wavelength / colour
- White, 365, 375, 385, 395, 405, 455, 470, 505, 530, 590, 625, 660, 850, 940 nm
- Beam
- Scalable linear
- Intensity
- Ultra
- Irradiance
- 73,000 Lux
Environmental
- Operating temperature
- 0 to +60°C
Application
- Applications
- Inspection / Machine Vision
