AL325 Modular Bar Light
AI-AL325-WUltra-high-intensity modular bar light with swappable optics and embedded control, moderate to extra-long distances; 73,000 Lux.
- Wavelengths available
- WHI, 365 - 940
- Supply voltage
- 24V DC
- Ip rating
- IP50 or IP65
About the AI-AL325-W

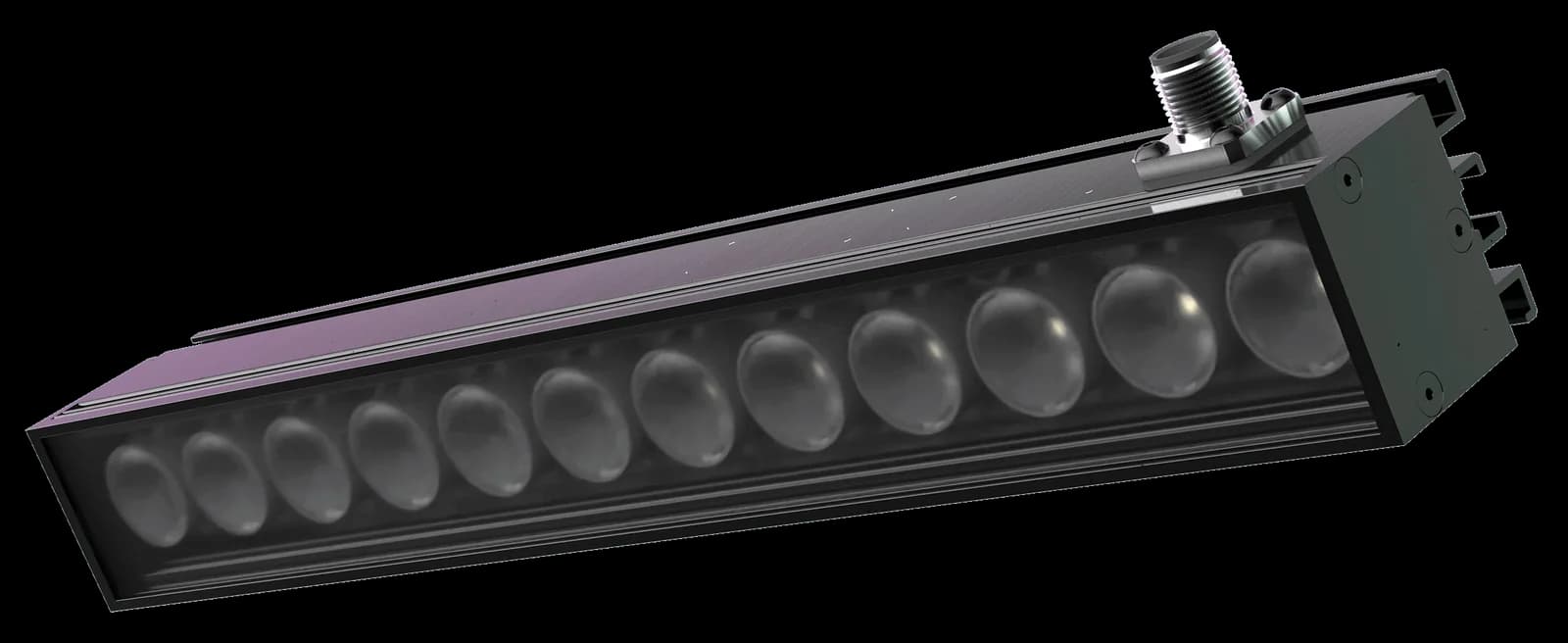

The AL325 is a modular bar light that adapts to the application through its optics, built for inspection lines where one fixture family has to cover several jobs. Lengths run 159.3 to 2147.1 mm, so the same product serves a small station and a full-width web.

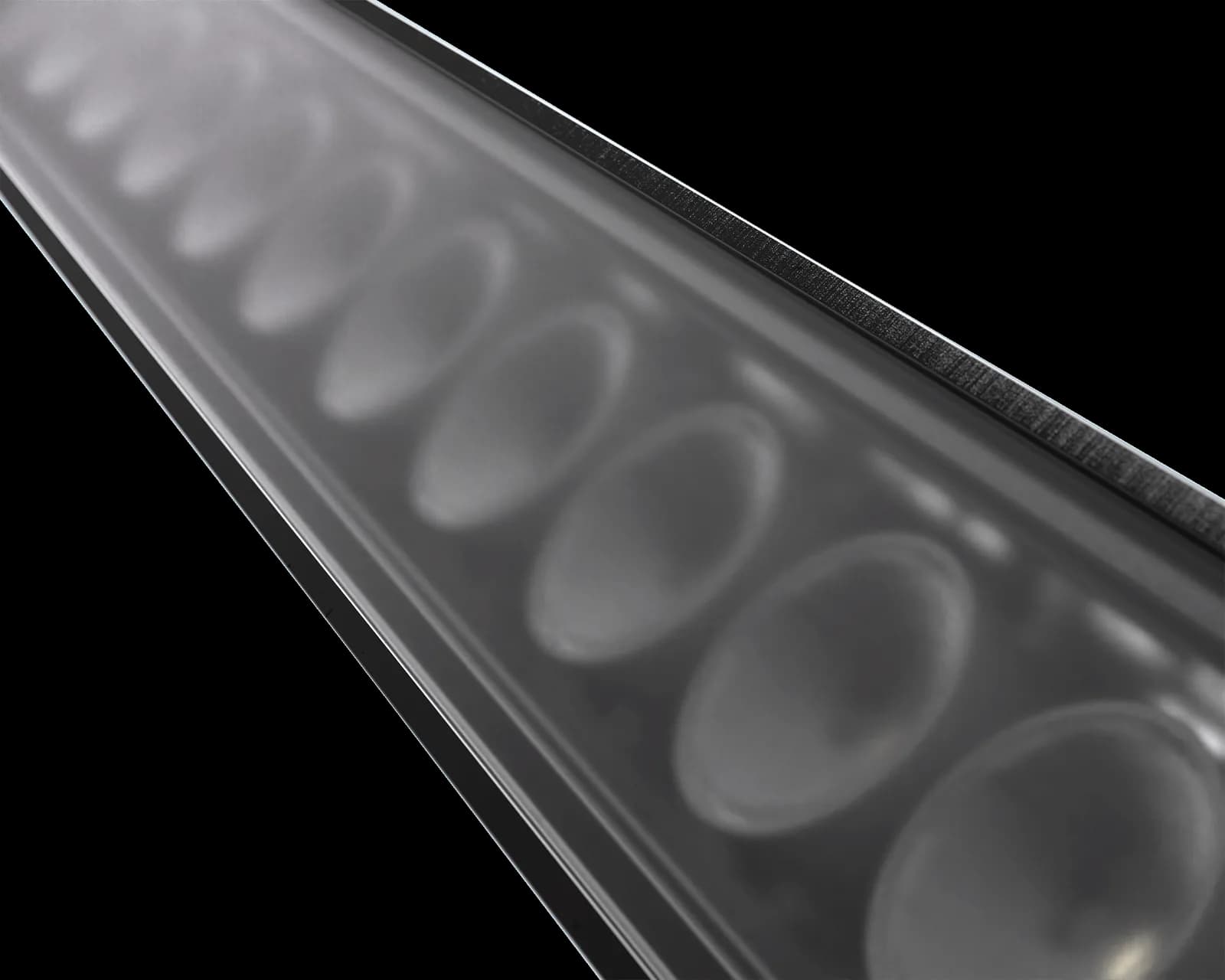

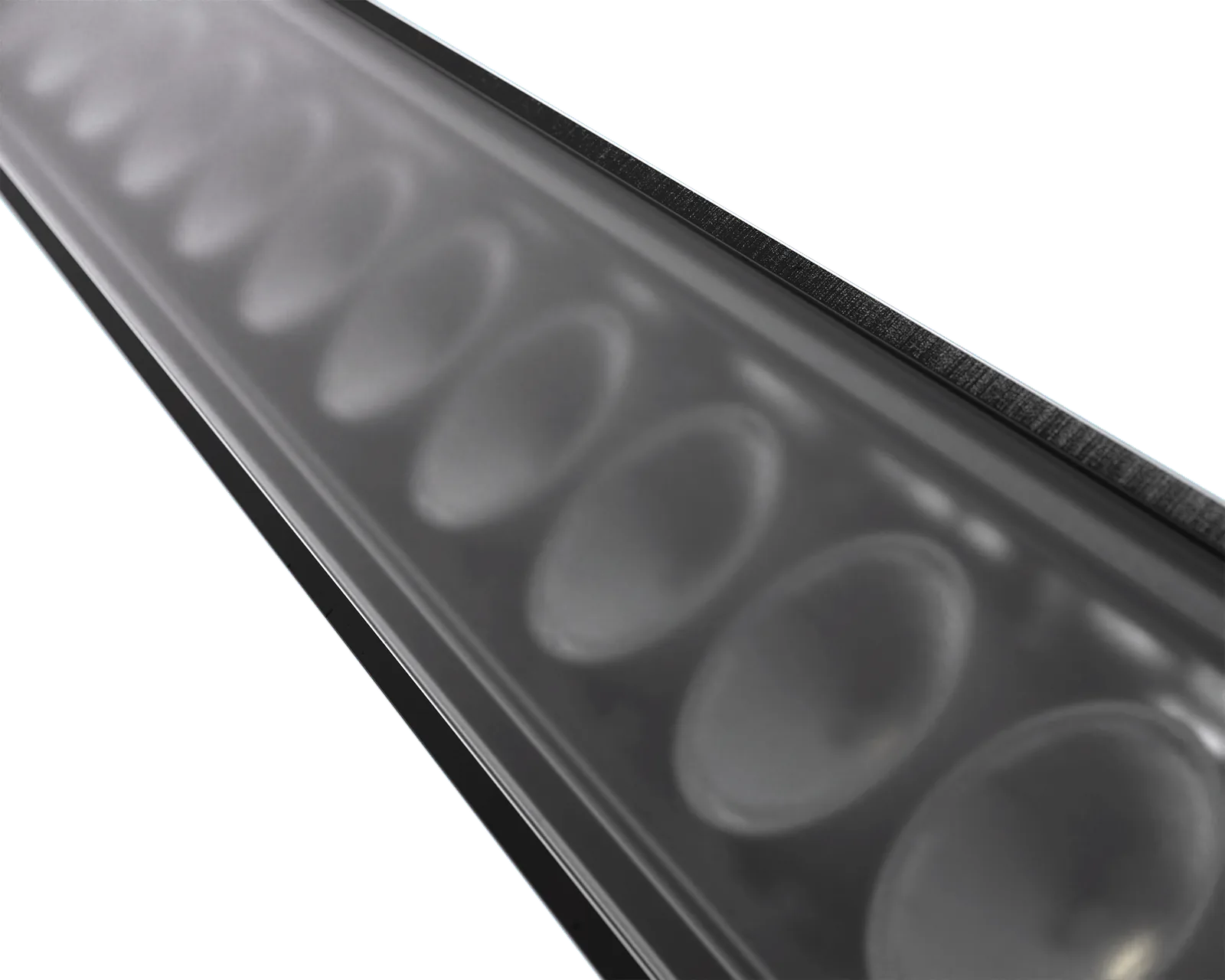

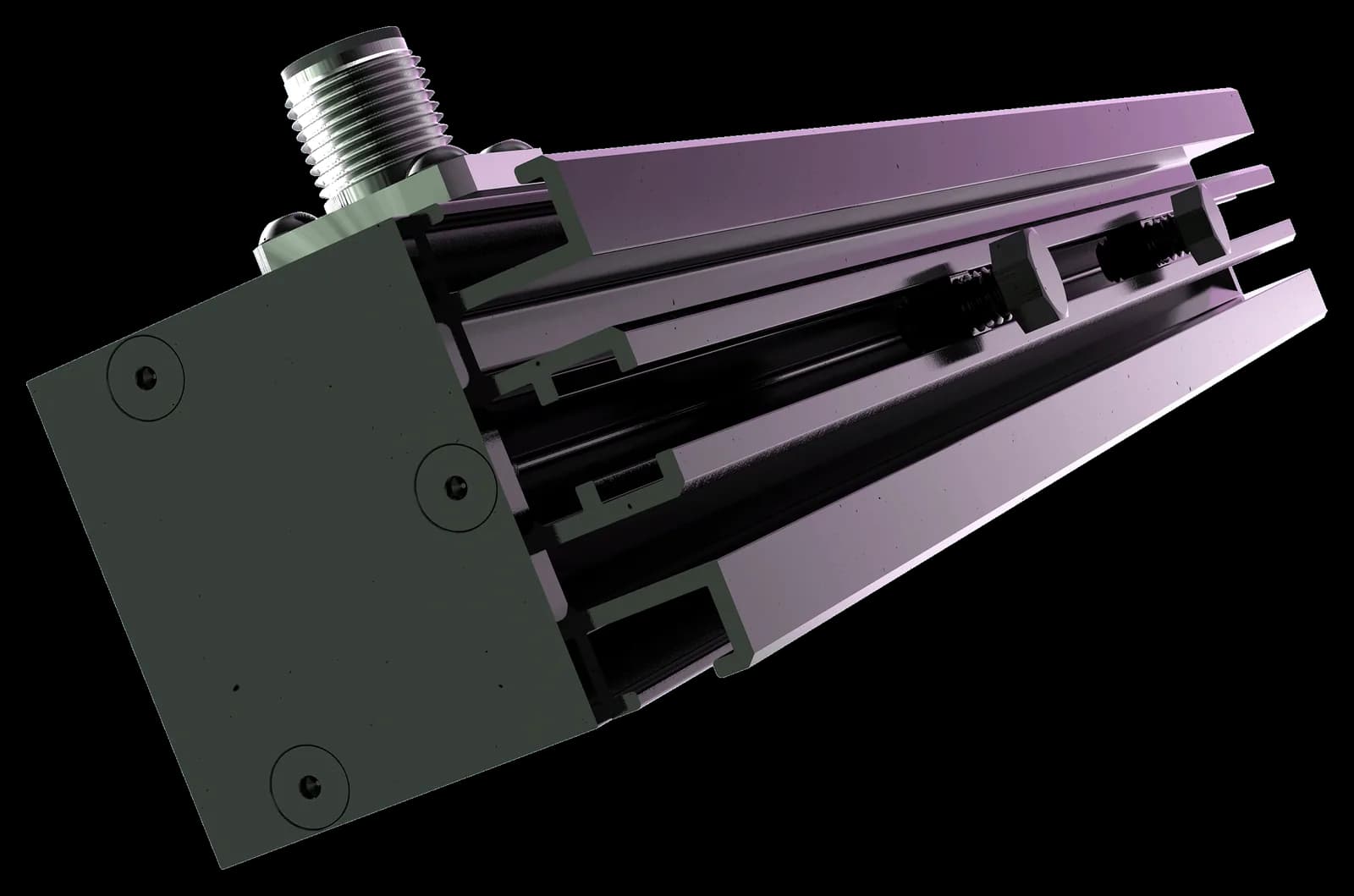

A 39.8 by 45.2 mm extrusion with an M6 mounting nut channel carries the weight and heat of a long run, and the light comes in at about 526 g per 300 mm. Six lensing options set the beam at 14, 25, 36 or 55 degrees, elliptical at 45 by 15 degrees, or non-lensed, which lets the same length be tuned to the working distance on each station.
Sixteen wavelengths are available from 365 to 940 nm plus white. Light conditioning adds a homogenizer, diffuser, polarizer and transversal or longitudinal oblique options for shadow and reflection control. The AL325 is offered at IP50 and IP65, runs at 25 to 60 degrees C case and 0 to 35 degrees C ambient, and carries CE, RoHS and IEC 62471 with L70 at 50,000 hours on white.
Specifications
Maximum Illuminance / Irradiance
- Max illuminance typ klux
- 134 klx @ 100mm (White, Medium+Homogenizer)
- Max irradiance typ wm2
- 427 W/m² @ 100mm
- Measurement reference
- 300mm white AL325M+Homogenizer @ 100mm
Available Wavelengths
- Wavelengths available
- WHI, 365, 375, 385, 395, 405, 455, 470, 505, 530, 590, 625, 660, 730, 850, 940 (16 WL)
Lens / Optics
- Lens type
- Narrow 14°, Medium 25°, Wide 36°, Extra-Wide 55°, Elliptical 45°+15°, No Lens
- Light conditioning options
- Homogenizer (H), Diffuser (D), Polarizer (P), Transversal Oblique (T), Longitudinal Oblique (L)
- Min working distance
- 50mm (Extra-Wide Z)
- Working distance range
- 50–600mm shown
Mechanical
- Unit length range
- 6.27–84.53 in (159–2147 mm), 14 sizes
- Width
- 39.8 mm
- Height
- 45.2 mm
- Weight per unit
- ~526 g per 300mm unit
- Ip rating
- IP50 or IP65
- Mounting
- M6 mounting nut channel
- Lumen maintenance
- L70 = 50,000 Hours
Electrical
- Input voltage
- 24V DC nom.
- Operating temp
- 0–60°C
- Current 24v uv vis
- 0.350A per 150mm (UV+vis+WHI)
- Current 24v red ir
- 0.250A per 150mm (590–660nm); 0.350A per 150mm (730–940nm)
- Std cable length
- 2m
- Cable spec
- 2m ±150mm, 105°C PVC jacket, foil shield w/ drain
- Supply voltage
- 24V DC
Control Interfaces
- Control options
- EC (embedded continuous), ES (embedded strobe), C1, C5, 24V
- Analogue control
- Yes (EC/ES via 0–10V dimming)
- Strobe capability
- Yes — ES embedded (5×) or C5 Pulsar 320E (10×)
- Connector options
- M12 5-pin bulkhead (EC/ES); flying leads (C1/C5/24V)
- Compliance
- CE, RoHS, IEC 62471
Optical
- Wavelength / colour
- White, 365, 375, 385, 395, 405, 455, 470, 505, 530, 590, 625, 660, 730, 850, 940 nm
- Beam
- Scalable linear
- Intensity
- Ultra
- Irradiance
- 73,000 Lux
Environmental
- Operating temperature
- 0 to +60°C
Application
- Applications
- Inspection / Machine Vision
Media
