LUMIMAX · BACKLIGHTS
BF150x150 Area Light
LMX-BF150X150Low-cost area light with moderate washdown protection for small and medium FOVs - 150×150mm light area, IP64.
- Light colour | wavelength
- 640 to 850 nm, white
- Power-LED
- 324 to 576 SMD LEDs
- Light field size
- 150 x 150
About the LMX-BF150X150
Introduction

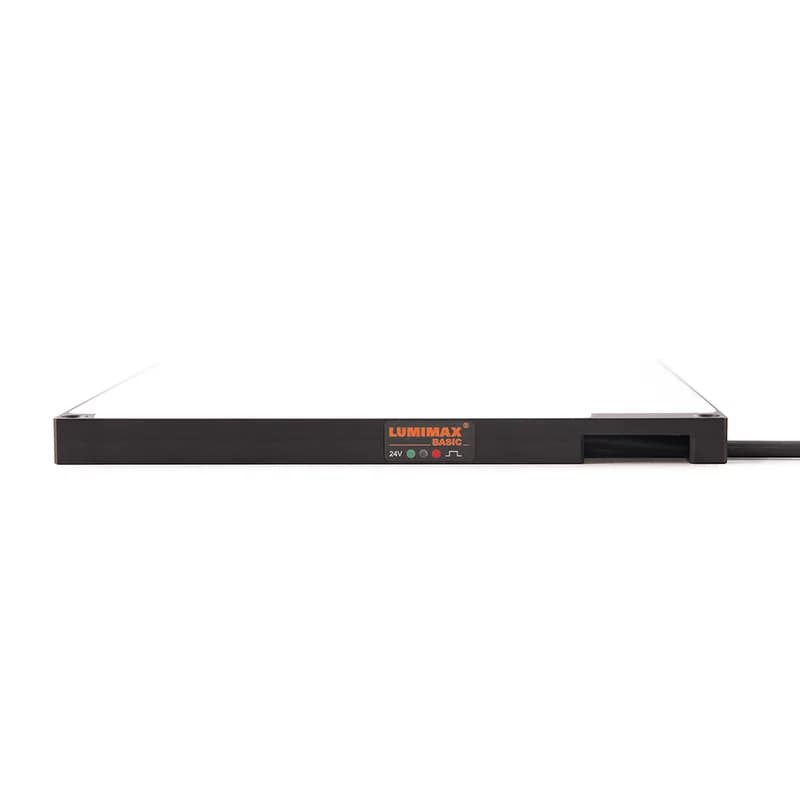

150 × 150 mm of light field, in a body 171 × 161 × 11 mm thick and 0.355 to 0.375 kg.
324 or 576 SMD LEDs, by part number behind either a diffusing window or a clear one — the same housing doing two different jobs, chosen by part number rather than by an accessory.
Diffuse or directed

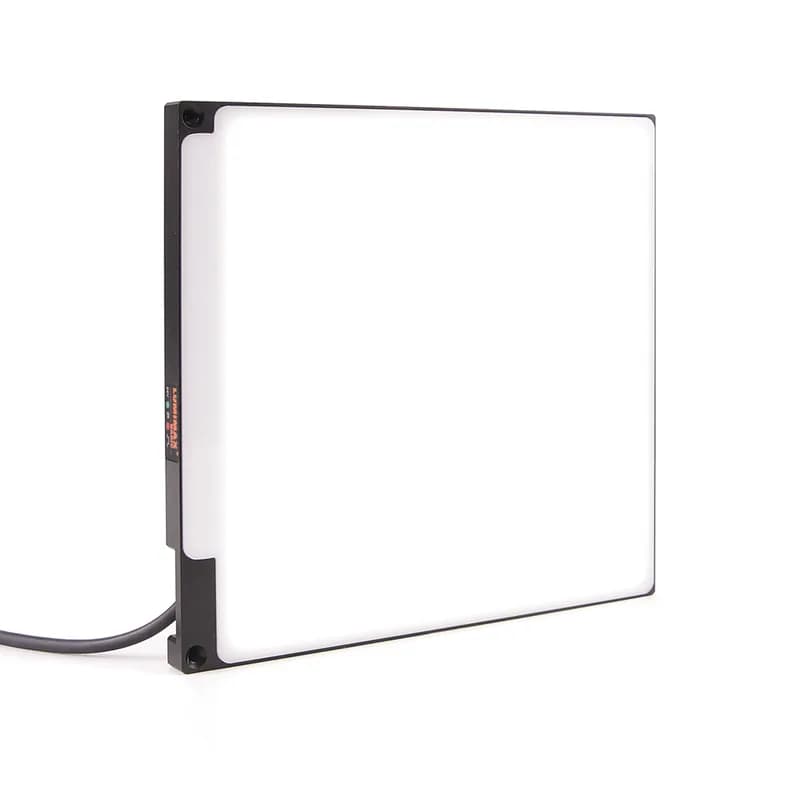

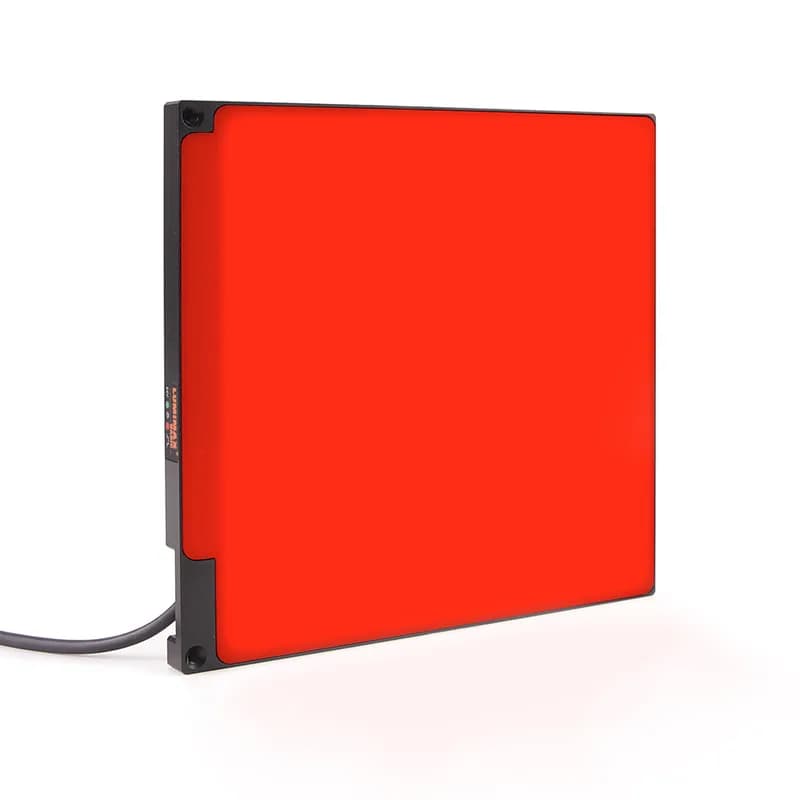

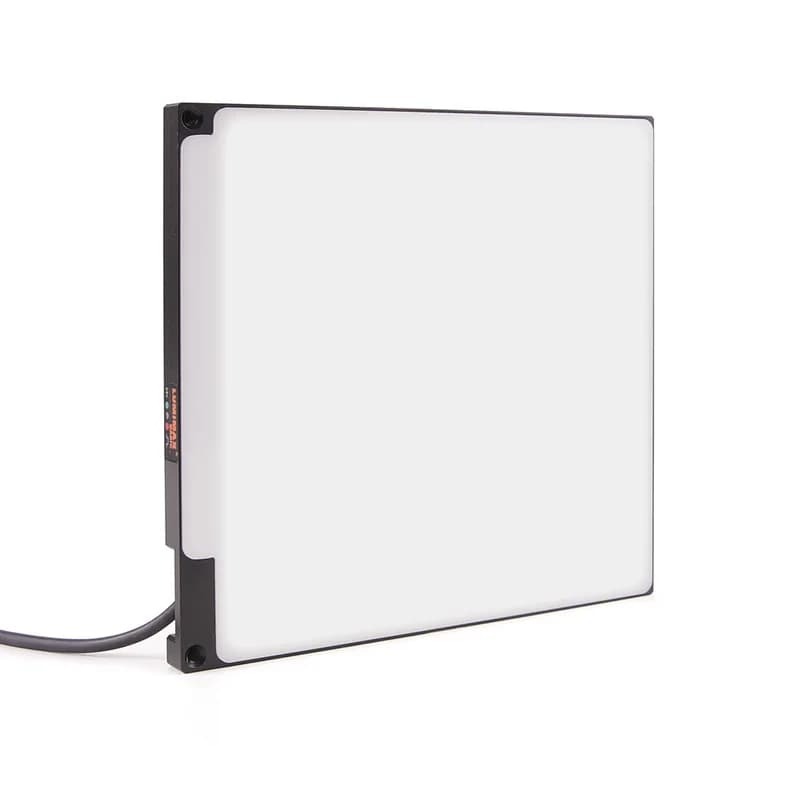

Diffuse gives an even emitting surface with no visible LEDs. As a backlight that is what puts a clean silhouette edge on the part; as incident light it is forgiving of surface texture.

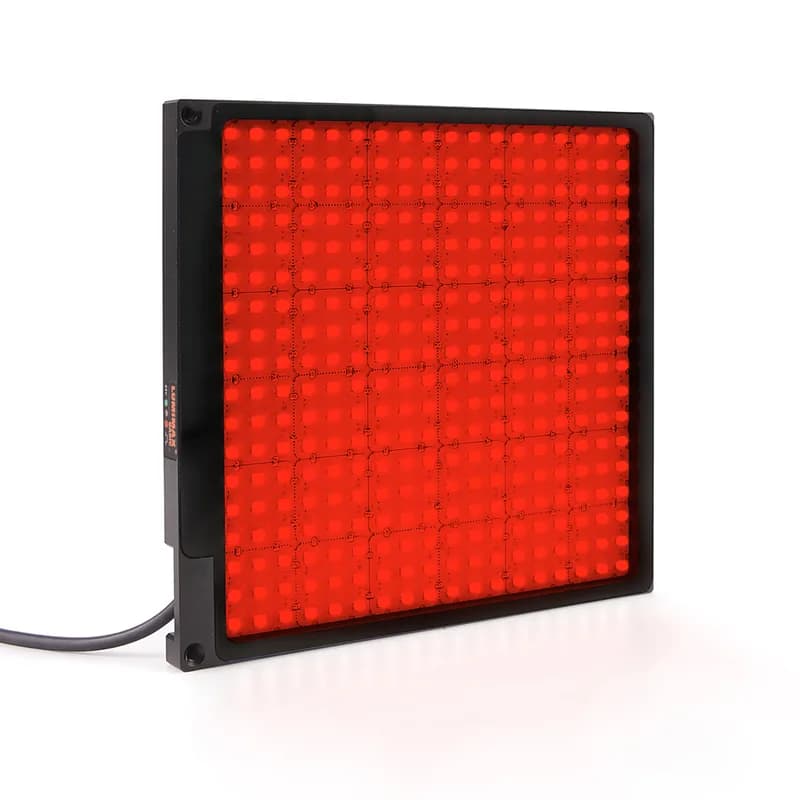

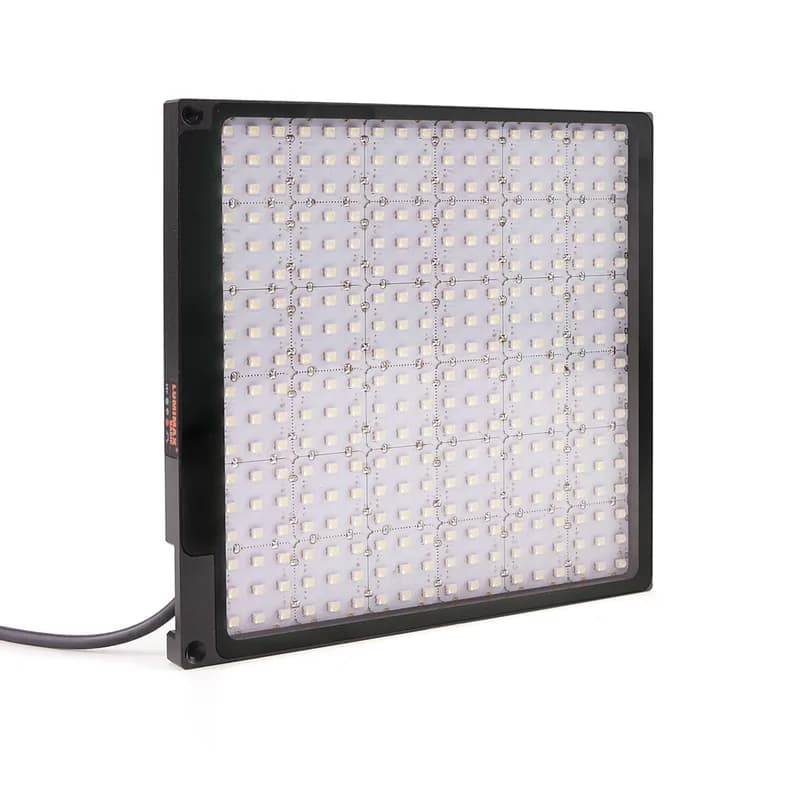

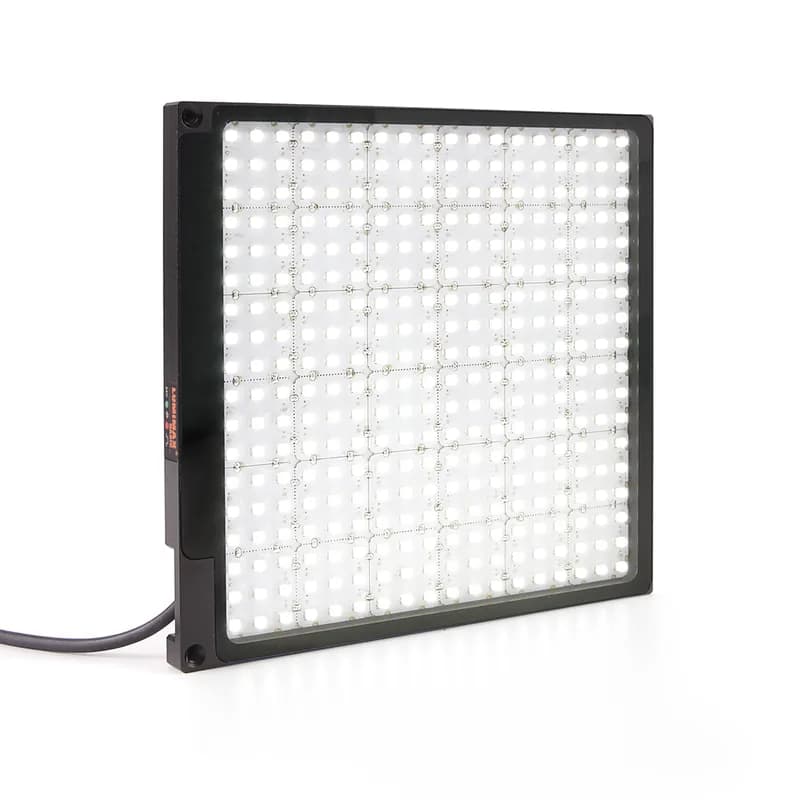

Directed replaces the diffusing window with a clear one and lets the LEDs throw a 30° beam — less even close up, considerably brighter further out.
Those ranges span the guidance and the colour options together. The width of them is the choice being made, not a tolerance — read the figure for the part number, not for the size.
Switching
100 % brightness within 3.5 ms, from a PLC 24 V DC input, with the controller built into the housing. Continuous and switching mode only: strobe on this size is not offered, and only the BF25x25 in this range provides it.
Applications
Backlight or incident light: silhouette and edge detection, presence and absence, hole detection, object gauging, part location and orientation.
Where it fits
BF100x100 below it, BF200x200 above.
Specifications
Operation
- Operating mode
- Continuous and switching mode
- controller
- Integrierter lightscontroller
Environment
- Ingress protection
- IP64
- Allowed ambient temperature
- 5 to 45 °C, non-condensing
- Operating temperature at 21°C (varies by part number)
- 41, 42, 43 °C
- Risk Group (varies by part number)
- 0, 1
Mechanical
- Dimensions (l x w x h in mm)
- 171 x 161 x 11
- Material housing | window
- Aluminium, anodised | PMMA
Electrical
- Operating voltage
- 19 to 30 V DC wide-range voltage input
- Maximum current consumption (varies by part number)
- 0.6, 0.7 A
- Maximum electrical power at light field (varies by part number)
- 10, 11, 12, 13 W
- Electrical connection
- 150 mm connection cable with M8 4-pin plug
- PLC switching input
- High level = 15 to 30 V DC
- Switching mode
- Switching time follows the switching signal # Connect + ON / OFF and GND ON / OFF
- Continuous mode
- Assign + ON / OFF permanently with high signal, e. g. by applying to operating voltage # Connect GND ON / OFF
- Switch-on delay_switching
- 100 % brightness within a maximum of 3.5 ms
Optical
- Light field size (l x w in mm)
- 150 x 150
- Light colour | wavelength (varies by part number)
- Infrared | 850 nm | Red | 640 nm (Peak) | Red | 645 nm (Peak) | White | 8500 K
- Light guidance (varies by part number)
- Diffuse | Directed, 30° LED beam angle (without ancillary lenses)
- Power-LED (varies by part number)
- 324 SMD LEDs | 576 SMD LEDs
- Illuminance at 0 mm
- 12183–42631 lx across variants
- Illuminance at 50 mm
- 6869–53270 lx across variants
- Illuminance at 100 mm
- 3725–36428 lx across variants
- Illuminance at 200 mm
- 1501–19117 lx across variants
- Illuminance at 500 mm
- 3019–5154 lx across variants
- Irradiance at 0 mm
- 68.3–154.6 W/m² across variants
- Irradiance at 50 mm
- 38.6–181.2 W/m² across variants
- Irradiance at 100 mm
- 21–135.3 W/m² across variants
- Irradiance at 200 mm
- 8.5–91.7 W/m² across variants
- Irradiance at 500 mm
- 17.2–32.6 W/m² across variants
General
- Weight (kg) (varies by part number)
- 0.355, 0.375
