LUMIMAX · BACKLIGHTS
BF200x200 Area Light
LMX-BF200X200Low-cost area light with moderate washdown protection for small and medium FOVs - 200×200mm light area, IP64.
- Light colour | wavelength
- 640 to 850 nm, white
- Power-LED
- 576 to 1024 SMD LEDs
- Light field size
- 200 x 200
About the LMX-BF200X200
Introduction

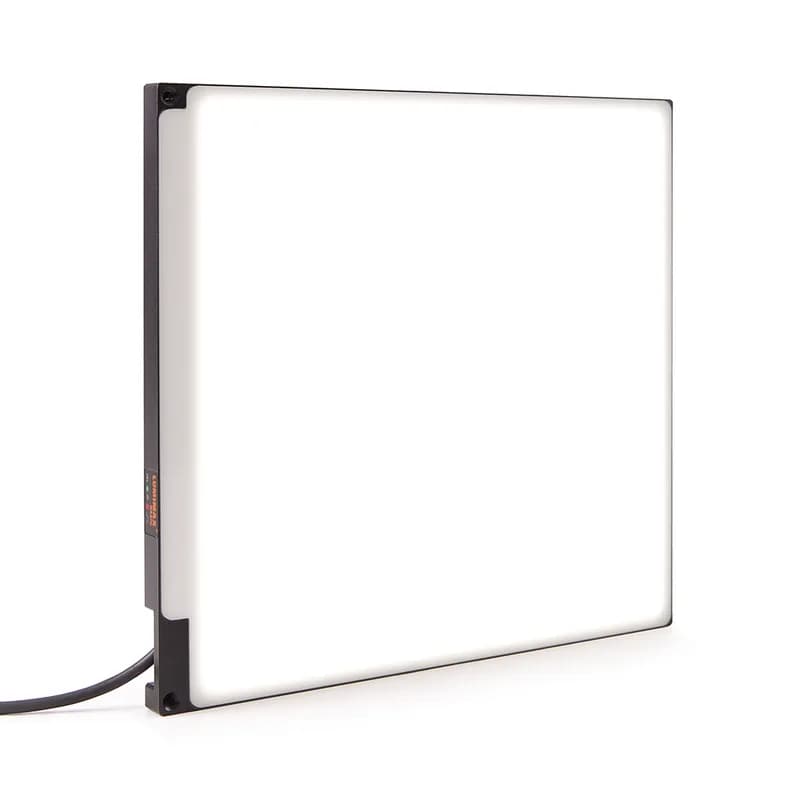

The BF200x200 is a flat area light with a 200 × 200 mm light field, built for backlighting and silhouette inspection where the part, not the lighting, should be the difficult bit.

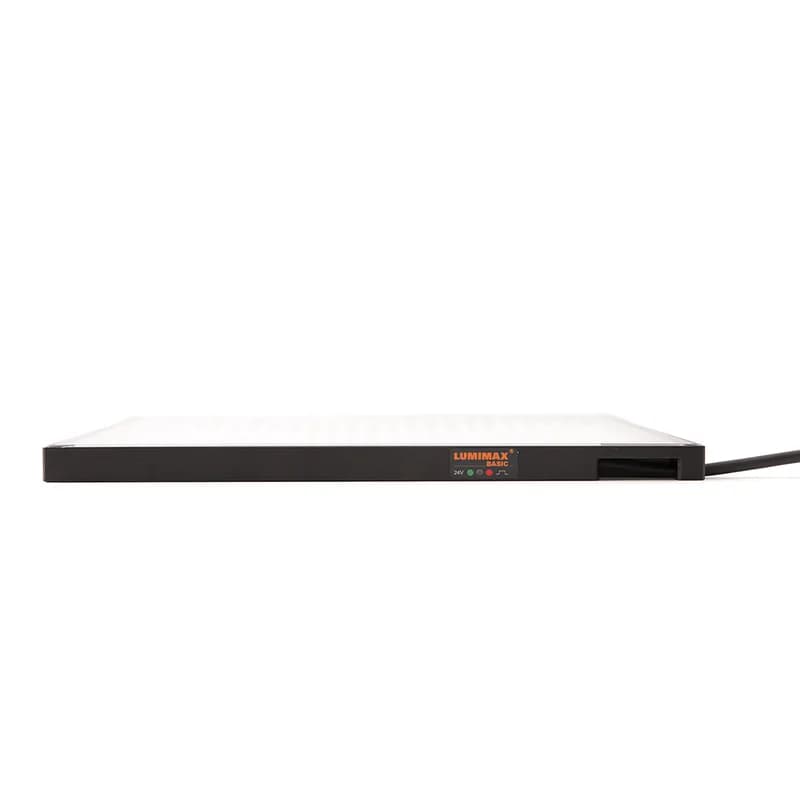

It is 11 mm deep. That matters more than it sounds: it lets the light sit inside a machine rather than dictate its layout, and it makes the difference between a fixture you design around and one you fit.
Choosing a variant
Six part numbers cover two decisions.

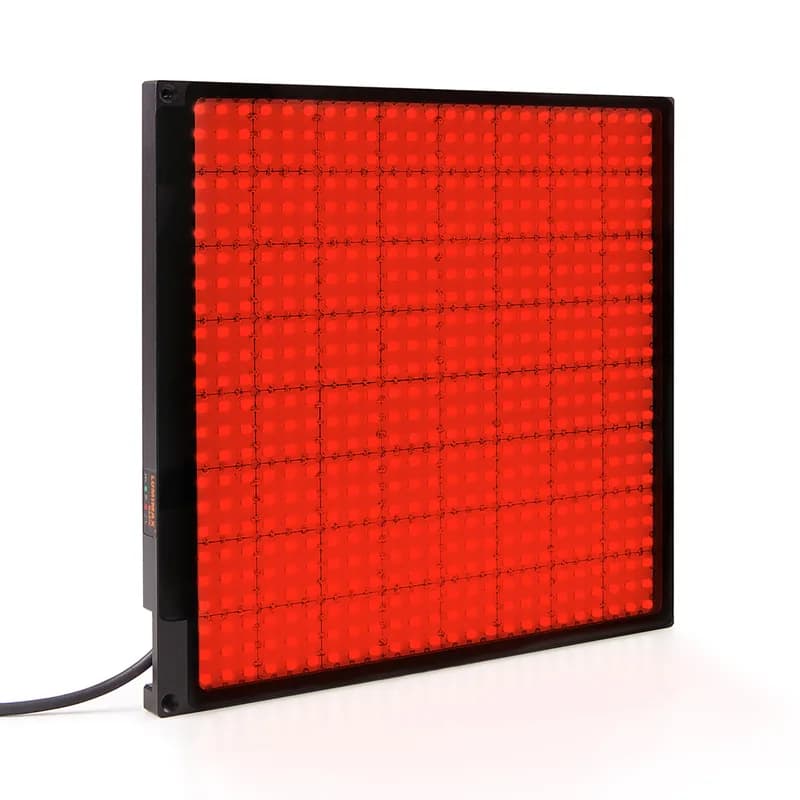

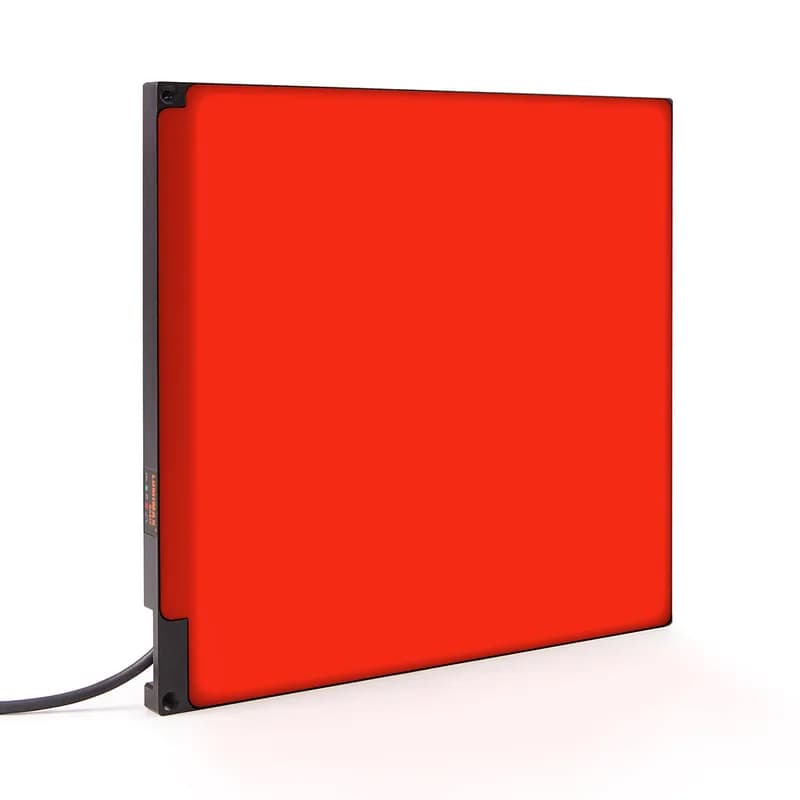

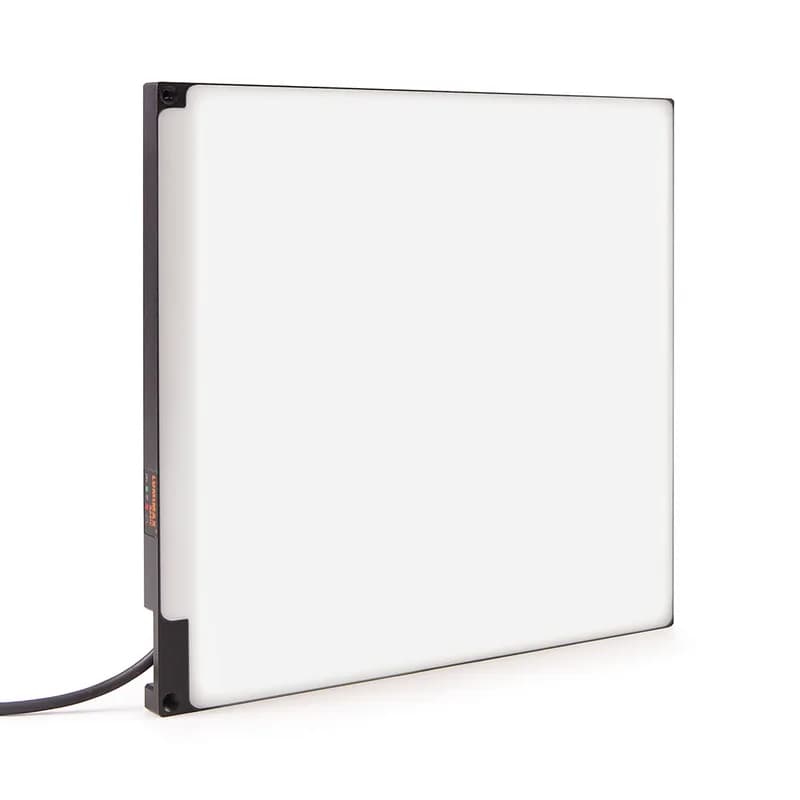

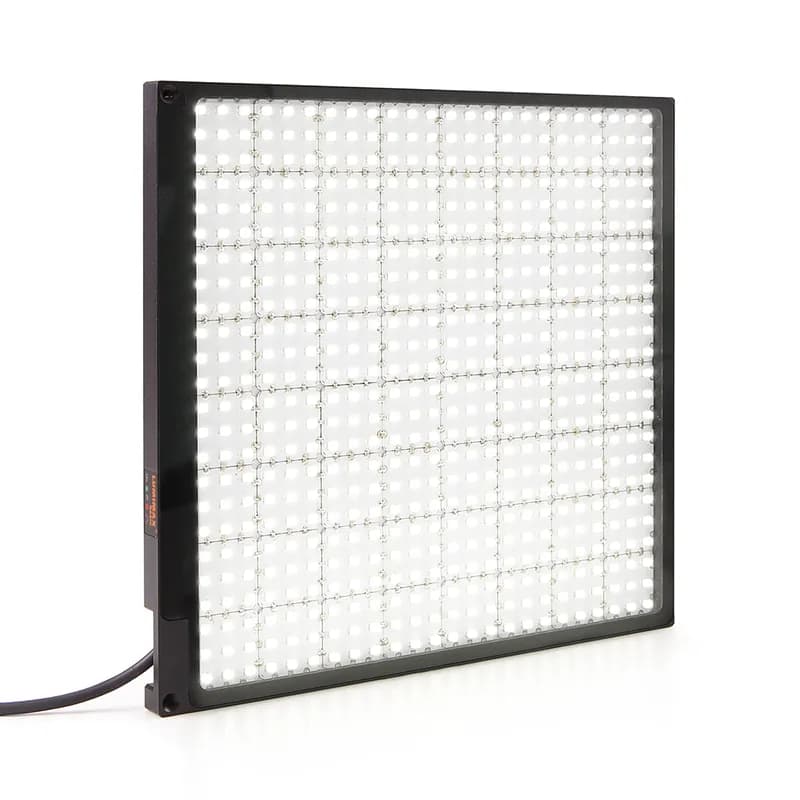

Light guidance — diffuse for even, shadow-free illumination across the field, or directed with a 30° LED beam angle where you need more intensity on axis.
Colour — red, white at 8500 K, or 850 nm infrared. Red and infrared are the usual choices where you want contrast without visible glare on the line; white where an operator also needs to see the part.
Integration

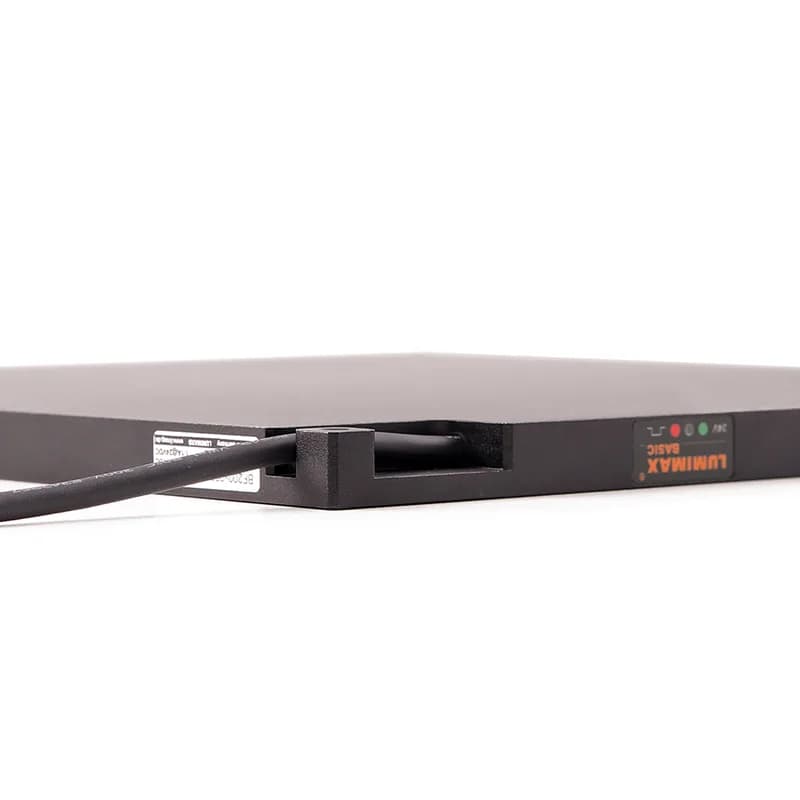

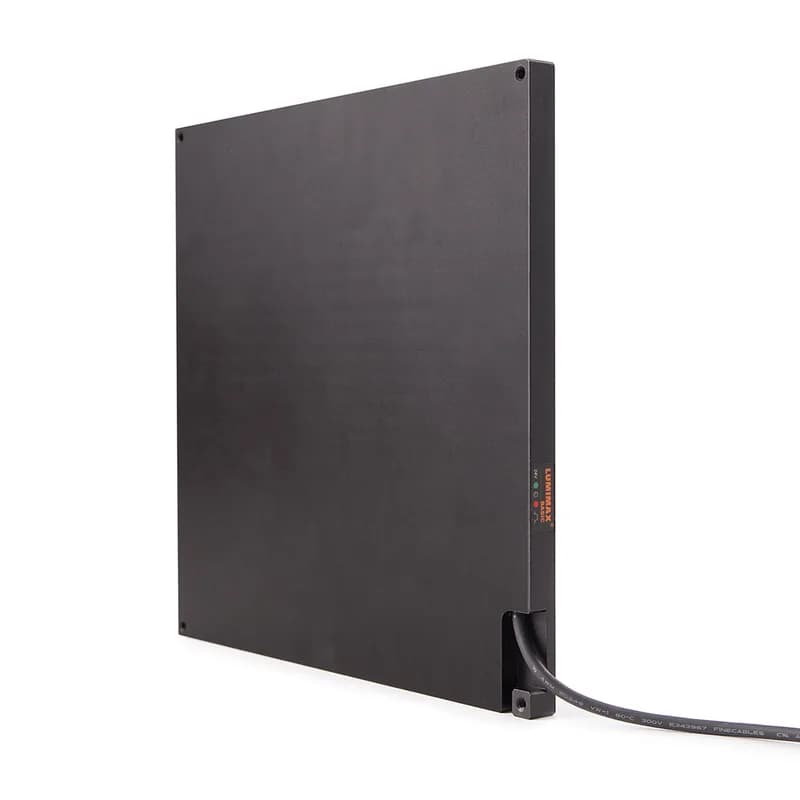

The controller is built in, so there is no separate driver to find room for. It takes a wide-range 19–30 V DC supply and connects by a 150 mm cable to an M8 4-pin plug.
It runs continuously or switched, with a PLC switching input at a 15–30 V DC high level, and reaches full brightness within 3.5 ms of the signal.
Rated IP64 and specified for 5–45 °C non-condensing.
Applications
Backlighting for dimensional measurement, presence and absence checking, edge detection and silhouette inspection — anywhere a part must be separated cleanly from its background.
Specifications
Operation
- Operating mode
- Continuous and switching mode
- controller
- Integrierter lightscontroller
Environment
- Ingress protection
- IP64
- Allowed ambient temperature
- 5 to 45 °C, non-condensing
- Operating temperature at 21°C (varies by part number)
- 41, 42, 43 °C
- Risk Group
- 0
Mechanical
- Dimensions (l x w x h in mm)
- 212 x 211 x 11
- Material housing | window
- Aluminium, anodised | PMMA
Electrical
- Operating voltage
- 19 to 30 V DC wide-range voltage input
- Maximum current consumption (varies by part number)
- 0.9, 1, 1.1 A
- Maximum electrical power at light field (varies by part number)
- 17, 19, 20 W
- Electrical connection
- 150 mm connection cable with M8 4-pin plug
- PLC switching input
- High level = 15 to 30 V DC
- Switching mode
- Switching time follows the switching signal # Connect + ON / OFF and GND ON / OFF
- Continuous mode
- Assign + ON / OFF permanently with high signal, e. g. by applying to operating voltage # Connect GND ON / OFF
- Switch-on delay_switching
- 100 % brightness within a maximum of 3.5 ms
Optical
- Light field size (l x w in mm)
- 200 x 200
- Light colour | wavelength (varies by part number)
- Infrared | 850 nm | Red | 640 nm (Peak) | Red | 645 nm (Peak) | White | 8500 K
- Light guidance (varies by part number)
- Diffuse | Directed, 30° LED beam angle (without ancillary lenses)
- Power-LED (varies by part number)
- 1024 SMD LEDs | 576 SMD LEDs
- Illuminance at 0 mm
- 12321–36922 lx across variants
- Illuminance at 50 mm
- 8286–55648 lx across variants
- Illuminance at 100 mm
- 4974–40160 lx across variants
- Illuminance at 200 mm
- 2459–25248 lx across variants
- Illuminance at 500 mm
- 4191–7684 lx across variants
- Irradiance at 0 mm
- 62.6–138.9 W/m² across variants
- Irradiance at 50 mm
- 42.4–175.1 W/m² across variants
- Irradiance at 100 mm
- 25.5–127.1 W/m² across variants
- Irradiance at 200 mm
- 12.6–87.2 W/m² across variants
- Irradiance at 500 mm
- 25.3–37.5 W/m² across variants
General
- Weight (kg) (varies by part number)
- 0.585, 0.635
