Advanced Illumination · BACKLIGHTS
BL-S050075
AI-BLS050075-WLow-cost backlight with medium performance for small FOVs - IP67 sealed, on-board strobe, 11 wavelengths.
- Wavelengths available
- White, 455 - 940 nm
- Ip rating
- IP67
- Lumen maintenance
- L70 (50,000 hrs)
About the AI-BLS050075-W

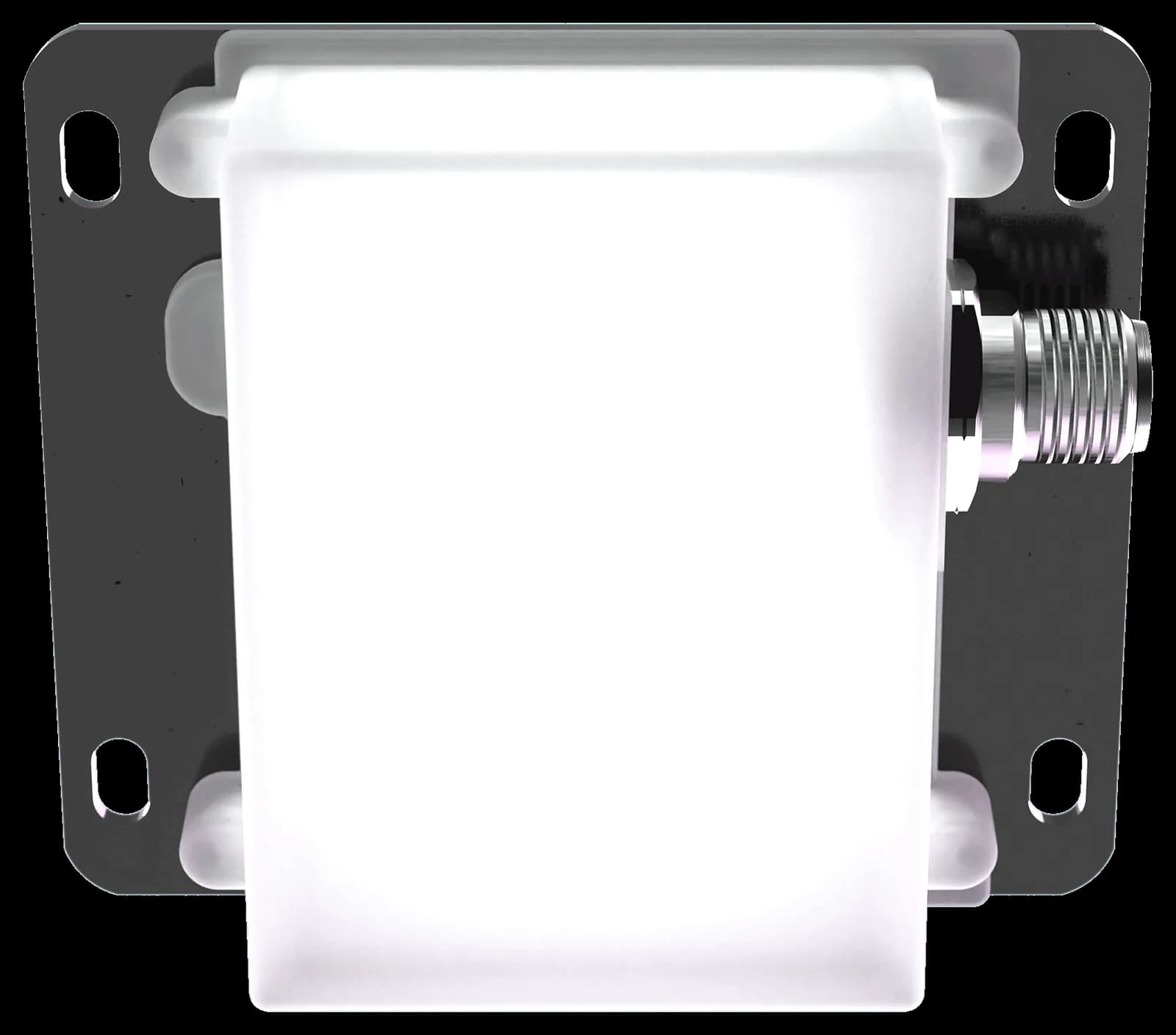

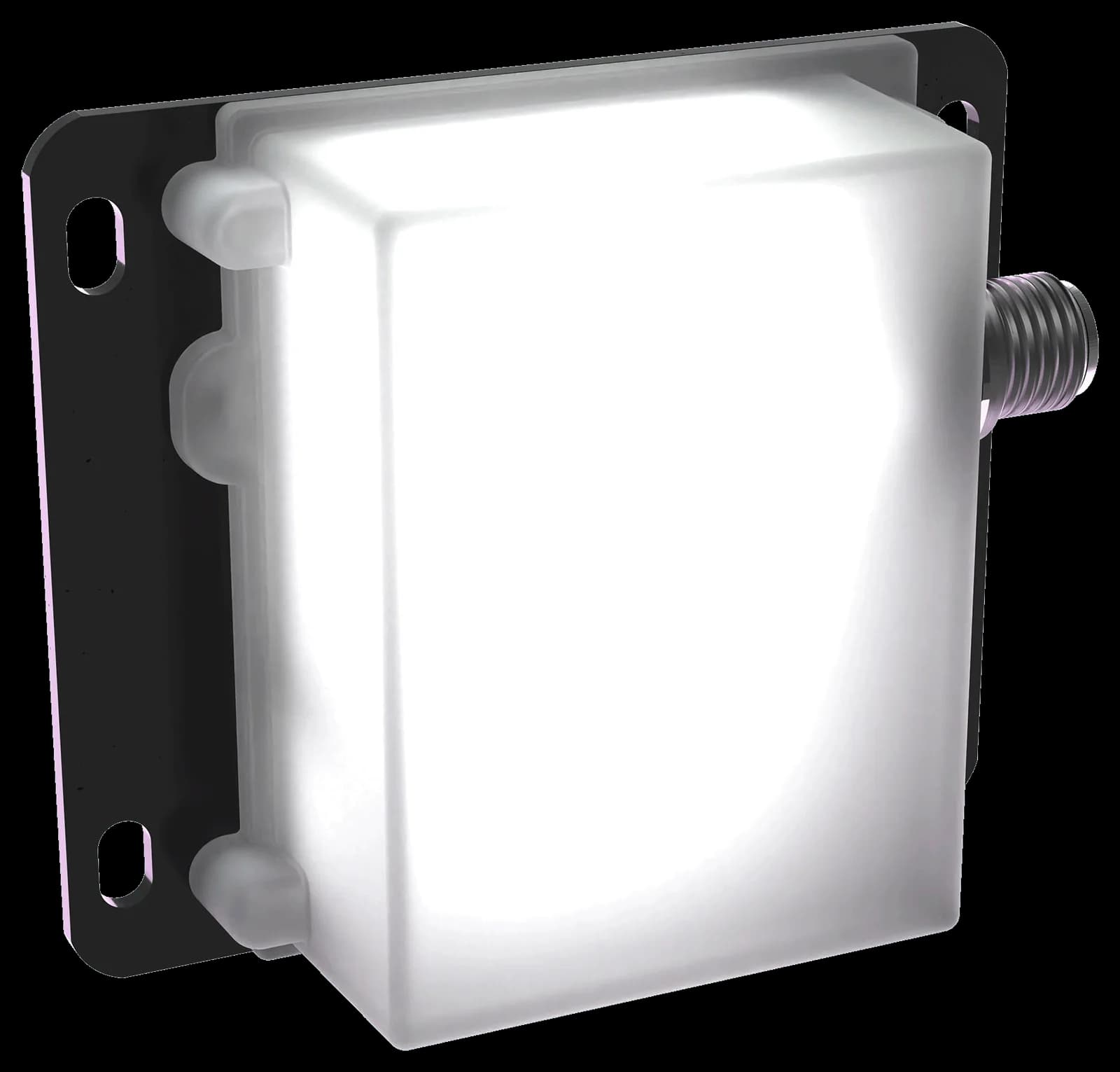

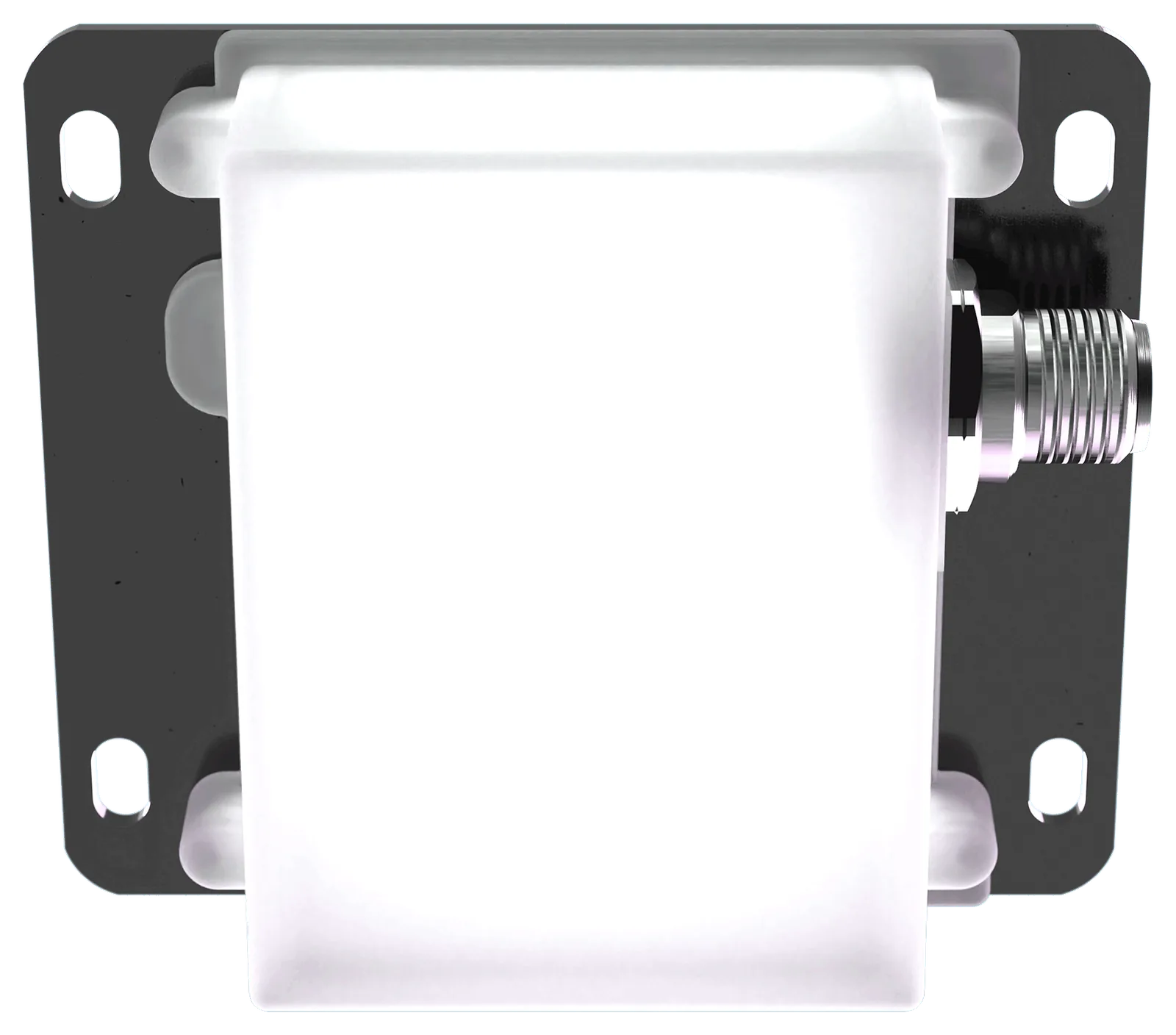

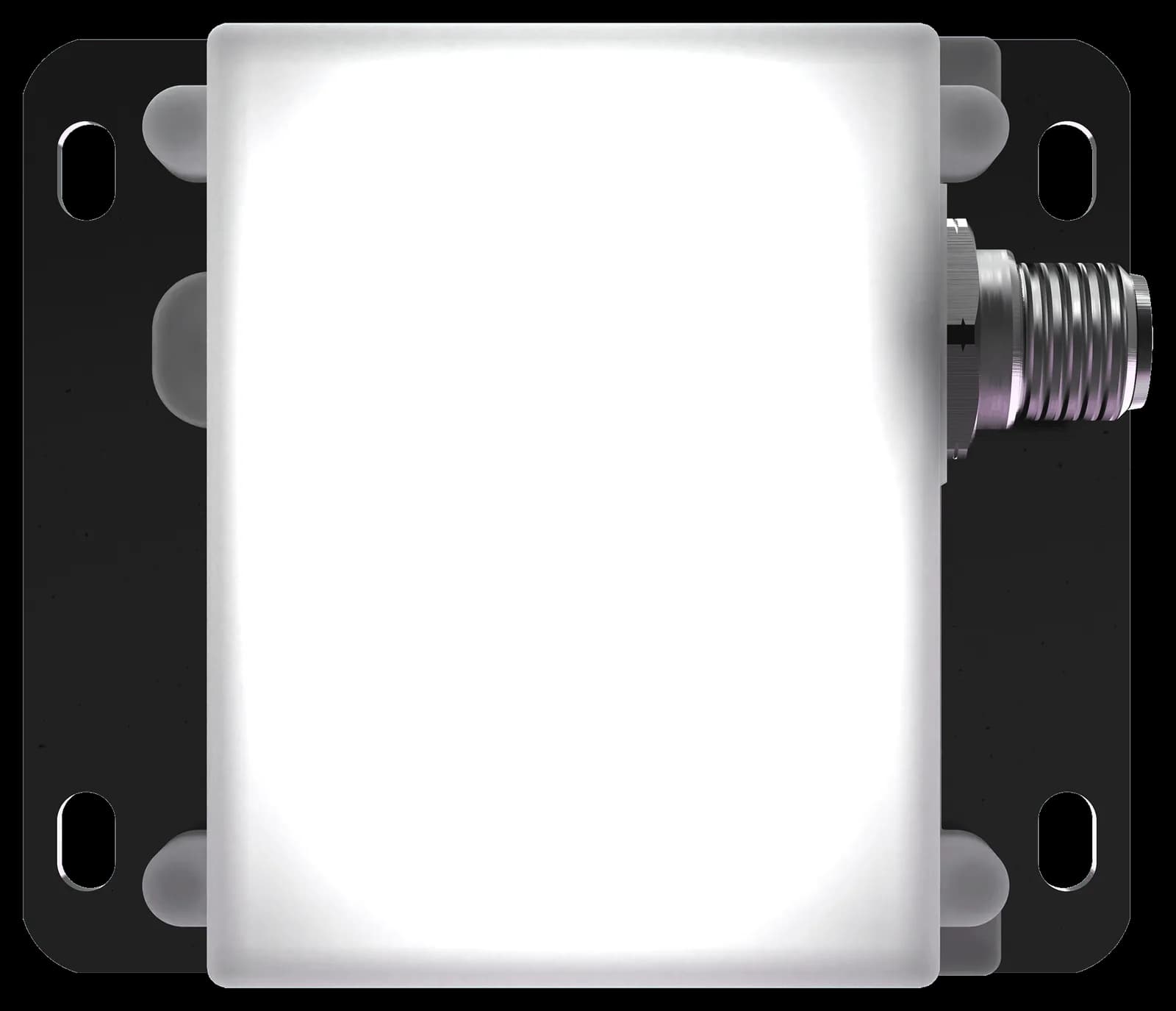

The BL-S050075 is a small EuroBrite backlight for silhouette and edge inspection where high intensity is needed at a competitive price. An IP67 sealed housing keeps water and dust out, so the panel goes straight onto a wash-down line without an enclosure.

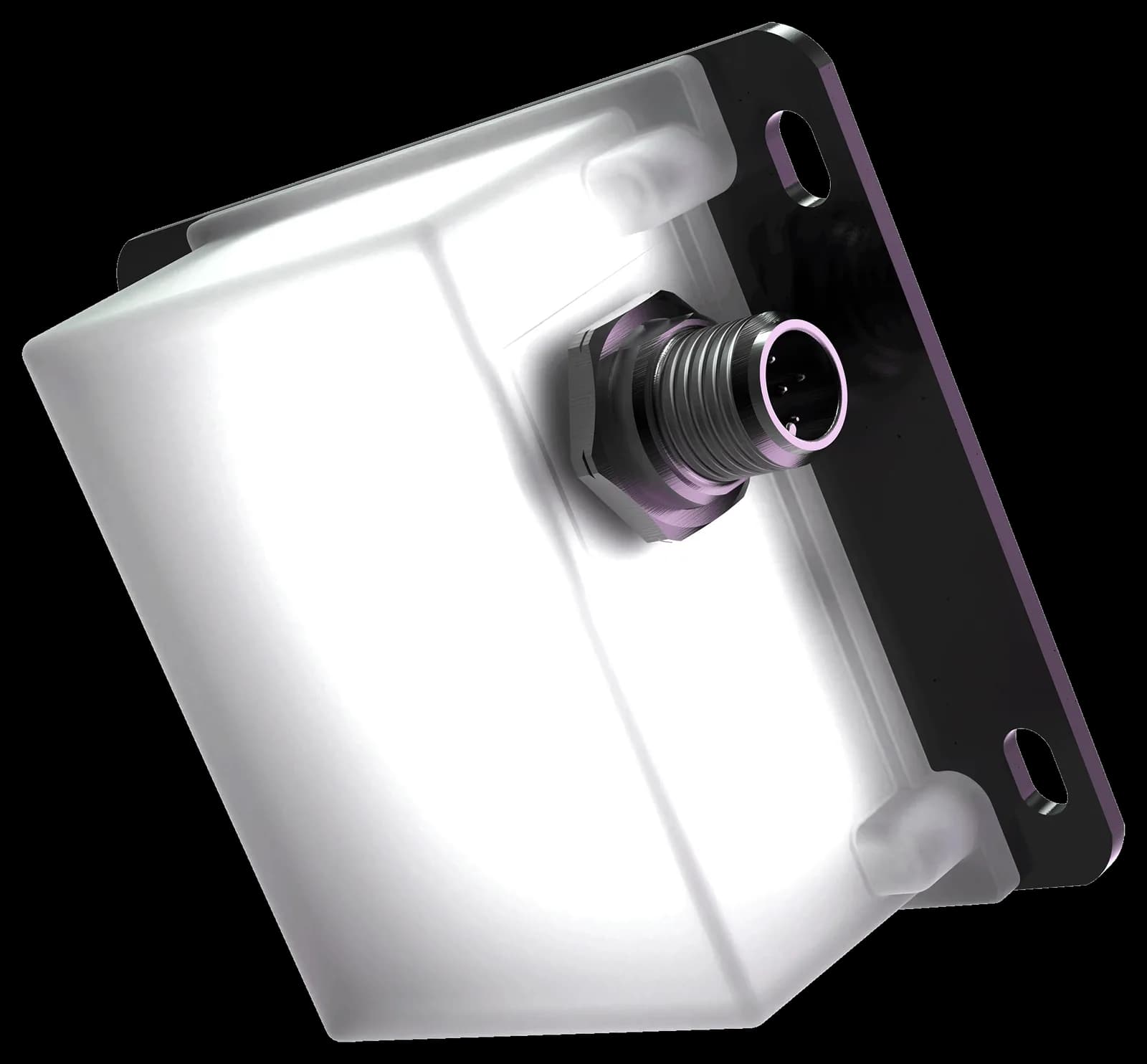

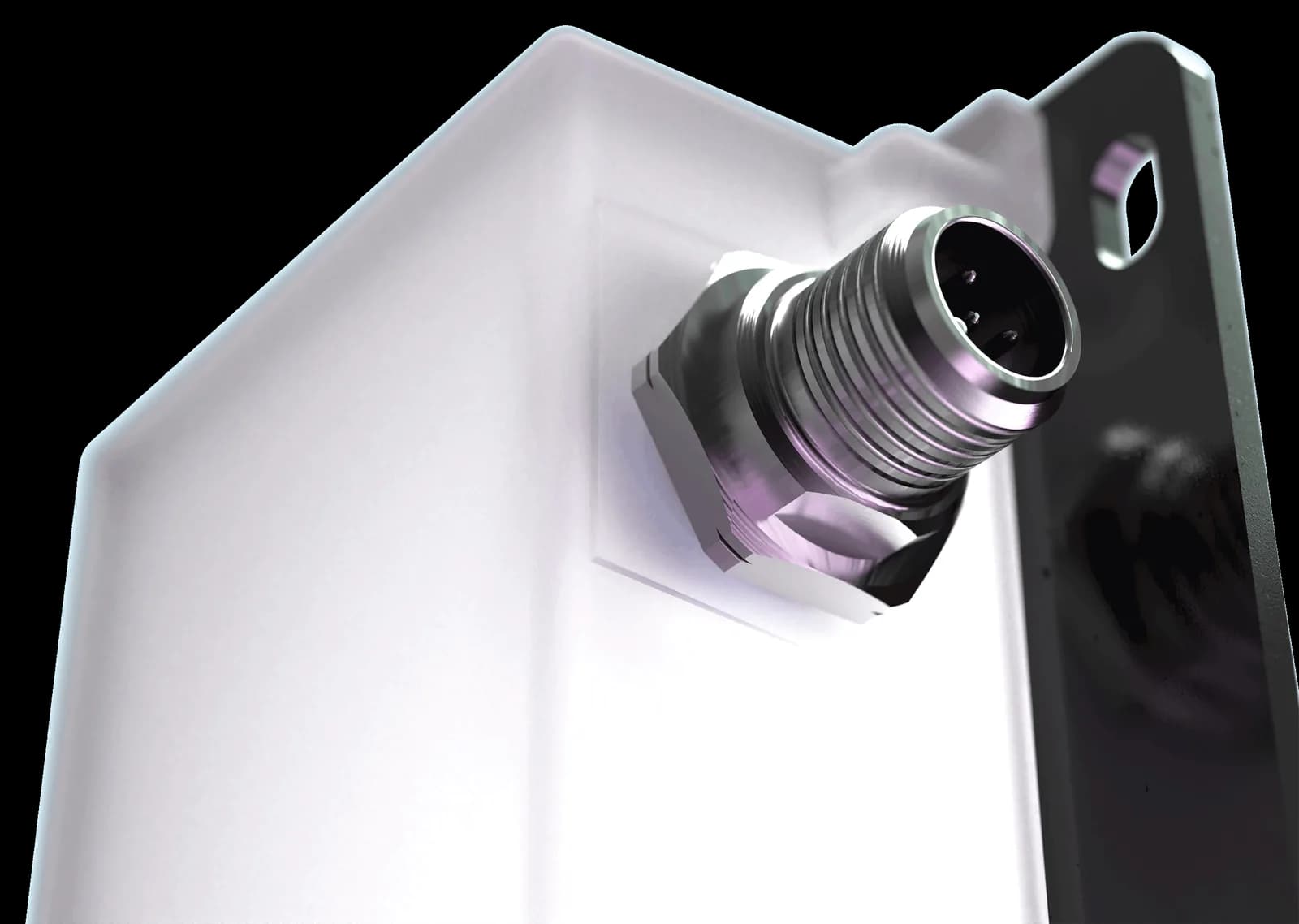

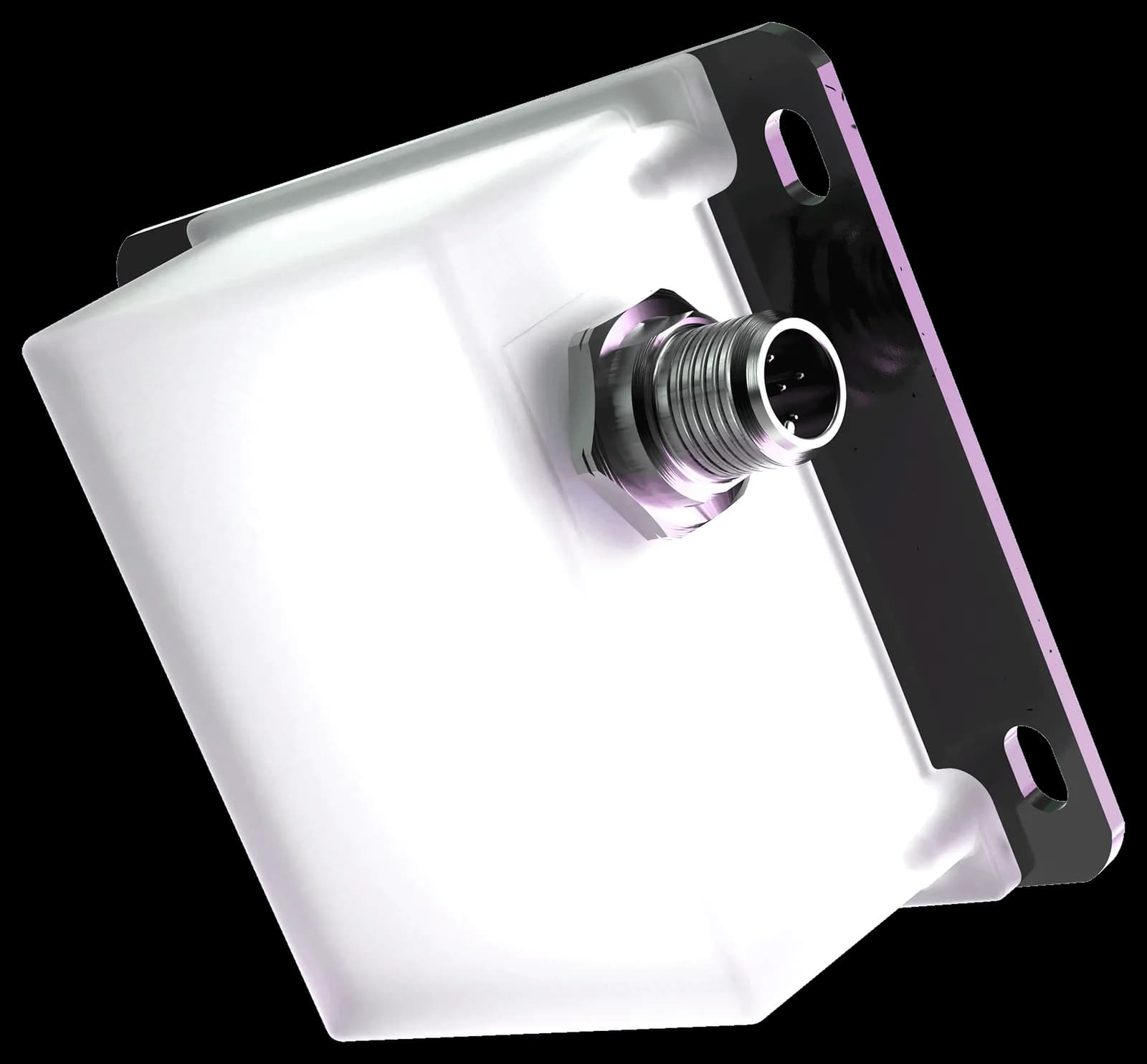

The unit accepts a standard coded 5-pin M12 cable, so it connects with cordsets already stocked for the sensors and cameras on the same machine. At 92.53 g it carries on a moving axis or a robot wrist without meaningful load.
Strobe control allows up to five times overdrive, giving the extra light needed to freeze fast-moving parts at short exposure, and trigger-to-pulse latency of 10 microseconds keeps the flash tight to the camera trigger. Analogue intensity control from 0.7 V to 10 V sets brightness from 10 to 100 per cent, so exposure is tuned in software. The BL-S050075 range covers white and ten wavelengths from 455 nm to 940 nm, runs on 24 V nominal from 0 to 60 degrees C, and is certified to CE, RoHS and IEC 62471.
Specifications
Maximum Intensity
- Max illuminance klux
- Not specified in datasheet
- Max irradiance wm2
- Not specified in datasheet
- Strobe multiplier inline
- Up to 5× (built-in)
Available Wavelengths
- Wavelengths available
- White, 455, 470, 505, 530, 590, 625, 660, 730, 850, 940 nm
- Visible wavelengths count
- 8
- Ir wavelengths count
- 2
- Rgb available
- No
Uniformity & Edge Effect
- Led array pitch
- Fixed array
Optics & Light Conditioning
- Collimation available
- No
- Polarization available
- No
- Lumen maintenance
- L70 (50,000 hrs)
Sizing
- Max emitting length
- 2.95 in
- Max emitting length
- 75 mm
- Max emitting width
- 1.97 in
- Size increment
- Fixed (single size)
- Sizes available count
- 11 (wavelength variants)
Physical Dimensions
- Light thickness max
- 1.18 in
- Light thickness max
- 29.9 mm
- Unit height
- 1.18 in
Housing & Materials
- Housing construction
- Sealed potted aluminum housing
- Window material
- Acrylic / diffuser (sealed)
- Mounting type
- 4× mounting tabs (4.8mm holes)
- Weight approx
- 92.53 g (3.27 oz)
Thermal & Ip
- Ip rating
- IP67
- Operating case temp
- 0 °C to 60 °C (normal operating)
- Operating ambient temp
- n/a (see operating temp)
- Cooling method
- Passive
Cable
- Std cable length
- No cable included (M12 5-pin)
- Cable spec
- N/A — connector only
Power Supply
- Input voltage
- 24V nom. (min 22 / max 28)
- Current per sq inch 24v
- ~0.27A typ unit draw (on-board ctrl, not per-area); max 0.42–0.49A
Control Options
- Ctrl ic inline
- No (on-board controller)
- Ctrl i3 i3s
- No
- Ctrl i4
- No
- Ctrl dcs100e
- No
- Ctrl dcs103e
- No
- Ctrl pulsar320e
- No
- Ctrl 24v drive
- On-board only (not 24V pass-through config)
- Ethernet control
- No
- Strobe capability
- Built-in — up to 5× overdrive
Connectors
- Connector c1
- No
- Connector c5
- No
- Connector m12 optional
- Yes — standard (5-pin M12, required)
- Connector m8 optional
- No
