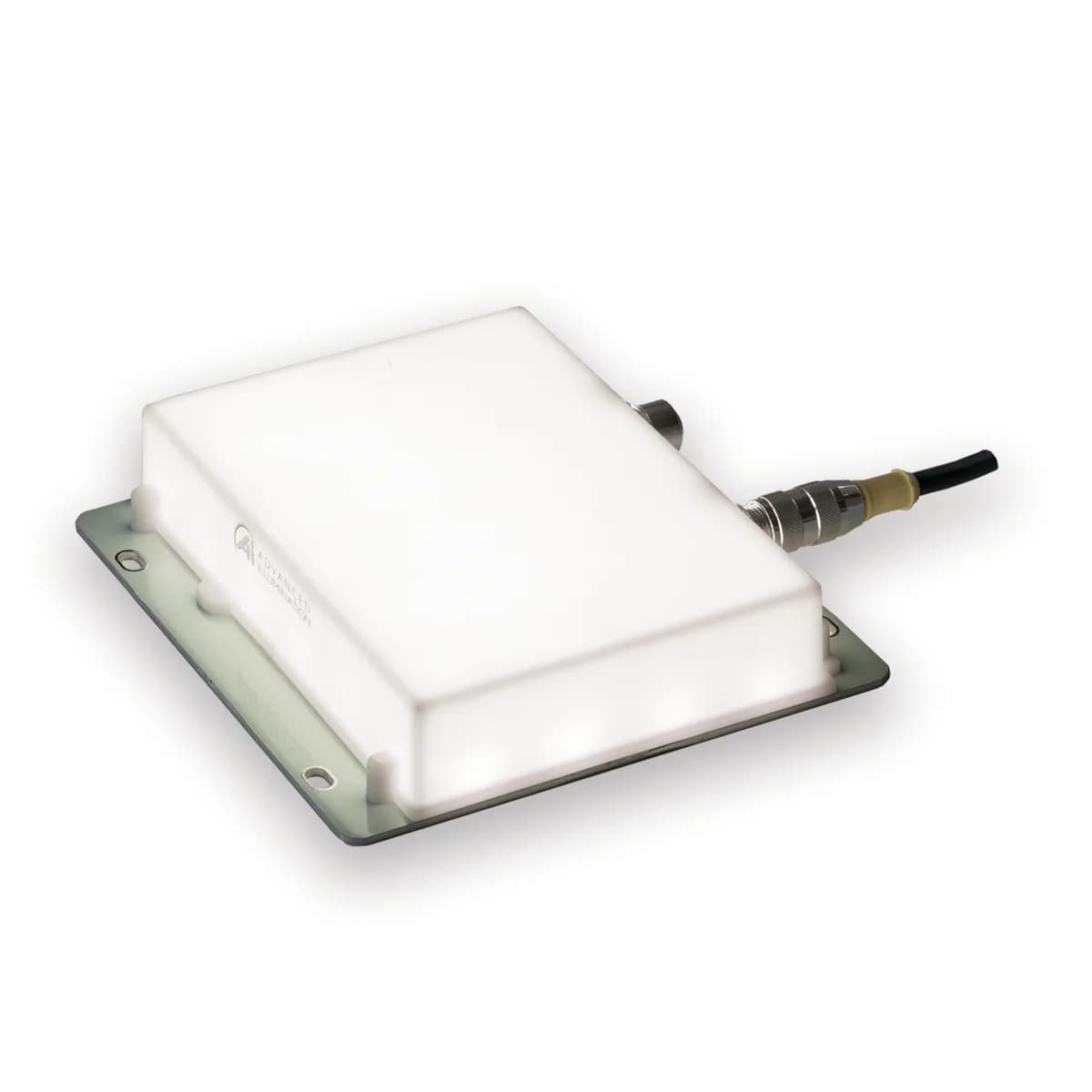

BL-S100150 EuroBrite™ Large Backlight
AI-BLS100150-WLow-cost large backlight with medium performance - daisy-chainable, 65,500 Lux, 11 wavelengths.
- Wavelengths available
- White, 455 - 940 nm
- Supply voltage
- 24V DC
- Ip rating
- IP67
About the AI-BLS100150-W
The BL-S100150 is the large EuroBrite backlight, offering high intensity illumination at a competitive price with complete built-in control for continuous and strobe modes. The IP67 sealed enclosure suits washdown environments, and the construction has been tested to withstand over 1000 lb, so it survives being stood on or clamped in a fixture.
Up to four units daisy chain to a combined 24 in length, which covers a wide part without a custom panel or separate control for each unit. The unit weighs 254.1 g and runs on 24 V nominal.
Adaptive Power maximises output in continuous mode through an onboard thermistor and Adaptive Overdrive delivers the maximal pulse in strobe mode, so the light gives what the exposure needs without manual tuning. Industrial-grade LEDs give surface illumination of 65 klux, with trigger-to-pulse latency of 10 microseconds and analogue intensity control from 0.7 V to 10 V. The BL-S100150 range covers white and ten wavelengths from 455 nm to 940 nm, the infrared options exempt from photobiological risk assessment.
Specifications
Maximum Intensity
- Max illuminance klux
- 65.5 typ (min 55.7)
- Max irradiance wm2
- 184.0 typ (min 156.4)
- Strobe multiplier inline
- Up to 5× (built-in)
Available Wavelengths
- Wavelengths available
- White, 455, 470, 505, 530, 590, 625, 660, 730, 850, 940 nm
- Visible wavelengths count
- 8
- Ir wavelengths count
- 2
- Rgb available
- No
Uniformity & Edge Effect
- Led array pitch
- Fixed array
Optics & Light Conditioning
- Collimation available
- No
- Polarization available
- No
- Lumen maintenance
- L70 (50,000 hrs)
Sizing
- Max emitting length
- 5.91 in
- Max emitting length
- 150 mm
- Max emitting width
- 3.94 in
- Size increment
- Fixed (single size)
- Sizes available count
- 11 (wavelength variants)
Physical Dimensions
- Light thickness max
- 1.14 in
- Light thickness max
- 28.9 mm
- Unit height
- 1.14 in
Housing & Materials
- Housing construction
- Sealed potted aluminum housing
- Window material
- Acrylic / diffuser (sealed)
- Mounting type
- 4× mounting tabs (4.8mm holes)
- Weight approx
- 254.1 g (8.96 oz)
Thermal & Ip
- Ip rating
- IP67
- Operating case temp
- 0 °C to 60 °C (normal operating)
- Operating ambient temp
- n/a (see operating temp)
- Cooling method
- Passive
Cable
- Std cable length
- No cable included (M12 5-pin, pass-through)
- Cable spec
- N/A — connector only
Power Supply
- Input voltage
- 24V nom. (min 22 / max 28)
- Current per sq inch 24v
- ~0.08A typ unit draw (on-board ctrl, not per-area); max 0.42–0.49A
Control Options
- Ctrl ic inline
- No (on-board controller)
- Ctrl i3 i3s
- No
- Ctrl i4
- No
- Ctrl dcs100e
- No
- Ctrl dcs103e
- No
- Ctrl pulsar320e
- No
- Ctrl 24v drive
- On-board only (not 24V pass-through config)
- Ethernet control
- No
- Strobe capability
- Built-in — up to 5× overdrive
Connectors
- Connector c1
- No
- Connector c5
- No
- Connector m12 optional
- Yes — standard (5-pin M12 in/out, pass-through)
- Connector m8 optional
- No
Optical
- Wavelength / colour
- White, 455, 470, 505, 530, 590, 625, 660, 730, 850, 940 nm
- Beam
- Uniform backlight
- Intensity
- High
- Irradiance
- 65,500 Lux
Environmental
- Operating temperature
- 0 to +50°C
Electrical
- Supply voltage
- 24V DC
Application
- Applications
- Inspection / Machine Vision
Downloads
- ENDownload
