Advanced Illumination · BACKLIGHTS
BL193
AI-BL193-WStandard intensity linear backlight at an accessible price point.
- Wavelengths available
- White, 470 - 880 nm
- Ip rating
- IP50
- Lumen maintenance
- L70 (50,000 hrs)

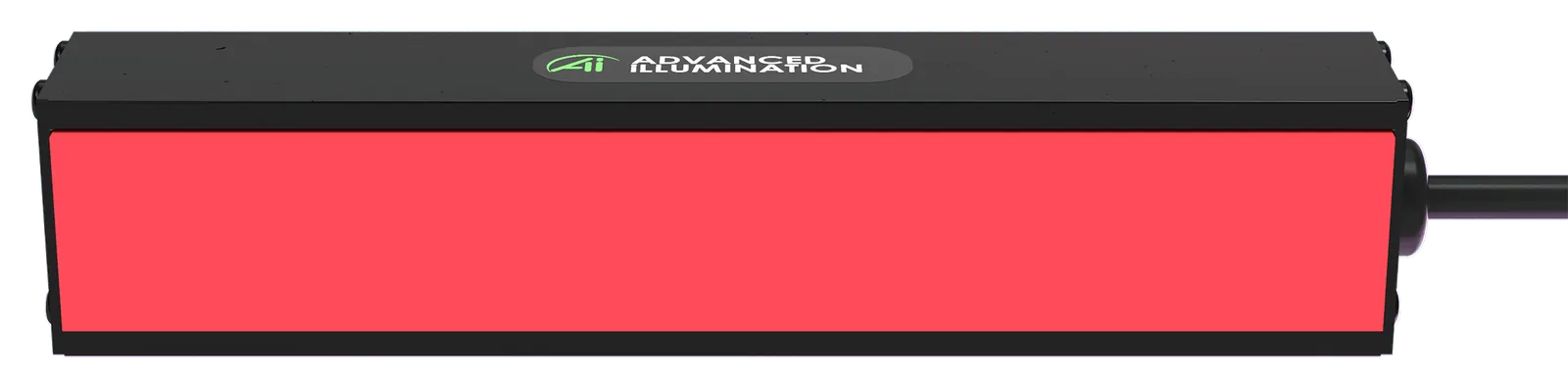

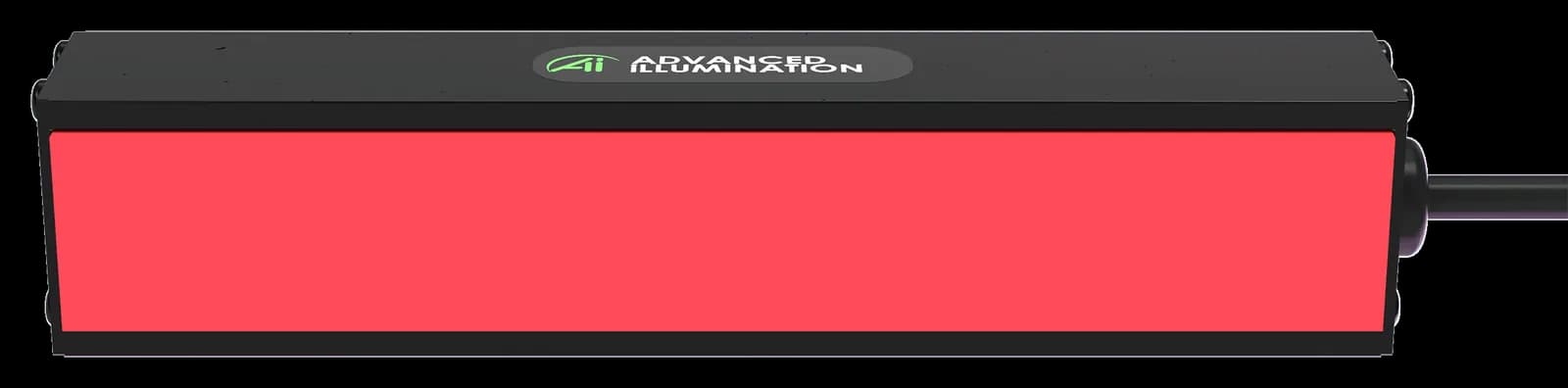

About the AI-BL193-W
The BL193 Series is a standard intensity linear backlight for machine vision work that needs uniform diffuse illumination without high output. Standard intensity industrial grade LEDs hold the price down, which makes the series practical where several backlights are needed on one machine.

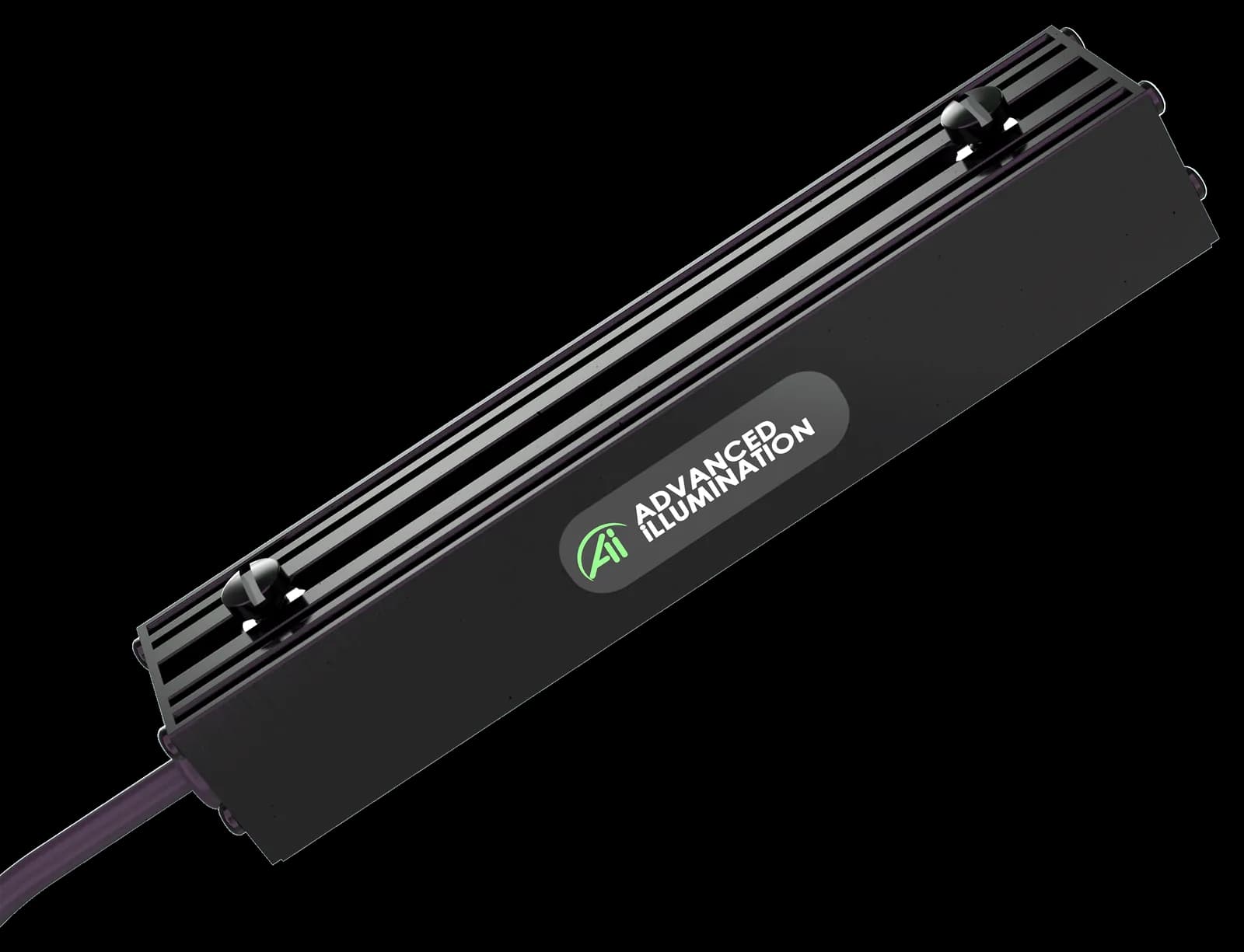

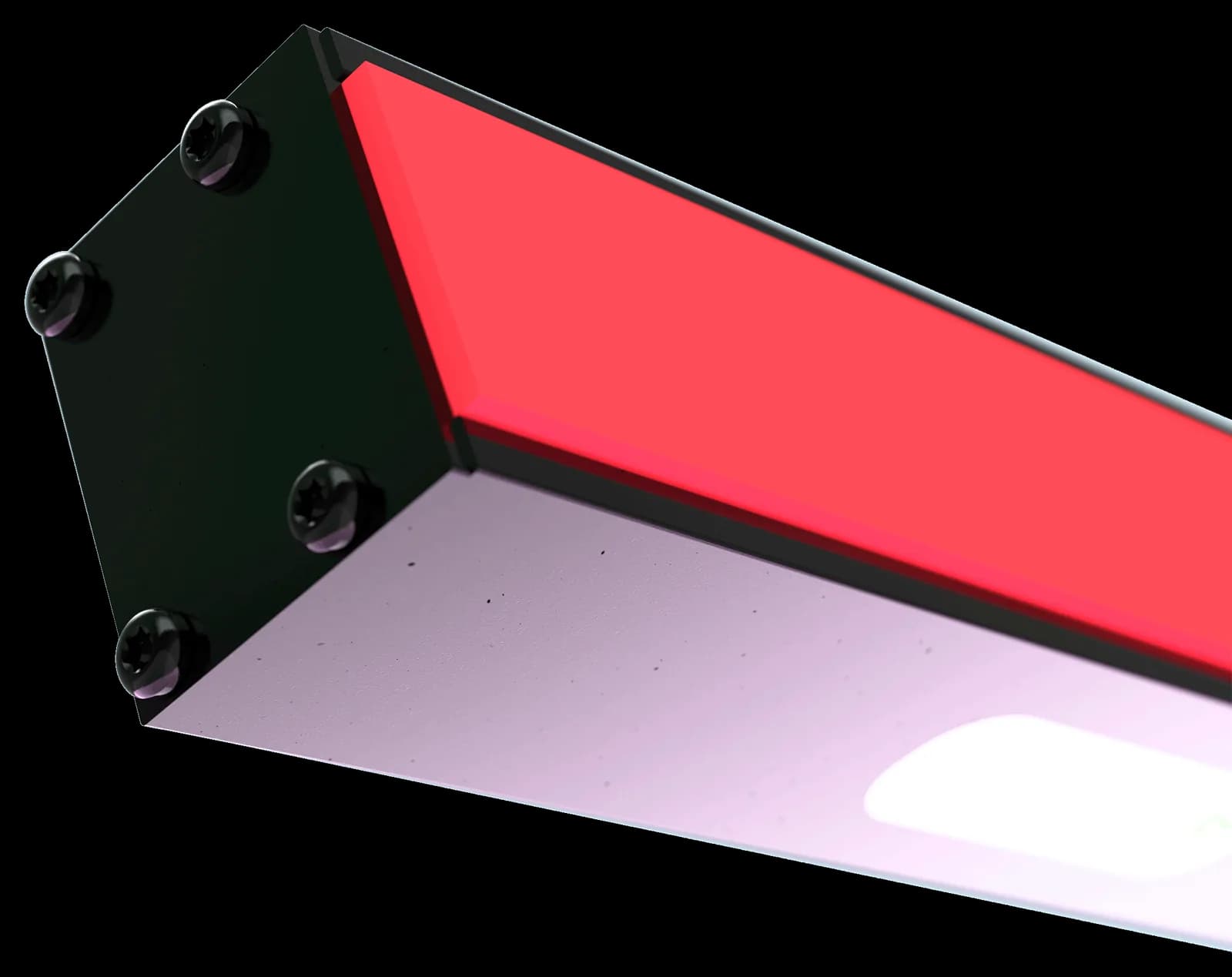

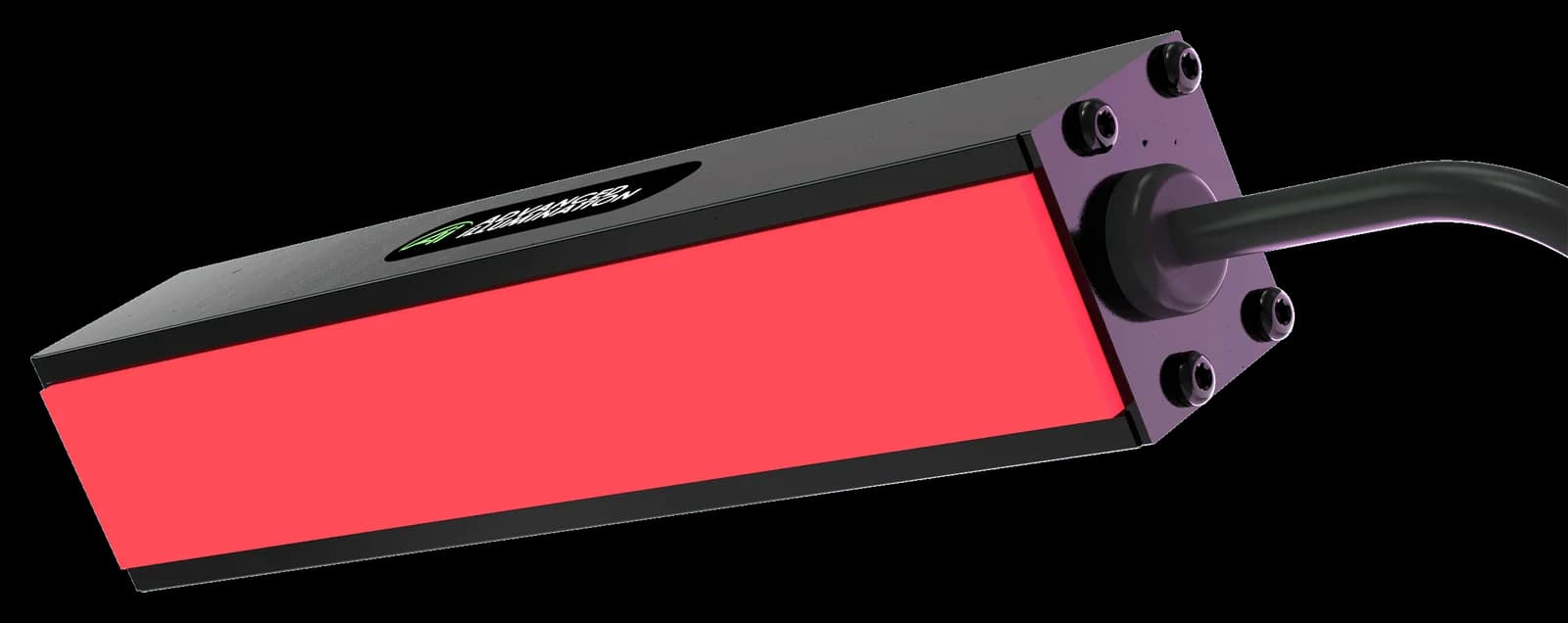

The extrusion-based aluminium housing scales in 1 in increments up to 80 in, giving 80 size configurations, so the emitting area matches the part without a custom build. Lengths run 47.2 mm to 2053.8 mm at 30.0 mm wide and 33.8 mm high, and an M6 mounting channel on the underside allows the position to be set after installation.
Optional overdrive strobe capability gives short bursts of increased intensity when a fast-moving part needs freezing, so the lower standard output does not rule out moving product. Standard units weigh around 458 g per 12 in of length, white light lumen maintenance is L70 at 50,000 hours, and the housing is rated IP50. The BL193 range covers white, 470 nm, 520 nm, 660 nm and 880 nm. It is a legacy field-proven design.
Specifications
Maximum Intensity
- Max illuminance klux
- 12.2
- Max irradiance wm2
- 41
- Strobe multiplier inline
- Up to 5×
- Strobe multiplier pulsar
- Up to 10×
- Working distance intensity klux 100mm
- 1
- Working distance irradiance wm2 100mm
- 4
Available Wavelengths
- Wavelengths available
- White, 470 nm, 520 nm, 660 nm, 880 nm
- Visible wavelengths count
- 4
- Ir wavelengths count
- 1
- Rgb available
- No
- Colour temp white k
- 5500
Uniformity & Edge Effect
- Edge effect
- 38.7 mm
- Led array pitch
- Linear
Optics & Light Conditioning
- Collimation available
- No
- Polarization available
- No
- Lumen maintenance
- L70 (50,000 hrs)
Sizing
- Max emitting length
- 80 in
- Max emitting length
- 2032 mm
- Size increment
- 1"
- Sizes available count
- 80
Physical Dimensions
- Light thickness max
- 1.18 in
- Light thickness max
- 30.0 mm
- Bezel thickness min
- 0.065 in
- Bezel thickness min
- 1.65 mm
- Unit height
- 1.33 in
Housing & Materials
- Housing construction
- Extrusion-based anodized aluminum
- Window material
- Acrylic
- Mounting type
- M6 nut channel — underside
- Weight approx
- ~1.01 lbs per 12" length
Thermal & Ip
- Ip rating
- IP50
- Operating case temp
- 25 °C to 60 °C
- Operating ambient temp
- 0 °C to 35 °C
- Cooling method
- Passive
Cable
- Std cable length
- 80" (2 m) -0/+6"
- Cable spec
- 105 °C rated, foil shield w/ drain
Power Supply
- Input voltage
- 24V DC
- Current per linear in whi
- 0.020A
- Current per linear in red
- 0.030A (660/850)
Control Options
- Ctrl ic inline
- Yes
- Ctrl i3 i3s
- Yes
- Ctrl i4
- Yes
- Ctrl dcs100e
- Yes (C1)
- Ctrl dcs103e
- Yes (C1)
- Ctrl pulsar320e
- Yes (C5)
- Ctrl 24v drive
- Yes
- Ethernet control
- Optional (EL/AL config)
- Strobe capability
- Optional (AL/C5)
Connectors
- Connector c1
- Yes — 7-pin locking
- Connector c5
- Yes — Pulsar 320 connector
- Connector m12 optional
- Yes (IC/I3/I3S/I4)
- Connector m8 optional
- Yes (IC/I3/I3S/I4)
