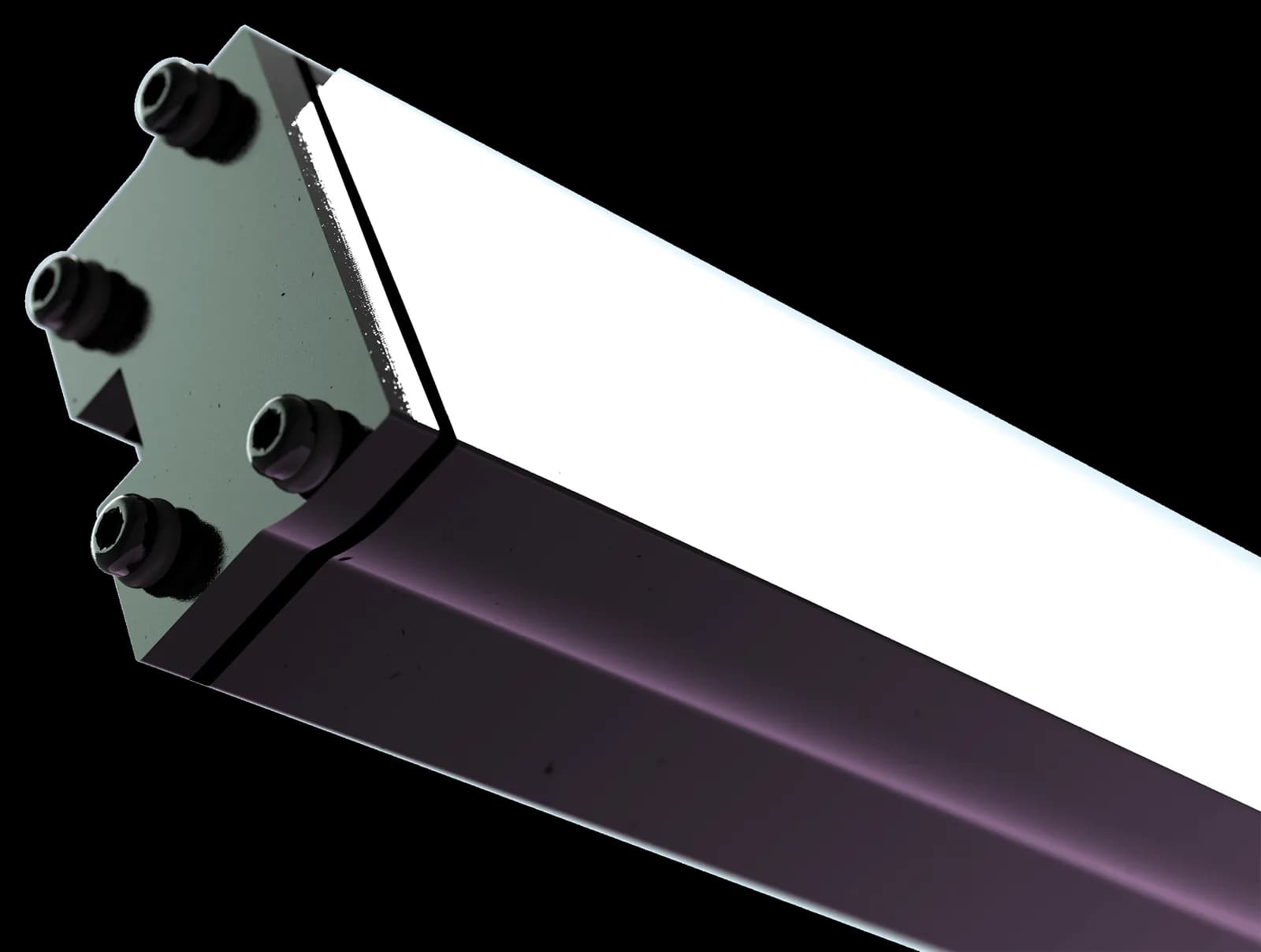

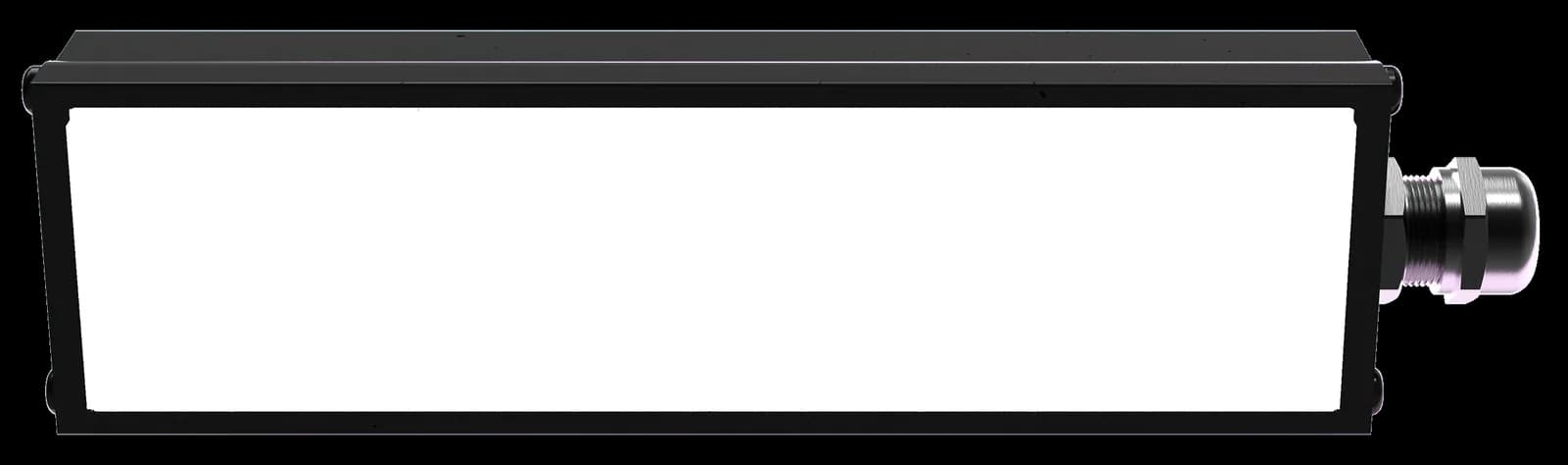

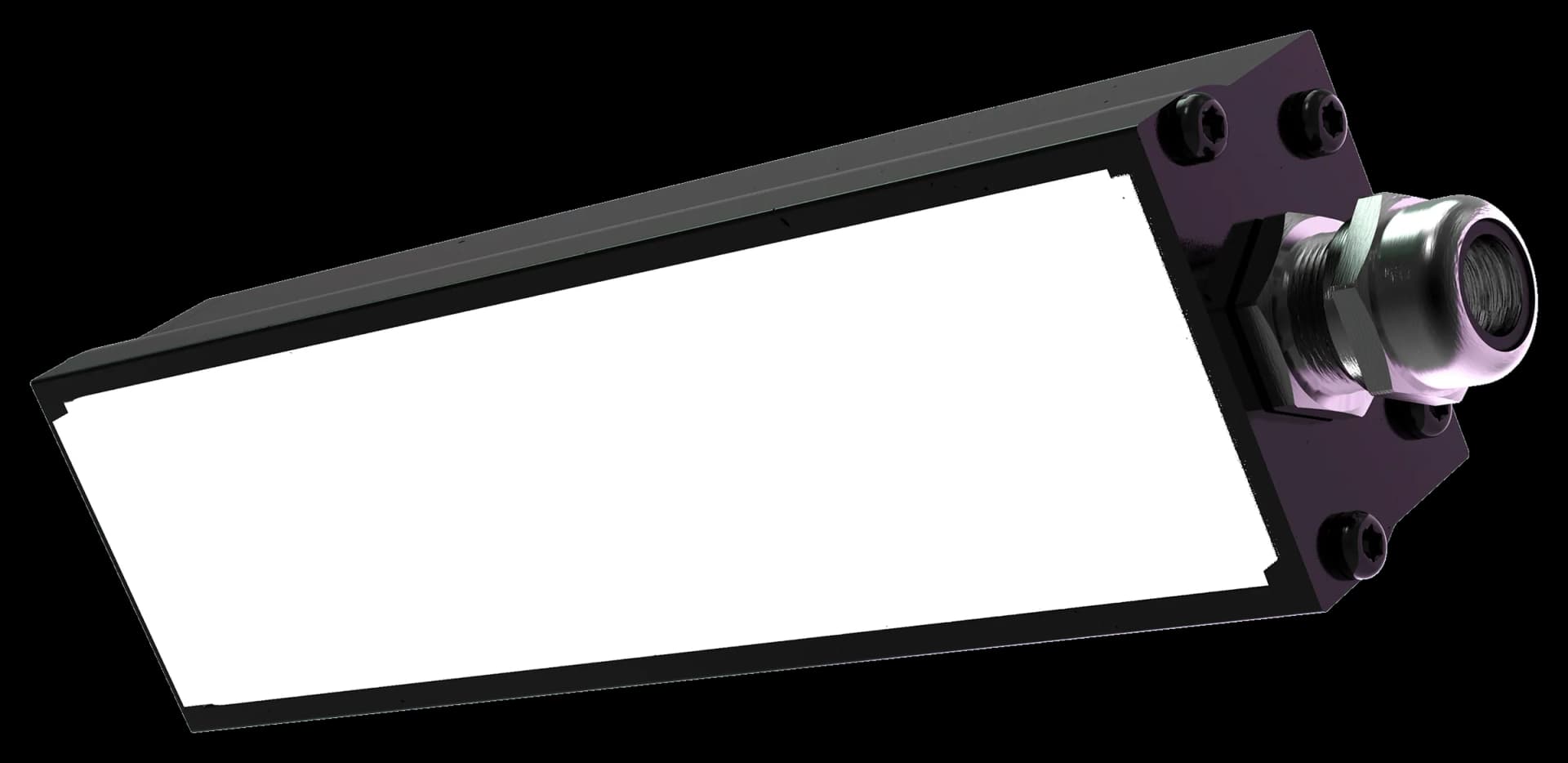

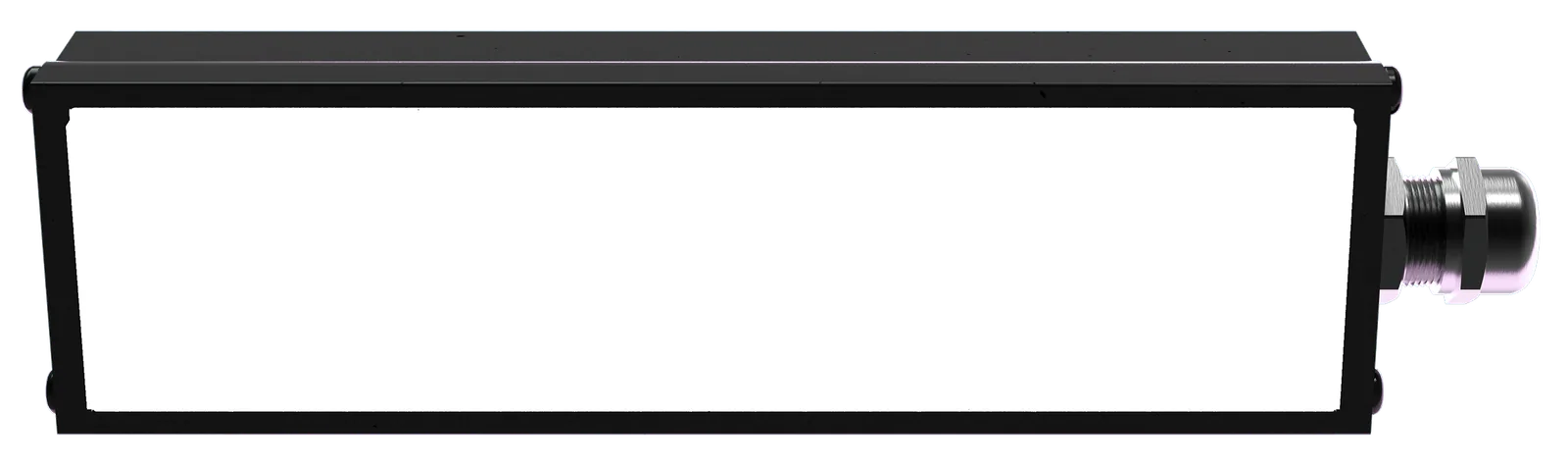

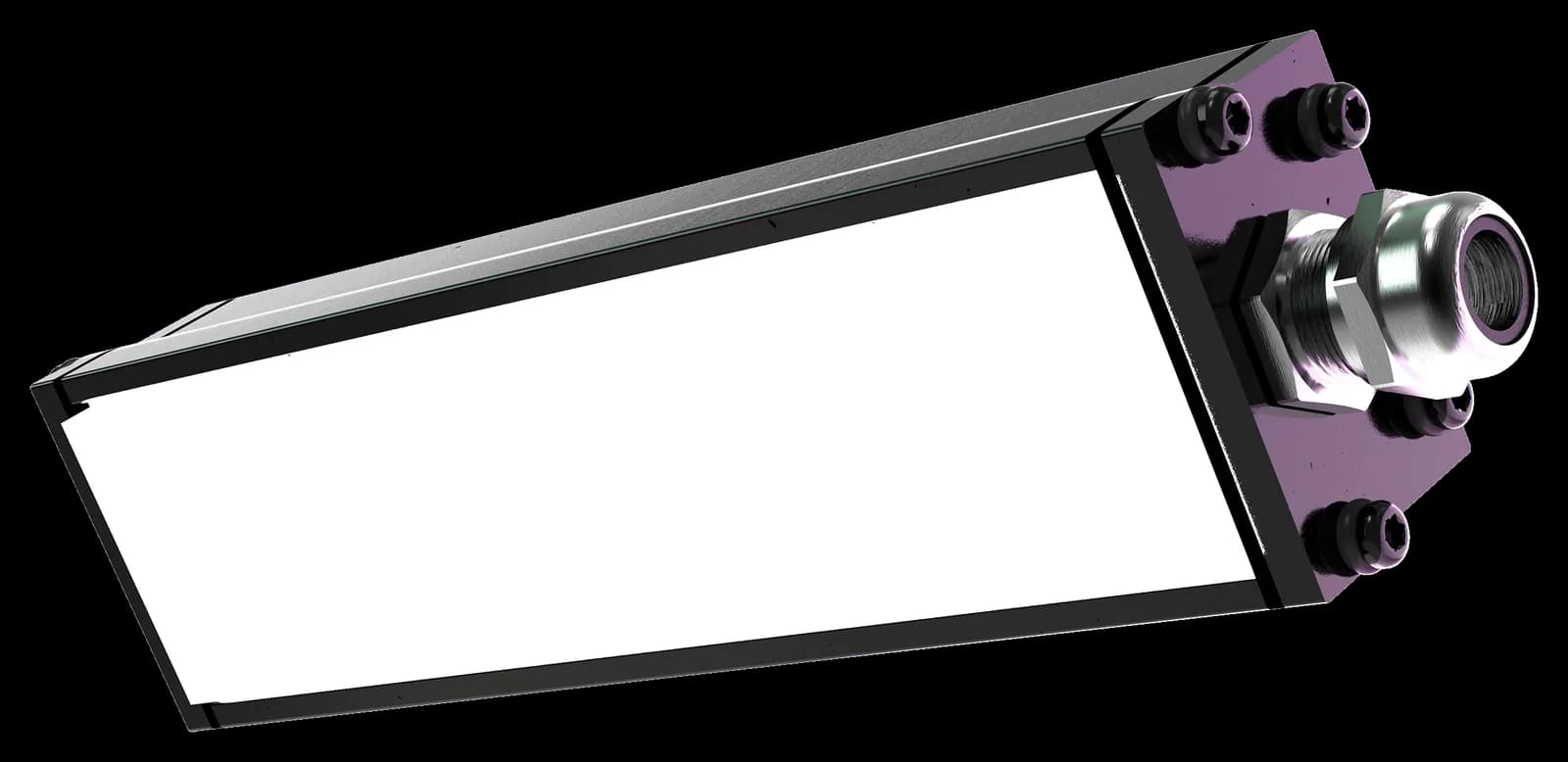

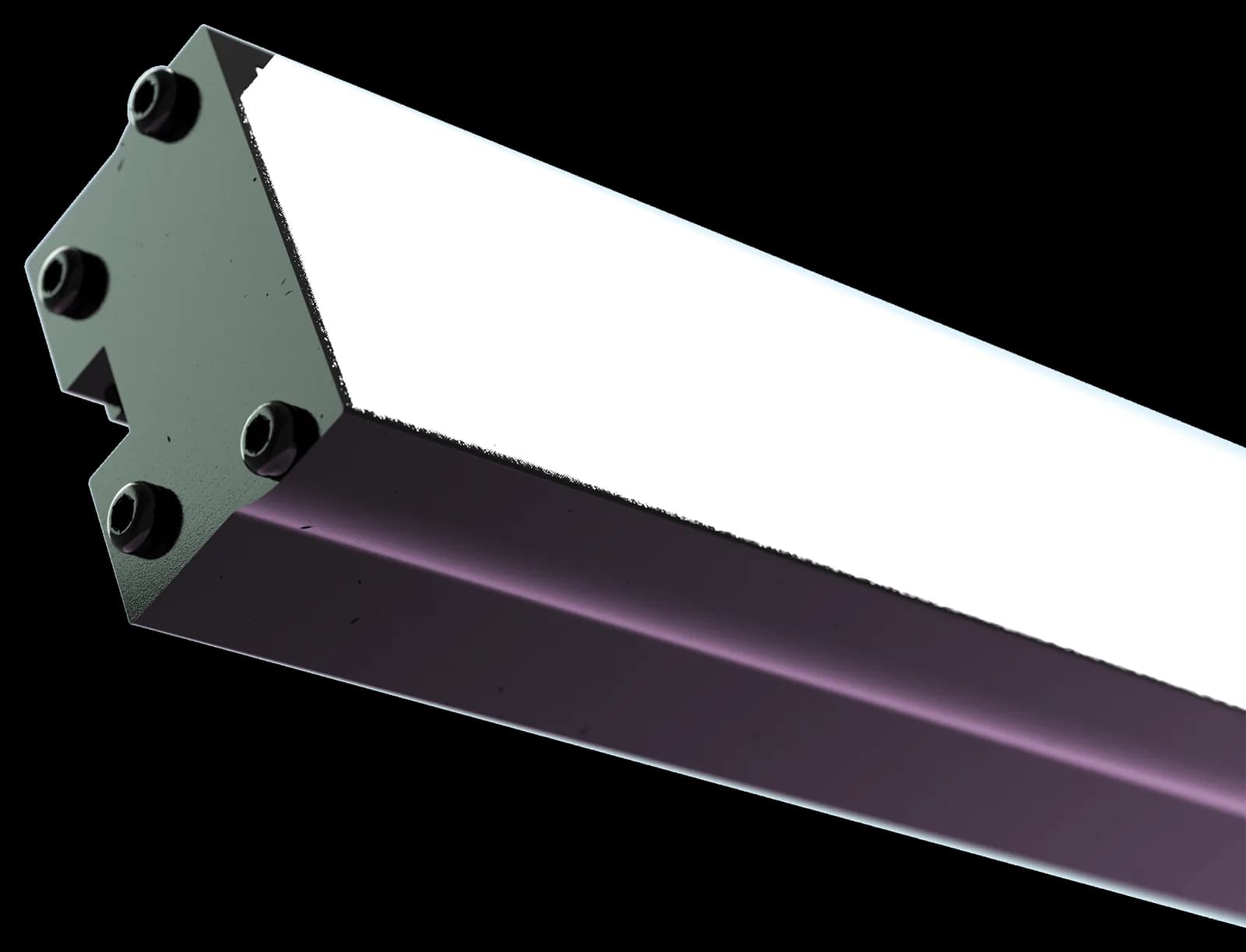

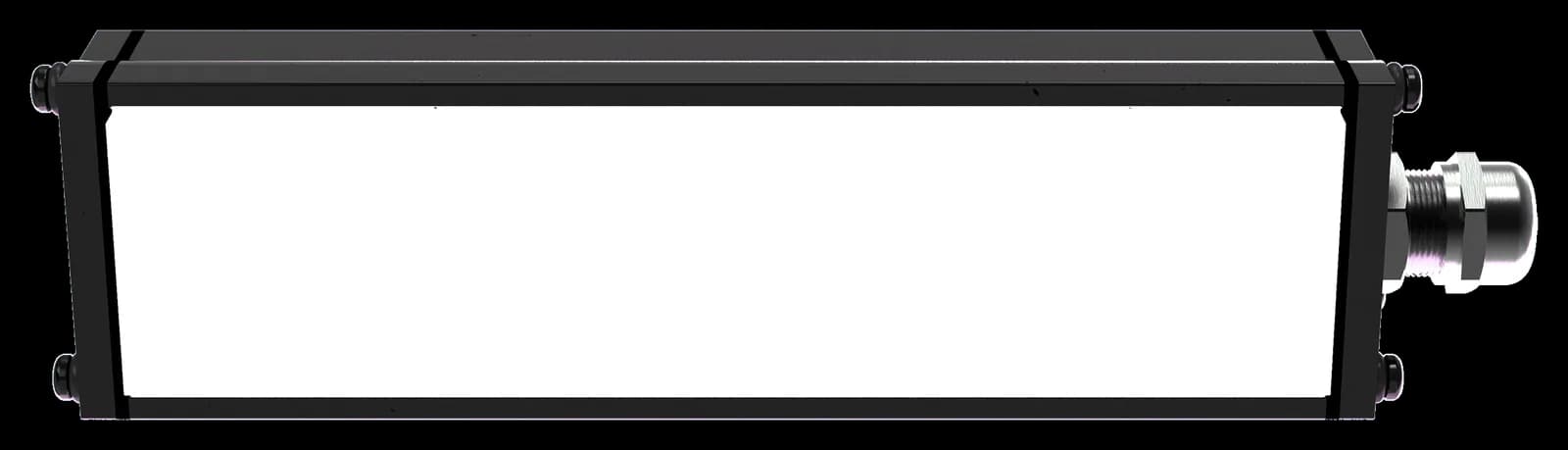

BL313 Medium Intensity Linear Backlight
AI-BL313-WCompact diffuse linear backlight for line scan - scalable, 10 wavelengths, cost-effective web inspection.
- Wavelengths available
- White, 455 - 940 nm
- Supply voltage
- 24V DC
- Lumen maintenance
- L70 (50,000 hrs)
About the AI-BL313-W

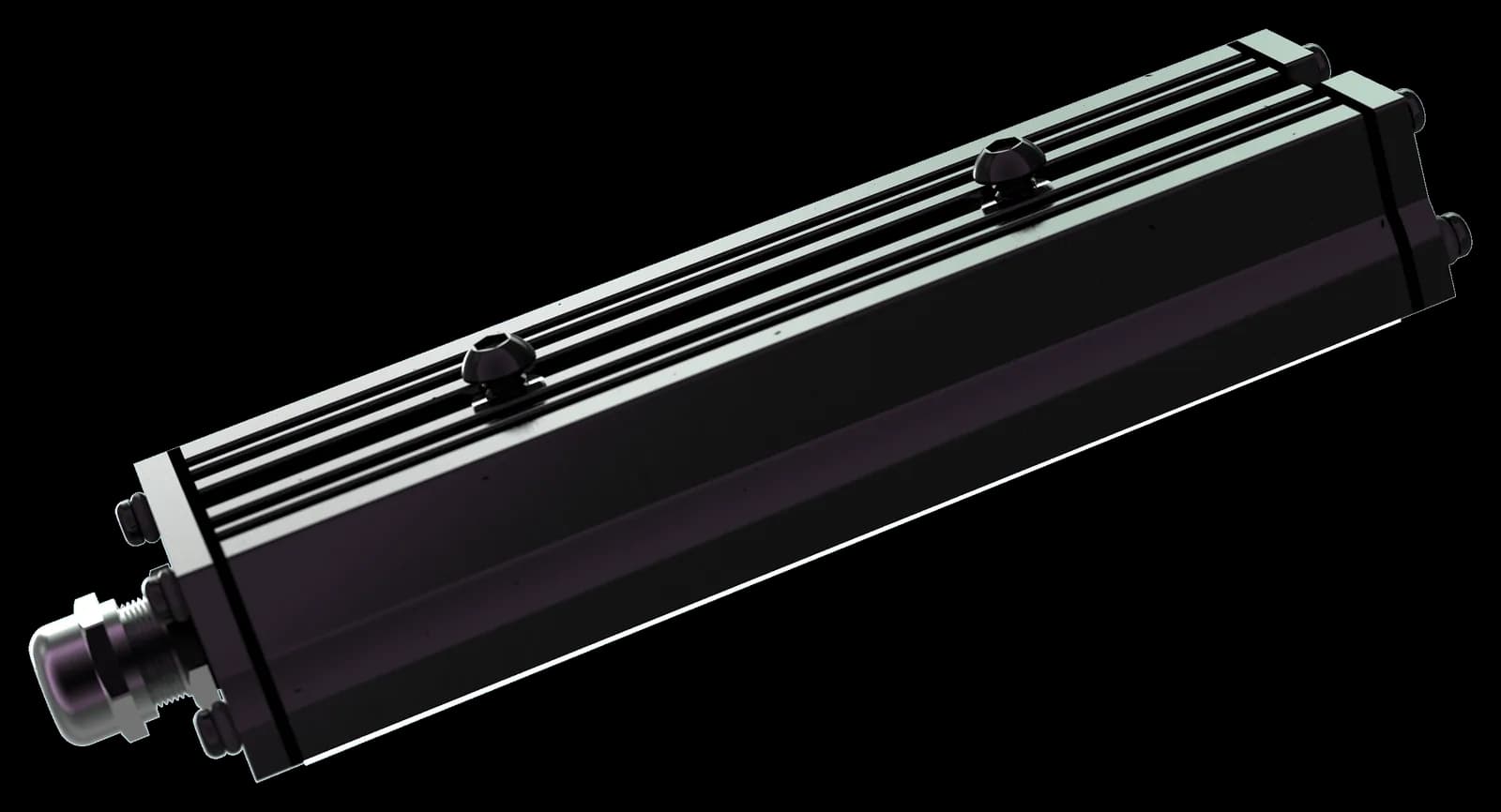

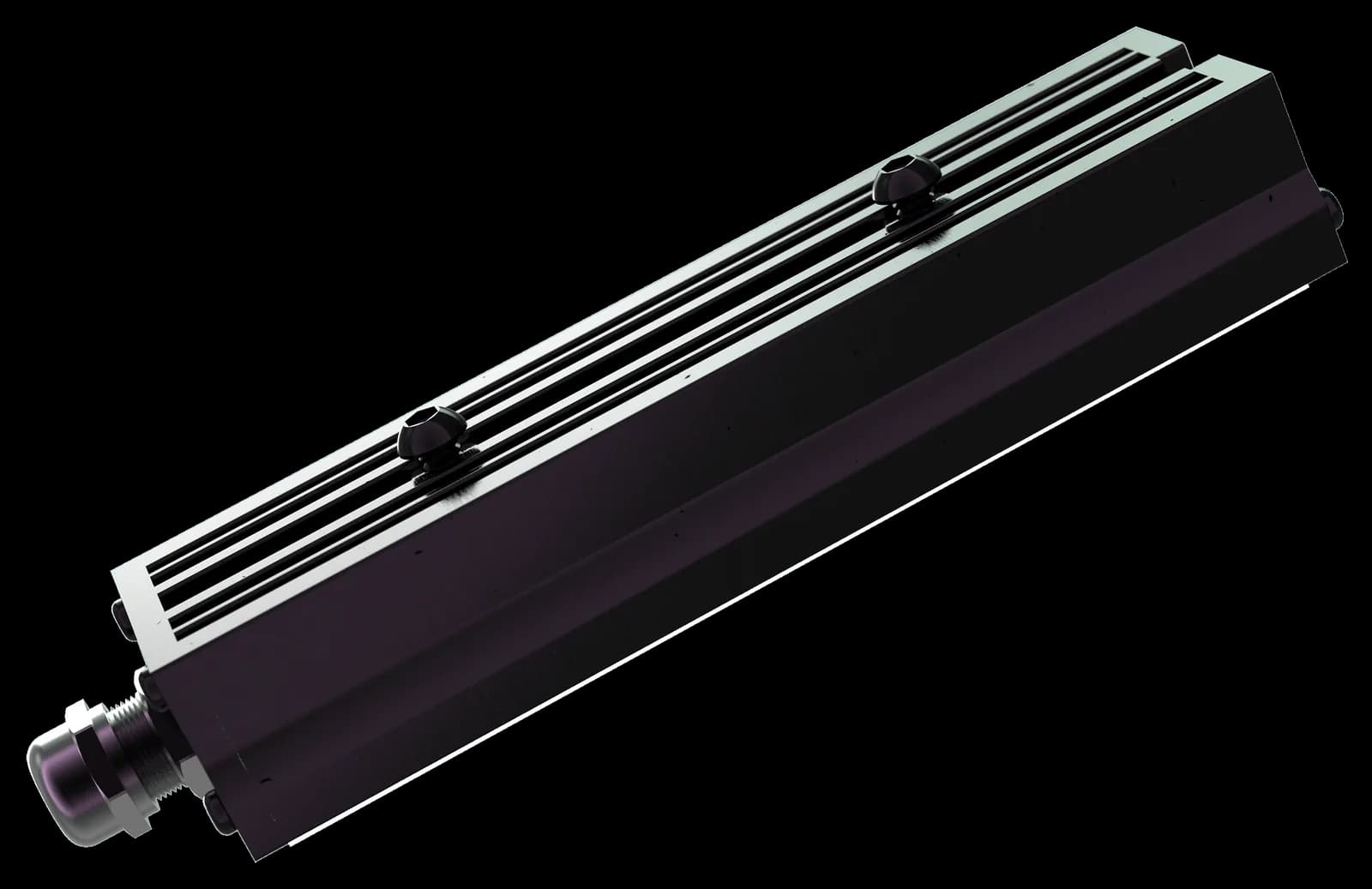

The BL313 Series is a medium intensity linear backlight producing highly diffuse illumination for line scan work and for general vision as a non-directional bar light. An M4 mounting channel on the base sets the position and angle after installation, so the light is trimmed to the part without a new bracket.
Lengths run 80.1 mm to 537.2 mm at 32.2 mm wide and 21.7 mm high, and the extrusion-based aluminium housing scales in one dimension so a longer part needs only a longer unit. A sealed build adds 4 mm of length at the same width and height, keeping the fixture unchanged in moderately harsh environments.
A universal LED pad design carries eight wavelengths, so one housing covers a wide range of spectral needs. Standard units weigh around 213 g per 4 in of length and white light lumen maintenance is L70 at 50,000 hours. The BL313 range covers white, 455 nm, 470 nm, 530 nm, 590 nm, 625 nm, 850 nm and 940 nm, with IP50 and IP65 options and build-to-order lead times of one to two weeks.
Specifications
Maximum Intensity
- Max illuminance klux
- 231
- Max irradiance wm2
- 735
- Strobe multiplier inline
- Up to 5×
- Strobe multiplier pulsar
- Up to 10×
- Working distance intensity klux 100mm
- 22
- Working distance irradiance wm2 100mm
- 74
Available Wavelengths
- Wavelengths available
- White, 455 nm, 470 nm, 530 nm, 590 nm, 625 nm, 850 nm, 940 nm
- Visible wavelengths count
- 6
- Ir wavelengths count
- 2
- Rgb available
- No
- Colour temp white k
- 5500
Uniformity & Edge Effect
- Edge effect
- 25.1 mm
- Led array pitch
- Linear
Optics & Light Conditioning
- Collimation available
- No
- Polarization available
- No
- Lumen maintenance
- L70 (50,000 hrs)
Sizing
- Max emitting length
- 20 in
- Max emitting length
- 508 mm
- Size increment
- 2"
- Sizes available count
- 10
Physical Dimensions
- Light thickness max
- 0.85 in
- Light thickness max
- 21.6 mm
- Bezel thickness min
- 0.125 in
- Bezel thickness min
- 3.18 mm
- Unit height
- 0.85 in
Housing & Materials
- Housing construction
- Extrusion-based anodized aluminum
- Window material
- Acrylic
- Mounting type
- M4 mounting nut channel
- Weight approx
- ~0.47 lbs (~213 g) per 4" unit length
Thermal & Ip
- Ip rating
- IP50 (IP65 optional washdown)
- Operating case temp
- 25 °C to 60 °C
- Operating ambient temp
- 0 °C to 35 °C
- Cooling method
- Passive
Cable
- Std cable length
- 80" (2 m) -0/+6"
- Cable spec
- 105 °C rated, foil shield w/ drain
Power Supply
- Input voltage
- 24V DC
- Current per linear in whi
- 0.120A (1"-12"), 0.090A (13"+) — 24V Drive
- Current per linear in red
- 0.240A (1"-12"), 0.180A (13"+) — Std Controller
Control Options
- Ctrl ic inline
- Yes
- Ctrl i3 i3s
- Yes
- Ctrl i4
- Yes
- Ctrl dcs100e
- Yes (C1)
- Ctrl dcs103e
- Yes (C1)
- Ctrl pulsar320e
- Yes (C5)
- Ctrl 24v drive
- Yes
- Ethernet control
- Optional (DCS-100E/103E)
- Strobe capability
- Optional (I3/I3S/I4 or C5/Pulsar)
Connectors
- Connector c1
- Yes
- Connector c5
- Yes
- Connector m12 optional
- Yes (IC/I3/I3S/I4)
- Connector m8 optional
- Yes (IC/I3/I3S/I4)
Optical
- Wavelength / colour
- White, 455, 470, 530, 590, 625, 850, 940 nm
- Beam
- Linear line scan
- Intensity
- Low
- Irradiance
- 240 Lux
Environmental
- Operating temperature
- 0 to +35°C
Electrical
- Supply voltage
- 24V DC
Application
- Applications
- Inspection / Machine Vision
