ProPhotonix · UV DISINFECTION
COBRA Clean FX1
PPX-COBRA-CLEAN-FX1Compact fan-cooled UVC LED lamp for developing water, surface and air disinfection, up to 90 mW/cm².
- Wavelengths available
- 265 - 310
- Supply voltage
- 48 V DC
- Max ambient temp
- 35 °C
About the PPX-COBRA-CLEAN-FX1

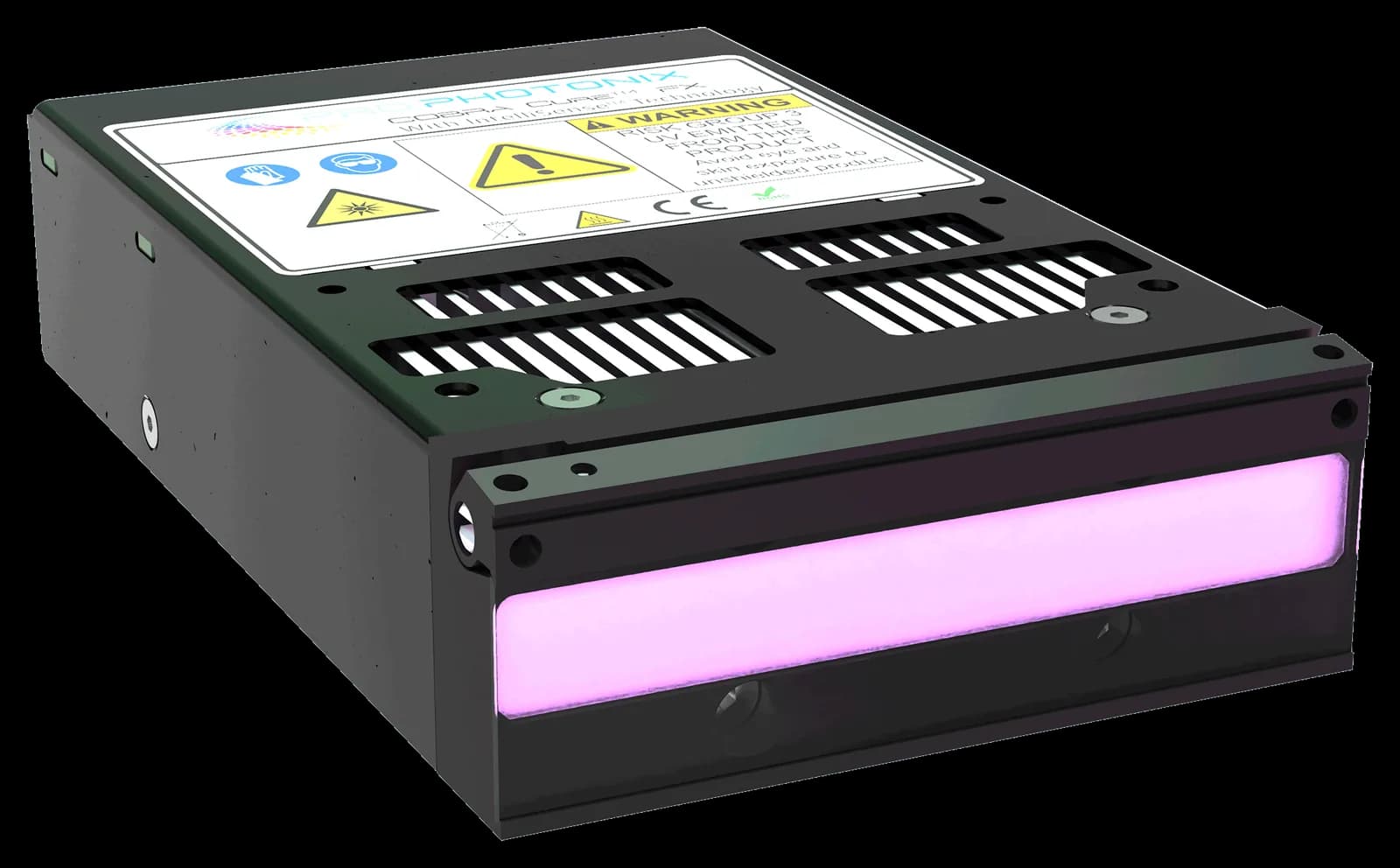

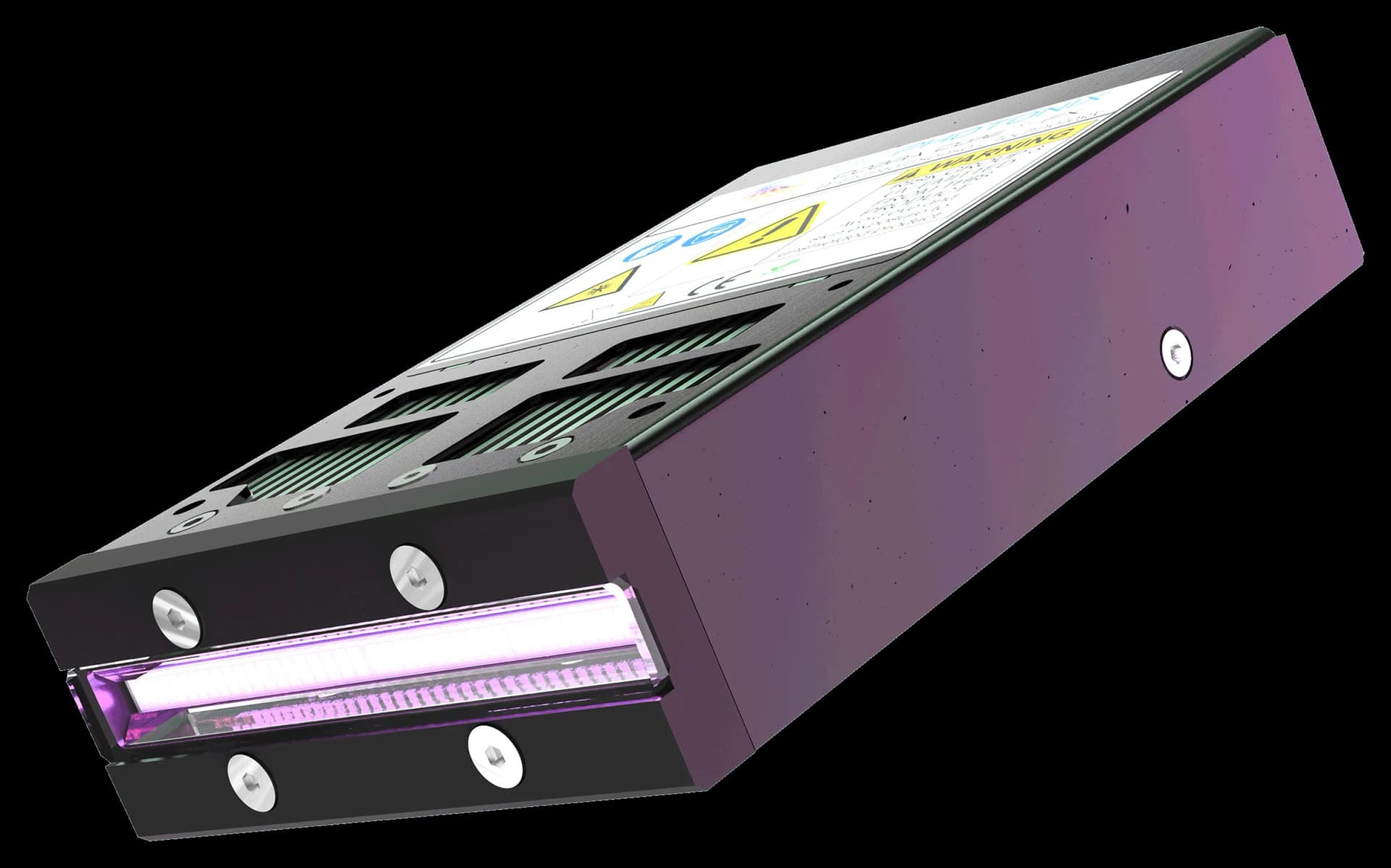

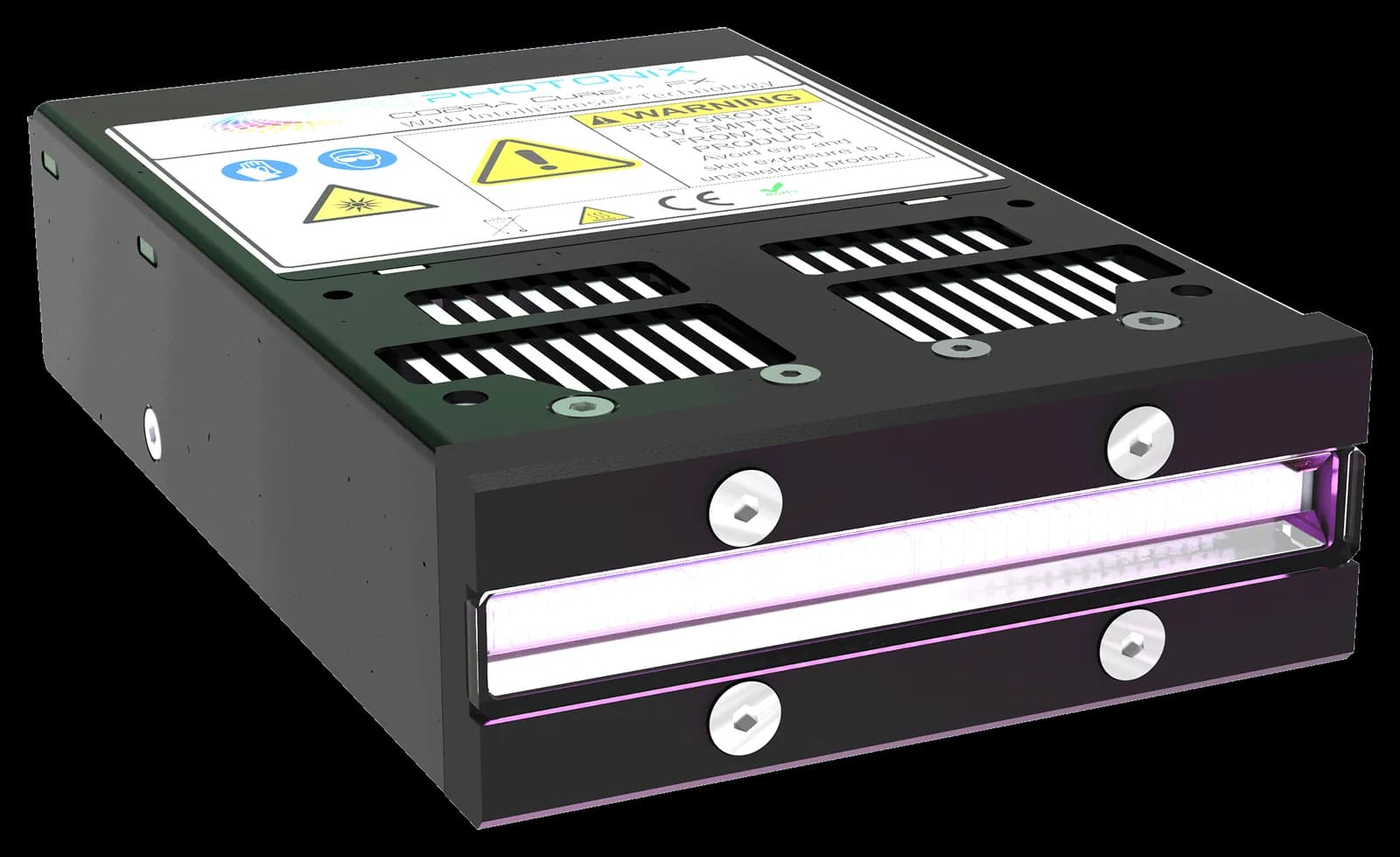

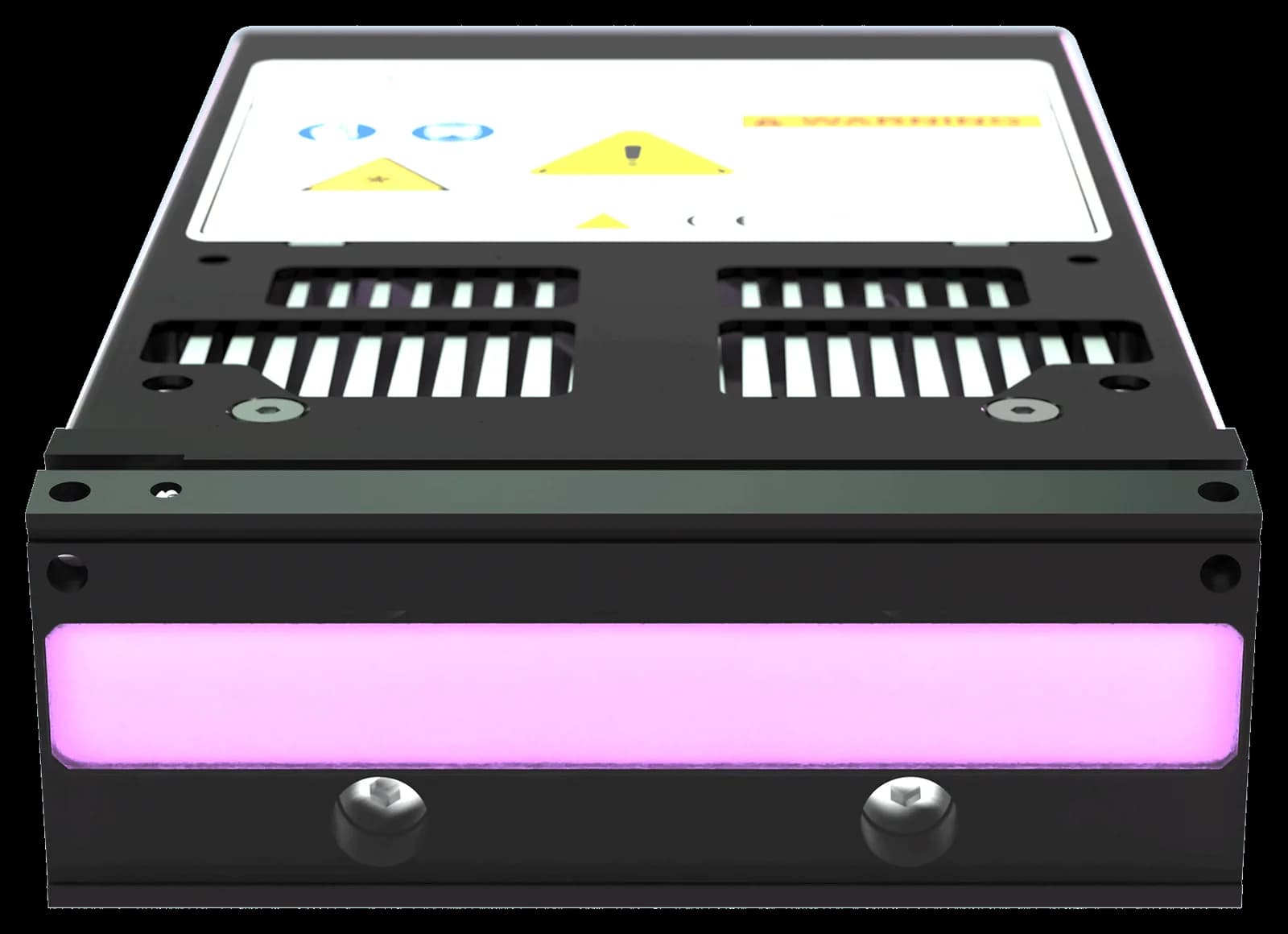

The COBRA Clean FX1 is a compact, fan-cooled UVC LED lamp built as a ready to use evaluation product for developing UVC disinfection applications in water, surface and air treatment. It is designed on an established platform that allows numerous optical, mechanical and electronic configurations, so an evaluation unit can be reconfigured as the application definition firms up.
A field replaceable window keeps output consistent as the lamp is used in test rigs, and the lamp provides a uniform line, so dose across the treated width is predictable. Peak irradiance reaches 90 mW/cm2 and peak energy density 90 mJ/cm2 at 2 mm.
LED technology is ozone and heavy metal free, needs no warm up time, and offers precise control and predictable light output over time. The COBRA Clean range covers 265 nm, 275 nm, 285 nm and 310 nm, with factory set doses from 55 to 90 mJ/cm2, for laboratory and medical work, packaging, food processing and industry. It is patent protected and independently CE and UL certified.
Specifications
Key Features
- Feature 1
- Compact, fan-cooled UVC LED lamp
- Feature 2
- Available in 265, 275, 285, 310 nm
- Feature 3
- Peak irradiance 90 mW/cm² at 2 mm
- Feature 4
- Field replaceable window
- Feature 5
- CE and UL Certified
- Feature 6
- No warm up time required
- Feature 7
- Ozone and heavy metal free
- Feature 8
- Stackable, modular design
Key Applications
- Application 1
- Water disinfection
- Application 2
- Surface disinfection
- Application 3
- Air disinfection
- Application 4
- Laboratory and medical
- Application 5
- Packaging materials
- Application 6
- Food processing
Maximum Intensity / Dose
- Peak irradiance / max_intensity
- 90 mW/cm² at 2 mm
- Max dose
- 90 mJ/cm² at 2 mm
- Measurement speed
- 10 mm/s (0.6 m/min)
Available Wavelengths
- Wavelengths available
- 265, 275, 285, 310
- Uvc disinfection wavelengths
- 265, 275, 285, 310 nm
Optical Configurations
- Optical configs available
- D4 (40°) only
- Output angle
- 40° (D4)
- Linewidth fwhm
- ~40 mm at 2 mm (D4)
Working Distance & Performance
- Factory set working distance
- 2 mm
- Nominal intensity D4 or best 395nm
- 78–92 mW/cm² (285 nm best)
- Dose D4 or best 395nm
- 72–90 mJ/cm² (D4)
Spectral Measurement
- Measurement instrument
- ILT 950UV
- Peak wavelength tolerance
- ±5 nm
Housing & Form Factor
- Module length
- 77 (D4 config)
- Module pitch
- 77 mm
- Scalable lengths
- Single module (77 mm)
- Weight per module
- 0.26 kg
- Field replaceable window
- Yes (hinge mechanism)
- Window part number
- FX1-W-0077
Cooling
- Cooling type
- Fan-cooled
- Venting options
- Side Vented (S)
Environmental
- Max ambient temp
- 35 °C
- Humidity range rh
- relative humidity 60% - 80% non-condensing
- Noise at 0m dba
- 84*
- Noise at 1m dba
- 54*
- Mounting hole thread depth
- M3, max 6 mm
Power
- Supply voltage
- 48 V DC
- Recommended psu
- PSU-48V-120W-XX
- Wall plug psu
- PSA-48V-120-XX
Intensity Control
- Analog control mode
- Analog (A) or Sustain (S)
- Control voltage range
- 1–10 V (off <1 V)
- Enable signal
- 16–24 V
- Status monitoring
- Yes (status wire)
- Analog mode a behaviour
- Off <1 V; linear 1–10 V
- Sustain mode s behaviour
- 10% at 300 mV–1 V; linear above 1 V
Connection Schemes
- Connection scheme 1
- Flying lead cables (FX1-CAB-F-A-LL)
- Connection scheme 2
- Intensity controller + PSU (FX-CTL-A + FX1-CAB-A-A-LL)
- Ribbon cable pins
- 14-pin ribbon
- Std cable length
- 2000 mm
Intensity Controller Details
- Controller part number
- FX-CTL-A
- Controller inputs
- Slider (enable) + rotary pot (intensity)
- Controller fault indicator
- LED light
