ProPhotonix · UV CURING
COBRA Cure FX1
PPX-COBRA-FX1-3955.4 W/cm² compact UV LED curing system offering a stable, reliable cure over a long lifetime, ideal for printing and 3D printing applications.
- Wavelengths available
- 365 - 405
- Supply voltage
- 48 V DC
- IP rating
- IP40
About the PPX-COBRA-FX1-395

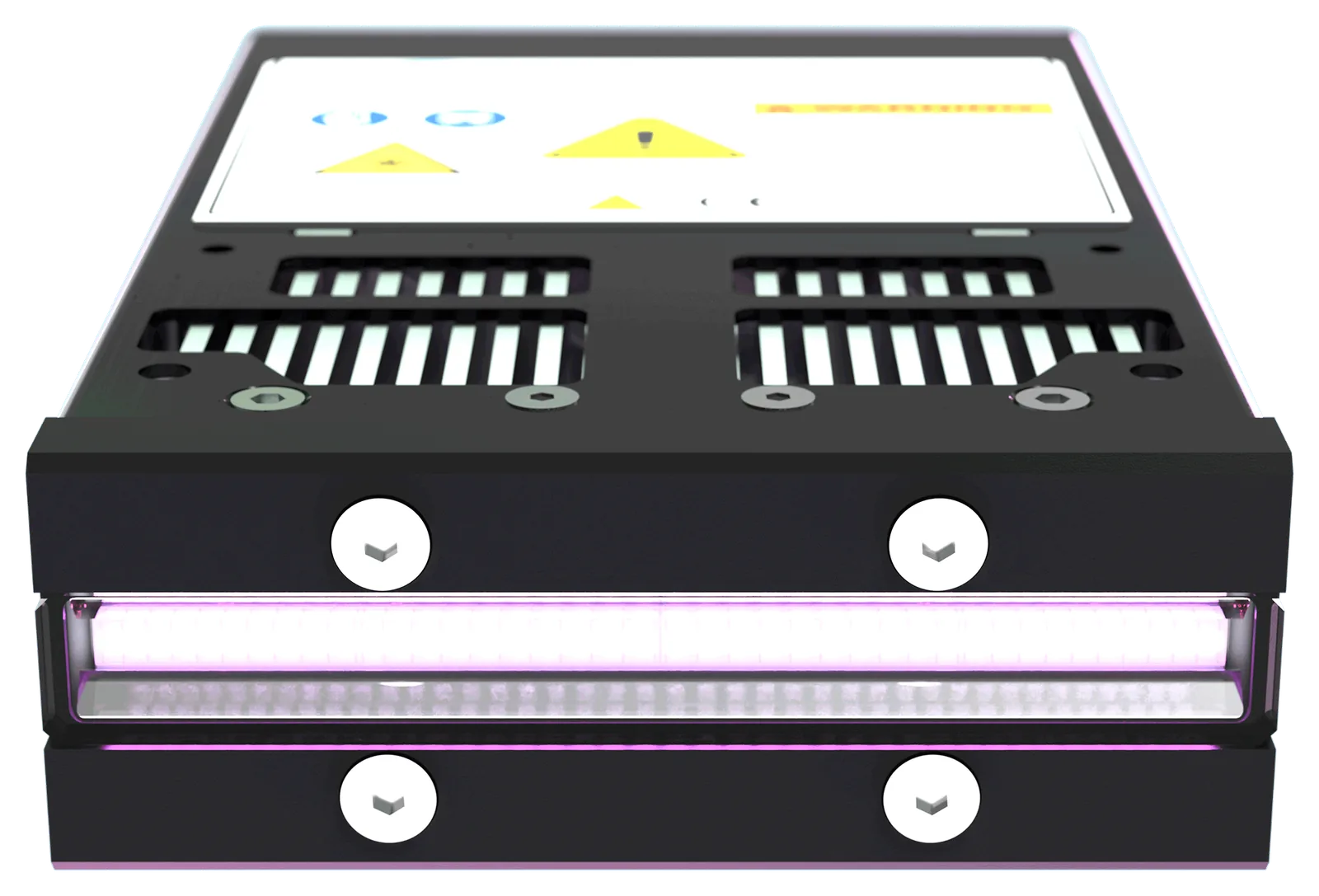

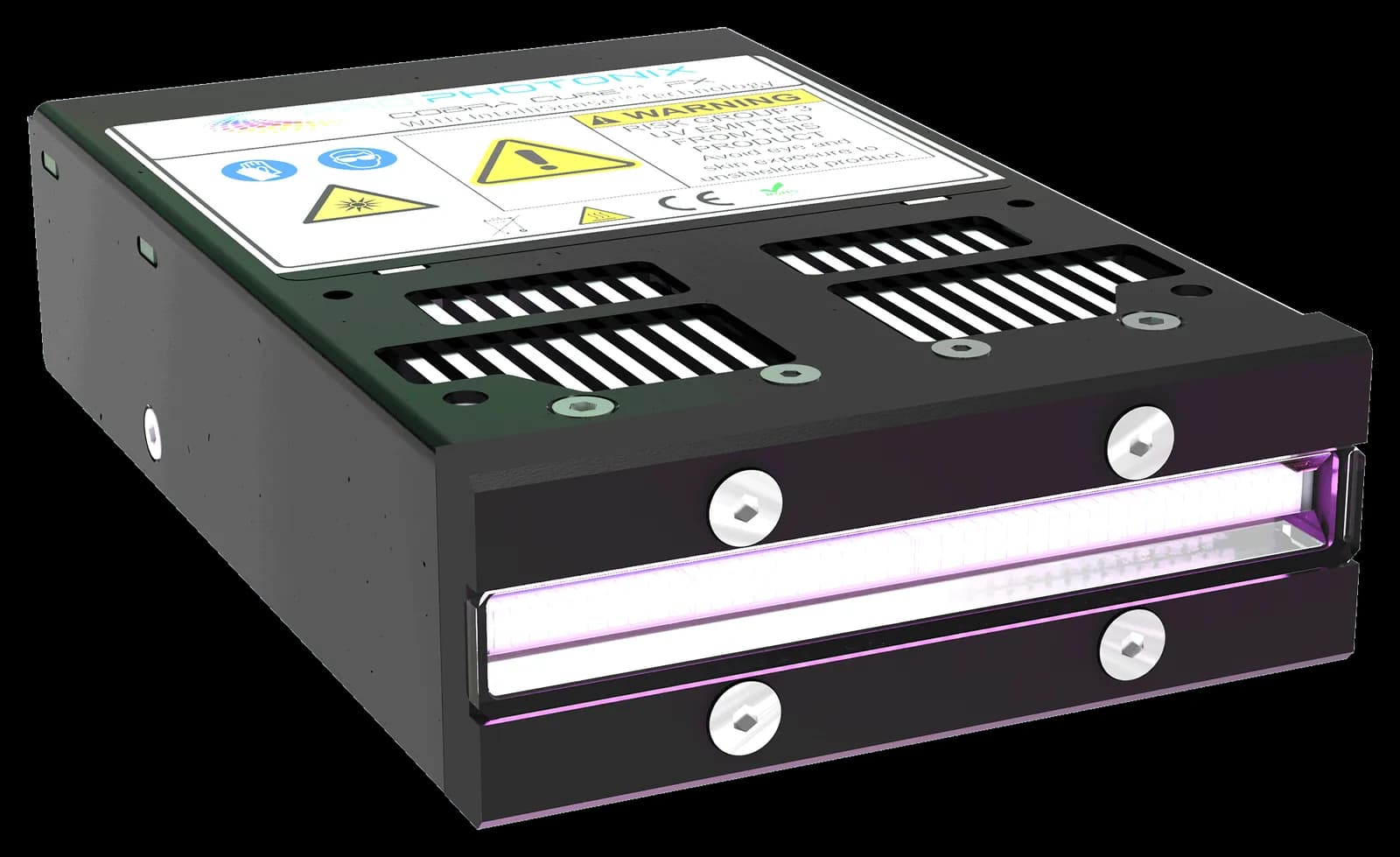

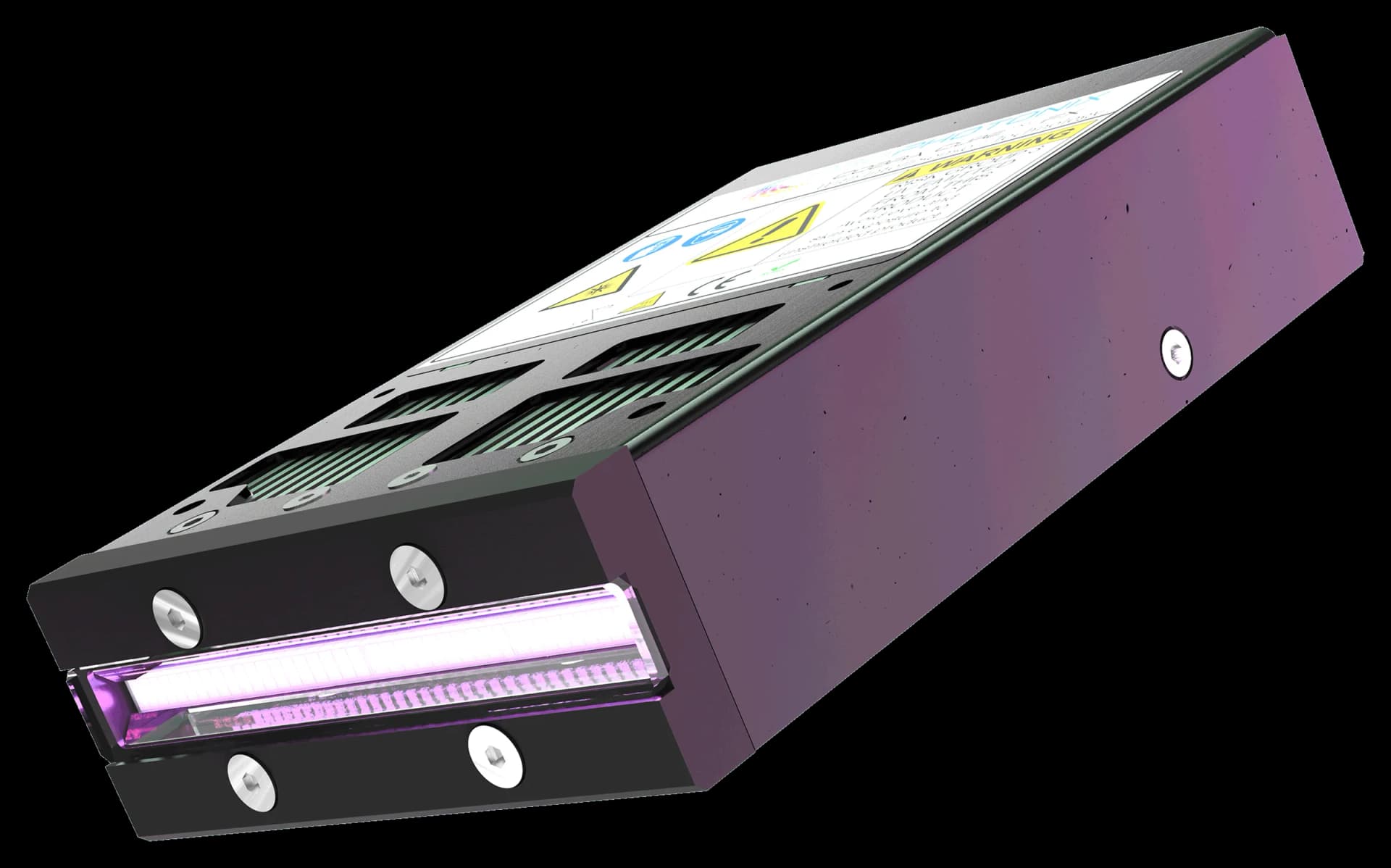

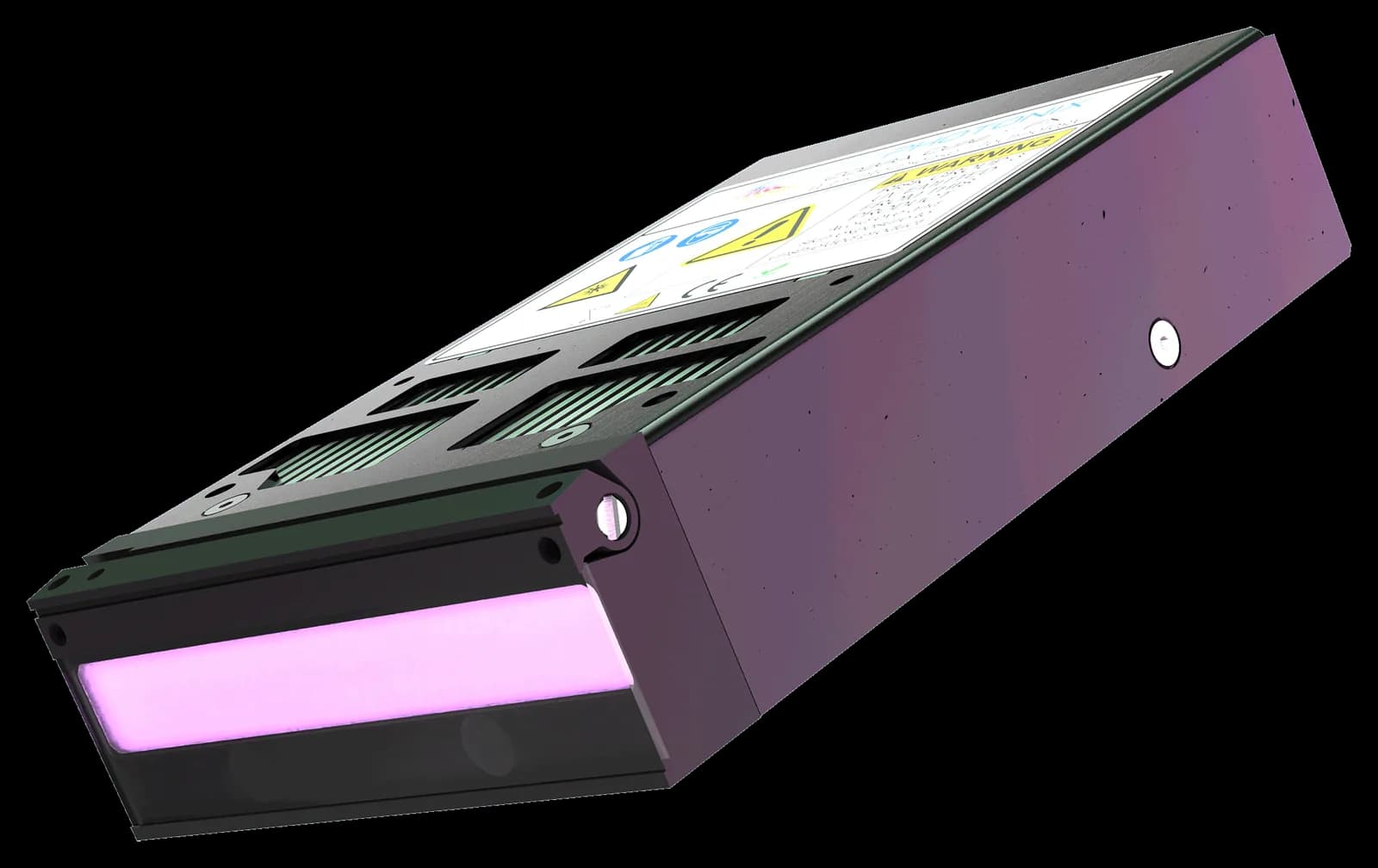

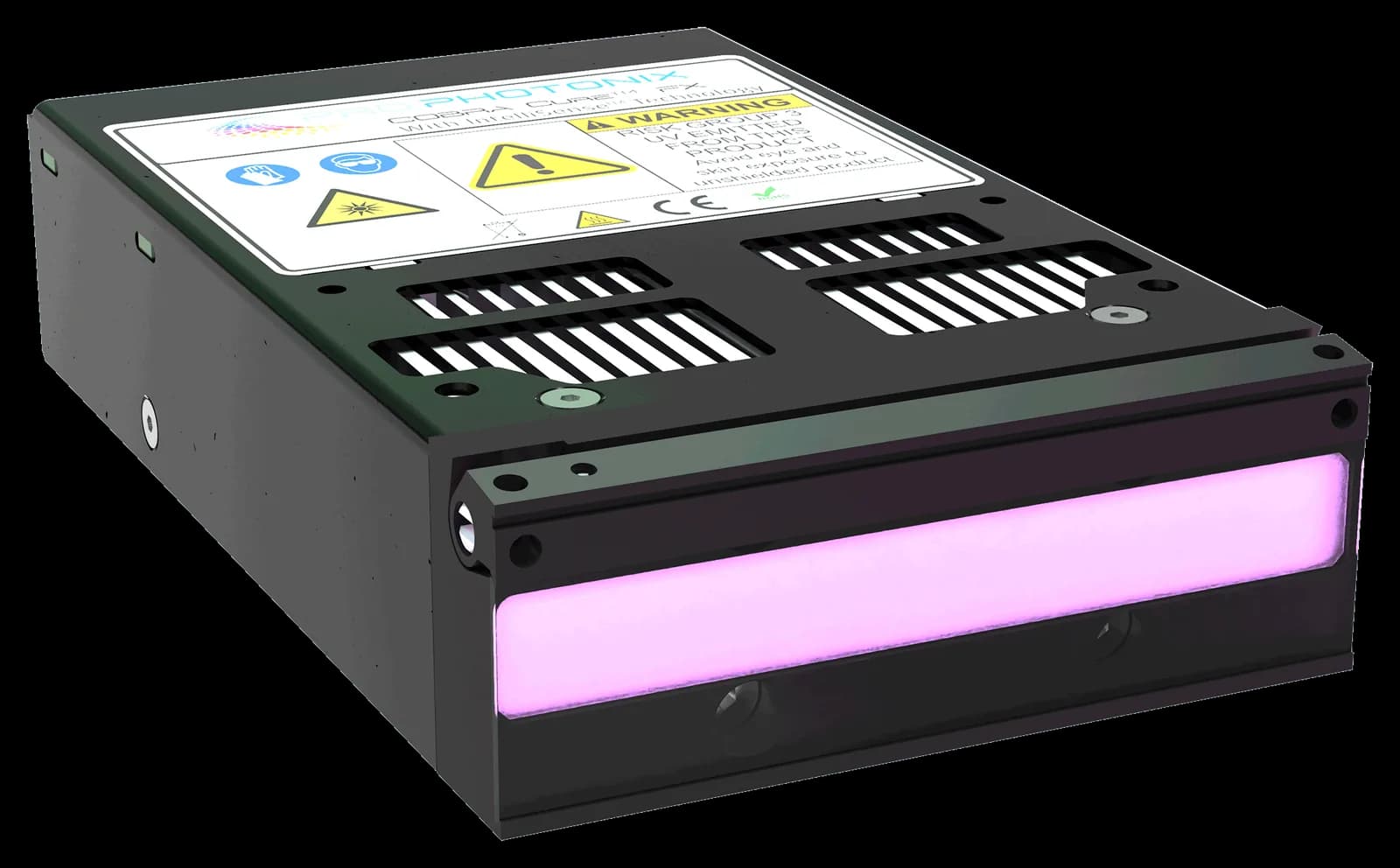

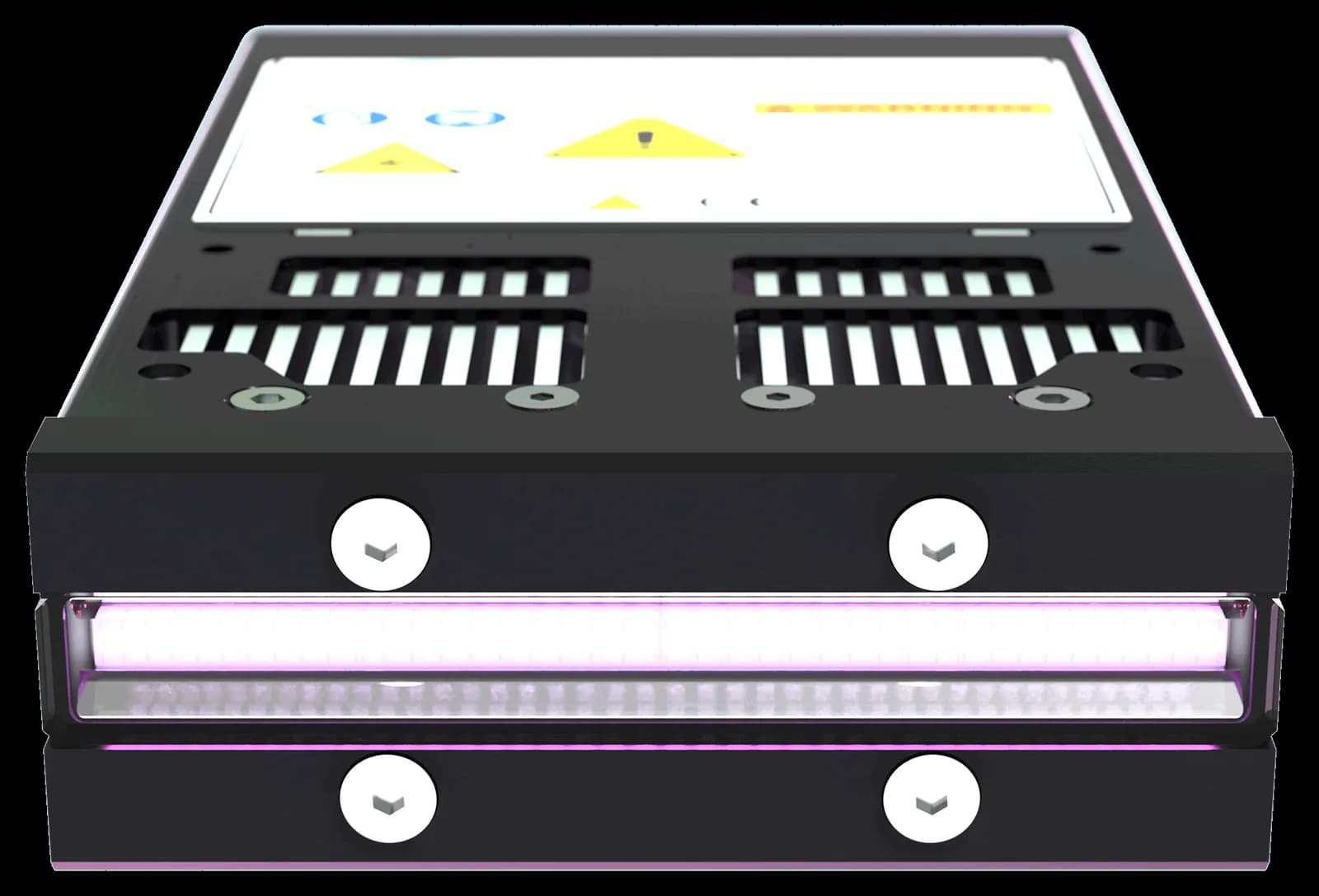

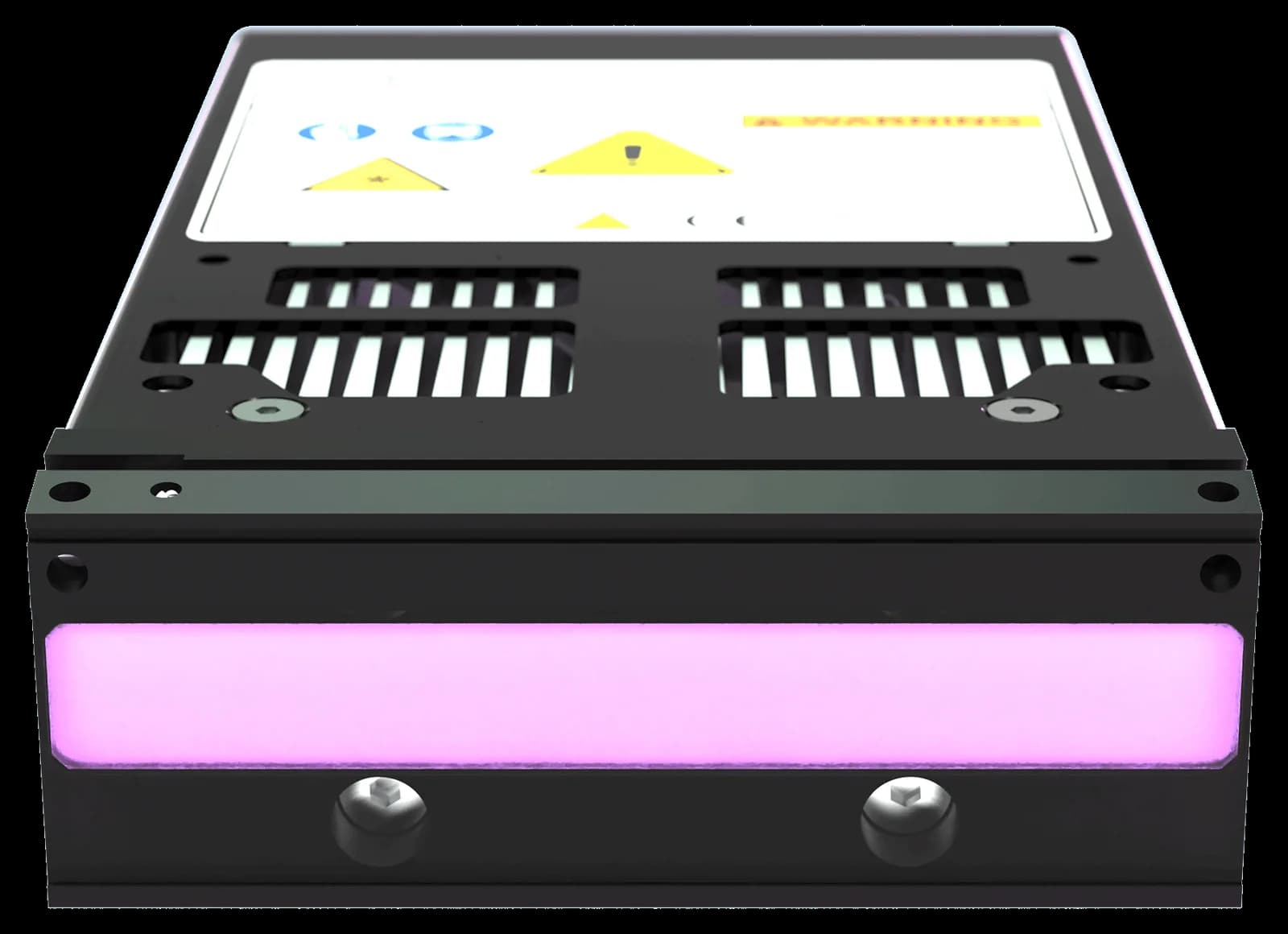

The COBRA Cure FX1 is a compact, fan-cooled UV LED curing system for inks, coatings and adhesives, ink pinning and 3D printing. Multiple mounting options let the lamp be set at the optimum working distance for the application, so it drops into an existing press or printer without a redesigned bracket.

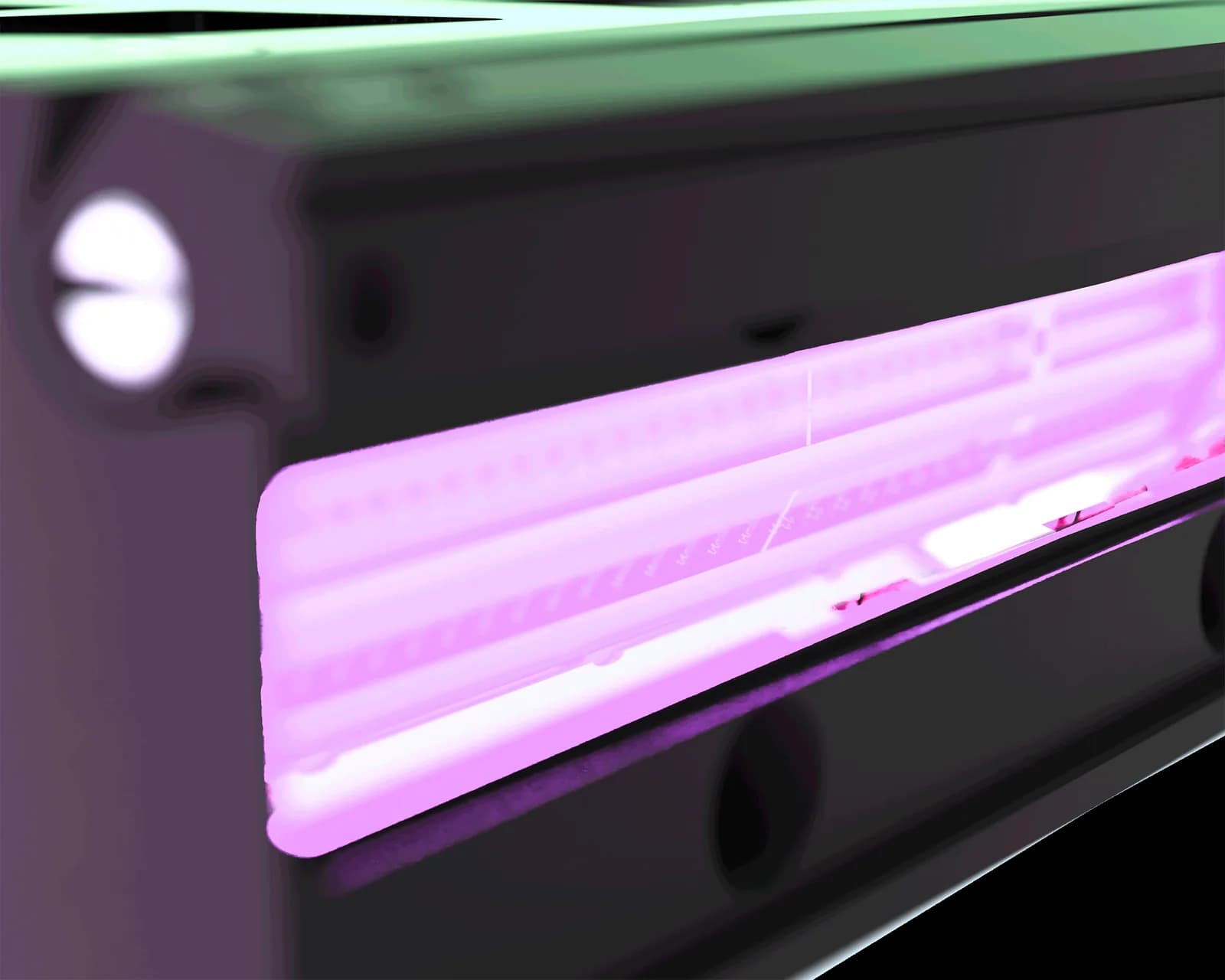

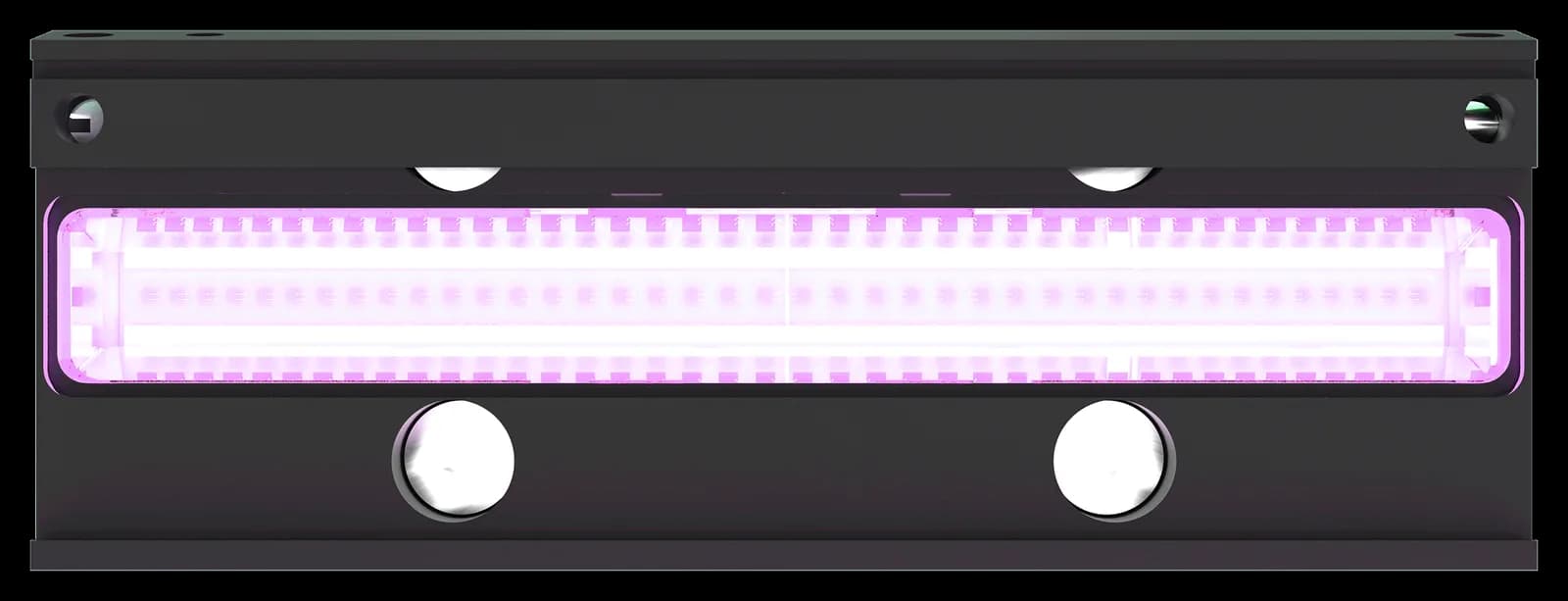

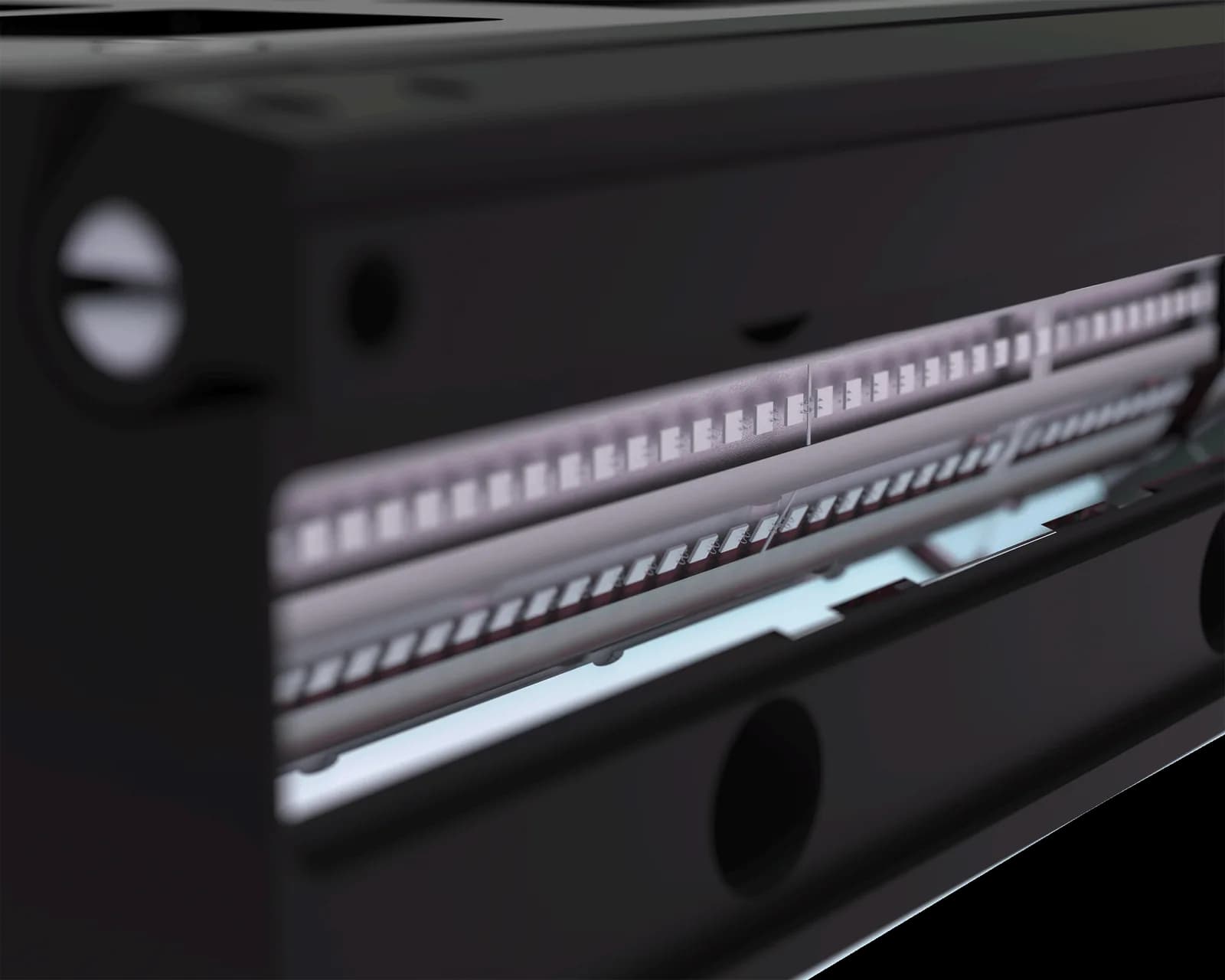

Edge to edge illumination makes the lamp stackable with minimal drop in intensity and dose uniformity across the line, which means a wider web is covered by placing lamps side by side. Chip-on-Board LED technology built in-house gives the LED density needed for powerful, uniform output.
The FX1 delivers intensity up to 6 W/cm2 and energy density up to 6.5 J/cm2 at 2 mm, enough for high line speeds on demanding chemistries, and a COBRA Cure FX1 Max option raises that to 6.4 W/cm2 and 7.8 J/cm2 from the same form factor. The COBRA Cure FX1 range covers 365 nm, 385 nm, 395 nm and 405 nm, divergent and collimated configurations, and linear intensity control options. It is UL, CE and IEC certified to EN/UL 61010.
Specifications
Key Features
- Feature 1
- Compact, Fan-Cooled Design
- Feature 2
- Delivers up to 6 W/cm² at 2 mm
- Feature 3
- Max dose 6.5 J/cm² at 2 mm
- Feature 4
- UL, CE, IEC Certified
- Feature 5
- Linear Intensity Control
- Feature 6
- Divergent and Collimated configurations
- Feature 8
- Stackable, modular design
Key Applications
- Application 1
- UV curing of inks
- Application 2
- UV curing of coatings
- Application 3
- UV curing of adhesives
- Application 4
- Pinning of inks
- Application 5
- 3D printing
Maximum Intensity / Dose
- Peak irradiance / max_intensity
- 6 W/cm² at 2 mm
- Max dose
- 6.5 J/cm² at 2 mm
- Measurement speed
- 10 mm/s (0.6 m/min)
Available Wavelengths
- Wavelengths available
- 365, 385, 395, 405
Optical Configurations
- Optical configs available
- DW (110°), D4 (40°), C1 (10°)
- Output angle
- 110° (DW), 40° (D4), 10° (C1)
- Collimated option
- C1 (10°), 3.5 mm WD
- Linewidth fwhm
- ~10 mm at 2 mm (D4); ~7 mm at 3.5 mm (C1)
Working Distance & Performance
- Factory set working distance
- 2 (DW/D4); 3.5 (C1)
- Nominal intensity D4 or best 395nm
- 5.1 W/cm² (395 nm D4)
- Nominal intensity DW or best 395nm
- 5.4 W/cm² (395 nm DW)
- Dose D4 or best 395nm
- 5.7 J/cm² (395 nm D4)
- Dose DW or best 395nm
- 6.5 J/cm² (395 nm DW)
Spectral Measurement
- Measurement instrument
- Loctite Radiometer Dosimeter
- Peak wavelength tolerance
- ±5 nm
Housing & Form Factor
- Module length
- 77 (D4/C1 config); 77 (DW fixed)
- Module pitch
- 77 mm
- Scalable lengths
- Single module (77 mm)
- Weight per module
- 0.26 kg
- Field replaceable window
- Yes (D4 config); Fixed (DW config)
- Window part number
- FX1-W-0077
Cooling

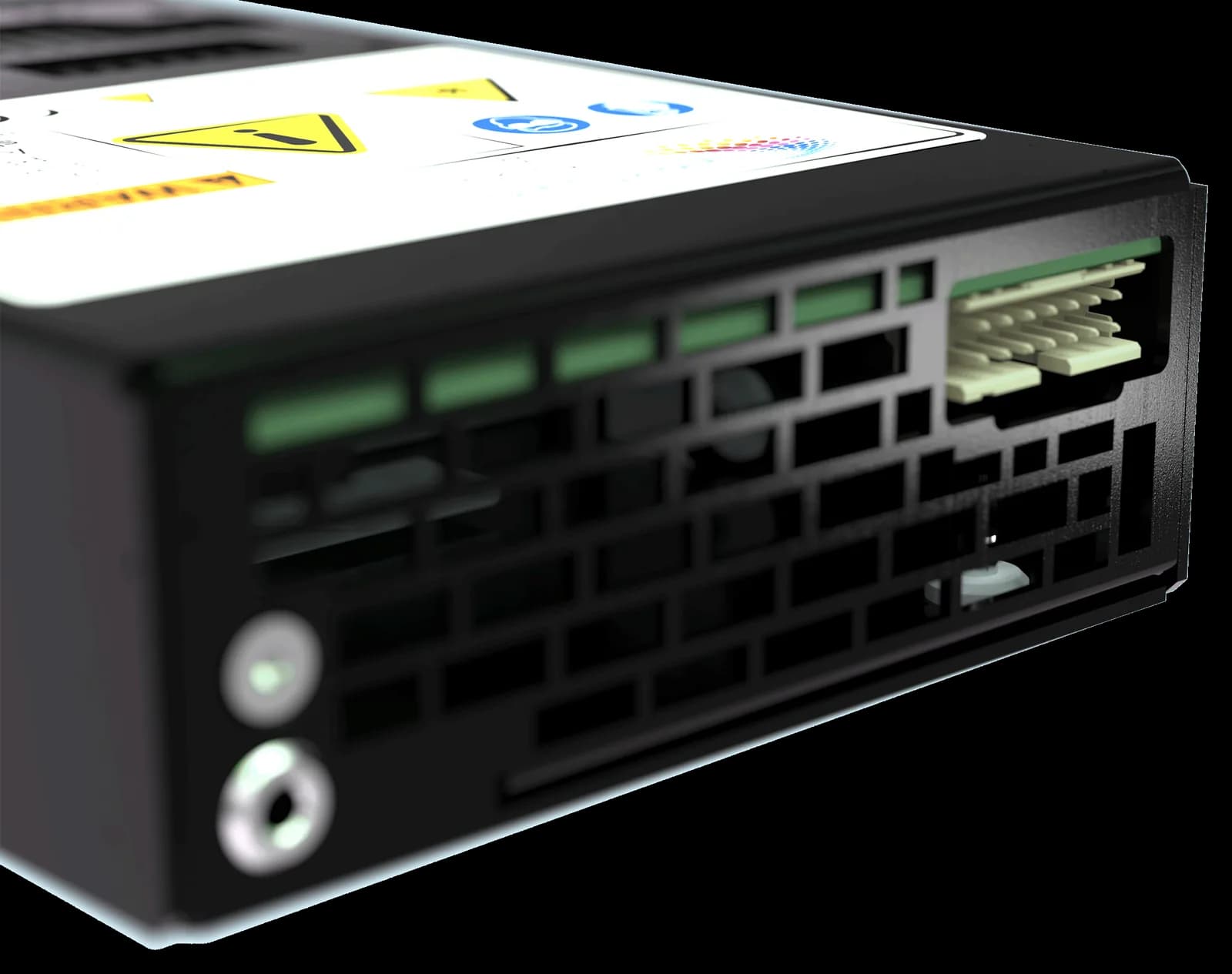

- Cooling type
- Fan-cooled
- Venting options
- Side Vented (S)
Environmental
- Max ambient temp
- 35 °C
- Humidity range rh
- relative humidity 60% - 80% non-condensing
- Noise at 0m dba
- 84*
- Noise at 1m dba
- 54*
- Mounting hole thread depth
- M3, max 6 mm
- IP rating
- IP40
- Operating temperature
- 10 to +40°C
Power
- Supply voltage
- 48 V DC
- Recommended psu
- PSU-48V-120W-XX
- Wall plug psu
- PSA-48V-120-XX
Intensity Control
- Analog control mode
- Analog (A) or Sustain (S)
- Control voltage range
- 1–10 V (off <1 V)
- Enable signal
- 16–24 V
- Status monitoring
- Yes (status wire)
- Analog mode a behaviour
- Off <1 V; linear 1–10 V
- Sustain mode s behaviour
- 10% at 300 mV–1 V; linear above 1 V
Connection Schemes
- Connection scheme 1
- Flying lead cables (FX1-CAB-F-A-02)
- Connection scheme 2
- Intensity controller + PSU (FX-CTL-A + FX1-CAB-A-A-02)
- Ribbon cable pins
- 14-pin ribbon
- Std cable length
- 2000 mm
Intensity Controller Details
- Controller part number
- FX-CTL-A
- Controller inputs
- Slider (enable) + rotary pot (intensity)
- Controller fault indicator
- LED light
Optical
- Wavelength / colour
- 365, 385, 395, 405 nm
- Beam
- Line
- Intensity
- High
- Irradiance
- 5.4W/cm²
Electrical
- Supply voltage
- 48 V DC
Application
- Applications
- Inspection
Media
Request a quote or talk to an applications engineer
Tell us about your application and we will confirm the right product and configuration, or specify a variant outside the catalogue.
