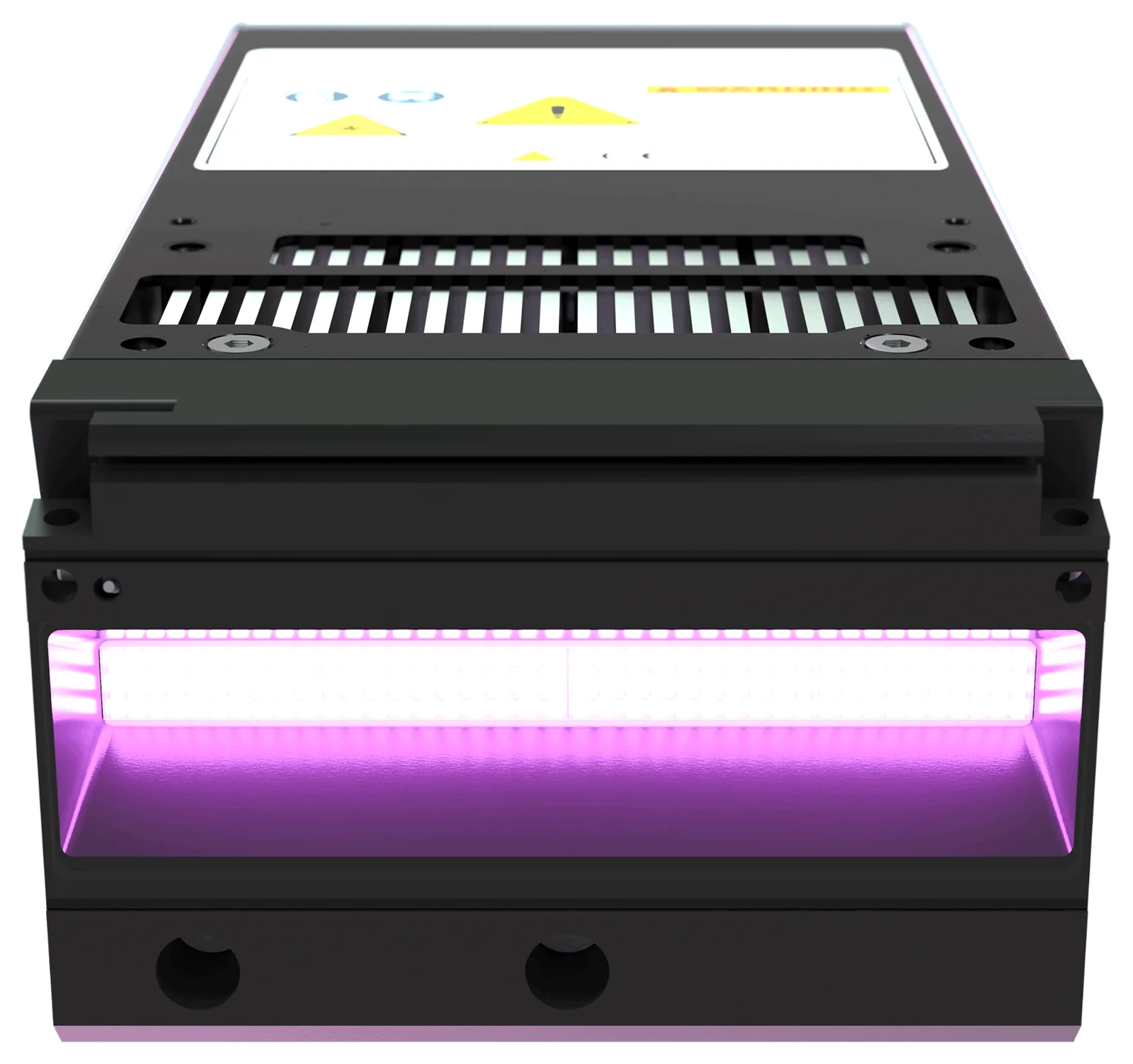

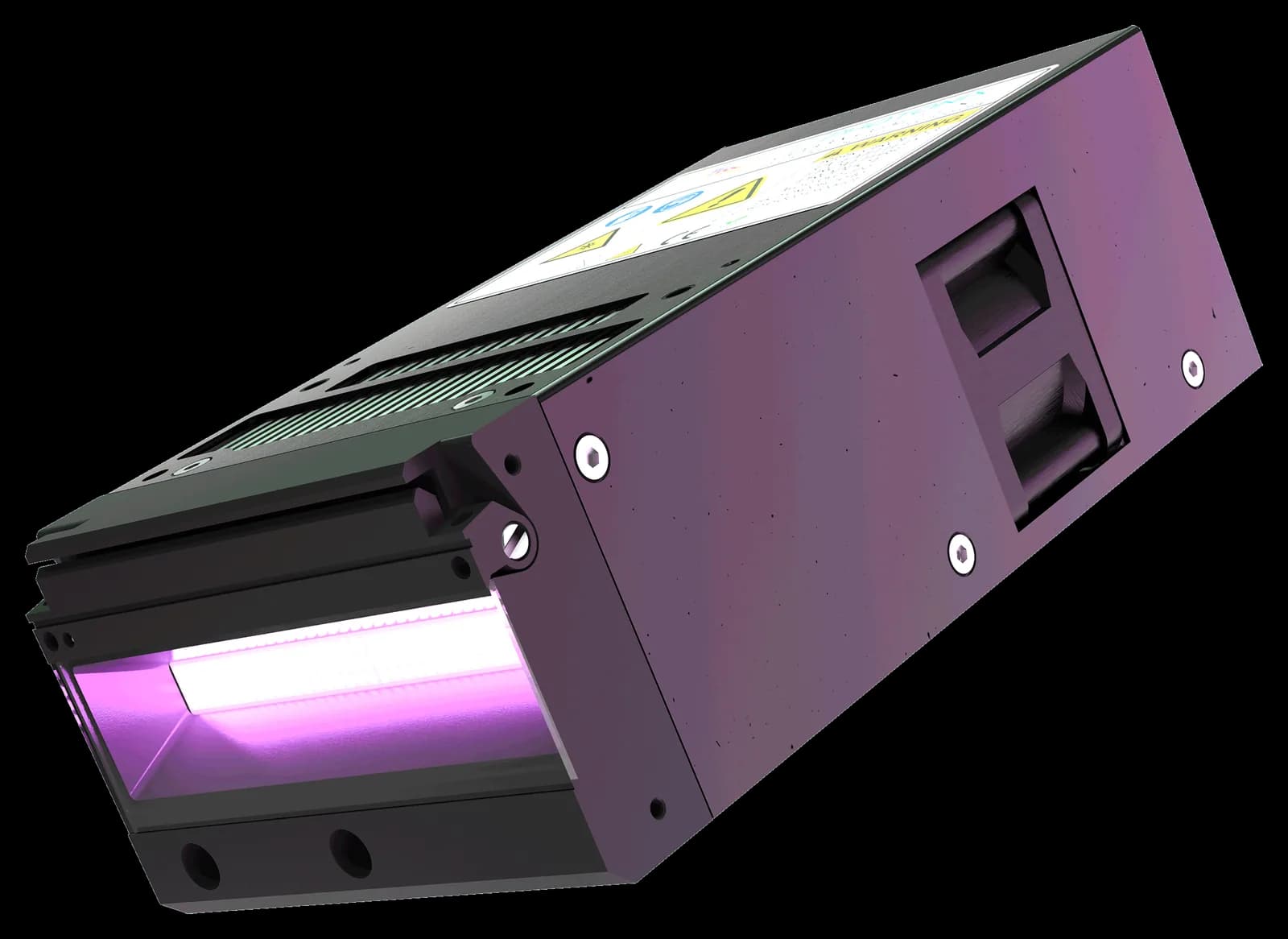

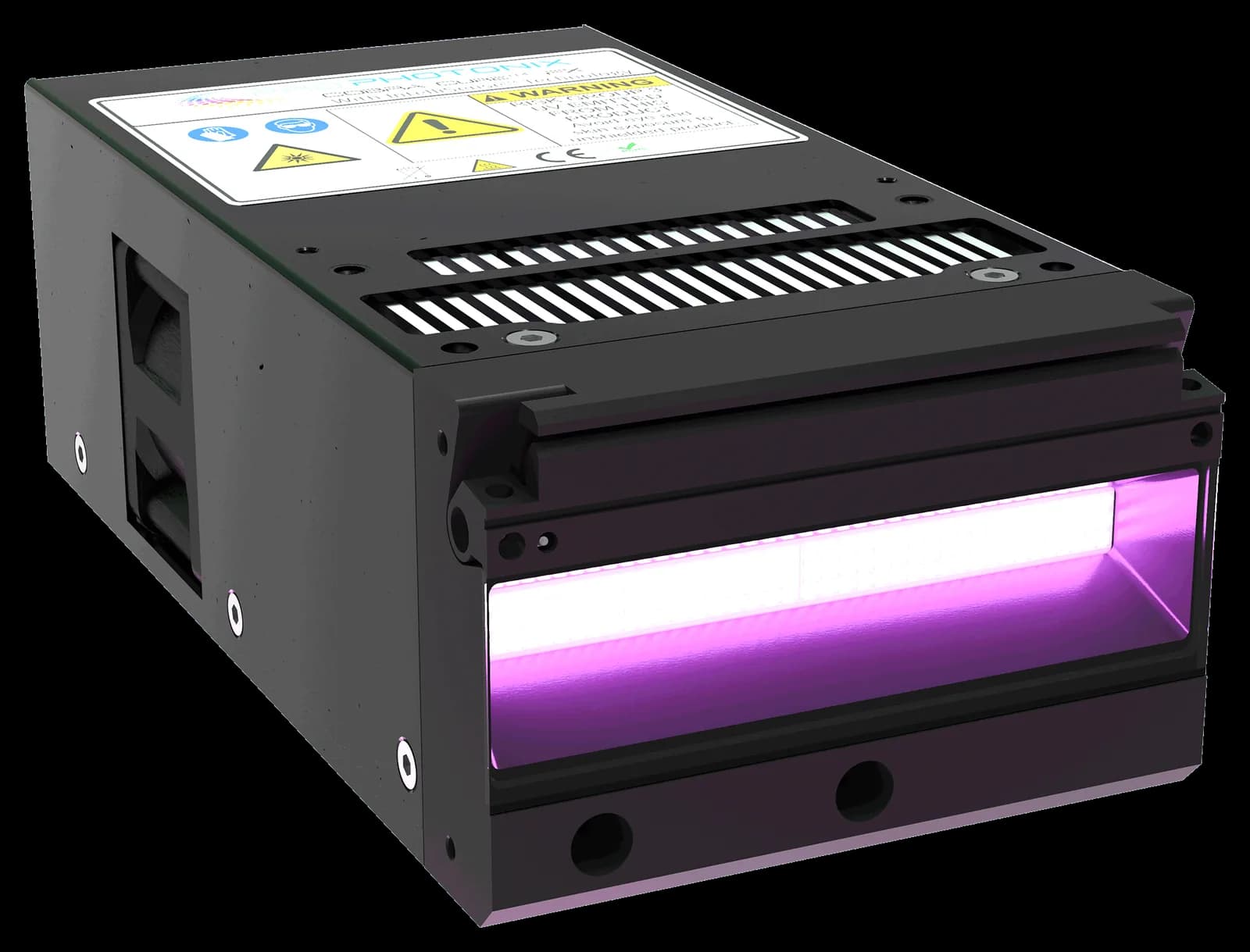

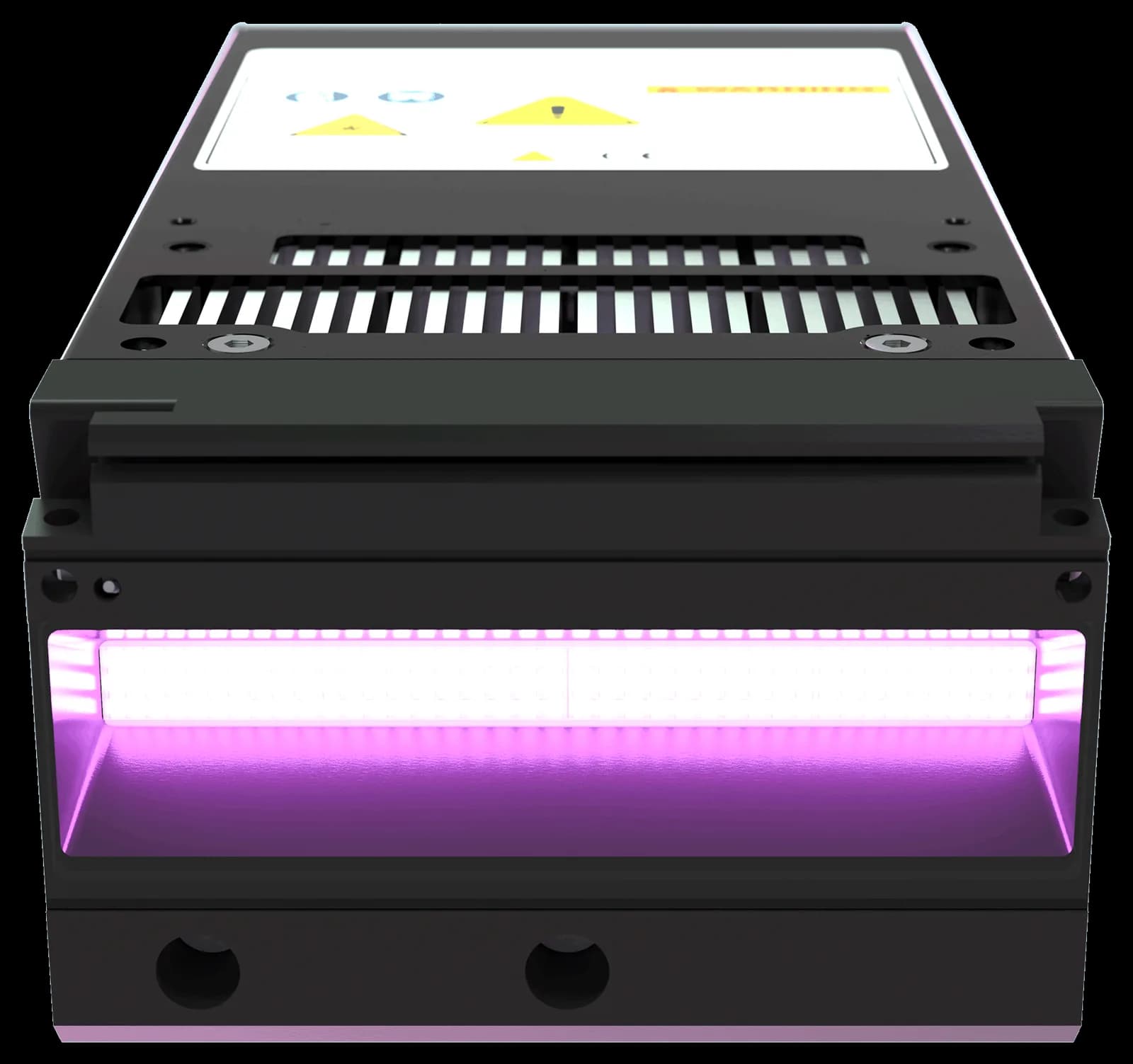

COBRA Cure FX2
PPX-COBRA-FX2-3958.4 W/cm² compact, fan-cooled system offering excellent intensity control across varying conditions to ensure an even cure.
- Wavelengths available
- multi-WL, 365 - 405
- Supply voltage
- 48 V DC
- IP rating
- IP40
About the PPX-COBRA-FX2-395
The COBRA Cure FX2 is a compact UV LED curing system with IntelliSense smart sensing technology, for curing inks, coatings and adhesives, pinning inks and 3D printing. A field replaceable window keeps output consistent over the life of the system, and it needs no special tools, so a contaminated window is changed at the machine with minimal downtime.
The cold cure LED output suits heat sensitive substrates that a mercury lamp would damage, and with no ozone and no mercury the system removes the extraction and disposal burden that comes with traditional UV. Edge to edge illumination gives no drop in intensity at the edges, so lamps butt together to cover a wider web.
Monitoring and driving each LED segment gives excellent intensity control, and the system delivers up to 8.4 W/cm2 or a dose of up to 17.5 J/cm2 at 10 mm per second, with a 20,000 hour lifetime and instant on/off. The COBRA Cure FX2 range covers 365 nm, 385 nm, 395 nm and 405 nm plus multi-wavelength options, with a choice of optical configurations.
Specifications
Key Features
- Feature 1
- Compact UV LED System
- Feature 2
- Delivers up to 8.4 W/cm² at 2 mm
- Feature 3
- Max dose 17.5 J/cm² at 10 mm/s
- Feature 4
- Lifetime: 20,000 hours
- Feature 5
- Instant on/off intensity control
- Feature 6
- Cold cure – ideal for heat sensitive substrates
- Feature 7
- No ozone. No mercury
- Feature 8
- Replaceable window
Key Applications
- Application 1
- UV curing of inks
- Application 2
- UV curing of coatings
- Application 3
- UV curing of adhesives
- Application 4
- Pinning of inks
- Application 5
- 3D printing
Maximum Intensity / Dose
- Peak irradiance / max_intensity
- 8.4 W/cm² at 2 mm
- Max dose
- 17.5 J/cm² at 10 mm/s
- Measurement speed
- 10 mm/s (0.6 m/min)
Available Wavelengths
- Wavelengths available
- 365, 385, 395, 405, multi-WL
Optical Configurations
- Optical configs available
- DW (110°), D4 (40°)
- Output angle
- 110° (DW), 40° (D4)
- Linewidth fwhm
- ~20 mm at 0 mm
Working Distance & Performance
- Factory set working distance
- 2 mm
- Nominal intensity D4 or best 395nm
- 8.4 W/cm² (395 nm D4)
- Nominal intensity DW or best 395nm
- 12.5 W/cm² (395 nm DW)
- Dose D4 or best 395nm
- 17.5 J/cm² (395 nm D4)
- Dose DW or best 395nm
- 18.2 J/cm² (395 nm DW)
Spectral Measurement
- Measurement instrument
- Loctite Radiometer Dosimeter
- Peak wavelength tolerance
- ±5 nm
Housing & Form Factor
- Module length
- 77 mm
- Module pitch
- 77 mm
- Scalable lengths
- Single module (77 mm)
- Field replaceable window
- Yes (retainer rotation)
- Window part number
- FX2-W-0077
Cooling
- Cooling type
- Fan-cooled
- Venting options
- Side Vented (S) or optional vent
Environmental
- Humidity range rh
- relative humidity 60% - 80% non-condensing
- Mounting hole thread depth
- M3 + M4
- IP rating
- IP40
- Operating temperature
- 10 to +40°C
Power
- Supply voltage
- 48 V DC
- Recommended psu
- PSU-48V-480W-XX
- Wall plug psu
- PSA-48V-024W
Intensity Control
- Analog control mode
- Analog (0–10 V)
- Control voltage range
- 1–10 V
- Enable signal
- 16–24 V
- Status monitoring
- Yes (status wire)
- Analog mode a behaviour
- Off <1 V; linear 1–10 V
Connection Schemes
- Connection scheme 1
- Flying lead cables (FX2-CAB-F-PD-LLL + FX2-CAB-F-CD-LLL)
- Connection scheme 2
- Intensity controller + PSU (FX-CTL-A + FX2-CAB-A-CD-LLL)
- Connection scheme 3
- Intensity controller without PSU (CAB0053 + FX-CTL-A)
- Ribbon cable pins
- DB15 connector
- Std cable length
- 2000 mm
Intensity Controller Details
- Controller part number
- FX-CTL-A
- Controller inputs
- Slider (enable) + rotary pot (intensity)
- Controller fault indicator
- LED light
Optical
- Wavelength / colour
- 365, 385, 395, 405 nm
- Beam
- Line
- Intensity
- Ultra
- Irradiance
- 8.4W/cm²
Electrical
- Supply voltage
- 48 V DC
Application
- Applications
- Inspection
Media
