COBRA Cure Mini
PPX-COBRA-MINI-3956 W/cm² compact, light form factor UV LED curing system offers a cost-effective solution for high-speed single and multi-pass printers.
- Wavelengths available
- 365, 385, 395
- Supply voltage
- 24 V DC (via controller)
- IP rating
- IP40
About the PPX-COBRA-MINI-395

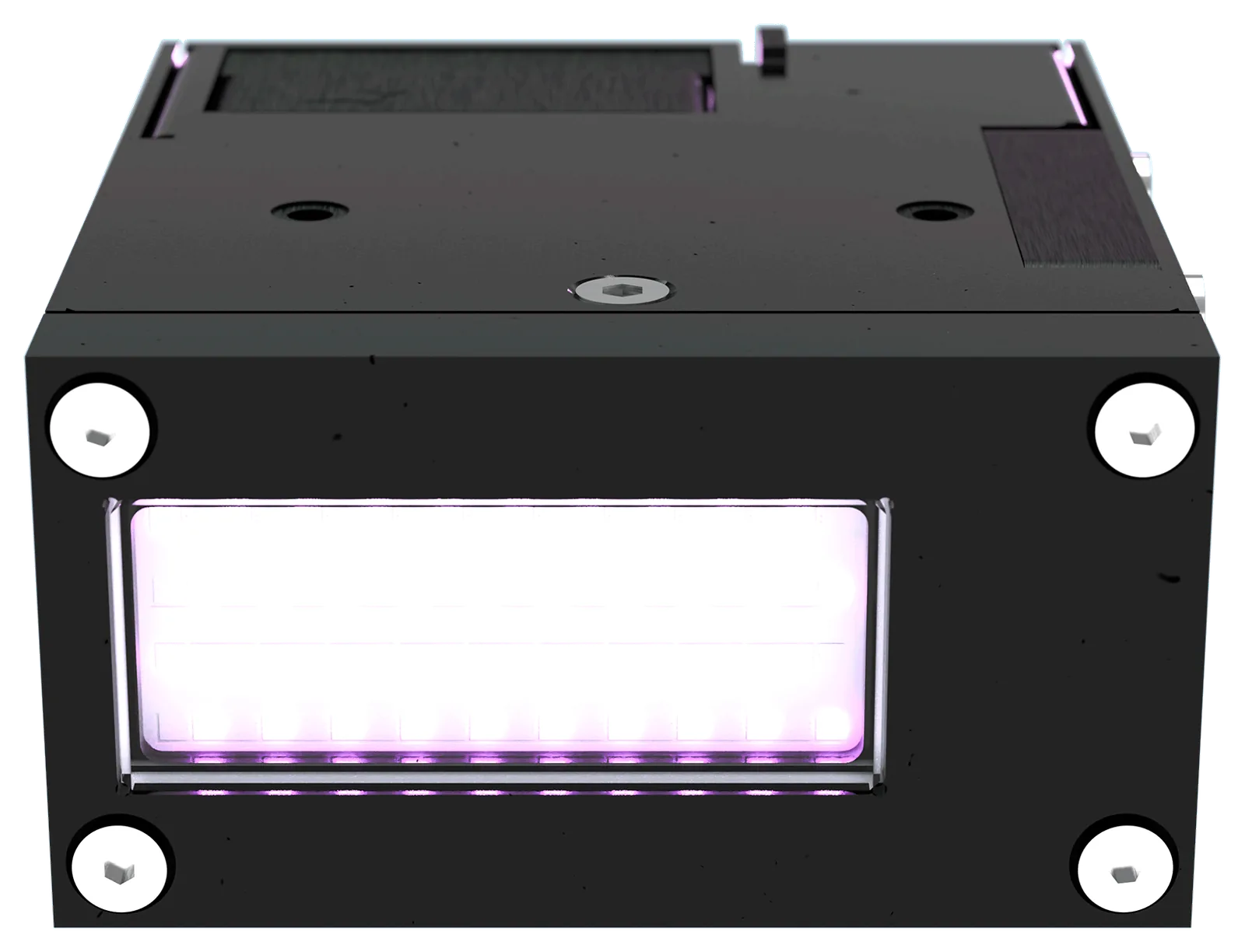

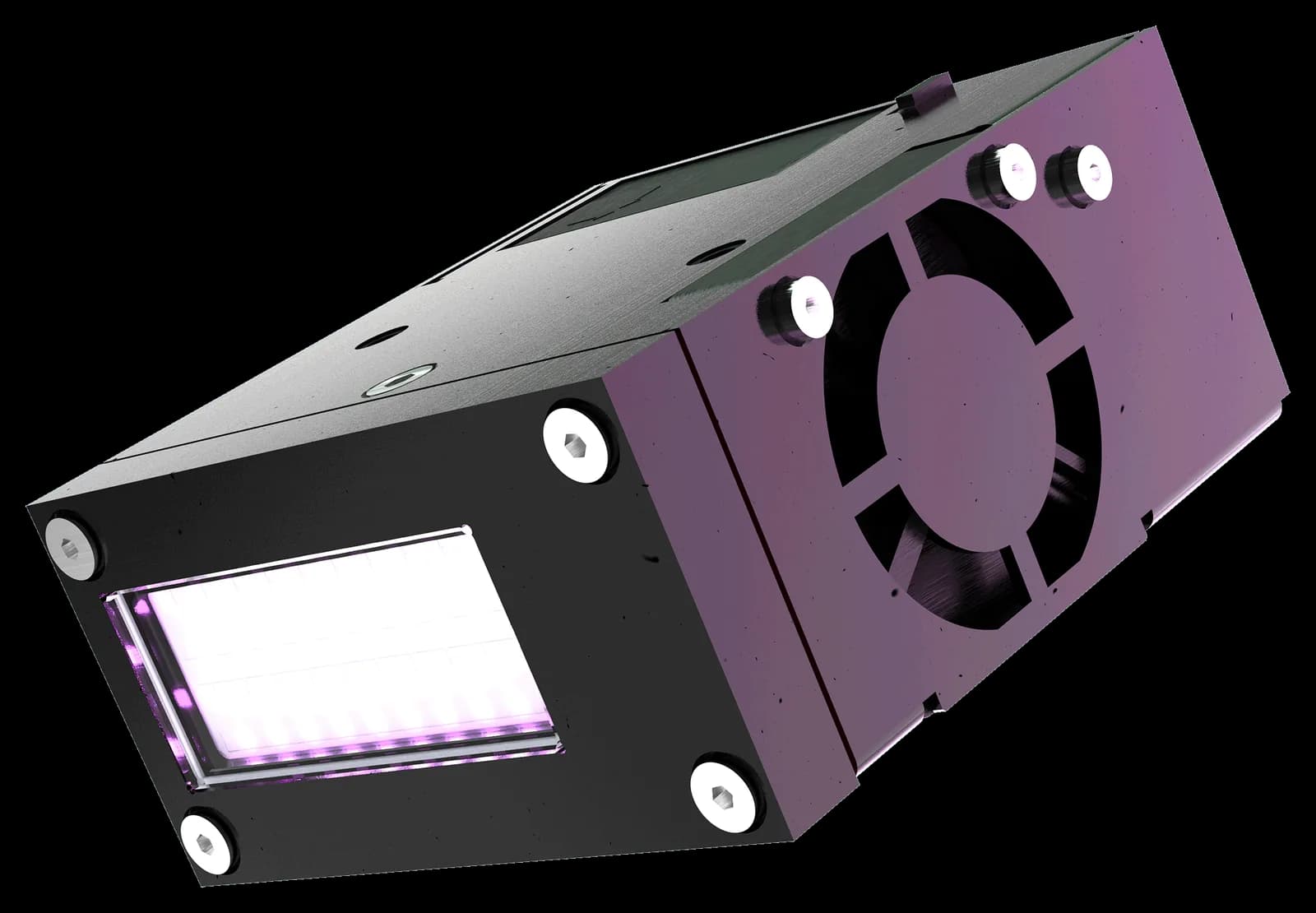

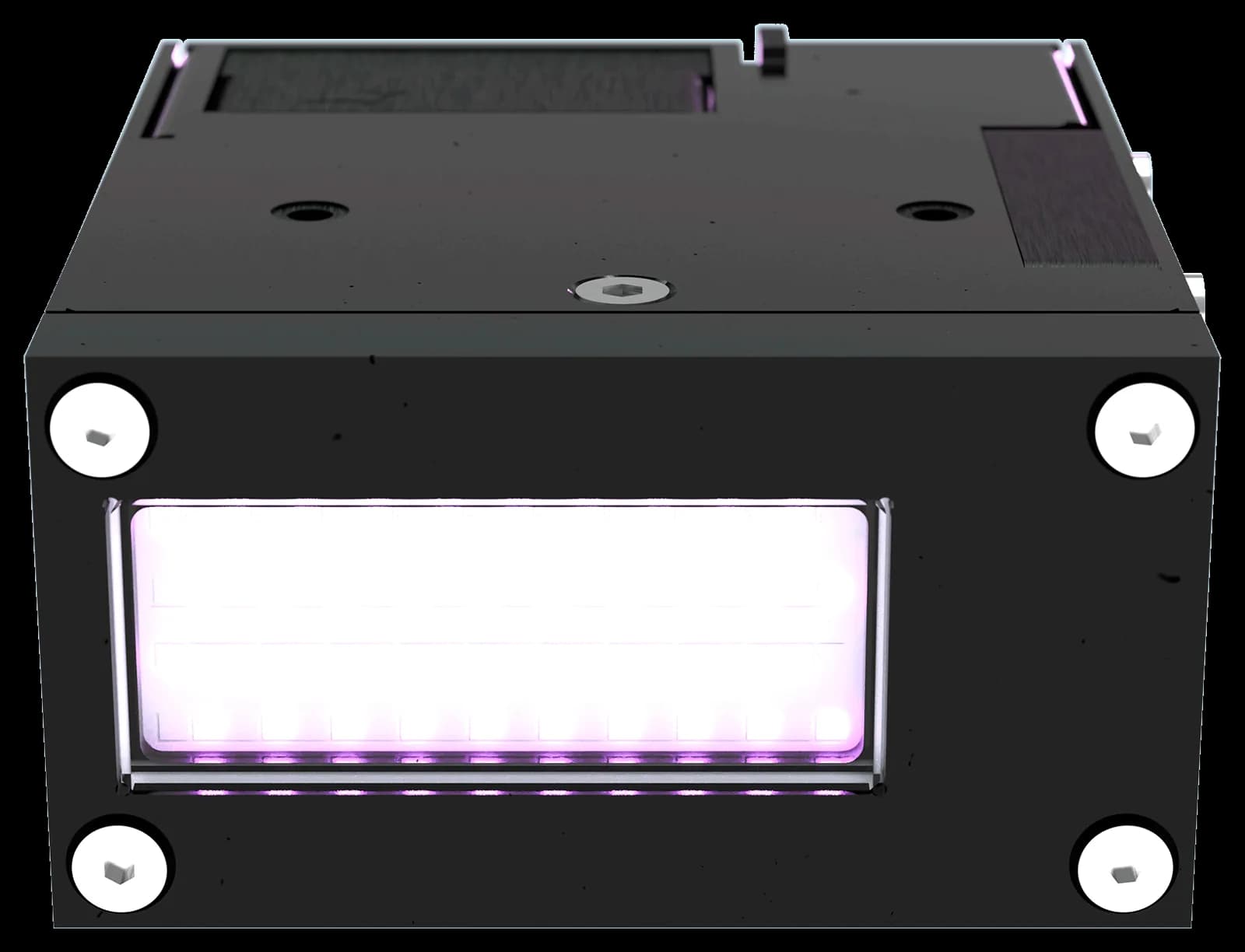

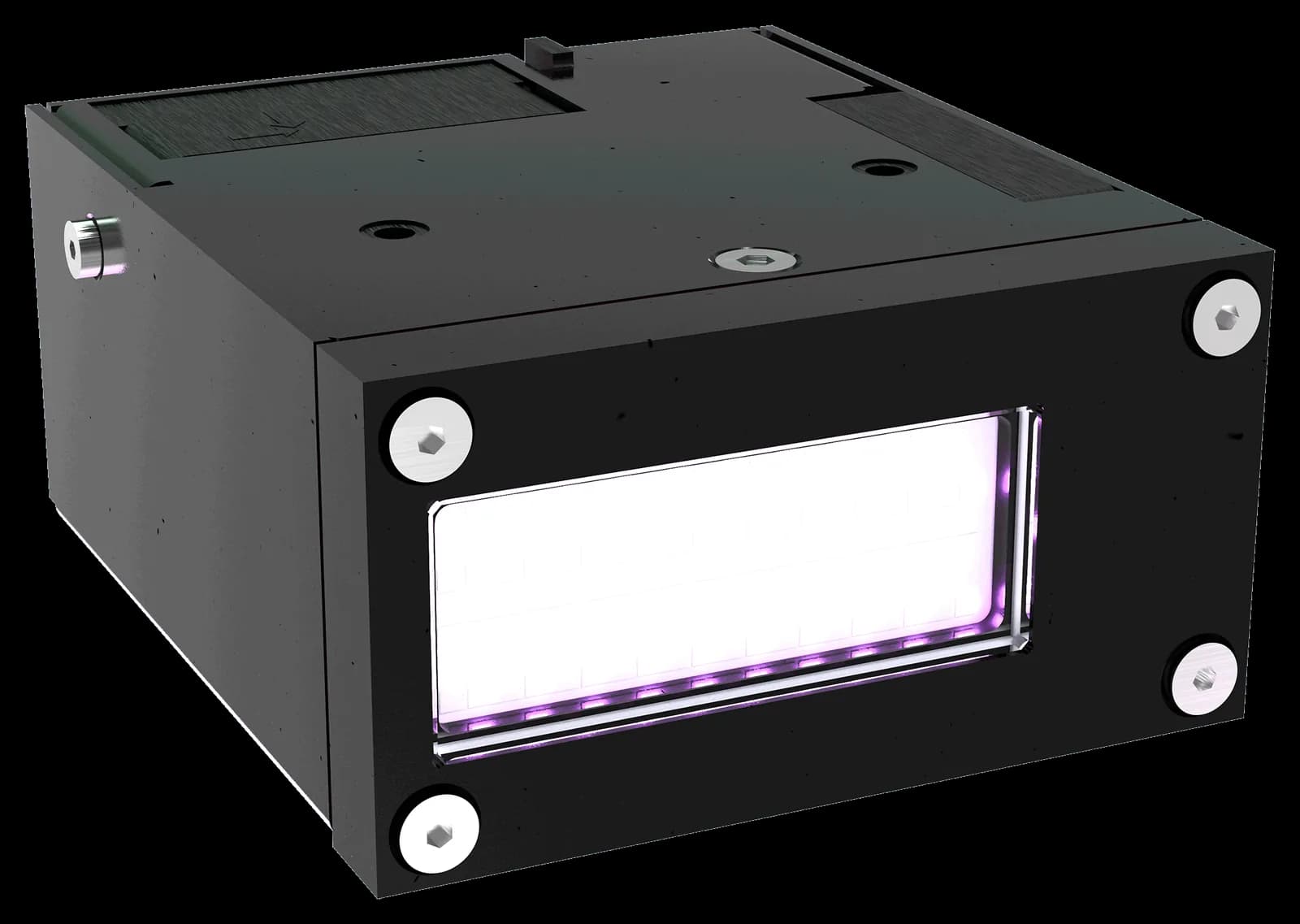

The COBRA Cure Mini is a low weight, compact, fan-cooled UV LED curing system for high-speed single and multi-pass printers where installation space is restricted and weight matters. The control electronics are housed separately, which brings the light head down to 33.4 mm by 57 mm by 30 mm.
At less than 175 g the head is suitable for compact translation systems, so it rides on a printer carriage without loading the drive or limiting acceleration. Chip-on-Board LED array design keeps intensity and dose high despite the small package.
The Mini delivers intensities up to 6 W/cm2 and a factory set dose of up to 9 J/cm2 at 2 mm across an illumination area of 36 mm by 13.5 mm, which is enough to cure at speed on a narrow swath. The COBRA Cure Mini range covers 365 nm, 385 nm and 395 nm with linear intensity control options, and suits UV curing of inks, coatings and adhesives as well as 3D printing.
Specifications
Key Features
- Feature 1
- Compact, Fan-Cooled LED Curing Lamp
- Feature 2
- Delivers up to 6 W/cm² at 2 mm
- Feature 3
- Max dose 9 J/cm² at 2 mm
- Feature 4
- Weight: less than 175 g
- Feature 5
- Linear Intensity Control Options
- Feature 6
- Illumination Area: 36 mm × 13.5 mm
Key Applications
- Application 1
- UV curing of inks
- Application 2
- UV curing of coatings
- Application 3
- UV curing of adhesives
- Application 4
- 3D printing
Maximum Intensity / Dose
- Peak irradiance / max_intensity
- 6 W/cm² at 2 mm
- Max dose
- 9 J/cm² at 2 mm
- Measurement speed
- Variable conveyor speed
Available Wavelengths
- Wavelengths available
- 365, 385, 395
Optical Configurations
- Optical configs available
- DW (110°) only
- Output angle
- 110° (DW)
- Linewidth fwhm
- ~13.5 mm illumination area
Working Distance & Performance
- Factory set working distance
- 2 mm
- Nominal intensity D4 or best 395nm
- 6 W/cm² (395 nm)
- Dose D4 or best 395nm
- 9 J/cm² at 2 mm
Spectral Measurement
- Peak wavelength tolerance
- ±5 nm
Housing & Form Factor
- Module length
- 33.4 × 57 × 30 mm (light head)
- Module pitch
- 33.4 (light head pitch)
- Scalable lengths
- Single module
- Weight per module
- 0.15 (light head); 0.16 (controller)
Cooling
- Cooling type
- Fan-cooled
- Venting options
- Integrated fan
Environmental
- Max ambient temp
- 35 °C
- Humidity range rh
- relative humidity 60% - 80% non-condensing
- Noise at 0m dba
- 75*
- Noise at 1m dba
- 54*
- Mounting hole thread depth
- M3
- IP rating
- IP40
- Operating temperature
- 10 to +40°C
Power
- Supply voltage
- 24 V DC (via controller)
- Recommended psu
- PSA-48V-024W (via controller)
- Wall plug psu
- PSA-48V-120-XX
Intensity Control
- Analog control mode
- Analog (A) or Sustain (S)
- Control voltage range
- 1–10 V (off <1 V)
- Enable signal
- Via slider switch (controller)
- Status monitoring
- Via controller LED
- Analog mode a behaviour
- Off <1 V; linear 1–10 V
- Sustain mode s behaviour
- 10% at 300 mV–1 V; linear above 1 V
Connection Schemes
- Connection scheme 1
- Input power cable (CCM1-CAB-F-P-LL)
- Connection scheme 2
- 14-pin to Pud cable (CCM1-CAB-A-P-LL)
- Ribbon cable pins
- Pud connector
- Std cable length
- 2000 (LL in meters)
Intensity Controller Details
- Controller part number
- FX-CLT-A
- Controller inputs
- Slider (enable) + rotary pot (intensity)
- Controller fault indicator
- LED light
Optical
- Wavelength / colour
- 365, 385, 395 nm
- Beam
- Line
- Intensity
- High
- Irradiance
- 6W/cm²
Electrical
- Supply voltage
- 24V DC
Application
- Applications
- Inspection
Media
