ProPhotonix · MACHINE VISION
Compact
Compact8mm miniature laser module, up to 5 mW, low-cost choice for handheld devices, barcode reading and OEM designs.
- Wavelength range
- 520–650 nm
- Max output power
- 1–5 mW
- IP rating
- IP40
About the Compact
Introduction

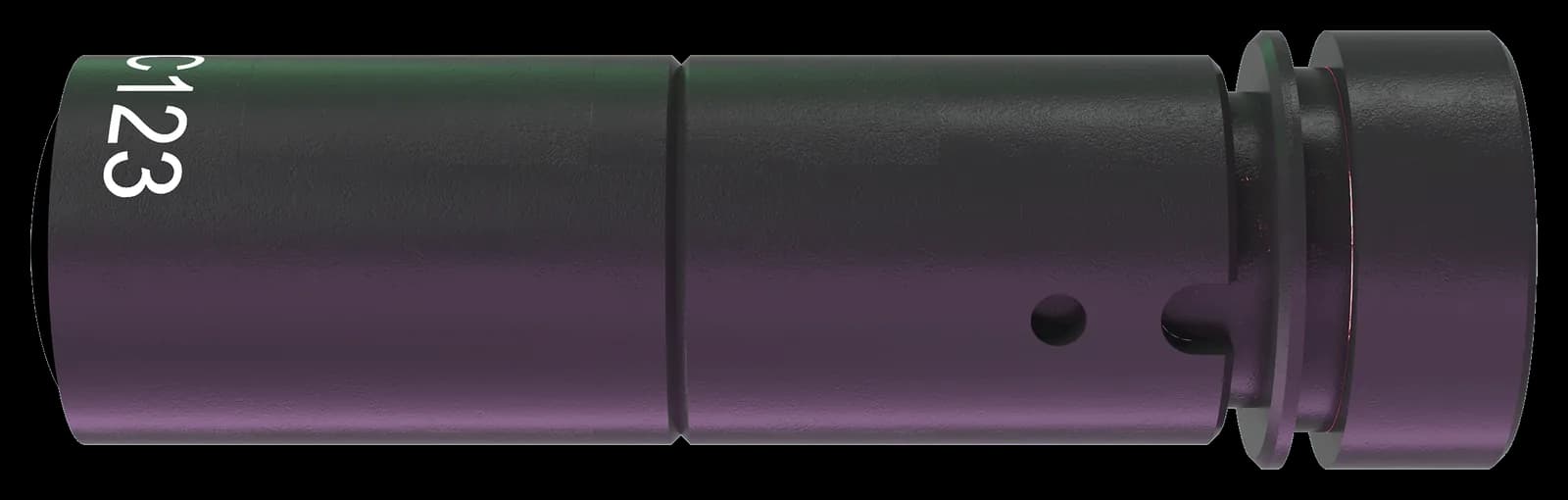

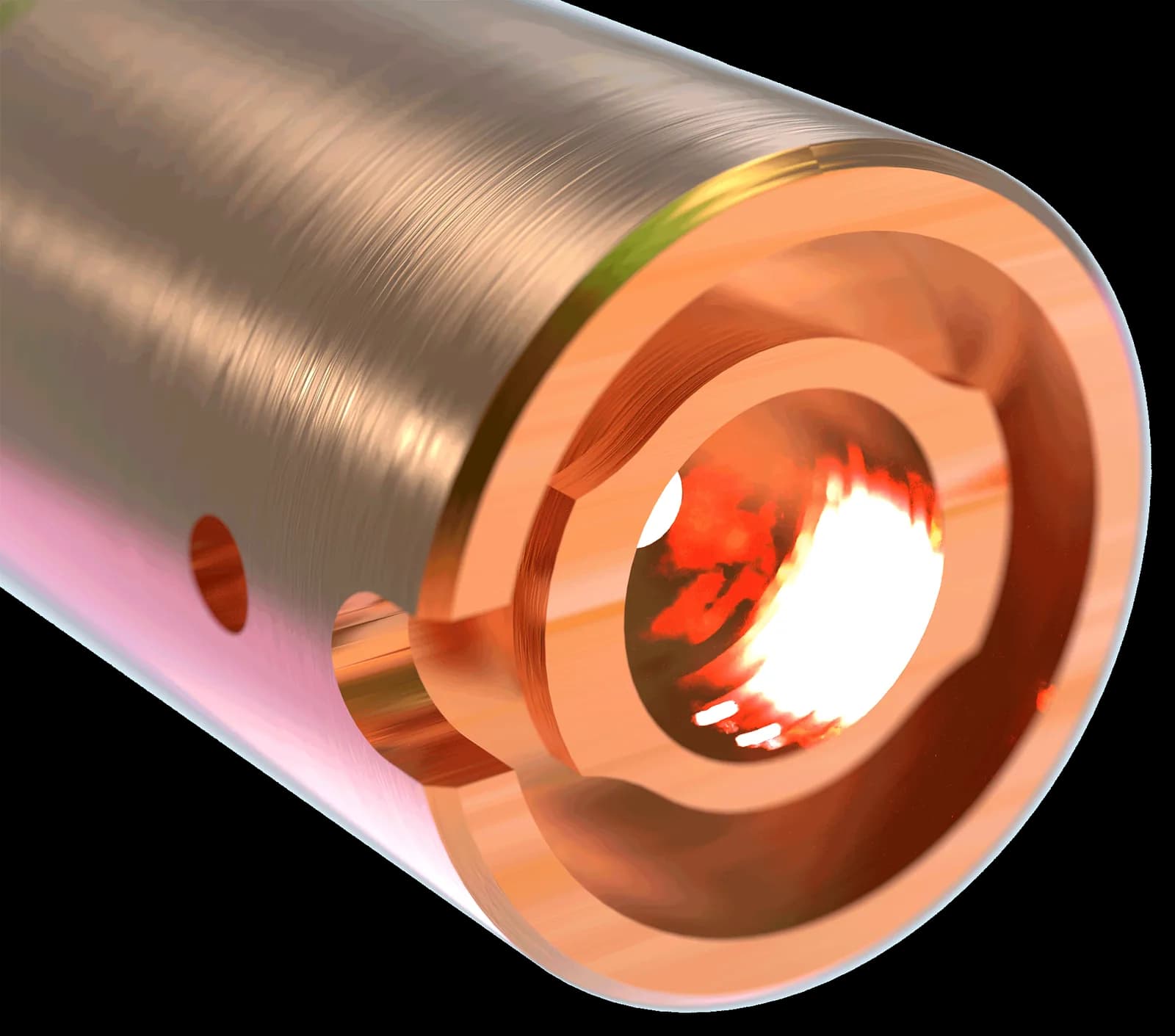

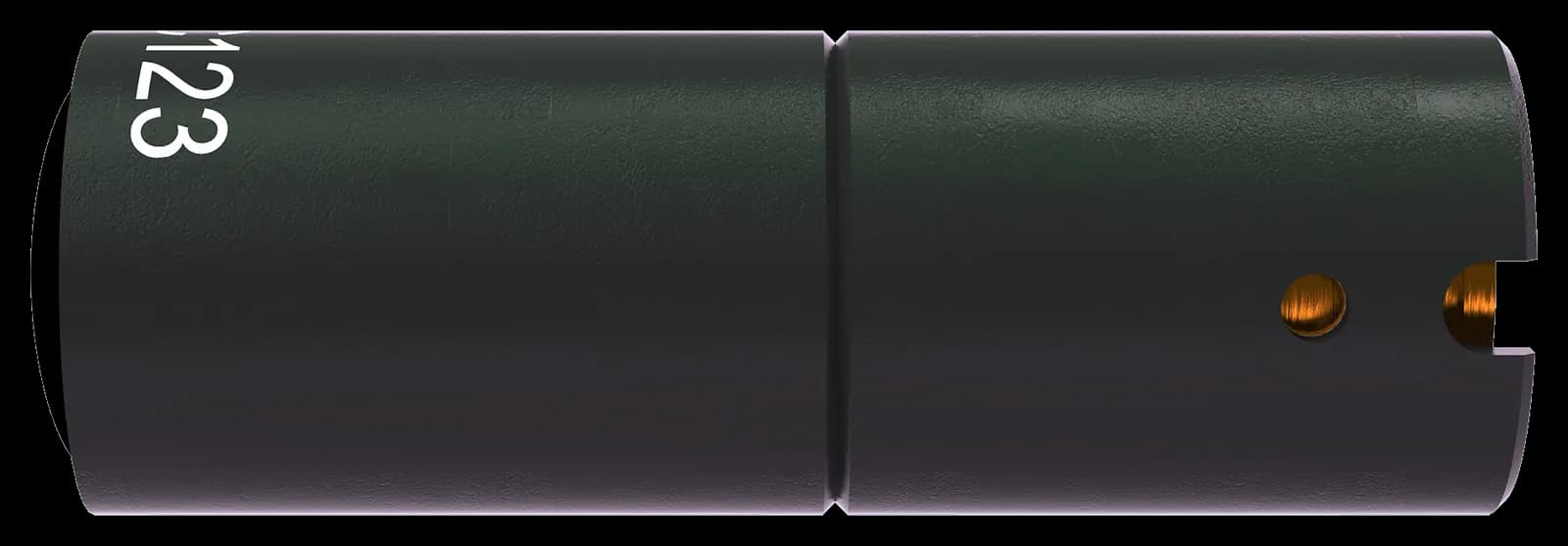

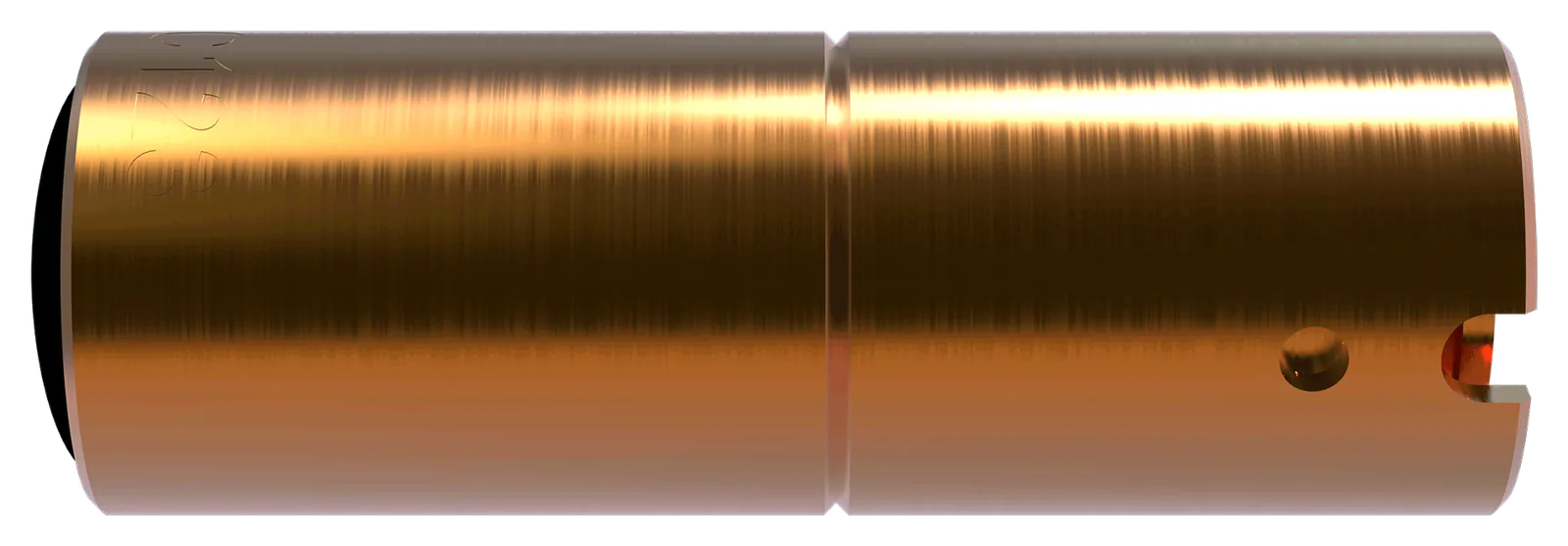

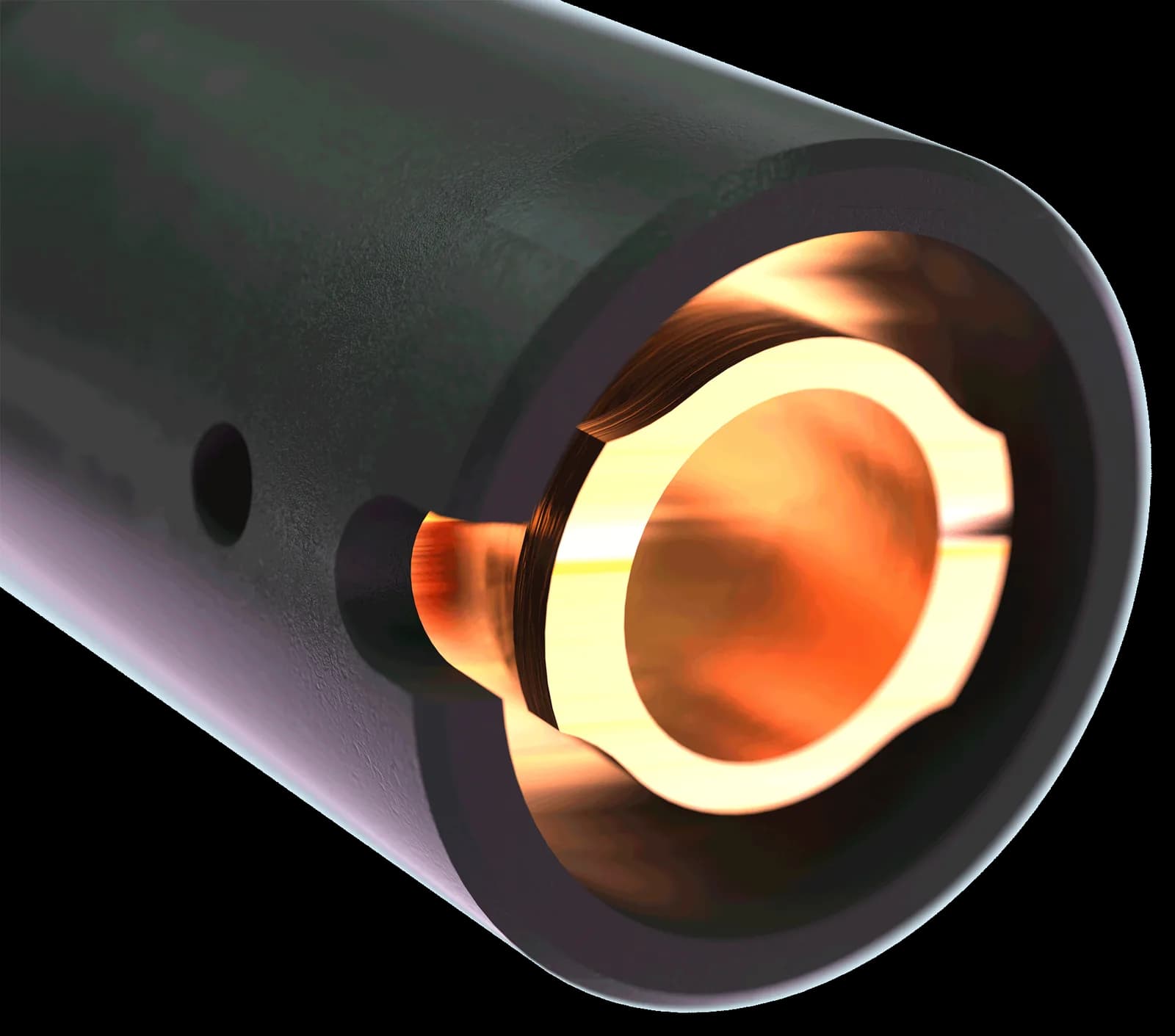

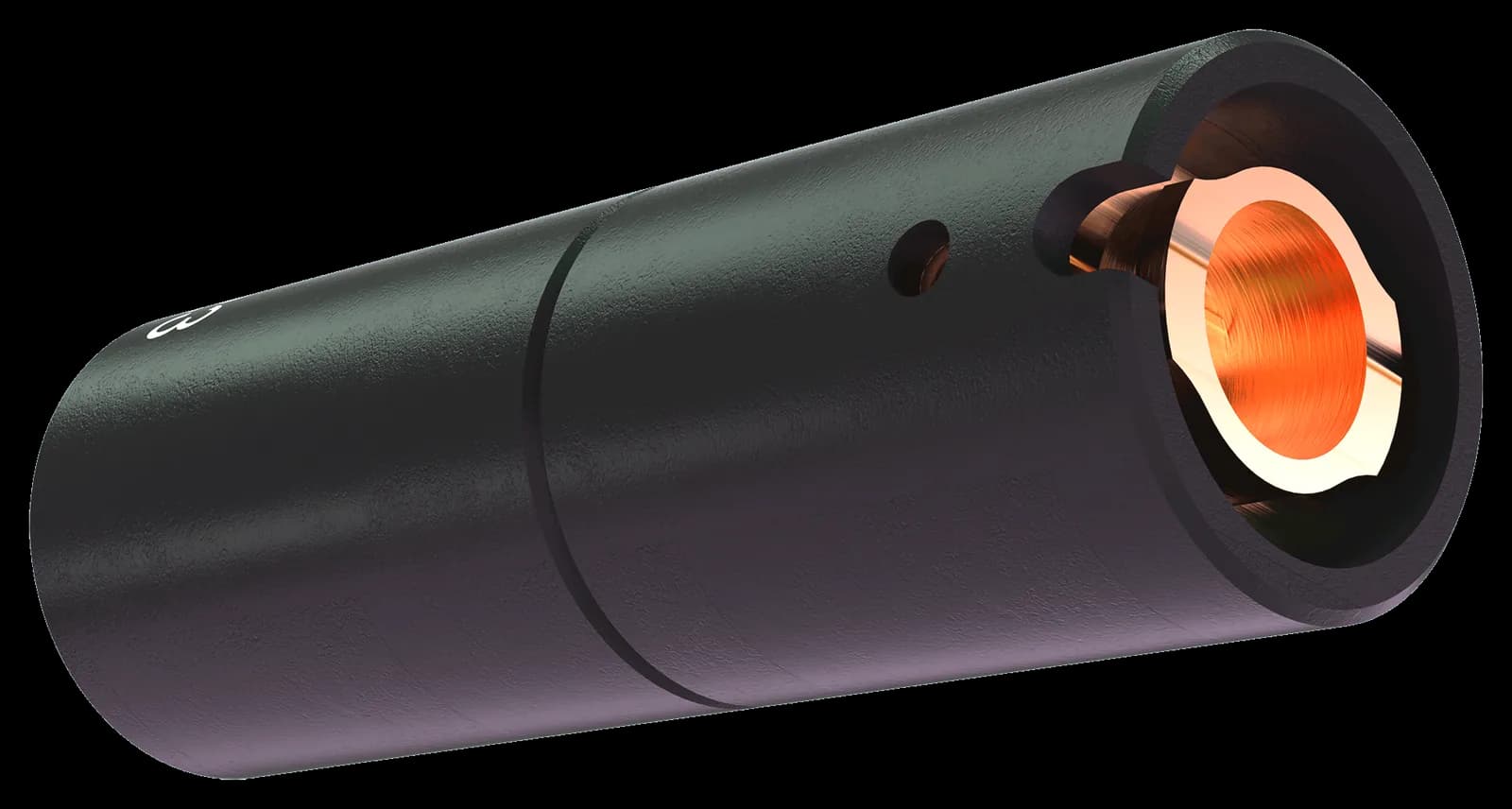

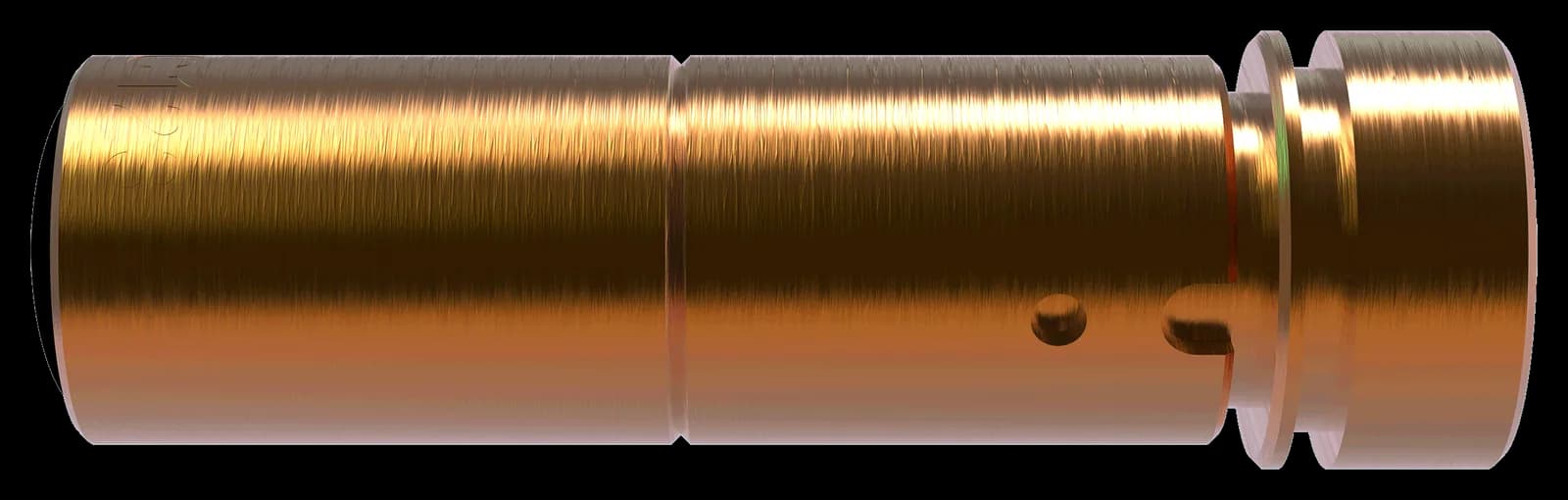

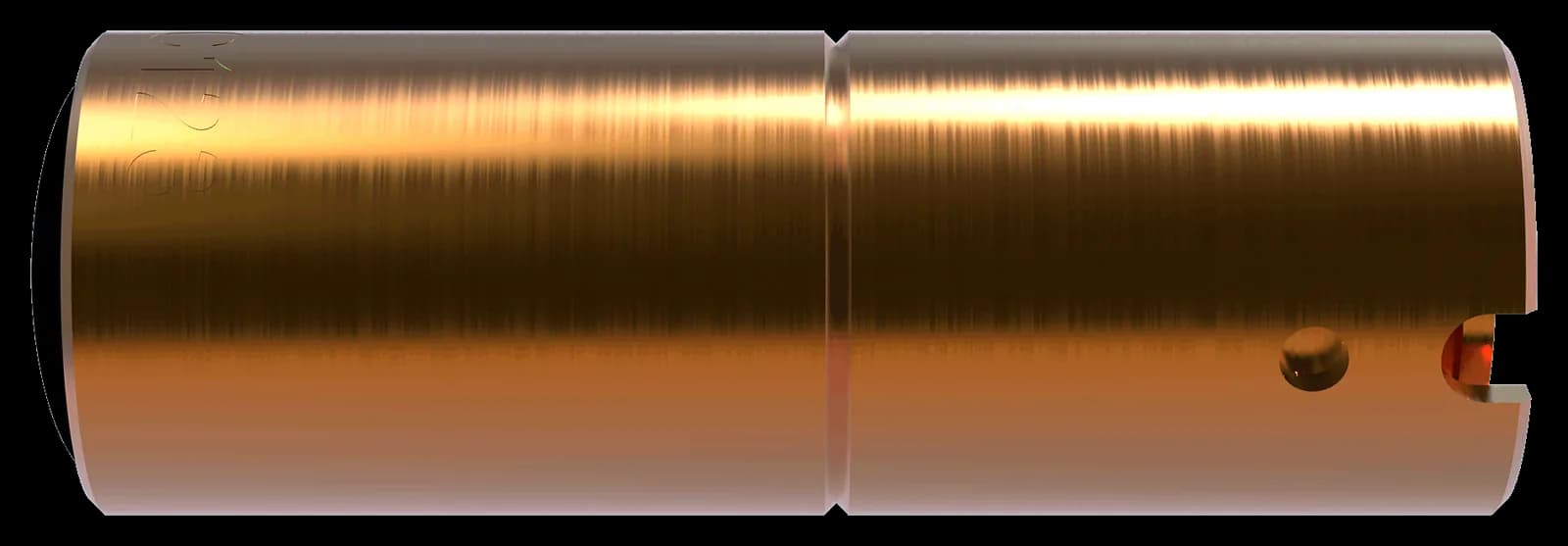

Compact is the OEM building block: Ø8 × 34 mm, in brass or hard anodised aluminium.
At that size it goes inside the product rather than onto it — handheld instruments, barcode readers, short-range positioning.
Specification

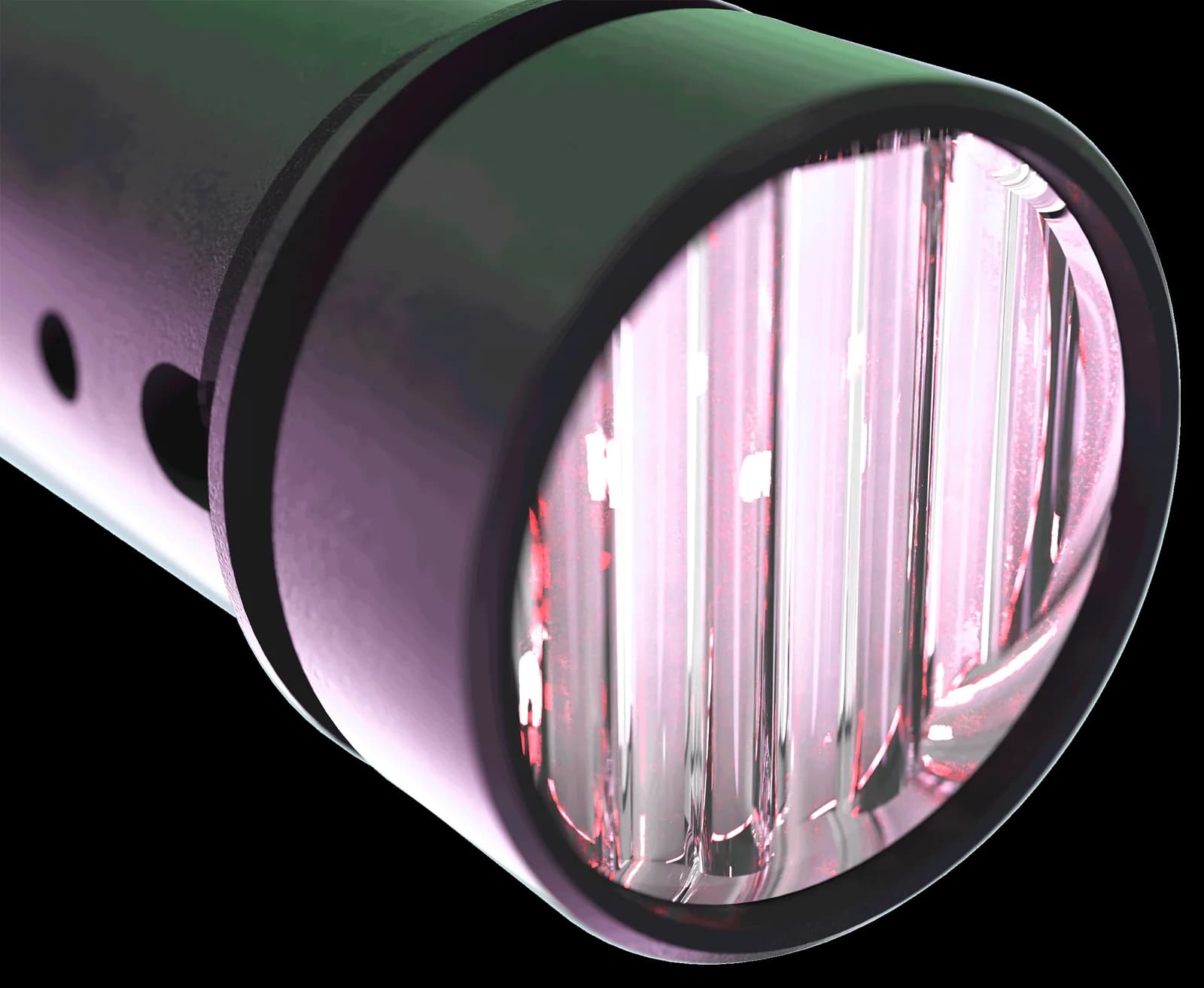

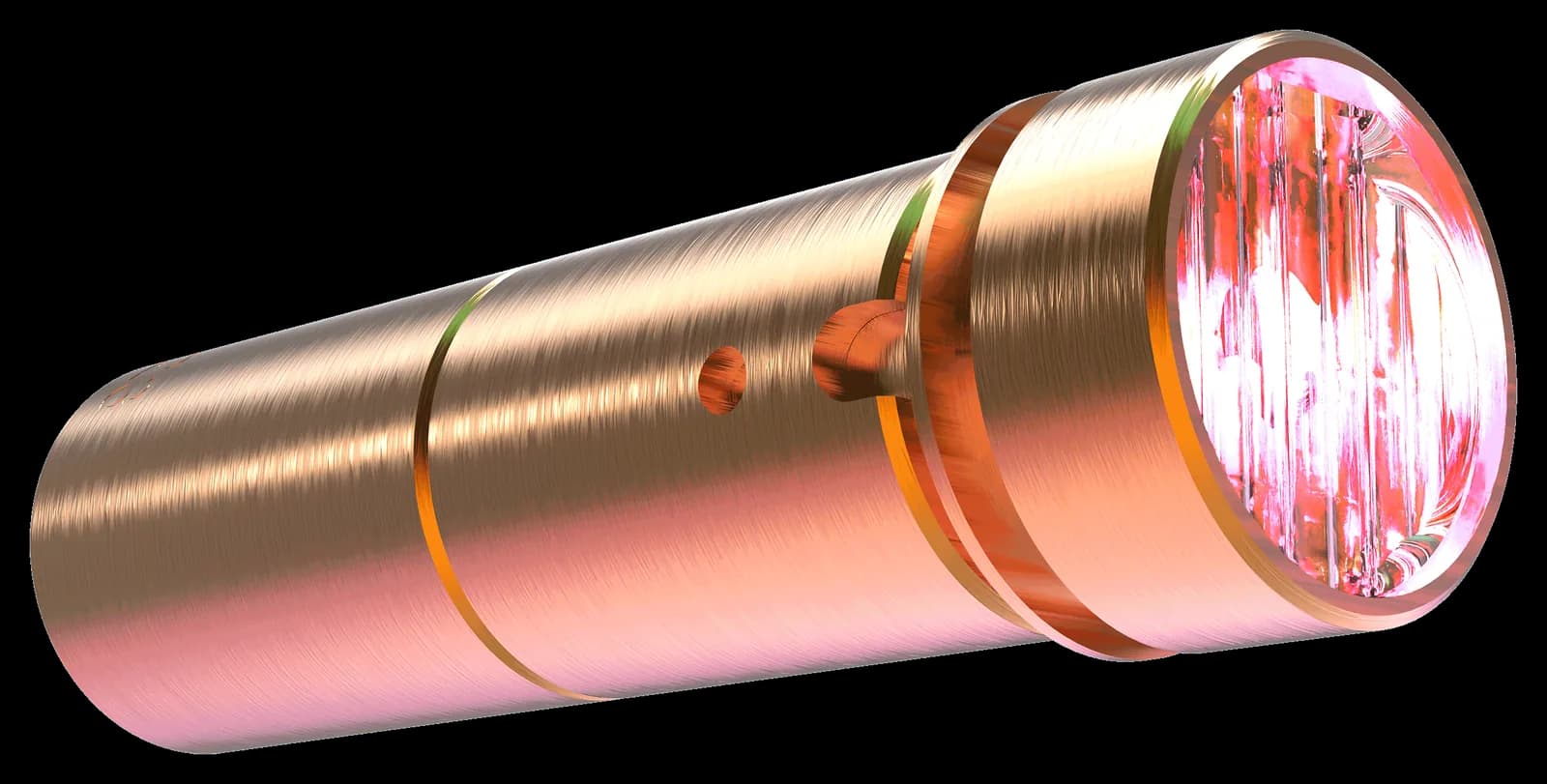

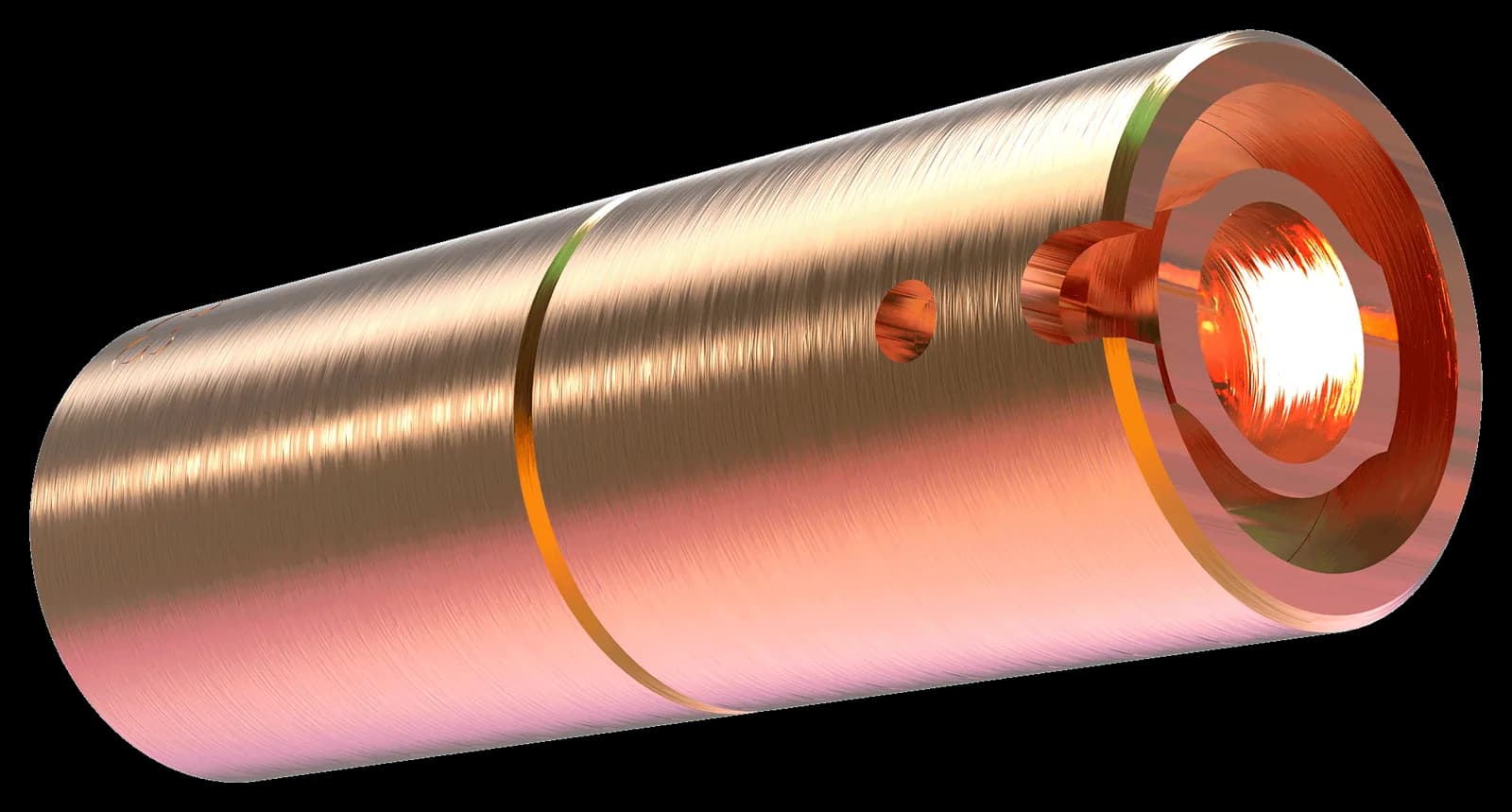

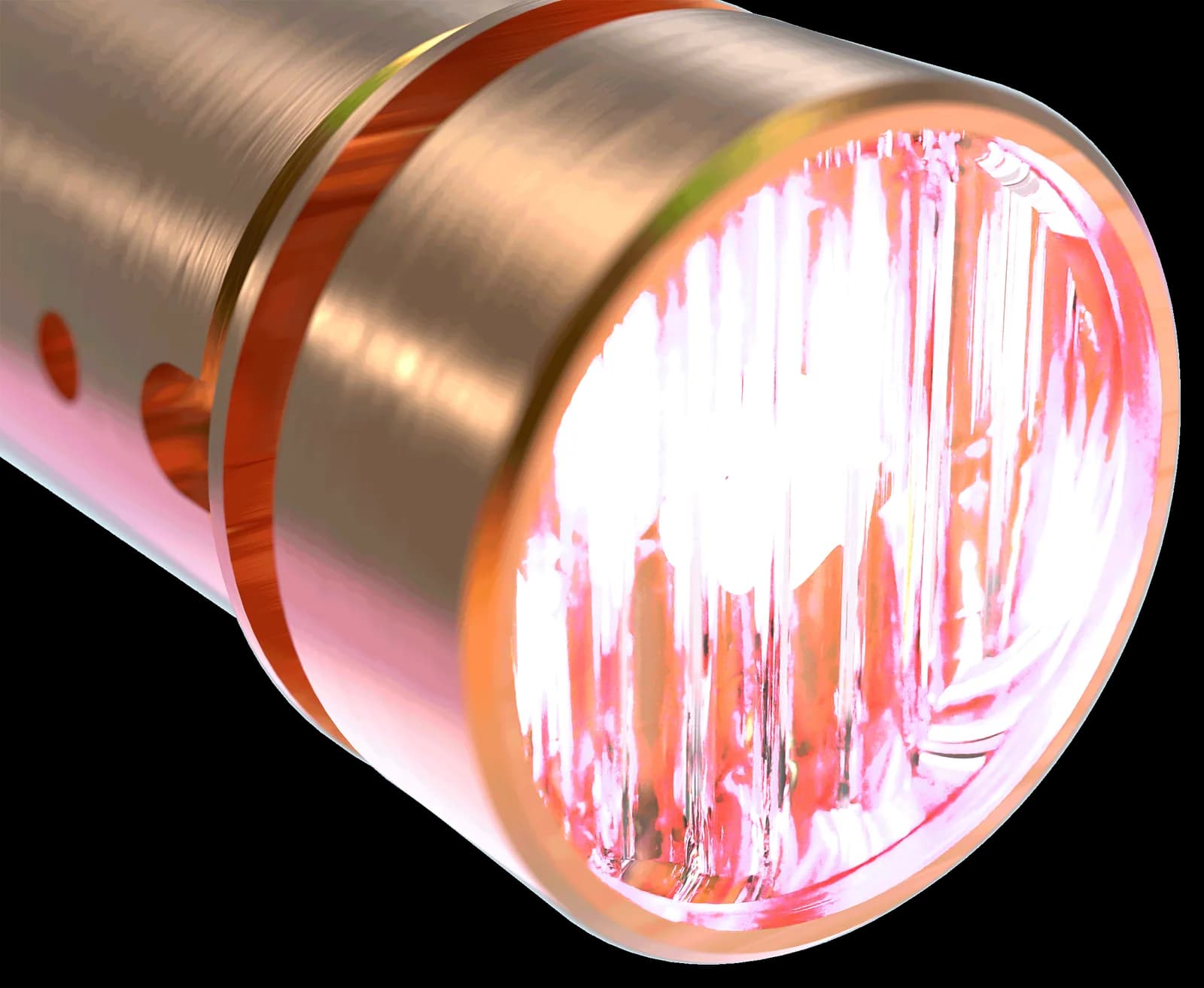

Three optics are available — spot at 23 mm, line at 29 mm, and cross at 29 mm with a 10 mm optic section — so the overall length depends on which is fitted.
Housing choice

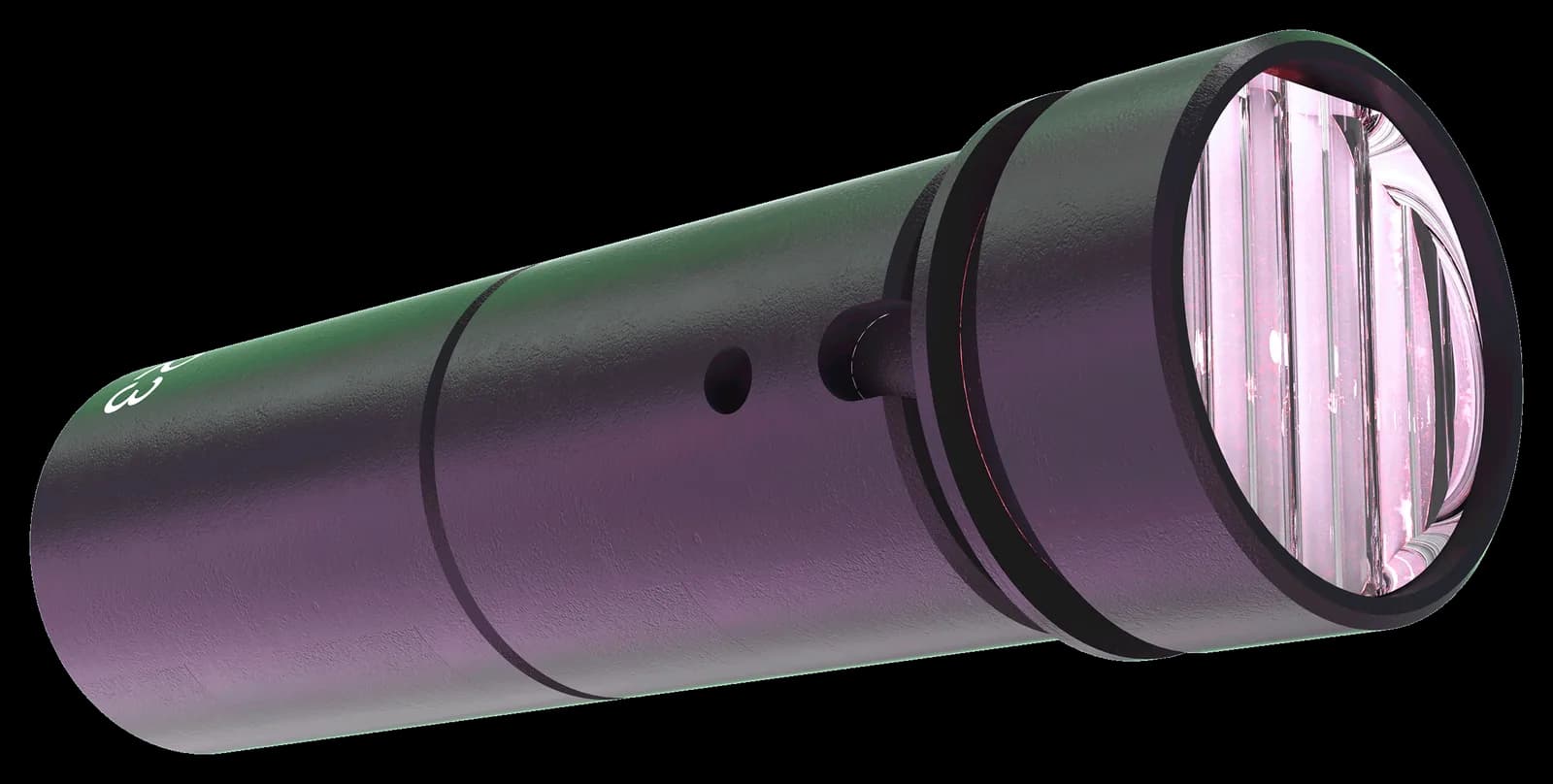

Brass conducts heat well and machines precisely. Hard anodised aluminium is lighter and harder-wearing at the surface. For an enclosed instrument the choice is usually thermal; for an exposed one it is usually wear.
Where it fits
Compact is the entry point. Digital Compact is the same body with RS232 control and a wider temperature range; Photon steps up to IP67 stainless and far more power.
Specifications
Optical
- Wavelength range
- 520–650 nm
- Max output power
- 1–5 mW
- Beam shapes
- Spot / Line
- Line quality
- Gaussian
Safety
- Laser class
- OEM
Thermal
- Operating temperature
- +10°C to +40°C
Mechanical
- IP rating
- IP40
- Dimensions
- Ø8 mm × 34 mm
Electrical
- Control
- Analog
- Interface
- CW / TTL modulation
Performance
- Pointing stability
- <5%
- Boresight accuracy
- <0.5°
Application
- Best for
- OEM embedded systems
