DFL100 Dark Field Ring

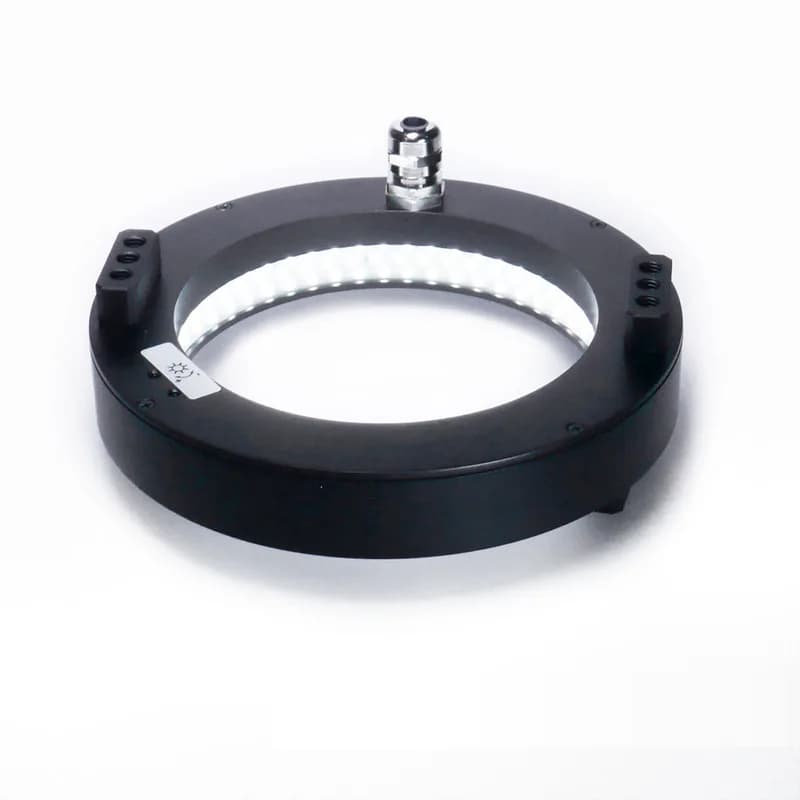

LMX-DFL100FL-WLow-angle dark field ring light with moderate performance for surface defects, edges and embossing - 100mm diameter.
- Light colour | wavelength
- 470 to 625 nm, white
- Power-LED
- SMD LEDs
- Light field size
- 100
About the LMX-DFL100FL-W
Overview
The DFL100 lights the part almost along the surface, at a grazing angle. On a specular surface that reflects even front light straight into the camera and hides everything, this low angle does the opposite: the flat surface goes dark, and only the relief that stands proud of it — scratches, edges, micro-defects — catches the light and shows.
That makes it the tool to reach for when a defect is a change in topography rather than a change in colour or print. Bright-field light would flood past a fine scratch; the dark field angle turns the same scratch into a bright line against a dark field.
It is a LUMIMAX ring built for continuous or switching operation on a machine-vision line. Dark field is deliberately narrow in what it does well, so pair it with the surface and defect you actually need to catch, and size the ring to the part.
Specifications
Operation
- Operating mode (varies by part number)
- Continuous and switching mode | Continuous mode | Strobe mode
- controller (varies by part number)
- Integrierter lightscontroller | Integrierter strobe controller
Environment
- Ingress protection
- IP40
- Allowed ambient temperature (varies by part number)
- 5 to 40 °C, non-condensing | 5 to 45 °C, non-condensing
- Risk Group
- 0
Mechanical
- Dimensions (Ø x h in mm) (varies by part number)
- 140 x 33 (h = 63 mm with cable incl. bending radius) | 154 x 36 (h = 66 mm with cable incl. bending radius)
- Material housing | window
- Aluminium, anodised | PMMA
Electrical
- Operating voltage
- 19 to 30 V DC wide-range voltage input
- Maximum current consumption (by operating mode)
- continuous 0.2, 0.4 A · strobe 0.4, 0.6, 0.7 A
- Maximum electrical power at light field (by operating mode)
- continuous 4, 6, 7 W · strobe 138, 210, 240, 289 W
- Electrical connection
- 150 mm connection cable with M16 12-pin plug
- Brightness control via potentiometer
- 0 % (left stop) to 100 % (right stop) brightness
- Brightness control via analogue VC input (varies by part number)
- VC = 1 to 10 V DC (0 % to 100 % brightness) | VC = 2 to 10 V DC (0 % to 100 % brightness)
- TTL-Trigger
- High level = 3 to 30 V DC
- SPS-Trigger
- High level = 15 to 30 V DC
- Trigger slope
- Rising slope
- Flash duration 1 (varies by part number)
- Von 10 bis 100 µs | Von 20 bis 220 µs | Von 50 bis 750 µs
- Flash frequency (varies by part number)
- 10, 35, 100 Hz
- Continuous mode
- Assign + ON / OFF permanently with high signal, e. g. by applying to operating voltage # Connect GND ON / OFF
Optical
- Light field size (Ø in mm)
- 100
- Light colour | wavelength (varies by part number)
- Blue | 470 nm | Green | 528 nm | Red | 625 nm | White | 6000 K
- Light guidance
- Radial, directional
- Power-LED
- SMD LEDs
- Illuminance at 0 mm
- continuous 4373–18897 lx · strobe 43955–251127 lx
- Illuminance at 50 mm
- continuous 1572–10906 lx · strobe 14917–156879 lx
- Illuminance at 100 mm
- continuous 480–4596 lx · strobe 4559–66112 lx
- Illuminance at 200 mm
- continuous 84–905 lx · strobe 794–13011 lx
- Irradiance at 0 mm
- continuous 24.5–62.8 W/m² · strobe 285.5–798.3 W/m²
- Irradiance at 50 mm
- continuous 13.6–34.7 W/m² · strobe 116.8–499.1 W/m²
- Irradiance at 100 mm
- continuous 5.2–14.5 W/m² · strobe 47.7–208.6 W/m²
- Irradiance at 200 mm
- continuous 1–2.9 W/m² · strobe 8.8–41 W/m²
- Beam
- Grazing
- Intensity
- Med
General
- Country of origin
- Federal Republic of Germany
- Weight (kg) (by operating mode)
- continuous 0.45 · strobe 0.55
