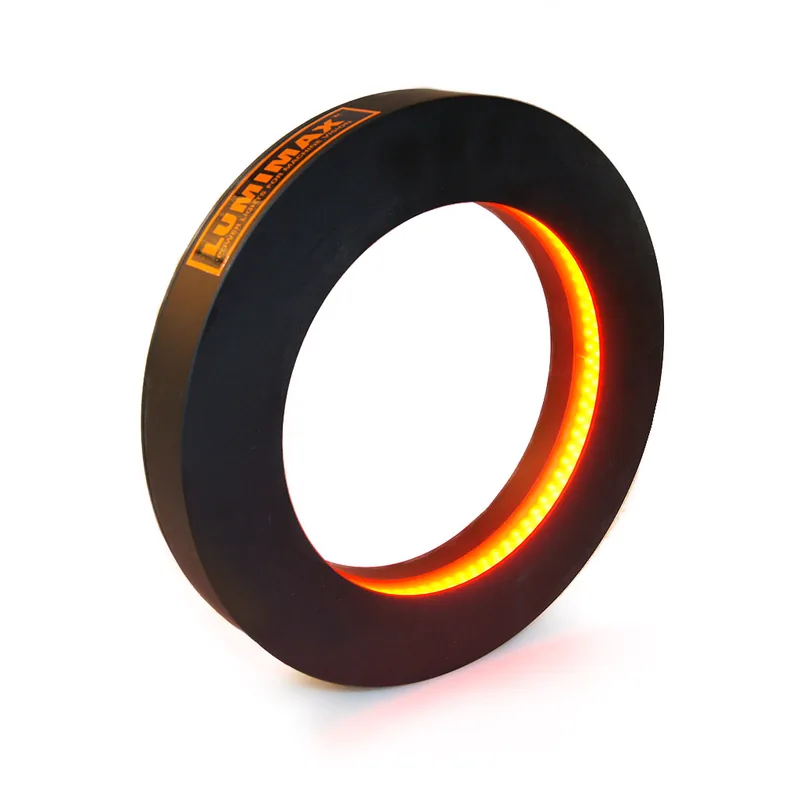

DFL150 Dark Field Ring

Low-angle dark field ring light with moderate performance for surface defects, edges and embossing - 150mm diameter.

Light colour | wavelength
470 to 625 nm, white
Power-LED
SMD LEDs
Light field size
150
Get a Quote
Product image
Overview

About the DFL150 Dark Field Ring

Overview

The DFL150 brings dark field lighting to larger parts. Like the smaller heads in the range it grazes the surface at a low angle, so a flat specular part reads dark and only its relief shows — but its wider diameter throws that grazing light across a bigger area.

That makes it the choice when the surface you need to inspect is too large for a compact dark field ring to cover evenly. Scratches, embossed features and edge defects all stand out against the dark surface, provided the flaw is a change in topography rather than in colour.

It is a LUMIMAX ring for continuous or switching operation. As with any dark field geometry, it is a specialist: excellent on reflective surface relief, and the wrong tool where a part wants even front lighting instead.

DFL150 Dark Field Ring

Specifications

Operation
Operating mode (varies by part number)
Continuous and switching mode | Continuous mode | Strobe mode
controller (varies by part number)
Integrierter lightscontroller | Integrierter strobe controller
Environment
Ingress protection
IP40
Allowed ambient temperature
5 to 45 °C, non-condensing
Risk Group
0
Mechanical
Dimensions (Ø x h in mm) (varies by part number)
140 x 33 (h = 63 mm with cable incl. bending radius) | 225 x 31 (h = 71 mm with cable incl. bending radius)
Material housing | window
Aluminium, anodised | PMMA
Electrical
Operating voltage
19 to 30 V DC wide-range voltage input
Maximum current consumption (by operating mode)
continuous 0.4, 0.5, 0.6 A · strobe 0.8, 1, 1.3 A
Maximum electrical power at light field (by operating mode)
continuous 7, 8, 12 W · strobe 246–533 W
Electrical connection
150 mm connection cable with M16 12-pin plug
Brightness control via potentiometer
0 % (left stop) to 100 % (right stop) brightness
Brightness control via analogue VC input (varies by part number)
VC = 1 to 10 V DC (0 % to 100 % brightness) | VC = 2 to 10 V DC (0 % to 100 % brightness)
TTL-Trigger
High level = 3 to 30 V DC
SPS-Trigger
High level = 15 to 30 V DC
Trigger slope
Rising slope
Flash duration 1 (varies by part number)
Von 10 bis 100 µs | Von 20 bis 220 µs | Von 50 bis 750 µs
Flash frequency (varies by part number)
10, 35, 100 Hz
Optical
Light field size (Ø in mm)
150
Light colour | wavelength (varies by part number)
Blue | 470 nm | Green | 528 nm | Red | 625 nm | White | 6000 K
Light guidance
Radial, directional
Power-LED
SMD LEDs
Illuminance at 0 mm
continuous 10338–38010 lx · strobe 136594–502217 lx
Illuminance at 50 mm
continuous 2281–8920 lx · strobe 30138–117858 lx
Illuminance at 100 mm
continuous 1218–5175 lx · strobe 16093–68376 lx
Illuminance at 200 mm
continuous 289–1320 lx · strobe 3818–17441 lx
Irradiance at 0 mm
continuous 68.4–137 W/m² · strobe 903.8–2417.5 W/m²
Irradiance at 50 mm
continuous 15.3–30.8 W/m² · strobe 212.7–407 W/m²
Irradiance at 100 mm
continuous 8.1–16.6 W/m² · strobe 123.1–219.3 W/m²
Irradiance at 200 mm
continuous 2.1–4 W/m² · strobe 31.3–52.5 W/m²
Beam
Grazing
Intensity
Med
General
Country of origin
Federal Republic of Germany
Weight (kg)
1
