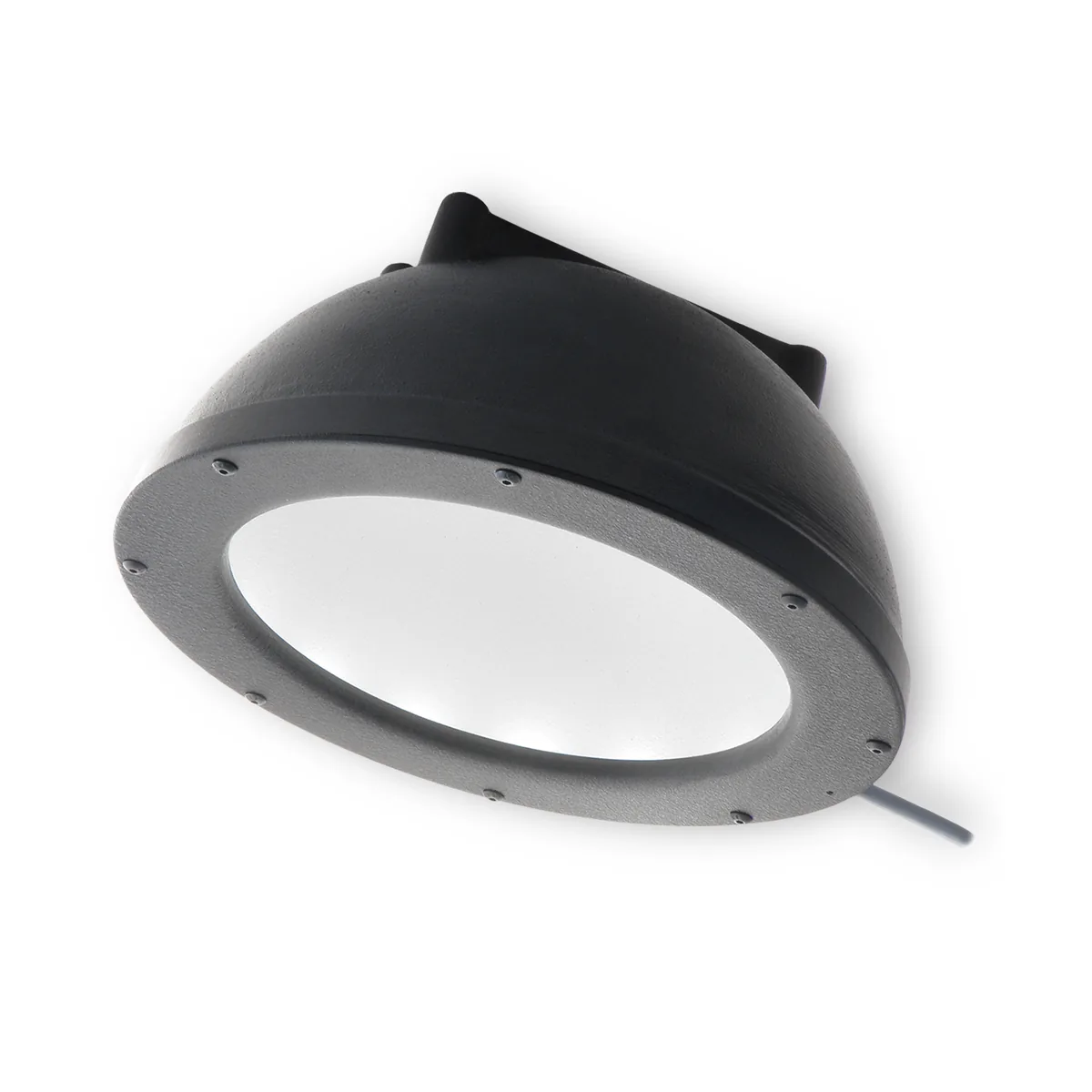

DL097 Medium Dome Light

The DL097 Series is a medium hemispherical dome light engineered for class-leading intensity over medium size targets. The dome geometry delivers indirect diffuse light from many angles and directions, which avoids the hot-spot reflections that curved reflective surfaces produce under directional light.

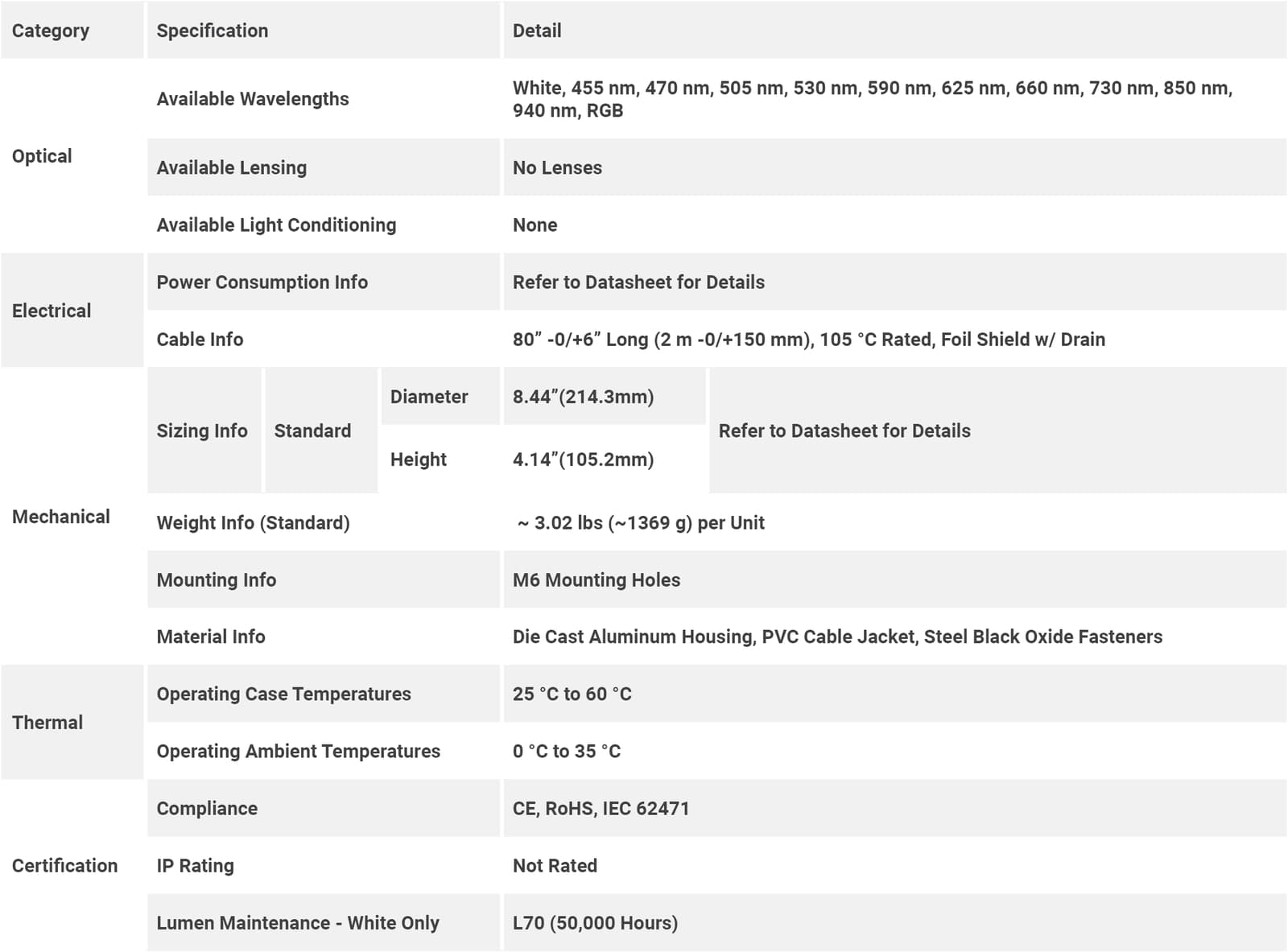

At 214.3 mm in diameter and 105.2 mm high the DL097 covers a medium part without dominating the station, and four M6 mounting points on the top surface let it be hung and adjusted from above so the working area underneath stays clear. The die cast aluminium housing weighs 1369 g.

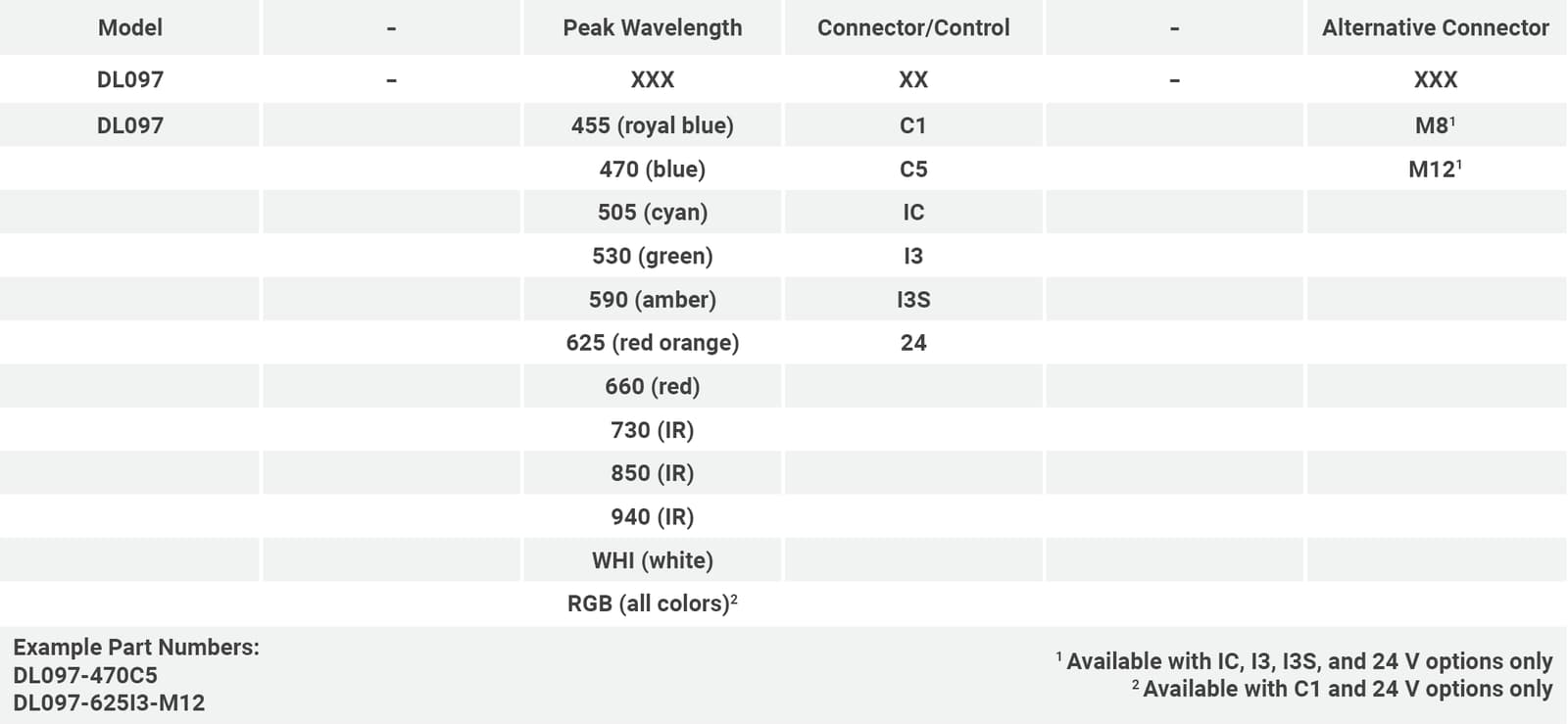

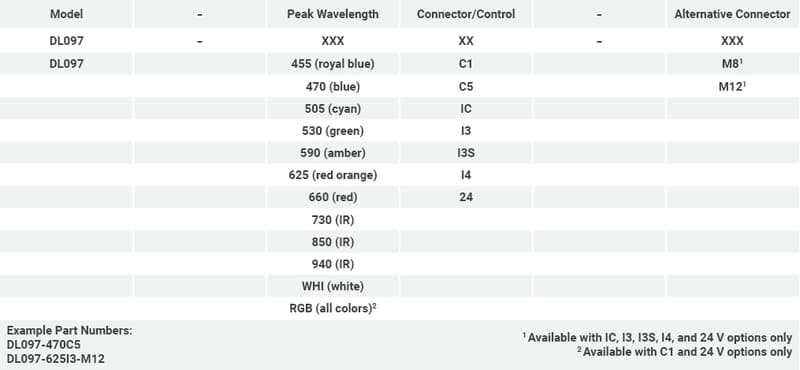

High power industrial grade LEDs run strobed or continuous with white light lumen maintenance of L70 at 50,000 hours, keeping even illumination through long runs. The DL097 range covers white and ten wavelengths from 455 nm to 940 nm, plus an RGB build designed to operate with Advanced Illumination multi-channel current source controllers, which allows colour to be changed in software between inspections. Cable inline and external controllers are available.
