Advanced Illumination · DOME LIGHTS

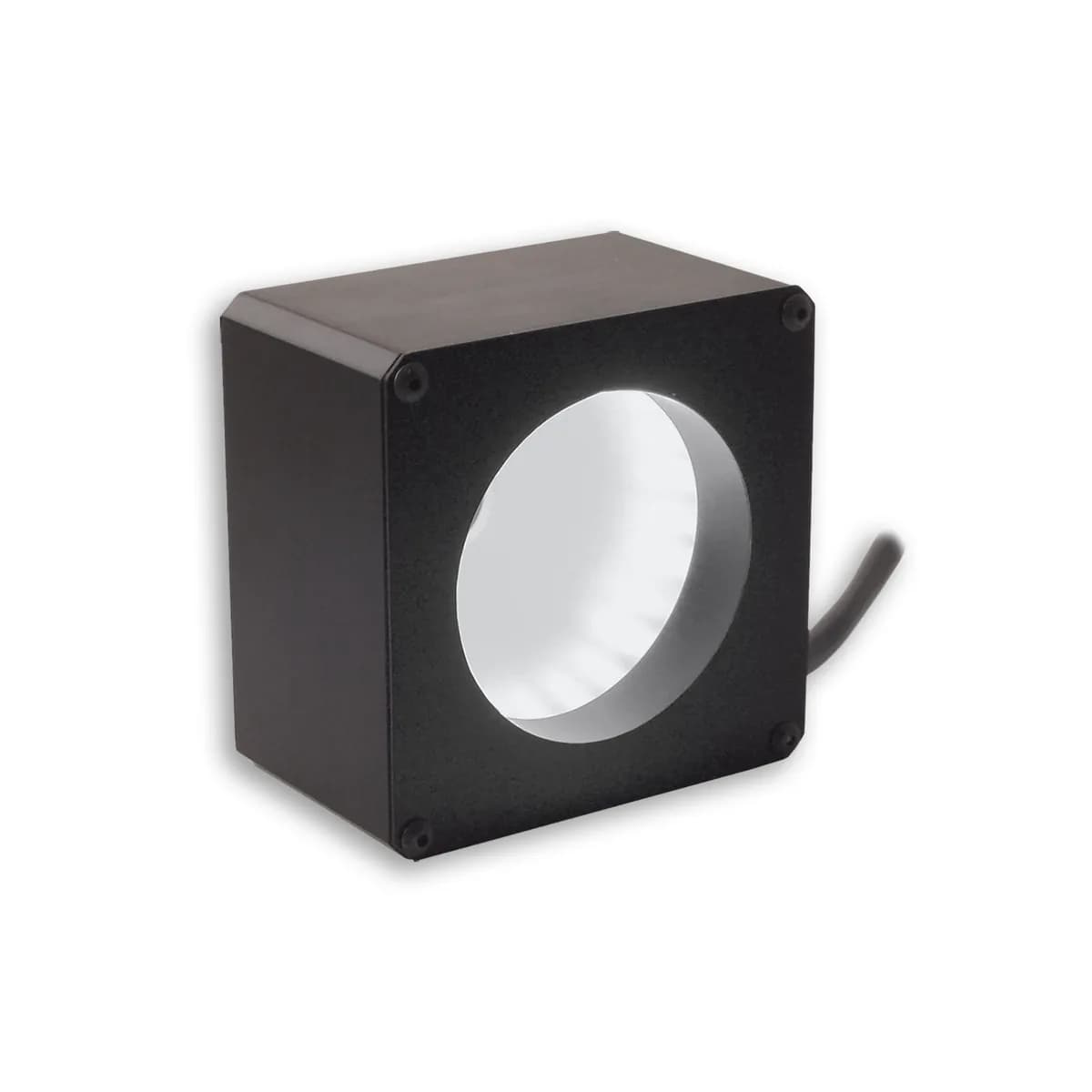

DL2230 Extra Small Dome Light
AI-DL2230-WExtra-small hemispherical dome for very small parts in tight spaces - 9,100 Lux.
- Visible peak wavelengths
- 465 - 663
- Supply voltage
- 24V DC
- Ip rating
- Not Rated
About the AI-DL2230-W
The DL2230 Series is a compact hemispherical dome light for curved, specular reflective surfaces at very short working distances. At 71.9 mm square and 45.4 mm high it fits into small spaces where a full-size dome has no room, and four opposing M4 mounting points allow adjustable positioning once it is in place.
Evenlite targeted LEDs create a small-area hemispherical light geometry, giving indirect diffuse illumination from many angles and directions so a curved reflective part shows no hot spot. Standard intensity suits moderate speed inspection while providing more power on target than similar compact domes.
The anodised aluminium and cold rolled steel housing weighs 362 g, light enough for a moving axis, and white light lumen maintenance is L70 at 50,000 hours. The DL2230 range covers white, 470 nm, 530 nm and 625 nm in the visible plus 395 nm ultraviolet and 880 nm near-infrared, so fluorescence and infrared tasks are served by the same housing. Cable inline and external controllers are available for dimming and strobing.
Specifications
Typical Applications
- Application notes
- Inspection in tight spaces, on curved specular reflective surfaces, at very short working distances; moderate-speed applications.
Available Wavelengths
- Colour temperature white
- 5500 K
- Rgb available
- No
- Uv nir specialty wavelengths
- 395 nm (UV), 880 nm (NIR)
- Visible peak wavelengths
- 465 (470), 519 (520), 633 (625), 663 (660)
- Nonvisible peak wavelengths
- 399 (395), 882 (880)
Lens / Light Conditioning
- Available lensing
- No Lenses
- Test unit
- White DL2230 unit
- Test working distance
- 25 mm
- Max illuminance klux
- 12.2
- Max irradiance wm2
- 44.6
- Size variants
- Single size
- Strobe multiplier inline
- Up to 5x (I3 / I3S Inline Controller)
- Strobe multiplier pulsar
- Up to 10x (C5 connector + Pulsar 320E)
Photobiological Risk Factors (Iec 62471)
- Group exempt wavelengths
- 880
- Group 2 wavelengths
- 395
Lumen Maintenance & Compliance
- Lumen maintenance white
- L70 (50,000 Hours)
- Compliance
- CE, RoHS, IEC 62471
- Ip rating
- Not Rated
Mechanical - Sizing
- Form factor
- Hemispherical dome (square housing, round emitting aperture)
- Available sizes
- Single size
- Length width in
- 2.83 (71.9) x 2.83 (71.9)
- Height in
- 1.79 (45.4)
- Weight standard
- ~0.80 lbs (~362 g) per unit
- Mounting
- M4 Mounting Holes (4x, opposing) - smaller gauge than other DL products in this family, which use M6
- Housing material
- Anodized Aluminum & Cold Rolled Steel Housing, PVC Cable Jacket, Steel Black Oxide Fasteners
Thermal & Certification
- Operating case temp
- 25 C to 60 C
- Operating ambient temp
- 0 C to 35 C
- Ip rating
- Not Rated
- Compliance
- CE, RoHS, IEC 62471
Electrical - General
- Input voltage
- 24 V DC (nominal, all lights/controllers unless noted)
- Cable info
- 80 in -0/+6 in (2 m -0/+150 mm), 105C rated, foil shield w/ drain
- Current range standard controller
- 0.080 (625/660/880) to 0.100 (WHI/395/470/520) A
- Current range 24v driver
- 0.100 (WHI/395/470/520) to 0.150 (625/660/880) A
- Background controller draw
- ~0.1 (not included in current figures above)
Connectors & Control Configurations
- Connector control codes
- C1, C5, IC, I3, I3S, 24
- I4 option available
- No (not offered; not referenced anywhere in datasheet)
- Alternative connectors
- M12, M8 (available with 24, IC, I3, I3S options only)
- Rgb connector restriction
- n/a (no RGB option)
- Wavelength connector restriction
- 24V driver option not available with 395 nm (UV)
- Analogue dimming
- Yes - 0-10V Analog Control (IC, I3/I3S configs)
- Trigger input
- Yes - Gate Low (IC) / Active High Trigger (I3/I3S)
- Gui software
- n/a (controller-level GUI via DCS-100E/103E/Pulsar 320E Ethernet interface)
Optical
- Wavelength / colour
- White
- Beam
- Cloudy-day dome
- Intensity
- Low
- Irradiance
- 9,100 Lux
Environmental
- Operating temperature
- 0 to +35°C
Electrical
- Supply voltage
- 24V DC
Application
- Applications
- Inspection / Machine Vision
