Advanced Illumination · COAXIAL
DL225 Square Coaxial Light
AI-DL225-WHigh-intensity square coaxial light for small to large FOVs at short to medium distances, reflective surfaces; 18,000 Lux.
- Uv nir specialty wavelengths
- 365 - 940 nm
- Supply voltage
- 24V DC
- Ip rating
- IP50
About the AI-DL225-W
The DL225 Series is a range of square on-axis illuminators for area scan inspection, such as wafer surface inspection and other work where differential reflection from the target is the signal. Extensive thermal modelling and a high-efficiency heat sinking system optimise light output while protecting the LEDs, so intensity holds without shortening life.

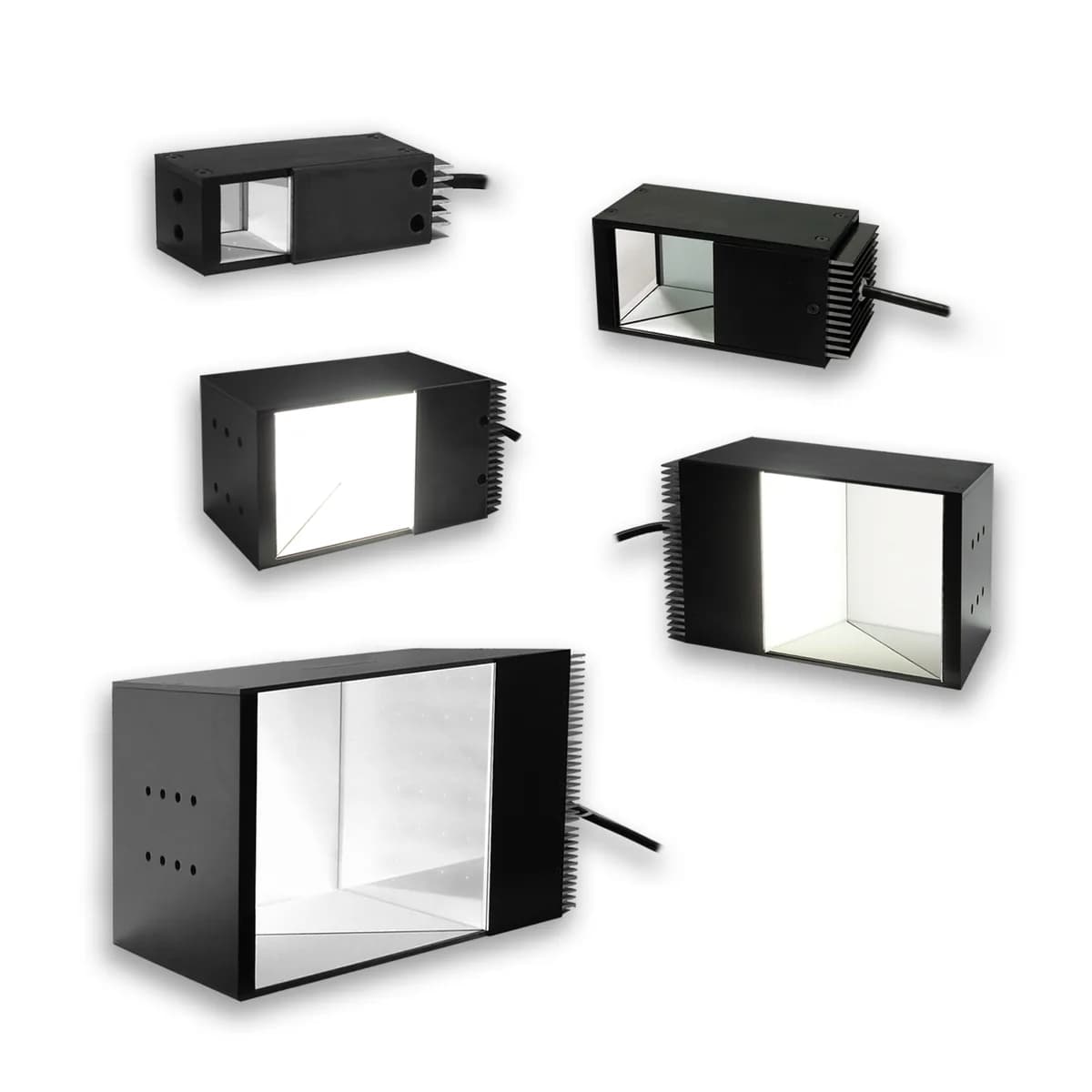

Five sizes run from 105.8 mm by 35.7 mm up to 231.3 mm by 163.4 mm at weights of 158 g to 2894 g, so the illuminator matches the field of view without over-lighting the part. Multiple M6 mounting points on the end allow adjustable positioning in the frame.
High-performance optical components with a glass beam splitter put a directed sheet of light along the camera axis, giving the even return that on-axis inspection depends on, and white light lumen maintenance is L70 at 50,000 hours. The DL225 range covers white and twelve wavelengths from 365 nm to 940 nm, is rated IP50 and is certified to CE, RoHS and IEC 62471. Cable inline and external controllers are available.
Specifications
Typical Applications
- Application notes
- Area scan camera applications such as wafer surface inspection or other tasks requiring differential reflection from a target; UVA configurations for fluorescence excitation (security features, semiconductor contaminants, coating integrity), NIR configurations for subsurface viewing (silicon wafers, PCB coatings, multi-layer films).
Available Wavelengths
- Colour temperature white
- 5500 K
- Rgb available
- No
- Uv nir specialty wavelengths
- 365, 375, 385, 395 nm (UVA), 405 nm (violet), 850, 940 nm (NIR) - UVA ensures uniform fluorescence excitation; NIR enables subsurface viewing
- Visible peak wavelengths
- 408 (405), 442 (455), 467 (470), 520 (530), 596 (590), 635 (625)
- Nonvisible peak wavelengths
- 368 (365), 376 (375), 384 (385), 393 (395), 856 (850), 947 (940)
Lens / Light Conditioning
- Available lensing
- No Lenses
- Test unit
- 75 mm white DL225 unit
- Test working distance
- 25 mm
- Max illuminance klux
- 53.5
- Max irradiance wm2
- 183.5
- Size variants
- 025, 050, 075, 100, 150 (mm emitting length/width) - intensity scales by size, see Graph Data tab
- Strobe multiplier inline
- Up to 5x (I3 / I3S Inline Controller)
- Strobe multiplier pulsar
- Up to 10x (C5 connector + Pulsar 320E)
Photobiological Risk Factors (Iec 62471)
- Group exempt wavelengths
- 850, 940
- Group 2 wavelengths
- 365, 375, 385, 395 (UVA)
Lumen Maintenance & Compliance
- Lumen maintenance white
- L70 (50,000 Hours)
- Compliance
- CE, RoHS, IEC 62471
- Ip rating
- IP50
Mechanical - Sizing
- Form factor
- Square/rectangular coaxial bar (5 sizes)
- Available sizes
- 025, 050, 075, 100, 150 (mm emitting length/width)
- Length width in
- 4.17 (105.8) to 9.11 (231.3) length; 1.41 (35.7) to 6.44 (163.4) width (varies by size)
- Height in
- 1.31 (33.3) to 6.35 (161.3) (varies by size)
- Weight standard
- 0.35 lbs (158 g) DL225-025; 0.70 lbs (317 g) DL225-050; 1.89 lbs (857 g) DL225-075; 3.06 lbs (1388 g) DL225-100; 6.38 lbs (2894 g) DL225-150
- Mounting
- M6 Mounting Holes (count varies by size: 2x on -025, up to 8x on -150)
- Housing material
- Anodized Aluminum Housing, Acrylic Window, Glass Beam Splitter, Nickel Plated Brass, PVC Cable Jacket, Steel Black Oxide Fasteners
Thermal & Certification
- Operating case temp
- 25 C to 60 C
- Operating ambient temp
- 0 C to 35 C
- Ip rating
- IP50
- Compliance
- CE, RoHS, IEC 62471
Electrical - General
- Input voltage
- 24 V DC (nominal, all lights/controllers unless noted)
- Cable info
- 80 in -0/+6 in (2 m -0/+150 mm), 105C rated, foil shield w/ drain
- Current range standard controller
- 0.080 (025, 850/940) to 1.090 (150, 590/625) A - varies substantially by size
- Current range 24v driver
- 0.060 (025, 455/470/530/WHI) to 2.160 (150, 455/470/530/WHI) A - varies substantially by size
- Background controller draw
- ~0.1 (not included in current figures above)
Connectors & Control Configurations
- Connector control codes
- C1, C5, IC, I3, I3S, 24
- I4 option available
- No controller product described, but wiring tables (p.12) include I4 pinout columns - likely a template artifact, see README
- Alternative connectors
- M8, M12 (available with 24, IC, I3, I3S options only)
- Rgb connector restriction
- n/a (no RGB option)
- Analogue dimming
- Yes - 0-10V Analog Control (IC, I3/I3S configs)
- Trigger input
- Yes - Gate Low (IC) / Active High Trigger (I3/I3S)
- Gui software
- n/a (controller-level GUI via DCS-100E/103E/Pulsar 320E Ethernet interface)
Optical
- Wavelength / colour
- White, 365, 375, 385, 395, 405, 455, 470, 530, 590, 625, 850, 940 nm
- Beam
- Coaxial diffuse
- Intensity
- Med
- Irradiance
- 18,000 Lux
Environmental
- Operating temperature
- 0 to +35°C
Electrical
- Supply voltage
- 24V DC
Application
- Applications
- Inspection / Machine Vision
