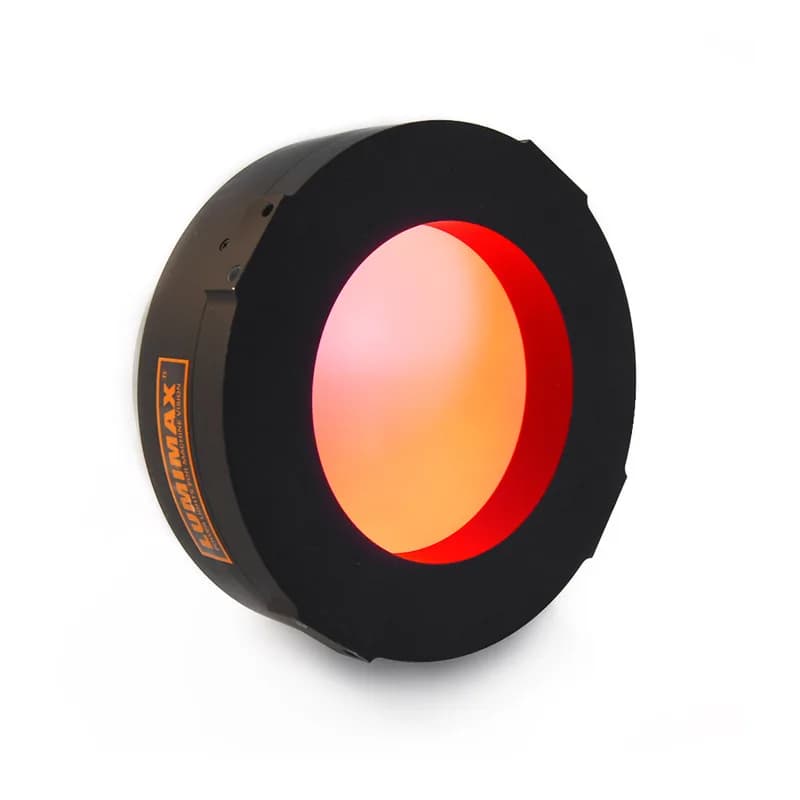

DOM CD100 Dome Light
LMX-DOMCD100-WDome light with moderate performance for shadow-free coverage of small to medium FOVs - 100mm diameter.
- Light colour | wavelength
- 470 to 870 nm, white
- Power-LED
- 5 mm LEDs
- Light field size
- 100
About the LMX-DOMCD100-W
Overview
This is the mid-size cloudy-day dome in the LUMIMAX range. A cloudy-day dome earns its name honestly: it surrounds the part with even, omnidirectional light like an overcast sky, so a highly specular or curved surface is lit from every angle at once and shows no hot spots.
That omnidirectional light is exactly what a shiny, contoured part needs — reflective housings, curved metal, glossy packaging — where any single-direction light would bounce back into the camera and hide the feature under a glare. The camera views through the top of the dome.
It sits in the middle of the LUMIMAX dome range by diameter, between the compact and the large heads, so size it to the part you need to enclose. Like every dome it is a specialist for curved, specular surfaces rather than a general-purpose light for flat work.
Specifications
Operation
- Operating mode (varies by part number)
- Continuous and switching mode | Strobe mode
- controller (varies by part number)
- External illumination controller PLC2 (101.0029.00) available as accessory | External strobe controller series FLC2 (102.0030.xx) available as accessory
Mechanical
- Camera hole (Ø in mm)
- 30
- Dimensions (l x w x h in mm)
- 160 x 160 x 101 (l = 200 mm with cable incl. bending radius)
- Material housing | window
- Aluminium, anodised | PMMA
Environment
- Ingress protection
- IP40
- Allowed ambient temperature
- 5 to 45 °C, non-condensing
- Operating temperature at 21°C (by operating mode)
- continuous 28, 33, 34, 37 °C · strobe 40 °C
- Risk Group (varies by part number)
- 0, 1
Electrical
- Operating voltage
- 19 to 30 V DC wide-range voltage input *
- Maximum current consumption (varies by part number)
- 0.3 A * | 0.4 A * | 0.5 A *
- Maximum electrical power at light field (varies by part number)
- 212 W * | 331 W * | 4 W * | 5 W * | 6 W * | 600 W * | 665 W * | 675 W * | (+1 more)
- Electrical connection (varies by part number)
- 1.5 m cable with M16 6-pin plug for connection to PLC2 controller | 1.5 m cable with M16 8-pin plug for connection to FLC2 controller series
- Brightness control via potentiometer (varies by part number)
- 0 % (left stop) to 100 % (right stop) brightness # Note: automatic deactivation at VC > 1 V DC * | 0 % (left stop) to 100 % (right stop) brightness *
- Brightness control via analogue VC input
- VC = 1 to 10 V DC (0 % to 100 % brightness) # Note: Turn potentiometer to left stop *
- TTL-Trigger
- High level = 3 to 30 V DC *
- SPS-Trigger
- High level = 15 to 30 V DC *
- Trigger slope
- Rising slope *
- Switch-on delay
- 100 % brightness within a maximum of 3 µs
- Flash duration 1
- 10 to 100 µs | 20 to 220 µs |50 to 750 µs *
- Flash frequency
- 100 Hz | 35 Hz | 10 Hz *
- TTL switching input
- High level = 3 to 30 V DC *
- PLC switching input
- High level = 15 to 30 V DC *
- Switching mode
- Switching time follows the switching signal # Connect + ON / OFF and GND ON / OFF *
- Continuous mode
- Assign + ON / OFF permanently with high signal, e. g. by applying to operating voltage # Connect GND ON / OFF *
Optical
- Light field size (Ø in mm)
- 100
- Light colour | wavelength (varies by part number)
- Blue | 470 nm | Green | 528 nm | Infrared | 870 nm | Red | 625 nm | White | 6400 K
- Light guidance
- Diffuse
- Power-LED
- 5 mm LEDs
- Illuminance at 0 mm
- continuous 6399–29742 lx · strobe 125136–428826 lx
- Illuminance at 50 mm
- continuous 2677–12457 lx · strobe 52350–179607 lx
- Illuminance at 100 mm
- continuous 1119–5235 lx · strobe 21883–75479 lx
- Illuminance at 200 mm
- continuous 374–1731 lx · strobe 7312–24958 lx
- Irradiance at 0 mm
- continuous 38.1–96.8 W/m² · strobe 785.5–1893 W/m²
- Irradiance at 50 mm
- continuous 16.6–40.9 W/m² · strobe 334.2–799.8 W/m²
- Irradiance at 100 mm
- continuous 7.9–17.1 W/m² · strobe 143.3–334.4 W/m²
- Irradiance at 200 mm
- continuous 2.4–5.8 W/m² · strobe 47.1–113 W/m²
- Beam
- Dome 180°
- Intensity
- Med
General
- Country of origin
- Federal Republic of Germany
- Weight (kg)
- 0.95
Application
- Applications
- Inspection / Machine Vision
