LUMIMAX · DOME LIGHTS

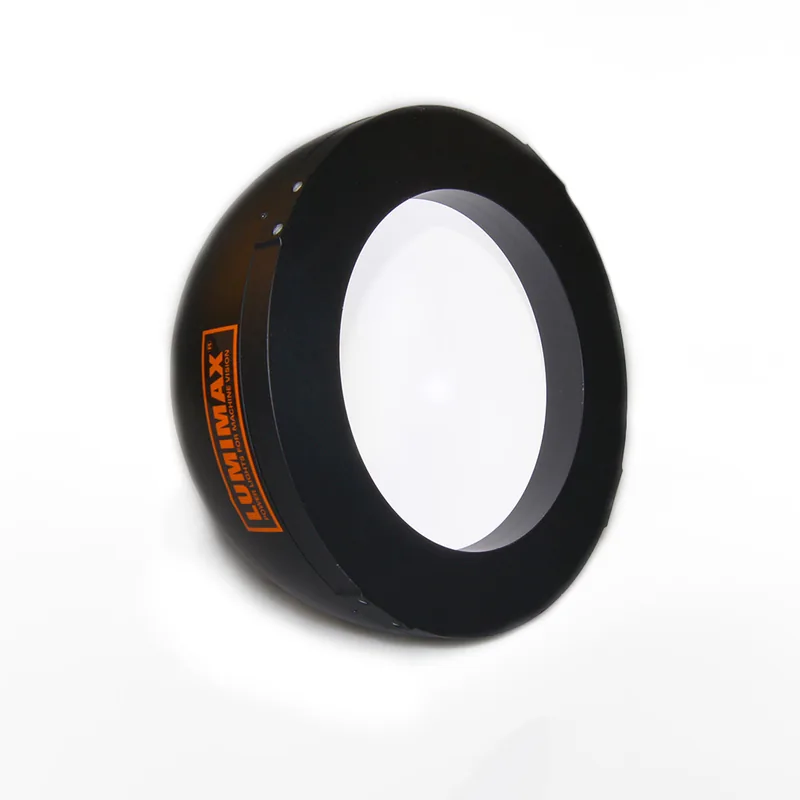

DOM CD150 Dome Light
LMX-DOM-CD150Dome light with moderate performance for shadow-free coverage of small to medium FOVs - 150mm inner diameter.
- Light colour | wavelength
- 470 to 870 nm, white
- Power-LED
- 5 mm LEDs
- Light field size
- 150
About the LMX-DOM-CD150
Overview
This is the large head in the LUMIMAX dome range. Its wide inner diameter brings the even, all-directions diffuse light of a hemispherical dome to larger curved and specular parts that the smaller heads would not enclose.
Enclosing more of the part is the reason for the size: a dome only works its magic on what it can surround with light, so a larger curved or specular surface needs the larger diameter to stay evenly lit and free of hot spots. It runs in continuous or switching operation.
Like the rest of the range it is driven by an external LUMIMAX controller rather than an onboard one. Choose the largest head when the part is too big for the mid-size dome; drop down the diameters when it is smaller, and use a flat diffuse light where the surface is flat rather than curved.
Specifications
Operation
- Operating mode (varies by part number)
- Continuous and switching mode | Strobe mode
- controller (varies by part number)
- External illumination controller PLC2 (101.0029.00) available as accessory | External strobe controller series FLC2 (102.0030.xx) available as accessory
Mechanical
- Camera hole (Ø in mm)
- 40

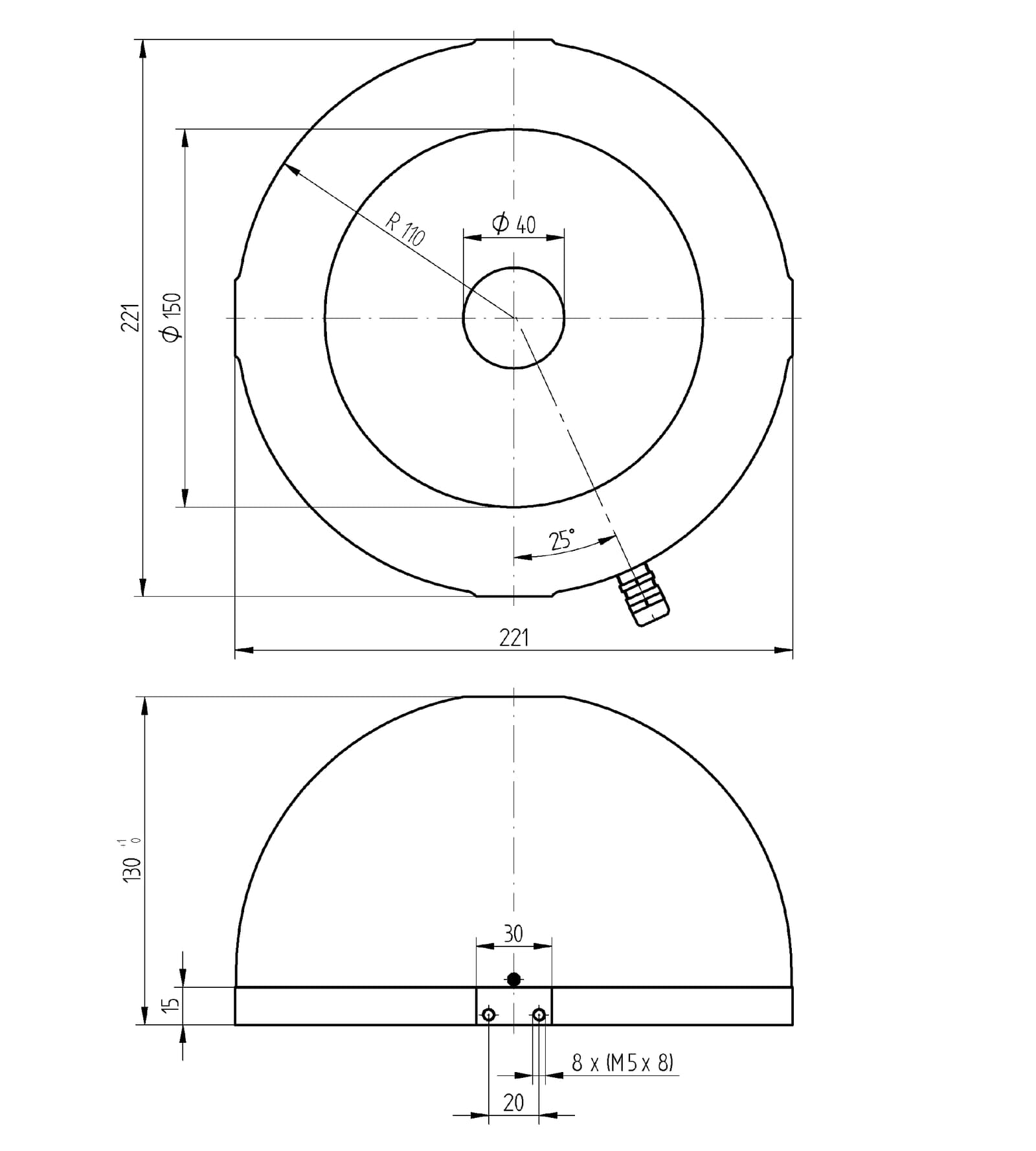

- Dimensions (l x w x h in mm)
- 221 x 221 x 130 (l = 261 mm with cable incl. bending radius)
- Material housing | window
- Aluminium, anodised | PMMA
Environment
- Ingress protection
- IP40
- Allowed ambient temperature
- 5 to 45 °C, non-condensing
- Operating temperature at 21°C (by operating mode)
- continuous 35, 39, 40, 43 °C · strobe 40 °C
- Risk Group (varies by part number)
- 0, 1
Electrical
- Operating voltage
- 19 to 30 V DC wide-range voltage input *
- Maximum current consumption (varies by part number)
- 0.6 A * | 0.7 A * | 0.8 A * | 1.0 A * | 1.1 A *
- Maximum electrical power at light field (varies by part number)
- 10 W * | 1190 W * | 12 W * | 13 W * | 1300 W * | 1350 W * | 14 W * | 420 W * | (+2 more)
- Electrical connection (varies by part number)
- 1.5 m cable with M16 6-pin plug for connection to PLC2 controller | 1.5 m cable with M16 8-pin plug for connection to FLC2 controller series
- Brightness control via potentiometer (varies by part number)
- 0 % (left stop) to 100 % (right stop) brightness # Note: automatic deactivation at VC > 1 V DC * | 0 % (left stop) to 100 % (right stop) brightness *
- Brightness control via analogue VC input
- VC = 1 to 10 V DC (0 % to 100 % brightness) # Note: Turn potentiometer to left stop *
- TTL-Trigger
- High level = 3 to 30 V DC *
- SPS-Trigger
- High level = 15 to 30 V DC *
- Trigger slope
- Rising slope *
- Switch-on delay
- 100 % brightness within a maximum of 3 µs
- Flash duration 1
- 10 to 100 µs | 20 to 220 µs |50 to 750 µs *
- Flash frequency
- 100 Hz | 35 Hz | 10 Hz *
- TTL switching input
- High level = 3 to 30 V DC *
- PLC switching input
- High level = 15 to 30 V DC *
- Switching mode
- Switching time follows the switching signal # Connect + ON / OFF and GND ON / OFF *
- Continuous mode
- Assign + ON / OFF permanently with high signal, e. g. by applying to operating voltage # Connect GND ON / OFF *
Optical
- Light field size (Ø in mm)
- 150
- Light colour | wavelength (varies by part number)
- Blue | 470 nm | Green | 528 nm | Infrared | 870 nm | Red | 625 nm | White | 6400 K
- Light guidance
- Diffuse
- Power-LED
- 5 mm LEDs
- Illuminance at 0 mm
- continuous 7302–34974 lx · strobe 142795–504261 lx
- Illuminance at 50 mm
- continuous 4671–22276 lx · strobe 91344–321179 lx
- Illuminance at 100 mm
- continuous 2551–12362 lx · strobe 49886–178238 lx
- Illuminance at 200 mm
- continuous 866–4254 lx · strobe 16931–61335 lx
- Irradiance at 0 mm
- continuous 53.4–112.2 W/m² · strobe 958.8–3244.5 W/m²
- Irradiance at 50 mm
- continuous 35.1–71.3 W/m² · strobe 609.8–2046.8 W/m²
- Irradiance at 100 mm
- continuous 18.4–38.9 W/m² · strobe 329.3–1089.5 W/m²
- Irradiance at 200 mm
- continuous 6.4–13.3 W/m² · strobe 116.4–380.1 W/m²
General
- Country of origin
- Federal Republic of Germany
- Weight (kg)
- 1.2
