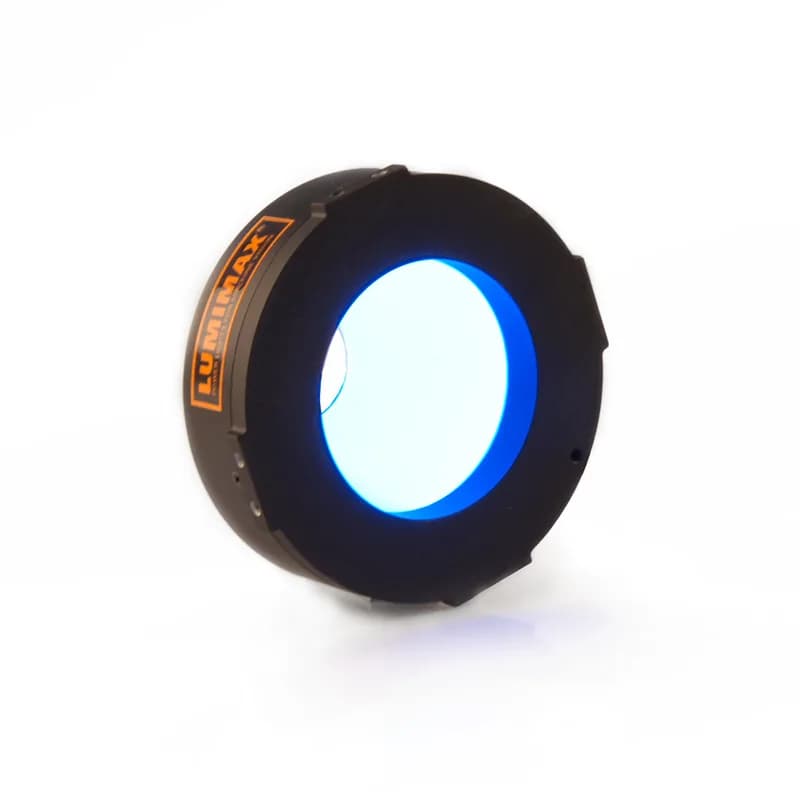

DOM CD50 Dome Light
LMX-DOM-CD50Dome light with moderate performance for shadow-free coverage of small to medium FOVs - 50mm inner diameter.
- Light colour | wavelength
- 470 to 625 nm, white
- Power-LED
- SMD LEDs
- Light field size
- 50
About the LMX-DOM-CD50
Overview
This is the compact head in the LUMIMAX dome range. Like any hemispherical dome it wraps the part in diffuse light from all directions, so a small curved or specular surface reads evenly and the reflections that a direct light would throw back never form.
It is built for continuous or switching operation and driven by an external LUMIMAX controller rather than an onboard one, which keeps the head small and lets several lights on a line share a common control scheme.
Its inner diameter is the smallest in the dome range, so it suits small parts and tight stations; step up through the larger diameters as the part grows. A dome is the tool for curved, specular surfaces — on flat parts a diffuse area or backlight is the better match.
Specifications
Operation
- Operating mode (varies by part number)
- Continuous and switching mode | Strobe mode
- controller (varies by part number)
- External illumination controller PLC2 (101.0029.00) available as accessory | External strobe controller series FLC2 (102.0030.xx) available as accessory
Mechanical
- Camera hole (Ø in mm)
- 25

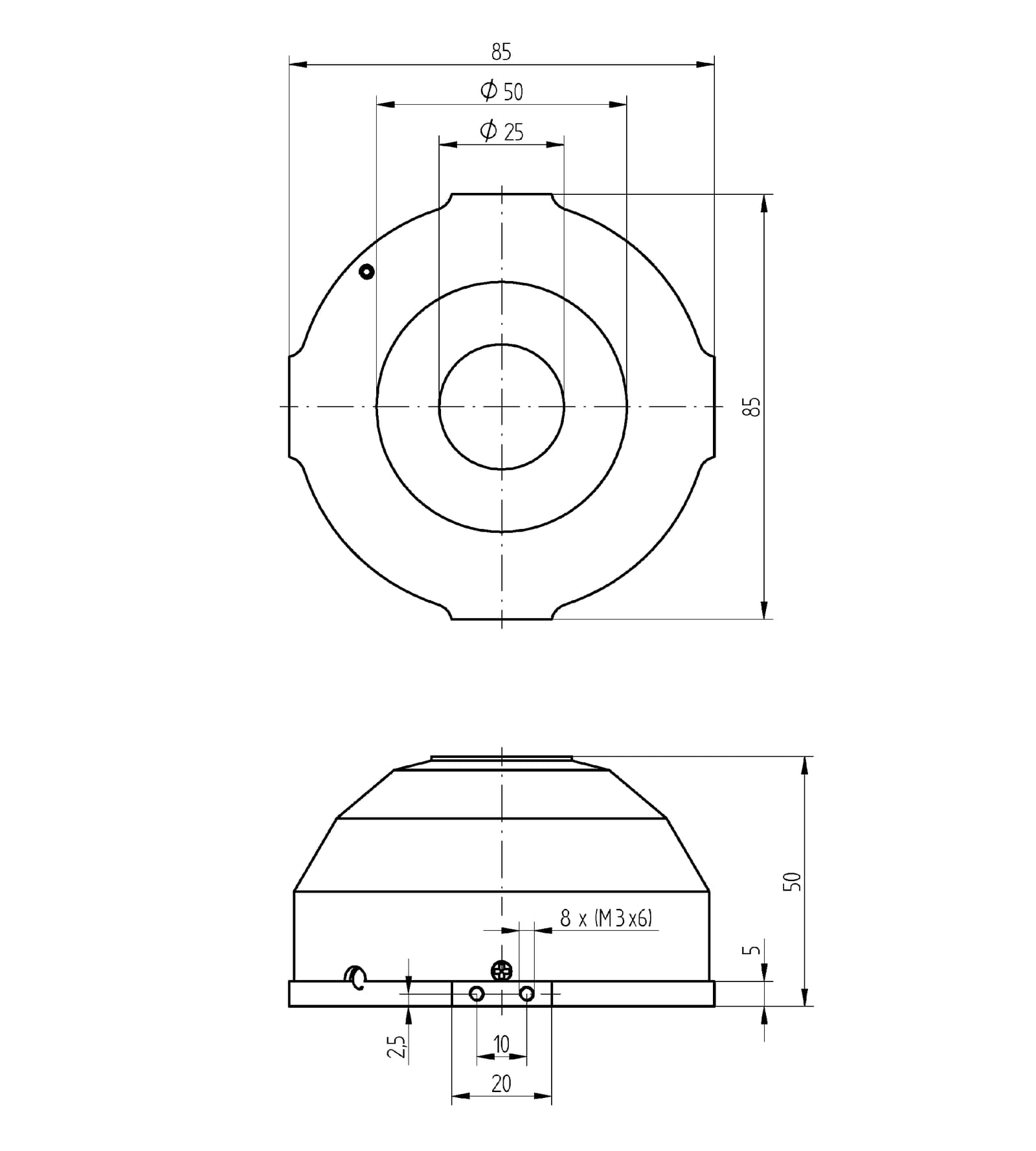

- Dimensions (l x w x h in mm)
- 85 x 85 x 50 (l = 95 mm with cable incl. bending radius)
- Material housing | window
- Aluminium, anodised | PMMA
Environment
- Ingress protection
- IP40
- Allowed ambient temperature
- 5 to 45 °C, non-condensing
- Operating temperature at 21°C (by operating mode)
- continuous 36, 39, 42, 45 °C · strobe 40 °C
- Risk Group
- 0
Electrical
- Operating voltage
- 19 to 30 V DC wide-range voltage input *
- Maximum current consumption (varies by part number)
- 0.2 A * | 0.3 A * | 0.4 A *
- Maximum electrical power at light field (varies by part number)
- 118 W * | 139 W * | 2 W* | 3 W * | 4 W * | 78 W * | 80 W *
- Electrical connection (varies by part number)
- 1.5 m cable with M16 6-pin plug for connection to PLC2 controller | 1.5 m cable with M16 8-pin plug for connection to FLC2 controller series
- Brightness control via potentiometer (varies by part number)
- 0 % (left stop) to 100 % (right stop) brightness # Note: automatic deactivation at VC > 1 V DC * | 0 % (left stop) to 100 % (right stop) brightness *
- Brightness control via analogue VC input
- VC = 1 to 10 V DC (0 % to 100 % brightness) # Note: Turn potentiometer to left stop *
- TTL-Trigger
- High level = 3 to 30 V DC *
- SPS-Trigger
- High level = 15 to 30 V DC *
- Trigger slope
- Rising slope *
- Switch-on delay
- 100 % brightness within a maximum of 3 µs
- Flash duration 1
- 10 to 100 µs | 20 to 220 µs |50 to 750 µs *
- Flash frequency
- 100 Hz | 35 Hz | 10 Hz *
- TTL switching input
- High level = 3 to 30 V DC *
- PLC switching input
- High level = 15 to 30 V DC *
- Switching mode
- Switching time follows the switching signal # Connect + ON / OFF and GND ON / OFF *
- Continuous mode
- Assign + ON / OFF permanently with high signal, e. g. by applying to operating voltage # Connect GND ON / OFF *
Optical
- Light field size (Ø in mm)
- 50
- Light colour | wavelength (varies by part number)
- Blue | 470 nm | Green | 528 nm | Red | 625 nm | White | 6400 K
- Light guidance
- Diffuse
- Power-LED
- SMD LEDs
- Illuminance at 0 mm
- continuous 9070–45140 lx · strobe 119840–891852 lx
- Illuminance at 50 mm
- continuous 1380–7839 lx · strobe 18234–163614 lx
- Illuminance at 100 mm
- continuous 489–2573 lx · strobe 6456–46690 lx
- Illuminance at 200 mm
- continuous 141–688 lx · strobe 1863–13189 lx
- Irradiance at 0 mm
- continuous 57.5–135.4 W/m² · strobe 1005.7–2826 W/m²
- Irradiance at 50 mm
- continuous 9.1–24.9 W/m² · strobe 171.5–519.7 W/m²
- Irradiance at 100 mm
- continuous 3.1–7.1 W/m² · strobe 57.1–147.8 W/m²
- Irradiance at 200 mm
- continuous 0.9–2 W/m² · strobe 15.3–41.7 W/m²
General
- Country of origin
- Federal Republic of Germany
- Weight (kg)
- 0.2
