Industrial (Adjustable Focus)
Industrial VFIndustrial-grade laser for tough environments, up to 100 mW with user-adjustable focus.
- Wavelengths available
- 375 - 830
- Storage temperature
- −40 to +80
- Application 1
- UV Curing

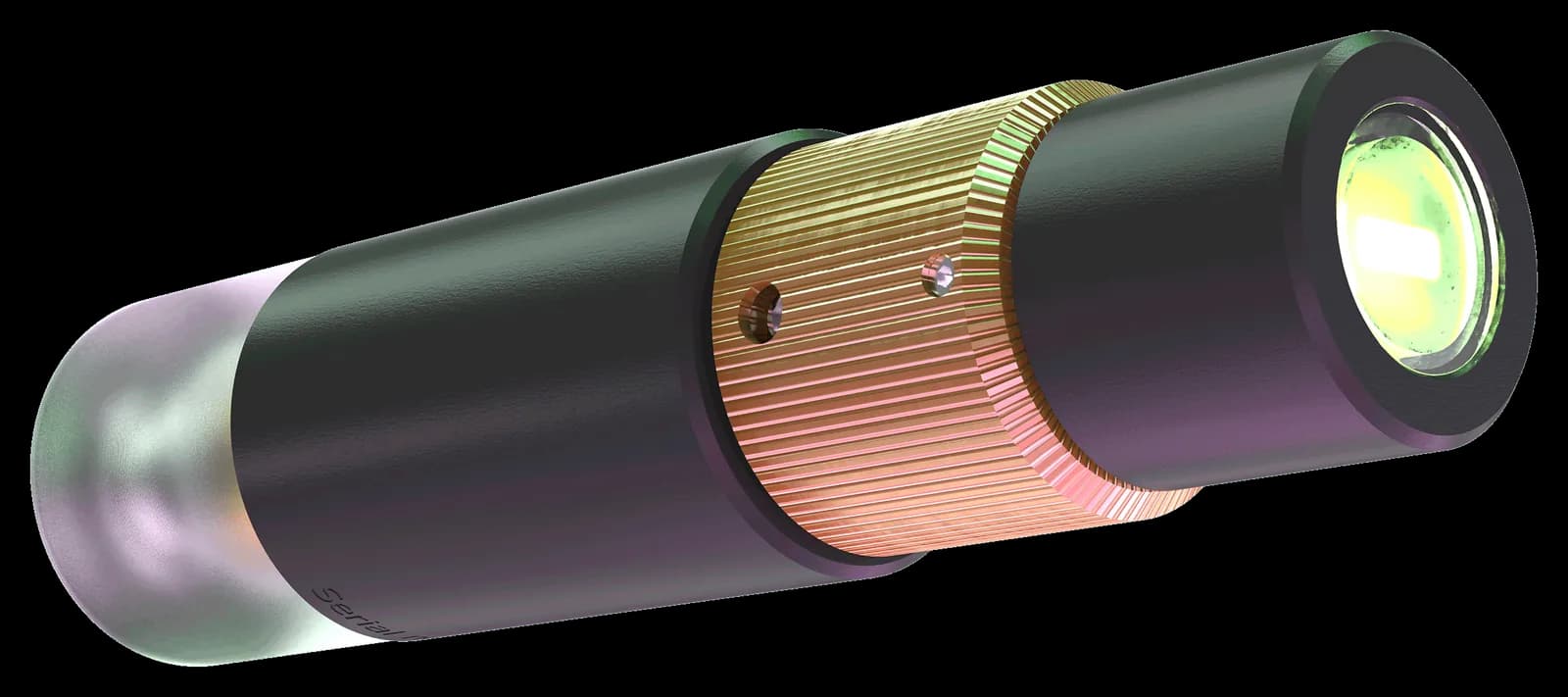

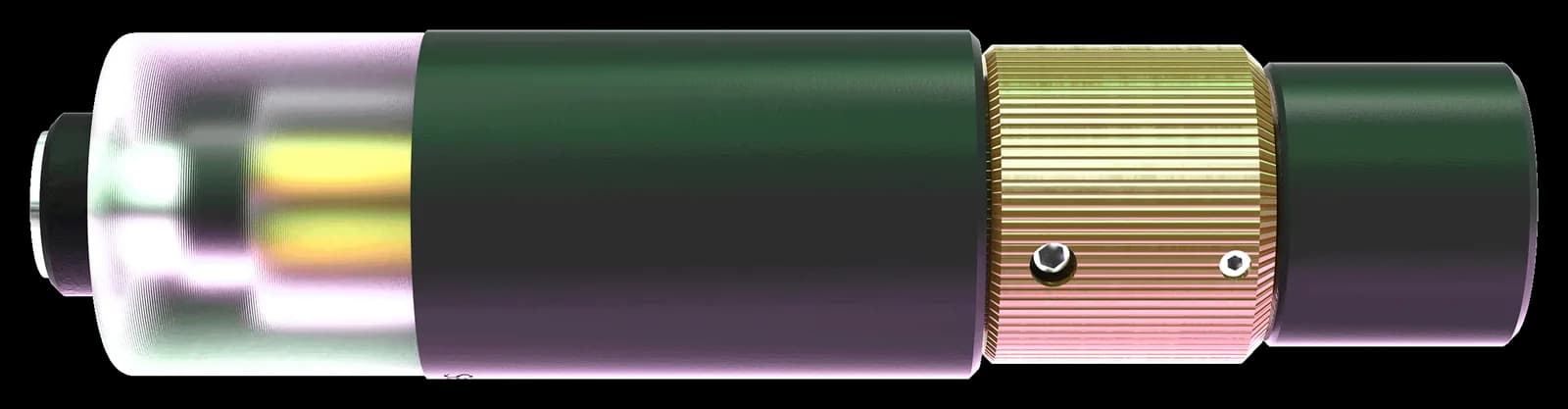

About the Industrial VF

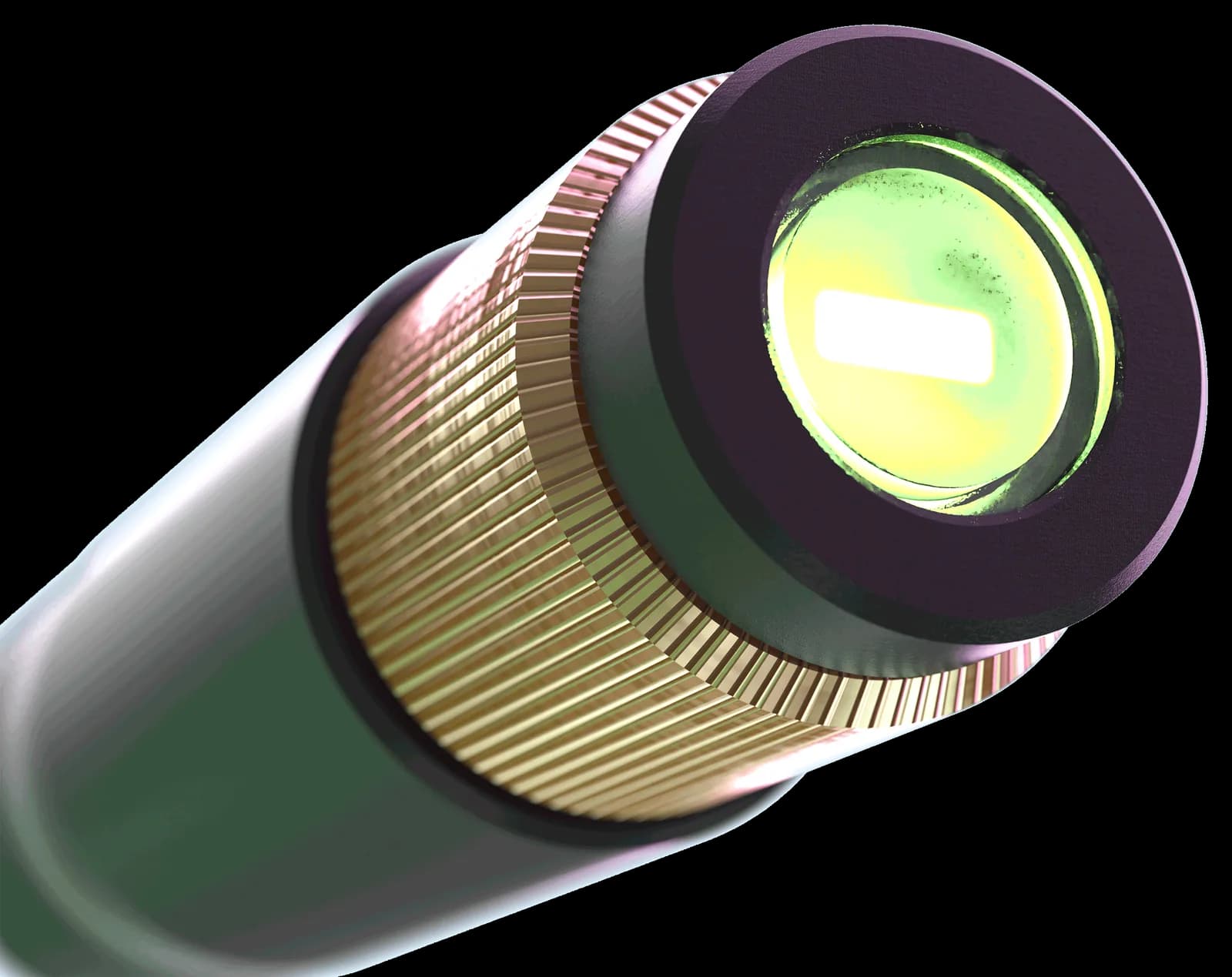

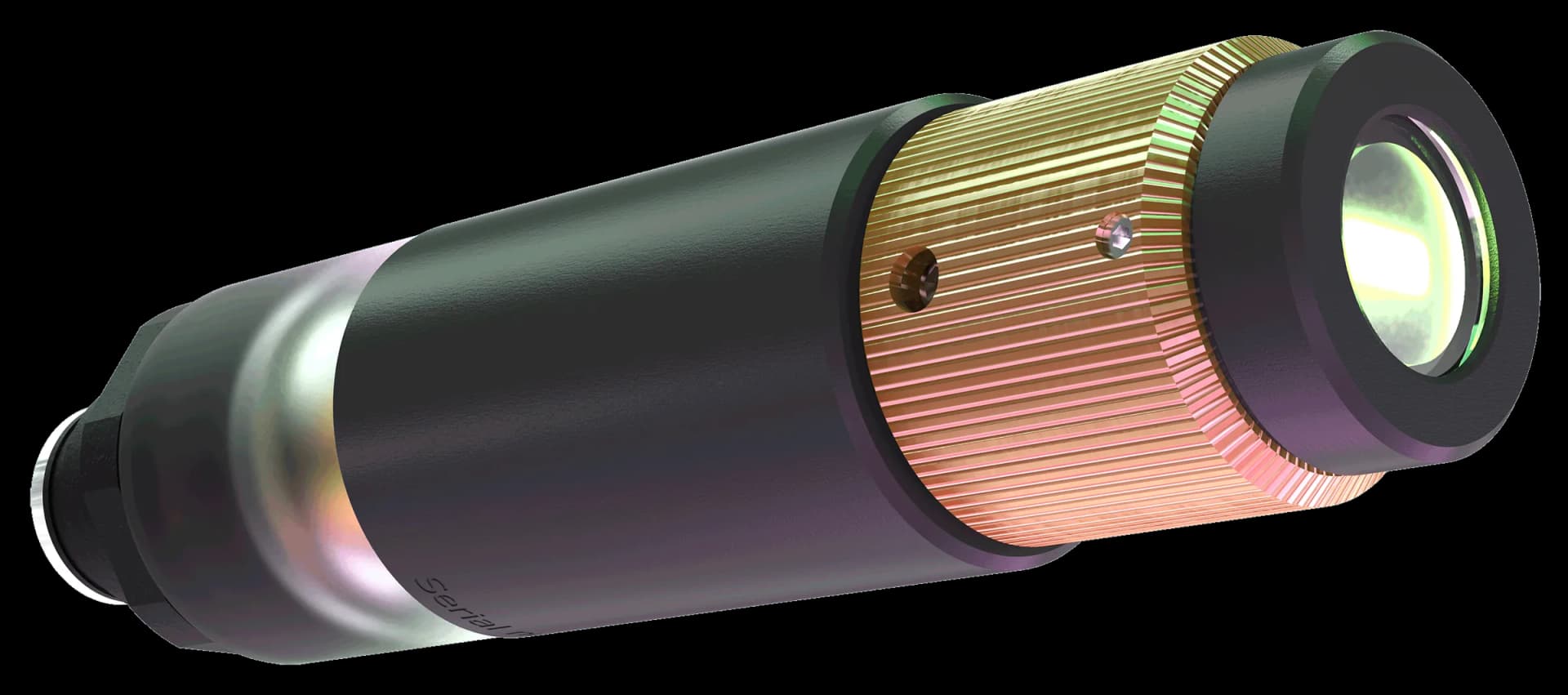

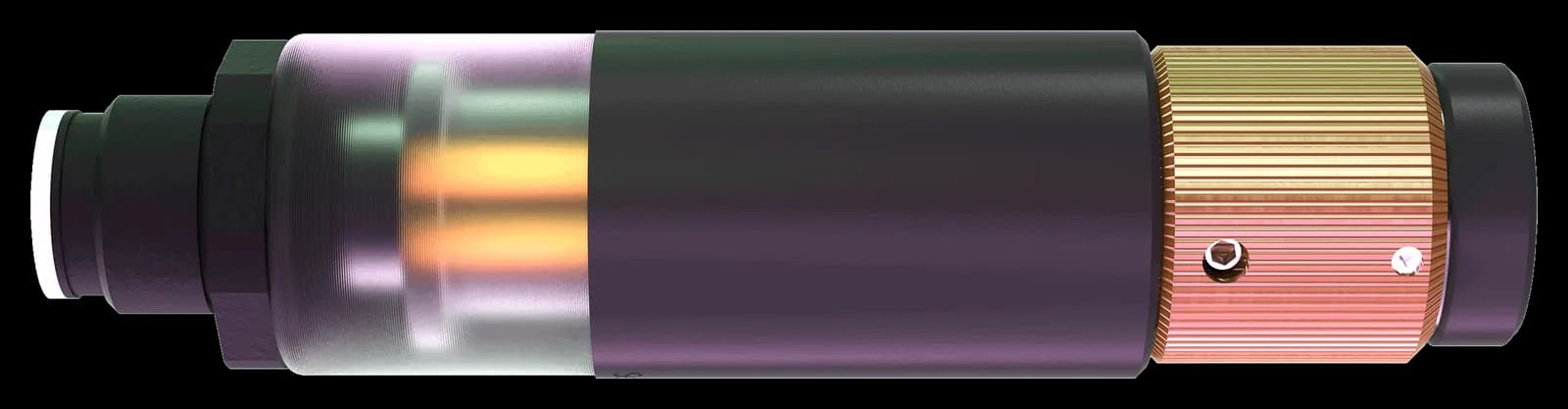

The Industrial Laser Diode Modules with Adjustable Focus keep the rugged platform of the fixed focus version, the hard coated anodized case, the scratch-resistant sapphire window and the static, surge and reverse polarity protected circuit, and add a user adjustable focus to allow integrators maximum flexibility while still ensuring a compact, robust and reliable product.
The Adjustable Focus Industrial Laser Modules are available at 375nm to 830nm with ouput powers from 0.97mW to 30mW . Line generators give 45, 60 or 90 degrees full fan angle and cross generating optics an accurate 70 degree cross, with the lens system producing a Gaussian intensity line aligned to within 0.25 degrees of the mechanical axis.

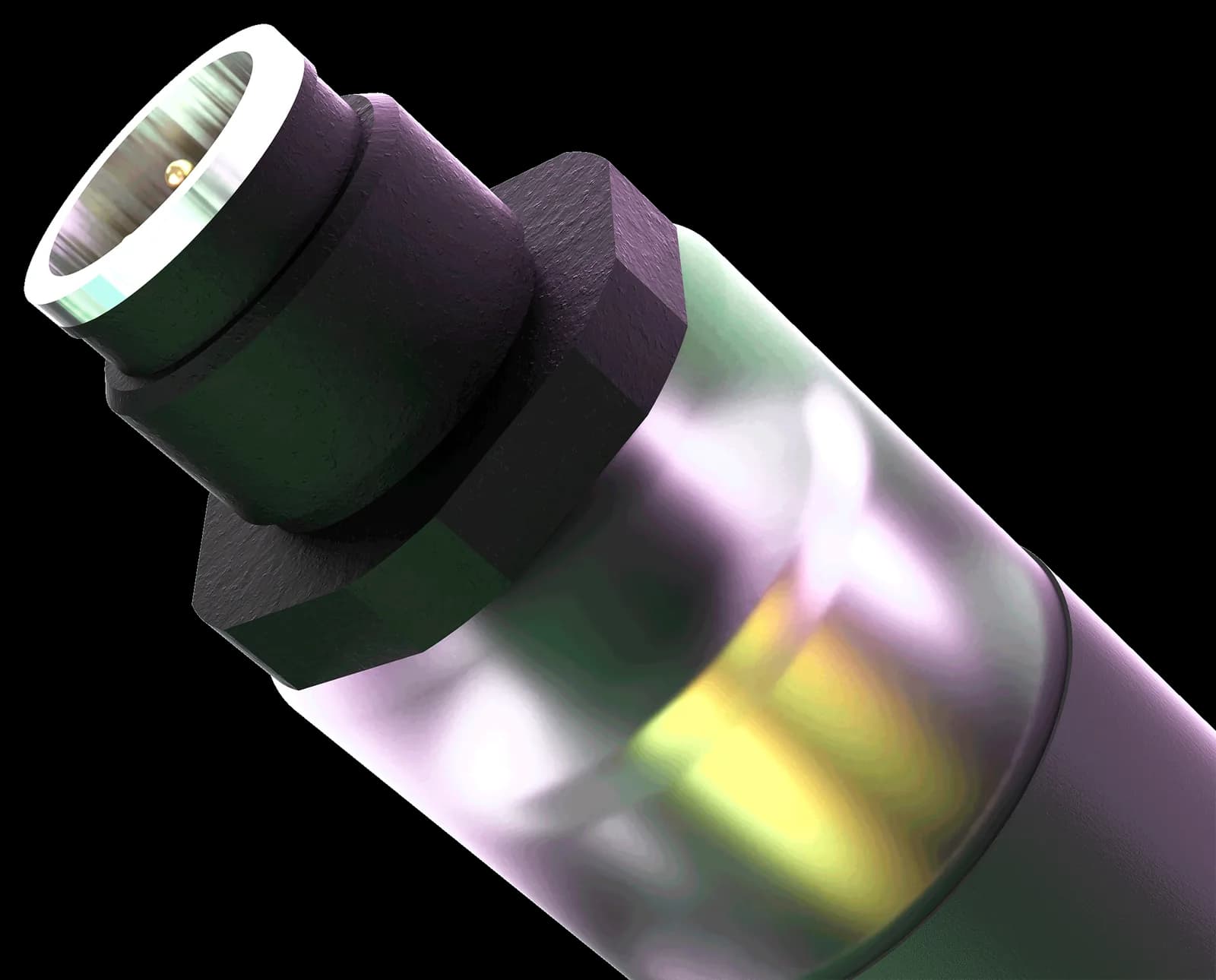

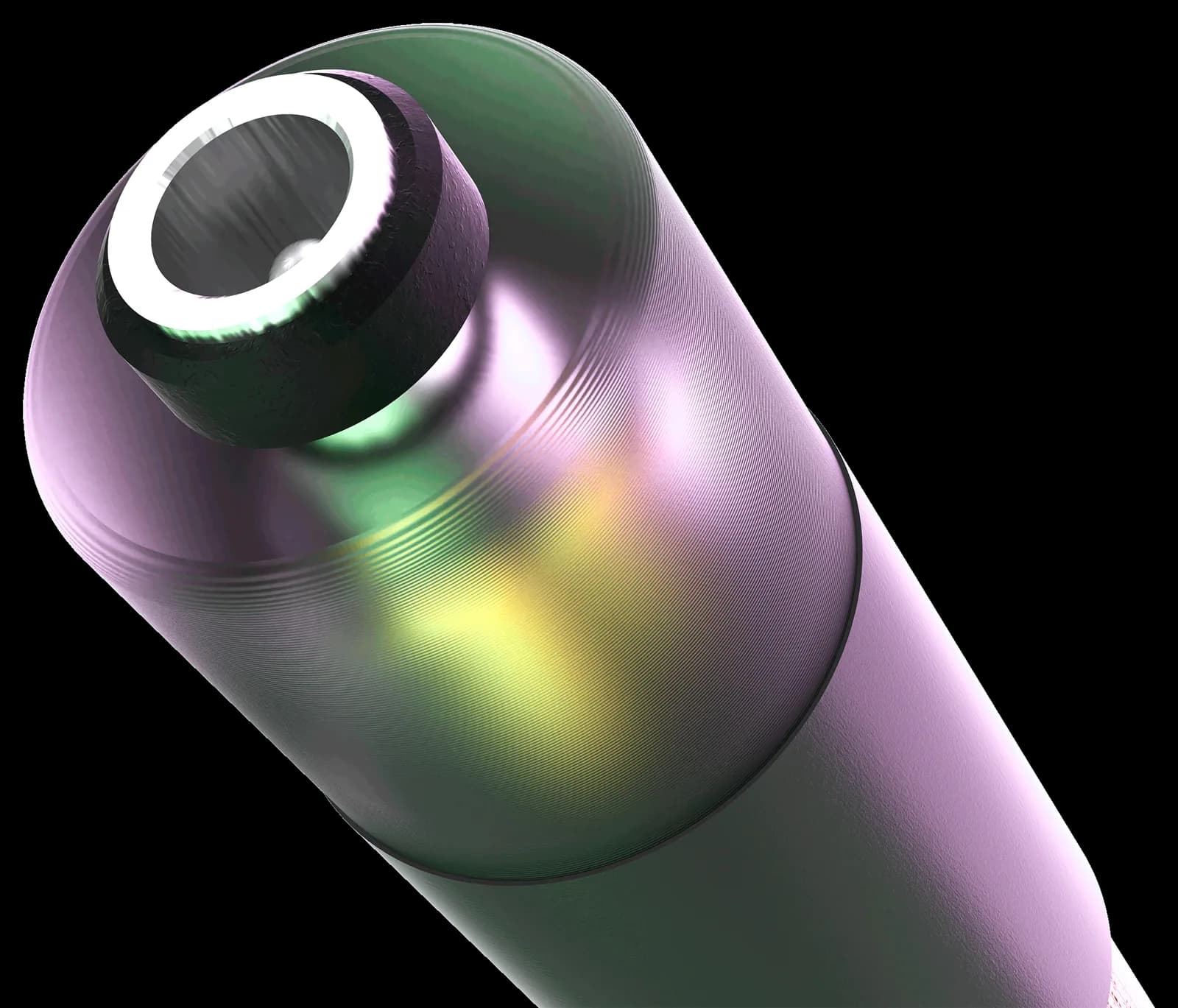

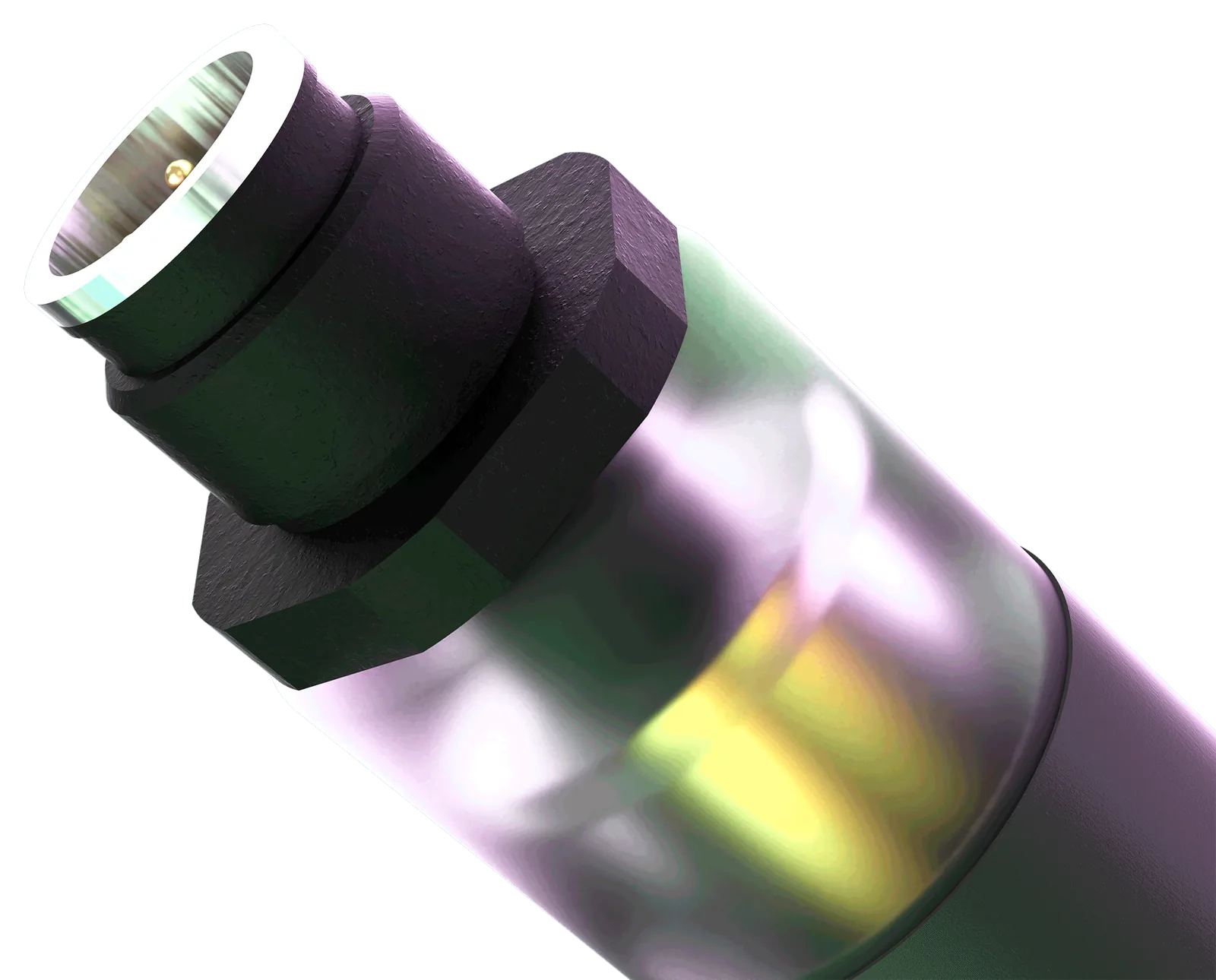

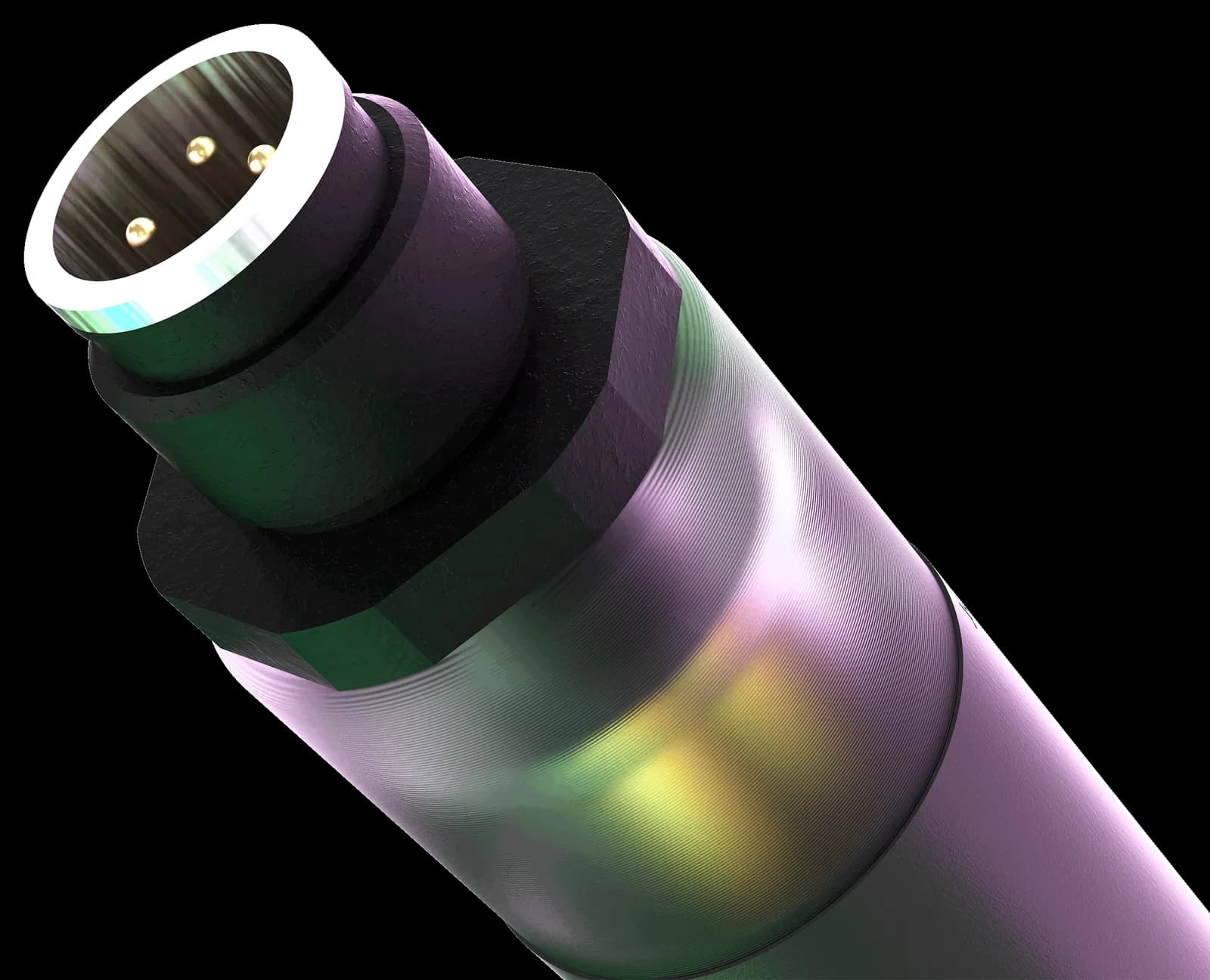

Connection is by IP68 rated screw-on connector or 2.5mm DC jack, and all products are RoHS compliant.
Specifications
Key Features
- Feature 1
- Now available in UV (375nm)
- Feature 2
- Line, elliptical beam & cross generating optics available
- Feature 3
- Robust, reliable and compact design
- Feature 4

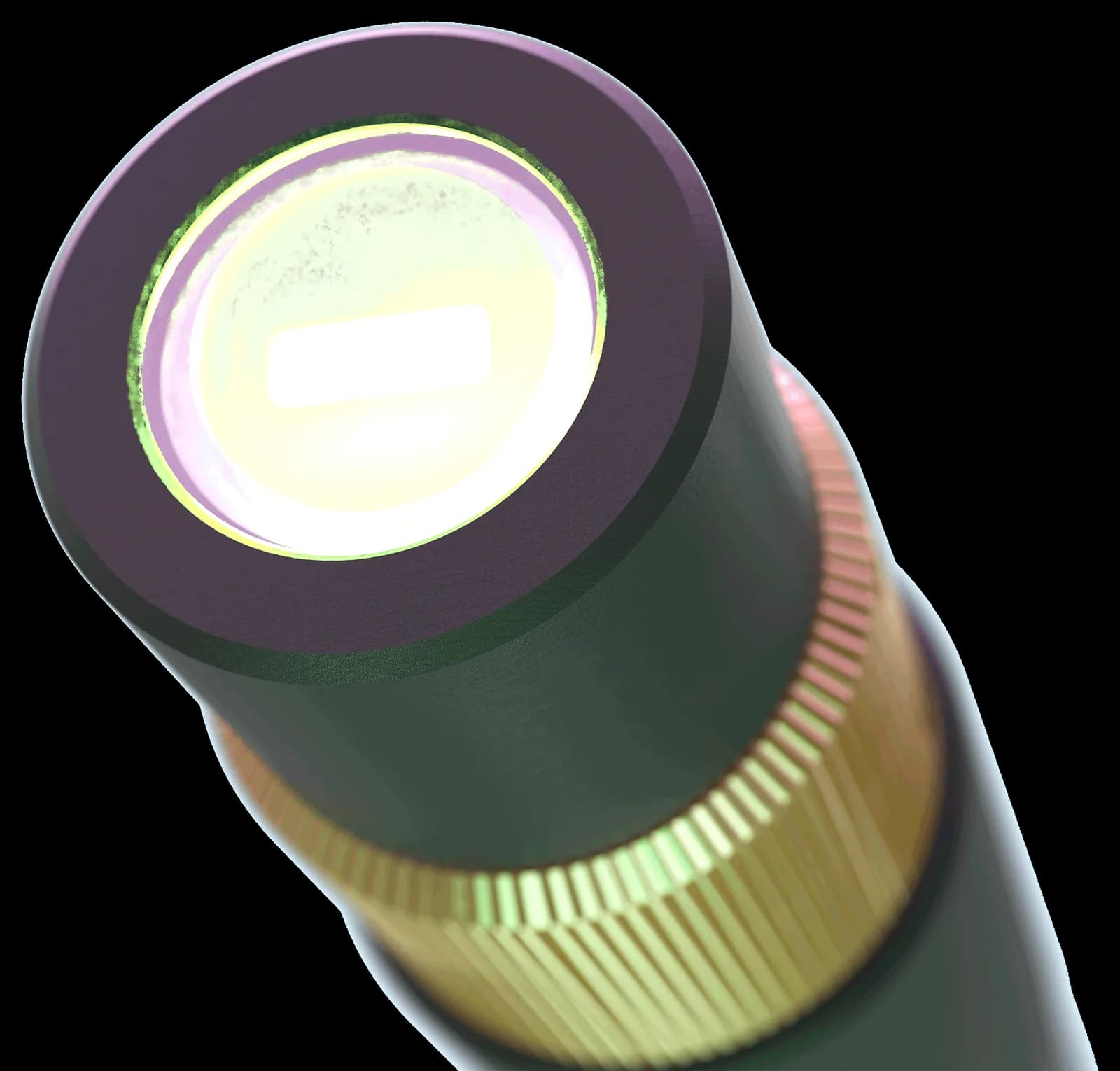

- Scratch-resistant sapphire window protects lens
- Feature 5
- Available in wavelengths from 375nm to 830nm
Key Applications
- Application 1
- UV Curing
- Application 2
- Particle Analysis
- Application 3
- Analytical Applications
- Application 4
- Industrial Alignment / Industrial Positioning / Guidance Systems
Wavelength
- Wavelengths available
- 375, 635, 650, 670, 780, 830
Output Power
- Max output power
- 0.97–30 (adjustable focus, wavelength/optics dependent)
Beam / Line Quality
- Bore sighting
- <0.25°
- Uniformity
- Gaussian intensity profile (line generators)
- Line thickness
- Nominally 1 mm @ 1 m
Focus & Fan Angle
- Focus type
- User-adjustable focus
- Fan angles
- 45, 60, 90 (line); 70 (cross)
- Diffractive options
- Elliptical, line, cross
Stability
- Optical power stability
- <5
Modulation
- Digital modulation
- Not stated (fixed part-number options only)
Mechanical
- Diameter
- 15.5 mm
- Housing material
- Aluminum – Hard Anodized Black
- Protection category
- Not stated (sapphire exit window, electrically isolated case)
- Mounting
- IP68 rated screw-on connector or 2.5mm DC jack
- Electrical isolation
- Electrically isolated case
Electrical
- Operating voltage
- 7.5V (375nm) / 5.0V (635–830nm)
- Input current
- Up to 135 mA (wavelength/power dependent)
- Reverse polarity protection
- Static, surge and reverse polarity protection
- Connector type
- IP68 screw-on / 2.5mm DC jack
Environmental
- Operating temperature
- 375nm: −10 to +40 / 635–830nm: −10 to +50
- Storage temperature
- −40 to +80
Software / Control
- Digital control
- None (fixed part-number options only)
Media
