LBHP1000 Bar Light

LMX-LBHP1000

Ultra-high-intensity modular bar light with swappable optics for short to extra-long working distances - 1030mm long, IP50.

Light colour | wavelength: 470 to 850 nm, white
Power-LED: 100 High Power LEDs
Light field size: 1001 x 24

Overview

About the LMX-LBHP1000

Introduction

1001 × 24 mm of light field, in a bar 38 mm wide.

One rung of the LBHP ladder, which runs from 100 mm to 2000 mm in 100 mm steps. Same profile, same controller, same optics — 100 High Power LEDs in a single row, and the length is the variable.

Four optics, and they are not interchangeable after the fact

The cover is chosen with the part number and it changes what the bar is for.

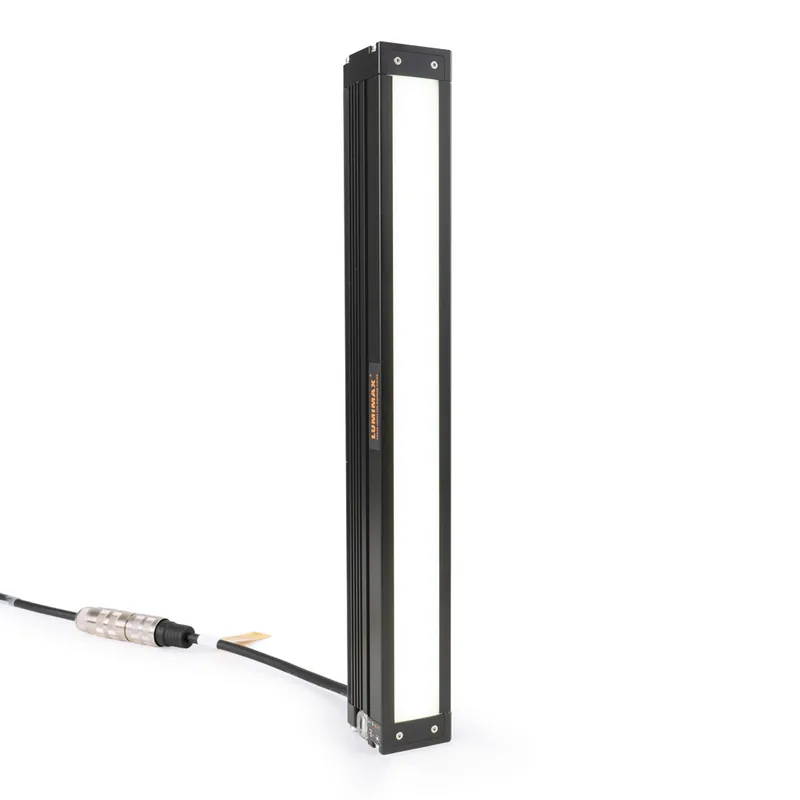

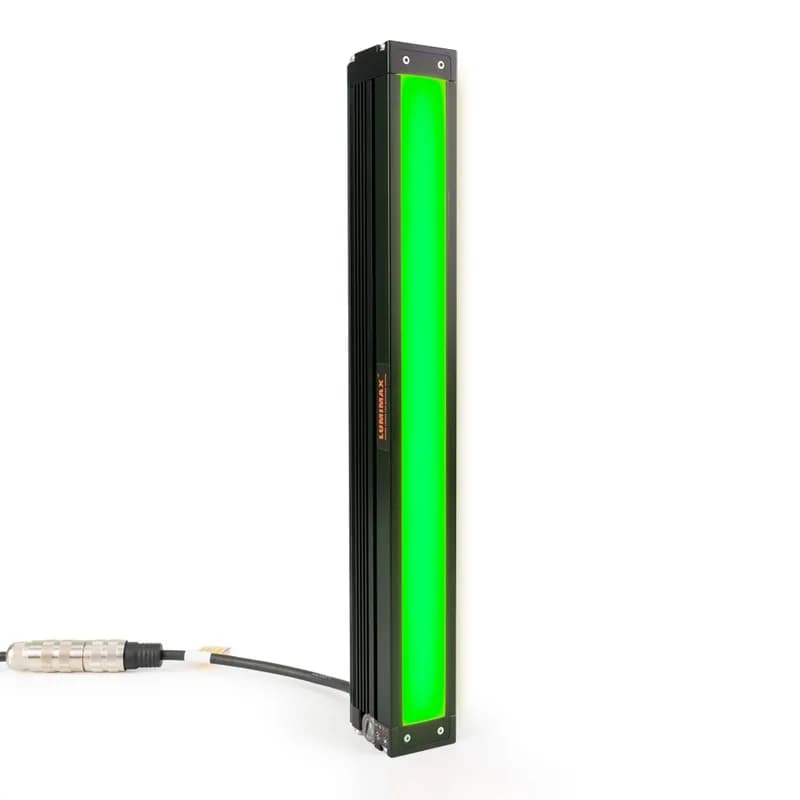

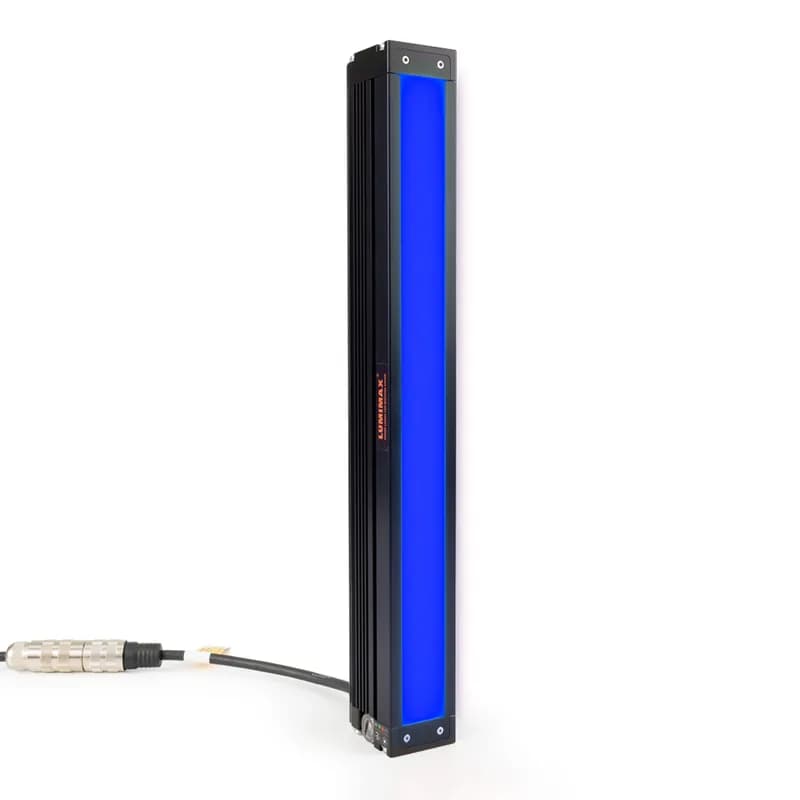

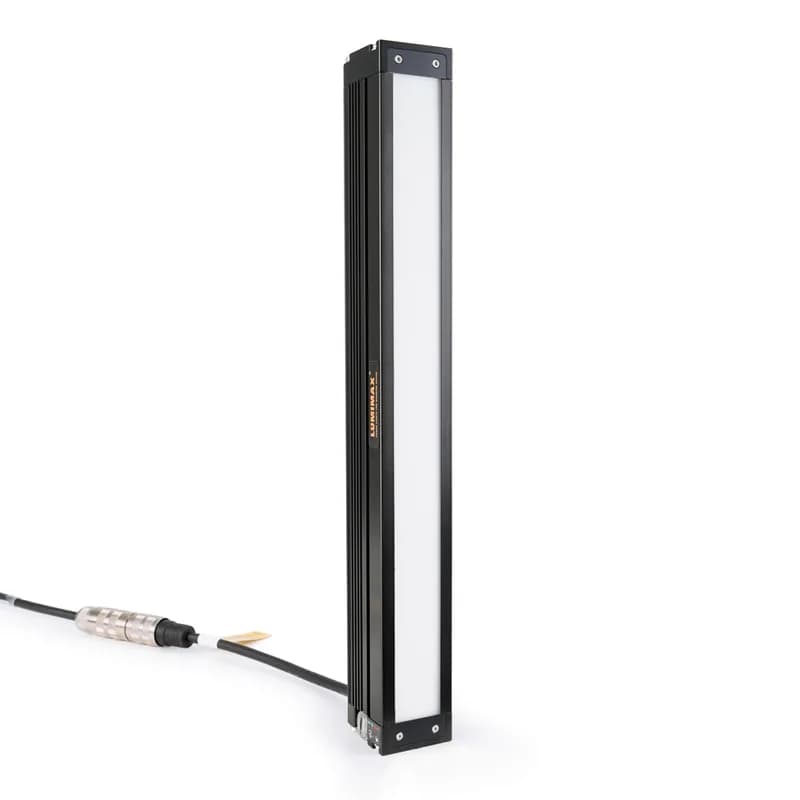

Diffuse gives an even emitting strip with no visible LEDs — the forgiving choice, and the right one where the surface has texture or the geometry is not fixed.

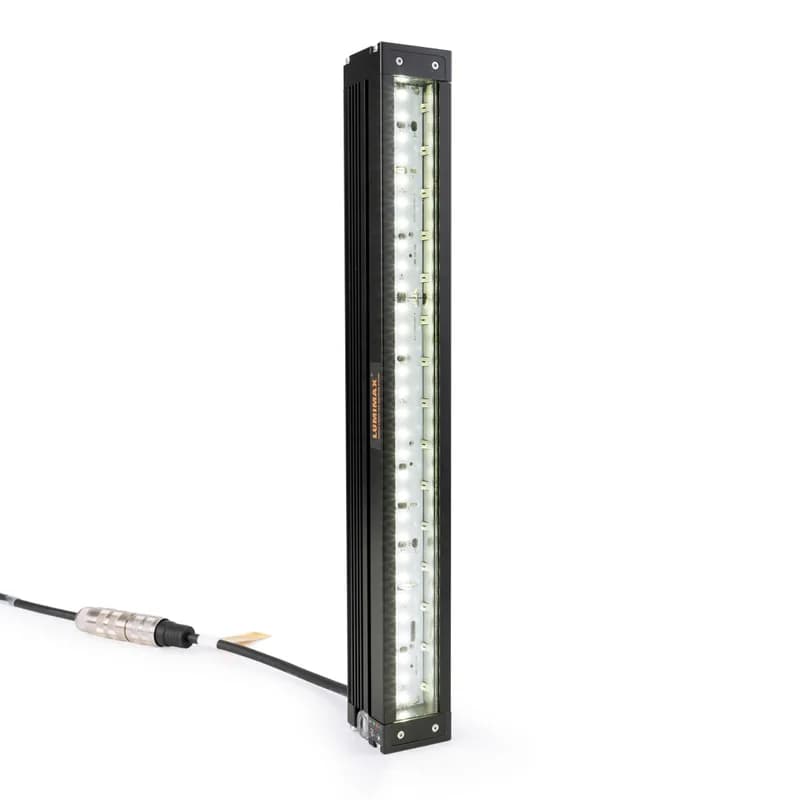

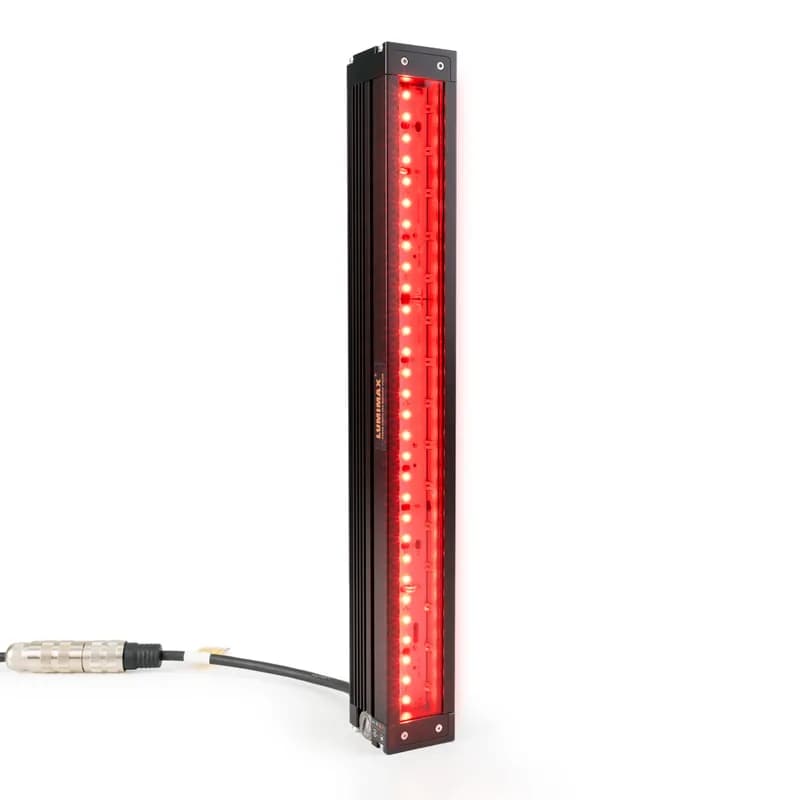

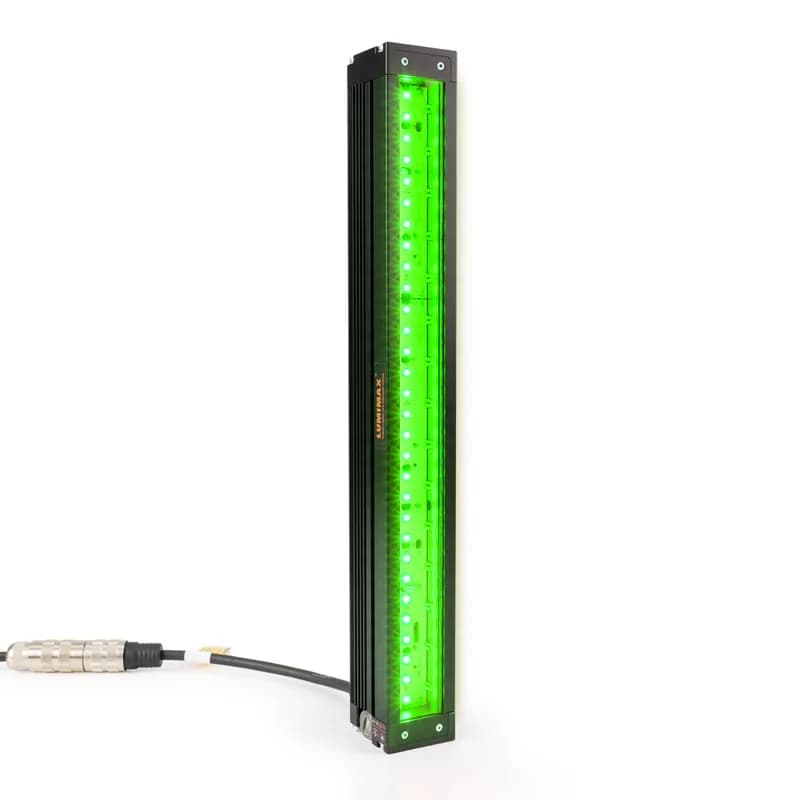

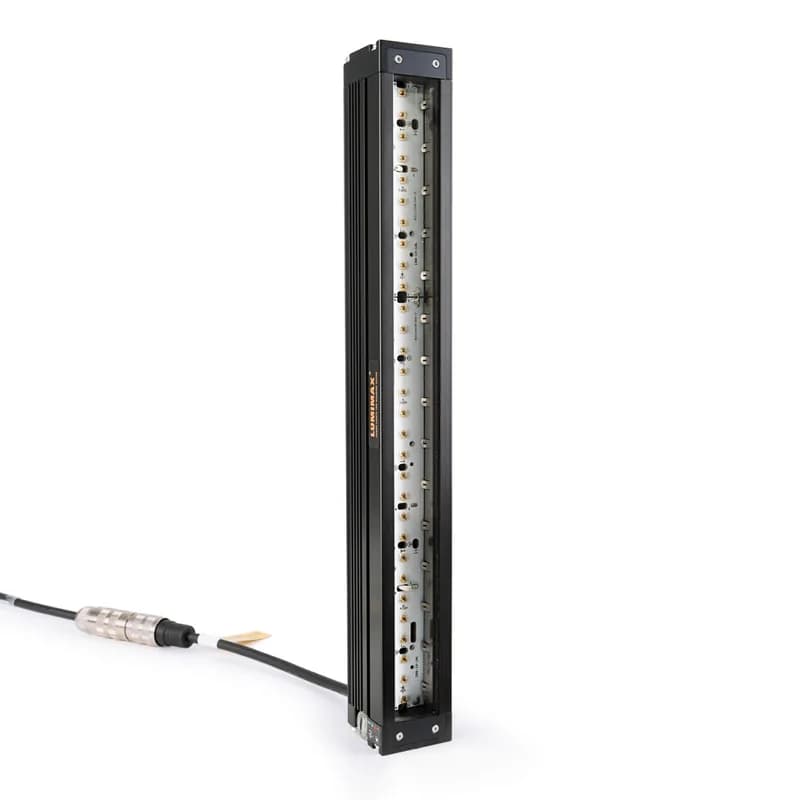

Clear puts the individual High Power LEDs behind a plain window. More intensity, and a structure to the light that a specular surface will show.

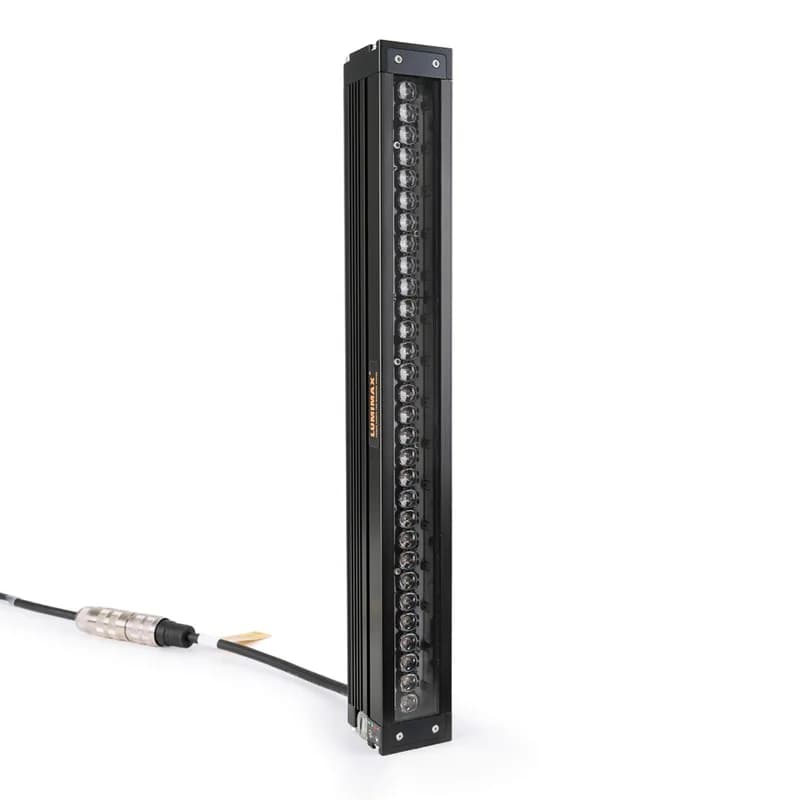

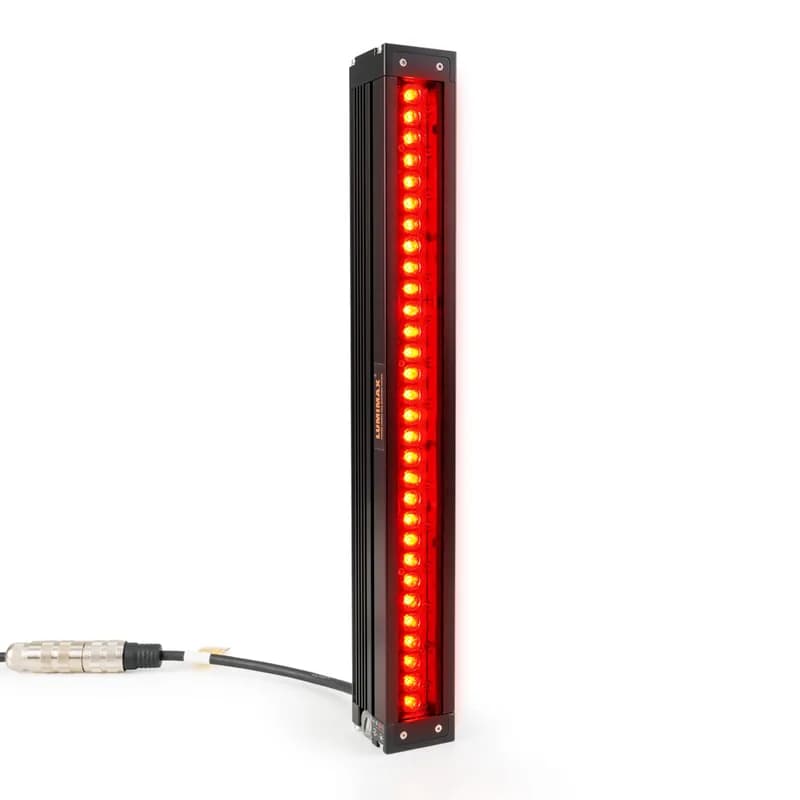

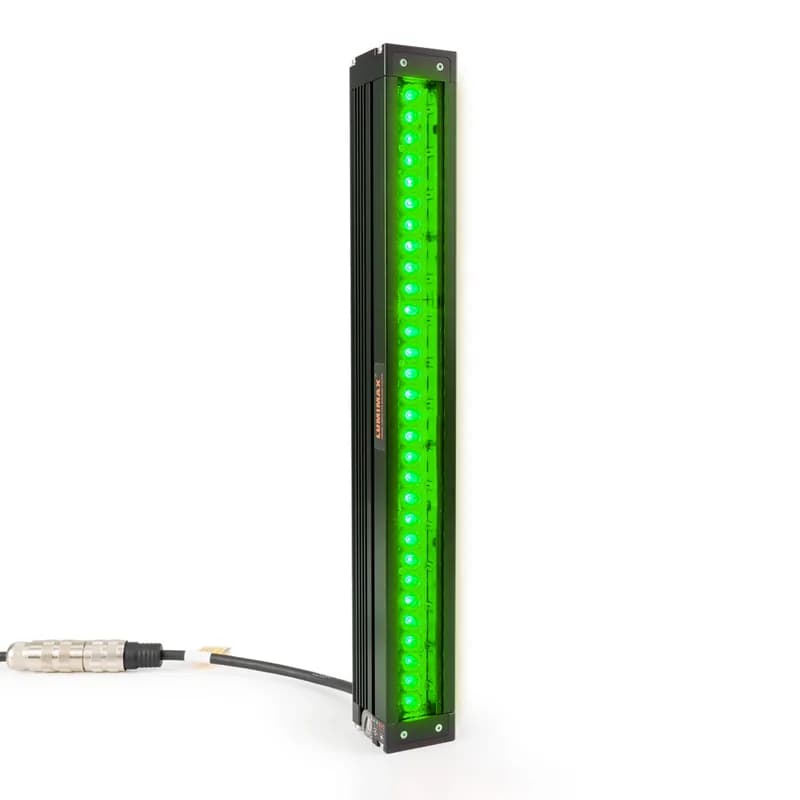

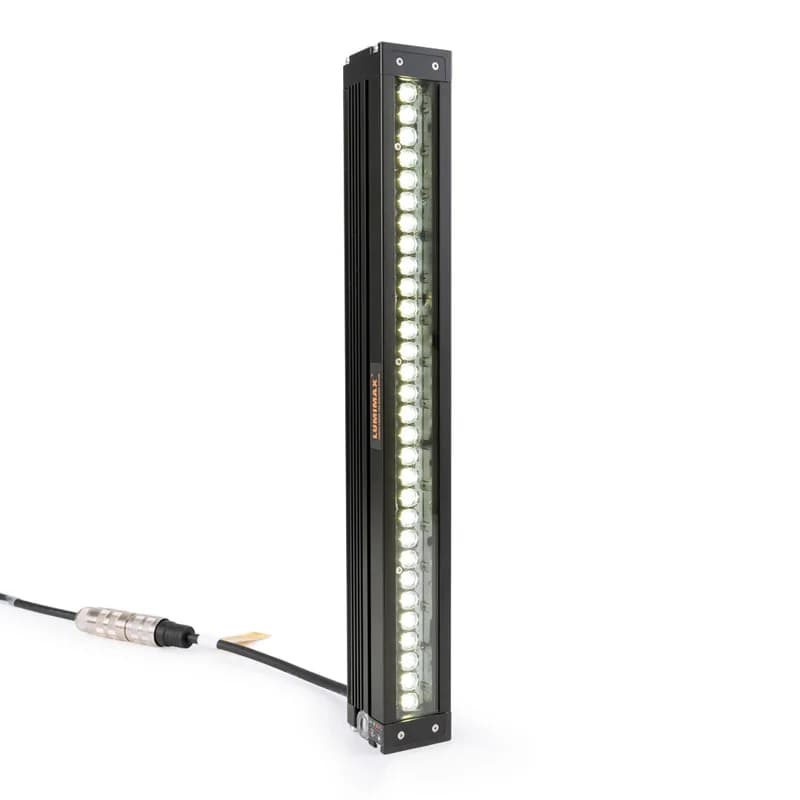

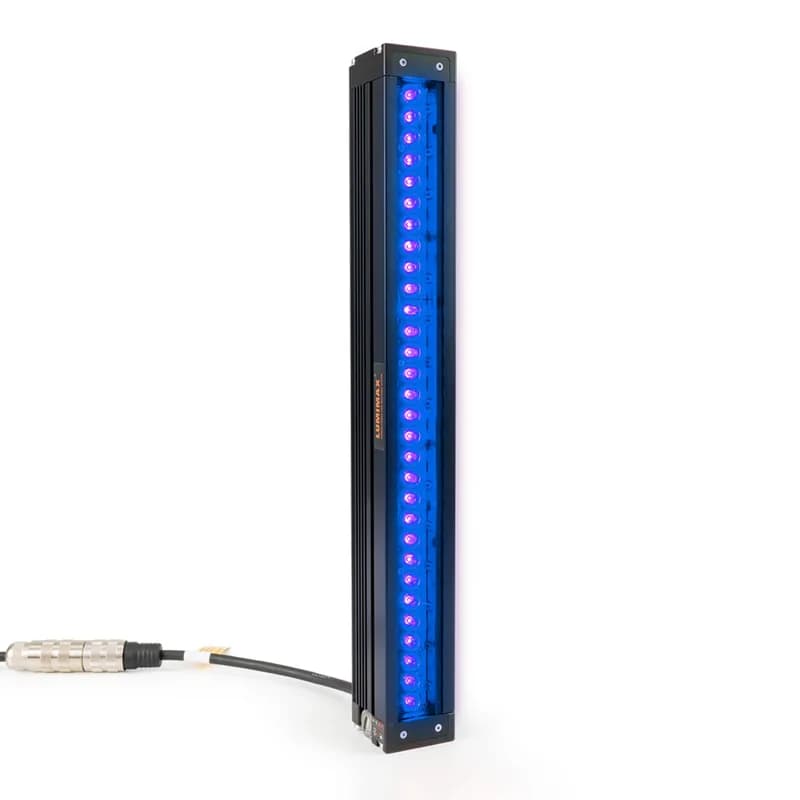

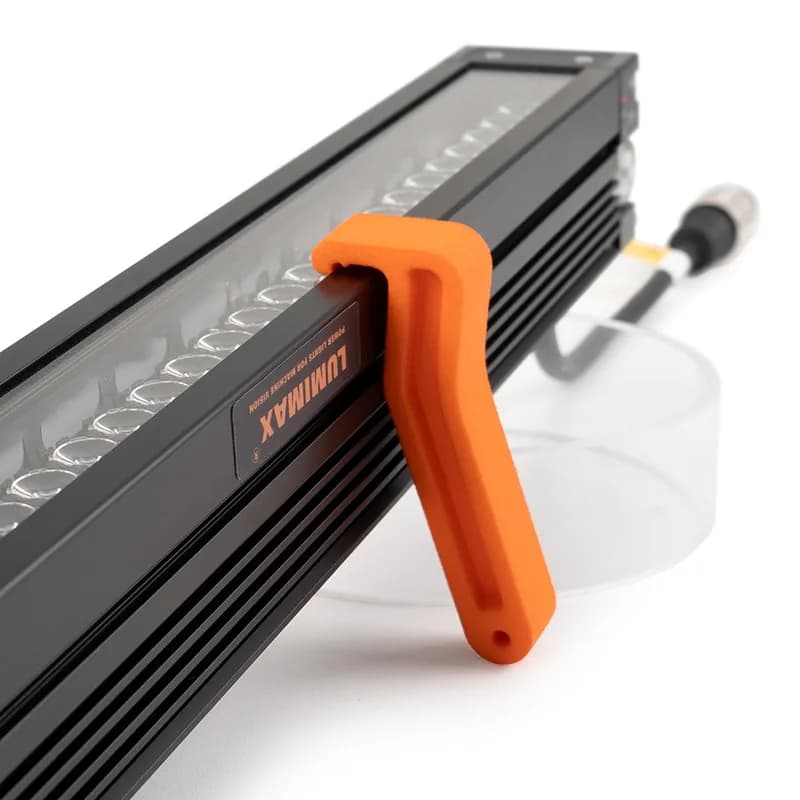

Lensed narrows the beam. The catalogue carries 15°, 20°, 25°, 40° and 120° ancillary lenses, which is the difference between lighting a strip 50 mm away and lighting one a metre away.

Read the lens angle against the working distance, not against the brightness figure.

Built-in controller

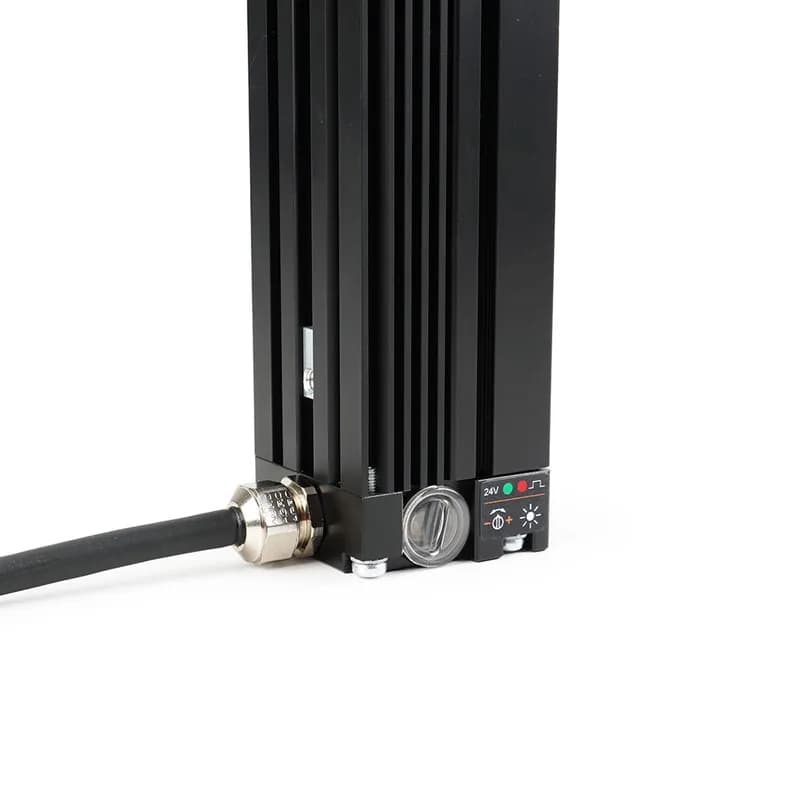

Brightness is set on the bar itself, at a potentiometer on the end cap beside the M16 output. There is no external controller box.

100 % brightness within 160 µs in switching mode, and within 15 µs in strobe. Flash duration is 10–100 µs, 20–220 µs or 50–750 µs by part number, at 10, 35 or 100 Hz.

What it puts on the part

At 100 mm: 57312–224298 lx across variants.

At 1000 mm: continuous 4934–23690 lx · strobe 667.5–260722 lx.

Those figures span the colours and the optics together — a diffuse infrared and a 15°-lensed white are both in there. Read the figure for the part number, not for the length.

Applications

Bar lights are the general-purpose incident source: surface inspection, print and code reading, presence and absence, edge detection, and — angled low across a part — scratch, dent and emboss detection that flat light will not show.

Where it fits

Twenty lengths, 100 mm to 2000 mm in 100 mm steps. Below this one the bar is lighter and draws less; above it, the current and the mounting both become design constraints in their own right. LBHP300 is listed as `lbhp-modular-bar-light` rather than by its length, which is the one break in the family's naming.

Specifications

Operation

Operating mode (varies by part number): Continuous and switching mode | Strobe mode
controller (varies by part number): Integrierter lightscontroller | Integrierter strobe controller

Environment

Ingress protection: IP50
Allowed ambient temperature: 5 to 45 °C, non-condensing
Operating temperature at 21°C (by operating mode): continuous 50 °C · strobe 29, 32, 35 °C
Risk Group (varies by part number): 0, 1

Mechanical

Dimensions (l x w x h in mm): 1030 x 38 x 39 (h = 79 mm with cable incl. Bending radius)
Material housing | window: Aluminium, anodised | PMMA

Electrical

Operating voltage: 19 to 30 V DC wide-range voltage input
Maximum current consumption (by operating mode): continuous 2.5, 2.8, 2.9 A · strobe 0.64–1.22 A
Maximum electrical power at light field (by operating mode): continuous 51, 57, 63 W · strobe 1430–1825 W
Electrical connection: 150 mm connection cable with M16 12-pin plug
Brightness control via potentiometer: 0 % (left stop) to 100 % (right stop) brightness # Note: automatic deactivation at VC > 1 V DC
Brightness control via analogue VC input: VC = 2 to 10 V DC (0 % to 100 % brightness) # Note: Turn potentiometer to left stop
Maximum pulse current (varies by part number): 2.1 A for 10 ms | 2.1 A for 30 ms | 2.1 A for 5 ms
TTL-Trigger: High level = 3 to 30 V DC
SPS-Trigger: High level = 15 to 30 V DC
Trigger slope: Rising slope
Switch-on delay: 100 % brightness within a maximum of 15 µs
Flash duration 1 (varies by part number): Von 10 bis 100 µs | Von 20 bis 220 µs | Von 50 bis 750 µs
Flash frequency (varies by part number): 10, 35, 100 Hz
TTL switching input: High level = 3 to 30 V DC
PLC switching input: High level = 15 to 30 V DC
Switching mode: Switching time follows the switching signal # Connect + ON / OFF and GND ON / OFF
Continuous mode: Assign + ON / OFF permanently with high signal, e. g. by applying to operating voltage # Connect GND ON / OFF
Switch-on delay_switching: 100 % brightness within a maximum of 160 µs

Optical

Light field size (l x w in mm): 1001 x 24
Light colour | wavelength (varies by part number): Blue | 470 nm | Green | 528 nm | Infrared | 850 nm | Red | 625 nm | White | 5700 K
Light guidance (varies by part number): Directed with 15° ancillary lenses (A) | Directed with 20° lenses (B) | Directed with 25° lenses (C) | Directed with 40° ancillary lenses (D) | Directed with 45x15° lenses (F) | Directed with 55° lenses (E) | Directed, 120° LED beam angle (without lenses) | Directed, 150° LED beam angle (without lenses)
Power-LED: 100 High Power LEDs
Illuminance at 100 mm: 57312–224298 lx across variants
Illuminance at 200 mm: continuous 29681–118712 lx · strobe 3589–1298935 lx
Illuminance at 500 mm: continuous 11874–48402 lx · strobe 1444–539622 lx
Illuminance at 1000 mm: continuous 4934–23690 lx · strobe 667.5–260722 lx
Illuminance at 1500 mm: continuous 3182–5015 lx · strobe 359.5–167236 lx
Irradiance at 100 mm: 132.2–676.6 W/m² across variants
Irradiance at 200 mm: continuous 69.8–356.6 W/m² · strobe 11.2–4167.9 W/m²
Irradiance at 300 mm: 45.7 W/m²
Irradiance at 500 mm: continuous 24.7–145.2 W/m² · strobe 4.4–1713.9 W/m²
Irradiance at 1000 mm: continuous 14.6–70.9 W/m² · strobe 2.1–823.2 W/m²
Irradiance at 1500 mm: continuous 17–29.2 W/m² · strobe 1.1–523.3 W/m²
