LUMIMAX · BAR LIGHTS
LBHP1600 Bar Light
LMX-LBHP1600Ultra-high-intensity modular bar light with swappable optics for short to extra-long working distances - 1630mm long, IP50.
- Light colour | wavelength
- 470 to 850 nm, white
- Power-LED
- 160 High Power LEDs
- Light field size
- 1601 x 24
About the LMX-LBHP1600
Introduction
1601 × 24 mm of light field, in a bar 38 mm wide.
One rung of the LBHP ladder, which runs from 100 mm to 2000 mm in 100 mm steps. Same profile, same controller, same optics — 160 High Power LEDs in a single row, and the length is the variable.
Four optics, and they are not interchangeable after the fact
The cover is chosen with the part number and it changes what the bar is for.

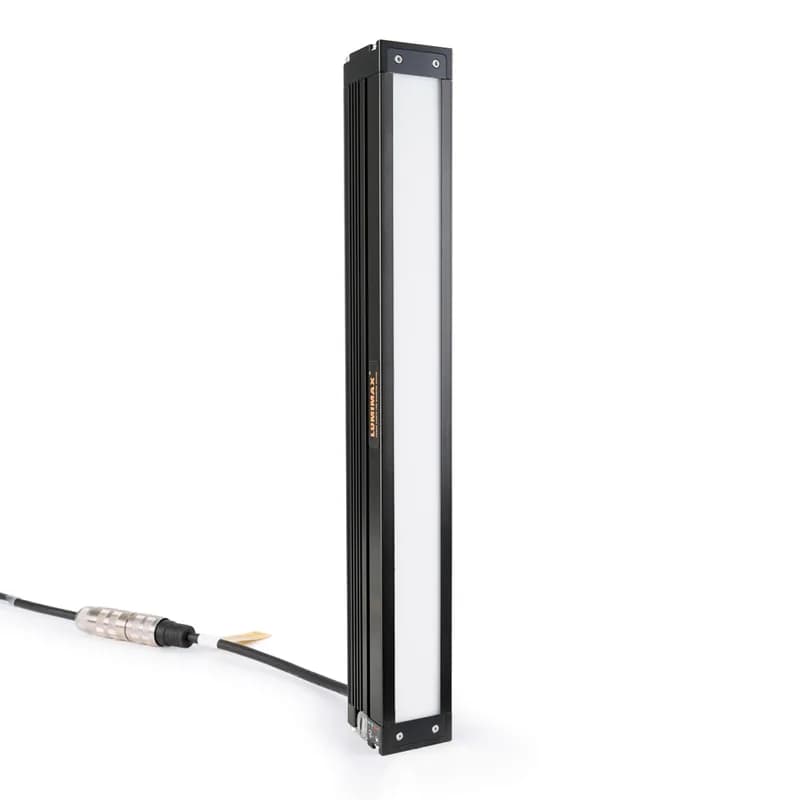

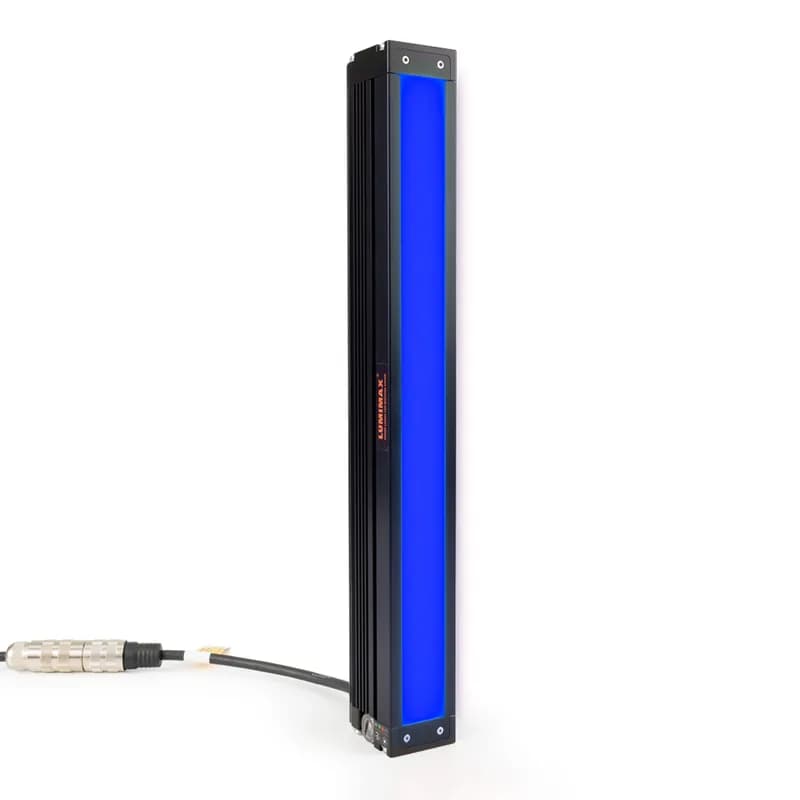

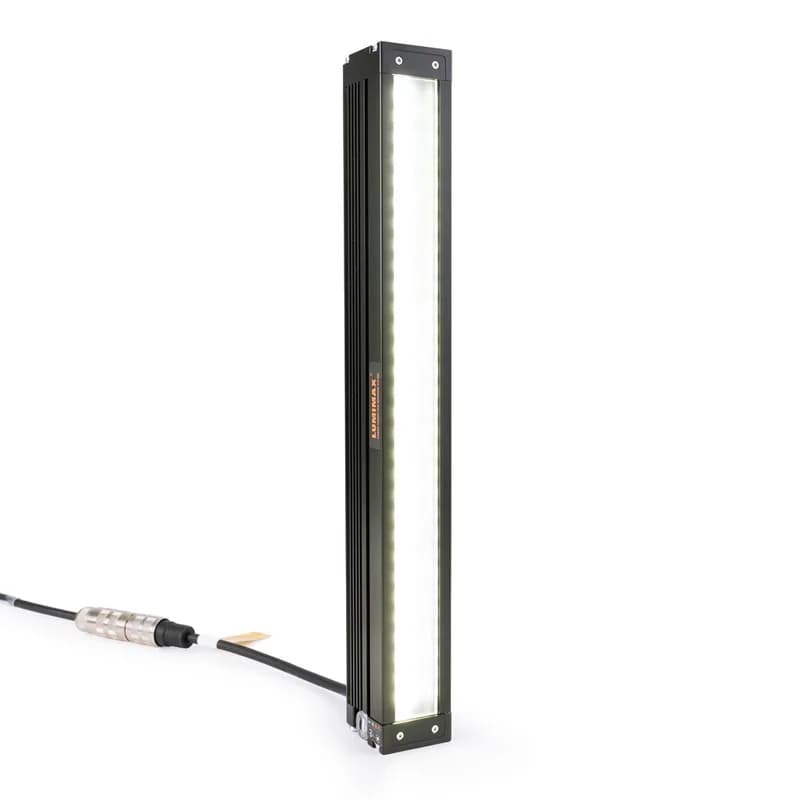

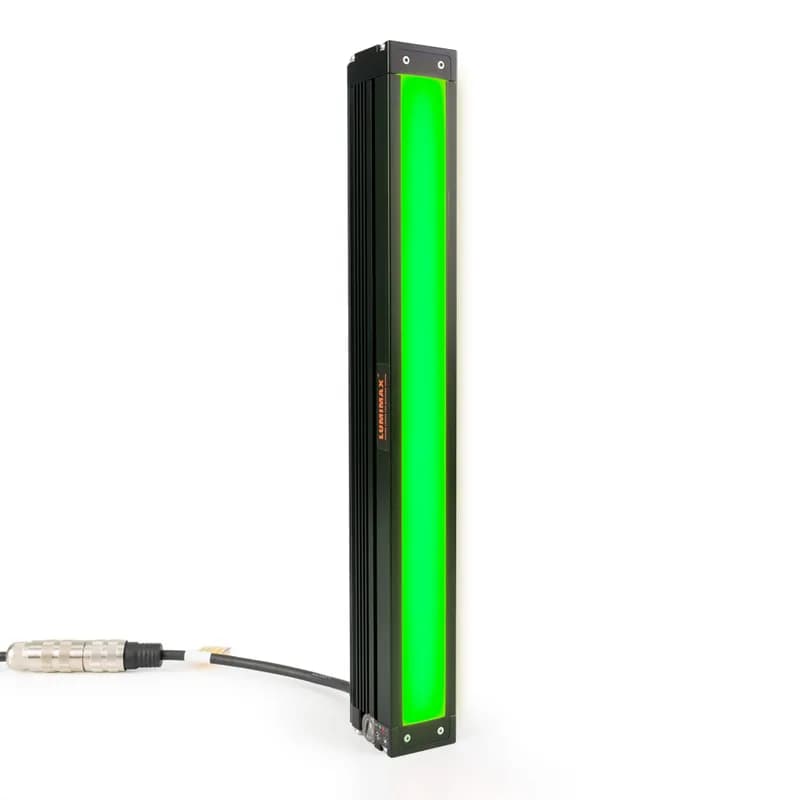

Diffuse gives an even emitting strip with no visible LEDs — the forgiving choice, and the right one where the surface has texture or the geometry is not fixed.

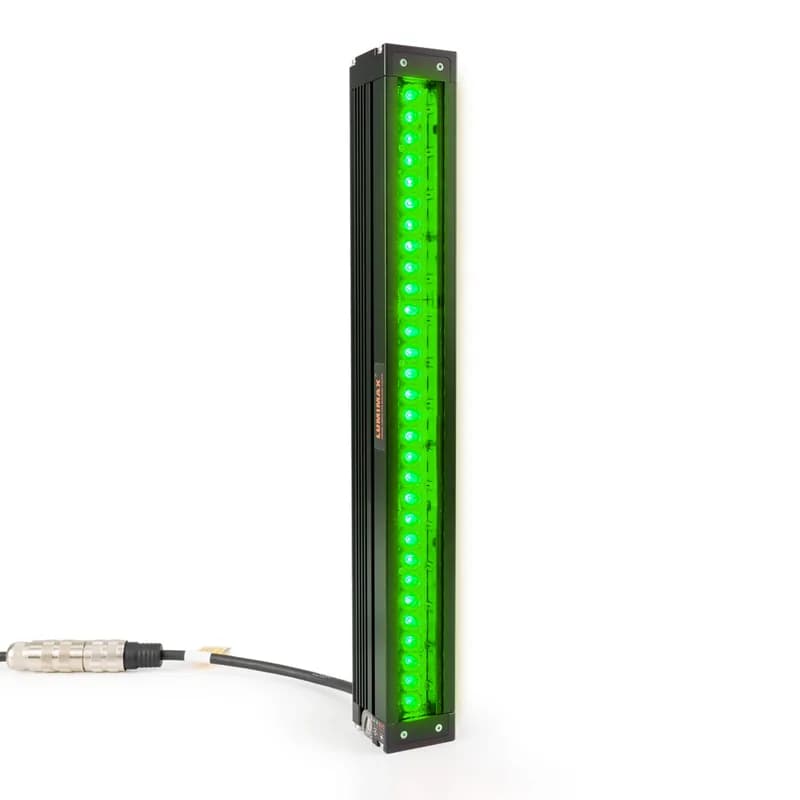

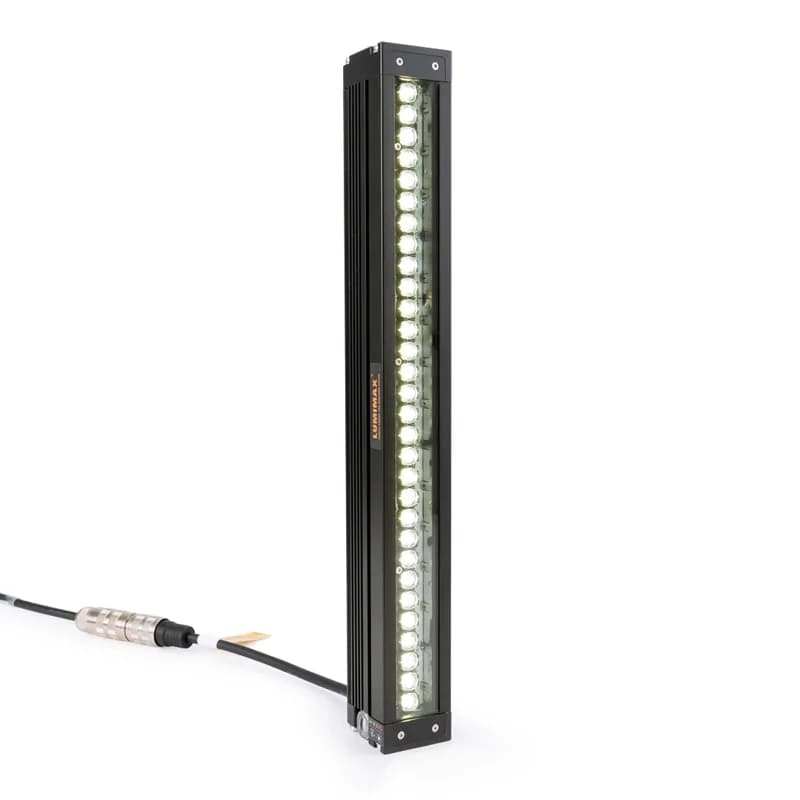

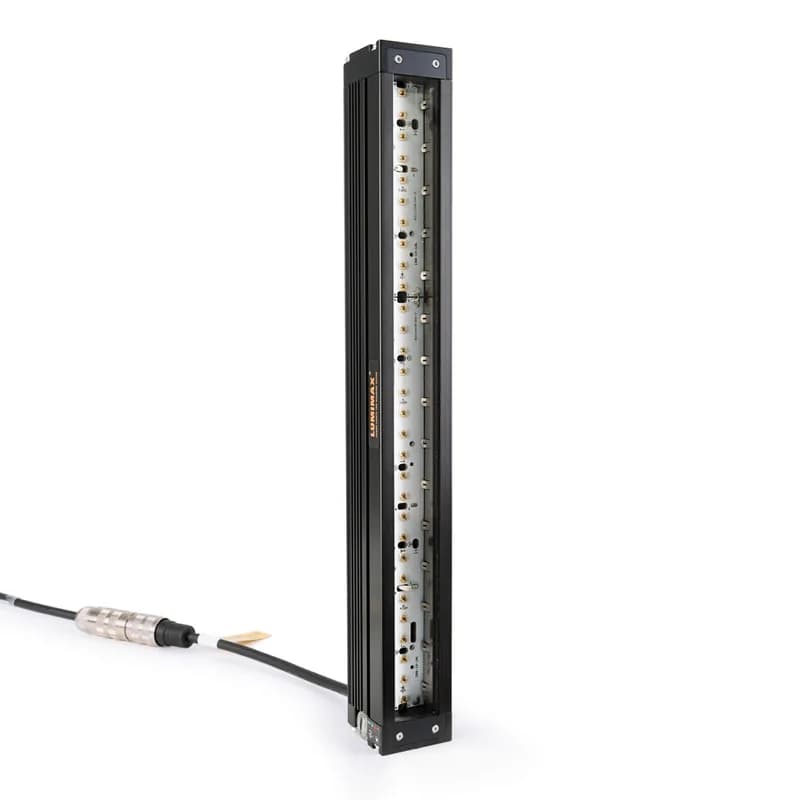

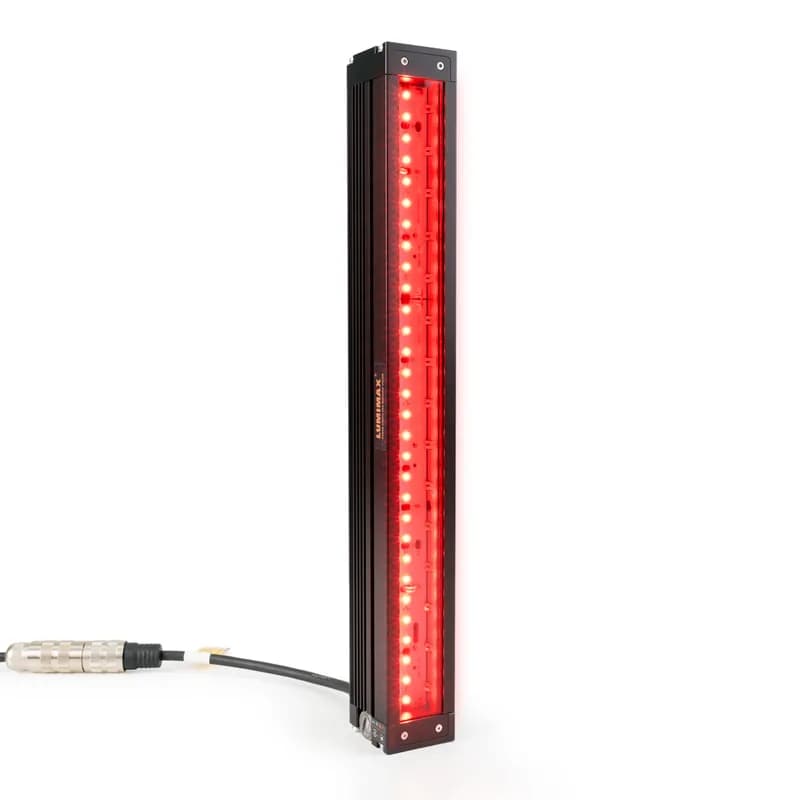

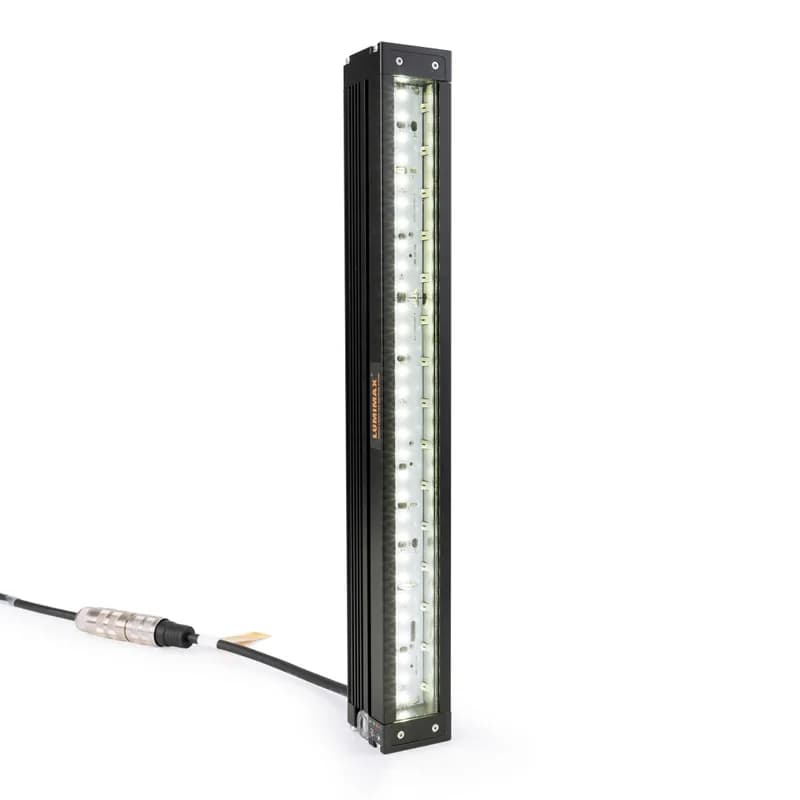

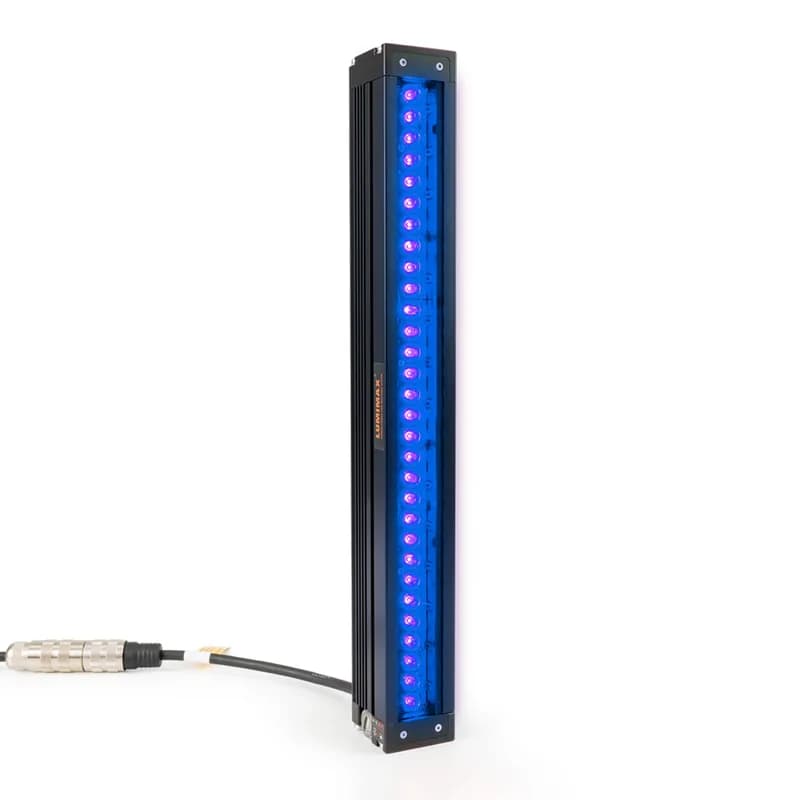

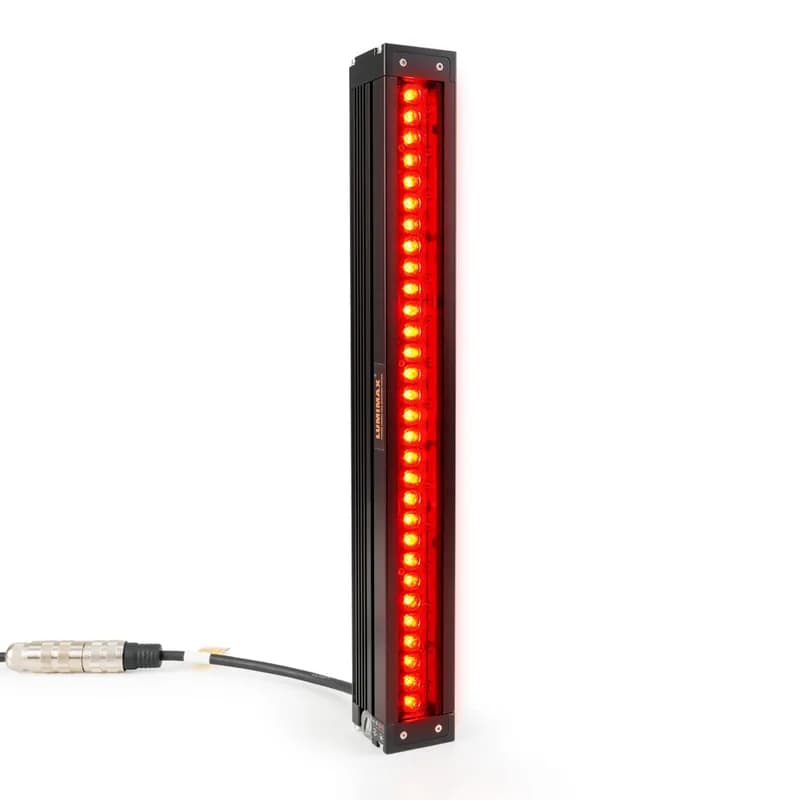

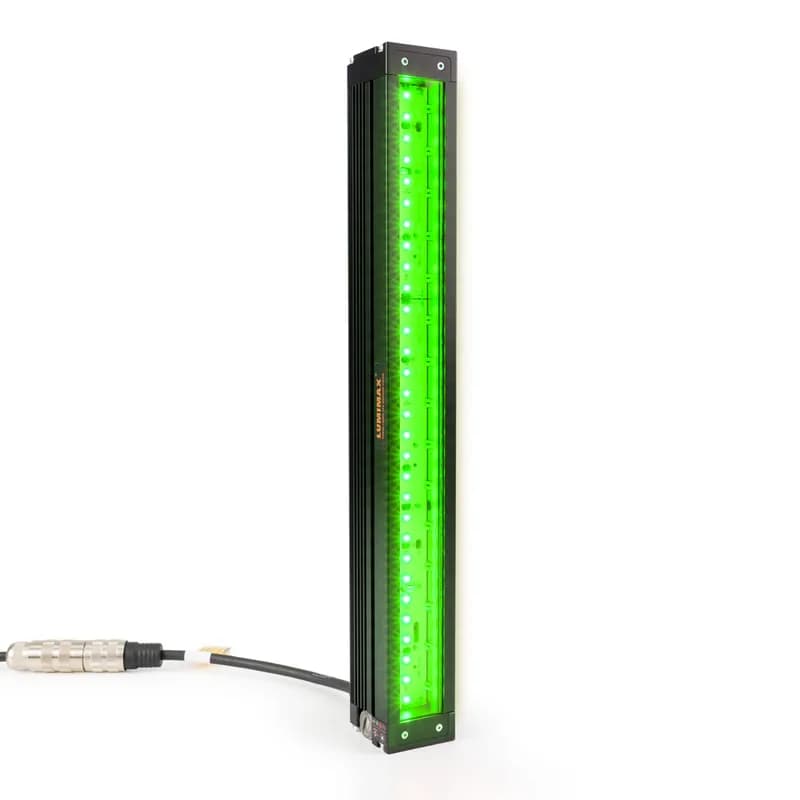

Clear puts the individual High Power LEDs behind a plain window. More intensity, and a structure to the light that a specular surface will show.

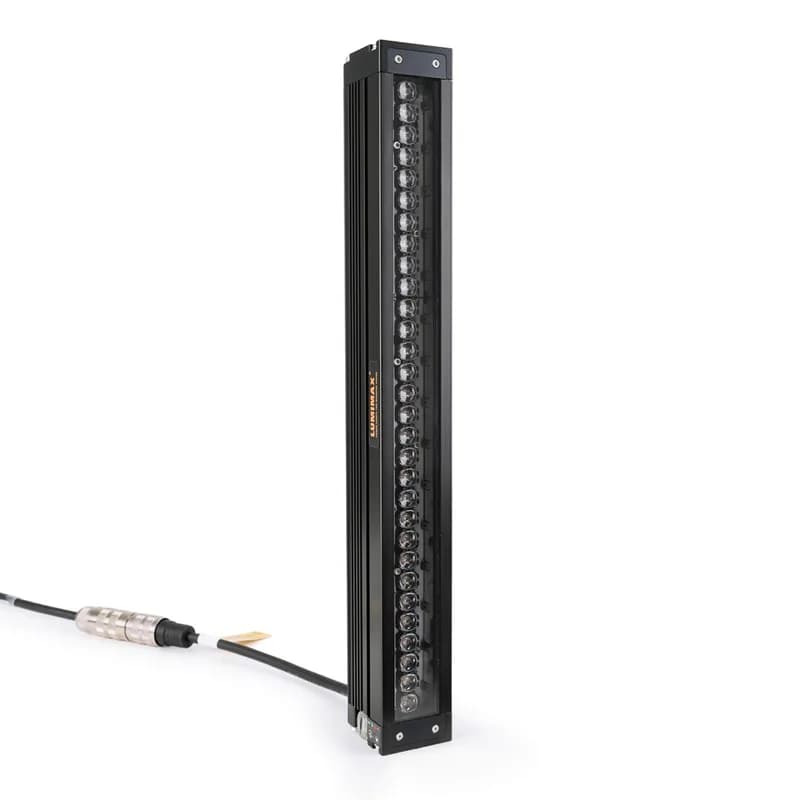

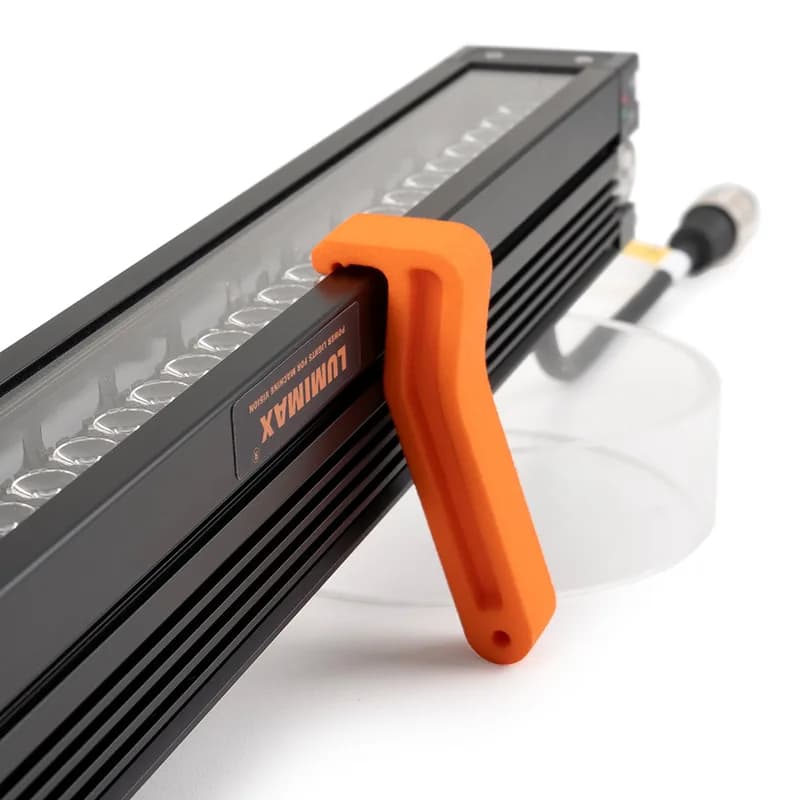

Lensed narrows the beam. The catalogue carries 15°, 20°, 25°, 40° and 120° ancillary lenses, which is the difference between lighting a strip 50 mm away and lighting one a metre away.
Read the lens angle against the working distance, not against the brightness figure.
Built-in controller

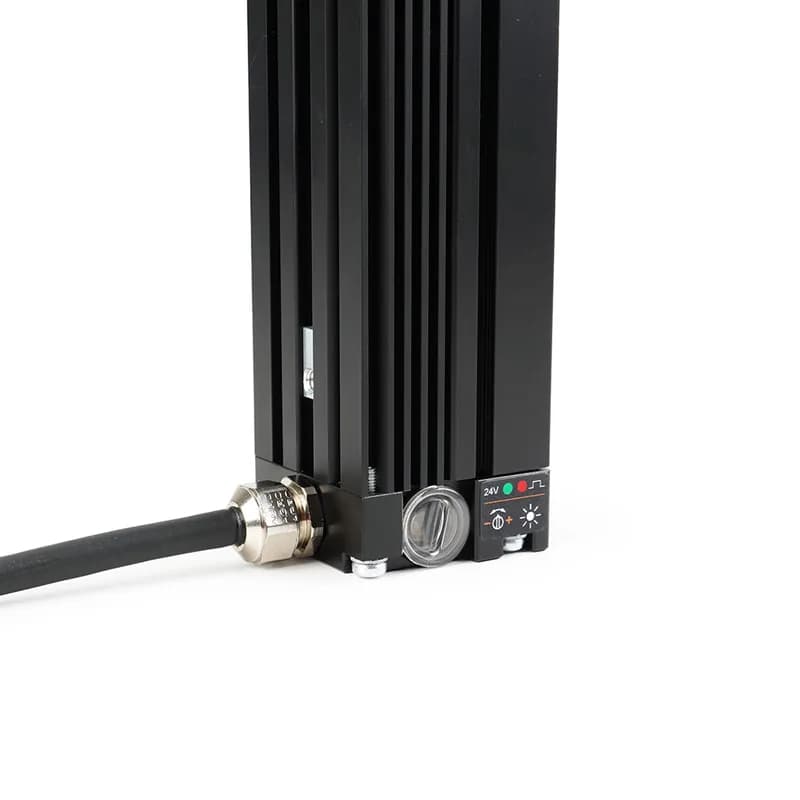

Brightness is set on the bar itself, at a potentiometer on the end cap beside the M16 output. There is no external controller box.
100 % brightness within 160 µs in switching mode, and within 160 µs in strobe. Flash duration is 10–100 µs, 20–220 µs or 50–750 µs by part number, at 10, 35 or 100 Hz.
What it puts on the part
Our data holds no illuminance figures for this length. Its siblings do, and the output scales with the LED count, but no measured value for this bar is in the store — so none is published. Ask before designing to a number.
Applications
Bar lights are the general-purpose incident source: surface inspection, print and code reading, presence and absence, edge detection, and — angled low across a part — scratch, dent and emboss detection that flat light will not show.
Where it fits
Twenty lengths, 100 mm to 2000 mm in 100 mm steps. Below this one the bar is lighter and draws less; above it, the current and the mounting both become design constraints in their own right. LBHP300 is listed as `lbhp-modular-bar-light` rather than by its length, which is the one break in the family's naming.
Specifications
Operation
- Operating mode (varies by part number)
- Continuous and switching mode | Strobe mode
- controller (varies by part number)
- Integrierter lightscontroller | Integrierter strobe controller
Environment
- Ingress protection
- IP50
- Allowed ambient temperature
- 5 to 45 °C, non-condensing
- Operating temperature at 21°C (by operating mode)
- continuous 50 °C · strobe 29, 32, 35 °C
- Risk Group (varies by part number)
- 0, 1
Mechanical
- Dimensions (l x w x h in mm)
- 1630 x 38 x 39 (h = 79 mm with cable incl. bending radius)
- Material housing | window
- Aluminium, anodised | PMMA
Electrical
- Operating voltage
- 19 to 30 V DC wide-range voltage input
- Maximum current consumption (by operating mode)
- continuous 3.9, 4.3, 4.4, 4.6 A · strobe 1.01–1.94 A
- Maximum electrical power at light field (by operating mode)
- continuous 81–95 W · strobe 2288–2920 W
- Electrical connection
- 150 mm connection cable with M16 12-pin plug
- Brightness control via potentiometer
- 0 % (left stop) to 100 % (right stop) brightness # Note: automatic deactivation at VC > 1 V DC
- Brightness control via analogue VC input
- VC = 2 to 10 V DC (0 % to 100 % brightness) # Note: Turn potentiometer to left stop
- Maximum pulse current (varies by part number)
- 2.1 A for 16 ms | 2.1 A for 48 ms | 2.1 A for 8 ms
- TTL-Trigger
- High level = 3 to 30 V DC
- SPS-Trigger
- High level = 15 to 30 V DC
- Trigger slope
- Rising slope
- Flash duration 1 (varies by part number)
- Von 10 bis 100 µs | Von 20 bis 220 µs | Von 50 bis 750 µs
- Flash frequency (varies by part number)
- 10, 35, 100 Hz
- TTL switching input
- High level = 3 to 30 V DC
- PLC switching input
- High level = 15 to 30 V DC
- Switching mode
- Switching time follows the switching signal # Connect + ON / OFF and GND ON / OFF
- Continuous mode
- Assign + ON / OFF permanently with high signal, e. g. by applying to operating voltage # Connect GND ON / OFF
- Switch-on delay_switching
- 100 % brightness within a maximum of 160 µs
Optical
- Light field size (l x w in mm)
- 1601 x 24
- Light colour | wavelength (varies by part number)
- Blue | 470 nm | Green | 528 nm | Infrared | 850 nm | Red | 625 nm | White | 5700 K
- Light guidance (varies by part number)
- Directed with 15° ancillary lenses (A) | Directed with 20° lenses (B) | Directed with 25° lenses (C) | Directed with 40° ancillary lenses (D) | Directed with 45x15° lenses (F) | Directed with 55° lenses (E) | Directed, 120° LED beam angle (without lenses) | Directed, 150° LED beam angle (without lenses)
- Power-LED
- 160 High Power LEDs
- Irradiance at 100 mm
- 122.3 W/m²
- Irradiance at 200 mm
- 64.2–224.8 W/m² across variants
- Irradiance at 300 mm
- 44.2 W/m²
- Irradiance at 500 mm
- 26.5–93.1 W/m² across variants
- Irradiance at 1000 mm
- 46.8 W/m²
- Irradiance at 1500 mm
- 30.6 W/m²
General
- Weight (kg) (varies by part number)
- 2.5, 2.82
