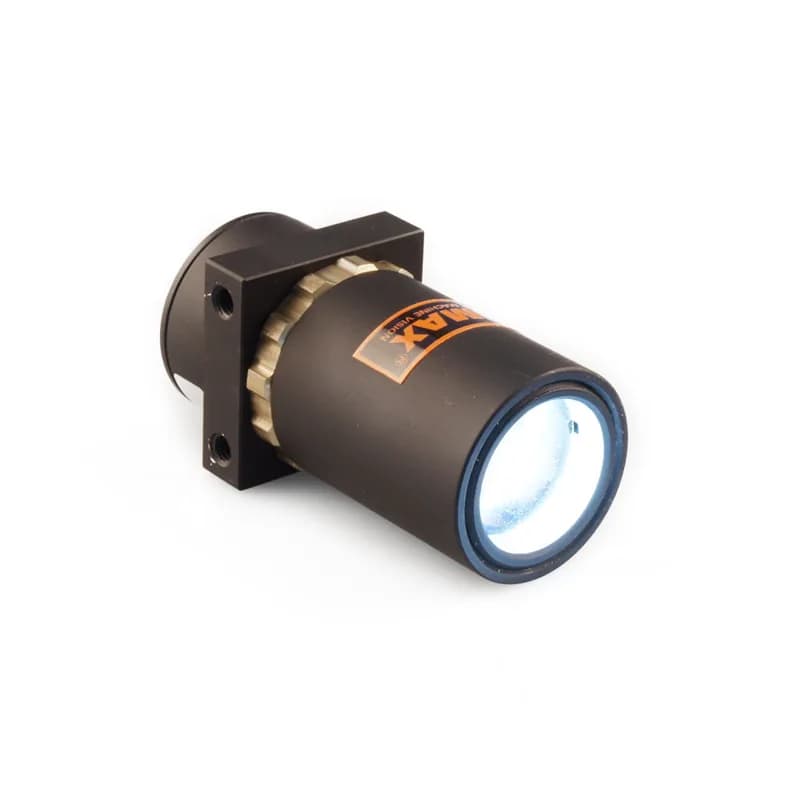

LED Spot 5W High-Power Spot

LMX-SPOT5W-W

High-performance 5W spot with adjustable focus for short to medium distances - C-mount focusing lens compatible.

Light colour | wavelength: 365 to 850 nm, white
Power-LED: 1 High Power LED
Light field size: 2 variants

Overview

About the LMX-SPOT5W-W

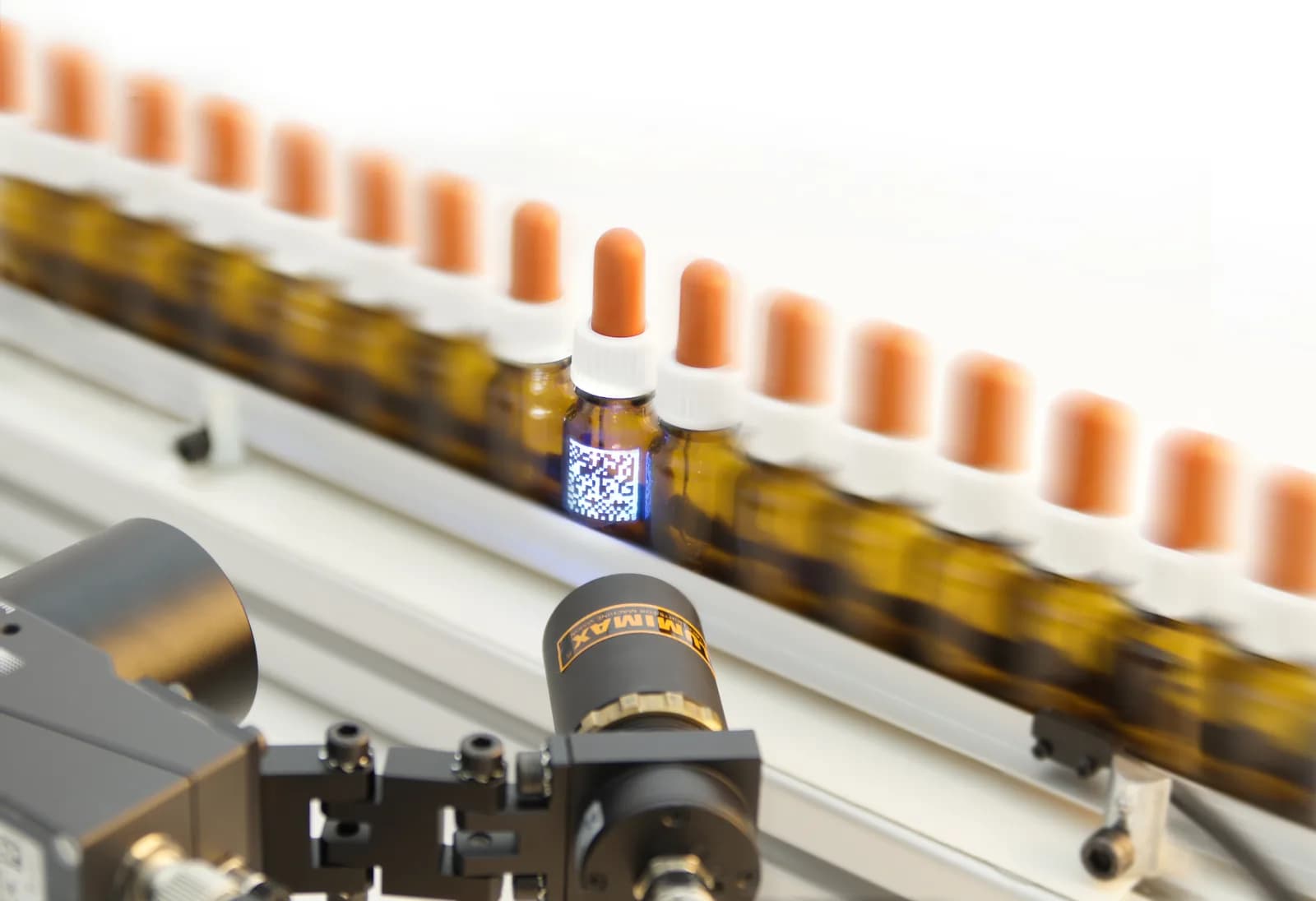

The Spot5W is the 5 W power class of the LUMIMAX high power LED spot lights, a single-LED unit with a 24 mm light area and adjustable optics. Adjusting them sets the radiation characteristic to the working distance and image field, giving focused or very homogeneous illumination from one head.

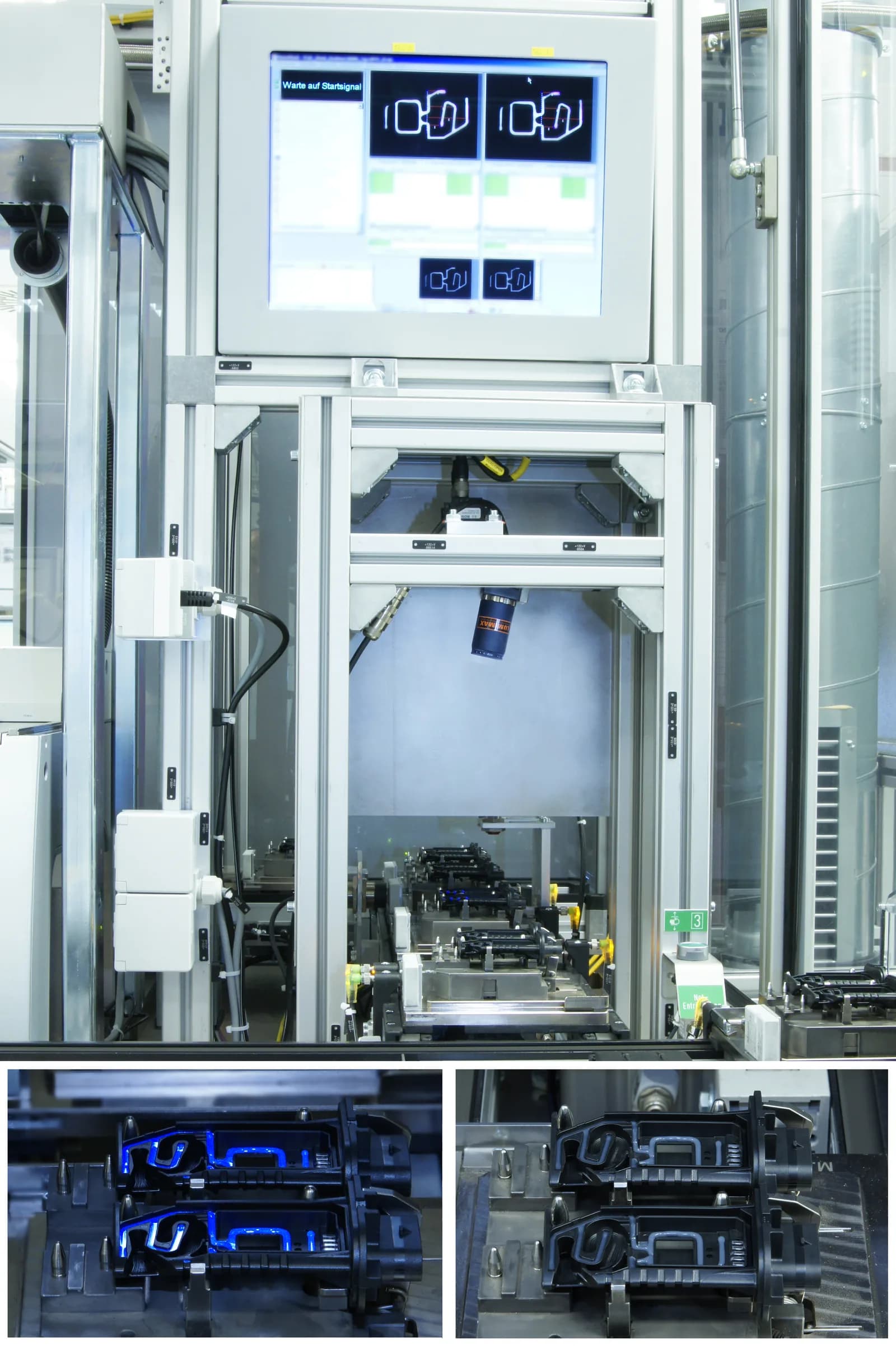

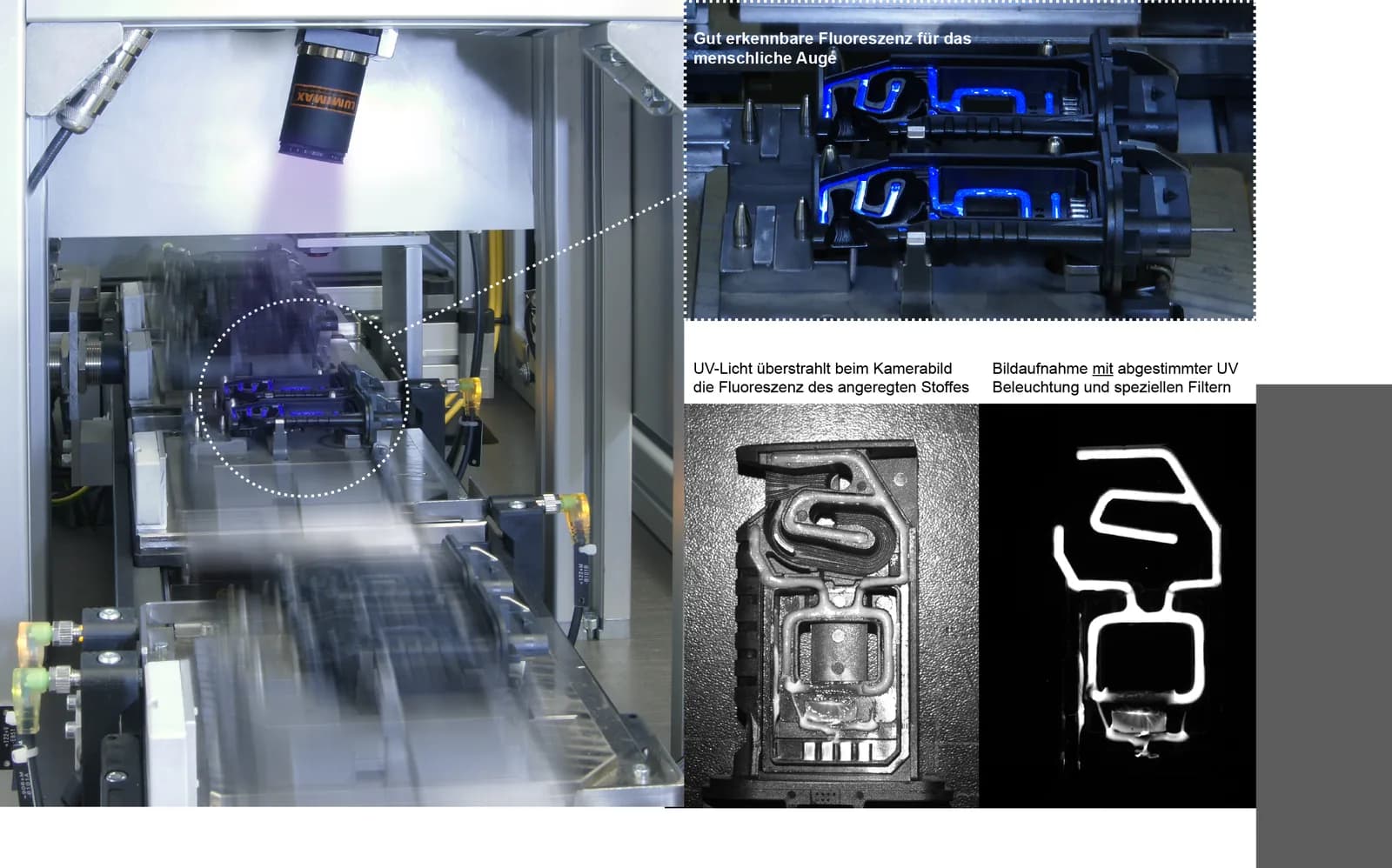

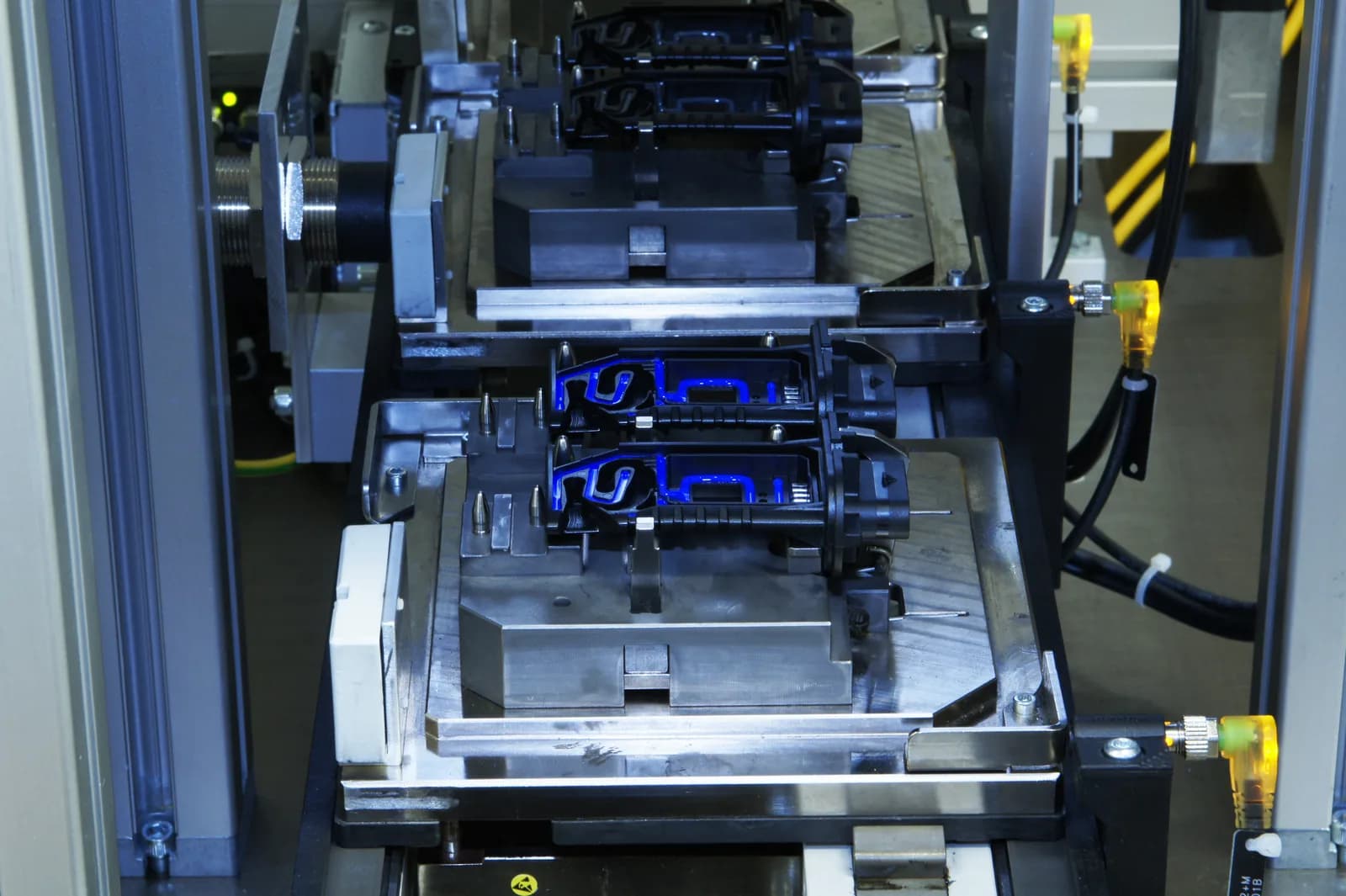

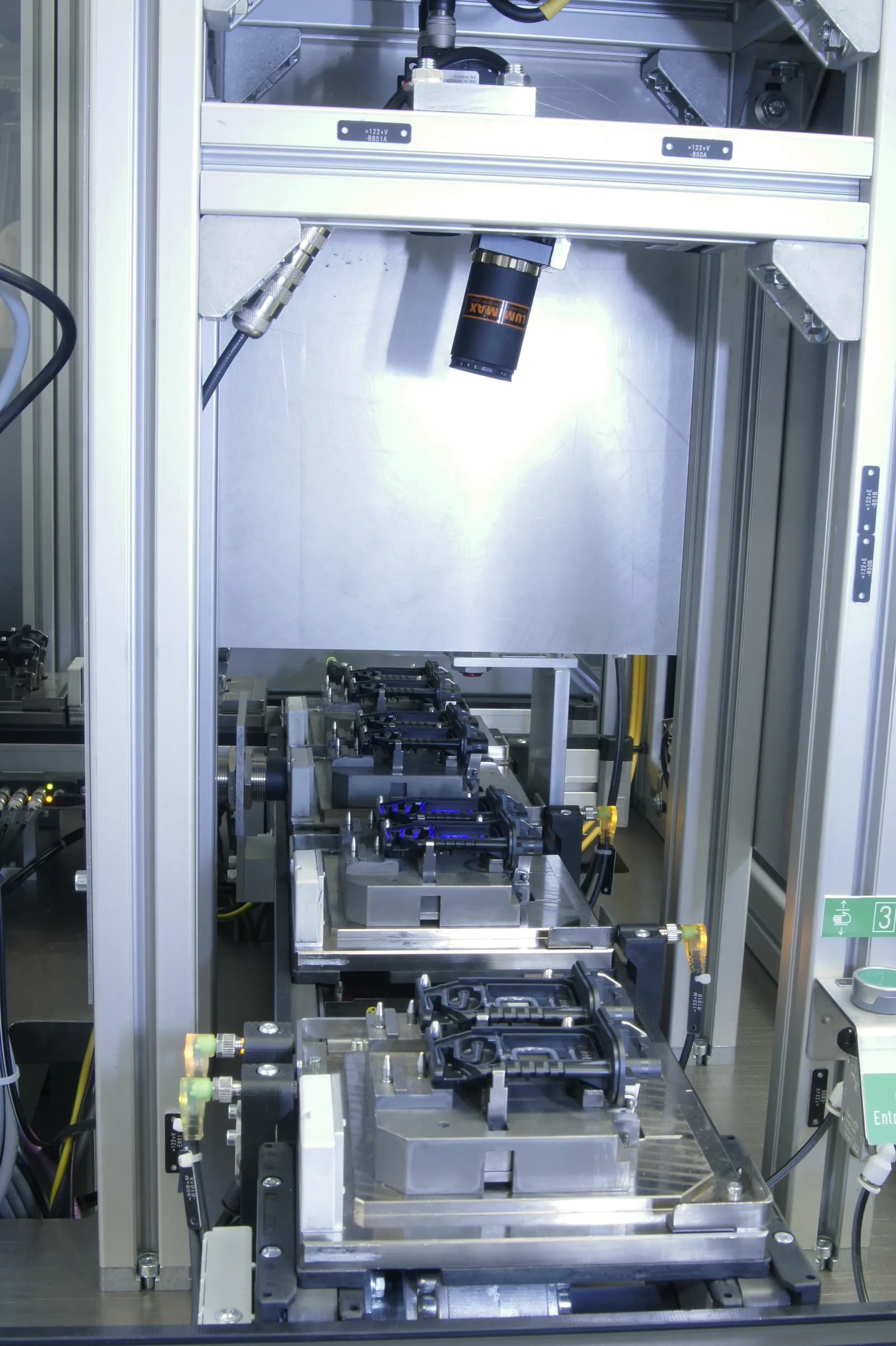

The adjustment covers a light area of 25 mm to 120 mm diameter at 100 mm working distance and 50 mm to 250 mm at 250 mm, so a change of part size needs no new lens. A filter thread takes polarisation or bandpass filters for fluorescence work, and a C-Mount connector accepts focusing lenses.

A representative red article gives 187 W/m2 at 0.2 m on 0.20 A from a 19 to 30 V DC input, with an integrated controller for continuous, switching or strobe operation and full brightness within 3 microseconds on the strobe builds. Control follows the LUMIMAX 12-pin wiring, with TTL and PLC triggers and brightness set by a 2 to 10 V DC input. Expected life is 80,000 hours in the visible and infrared range.

Specifications

Operation

Operating mode (varies by part number): Continuous and switching mode | Strobe mode
controller (varies by part number): Integrierter lightscontroller | Integrierter strobe controller

Environment

Ingress protection: IP40
Allowed ambient temperature: 5 to 45 °C, non-condensing
Operating temperature at 21°C (by operating mode): continuous 25–44 °C · strobe 25, 27 °C
Risk Group (by operating mode): continuous 0, 1, 2, 3 · strobe 0, 1, 2

Mechanical

Dimensions (l x w x h in mm): 36 x 36 x 75 (h = 132 mm with cable incl. bending radius as well as max. extended lens barrel)
Material housing | window: Aluminium, anodised | PMMA

Electrical

Operating voltage: 19 to 30 V DC wide-range voltage input
Maximum current consumption (by operating mode): continuous 0.1, 0.2 A · strobe 0.1 A
Maximum electrical power at light field (by operating mode): continuous 3, 19 W · strobe 17, 19, 21, 26 W
Electrical connection: 150 mm connection cable with M16 12-pin plug
Brightness control via potentiometer: 0 % (left stop) to 100 % (right stop) brightness # Note: automatic deactivation at VC > 1 V DC
Brightness control via analogue VC input (varies by part number): VC = 1 to 10 V DC (0 % to 100 % brightness) # Note: Turn potentiometer to left stop | VC = 2 to 10 V DC (0 % to 100 % brightness) # Note: Turn potentiometer to left stop
Maximum pulse current (varies by part number): 0.4 A for 0.9 ms | 0.4 A for 1.9 ms | 0.4 A for 6.6 ms
TTL-Trigger: High level = 3 to 30 V DC
SPS-Trigger: High level = 15 to 30 V DC
Trigger slope: Rising slope
Switch-on delay: 100 % brightness within a maximum of 2 µs
Flash duration 1 (varies by part number): From 30 to 300 µs | Von 10 bis 100 µs | Von 20 bis 220 µs | Von 50 bis 750 µs
Flash frequency (by operating mode): continuous 35, 100 Hz · strobe 10, 20, 35, 100 Hz
TTL switching input: High level = 3 to 30 V DC
PLC switching input: High level = 15 to 30 V DC
Switching mode: Switching time follows the switching signal # Connect + ON / OFF and GND ON / OFF
Continuous mode: Assign + ON / OFF permanently with high signal, e. g. by applying to operating voltage # Connect GND ON / OFF
Switch-on delay_switching: 100 % brightness within a maximum of 1200 µs

Optical

Light field size (varies by part number): 24 (Ø in mm) | 240 x 20 (l x w in mm)
Light colour | wavelength (varies by part number): Blue | 470 nm | Green | 528 nm | Infrared | 850 nm | Red | 625 nm | Ultraviolet | 365 nm | Ultraviolet | 395 nm | White | 7400 K
Light guidance (varies by part number): Directed, 72° LED beam angle (without ancillary lenses) | Directional, light field adjustable # from Ø 25 to 120 mm at working distance 100 mm and # from Ø 50 to 250 mm at working distance 250 mm
Power-LED: 1 High Power LED
Illuminance at 200 mm: continuous 472.9–50330 lx · strobe 1455.1–254468 lx
Illuminance at 500 mm: continuous 68.2–4118 lx · strobe 209.8–16574 lx
Illuminance at 750 mm: 23.1 lx
Illuminance at 1000 mm: continuous 71.1–818 lx · strobe 71.1–3402 lx
Irradiance at 200 mm: continuous 96–6166.2 W/m² · strobe 299.3–6166.2 W/m²
Irradiance at 500 mm: continuous 8.1–938.5 W/m² · strobe 25.3–938.5 W/m²
Irradiance at 750 mm: continuous 7.9–324 W/m² · strobe 37.4–324 W/m²
Irradiance at 1000 mm: continuous 1.6–5 W/m² · strobe 5.1–28.6 W/m²
Beam: Focusable
Intensity: Med
