LUMIMAX · COAXIAL

LES160 Coaxial Light

LMX-LES160FL-W

Coaxial light with moderate intensity for small to large FOVs at short working distances - 160×160mm.

Light colour | wavelength: 470 to 625 nm, white
Power-LED: 3 variants
Light field size: 160 x 160

Overview

About the LMX-LES160FL-W

Introduction

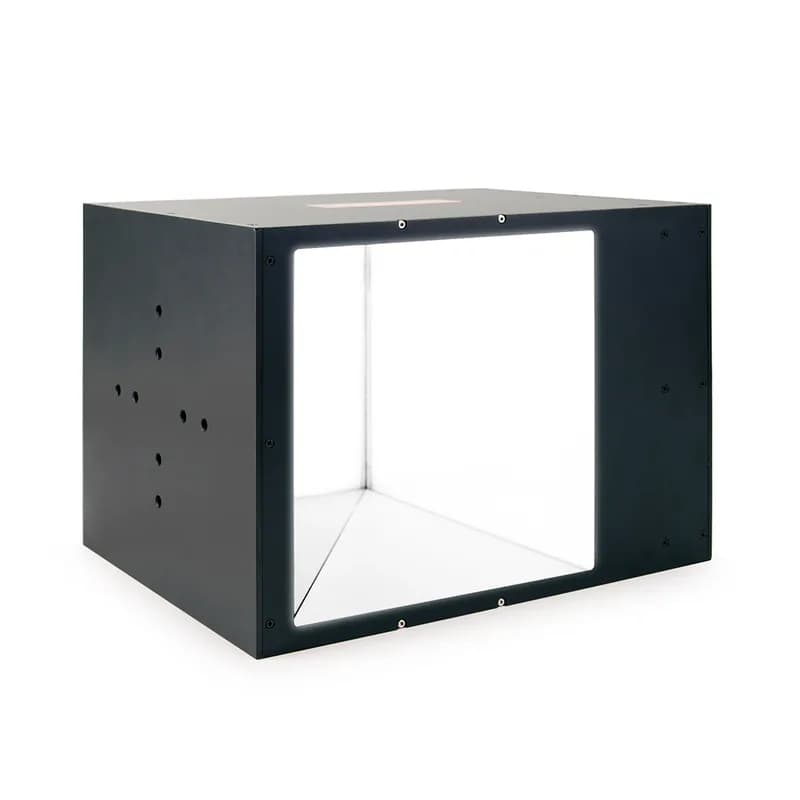

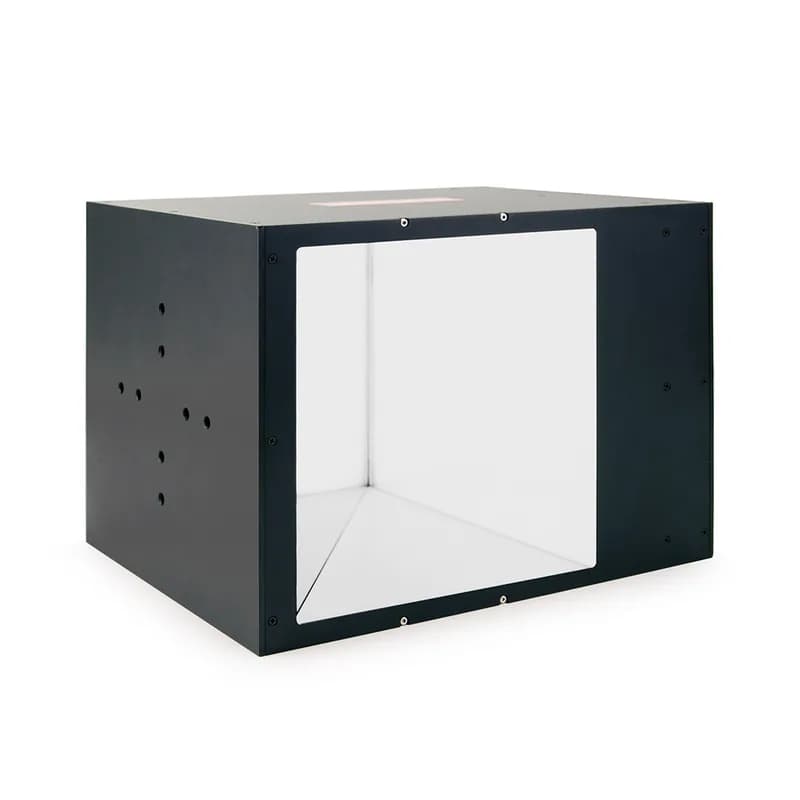

160 × 160 mm of illumination on the camera's own axis — the largest field in the family, and the one that makes a whole flat panel a single frame.

Behind the glass, up to 256 High Power LEDs. In strobe the light field passes three kilowatts, and the peak at the window passes 1.2 million lux.

What it puts on the part

Read the width of those ranges before choosing a part number. They are not measurement tolerance — they span builds that differ by a factor of a hundred and fifty. A 64-LED collimated unit and a 256-LED diffuse one are both LES160, and the figure that matters is the one for the build, not for the family.

Irradiance at 100 mm runs 31.6 to 56.8 W/m² continuous and 89.2 to 1,863.6 W/m² in strobe. Electrical power at the light field is 29 to 40 W continuous, 57 to 3,012 W in a flash.

Diffuse or collimated

Diffuse spreads the light across the full 160 mm: even, and forgiving of surface texture.

Collimated keeps the rays parallel. Over a field this wide that is the harder and more useful trick — on a specular panel, any local tilt turns into a sharp change in brightness, so a scratch, a dent or a lifted edge goes dark where diffuse light would have filled it in.

Timing

100 % brightness within 5 µs in strobe, 160 µs in switching mode — the fastest switching figure in the family, on the largest light in it.

Flash duration is 10–100 µs, 20–220 µs or 50–750 µs by part number, at 10, 35 or 100 Hz. Triggering takes TTL at 3 to 30 V DC or PLC at 15 to 30 V DC, on the rising edge.

Mounting it

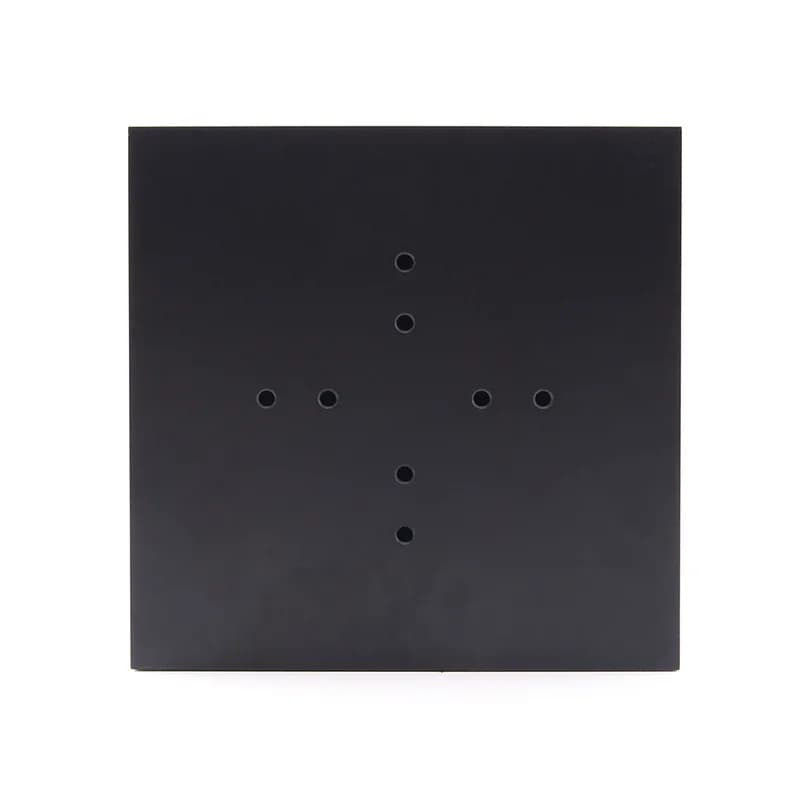

4.1 kg, 268 mm long and 180 mm on a side. This is a structural mount, not a bracket: support it from the housing, allow the 308 mm the cable needs behind it, and leave the airflow clear. The ambient limit is 45 °C and there is no fan.

Applications

Large flat surfaces where the whole part has to be in one frame — PCB panels, glass, display, sheet and rolled metal, laminates and coatings.

Where it fits

The top of the LES family. LES100 at 100 × 100 mm is the next size down and weighs half as much; below that, LES80, LES60 and LES40.

Specifications

Operation

Operating mode (varies by part number): Continuous and switching mode | Strobe mode
controller (varies by part number): Integrierter lightscontroller | Integrierter strobe controller

Environment

Ingress protection: IP40
Allowed ambient temperature: 5 to 45 °C, non-condensing
Operating temperature at 21°C (by operating mode): continuous 32, 37, 38, 41 °C · strobe 38, 39, 50, 51 °C
Risk Group: 0

Mechanical

Dimensions (l x w x h in mm): 268 x 180 x 180 (l = 308 mm with cable incl. bending radius)
Material housing | window: Aluminium, anodised | Glass

Electrical

Operating voltage: 19 to 30 V DC wide-range voltage input
Maximum current consumption (varies by part number): 0.083333 | 1.4 A | 1.5 A | 1.6 A | 1.9 A | 2.0 A | 2.1 A | 2.7 A
Maximum electrical power at light field (by operating mode): continuous 29, 36, 40 W · strobe 57–3012 W

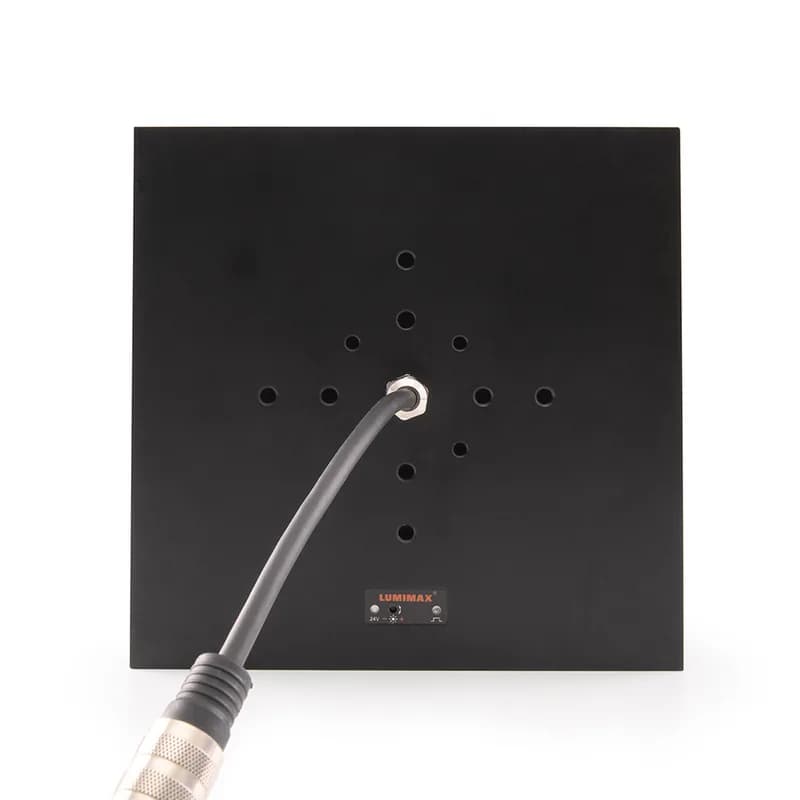

Electrical connection: 150 mm connection cable with M16 12-pin plug

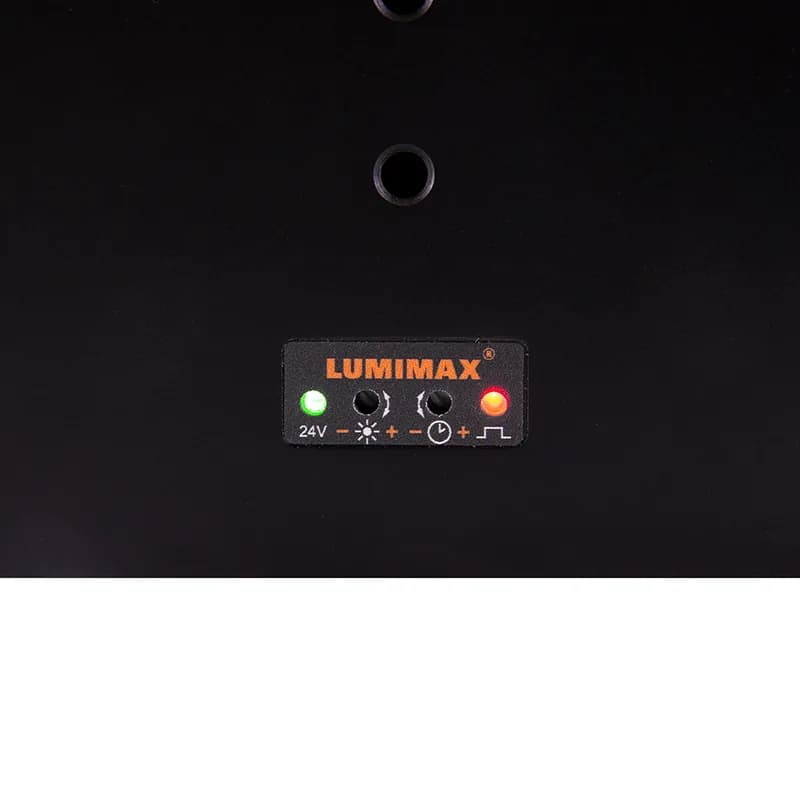

Brightness control via potentiometer: 0 % (left stop) to 100 % (right stop) brightness
Brightness control via analogue VC input (varies by part number): VC = 2 to 10 V DC (0 % to 100 % brightness) | VC = 2 to 10 V DC (10 % to 100 % brightness)
Maximum pulse current (varies by part number): 3.7 A for 10.8 ms | 3.7 A for 11.5 ms | 3.7 A for 16 ms | 3.7 A for 17.4 ms | 3.7 A for 18.4 ms | 3.7 A for 3.4 ms | 3.7 A for 4.1 ms | 3.7 A for 4.2 ms | (+3 more)
TTL-Trigger: High level = 3 to 30 V DC
SPS-Trigger: High level = 15 to 30 V DC
Trigger slope: Rising slope
Switch-on delay: 100 % brightness within a maximum of 5 µs
Flash duration 1 (varies by part number): Von 10 bis 100 µs | Von 20 bis 220 µs | Von 50 bis 750 µs
Flash frequency (varies by part number): 10, 35, 100 Hz
TTL switching input: High level = 3 to 30 V DC
PLC switching input: High level = 15 to 30 V DC
Switching mode: Switching time follows the switching signal # Connect + ON / OFF and GND ON / OFF
Continuous mode: Assign + ON / OFF permanently with high signal, e. g. by applying to operating voltage # Connect GND ON / OFF
Switch-on delay_switching: 100 % brightness within a maximum of 160 µs

Optical

Light field size (l x w in mm): 160 x 160

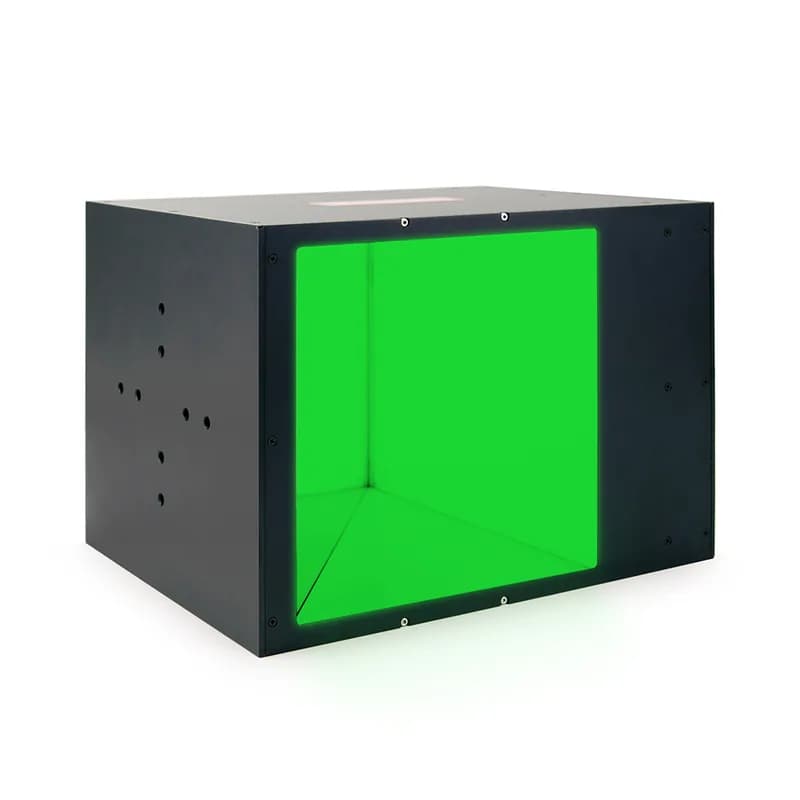

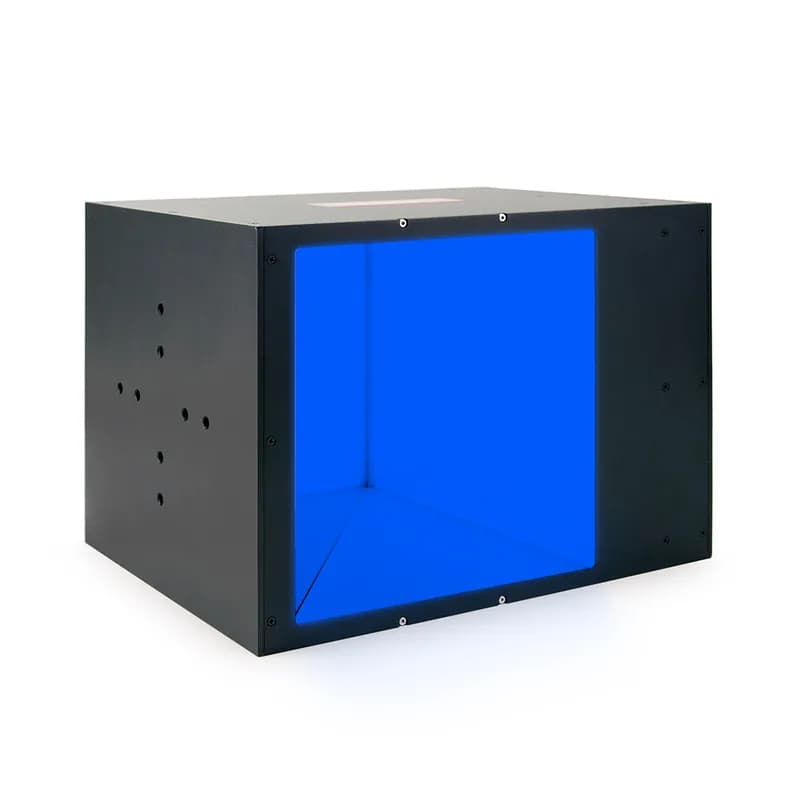

Light colour | wavelength (varies by part number): Blue | 470 nm | Green | 528 nm | Red | 625 nm | White | 5100 K
Light guidance (varies by part number): Collimated, coaxially mirrored | Diffuse, coaxially mirrored
Power-LED (varies by part number): 256 High Power LEDs | 64 High Power LEDs | 64 High Power LEDs (intensity level i2)
Illuminance at 0 mm: continuous 8377–93072.2 lx · strobe 16342–1219809 lx
Illuminance at 50 mm: continuous 16421–45299.2 lx · strobe 311999–998756 lx
Illuminance at 100 mm: continuous 4539–19514 lx · strobe 7940–504981 lx
Illuminance at 200 mm: continuous 2573–7768 lx · strobe 3085–179001 lx
Illuminance at 300 mm: 1512 lx
Illuminance at 500 mm: 733.5 lx
Irradiance at 0 mm: continuous 103.4–278.2 W/m² · strobe 182.5–7642.8 W/m²
Irradiance at 50 mm: continuous 78.4–134.8 W/m² · strobe 1053.5–3996.3 W/m²
Irradiance at 100 mm: continuous 31.6–56.8 W/m² · strobe 89.2–1863.6 W/m²
Irradiance at 200 mm: continuous 9.5–31.8 W/m² · strobe 34.5–603.7 W/m²
Irradiance at 300 mm: 17 W/m²
Irradiance at 500 mm: 9.2 W/m²
Beam: Coaxial
Intensity: Ultra
