LUMIMAX · COAXIAL

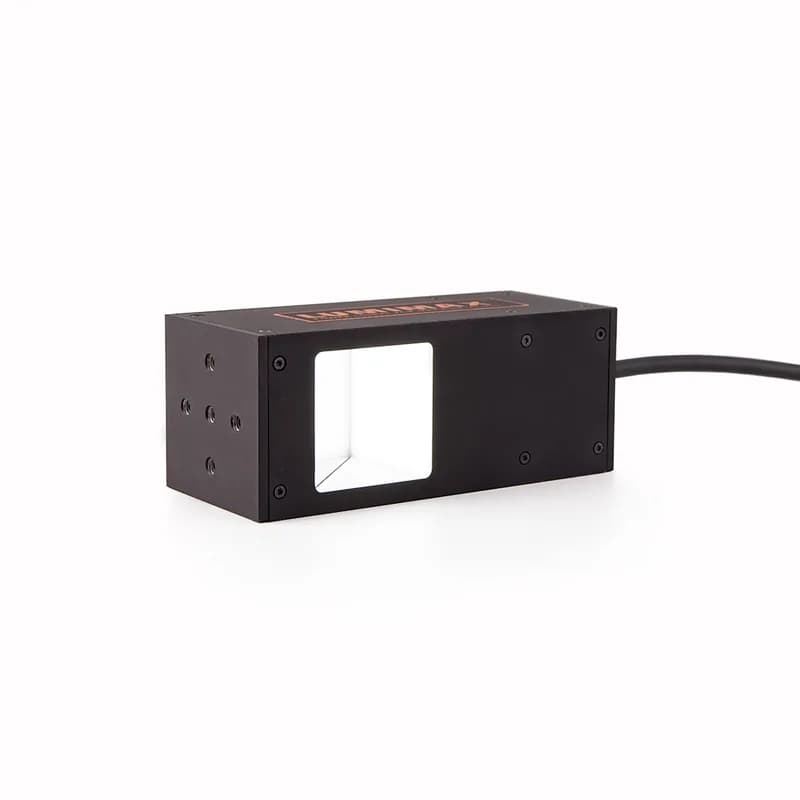

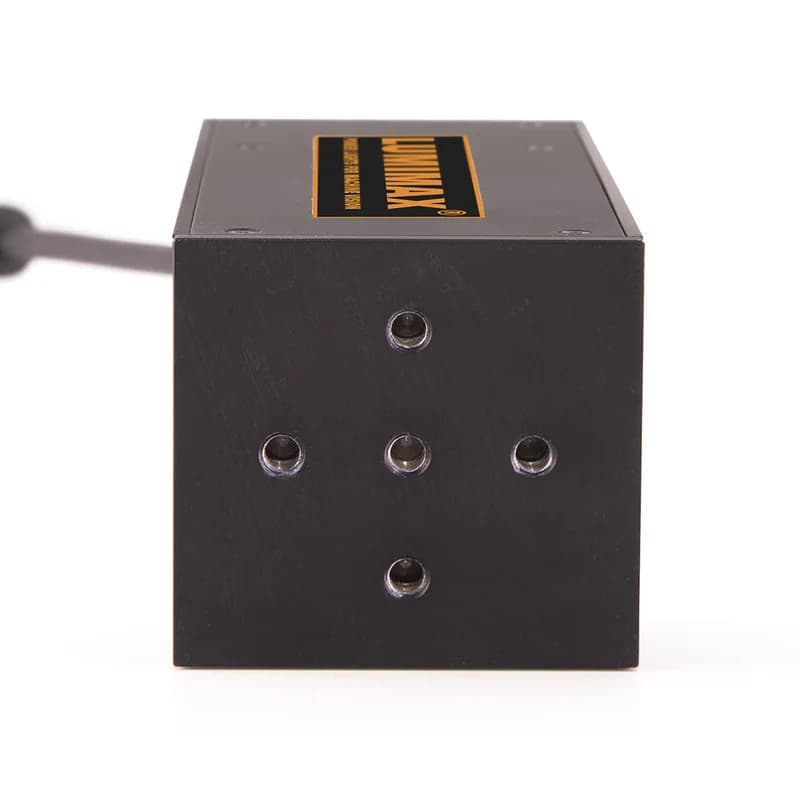

LES40 Compact Coaxial Light
LES40-WCoaxial light with moderate intensity for small to large FOVs at short working distances - 40×40mm.
- Light colour | wavelength
- 470 to 625 nm, white
- Power-LED
- 4 to 16 High Power LEDs
- Light field size
- 40 x 40
About the LES40-W
Introduction
A coaxial light puts the illumination on the camera's own axis. Light enters from the side, meets a 45° beam splitter, and leaves towards the part along the line the lens is looking down.
On a flat reflective surface that is the difference between an image and a picture of your own lighting rig. There is no oblique angle, so there is no shadow and no glare lobe.
LES40 is the smallest of the family: a 40 × 40 mm light field for small parts.
The controller is inside

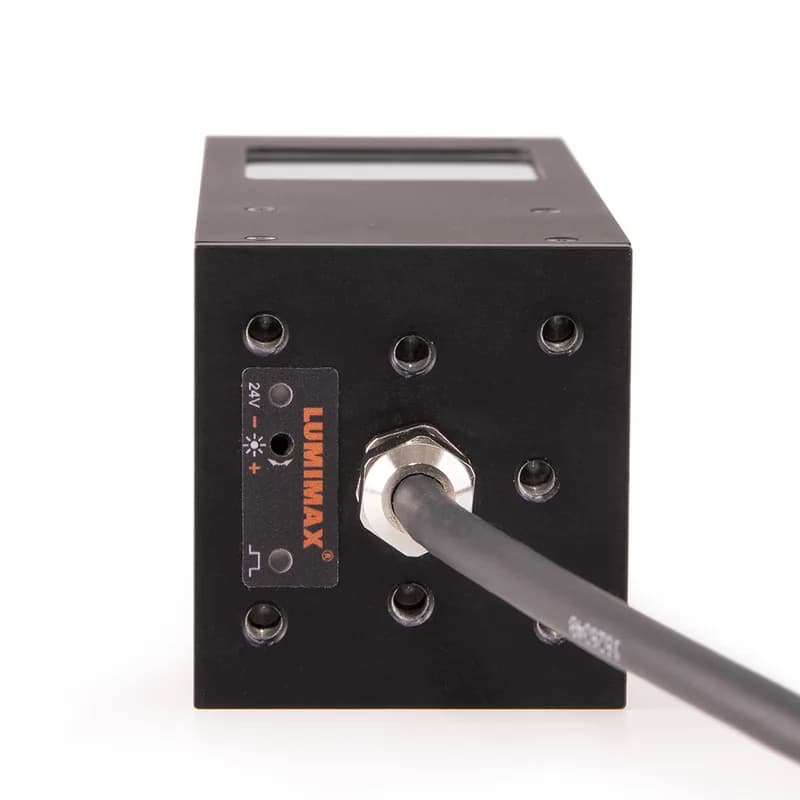

There is no external controller box. Brightness is set on the light itself — a potentiometer from 0 % at the left stop to 100 % at the right — or driven from the machine over the analogue VC input, 2 to 10 V DC.
That matters more than it sounds. A coaxial light sits close to the camera, in the tightest part of the cell; a separate controller is another box, another cable run and another thing to mount.
Continuous, switched or strobed
Three modes, chosen by part number.
Triggering takes TTL at 3 to 30 V DC or PLC at 15 to 30 V DC, on the rising edge.
What it puts on the part
Each range spans the colour options — measured, not calculated. Strobe buys roughly twenty times the illuminance at a given distance, which is what makes a moving line possible at a short exposure.
Electrically the same trade: 3 to 4 W continuous at the light field against 200 to 215 W in a flash.
Applications
Small-part inspection where the surface is flat and reflective — PCB, wafer, glass, polished metal, printed and laser-marked codes.
Where it fits
LES40 is the compact one. LES60, LES80, LES100 and LES160 are the same optical principle over larger fields, up to 160 × 160 mm.
Specifications
Operation
- Operating mode (varies by part number)
- Continuous and switching mode | Strobe mode
- controller (varies by part number)
- Integrierter lightscontroller | Integrierter strobe controller
Environment
- Ingress protection
- IP40
- Allowed ambient temperature
- 5 to 45 °C, non-condensing
- Operating temperature at 21°C (by operating mode)
- continuous 34, 35, 36 °C · strobe 39, 41 °C
- Risk Group
- 0
Mechanical
- Dimensions (l x w x h in mm)
- 128 x 52 x 56 (l = 168 mm with cable incl. bending radius)
- Material housing | window
- Aluminium, anodised | Glass
Electrical
- Operating voltage
- 19 to 30 V DC wide-range voltage input
- Maximum current consumption (by operating mode)
- continuous 0.2 A · strobe 0.3 A
- Maximum electrical power at light field (by operating mode)
- continuous 3, 4 W · strobe 200, 205, 208, 215 W
- Electrical connection
- 150 mm connection cable with M16 12-pin plug
- Brightness control via potentiometer
- 0 % (left stop) to 100 % (right stop) brightness
- Brightness control via analogue VC input (varies by part number)
- VC = 2 to 10 V DC (0 % to 100 % brightness) | VC = 2 to 10 V DC (10 % to 100 % brightness)
- Maximum pulse current (varies by part number)
- 1 A for 1.4 ms | 1 A for 1.6 ms | 1 A for 10.5 ms | 1 A for 11.5 ms | 1 A for 3.2 ms | 1 A for 3.5 ms
- TTL-Trigger
- High level = 3 to 30 V DC
- SPS-Trigger
- High level = 15 to 30 V DC
- Trigger slope
- Rising slope
- Switch-on delay
- 100 % brightness within a maximum of 300 µs
- Flash duration 1 (varies by part number)
- Von 10 bis 100 µs | Von 20 bis 220 µs | Von 50 bis 750 µs
- Flash frequency (varies by part number)
- 10, 35, 100 Hz
- TTL switching input
- High level = 3 to 30 V DC
- PLC switching input
- High level = 15 to 30 V DC
- Switching mode
- Switching time follows the switching signal # Connect + ON / OFF and GND ON / OFF
- Continuous mode
- Assign + ON / OFF permanently with high signal, e. g. by applying to operating voltage # Connect GND ON / OFF
- Switch-on delay_switching
- 100 % brightness within a maximum of 300 µs
Optical
- Light field size (l x w in mm)
- 40 x 40
- Light colour | wavelength (varies by part number)

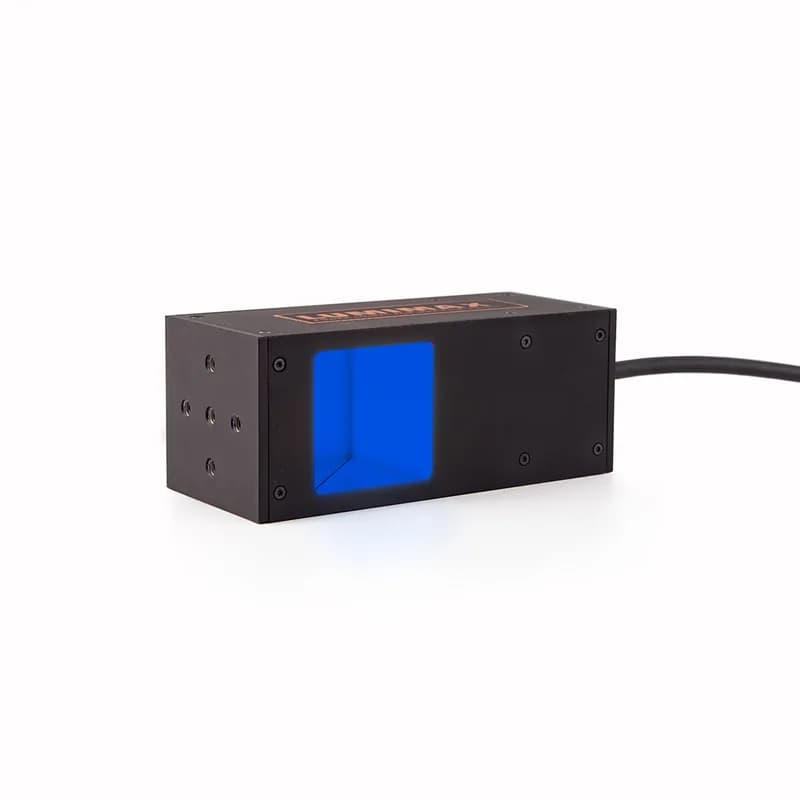

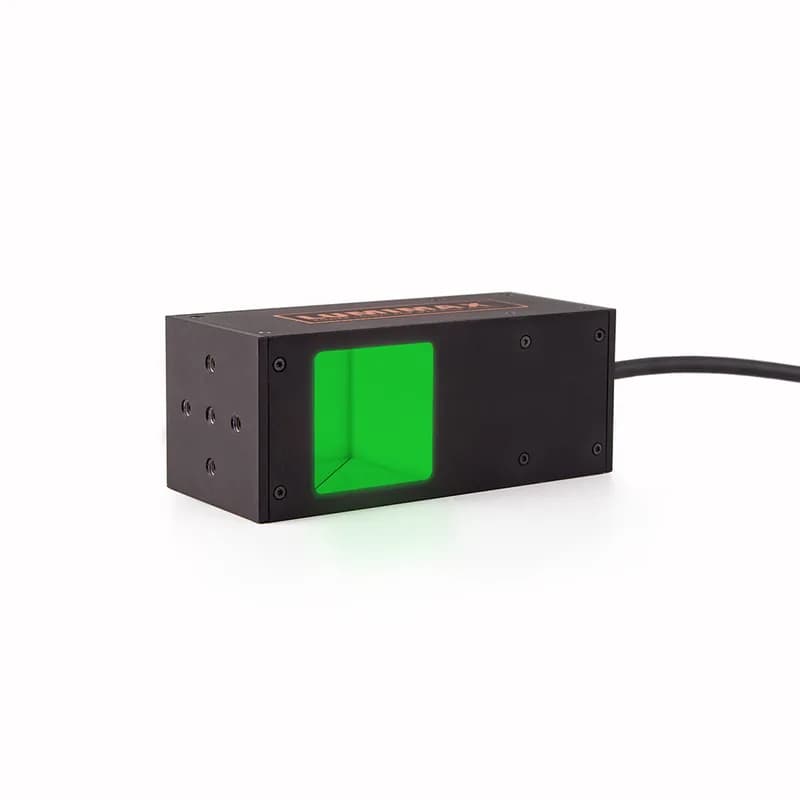

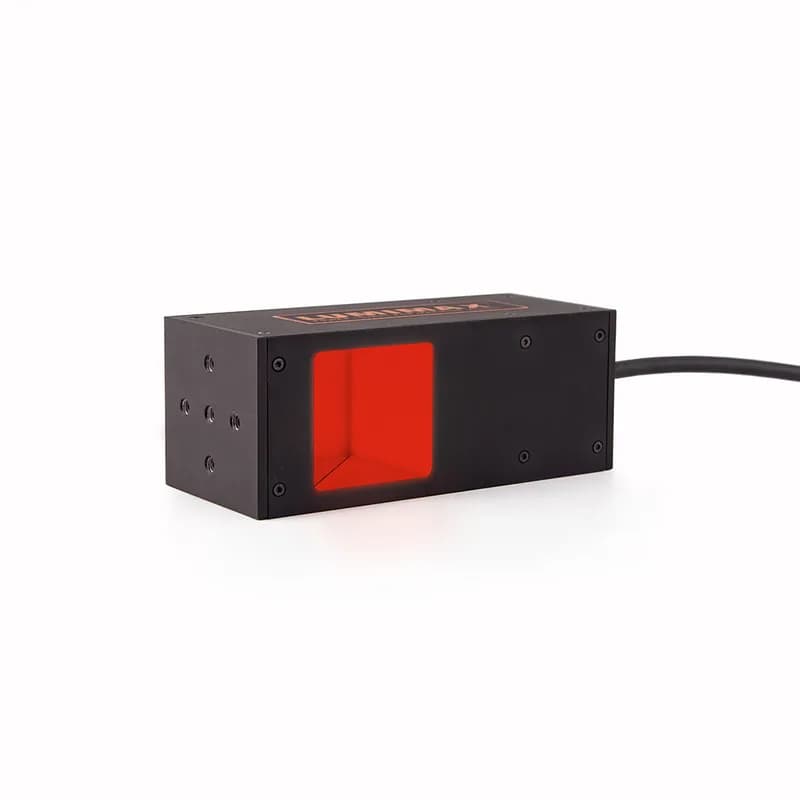

- Blue | 470 nm | Green | 528 nm | Red | 625 nm | White | 5100 K
- Light guidance
- Diffuse, coaxially mirrored
- Power-LED (varies by part number)
- 16 High Power LEDs | 4 High Power LEDs
- Illuminance at 0 mm
- continuous 12732.2–21899.3 lx · strobe 236756–567031 lx
- Illuminance at 50 mm
- continuous 3674–10658.6 lx · strobe 114743–215244 lx
- Illuminance at 100 mm
- continuous 1127–4325.6 lx · strobe 35197.4–87352.4 lx
- Illuminance at 200 mm
- continuous 325.4–1302.8 lx · strobe 10162.6–26309.1 lx
- Irradiance at 0 mm
- continuous 35.4–65.5 W/m² · strobe 707.8–1322.1 W/m²
- Irradiance at 50 mm
- continuous 18.4–31.7 W/m² · strobe 342.9–640.6 W/m²
- Irradiance at 100 mm
- continuous 6.2–12.8 W/m² · strobe 138.3–258.4 W/m²
- Irradiance at 200 mm
- continuous 1.8–3.9 W/m² · strobe 41.7–77.9 W/m²
- Beam
- Coaxial
- Intensity
- Low
General
- Weight (kg)
- 0.45
Application
- Applications
- Inspection / Machine Vision
