LES60 Coaxial Light

LMX-LES60

Coaxial light with moderate intensity for small to large FOVs at short working distances - 60×60mm light area, IP40.

Light colour | wavelength: 470 to 850 nm, white
Power-LED: 9 to 36 High Power LEDs
Light field size: 60 x 60

Overview

About the LMX-LES60

Introduction

Illumination on the camera's own axis, through a 45° beam splitter, over a 60 × 60 mm field.

LES60 is where the family stops being only a small-part light. It is also the size at which the range opens up: diffuse or collimated light guidance, a polarised build, and 850 nm infrared alongside the visible colours.

Three light guidances, not one

Diffuse spreads the light across the field: even, forgiving of surface texture, the default for reading a flat part.

Collimated keeps the rays parallel. On a specular surface that turns any local tilt into a sharp change in brightness — a scratch, a dent or a lifted edge goes dark where diffuse light would have filled it in.

The polarised build adds a filter over the window. Paired with an analyser on the lens it suppresses the specular return that survives even on-axis lighting, which is what a wet, coated or laminated surface throws back.

Fast enough to be triggered

100 % brightness within 1.2 µs in strobe, and within 200 µs in switching mode.

That first figure is the one that matters on a moving line: the light is at full output before the exposure opens, so the flash contributes no ramp to the image.

Flash duration is 10–100 µs, 20–220 µs or 50–750 µs by part number, at 10, 35 or 100 Hz. Triggering takes TTL at 3 to 30 V DC or PLC at 15 to 30 V DC, on the rising edge.

What it puts on the part

Roughly two and a half times an LES40 at the same distance, and a strobe peak past a million lux at the window.

Setting the brightness

A potentiometer on the light, 0 % at the left stop to 100 % at the right, or the analogue VC input at 2 to 10 V DC from the machine. The controller is inside the housing; there is no external box to mount.

Applications

PCB and electronics inspection. Glass and display. Polished and coated metal. Print, label and code reading. The infrared build for subsurface and through-coating views the visible colours cannot reach.

Where it fits

Between LES40 at 40 × 40 mm and LES80 at 80 × 80 mm. LES60 is the smallest in the family to offer collimated and polarised builds.

Specifications

Operation

Operating mode (varies by part number): Continuous and switching mode | Strobe mode
controller (varies by part number): Integrierter lightscontroller | Integrierter strobe controller

Environment

Ingress protection: IP40
Allowed ambient temperature: 5 to 45 °C, non-condensing
Operating temperature at 21°C (by operating mode): continuous 32, 35, 39, 40 °C · strobe 39 °C
Risk Group: 0

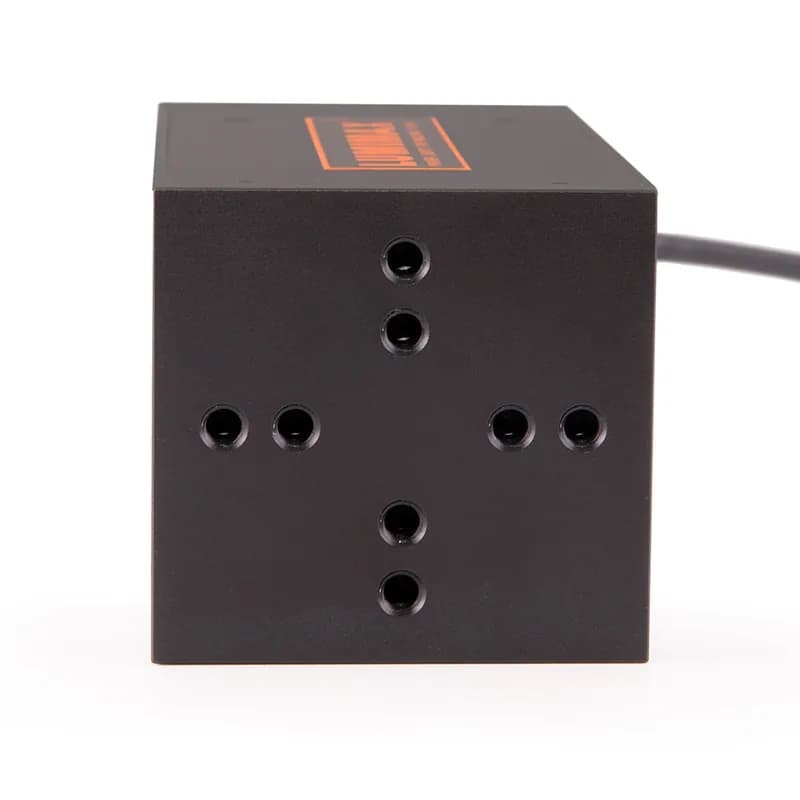

Mechanical

Dimensions (l x w x h in mm): 133 x 67 x 70 (l = 173 mm with cable incl. bending radius)
Material housing | window: Aluminium, anodised | Glass

Electrical

Operating voltage: 19 to 30 V DC wide-range voltage input
Maximum current consumption (by operating mode): continuous 0.2, 0.3, 0.4 A · strobe 0.3, 0.4 A
Maximum electrical power at light field (by operating mode): continuous 5, 6, 467 W · strobe 388–479 W

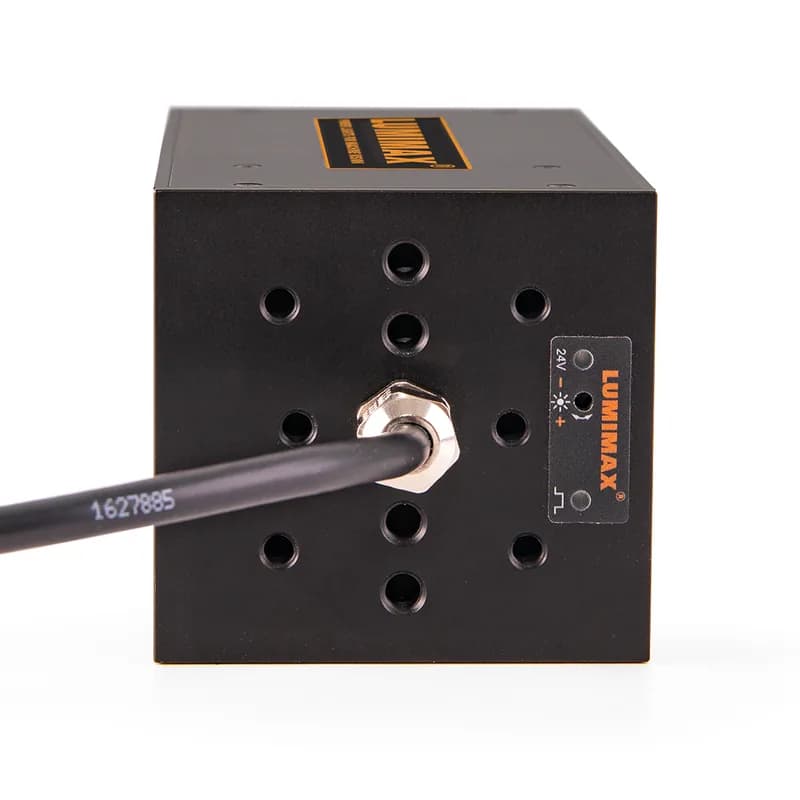

Electrical connection: 150 mm connection cable with M16 12-pin plug
Brightness control via potentiometer: 0 % (left stop) to 100 % (right stop) brightness
Brightness control via analogue VC input (varies by part number): VC = 2 to 10 V DC (0 % to 100 % brightness) | VC = 2 to 10 V DC (10 % to 100 % brightness)
Maximum pulse current (varies by part number): 1 A for 25.3 ms | 1 A for 28 ms | 1 A for 28.4 ms | 1 A for 28.8 ms | 1 A for 3.5 ms | 1 A for 8.2 ms | 1 A for 8.3 ms
TTL-Trigger: High level = 3 to 30 V DC
SPS-Trigger: High level = 15 to 30 V DC
Trigger slope: Rising slope
Switch-on delay: 100 % brightness within a maximum of 1.2 µs
Flash duration 1 (varies by part number): Von 10 bis 100 µs | Von 20 bis 220 µs | Von 50 bis 750 µs
Flash frequency (by operating mode): continuous 10 Hz · strobe 10, 35, 100 Hz
TTL switching input: High level = 3 to 30 V DC
PLC switching input: High level = 15 to 30 V DC
Switching mode: Switching time follows the switching signal # Connect + ON / OFF and GND ON / OFF
Continuous mode: Assign + ON / OFF permanently with high signal, e. g. by applying to operating voltage # Connect GND ON / OFF
Switch-on delay_switching: 100 % brightness within a maximum of 200 µs

Optical

Light field size (l x w in mm): 60 x 60

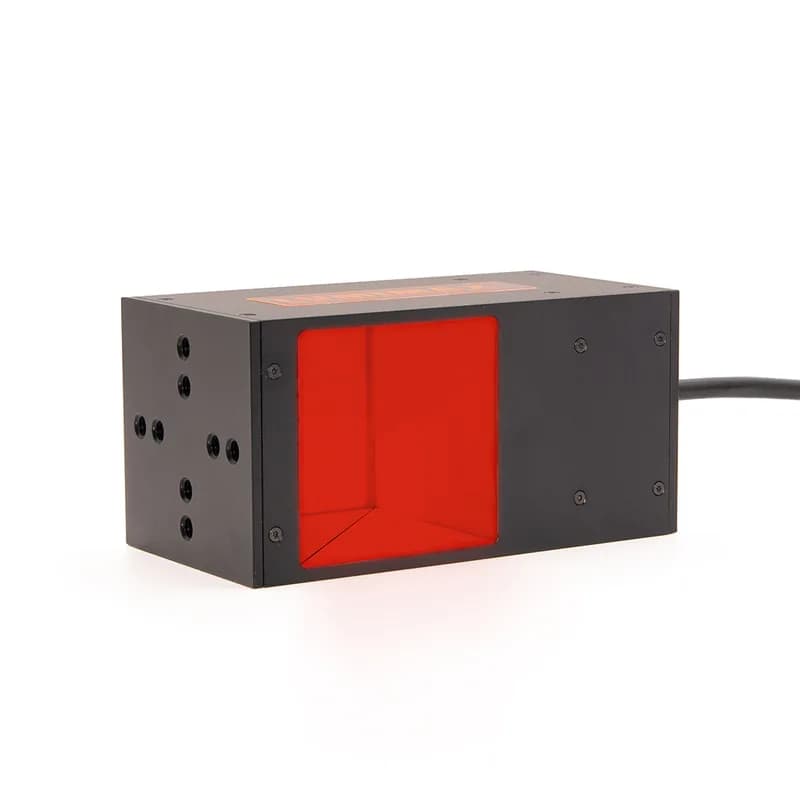

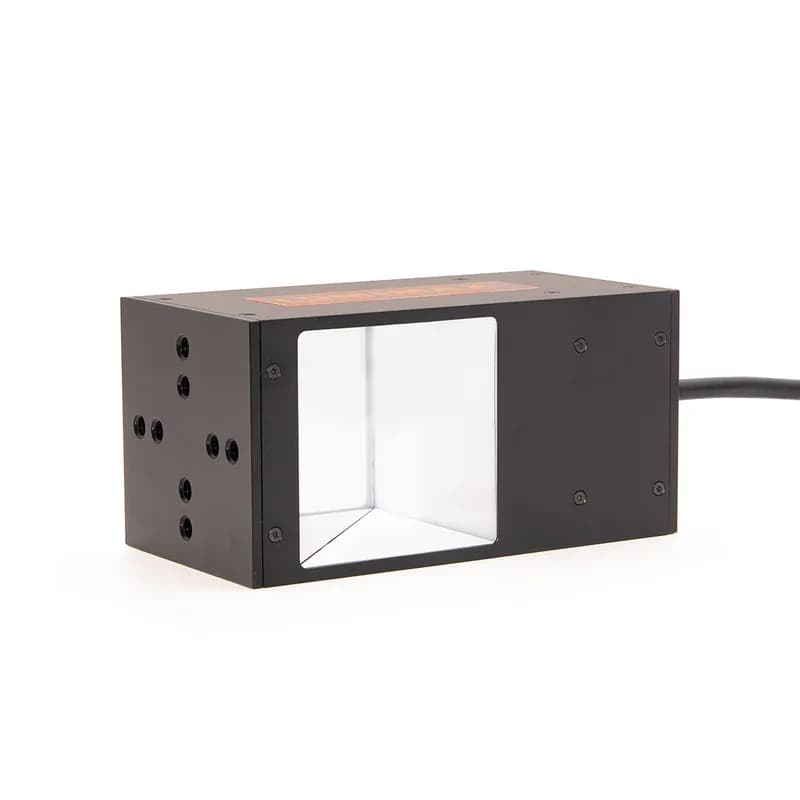

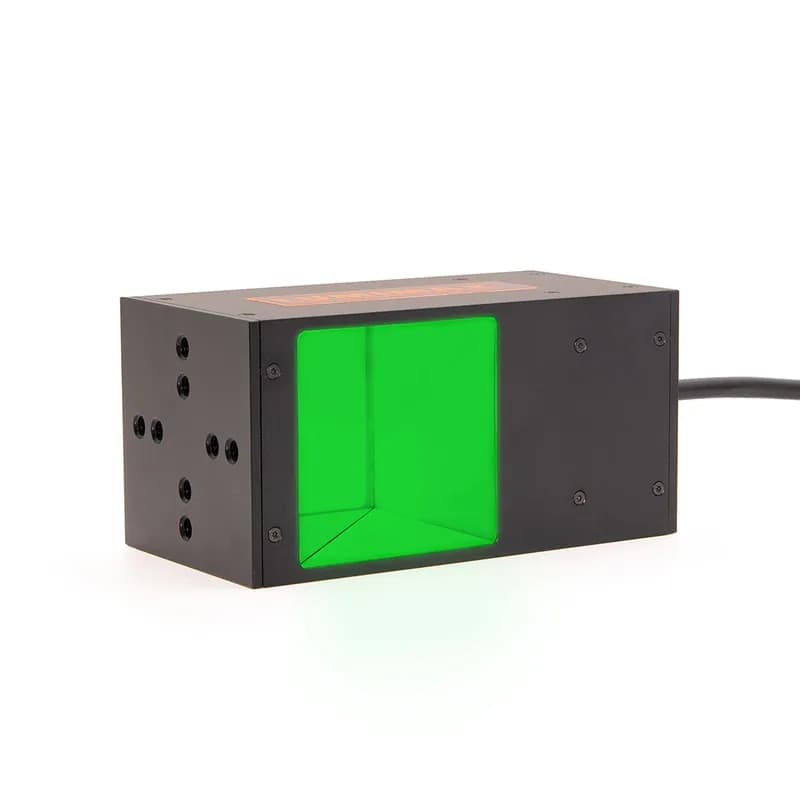

Light colour | wavelength (varies by part number): Blue | 470 nm | Green | 528 nm | Infrared | 850 nm | Red | 625 nm | White | 5100 K
Light guidance (varies by part number): Collimated, coaxially mirrored | Diffuse, coaxially mirrored | Diffuse, coaxially mirrored # polarisationfilter mounted
Power-LED (varies by part number): 36 High Power LEDs | 9 High Power LEDs
Illuminance at 0 mm: continuous 24119–46536.1 lx · strobe 639486–1000316 lx
Illuminance at 50 mm: continuous 8176–22649.6 lx · strobe 311244–581381 lx
Illuminance at 100 mm: continuous 2889–9191.9 lx · strobe 124445–244084 lx
Illuminance at 200 mm: continuous 824.8–2768.4 lx · strobe 35528.6–84070.2 lx
Irradiance at 0 mm: continuous 74.1–139.1 W/m² · strobe 505–3570.9 W/m²
Irradiance at 50 mm: continuous 39.2–67.4 W/m² · strobe 244.7–1822.1 W/m²
Irradiance at 100 mm: continuous 15–27.2 W/m² · strobe 98.7–698 W/m²
Irradiance at 200 mm: continuous 4.3–8.2 W/m² · strobe 29.7–239.8 W/m²
