LUMIMAX · BACKLIGHTS

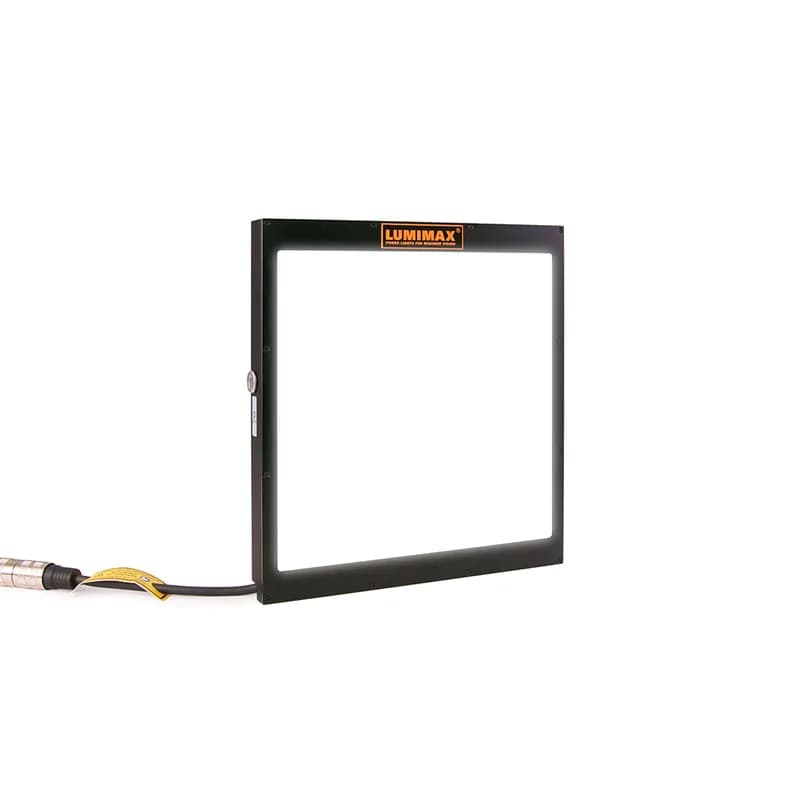

LG2020-BK-V02 Area Light
LMX-LG2020-BK-V02Compact LightGuide area light in fixed sizes for small and medium FOVs - 200×200mm light area, IP64.
- Light colour | wavelength
- 470 to 850 nm, white
- Light field size
- 200 x 200
- Maximum current consumption
- 2 modes
About the LMX-LG2020-BK-V02
Introduction

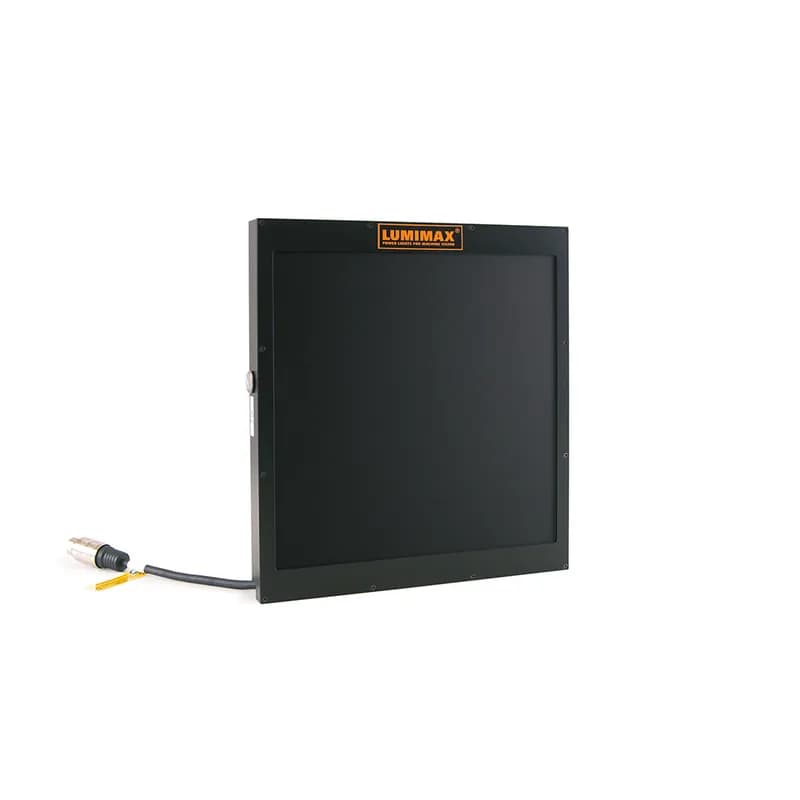

Black when it is off. That is the whole of it, and it is not cosmetic.
A backlight sits behind the part, which means it sits in the camera's field of view. A pale emitting face reflects whatever else is in the cell — the part's own edges, the ambient, the fixture — and that reflection lands in the frame alongside the silhouette you came for. This one does not.
What the black face costs
It is a real trade, and the numbers say how much.
Roughly a quarter of the light, for a face that does not reflect. In strobe it runs 55,449 – 448,534 lx at the window and 25,589 – 230,361 lx at 100 mm.
Whether that is worth it is a question about your scene, not about the panel: if the light never appears in frame, buy the plain one.
Timing
100 % brightness within 8 µs in strobe, 200 µs in switching mode, with the first pulse after initial operation delayed by 3 ms.
Applications
Silhouette inspection where the panel is in frame — object gauging, edge detection, hole detection, presence and absence, part location and orientation.
Where it fits
The BK builds exist at every LG size. LG2020-V02 is this panel with the standard pale face and about four times the output.
Specifications
Operation
- Operating mode (varies by part number)
- Continuous and switching mode | Strobe mode
- controller (varies by part number)
- Integrierter lightscontroller | Integrierter strobe controller
Environment
- Ingress protection
- IP64
- Allowed ambient temperature
- 5 to 45 °C, non-condensing
- Operating temperature at 21°C (varies by part number)
- 37, 40, 41, 42 °C
- Risk Group
- 0

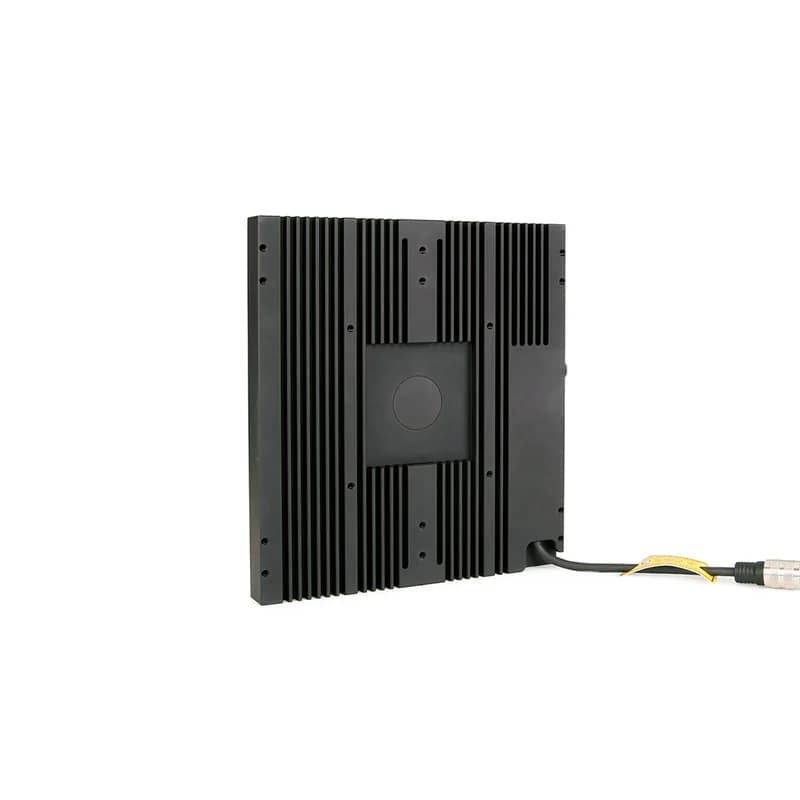

Mechanical
- Dimensions (l x w x h in mm)
- 240 x 222 x 25
- Material housing | window
- Aluminium, anodised | PMMA
Electrical
- Operating voltage
- 19 to 30 V DC wide-range voltage input
- Maximum current consumption (by operating mode)
- continuous 1.1, 1.2, 1.3 A · strobe 0.9, 1, 1.1, 1.2 A
- Maximum electrical power at light field (by operating mode)
- continuous 23, 25, 26, 27 W · strobe 1686–2327 W
- Electrical connection
- 150 mm connection cable with M16 12-pin plug
- Brightness control via potentiometer
- 0 % (left stop) to 100 % (right stop) brightness # Note: automatic deactivation at VC > 1 V DC
- Brightness control via analogue VC input (varies by part number)
- VC = 2 to 10 V DC (0 % to 100 % brightness) # Note: Turn potentiometer to left stop | VC = 2 to 10 V DC (10 % to 100 % brightness) # Note: Turn potentiometer to left stop
- Maximum pulse current (varies by part number)
- 1.5 A for 16 ms | 1.5 A for 18 ms | 1.5 A for 54 ms | 1.5 A for 60 ms | 1.5 A for 7 ms | 1.5 A for 8 ms | 2.1 A for 38 ms | 2.1 A for 4 ms | (+1 more)
- TTL-Trigger
- High level = 3 to 30 V DC
- SPS-Trigger
- High level = 15 to 30 V DC
- Trigger slope
- Rising slope
- Switch-on delay
- 100 % brightness within a maximum of 8 µs
- Flash duration 1 (varies by part number)
- Von 10 bis 100 µs | Von 20 bis 220 µs | Von 50 bis 750 µs
- Flash frequency (varies by part number)
- 10, 35, 100 Hz
- TTL switching input
- High level = 3 to 30 V DC
- PLC switching input
- High level = 15 to 30 V DC
- Switching mode
- Switching time follows the switching signal # Connect + ON / OFF and GND ON / OFF
- Continuous mode
- Assign + ON / OFF permanently with high signal, e. g. by applying to operating voltage # Connect GND ON / OFF
- Switch-on delay_switching
- 100 % brightness within a maximum of 200 µs # (first pulse delay after initial operation 3 ms)
Optical
- Light field size (l x w in mm)
- 200 x 200
- Light colour | wavelength (varies by part number)

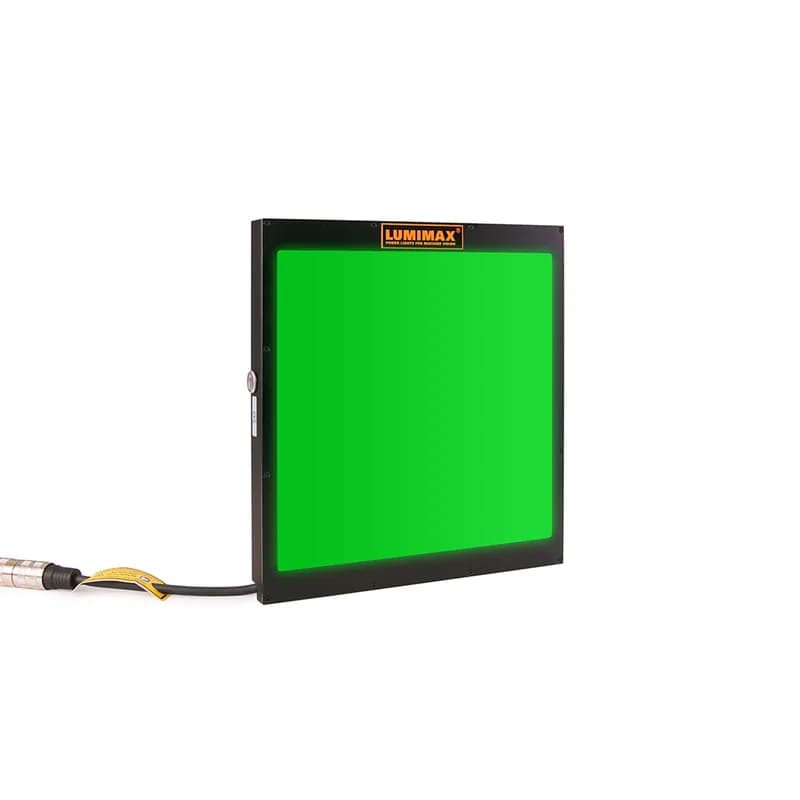

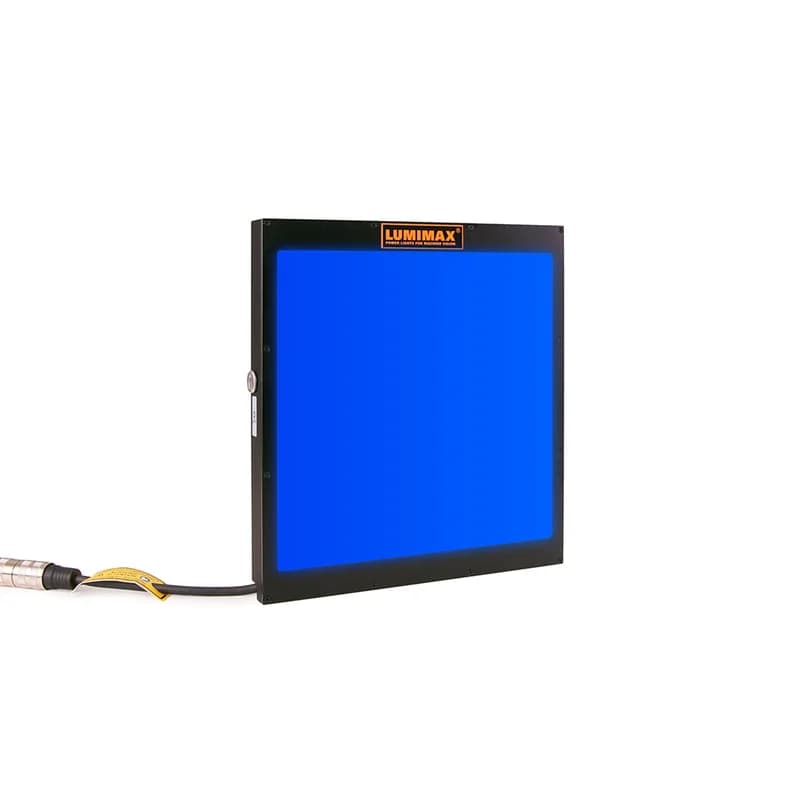

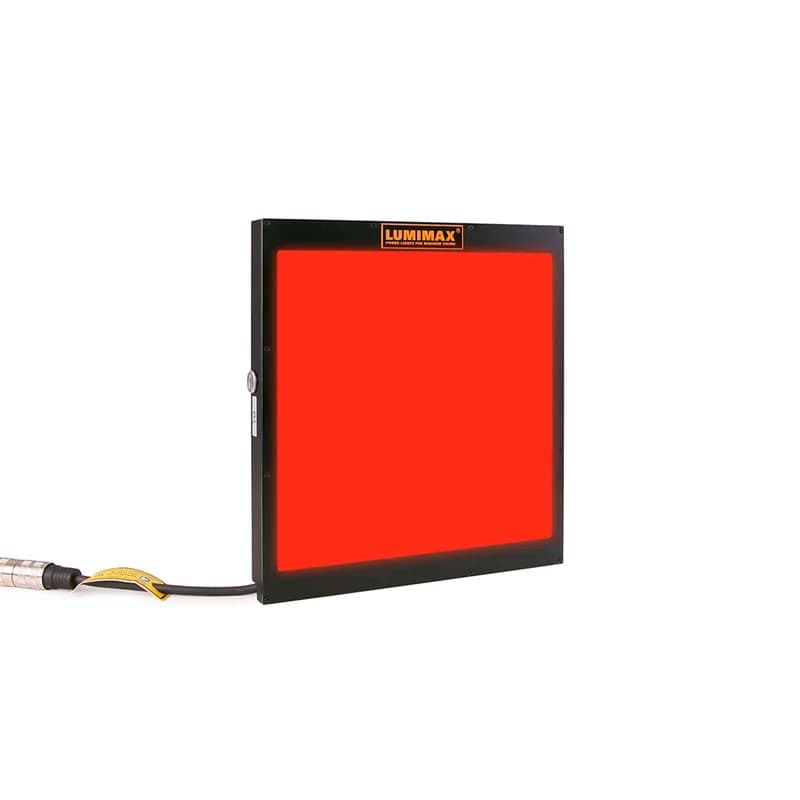

- Blue | 470 nm | Green | 528 nm | Infrared | 850 nm | Red | 625 nm | White | 5400 K
- Light guidance
- Diffused backlight # Black, low-reflecting light area when switched off
- Power-LED
- High Power LEDs and LightGuide
- Illuminance at 0 mm
- continuous 2493–20168 lx · strobe 55449–448534 lx
- Illuminance at 100 mm
- continuous 1151–10358 lx · strobe 25589–230361 lx
- Illuminance at 200 mm
- continuous 517–4671 lx · strobe 11508–103870 lx
- Illuminance at 500 mm
- continuous 362–975 lx · strobe 8049–21685 lx
- Irradiance at 0 mm
- continuous 26–214.4 W/m² · strobe 578.4–4767.5 W/m²
- Irradiance at 100 mm
- continuous 12.7–105.7 W/m² · strobe 283.1–2350.6 W/m²
- Irradiance at 200 mm
- continuous 5.8–48 W/m² · strobe 32.1–1067.5 W/m²
- Irradiance at 500 mm
- continuous 1.2–10.2 W/m² · strobe 27.1–226.3 W/m²
General
- Country of origin
- Federal Republic of Germany
- Weight (kg)
- 1.57
