LG2020-V02 Area Light

LMX-LG2020-V02

Compact LightGuide area light in fixed sizes for small and medium FOVs - 200×200mm light area, IP64.

Light colour | wavelength: 470 to 850 nm, white
Light field size: 200 x 200
Light guidance: 2 variants

Overview

About the LMX-LG2020-V02

Introduction

A LightGuide panel: the LEDs sit at the edge and a guide carries their output across the full 200 × 200 mm face. That is what makes the panel 22 mm thick with no hot spots on it.

It works as incident light and as transmitted light — the same panel above the part or behind it, which is unusual and is the reason to specify one.

Collimated or diffuse

Collimated keeps the rays parallel. Behind a part that gives a hard silhouette edge with no light creeping round it, so a gauging measurement is repeatable rather than dependent on how far the part sits from the panel.

Highly diffuse spreads the output. As transmitted light it is the softer, more forgiving option; as incident light it is what a textured or curved surface needs.

What it puts out

Those ranges span the guidance and the colours together — a collimated white and a diffuse infrared are both in there. Read the figure for the part number.

Timing

100 % brightness within 8 µs in strobe, 200 µs in switching mode. Note that the first pulse after initial operation is delayed by 3 ms — build that into the sequence rather than discovering it on the first part of a run.

The face is pale when it is off

The light area of this build is light-coloured when switched off, so it reflects. Where the panel sits in the camera's field of view — behind a part, in frame — that reflection becomes part of the image.

LG2020-BK-V02 is the same panel with a black, low-reflecting face for exactly that case.

Applications

Silhouette and edge detection, object gauging, presence and absence, hole detection, part location and orientation — and, as incident light, general area illumination at short working distances.

Where it fits

The largest of the three of the LG range: LG1010 at 100 × 100 mm, LG1515 at 150 × 150 mm, LG2020 at 200 × 200 mm, with LG3020 and LG4030 above them.

Specifications

Operation

Operating mode (varies by part number): Continuous and switching mode | Strobe mode
controller (varies by part number): Integrierter lightscontroller | Integrierter strobe controller

Environment

Ingress protection: IP64
Allowed ambient temperature: 5 to 45 °C, non-condensing
Operating temperature at 21°C (by operating mode): continuous 46, 48 °C · strobe 37, 40, 41, 42 °C
Risk Group (by operating mode): continuous 0, 1 · strobe 0

Mechanical

Dimensions (l x w x h in mm): 240 x 222 x 22

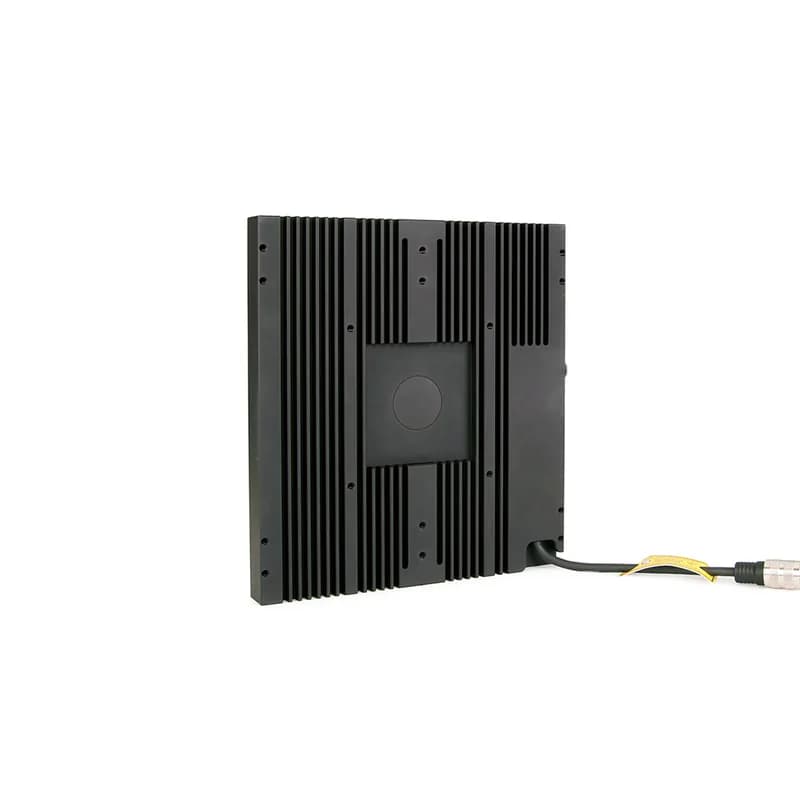

Material housing | window: Aluminium, anodised | PMMA

Electrical

Operating voltage: 19 to 30 V DC wide-range voltage input
Maximum current consumption (by operating mode): continuous 1.3, 1.5, 1.6 A · strobe 0.9, 1, 1.1, 1.2 A
Maximum electrical power at light field (by operating mode): continuous 29, 30, 31, 33 W · strobe 1686–2327 W
Electrical connection: 150 mm connection cable with M16 12-pin plug
Brightness control via potentiometer: 0 % (left stop) to 100 % (right stop) brightness # Note: automatic deactivation at VC > 1 V DC
Brightness control via analogue VC input (varies by part number): VC = 2 to 10 V DC (0 % to 100 % brightness) # Note: Turn potentiometer to left stop | VC = 2 to 10 V DC (10 % to 100 % brightness) # Note: Turn potentiometer to left stop
Maximum pulse current (varies by part number): 1.5 A for 16 ms | 1.5 A for 18 ms | 1.5 A for 54 ms | 1.5 A for 60 ms | 1.5 A for 7 ms | 1.5 A for 8 ms | 2.1 A for 38 ms | 2.1 A for 4 ms | (+1 more)
TTL-Trigger: High level = 3 to 30 V DC
SPS-Trigger: High level = 15 to 30 V DC
Trigger slope: Rising slope
Switch-on delay: 100 % brightness within a maximum of 8 µs
Flash duration 1 (varies by part number): Von 10 bis 100 µs | Von 20 bis 220 µs | Von 50 bis 750 µs
Flash frequency (varies by part number): 10, 35, 100 Hz
TTL switching input: High level = 3 to 30 V DC
PLC switching input: High level = 15 to 30 V DC
Switching mode: Switching time follows the switching signal # Connect + ON / OFF and GND ON / OFF
Continuous mode: Assign + ON / OFF permanently with high signal, e. g. by applying to operating voltage # Connect GND ON / OFF
Switch-on delay_switching: 100 % brightness within a maximum of 200 µs # (first pulse delay after initial operation 3 ms)

Optical

Light field size (l x w in mm): 200 x 200

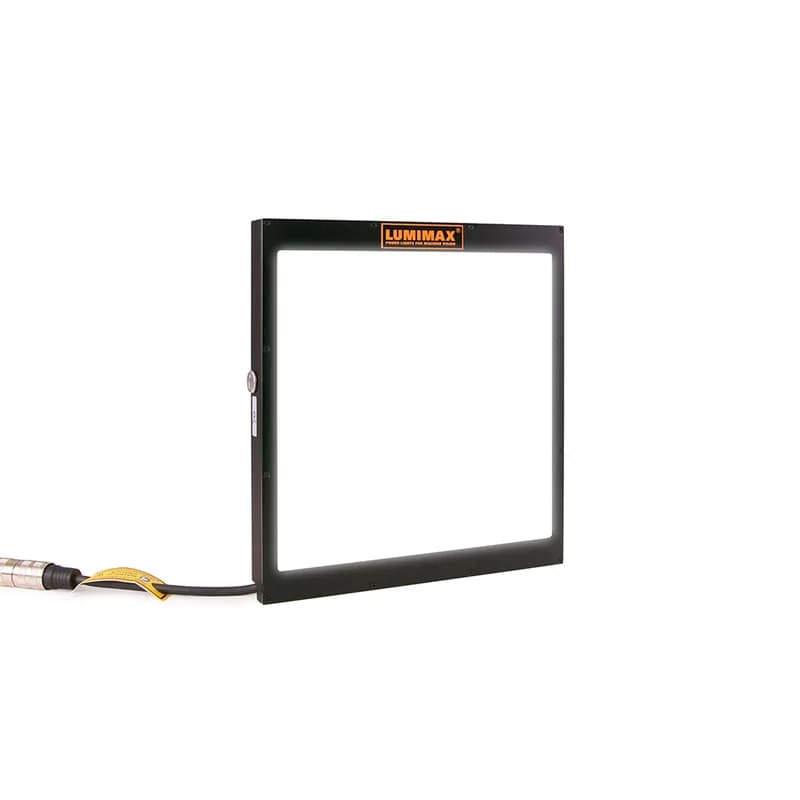

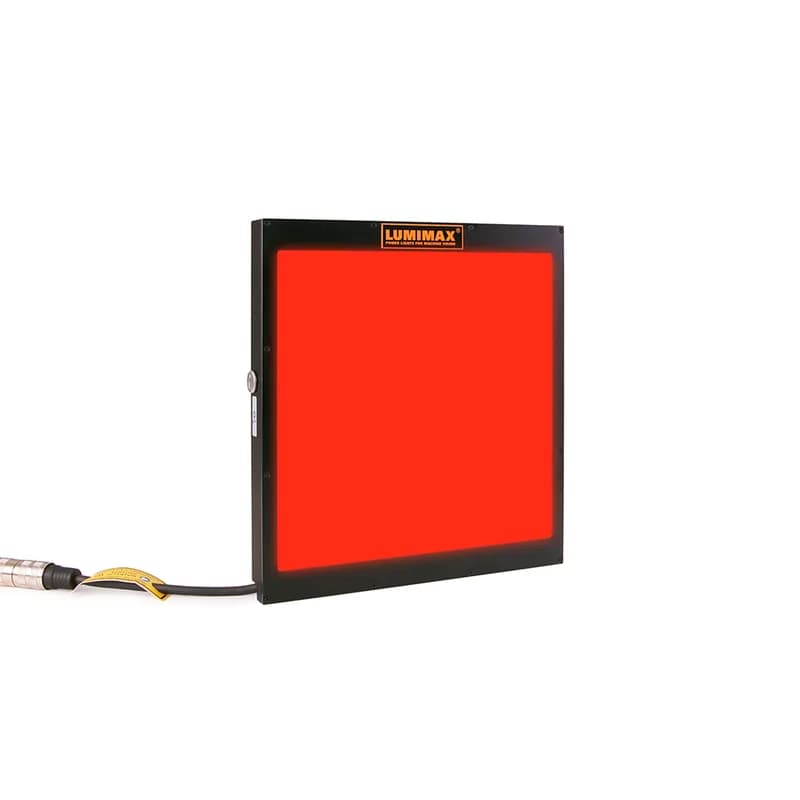

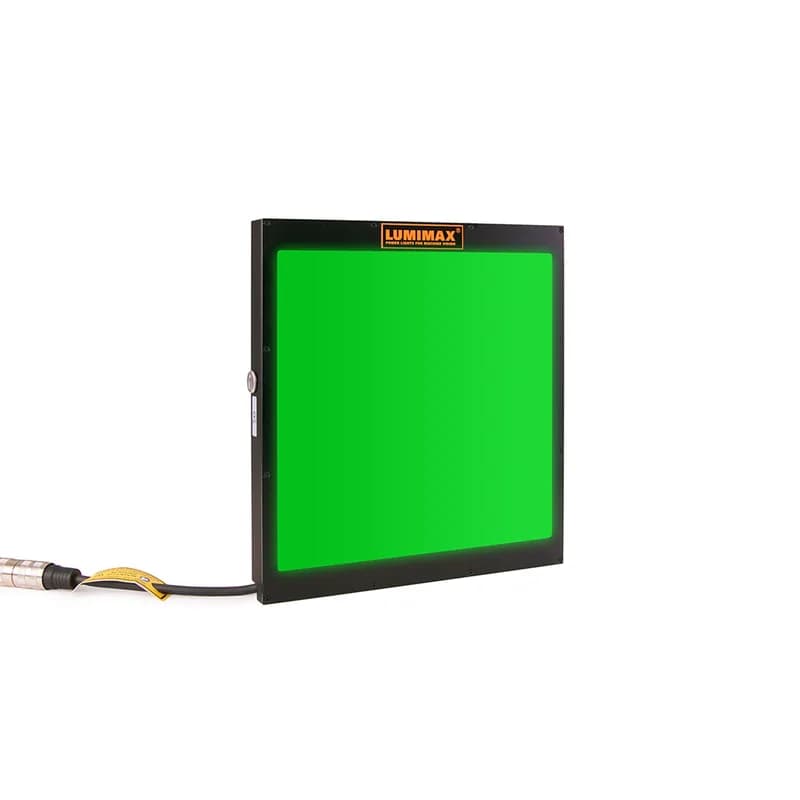

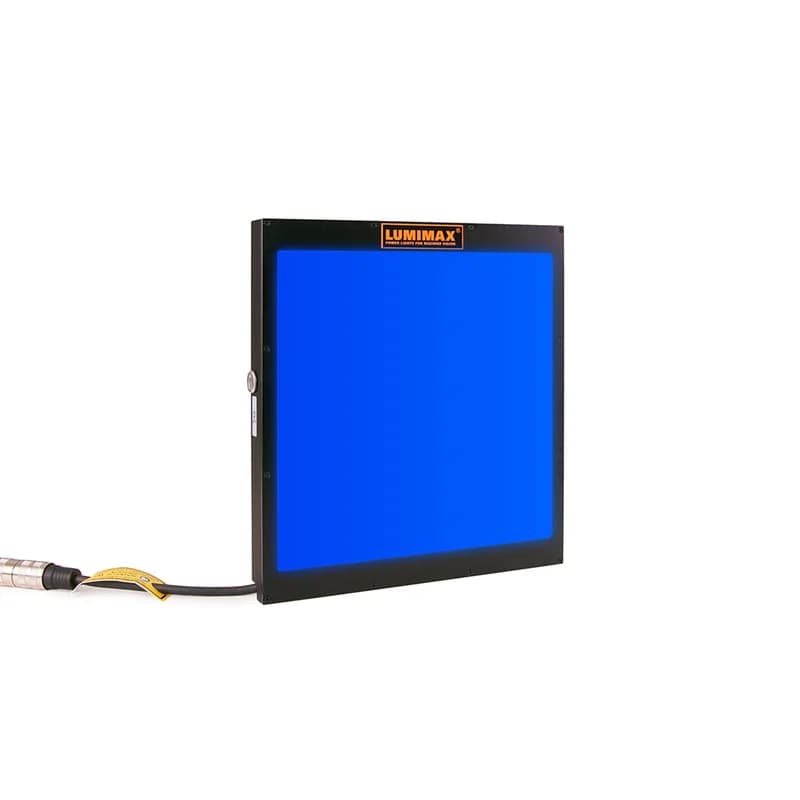

Light colour | wavelength (varies by part number): Blue | 470 nm | Green | 528 nm | Infrared | 850 nm | Red | 625 nm | White | 5200 K | White | 5500 K
Light guidance (varies by part number): Highly diffuse, can be used as transmitted light | Homogeneous, collimated, can be used as incident and transmitted light
Power-LED: High Power LEDs and LightGuide
Illuminance at 0 mm: continuous 14178–78808 lx · strobe 252250–1262977 lx
Illuminance at 100 mm: continuous 9975–43112 lx · strobe 177472–767034 lx
Illuminance at 200 mm: continuous 4486–32413 lx · strobe 79813.4–576681 lx
Illuminance at 500 mm: continuous 2062–10045 lx · strobe 36686–178717 lx
Irradiance at 0 mm: continuous 104–279.9 W/m² · strobe 1850.3–4979.9 W/m²
Irradiance at 100 mm: continuous 70–138.7 W/m² · strobe 1245.4–2467.7 W/m²
Irradiance at 200 mm: continuous 31.7–104.2 W/m² · strobe 564–1853.9 W/m²
Irradiance at 500 mm: continuous 6.7–33.2 W/m² · strobe 119.2–590.7 W/m²
