LUMIMAX · BACKLIGHTS
LG3020-BK-V02 Area Light
LMX-LG3020-BK-V02Compact LightGuide area light in fixed sizes for small and medium FOVs - 300×200mm light area, IP64.
- Light colour | wavelength
- 470 to 850 nm, white
- Light field size
- 300 x 200
- Maximum current consumption
- 2 modes
About the LMX-LG3020-BK-V02
Introduction

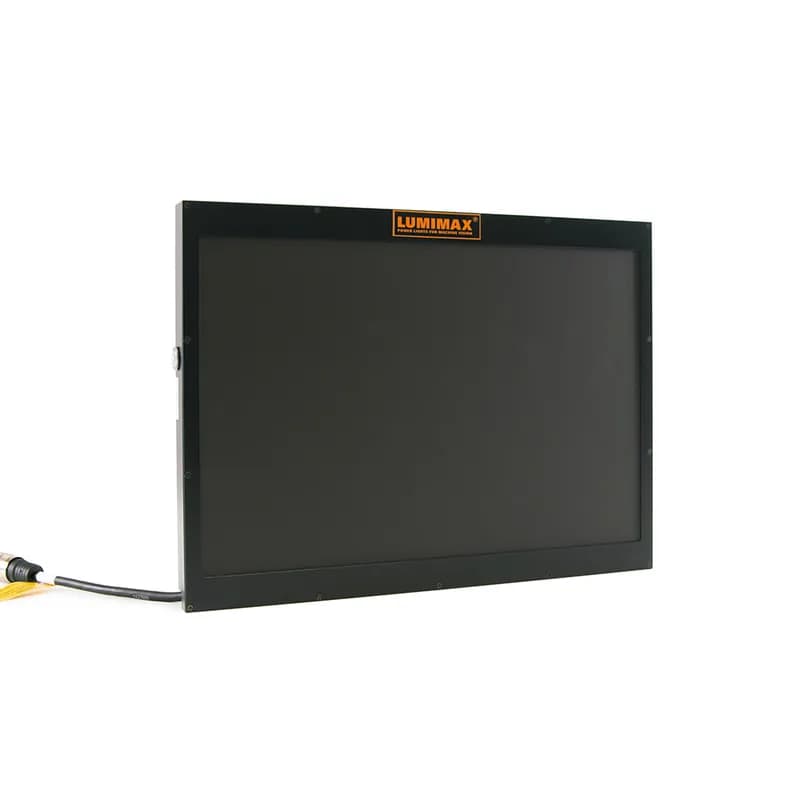

300 × 200 mm of backlight that is black when it is off.
The larger the panel, the more of the frame it occupies — and a large pale surface behind the part reflects the whole cell back into the image. At this size that stops being a refinement and starts being the difference between a usable silhouette and a cluttered one.
What the black face costs
Between a quarter and a fifth of the light, for a face that does not reflect. In strobe it runs 173,072 – 465,648 lx at the window and 90,163 – 248,140 lx at 100 mm.
If the panel never appears in frame, buy the plain build and keep the output.
Mounting and heat
2.2 kg across 322 × 240 × 25 mm, finned and unfanned, ambient limit 45 °C. Support it along its length rather than at two corners.
Timing
100 % brightness within 8 µs in strobe, 200 µs in switching mode, with the first pulse after initial operation delayed by 3 ms.
Applications
Large-format silhouette inspection where the panel is in frame — object gauging, edge detection, hole detection, presence and absence.
Where it fits
LG4030 at 400 × 300 mm is the only larger one; LG2020 at 200 × 200 mm is below it. LG3020-V02 is this panel with the standard pale face and four to five times the output.
Specifications
Operation
- Operating mode (varies by part number)
- Continuous and switching mode | Strobe mode
- controller (varies by part number)
- Integrierter lightscontroller | Integrierter strobe controller
Environment
- Ingress protection
- IP64
- Allowed ambient temperature
- 5 to 45 °C, non-condensing
- Operating temperature at 21°C (varies by part number)
- 37, 40, 41, 42 °C
- Risk Group
- 0
Mechanical
- Dimensions (l x w x h in mm)
- 322 x 240 x 25
- Material housing | window
- Aluminium, anodised | PMMA
Electrical
- Operating voltage
- 19 to 30 V DC wide-range voltage input
- Maximum current consumption (by operating mode)
- continuous 2.2, 2.3 A · strobe 1.2, 1.5, 1.7, 1.9 A
- Maximum electrical power at light field (by operating mode)
- continuous 41, 45, 47 W · strobe 2520–3239 W
- Electrical connection
- 150 mm connection cable with M16 12-pin plug
- Brightness control via potentiometer
- 0 % (left stop) to 100 % (right stop) brightness # Note: automatic deactivation at VC > 1 V DC
- Brightness control via analogue VC input (varies by part number)
- VC = 2 to 10 V DC (0 % to 100 % brightness) # Note: Turn potentiometer to left stop | VC = 2 to 10 V DC (10 % to 100 % brightness) # Note: Turn potentiometer to left stop
- Maximum pulse current (varies by part number)
- 2 A for 11 ms | 2 A for 13 ms | 2 A for 15 ms | 2 A for 38 ms | 2 A for 45 ms | 2 A for 5 ms | 2 A for 51 ms | 2 A for 6 ms | (+1 more)
- TTL-Trigger
- High level = 3 to 30 V DC
- SPS-Trigger
- High level = 15 to 30 V DC
- Trigger slope
- Rising slope
- Switch-on delay
- 100 % brightness within a maximum of 8 µs
- Flash duration 1 (varies by part number)
- Von 10 bis 100 µs | Von 20 bis 220 µs | Von 50 bis 750 µs
- Flash frequency (varies by part number)
- 10, 35, 100 Hz
- TTL switching input
- High level = 3 to 30 V DC
- PLC switching input
- High level = 15 to 30 V DC
- Switching mode
- Switching time follows the switching signal # Connect + ON / OFF and GND ON / OFF
- Continuous mode
- Assign + ON / OFF permanently with high signal, e. g. by applying to operating voltage # Connect GND ON / OFF
- Switch-on delay_switching
- 100 % brightness within a maximum of 200 µs # (first pulse delay after initial operation 3 ms)
Optical
- Light field size (l x w in mm)
- 300 x 200
- Light colour | wavelength (varies by part number)

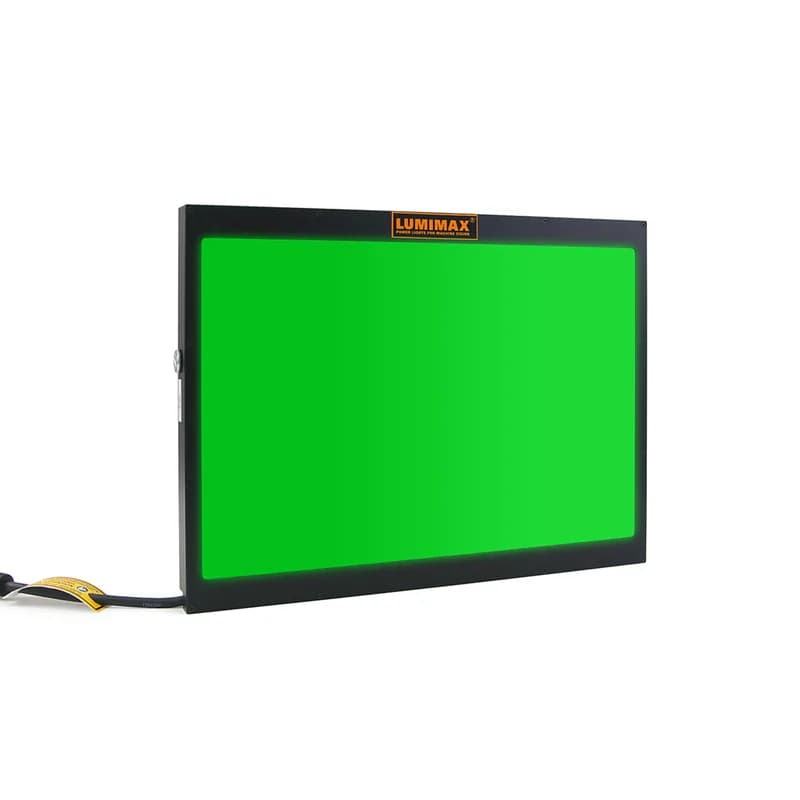

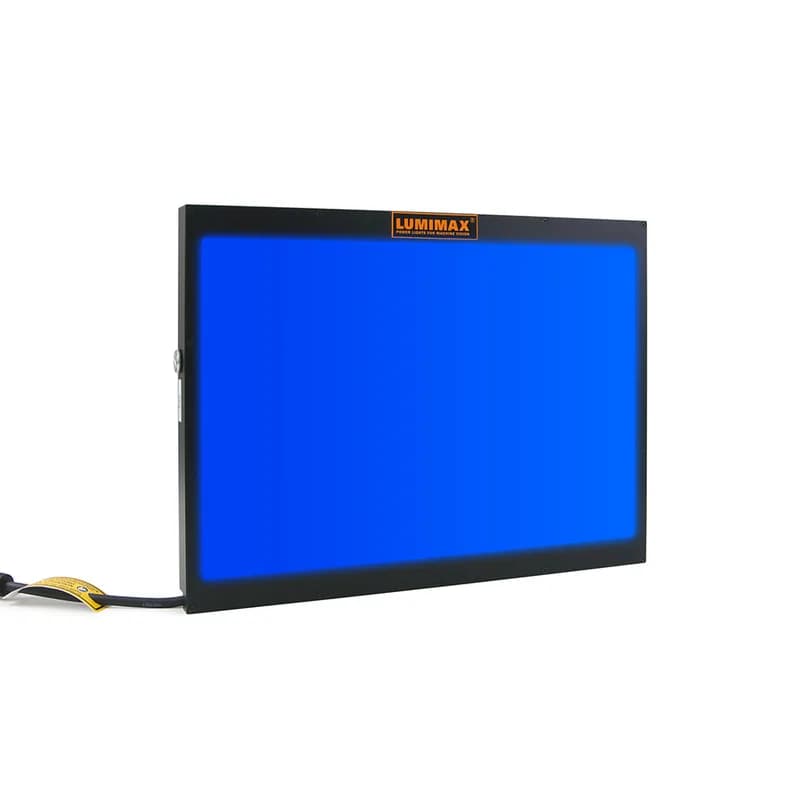

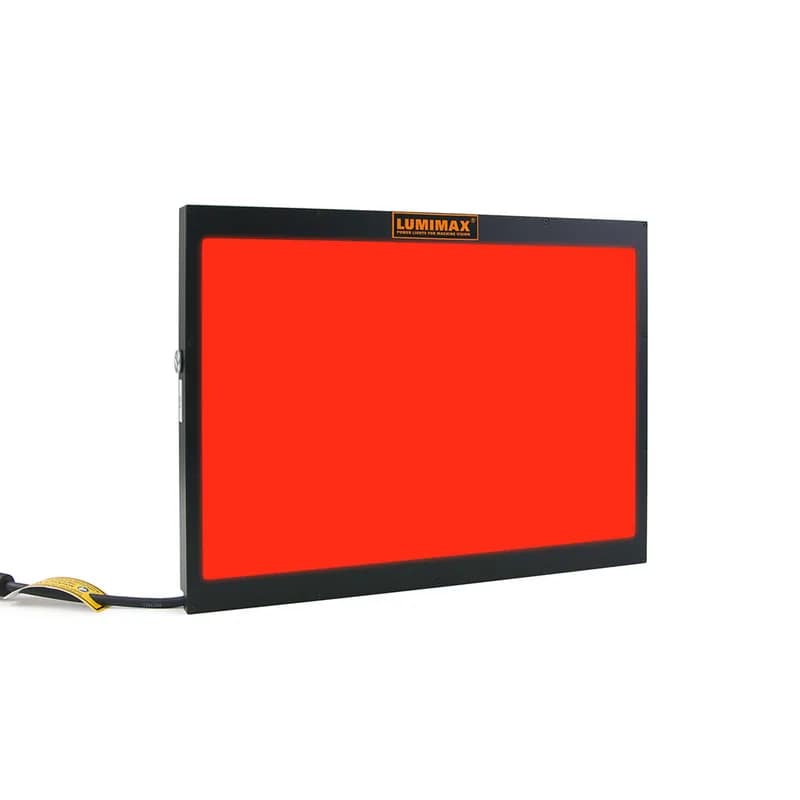

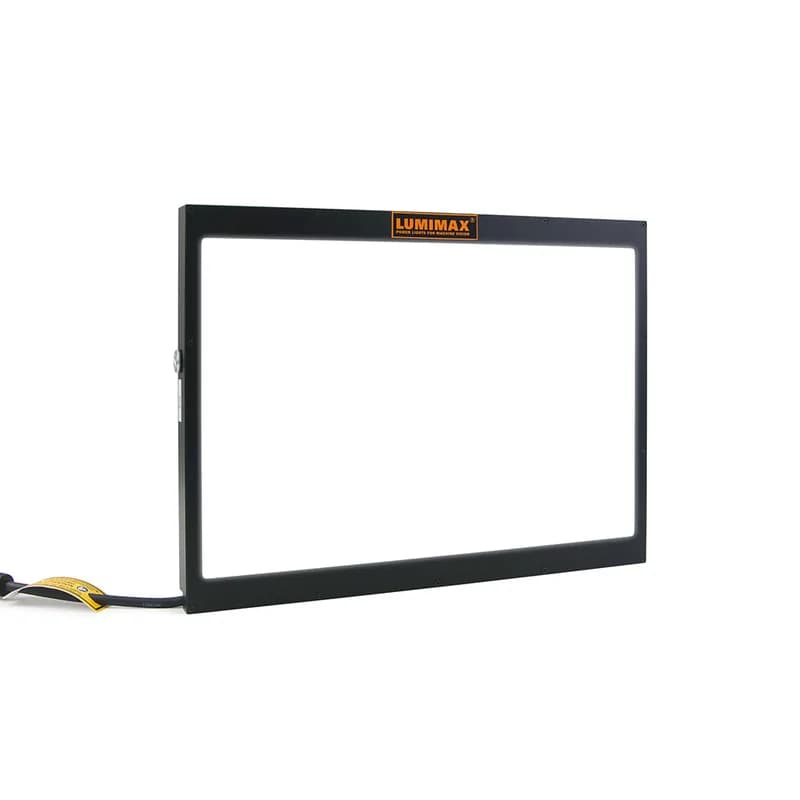

- Blue | 470 nm | Green | 528 nm | Infrared | 850 nm | Red | 625 nm | White | 5400 K
- Light guidance
- Diffused backlight # Black, low-reflecting light area when switched off
- Power-LED
- High Power LEDs and LightGuide
- Illuminance at 0 mm
- continuous 10919–29377 lx · strobe 173072–465648 lx
- Illuminance at 100 mm
- continuous 5688–15655 lx · strobe 90163–248140 lx
- Illuminance at 200 mm
- continuous 2938–7971 lx · strobe 46568–126349 lx
- Illuminance at 500 mm
- continuous 685–1846 lx · strobe 10862–29263 lx
- Irradiance at 0 mm
- continuous 37.2–312.3 W/m² · strobe 589.5–4949.8 W/m²
- Irradiance at 100 mm
- continuous 19.6–159.8 W/m² · strobe 310.1–2532.3 W/m²
- Irradiance at 200 mm
- continuous 9.9–82 W/m² · strobe 157.7–1299.6 W/m²
- Irradiance at 500 mm
- continuous 2.3–19.4 W/m² · strobe 36.5–306.8 W/m²
General
- Country of origin
- Federal Republic of Germany
- Weight (kg)
- 2.2
