LG4030-BK-V02 Area Light

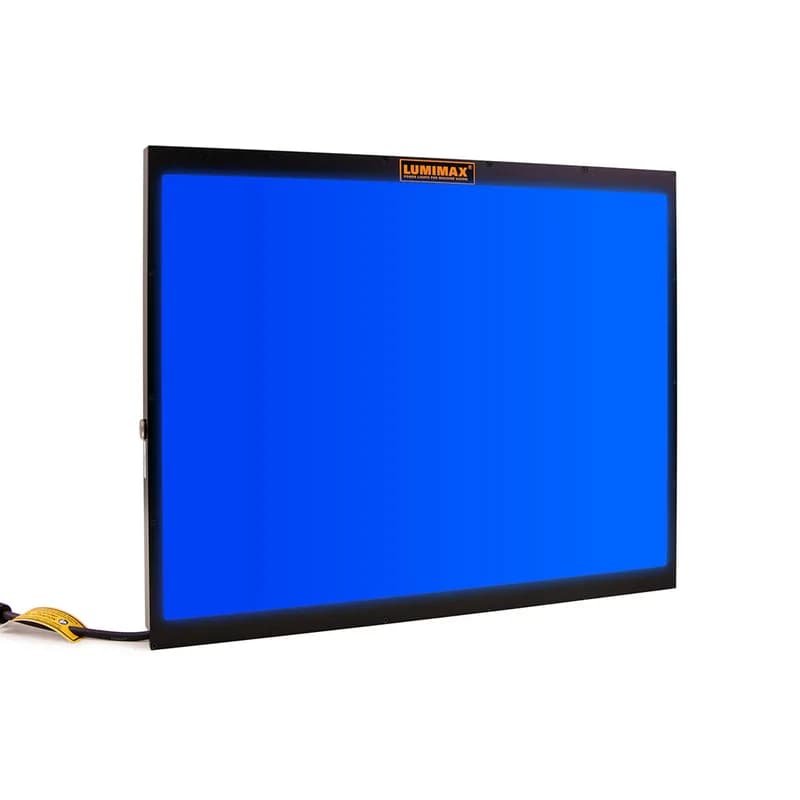

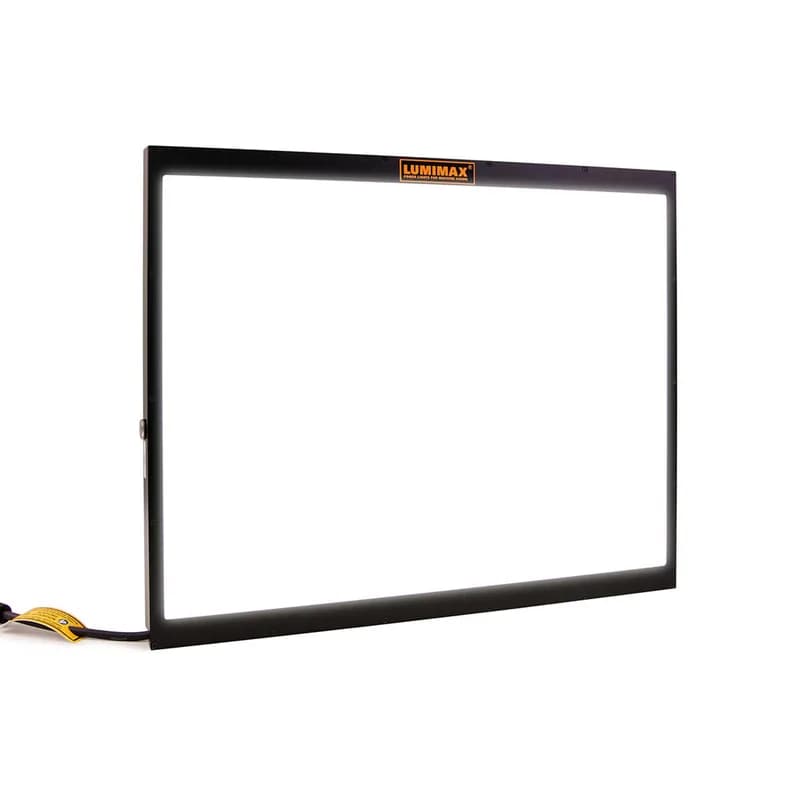

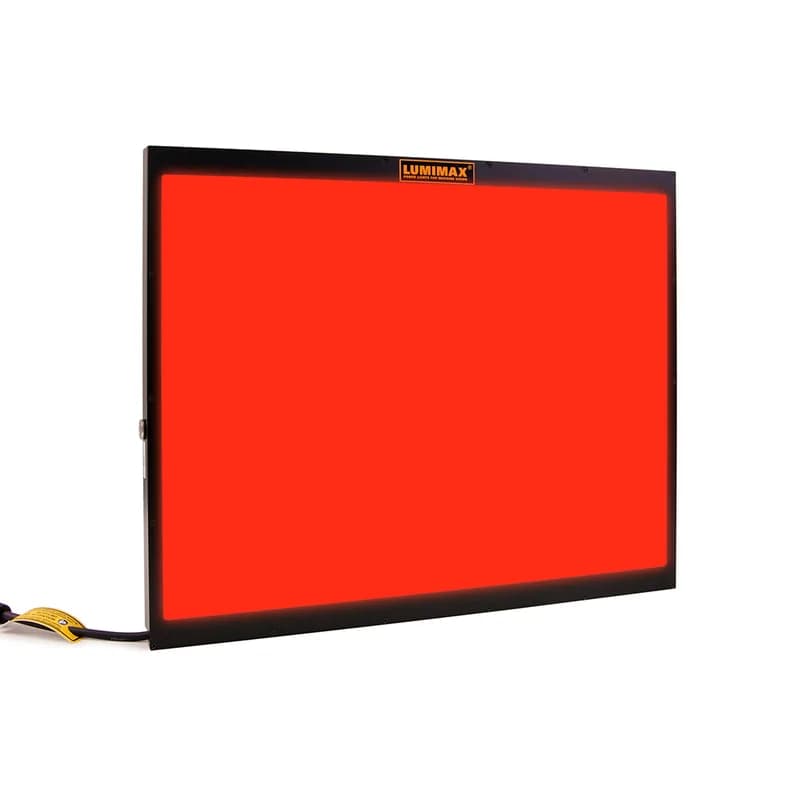

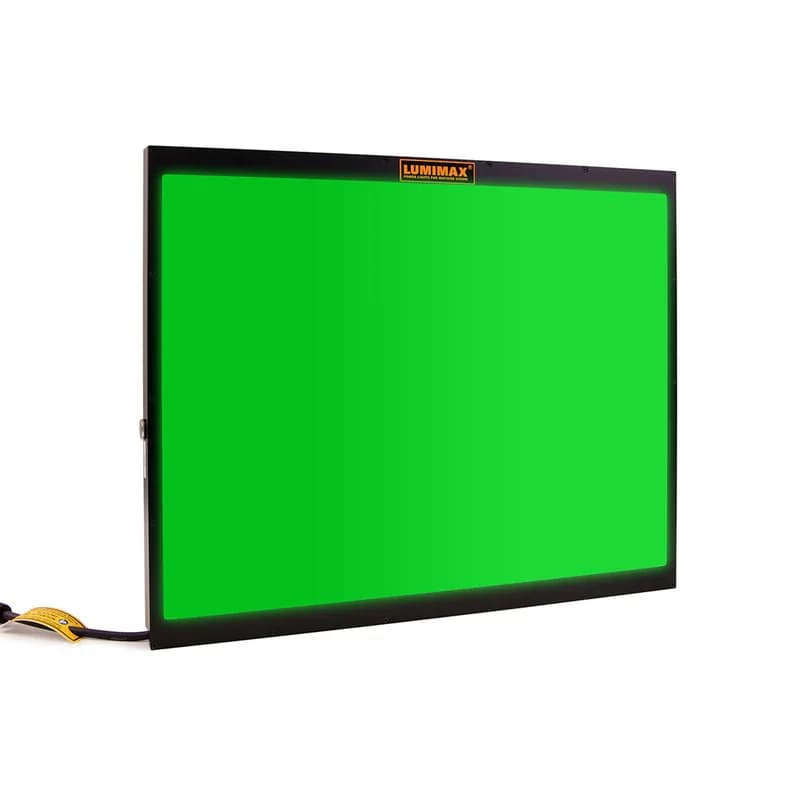

LMX-LG4030-BK-V02Compact LightGuide area light in fixed sizes for small and medium FOVs - 400×300mm light area, IP64.
- Light colour | wavelength
- 470 to 850 nm, white
- Light field size
- 400 x 300
- Maximum current consumption
- 2 modes
About the LMX-LG4030-BK-V02
Introduction

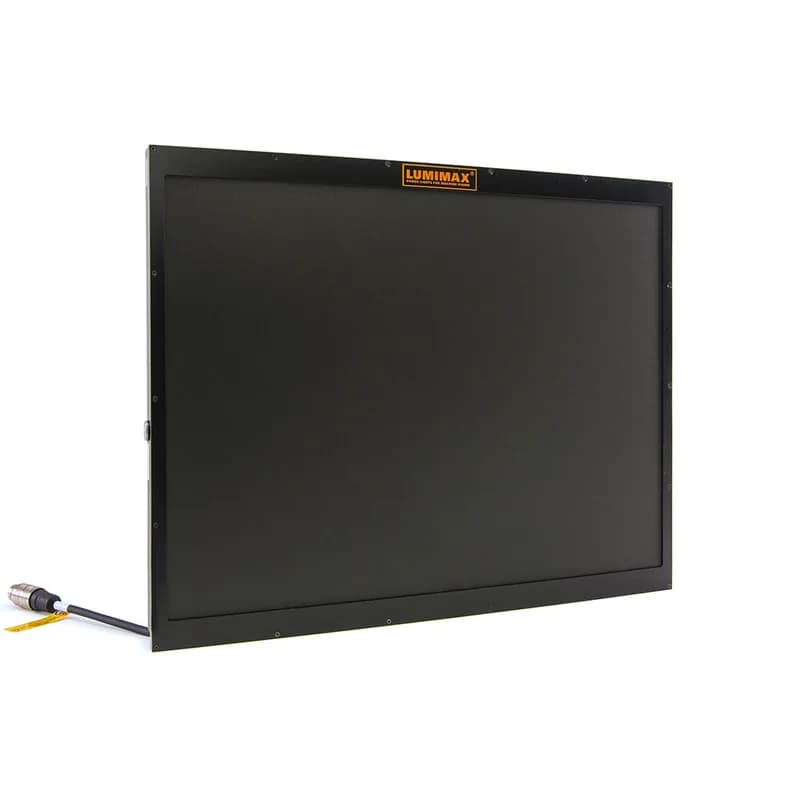

400 × 300 mm of backlight that is black when it is off.
The larger the panel, the more of the frame it occupies — and a large pale surface behind the part reflects the whole cell back into the image. At this size that stops being a refinement and starts being the difference between a usable silhouette and a cluttered one.
What the black face costs
Between a quarter and a fifth of the light, for a face that does not reflect. In strobe it runs 92,372 – 310,656 lx at the window and 57,906 – 199,205 lx at 100 mm.
If the panel never appears in frame, buy the plain build and keep the output.
Mounting and heat
3.9 kg across 422 × 340 × 25 mm, finned and unfanned, ambient limit 45 °C. Support it along its length rather than at two corners.
Timing
100 % brightness within 8 µs in strobe, 200 µs in switching mode, with the first pulse after initial operation delayed by 3 ms.
Applications
Large-format silhouette inspection where the panel is in frame — object gauging, edge detection, hole detection, presence and absence.
Where it fits
The largest LG made. LG3020 at 300 × 200 mm is the next size down. LG4030-V02 is this panel with the standard pale face and four to five times the output.
Specifications
Operation
- Operating mode (varies by part number)
- Continuous and switching mode | Strobe mode
- controller (varies by part number)
- Integrierter lightscontroller | Integrierter strobe controller
Environment
- Ingress protection
- IP64
- Allowed ambient temperature
- 5 to 45 °C, non-condensing
- Operating temperature at 21°C (by operating mode)
- continuous 52 °C · strobe 38–45 °C
- Risk Group (by operating mode)
- continuous 0, 1 · strobe 0
Mechanical
- Dimensions (l x w x h in mm)
- 422 x 340 x 25
- Material housing | window
- Aluminium, anodised | PMMA
Electrical
- Operating voltage
- 19 to 30 V DC wide-range voltage input
- Maximum current consumption (by operating mode)
- continuous 3.2, 3.9 A · strobe 0.8–2.3 A
- Maximum electrical power at light field (by operating mode)
- continuous 57–83 W · strobe 1924–4013 W
- Electrical connection
- 150 mm connection cable with M16 12-pin plug
- Brightness control via potentiometer
- 0 % (left stop) to 100 % (right stop) brightness # Note: automatic deactivation at VC > 1 V DC
- Brightness control via analogue VC input (varies by part number)
- VC = 2 to 10 V DC (0 % to 100 % brightness) # Note: Turn potentiometer to left stop | VC = 2 to 10 V DC (10 % to 100 % brightness) # Note: Turn potentiometer to left stop
- Maximum pulse current (varies by part number)
- 3 A for 11 ms | 3 A for 13 ms | 3 A for 14 ms | 3 A for 24 ms | 3 A for 31 ms | 3 A for 34 ms | 3 A for 4 ms | 3 A for 5 ms | (+3 more)
- TTL-Trigger
- High level = 3 to 30 V DC
- SPS-Trigger
- High level = 15 to 30 V DC
- Trigger slope
- Rising slope
- Switch-on delay
- 100 % brightness within a maximum of 8 µs
- Flash duration 1 (varies by part number)
- Von 10 bis 100 µs | Von 20 bis 220 µs | Von 50 bis 750 µs
- Flash frequency (varies by part number)
- 10, 35, 100 Hz
- TTL switching input
- High level = 3 to 30 V DC
- PLC switching input
- High level = 15 to 30 V DC
- Switching mode
- Switching time follows the switching signal # Connect + ON / OFF and GND ON / OFF
- Continuous mode
- Assign + ON / OFF permanently with high signal, e. g. by applying to operating voltage # Connect GND ON / OFF
- Switch-on delay_switching
- 100 % brightness within a maximum of 200 µs # (first pulse delay after initial operation 3 ms)
Optical
- Light field size (l x w in mm)
- 400 x 300
- Light colour | wavelength (varies by part number)
- Blue | 470 nm | Green | 528 nm | Infrared | 850 nm | Red | 625 nm | White | 5400 K
- Light guidance
- Diffused backlight # Black, low-reflecting light area when switched off
- Power-LED
- High Power LEDs and LightGuide
- Illuminance at 0 mm
- continuous 7833–21074 lx · strobe 92372–310656 lx
- Illuminance at 100 mm
- continuous 4910–13514 lx · strobe 57906–199205 lx
- Illuminance at 200 mm
- continuous 3183–8635 lx · strobe 37531–127286 lx
- Illuminance at 500 mm
- continuous 935–2518 lx · strobe 11023–37120 lx
- Irradiance at 0 mm
- continuous 27.7–232.6 W/m² · strobe 326.7–3429.3 W/m²
- Irradiance at 100 mm
- continuous 17.5–142.8 W/m² · strobe 206.2–2104.6 W/m²
- Irradiance at 200 mm
- continuous 11.1–91.9 W/m² · strobe 131.5–1354.5 W/m²
- Irradiance at 500 mm
- continuous 3.3–27.3 W/m² · strobe 38.4–403 W/m²
General
- Country of origin
- Federal Republic of Germany
- Weight (kg)
- 3.9
Media
