LUMIMAX · BACKLIGHTS

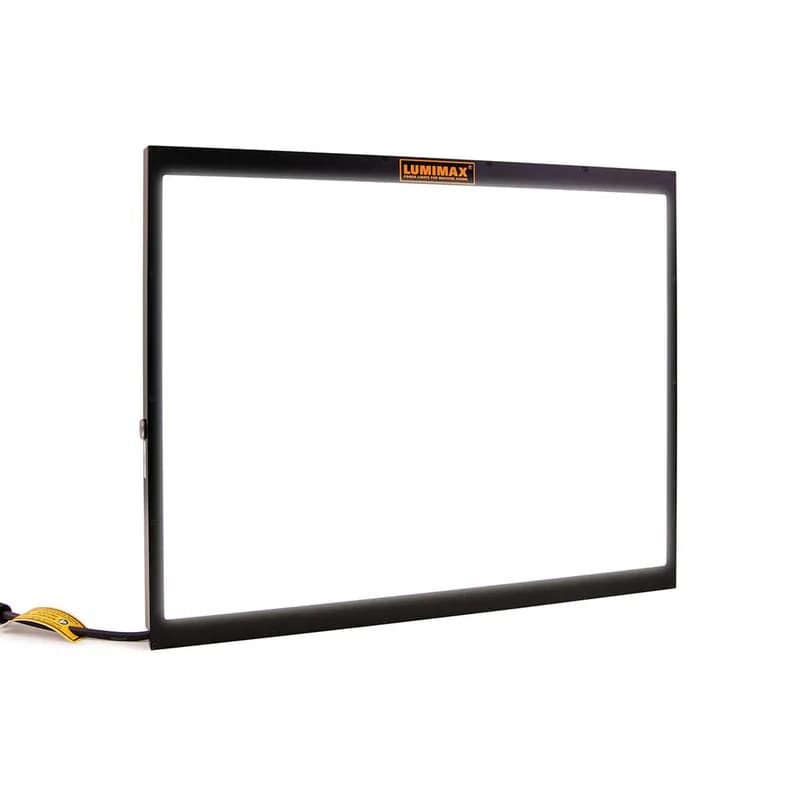

LG4030-V02 Area Light
LMX-LG4030-V02Compact LightGuide area light in fixed sizes for small and medium FOVs - 400×300mm light area, IP64.

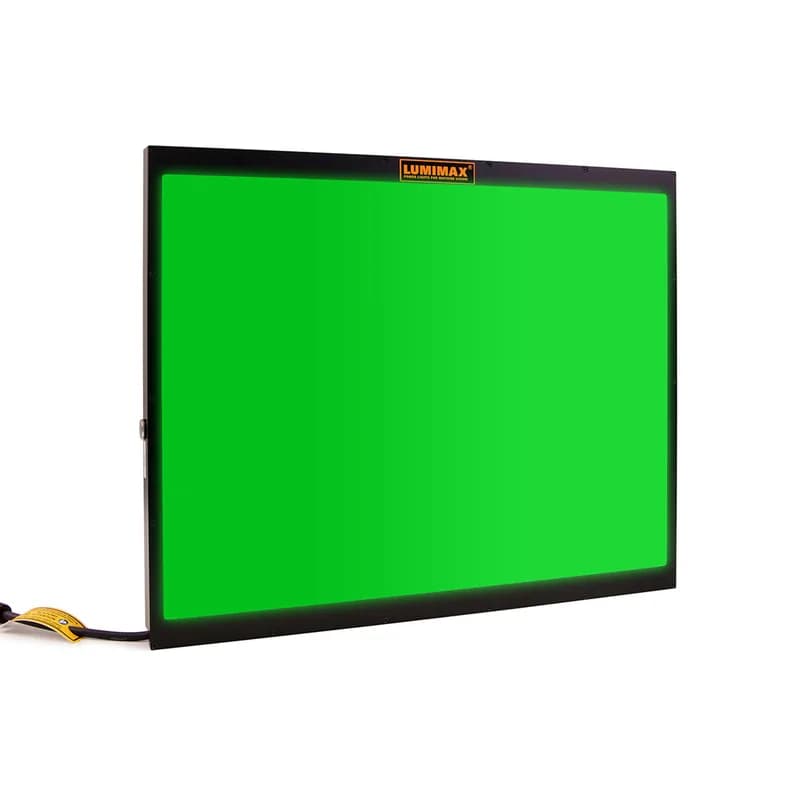

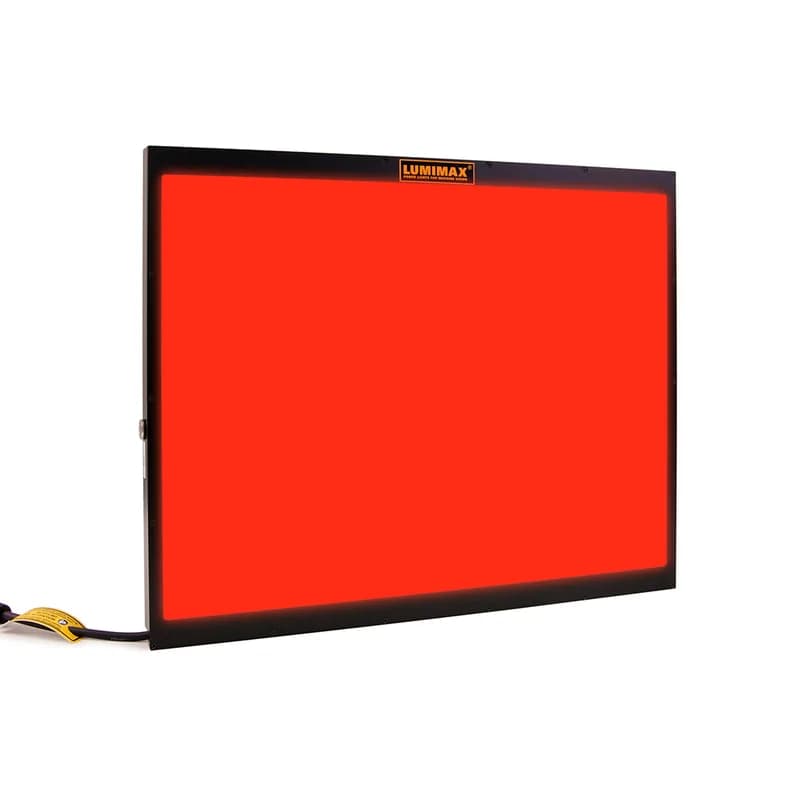

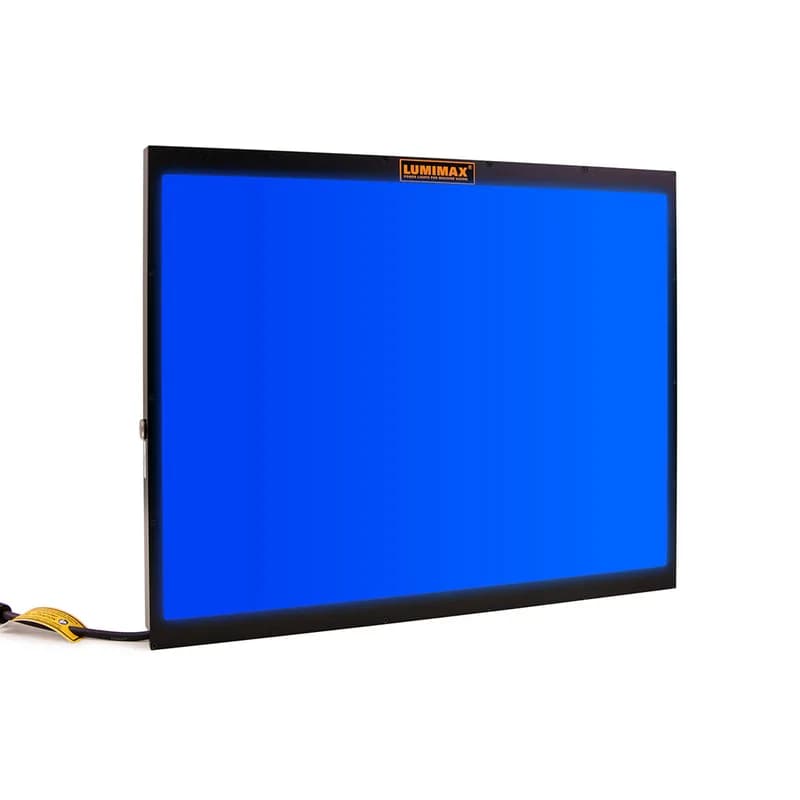

- Light colour | wavelength
- 470 to 850 nm, white
- Light field size
- 400 x 300
- Light guidance
- 2 variants
About the LMX-LG4030-V02
Introduction
400 × 300 mm, and rectangular rather than square.
That shape is the point at this end of the range. A conveyor is long and narrow, a panel is long and narrow, and a square light over a strip of product spends most of its output on the frame either side of it.
The LightGuide construction is what keeps it 22 mm thick at this size: the LEDs sit at the edge and a guide carries their output across the face, so there is no depth of mixing chamber to allow for and no hot spots to design around.
What it puts out
Note how little is lost between the window and 100 mm — a consequence of the collimated build, and the reason a panel this size still works at a real standoff rather than pressed against the part.
Mounting and heat
3.9 kg across 422 × 340 × 22 mm. Support it from the housing along its length, not at two corners: a panel of this span will take a set if it is only held at the ends.
The rear is finned and there is no fan. The ambient limit is 45 °C, and at 71 to 83 W continuous the fins are doing real work — leave the airflow over them clear.
Timing
100 % brightness within 8 µs in strobe, 200 µs in switching mode, with the first pulse after initial operation delayed by 3 ms.
The face is pale when it is off
The light area of this build reflects when switched off. Where the panel sits in the camera's field of view, LG4030-BK-V02 is the same panel with a black, low-reflecting face.
Applications
Large-format silhouette and edge detection, object gauging, presence and absence, hole detection — and, as incident light, area illumination over a conveyor.
Where it fits
The largest LG made. LG3020 at 300 × 200 mm is the next size down.
Specifications
Operation
- Operating mode (varies by part number)
- Continuous and switching mode | Strobe mode
- controller (varies by part number)
- Integrierter lightscontroller | Integrierter strobe controller
Environment
- Ingress protection
- IP64
- Allowed ambient temperature
- 5 to 45 °C, non-condensing
- Operating temperature at 21°C (by operating mode)
- continuous 51, 52, 53 °C · strobe 38–45 °C
- Risk Group (by operating mode)
- continuous 0, 1 · strobe 0
Mechanical
- Dimensions (l x w x h in mm)
- 422 x 340 x 22
- Material housing | window
- Aluminium, anodised | PMMA
Electrical
- Operating voltage
- 19 to 30 V DC wide-range voltage input
- Maximum current consumption (by operating mode)
- continuous 3.9 A · strobe 0.8–2.3 A
- Maximum electrical power at light field (by operating mode)
- continuous 71–83 W · strobe 1924–4013 W
- Electrical connection
- 150 mm connection cable with M16 12-pin plug
- Brightness control via potentiometer
- 0 % (left stop) to 100 % (right stop) brightness # Note: automatic deactivation at VC > 1 V DC
- Brightness control via analogue VC input (varies by part number)
- VC = 2 to 10 V DC (0 % to 100 % brightness) # Note: Turn potentiometer to left stop | VC = 2 to 10 V DC (10 % to 100 % brightness) # Note: Turn potentiometer to left stop
- Maximum pulse current (varies by part number)
- 3 A for 11 ms | 3 A for 13 ms | 3 A for 14 ms | 3 A for 24 ms | 3 A for 31 ms | 3 A for 34 ms | 3 A for 4 ms | 3 A for 5 ms | (+3 more)
- TTL-Trigger
- High level = 3 to 30 V DC
- SPS-Trigger
- High level = 15 to 30 V DC
- Trigger slope
- Rising slope
- Switch-on delay
- 100 % brightness within a maximum of 8 µs
- Flash duration 1 (varies by part number)
- Von 10 bis 100 µs | Von 20 bis 220 µs | Von 50 bis 750 µs
- Flash frequency (varies by part number)
- 10, 35, 100 Hz
- TTL switching input
- High level = 3 to 30 V DC
- PLC switching input
- High level = 15 to 30 V DC
- Switching mode
- Switching time follows the switching signal # Connect + ON / OFF and GND ON / OFF
- Continuous mode
- Assign + ON / OFF permanently with high signal, e. g. by applying to operating voltage # Connect GND ON / OFF
- Switch-on delay_switching
- 100 % brightness within a maximum of 200 µs # (first pulse delay after initial operation 3 ms)
Optical
- Light field size (l x w in mm)
- 400 x 300
- Light colour | wavelength (varies by part number)
- Blue | 470 nm | Green | 528 nm | Infrared | 850 nm | Red | 625 nm | White | 5200 K | White | 5500 K
- Light guidance (varies by part number)
- Highly diffuse, can be used as transmitted light | Homogeneous, collimated, can be used as incident and transmitted light
- Power-LED
- High Power LEDs and LightGuide
- Illuminance at 0 mm
- continuous 34955–86208.5 lx · strobe 329777–874741 lx
- Illuminance at 100 mm
- continuous 27313–55280.4 lx · strobe 257683–651917 lx
- Illuminance at 200 mm
- continuous 18131–48237.2 lx · strobe 171053–568858 lx
- Illuminance at 500 mm
- continuous 5325–22739 lx · strobe 50238–268159 lx
- Irradiance at 0 mm
- continuous 110.2–270.9 W/m² · strobe 1040–3194.9 W/m²
- Irradiance at 100 mm
- continuous 87.8–171 W/m² · strobe 828.6–2016.2 W/m²
- Irradiance at 200 mm
- continuous 61.3–167.5 W/m² · strobe 578.3–1975.3 W/m²
- Irradiance at 500 mm
- continuous 17.9–76.2 W/m² · strobe 168.9–899.1 W/m²
General
- Country of origin
- Federal Republic of Germany
- Weight (kg)
- 3.9
