LUMIMAX · DOME LIGHTS

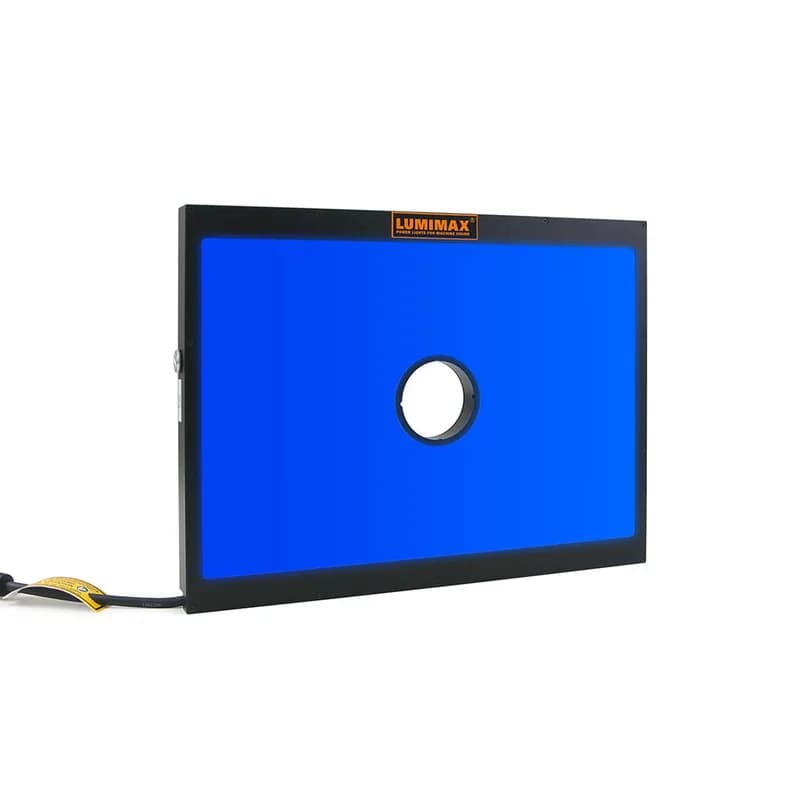

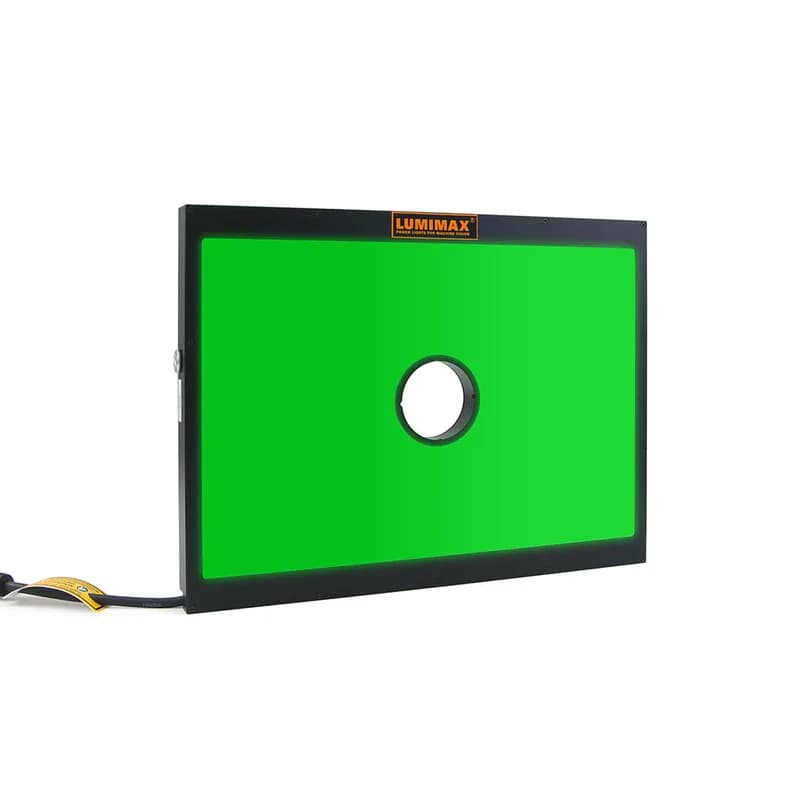

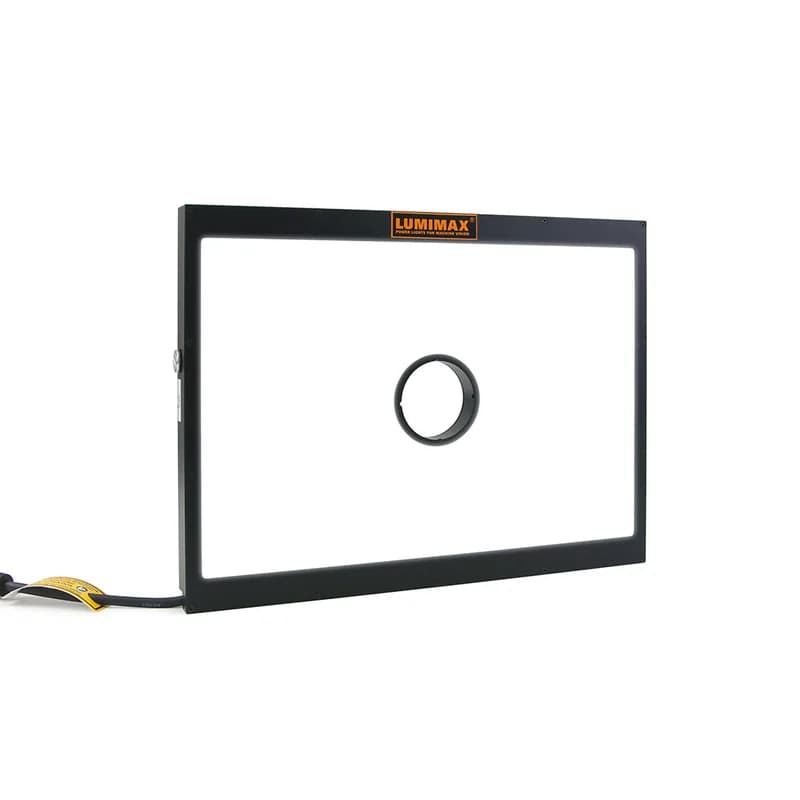

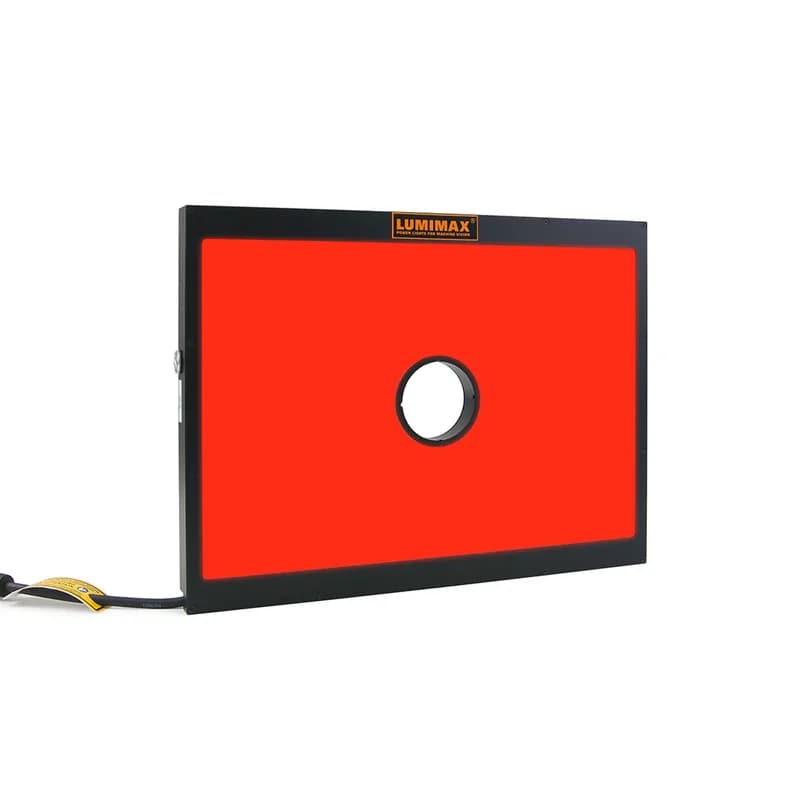

LGCB3020-V02 Flat Dome Light

LMX-LGCB3020-V02

High-performance, scalable flat dome with collimation available for shadow-free imaging of small to medium FOVs - 300×200mm light area, IP64.

Light colour | wavelength: 470 to 850 nm, white
Light field size: 300 x 200
Light guidance: 2 variants

Overview

About the LMX-LGCB3020-V02

Overview

This is a mid-size head in the LUMIMAX LightGuide area-light range. It uses the same LightGuide technology as the rest of the family — LEDs edge-coupled into a light guide for a homogeneous, collimated field — over a larger active area than the entry size, with a camera hole through the centre.

Its collimated, even light suits flat, directional area inspection: parallel rays keep illumination and shadows consistent across the whole field, and the built-in controller runs it continuously or switched from TTL or PLC triggers with brightness set by potentiometer or analogue input.

The larger active area is the reason to choose it over the entry head — it covers a wider part in one field. Match the head to the part you need to illuminate; for still larger fields, the largest head in the family goes further, and for curved specular surfaces a dome is the right tool instead.

Specifications

Operation

Operating mode (varies by part number): Continuous and switching mode | Strobe mode
controller (varies by part number): Integrierter lightscontroller | Integrierter strobe controller

Mechanical

Camera hole (Ø in mm): 50
Dimensions (l x w x h in mm): 322 x 240 x 22
Material housing | window: Aluminium, anodised | PMMA

Environment

Ingress protection: IP64
Allowed ambient temperature: 5 to 45 °C, non-condensing
Operating temperature at 21°C (by operating mode): continuous 53, 54, 55 °C · strobe 37, 40, 41, 42 °C
Risk Group (by operating mode): continuous 0, 1 · strobe 0

Electrical

Operating voltage: 19 to 30 V DC wide-range voltage input
Maximum current consumption (by operating mode): continuous 2.7, 2.8 A · strobe 1.2, 1.5, 1.7, 1.9 A
Maximum electrical power at light field (by operating mode): continuous 50, 56, 57, 58 W · strobe 2520–3239 W
Electrical connection: 150 mm connection cable with M16 12-pin plug
Brightness control via potentiometer: 0 % (left stop) to 100 % (right stop) brightness # Note: automatic deactivation at VC > 1 V DC
Brightness control via analogue VC input (varies by part number): VC = 2 to 10 V DC (0 % to 100 % brightness) # Note: Turn potentiometer to left stop | VC = 2 to 10 V DC (10 % to 100 % brightness) # Note: Turn potentiometer to left stop
Maximum pulse current (varies by part number): 2 A for 11 ms | 2 A for 13 ms | 2 A for 15 ms | 2 A for 38 ms | 2 A for 45 ms | 2 A for 5 ms | 2 A for 51 ms | 2 A for 6 ms | (+1 more)
TTL-Trigger: High level = 3 to 30 V DC
SPS-Trigger: High level = 15 to 30 V DC
Trigger slope: Rising slope
Switch-on delay: 100 % brightness within a maximum of 8 µs
Flash duration 1 (varies by part number): Von 10 bis 100 µs | Von 20 bis 220 µs | Von 50 bis 750 µs
Flash frequency (varies by part number): 10, 35, 100 Hz
TTL switching input: High level = 3 to 30 V DC
PLC switching input: High level = 15 to 30 V DC
Switching mode: Switching time follows the switching signal # Connect + ON / OFF and GND ON / OFF
Continuous mode: Assign + ON / OFF permanently with high signal, e. g. by applying to operating voltage # Connect GND ON / OFF
Switch-on delay_switching: 100 % brightness within a maximum of 200 µs # (first pulse delay after initial operation 3 ms)

Optical

Light field size (l x w in mm): 300 x 200
Light colour | wavelength (varies by part number): Blue | 470 nm | Green | 528 nm | Infrared | 850 nm | Red | 625 nm | White | 5200 K | White | 5500 K
Light guidance (varies by part number): Highly diffuse, can be used as incident light | Homogeneous, collimated, can be used as incident light
Power-LED: High Power LEDs and LightGuide
Illuminance at 0 mm: continuous 43132–120172 lx · strobe 546946–1311166 lx
Illuminance at 100 mm: continuous 32406–64962.9 lx · strobe 410932–823780 lx
Illuminance at 200 mm: continuous 16737–53970.5 lx · strobe 212242–684388 lx
Illuminance at 500 mm: continuous 3904–18050 lx · strobe 49507–228888 lx
Irradiance at 0 mm: continuous 135.7–363.7 W/m² · strobe 1721.1–4611.5 W/m²
Irradiance at 100 mm: continuous 105.5–191.3 W/m² · strobe 1337.4–2425.9 W/m²
Irradiance at 200 mm: continuous 54.7–155.7 W/m² · strobe 693.6–1974.9 W/m²
Irradiance at 500 mm: continuous 12.7–60.6 W/m² · strobe 160.8–767.8 W/m²
