LUMIMAX · DOME LIGHTS

LGCB4030-V02 Flat Dome Light

LMX-LGCB4030-V02

High-performance, scalable flat dome with collimation available for shadow-free imaging of small to medium FOVs - 400×300mm light area, IP64.

Light colour | wavelength: 470 to 850 nm, white
Light field size: 400 x 300
Light guidance: 2 variants

Overview

About the LMX-LGCB4030-V02

Overview

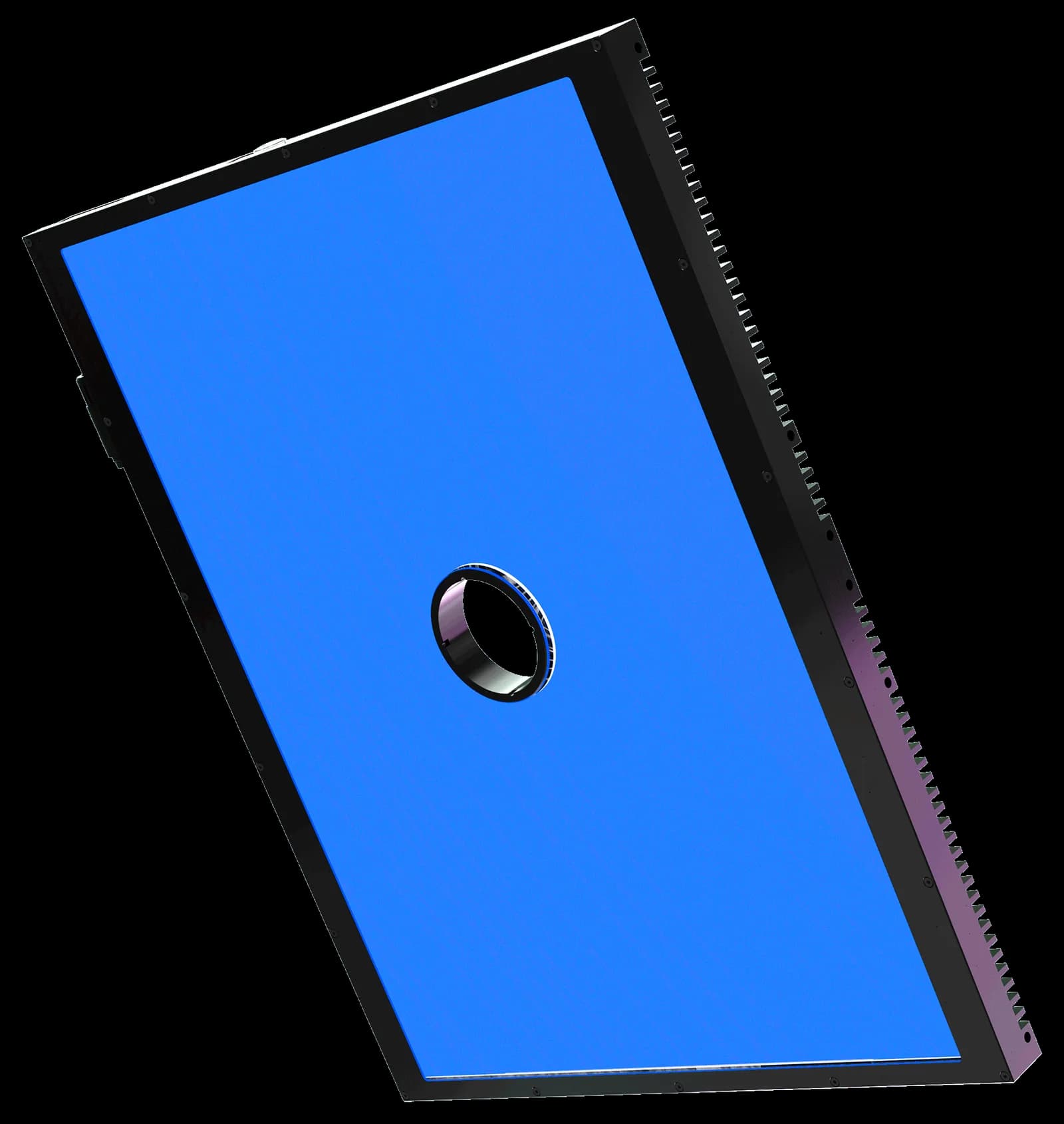

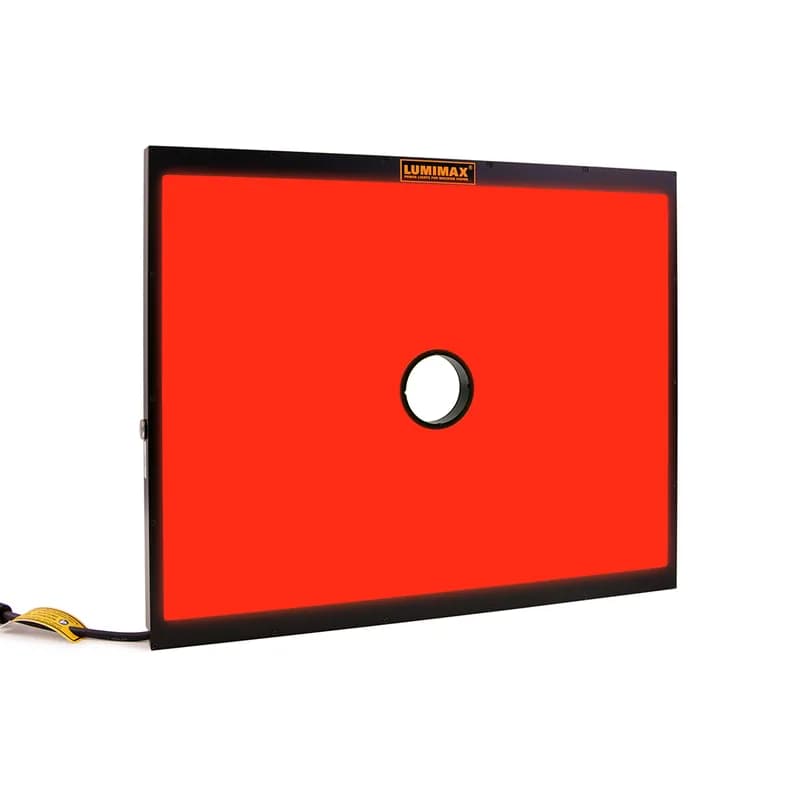

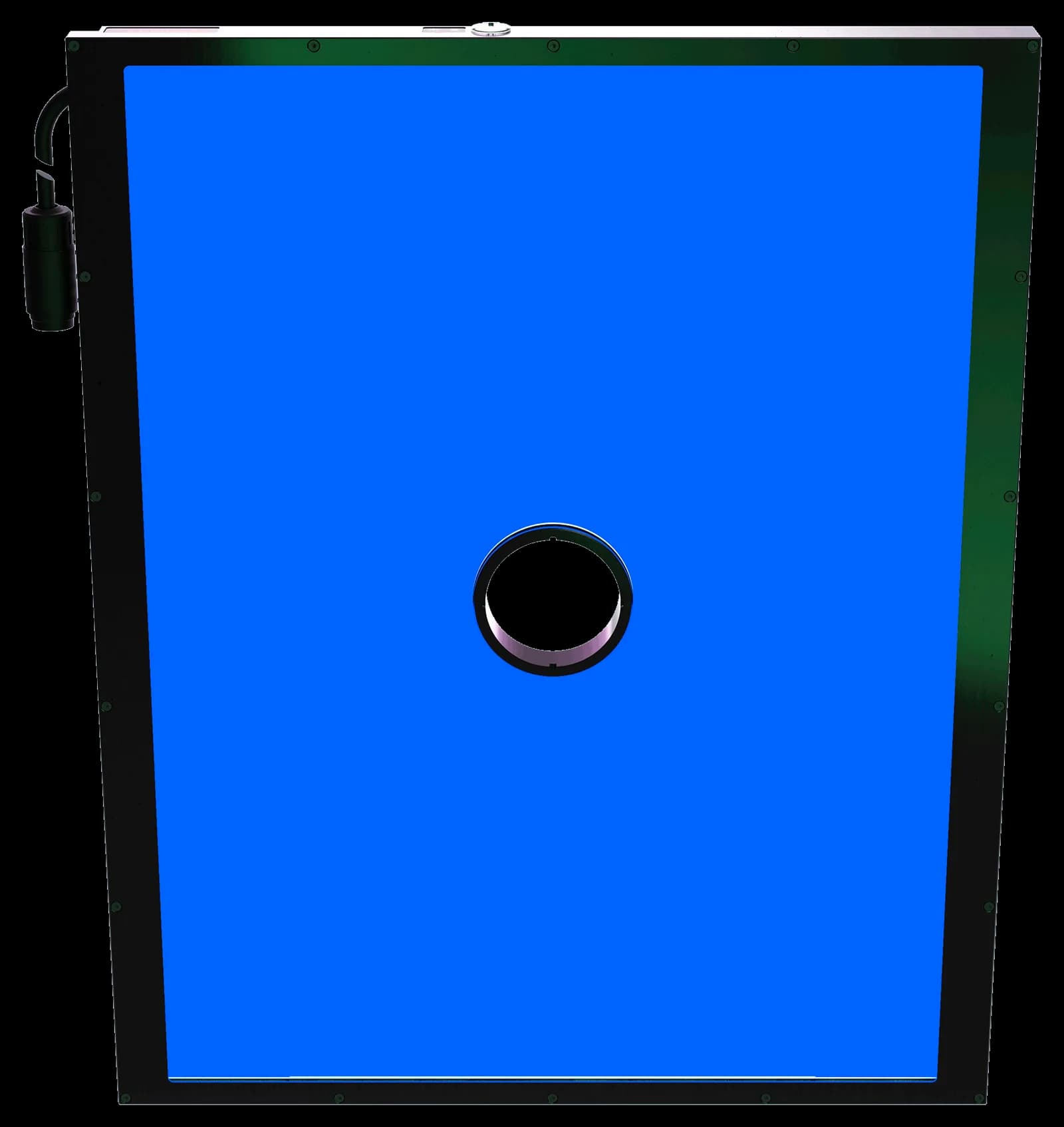

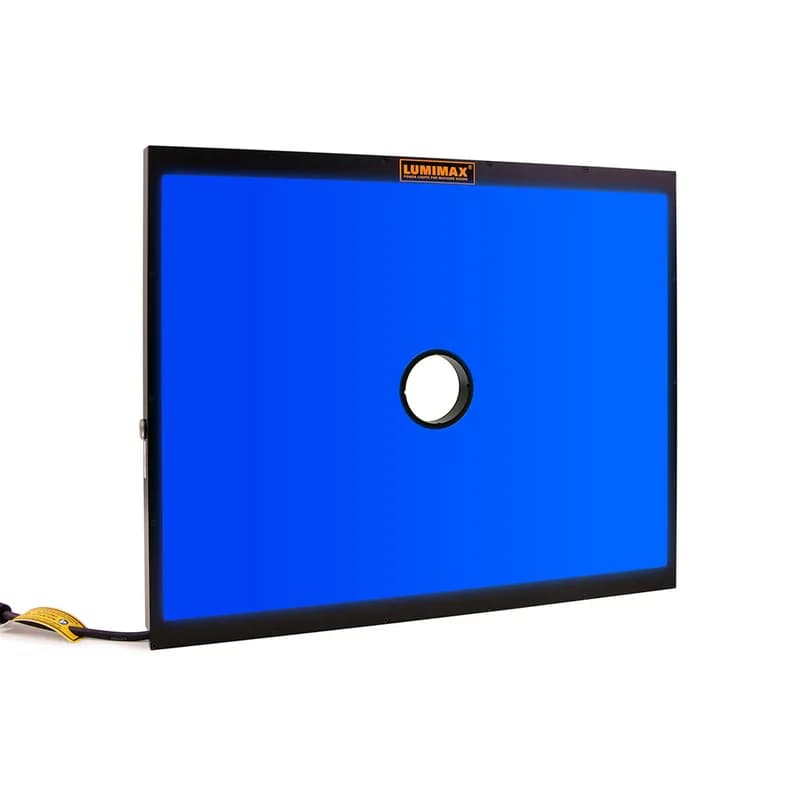

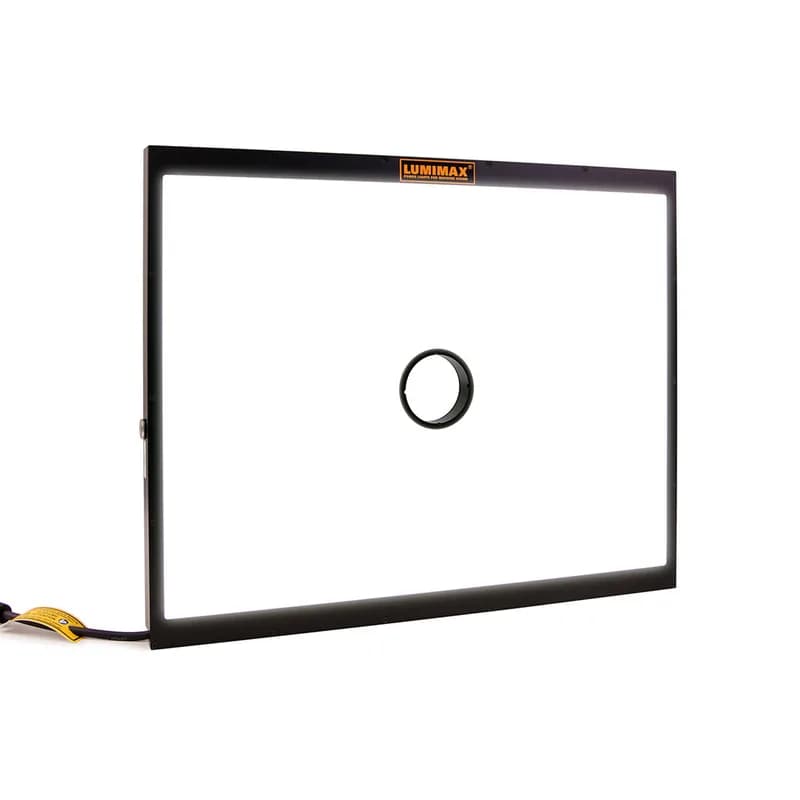

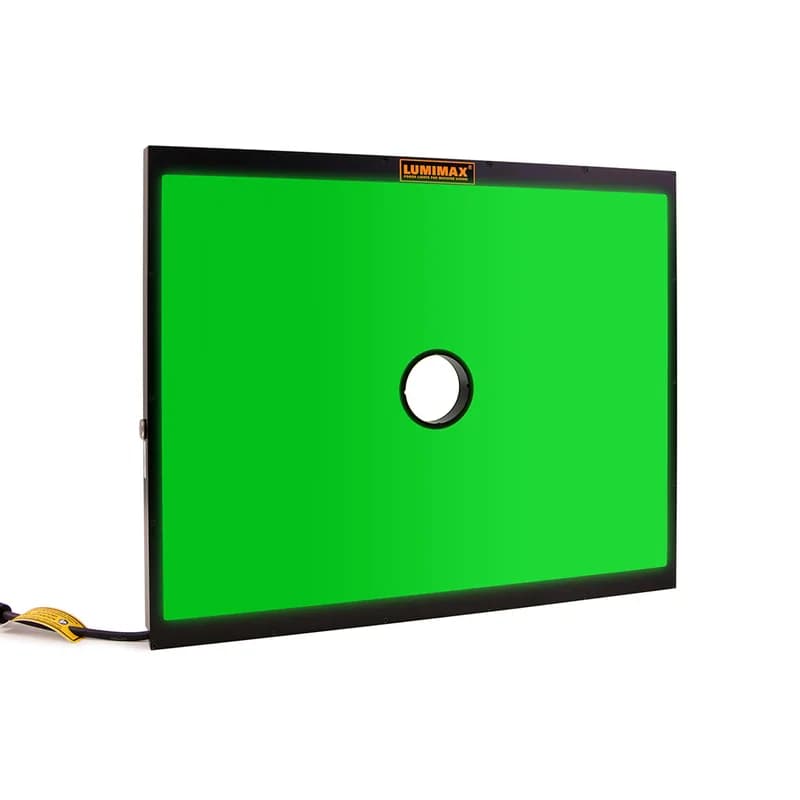

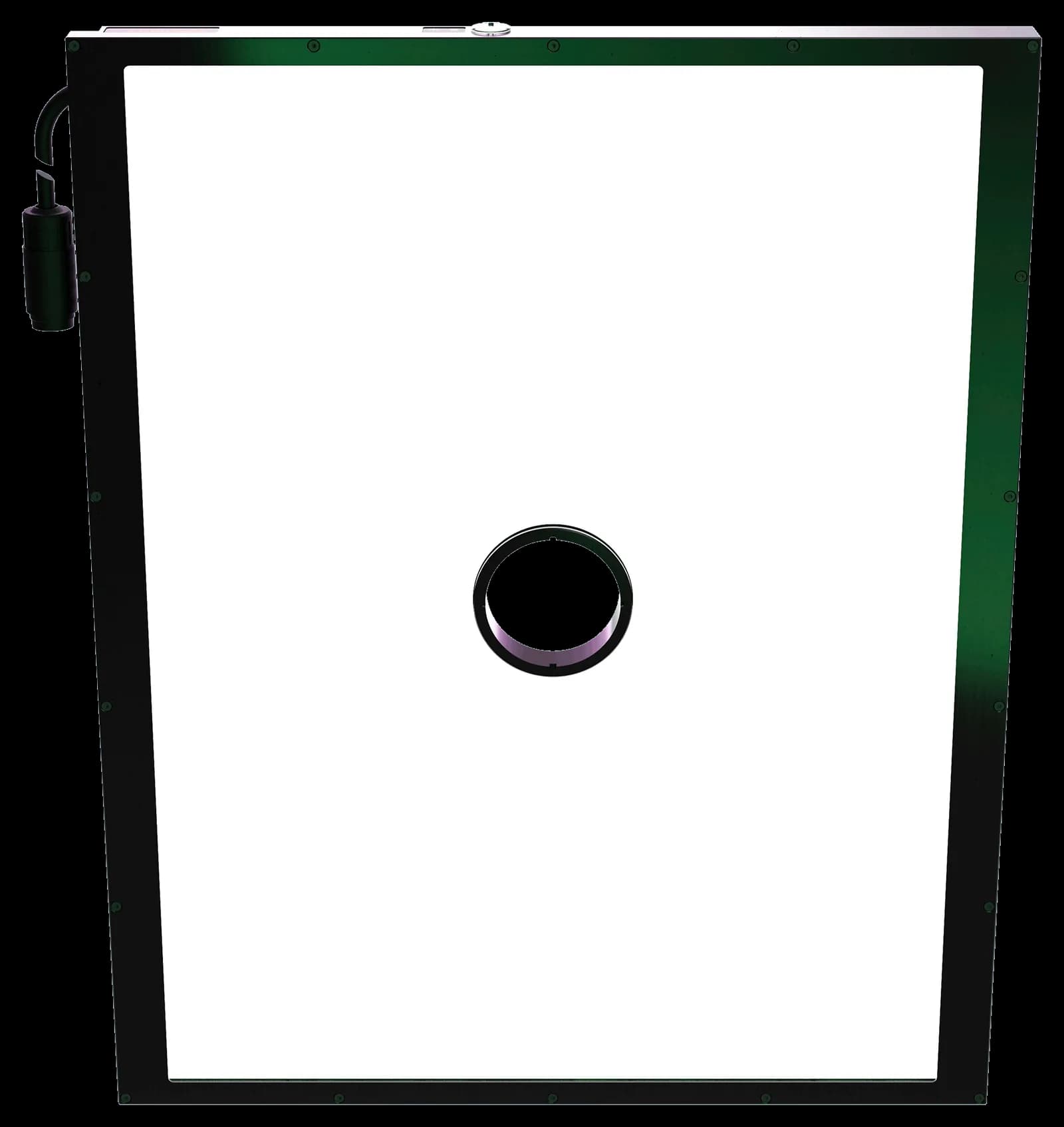

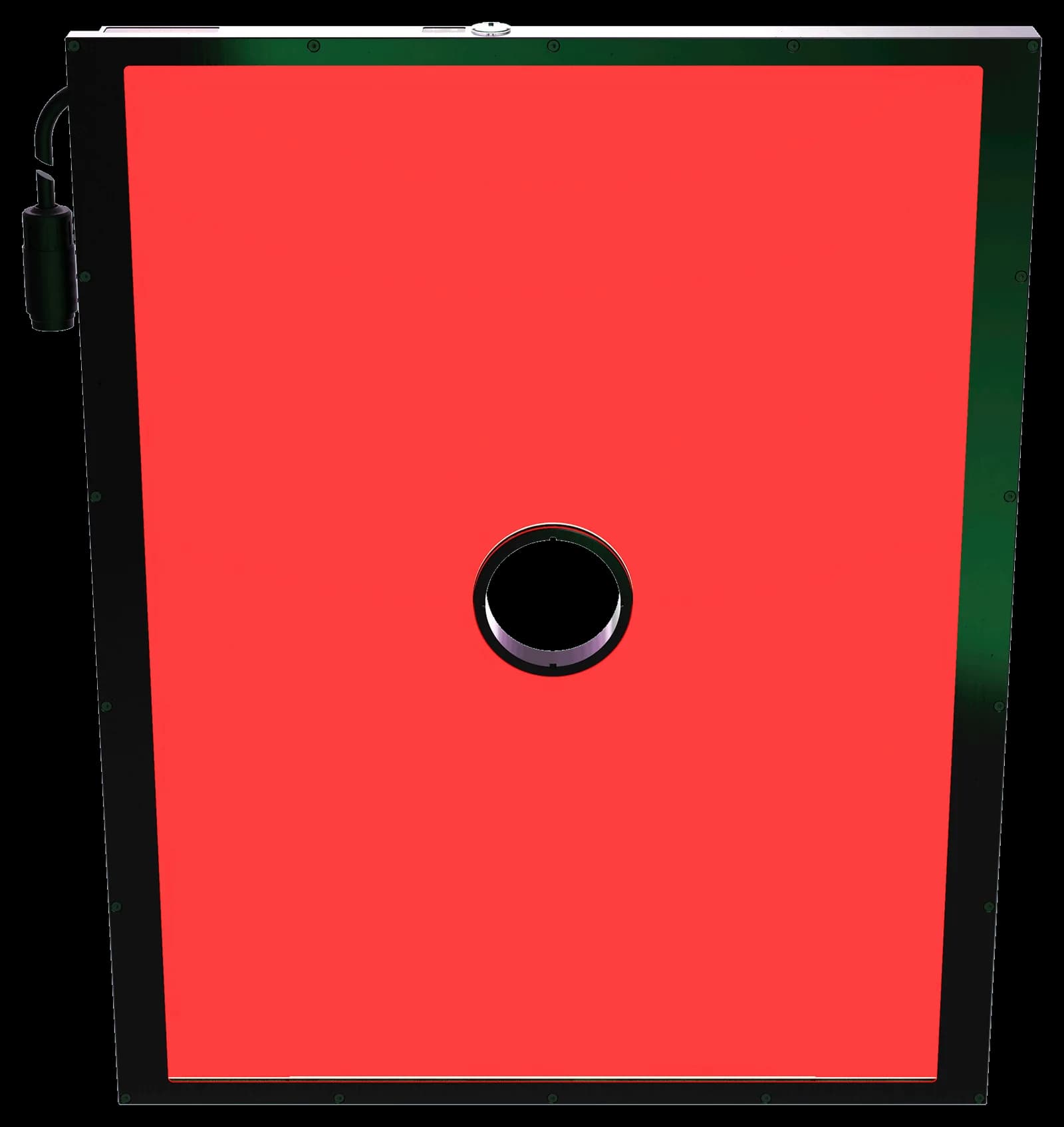

This is the large head in the LUMIMAX LightGuide area-light range. It brings the family's homogeneous, collimated light — LEDs edge-coupled into a light guide — to the widest field in the range, with a camera hole through the centre for an on-axis view.

The wide active area is what it is for: covering a large flat part in a single, even, directional field, with parallel rays keeping illumination and shadows consistent from edge to edge. A built-in controller runs it continuously or switched from TTL or PLC triggers, with brightness set by potentiometer or analogue input.

It is the top of the LightGuide family by field size; drop to the smaller heads for smaller parts to avoid over-lighting and wasted footprint. As with every area light it is a flat, directional tool — a dome remains the answer for curved, specular surfaces.

Specifications

Operation

Operating mode (varies by part number): Continuous and switching mode | Strobe mode
controller (varies by part number): Integrierter lightscontroller | Integrierter strobe controller

Mechanical

Camera hole (Ø in mm): 50
Dimensions (l x w x h in mm): 422 x 340 x 22
Material housing | window: Aluminium, anodised | PMMA

Environment

Ingress protection: IP64
Allowed ambient temperature: 5 to 45 °C, non-condensing
Operating temperature at 21°C (by operating mode): continuous 51, 52, 53 °C · strobe 38–45 °C
Risk Group (by operating mode): continuous 0, 1 · strobe 0

Electrical

Operating voltage: 19 to 30 V DC wide-range voltage input
Maximum current consumption (by operating mode): continuous 3.9 A · strobe 0.8–2.3 A
Maximum electrical power at light field (by operating mode): continuous 71–83 W · strobe 1924–4013 W
Electrical connection: 150 mm connection cable with M16 12-pin plug

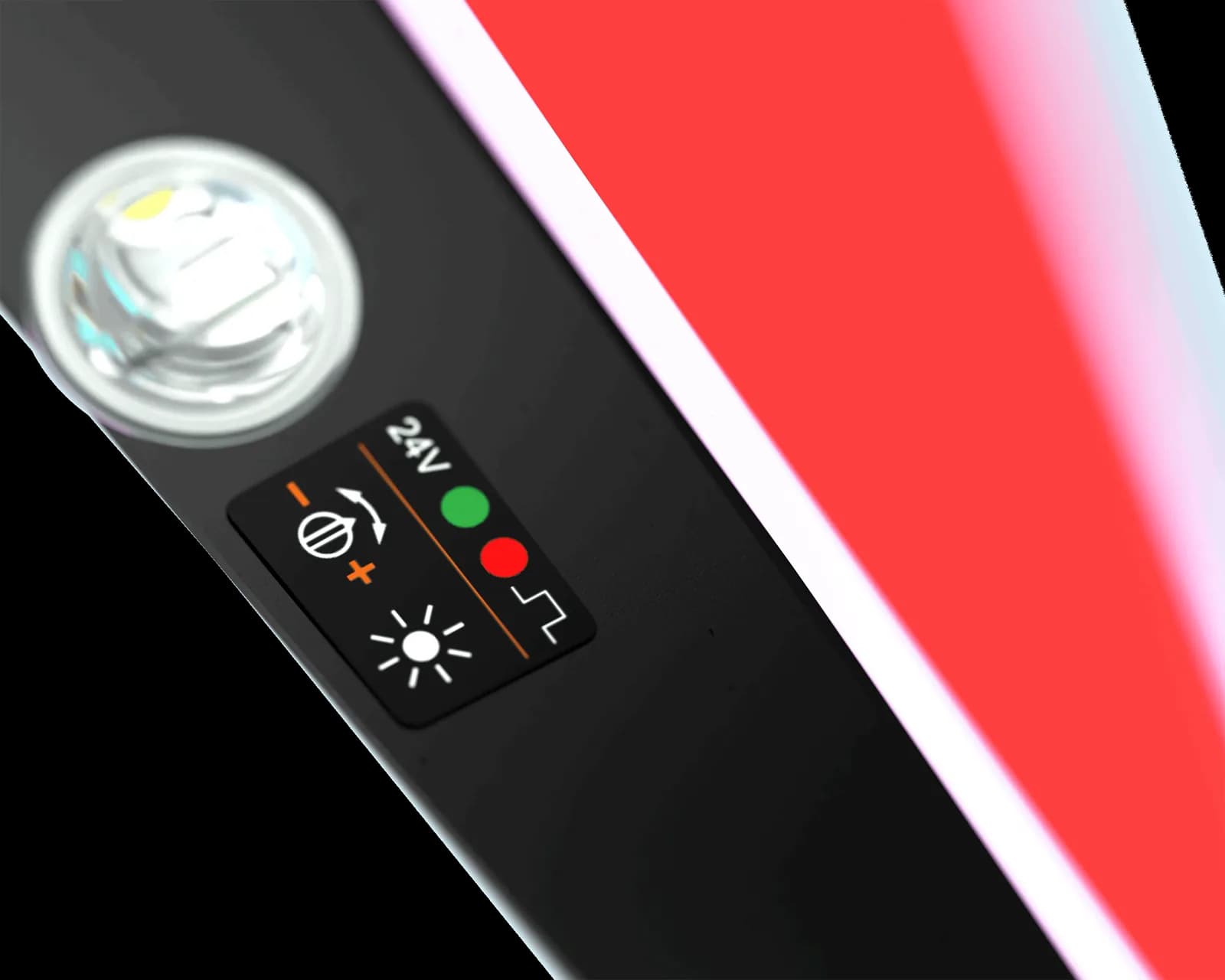

Brightness control via potentiometer: 0 % (left stop) to 100 % (right stop) brightness # Note: automatic deactivation at VC > 1 V DC
Brightness control via analogue VC input (varies by part number): VC = 2 to 10 V DC (0 % to 100 % brightness) # Note: Turn potentiometer to left stop | VC = 2 to 10 V DC (10 % to 100 % brightness) # Note: Turn potentiometer to left stop
Maximum pulse current (varies by part number): 3 A for 11 ms | 3 A for 13 ms | 3 A for 14 ms | 3 A for 24 ms | 3 A for 31 ms | 3 A for 34 ms | 3 A for 4 ms | 3 A for 5 ms | (+3 more)
TTL-Trigger: High level = 3 to 30 V DC
SPS-Trigger: High level = 15 to 30 V DC
Trigger slope: Rising slope
Switch-on delay: 100 % brightness within a maximum of 8 µs
Flash duration 1 (varies by part number): Von 10 bis 100 µs | Von 20 bis 220 µs | Von 50 bis 750 µs
Flash frequency (varies by part number): 10, 35, 100 Hz
TTL switching input: High level = 3 to 30 V DC
PLC switching input: High level = 15 to 30 V DC
Switching mode: Switching time follows the switching signal # Connect + ON / OFF and GND ON / OFF
Continuous mode: Assign + ON / OFF permanently with high signal, e. g. by applying to operating voltage # Connect GND ON / OFF
Switch-on delay_switching: 100 % brightness within a maximum of 200 µs # (first pulse delay after initial operation 3 ms)

Optical

Light field size (l x w in mm): 400 x 300
Light colour | wavelength (varies by part number): Blue | 470 nm | Green | 528 nm | Infrared | 850 nm | Red | 625 nm | White | 5200 K | White | 5500 K
Light guidance (varies by part number): Highly diffuse, can be used as incident light | Homogeneous, collimated, can be used as incident light
Power-LED: High Power LEDs and LightGuide
Illuminance at 0 mm: continuous 34955–86208.5 lx · strobe 329777–874741 lx
Illuminance at 100 mm: continuous 27313–55280.4 lx · strobe 257683–651917 lx
Illuminance at 200 mm: continuous 18131–48237.2 lx · strobe 171053–568858 lx
Illuminance at 500 mm: continuous 5325–22739 lx · strobe 50238–268159 lx
Irradiance at 0 mm: continuous 110.2–270.9 W/m² · strobe 1040–3194.9 W/m²
Irradiance at 100 mm: continuous 87.8–171 W/m² · strobe 828.6–2016.2 W/m²
Irradiance at 200 mm: continuous 61.3–167.5 W/m² · strobe 578.3–1975.3 W/m²
Irradiance at 500 mm: continuous 17.9–76.2 W/m² · strobe 168.9–899.1 W/m²
