Advanced Illumination · LINE LIGHTS

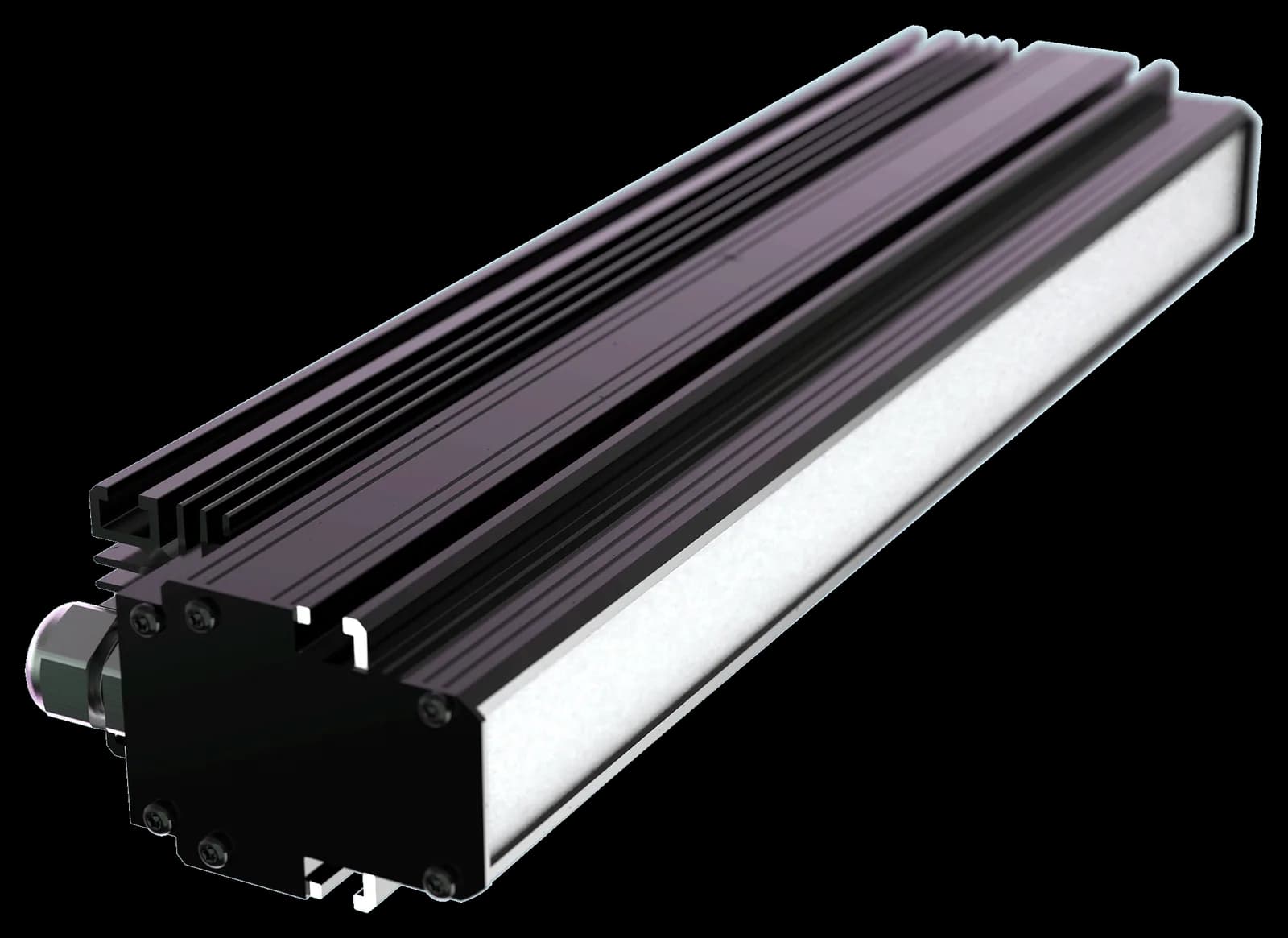

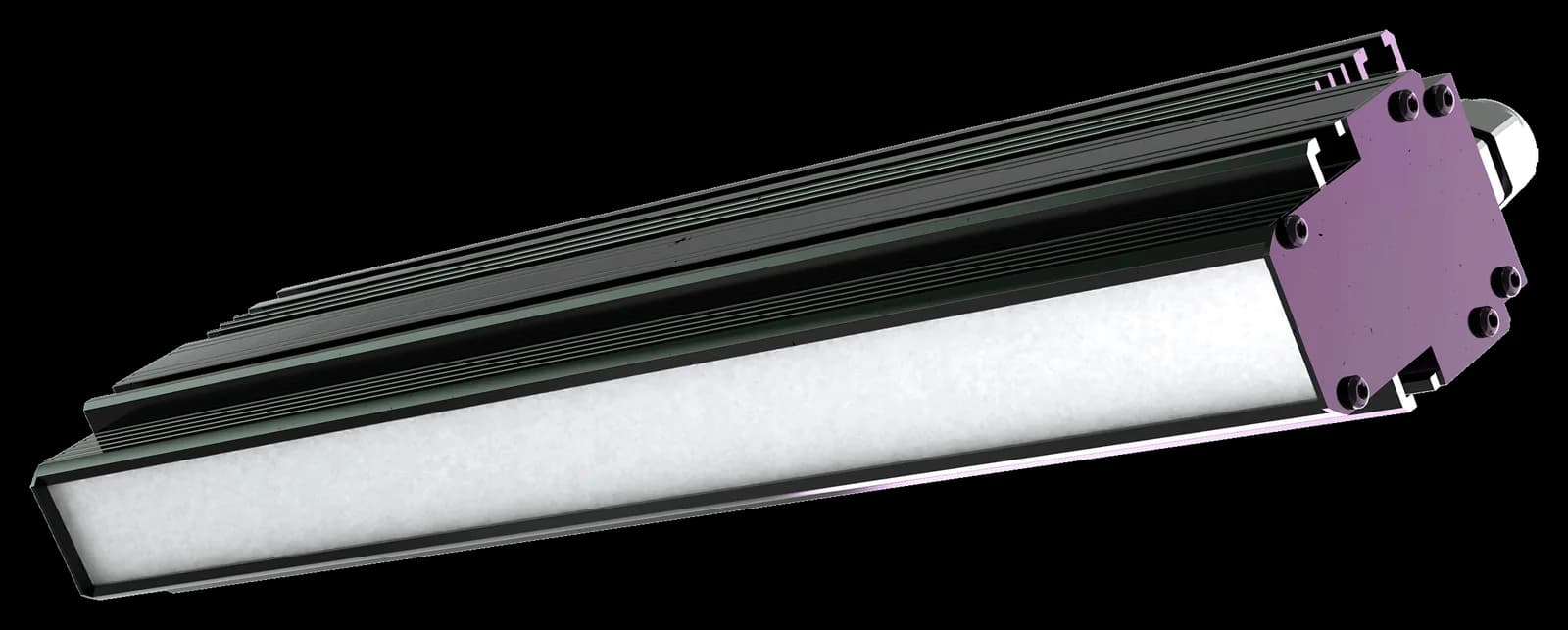

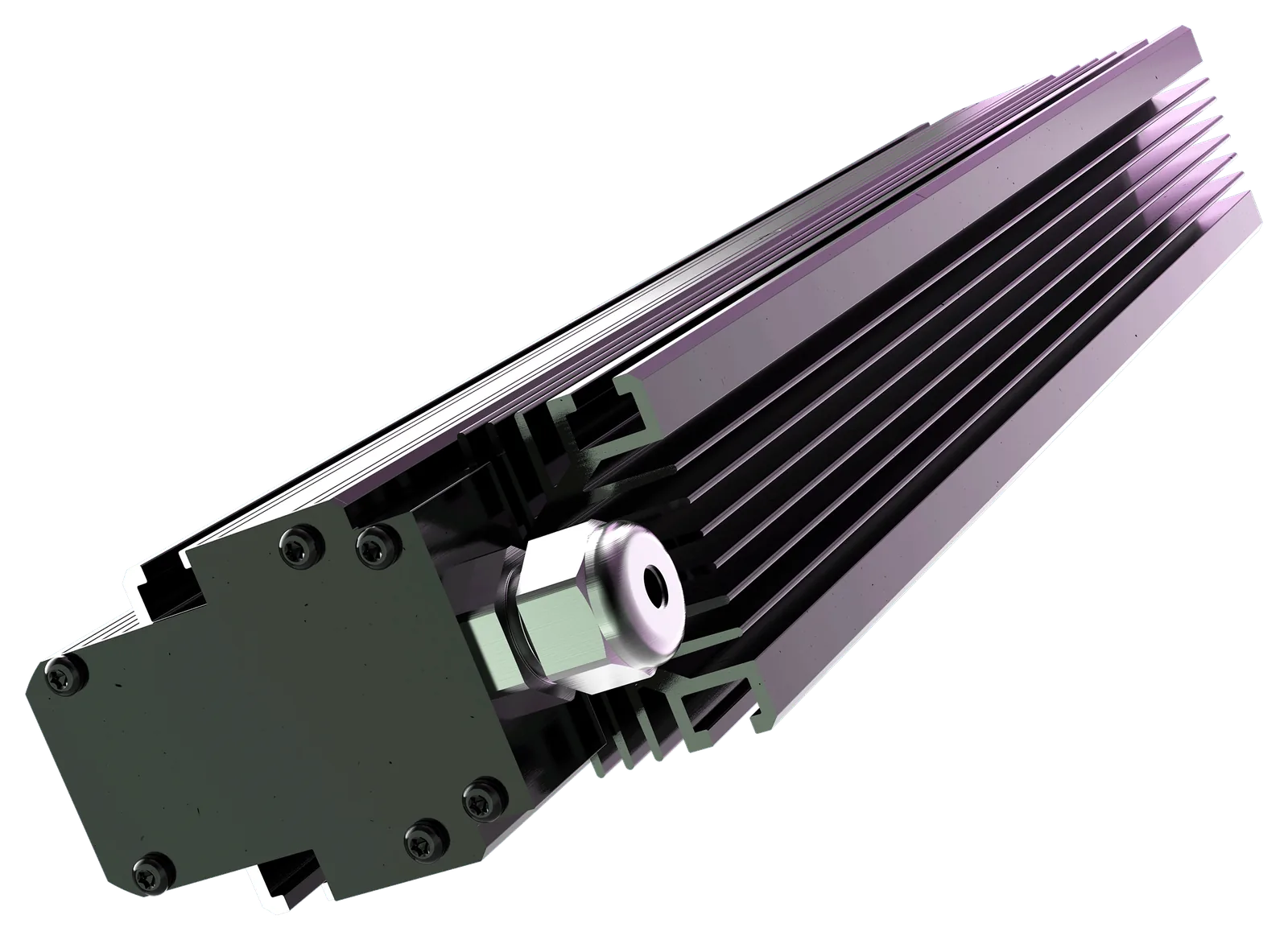

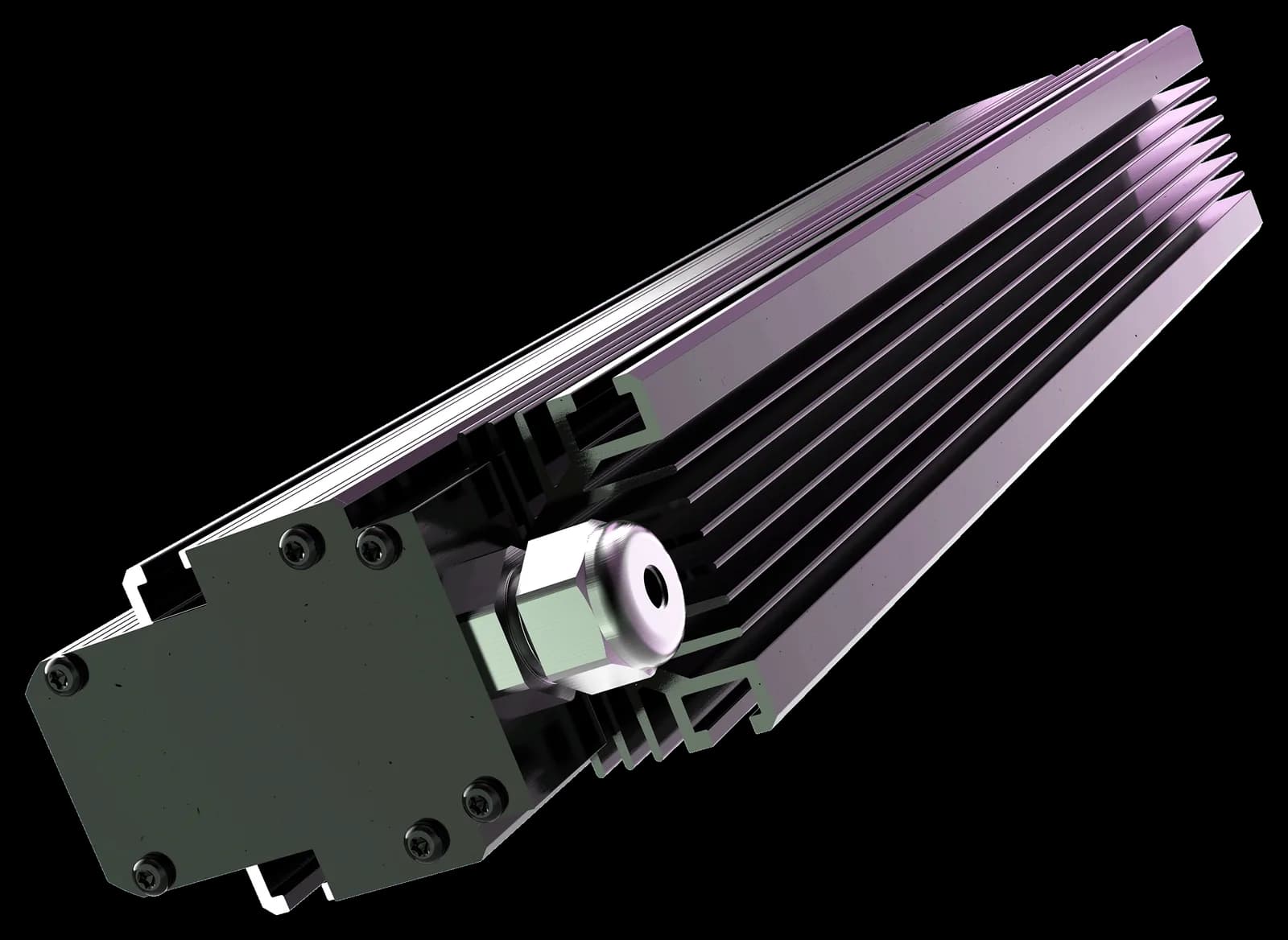

LL158 Oblique Line Light
AI-LL158-WOblique line light for angled line scan with added shadowing, surface texture and defect detection; 53,000 Lux.
- Available wavelengths
- WHI, 470 - 625 nm
- Supply voltage
- 24V DC
- Ip rating
- IP50
About the AI-LL158-W
The LL158 is an oblique line light for detecting features that run parallel to the line direction, such as scratches in sheet steel on continuous-feed conveyors. A 30 degree light angle of incidence within the plane of the housing creates contrast from those surfaces, which a standard linescan light leaves flat.
Lengths run 209.3 mm to 2342.9 mm in 6 in increments at 50.2 mm wide and 91.7 mm high, in the same housing as the LL137 and LL167, so a line can mix oblique and standard heads on one fixture design. An M6 mounting channel on the base allows the position and angle to be set after installation.
An embedded controller handles powering and control with no external or inline controller, and high power industrial grade LEDs run continuously with white light lumen maintenance of L70 at 50,000 hours. A narrow 12 degree lens keeps the light concentrated along the line. Standard units weigh around 898 g per 8 in of length. The LL158 range covers white, 470 nm blue, 530 nm green and 625 nm red, rated IP50.
Specifications
Features
- Feature 1
- 30° oblique light angle for surface topography contrast
- Feature 2
- High intensity output
- Feature 3
- Scalable linear design (6"–90" in 6" increments)
- Feature 4
- Embedded controller option (0–10V dimming)
- Feature 5
- M6 mounting channel
- Feature 6
- 1–2 week BTO lead times
Applications
- Application 1
- Surface scratch and topography detection
- Application 2
- Sheet steel scratch inspection
- Application 3
- Engravings and embossment detection
- Application 4
- Surface quality on continuous-feed conveyors
Intensity
- Max illuminance klux website
- 53
Wavelengths
- Available wavelengths
- WHI, 470nm Blue, 530nm Green, 625nm Red
- Colour temp white cct k
- 5700 K
- Peak wavelengths actual
- 465nm (470), 519nm (530), 633nm (625)
Lensing
- Available lenses
- Narrow 12° fixed (no interchangeable lens)
- Lens code detail
- No lens code in PN — single fixed optic only
- Uniformity note
- Single optic — see uniformity graph
Dimensions
- Unit pitch increment
- 6" (152mm)
- Min length
- 8.24"
- Max length
- 92.24"
- Min length
- 209.3 mm
- Max length
- 2342.9 mm
- Stackable beyond max
- No
- Width
- 50.2 mm
- Height
- 91.7 (fixed)
- Weight per unit
- ~1.98 lbs (~898g) per 8"
Housing & Mounting
- Housing material
- Anodized Aluminum
- Window material
- Acrylic
- Sealing
- None (IP50)
- Mounting channel
- M6 nut channel
- Mounting note
- M6 on base — longitudinal T-slot
Thermal & Certification
- Operating case temp
- 25–60°C
- Operating ambient temp
- 0–35°C
- Ip rating
- IP50
- Compliance
- CE, RoHS, IEC 62471
- Lumen maintenance
- L70 @ 50,000h (White)
- Cooling method
- Passive
- Cable length std
- 80" ±6" (2m ±150mm)
- Cable spec
- 105°C rated, foil shield w/ drain
Power
- Input voltage
- 24V DC
- Current grp1 A per increment
- 0.760A/6" (all WL, 24V) 0.700A/6" (controller)
- Current grp2 controller
- 0.700A/6" (controller config)
- Psu note
- Same
Control Options
- Ctrl C1
- Yes
- Ctrl C5
- No
- Ctrl IC
- No
- Ctrl I3 I3S
- No
- Ctrl 24V
- Yes
- Ctrl EC
- No
- Dimming interface
- 0–10V analog
Wiring
- Wire brown
- 24V DC
- Wire white
- 0–10V Analog Control
- Wire blue
- DC GND
Compatible Controllers
- Ctrl DCS100E
- Yes
- Ctrl DCS103E
- Yes
- Ctrl Pulsar320E
- No
- Ctrl PSU 24V
- Yes
- Optional m12 connector
- No
Optical
- Wavelength / colour
- White, 470, 530, 625 nm
- Beam
- Oblique line
- Intensity
- High
- Irradiance
- 53,000 Lux
Environmental
- Operating temperature
- 0 to +35°C
Electrical
- Supply voltage
- 24V DC
Application
- Applications
- Inspection / Machine Vision
