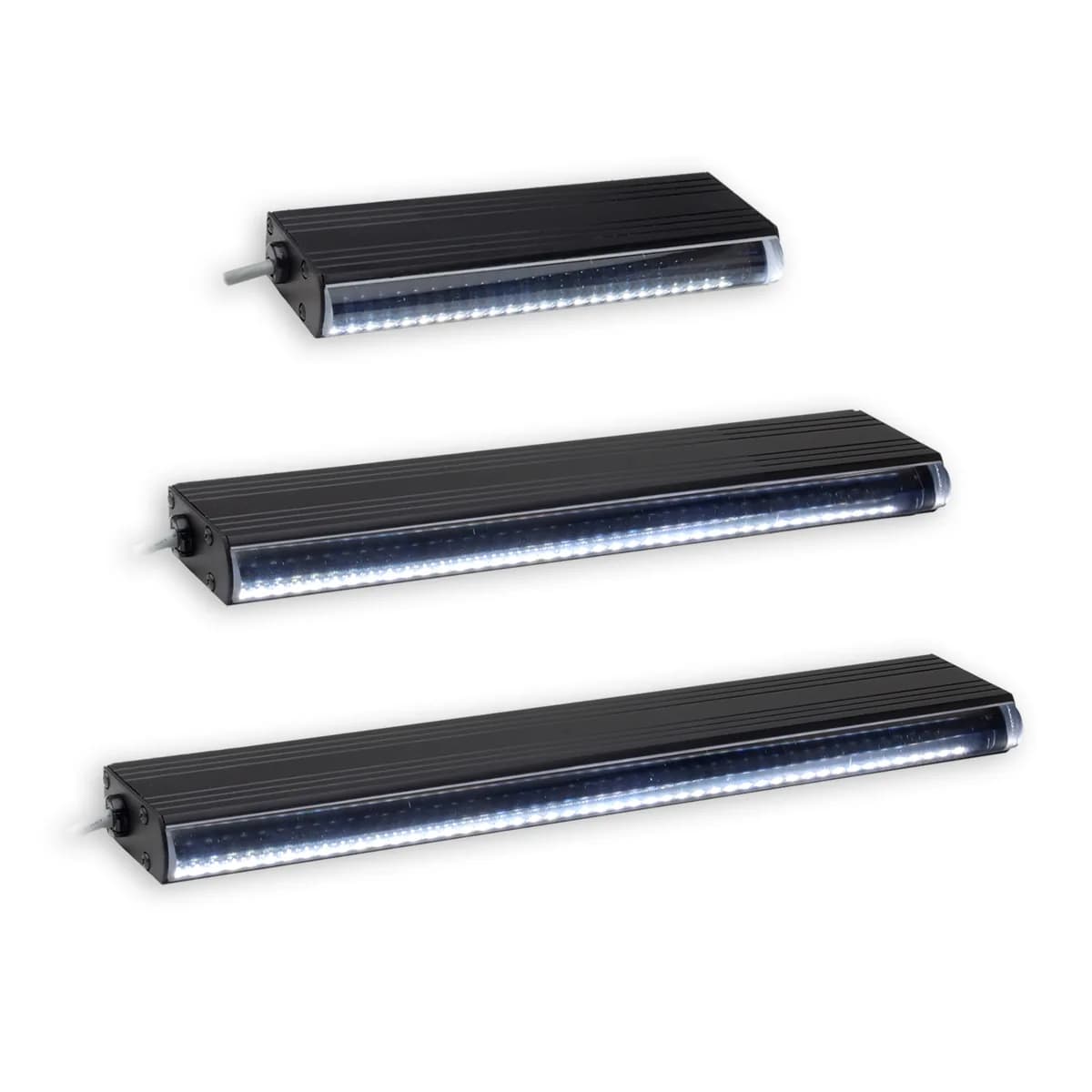

LL163 Classic Line Light
AI-LL163-WLegacy 5mm LEDs, 24,800 Lux, cost-effective classic line scan solution
- Available wavelengths
- WHI, 395 - 880 nm
- Supply voltage
- 24V DC
- Ip rating
- IP50
About the AI-LL163-W
Overview
This is the classic, legacy line light in the range. It is a lower-intensity head, and it is honest about that: it is best suited to low-speed line-scan work — the unwrapping can-label inspection kind of job — rather than the high-throughput lines the brighter heads are built for.
It scales across a wide range of lengths in fixed increments and keeps a set of legacy derivative lengths for retrofits, with several lens focus options and a choice of wavelengths across UV, visible and one near-infrared option. Control is by inline or external controller rather than an embedded driver.
Its lower output is the deliberate limit: it suits slow, unwrapping-style inspection and is the wrong choice for a fast web. When the line speeds up or the target needs more light, one of the high-intensity heads is the right move; this one earns its place on established low-speed stations and cost-sensitive retrofits.
Specifications
Features
- Feature 1
- Scalable extrusion-based housing
- Feature 2
- Multiple lens options (4 focal lengths)
- Feature 3
- Multiple control options (IC, I3, I3S, 24V, C1, C5)
- Feature 4
- Multiple focal lengths (4 lens options)
- Feature 5
- 1–2 week BTO lead times
- Feature 6
- M6 mounting channel
Applications
- Application 1
- Low-speed linescan (can label unwrapping)
- Application 2
- Label inspection
- Application 3
- Document inspection
- Application 4
- Low-speed bottle and can inspection
Intensity
- Max illuminance klux website
- 24.8
Wavelengths
- Available wavelengths
- WHI, 395nm UV, 470nm Blue, 520nm Green, 625nm Red, 660nm Red, 880nm NIR
- Colour temp white cct k
- 5500 K
- Peak wavelengths actual
- 399nm (395), 465nm (470), 519nm (520), 634nm (625), 663nm (660), 882nm (880)
- Photobio group 850 940
- Exempt (880nm)
Lensing
- Available lenses
- A (converging), B (converging), D (collimating), E (collimating)
- Lens code detail
- A/B = converging. D/E = collimating
- Uniformity note
- G lens recommended for uniform longitudinal distribution
Dimensions
- Unit pitch increment
- 1.5" (38mm)
- Min length
- 2.19"
- Max length
- 83.00"
- Min length
- 55.6 mm
- Max length
- 2108.2 mm
- Stackable beyond max
- No
- Width
- 23.8 mm
- Height
- 60.6 (A) to 79.6 (E)
- Weight per unit
- ~0.47 lbs (~213g) per 2.2"
Housing & Mounting
- Housing material
- Anodized Aluminum
- Window material
- Acrylic
- Sealing
- None (IP50)
- Mounting channel
- M6 nut channel
- Mounting note
- M6 on base
Thermal & Certification
- Operating case temp
- 25–60°C
- Operating ambient temp
- 0–35°C
- Ip rating
- IP50
- Compliance
- CE, RoHS, IEC 62471
- Lumen maintenance
- L70 @ 50,000h (White)
- Cooling method
- Passive
- Cable length std
- 80" ±6" (2m ±150mm)
- Cable spec
- 105°C rated, foil shield w/ drain
Power
- Input voltage
- 24V DC
- Current grp1 A per increment
- 0.020A/6" (WHI,395,470,520) 0.030A/6" (625,660,880)
- Current grp2 controller
- 0.010A/6" (WHI,395,470,520) 0.015A/6" (625,660,880)
- Psu note
- Same
Control Options
- Ctrl C1
- Yes
- Ctrl C5
- Yes — Pulsar 320E
- Ctrl IC
- Yes
- Ctrl I3 I3S
- Yes
- Ctrl 24V
- Yes
- Ctrl EC
- No
- Dimming interface
- 0–10V analog
Wiring
- Wire brown
- 24V DC
- Wire white
- 0–10V Analog Control (IC)
- Wire blue
- DC GND
- Wire black
- Gate (I3/I3S)
- Wire gray
- 0–10V Analog (I3/I3S)
Compatible Controllers
- Ctrl DCS100E
- Yes
- Ctrl DCS103E
- Yes
- Ctrl Pulsar320E
- Yes
- Ctrl PSU 24V
- Yes
- Optional m12 connector
- Yes (M8 or M12)
Optical
- Wavelength / colour
- White, 395, 470, 520, 625, 660, 880 nm
- Beam
- Focused line
- Intensity
- Med
- Irradiance
- 24,800 Lux
Environmental
- Operating temperature
- 0 to +35°C
Electrical
- Supply voltage
- 24V DC
Application
- Applications
- Inspection / Machine Vision
