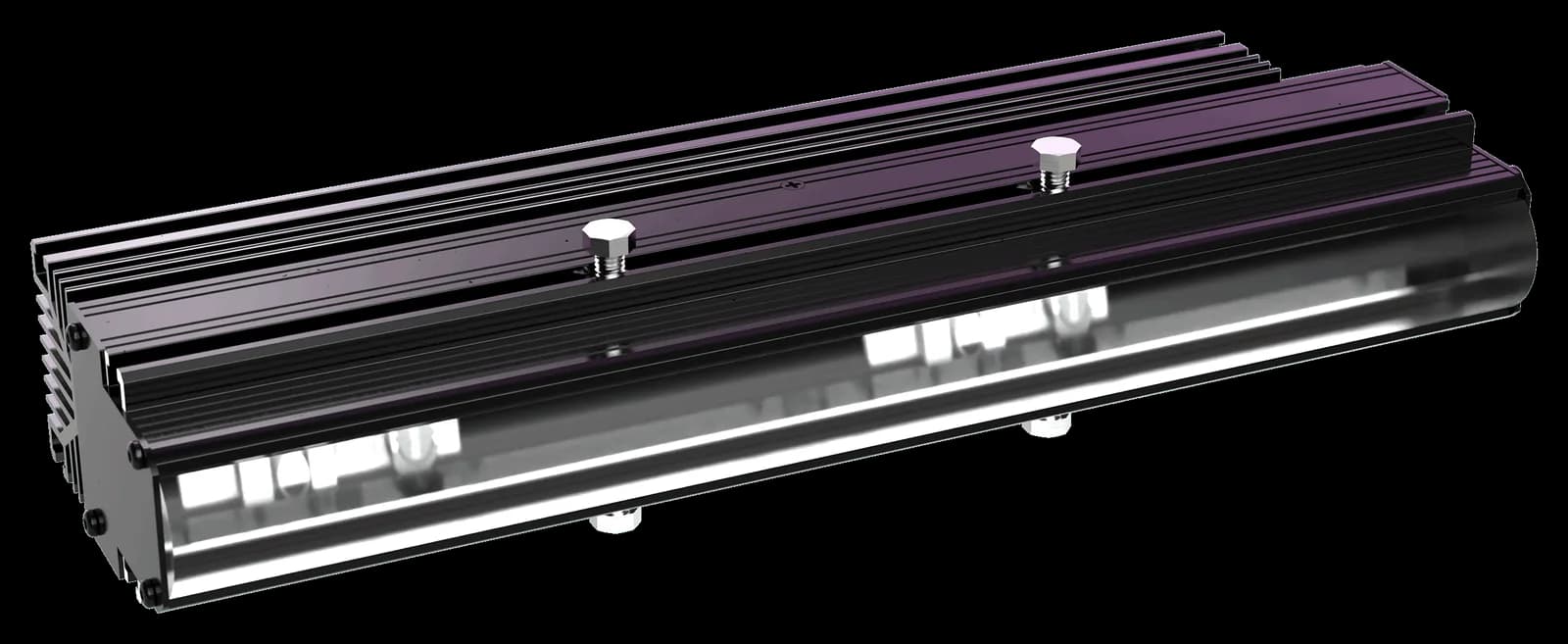

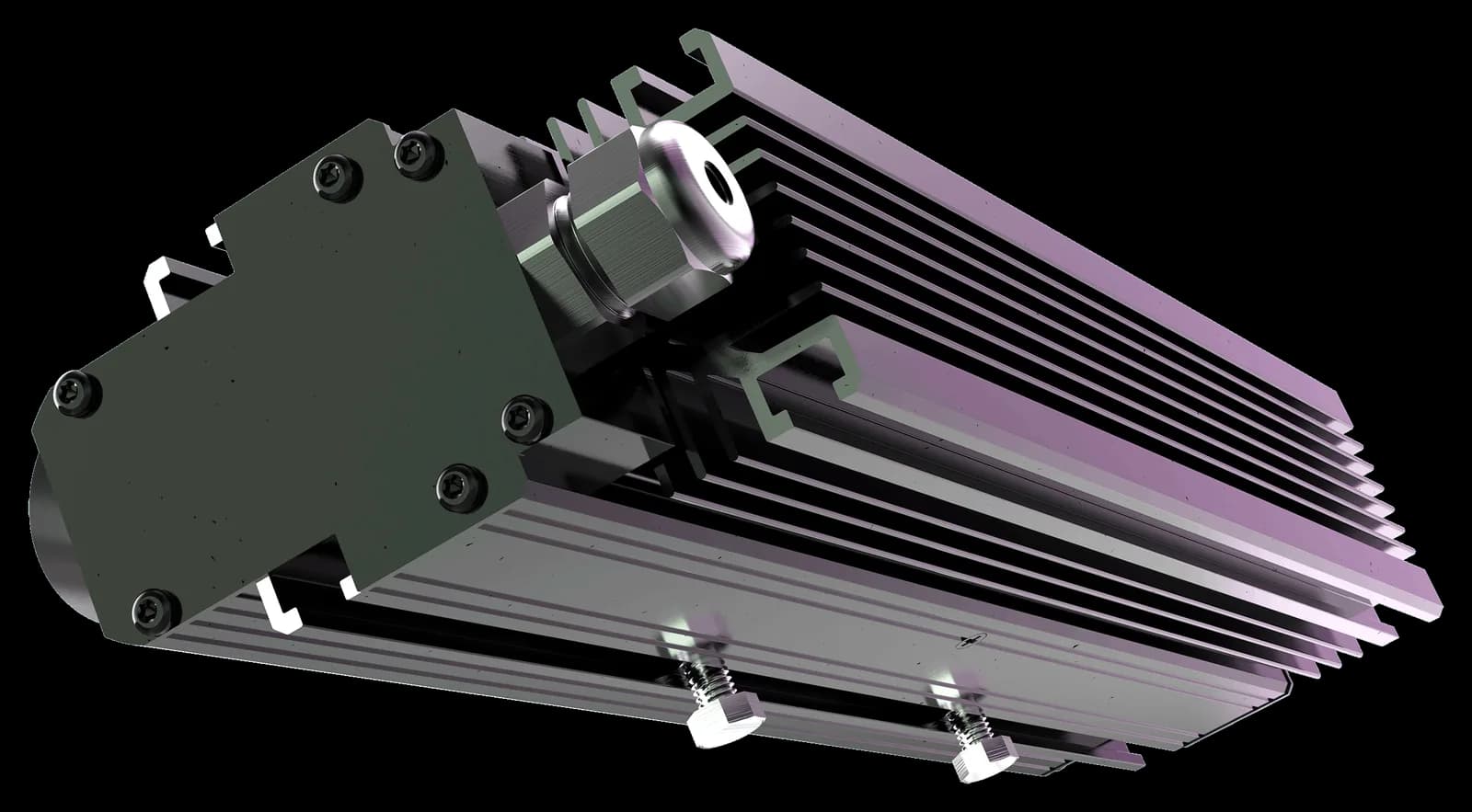

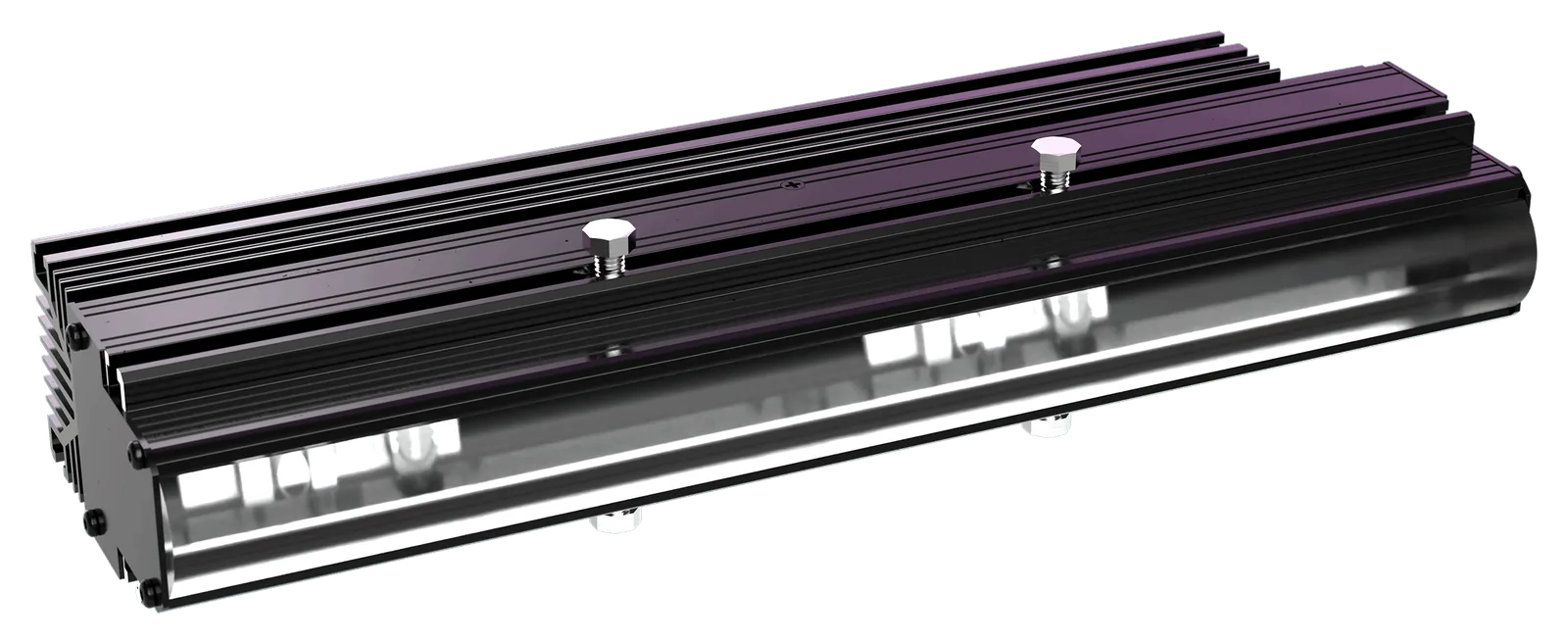

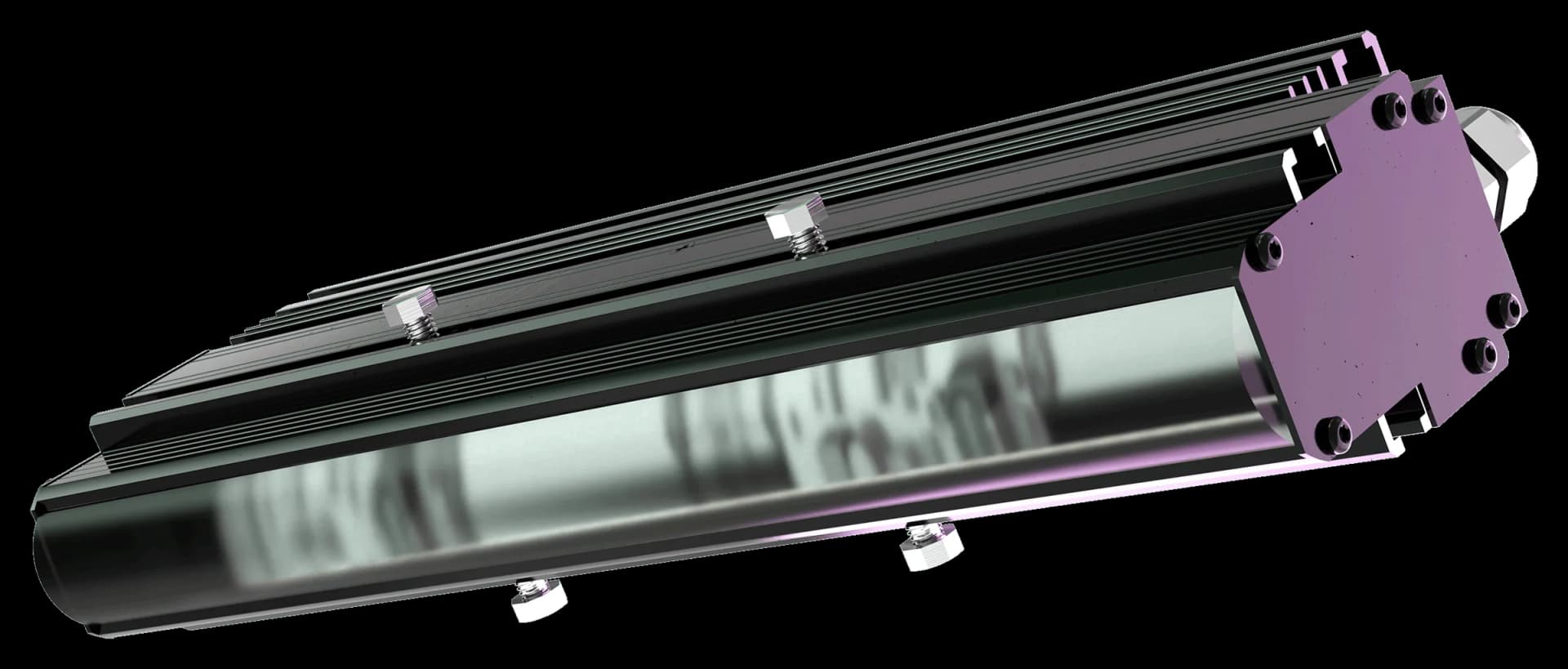

LL167 High Intensity White Line Light
AI-LL167-WHigh-output white line light for line scan, 472,000 Lux for the highest-speed web inspection.
- Available wavelengths
- WHI only
- Supply voltage
- 24V DC
- Ip rating
- IP50
About the AI-LL167-W
The LL167 is a high intensity white line light engineered to provide optimal power on target for demanding line scan inspection. An embedded control circuit gives 0 to 10 volt DC analogue dimming and on/off gating, so powering and control need no cabinet hardware.
Lengths run 82.3 mm to 2444.5 mm at 50.2 mm wide, and the extrusion-based aluminium housing scales in one dimension so a wider web needs only a longer unit. An M6 mounting channel on the base allows the position and angle to be set after installation. Four focal lengths cover a range of line widths and working distances, with housing height from 93.9 mm to 115.5 mm by lens.
White only output concentrates the LED area into one wavelength, raising line intensity on target for fast line rates. Standard units weigh around 998 g per 6 in of length and white light lumen maintenance is L70 at 50,000 hours. A "C1" build suits the DCS controllers and an optional "IC" model carries manual dimming potentiometers for each 6 in segment, rated IP50.
Specifications
Features
- Feature 1
- High intensity scalable linear design
- Feature 2
- Scalable linear design
- Feature 3
- Uniformity control via IC per-segment potentiometers
- Feature 4
- Multiple focal lengths (4 lens options: D/E/F/G)
- Feature 5
- 1–2 week BTO lead times
- Feature 6
- M6 mounting channel
Applications
- Application 1
- Linescan and web inspection
- Application 2
- Solar cell inspection
- Application 3
- PCB inspection
- Application 4
- Glass inspection
- Application 5
- Semiconductor inspection
Intensity
- Max illuminance klux website
- 472
Wavelengths
- Available wavelengths
- WHI only
- Colour temp white cct k
- 6500 K
- Peak wavelengths actual
- n/a — White only
Lensing
- Available lenses
- D (converging), E (converging), F (converging), G (collimating)
- Lens code detail
- D/E/F = converging. G = collimating. Same as LL137.
- Uniformity note
- G lens + IC option recommended for uniform distribution on long units
Dimensions
- Unit pitch increment
- 6" (152mm)
- Min length
- 3.24"
- Max length
- 96.24"
- Min length
- 82.3 mm
- Max length
- 2444.5 mm
- Stackable beyond max
- No
- Width
- 50.2 mm
- Height
- 93.9 (G) to 115.5 (F)
- Weight per unit
- ~2.20 lbs (~998g) per 6"
Housing & Mounting
- Housing material
- Anodized Aluminum
- Window material
- Acrylic
- Sealing
- None (IP50)
- Mounting channel
- M6 nut channel
- Mounting note
- M6 on base — same as LL137
Thermal & Certification
- Operating case temp
- 25–60°C
- Operating ambient temp
- 0–35°C
- Ip rating
- IP50
- Compliance
- CE, RoHS, IEC 62471
- Lumen maintenance
- L70 @ 50,000h (White)
- Cooling method
- Passive
- Cable length std
- 80" ±6" (2m ±150mm)
- Cable spec
- 105°C rated, foil shield w/ drain
Power
- Input voltage
- 24V DC
- Current grp1 A per increment
- 0.760A/6" (all configs)
- Current grp2 controller
- 0.760A/6"
- Psu note
- Same
Control Options
- Ctrl C1
- Yes (up to 12" only)
- Ctrl C5
- No
- Ctrl IC
- Yes (per-6" segment)
- Ctrl I3 I3S
- No
- Ctrl 24V
- Yes
- Ctrl EC
- No
- Dimming interface
- 0–10V analog
Wiring
- Wire brown
- 24V DC
- Wire white
- 0–10V Analog Control
- Wire blue
- DC GND
Compatible Controllers
- Ctrl DCS100E
- Yes
- Ctrl DCS103E
- Yes
- Ctrl Pulsar320E
- No
- Ctrl PSU 24V
- Yes
- Optional m12 connector
- No
Optical
- Wavelength / colour
- White
- Beam
- Focused line
- Intensity
- Ultra
- Irradiance
- 472,000 Lux
Environmental
- Operating temperature
- 0 to +35°C
Electrical
- Supply voltage
- 24V DC
Application
- Applications
- Inspection / Machine Vision
