LL174 High Intensity Bar Light

Introduction

A dependable, general-purpose bar on a field-proven design.

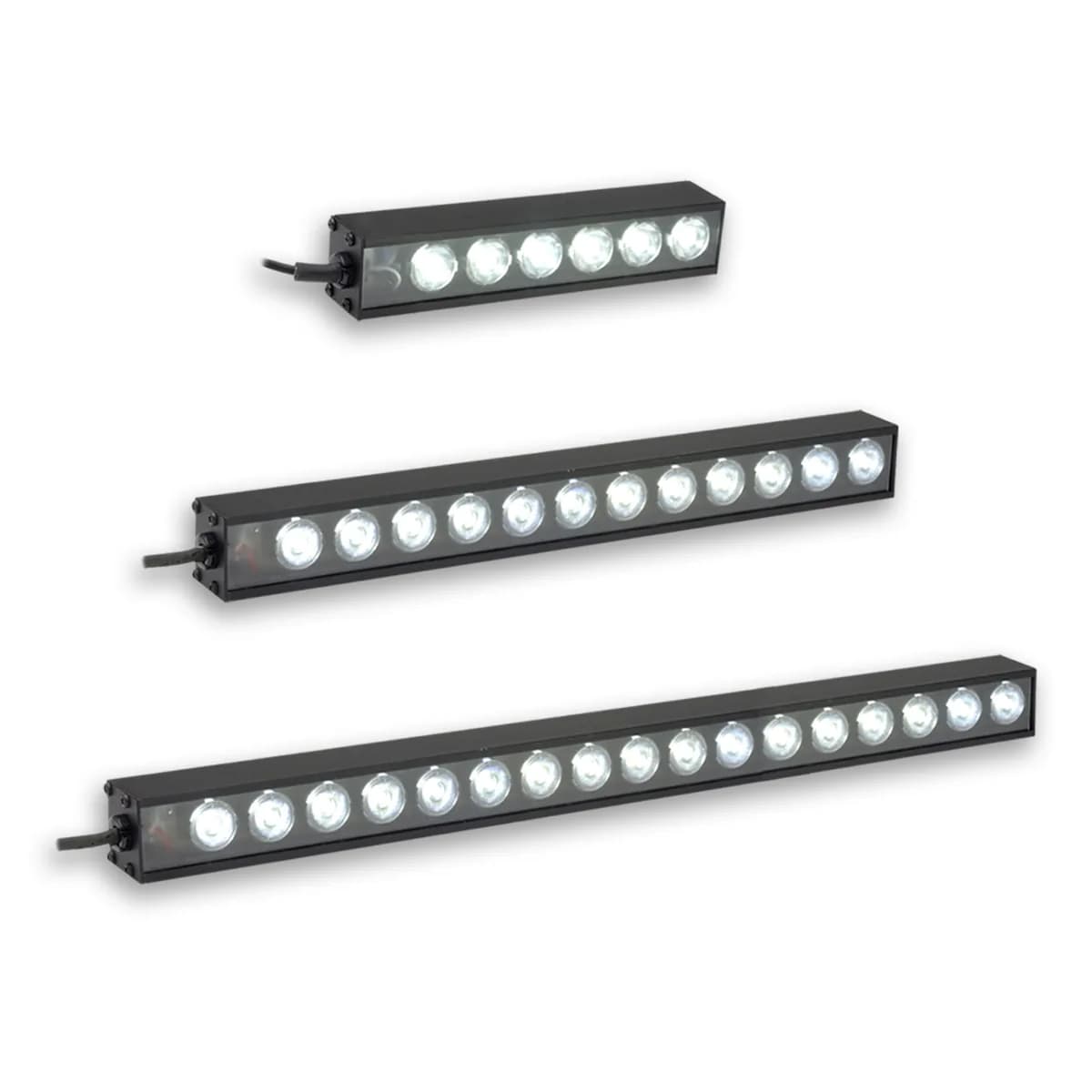

The LL174 is the workhorse bar: a scalable linear array built for a wide range of machine vision tasks rather than one specialised job. Its value is versatility and reliability — a design that has been in the field long enough to be trusted — and it is offered in a range of wavelengths and lens angles, with diffuser and polarizer options, so one familiar bar covers most incident-lighting work.

A general-purpose workhorse

Not every application needs a specialised bar. The LL174 is the one to reach for when the job is ordinary machine vision — surface and web inspection, presence-and-absence, code reading — and what matters is a reliable, well-understood light rather than a maximum spec. It scales in length to suit the field of view, takes a narrow, medium or wide lens to set the beam, and accepts a diffuser to soften the light or a polarizer to cut specular glare.

At IP40 it is built for a clean line rather than washdown, and it runs on a standard 24 V DC supply across a 0 to +50 °C range. Peak output is 62,700 Lux.

Applications

Broad, incident machine-vision lighting — surface and web inspection, and general presentation and reading tasks across a range of industries.

Where it fits

The LL174 is the dependable general-purpose bar. Where an application needs a sealed housing for washdown, or the tightest close-range uniformity, a specialised bar in the range is the better fit; where it needs a proven, flexible bar for everyday work, this is the one.

---

A note on this record. Exaktera's verified store currently holds a compact spec set for the LL174 — the figures above are what it confirms. The product's own datasheet carries more (a fuller wavelength count, per-lens beam angles and mechanical dimensions); those are not yet verified into the store, so they are deliberately not stated here as specifications. This is an enrichment gap in the store record, not a limit of the product.
