LL230 Ultra High Intensity Line Light

Ultra-high-intensity line light for extreme line scan, 2,100 klx at 75mm, scalable in 150mm steps to 2,400mm.

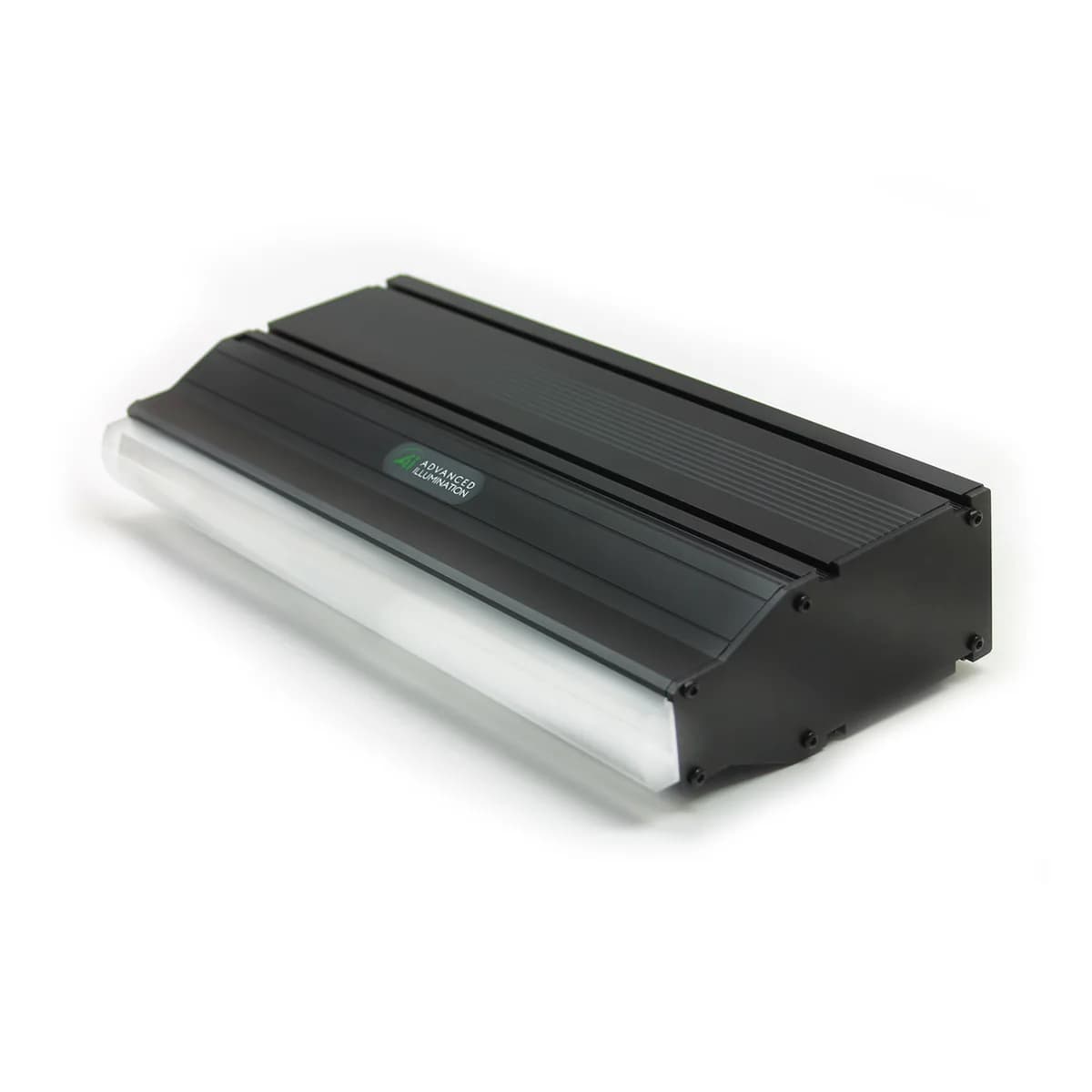

Product image
Overview

About the LL230 Ultra High Intensity Line Light

The LL230 Series is an ultra high intensity line light built for the most extreme line scan lighting requirements. It provides 2,100 klx at a 75 mm working distance, which holds a usable exposure at line rates where a standard high intensity head runs out of light.

The series is pre-engineered for expandability in 150 mm increments up to 2400 mm, so the illuminated line matches the web width without a custom build and a later widening of the line reuses the same design. A 300 mm model weighs 2082.0 g.

The LL230 requires an external constant current source controller delivering approximately 5 A at 48 volt DC per 150 mm of light length, which is what supports the output; Advanced Illumination recommends and supplies the Meanwell HLG-240H-48x series so the correct supply arrives with the light. Normal operating temperature is 0 to 60 degrees C and lumen maintenance is L70 at 50,000 hours. The LL230 range covers white, 455 nm, 530 nm and 625 nm, all Group 3 high-risk for photobiological safety, certified to CE, RoHS and IEC 62471.

LL230 Ultra High Intensity Line Light

Media

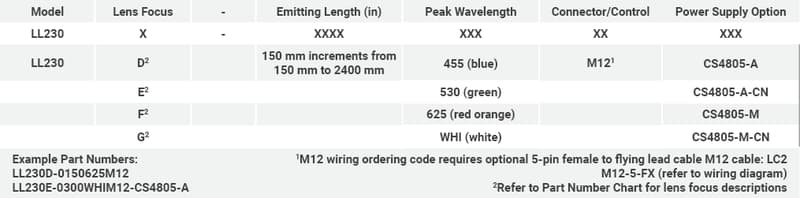

View 2

1 / 1

View 2

Downloads

Datasheets

  • Datasheet - LL230 Ultra High Intensity Line LightPDFENDownload

CAD and drawings

  • Installation drawing - LL230PDFENDownload
  • Installation drawing - LL2301PDFENDownload
