LRHP100 Ring Light

LMX-LRHP100

Ultra-high-performance multi-row ring light, moderate to large sizes - 100mm inner diameter, IP64.

Light colour | wavelength: 470 to 850 nm, white
Power-LED: 48 High Power LEDs
Light field size: 114 x 171

Overview

About the LMX-LRHP100

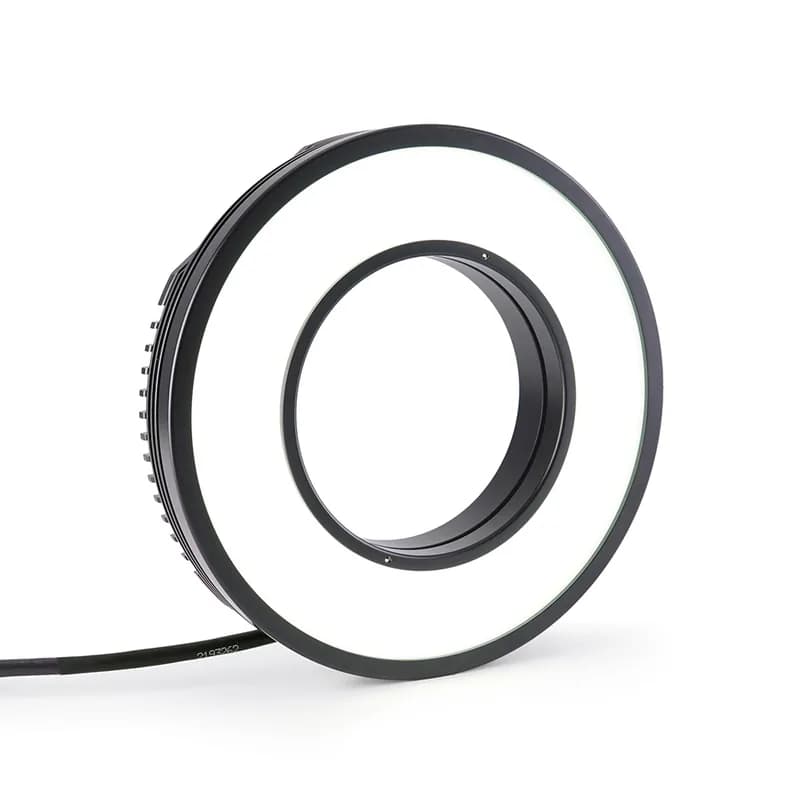

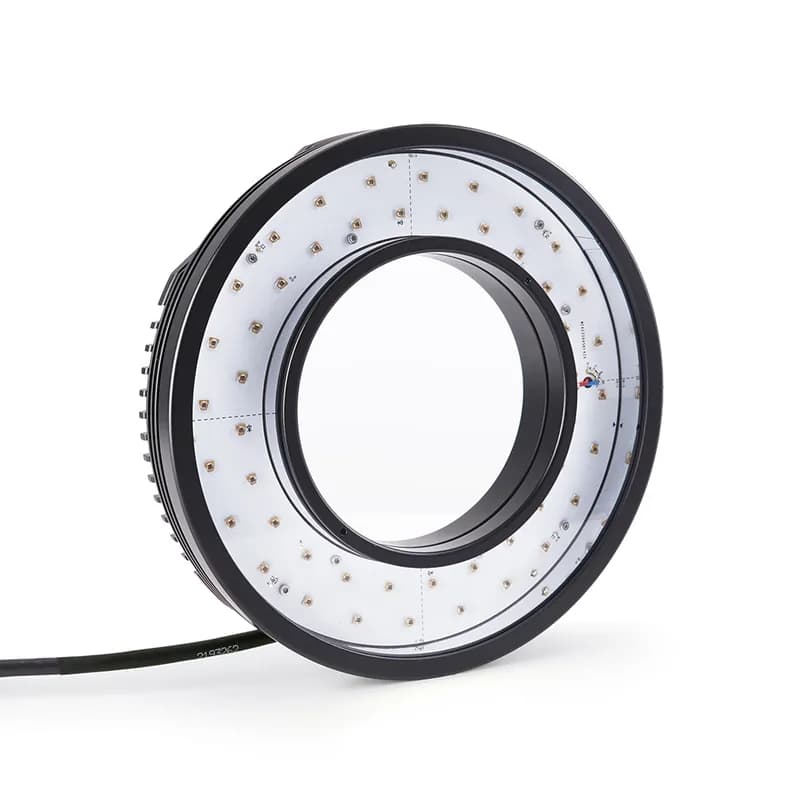

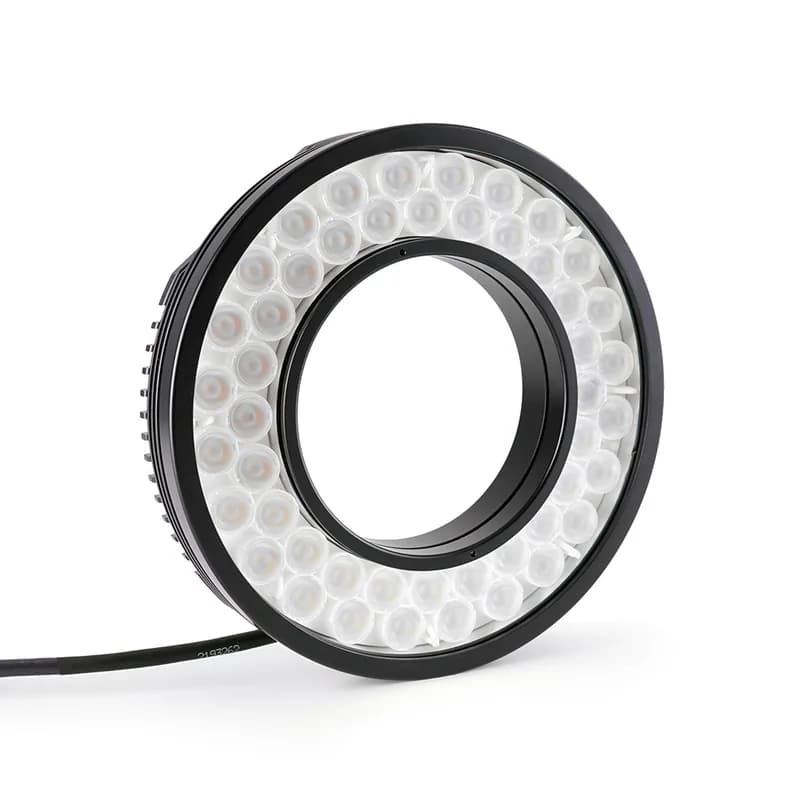

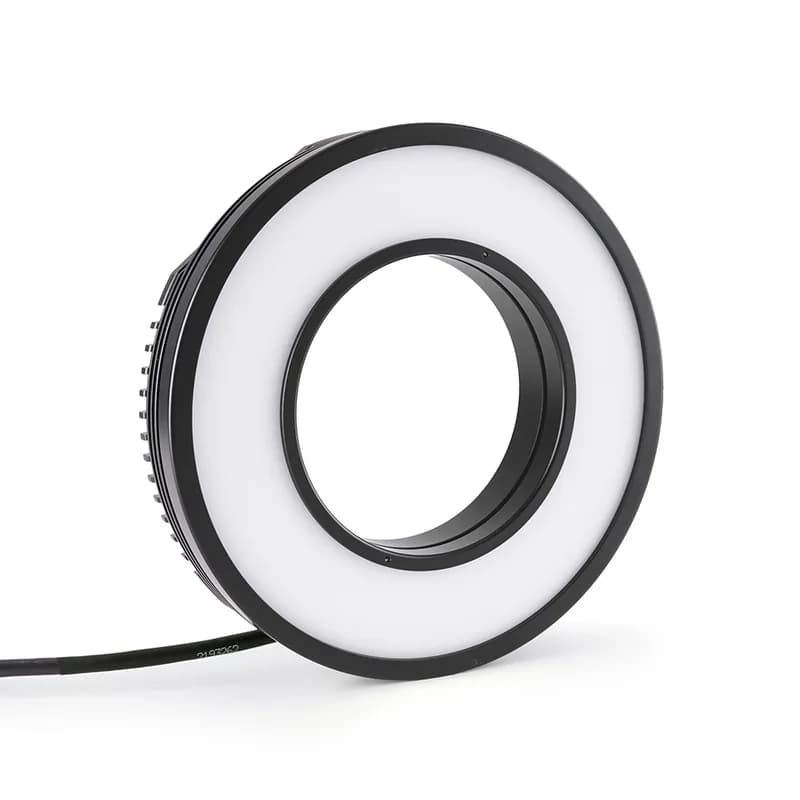

The LRHP100 is the 100mm High Performance ring light from LUMIMAX, camera-mounted and working in reflected light as a partial bright field on flat, matte and reflective surfaces. Its multi-row LED arrangement lights a wide area without visible hot spots, the series reaching up to 2 million lux, and interchangeable Lens Kits with lens-mounted accessories set the beam angle and the fit.

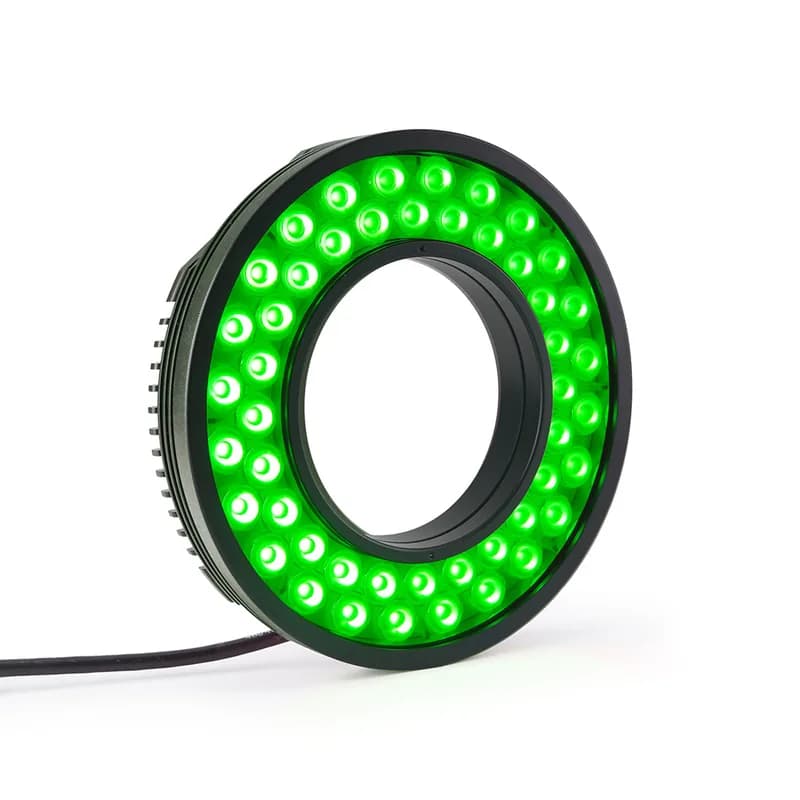

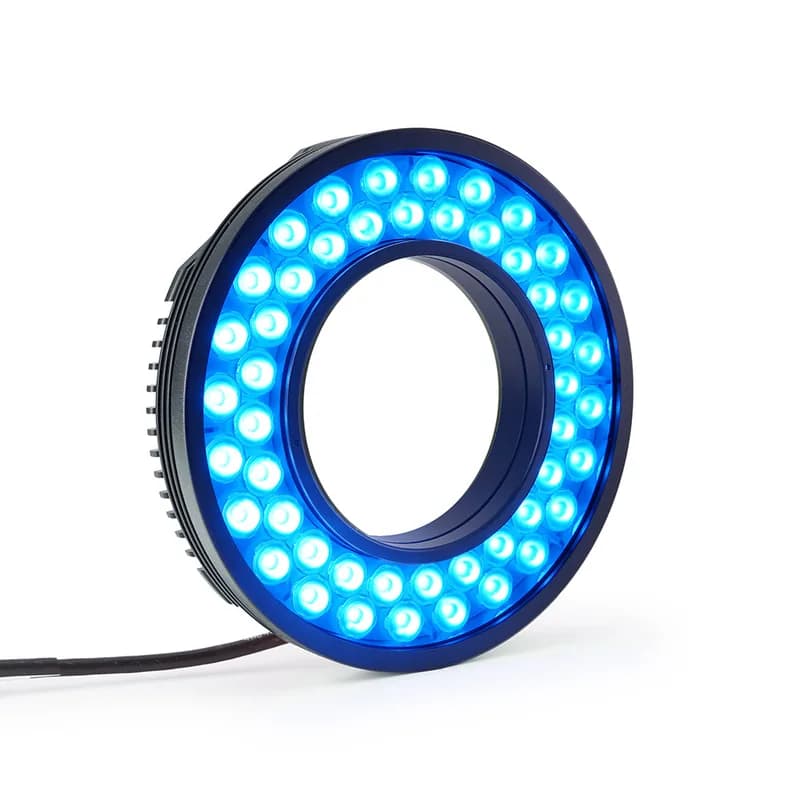

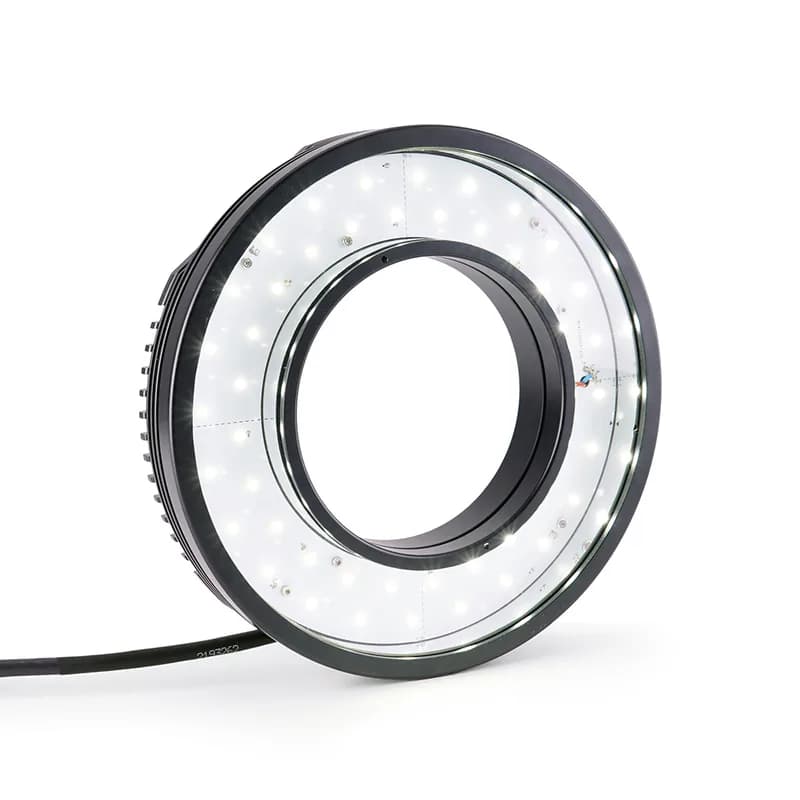

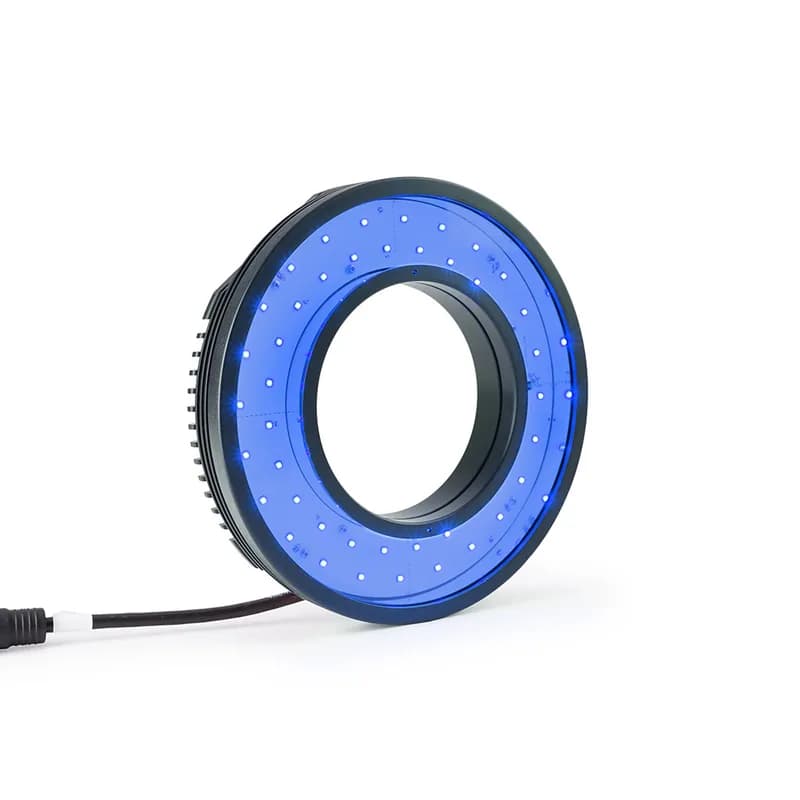

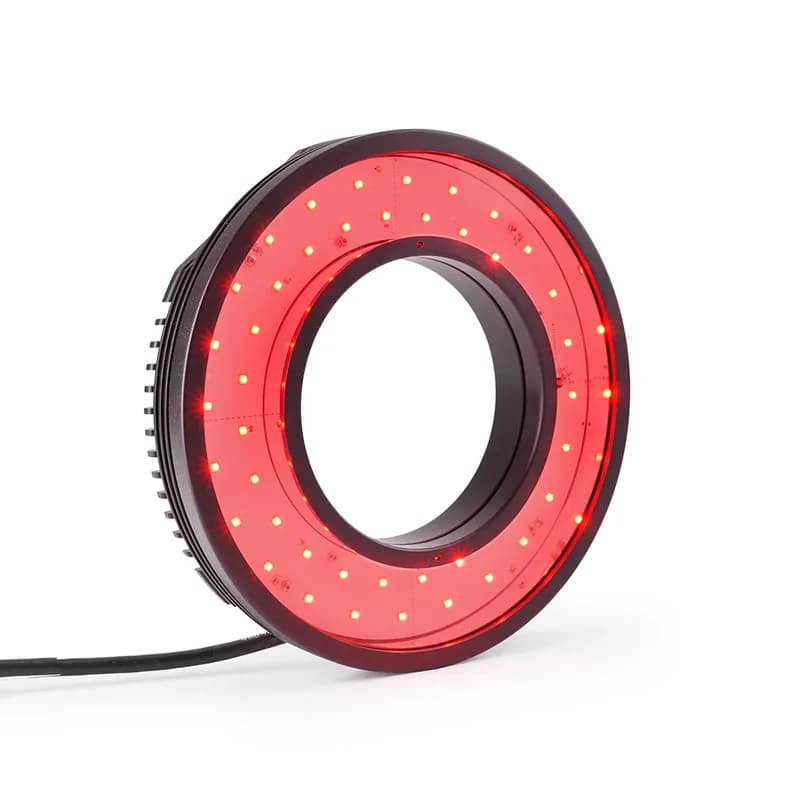

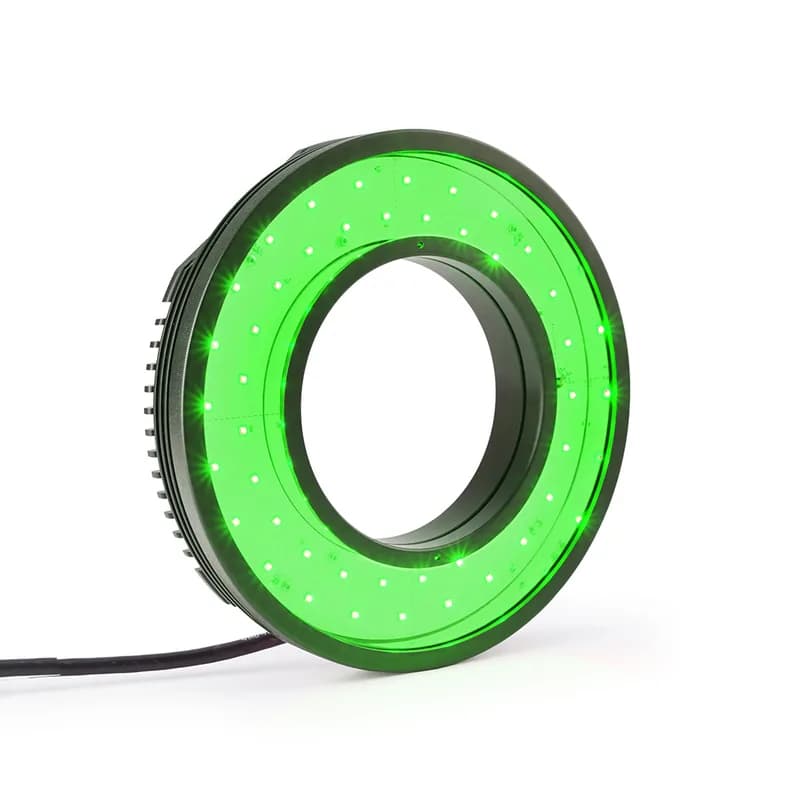

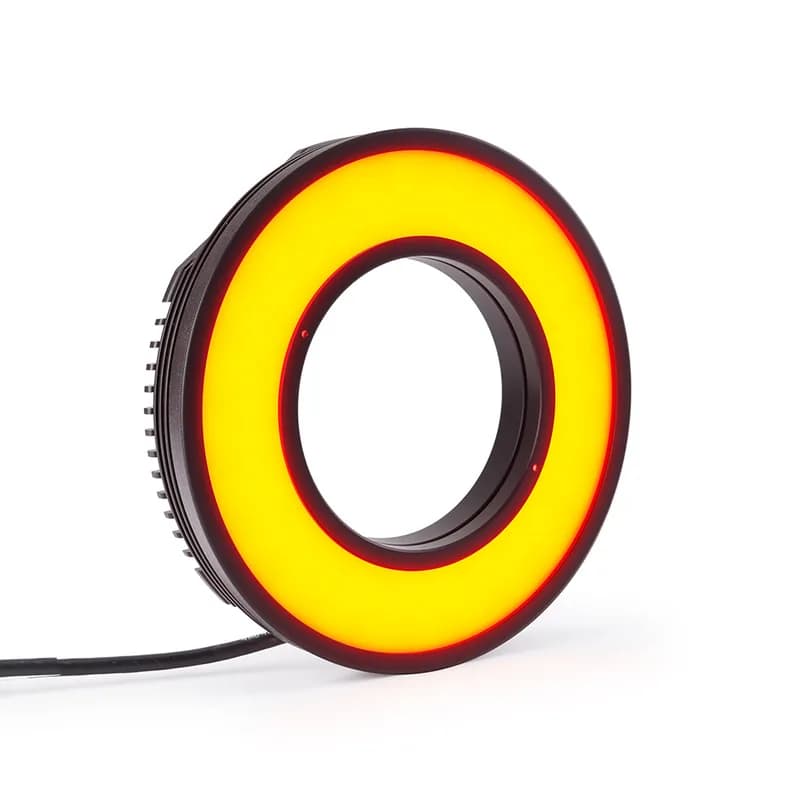

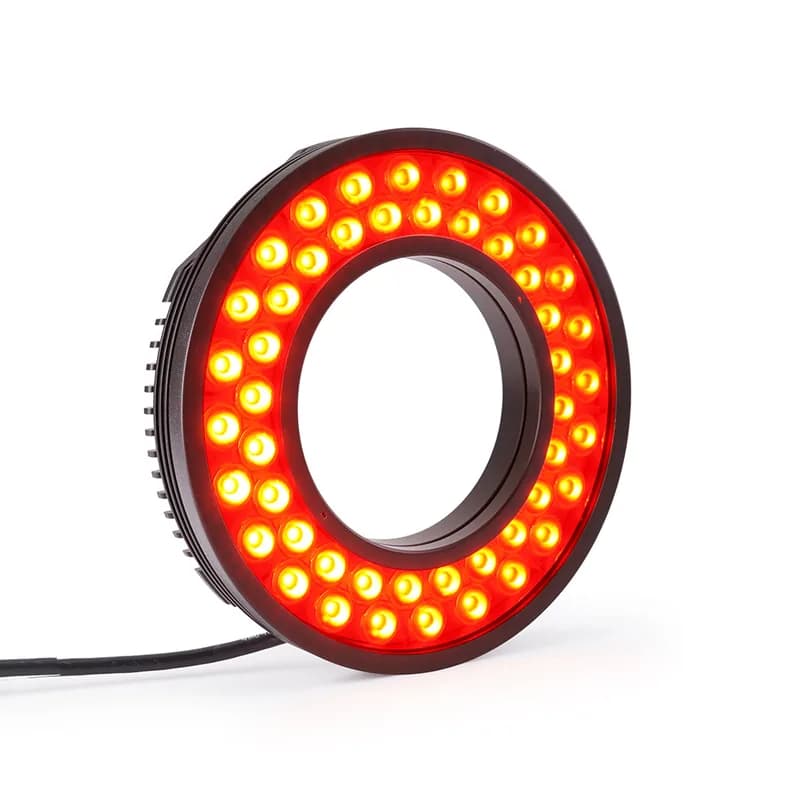

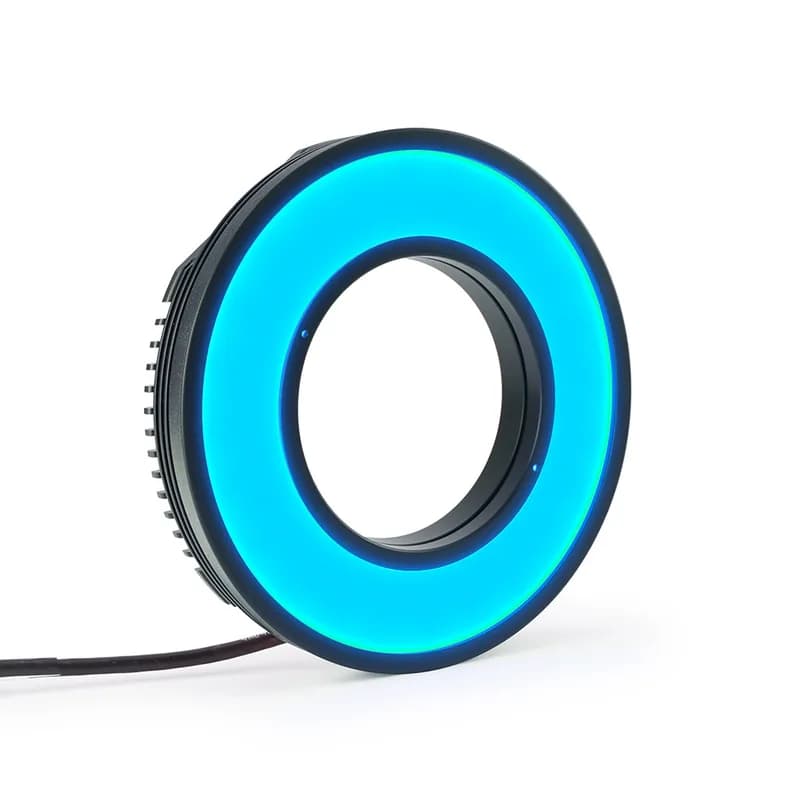

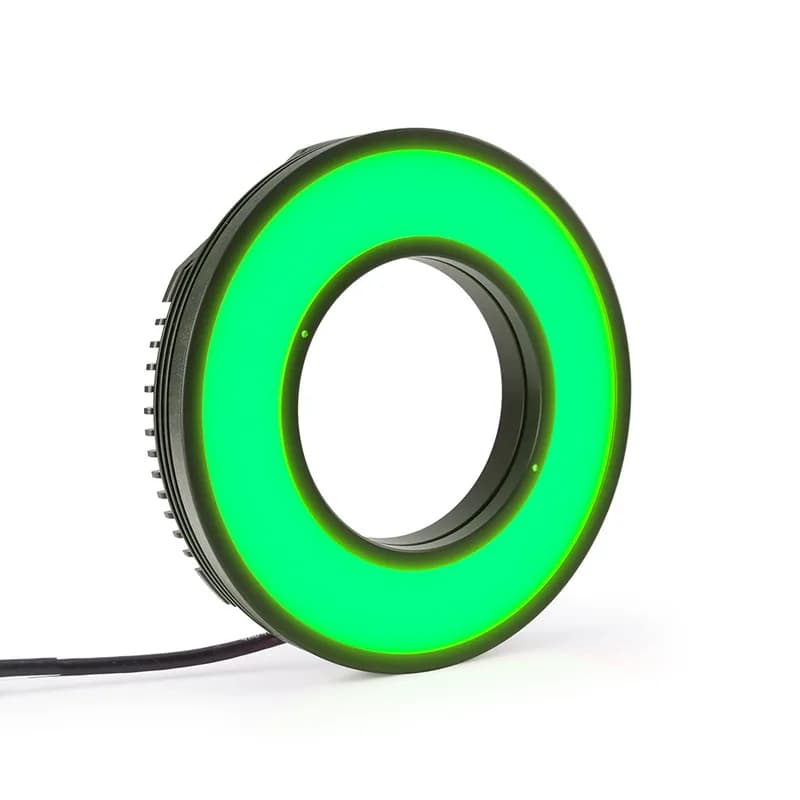

Blue at 470nm, green at 528nm, red at 625nm, white at 5500K and infrared at 850nm are orderable, with 12, 31 or 49 degree ancillary lenses or bare 120 and 150 degree LED beam angles. Both continuous and switching and strobe operation are available, flash times covering 10 to 100us, 20 to 220us and 50 to 750us.

One strobe article places 48 High Power LEDs behind a 114mm by 171mm light area, giving 3805 W/m2 at 0.2m on 1.3A at 24 V DC with a 2.5A pulse for 24ms. That head measures 186mm by 31mm, weighs 750g, falls in Risk Group 1, is rated IP64 and uses an M16 12-pin plug with TTL and PLC triggers.

Specifications

Operation

Operating mode (varies by part number): Continuous and switching mode | Strobe mode
controller (varies by part number): Integrierter lightscontroller | Integrierter strobe controller

Environment

Ingress protection: IP64
Allowed ambient temperature: 5 to 45 °C, non-condensing
Operating temperature at 21°C (by operating mode): continuous 37–50 °C · strobe 28, 37, 38, 39 °C
Risk Group (by operating mode): continuous 0, 1, 2 · strobe 0, 1

Mechanical

Dimensions (Ø x h in mm): 186 x 31
Material housing | window: Aluminium, anodised | PMMA

Electrical

Operating voltage: 19 to 30 V DC wide-range voltage input
Maximum current consumption (by operating mode): continuous 0.9, 1, 1.1, 1.3 A · strobe 1.3 A
Maximum electrical power at light field (by operating mode): continuous 20, 21, 24, 660 W · strobe 400–680 W
Electrical connection: 150 mm connection cable with M16 12-pin plug
Brightness control via potentiometer: 0 % (left stop) to 100 % (right stop) brightness # Note: automatic deactivation at VC > 1 V DC
Brightness control via analogue VC input: VC = 2 to 10 V DC (0 % to 100 % brightness) # Note: Turn potentiometer to left stop
Maximum pulse current (varies by part number): 1.1 A for 3 ms | 1.1 A for 6 ms | 1.8 A for 25 ms | 2 A for 3 ms | 2 A for 4 ms | 2 A for 7 ms | 2 A for 8 ms | 2.3 A for 24 ms | (+1 more)
TTL-Trigger: High level = 3 to 30 V DC
SPS-Trigger: High level = 15 to 30 V DC
Trigger slope: Rising slope
Switch-on delay: 100 % brightness within a maximum of 5 µs
Flash duration 1 (varies by part number): Von 10 bis 100 µs | Von 20 bis 220 µs | Von 50 bis 750 µs
Flash frequency (by operating mode): continuous 100 Hz · strobe 10, 35, 100 Hz
TTL switching input: High level = 3 to 30 V DC
PLC switching input: High level = 15 to 30 V DC
Switching mode: Switching time follows the switching signal # Connect + ON / OFF and GND ON / OFF
Continuous mode: Assign + ON / OFF permanently with high signal, e. g. by applying to operating voltage # Connect GND ON / OFF
Switch-on delay_switching: 100 % brightness within a maximum of 200 µs # (first pulse delay after initial operation 3 ms)

Optical

Light field size (inner Ø x outer Ø in mm): 114 x 171
Light colour | wavelength (varies by part number): Blue | 470 nm | Green | 528 nm | Infrared | 850 nm | Red | 625 nm | White | 5500 K
Light guidance (varies by part number): Directed with 12° ancillary lenses <_Blau_> | Directed with 31° ancillary lenses <_Pink_> | Directed with 49° ancillary lenses <_Gold_> | Directed, 120° LED beam angle (without ancillary lenses) | Directed, 150° LED beam angle (without ancillary lenses)
Power-LED: 48 High Power LEDs
Illuminance at 100 mm: continuous 8810–45204 lx · strobe 92064.2–598218 lx
Illuminance at 200 mm: continuous 4203–490538 lx · strobe 38386.2–901539 lx
Illuminance at 500 mm: continuous 871.1–209480 lx · strobe 7327.8–729756 lx
Illuminance at 1000 mm: continuous 242.6–67169.2 lx · strobe 2099.8–251902 lx
Illuminance at 2000 mm: continuous 696.1–18558.4 lx · strobe 7887.5–78078.8 lx
Irradiance at 100 mm: continuous 65.2–162 W/m² · strobe 534.4–1971.9 W/m²
Irradiance at 200 mm: continuous 29.6–2466.7 W/m² · strobe 266.5–4731.6 W/m²
Irradiance at 500 mm: continuous 5.6–1051.8 W/m² · strobe 53–2175.2 W/m²
Irradiance at 1000 mm: continuous 1.6–337.5 W/m² · strobe 32.3–752.9 W/m²
Irradiance at 2000 mm: continuous 5–93.3 W/m² · strobe 40.6–232.7 W/m²
