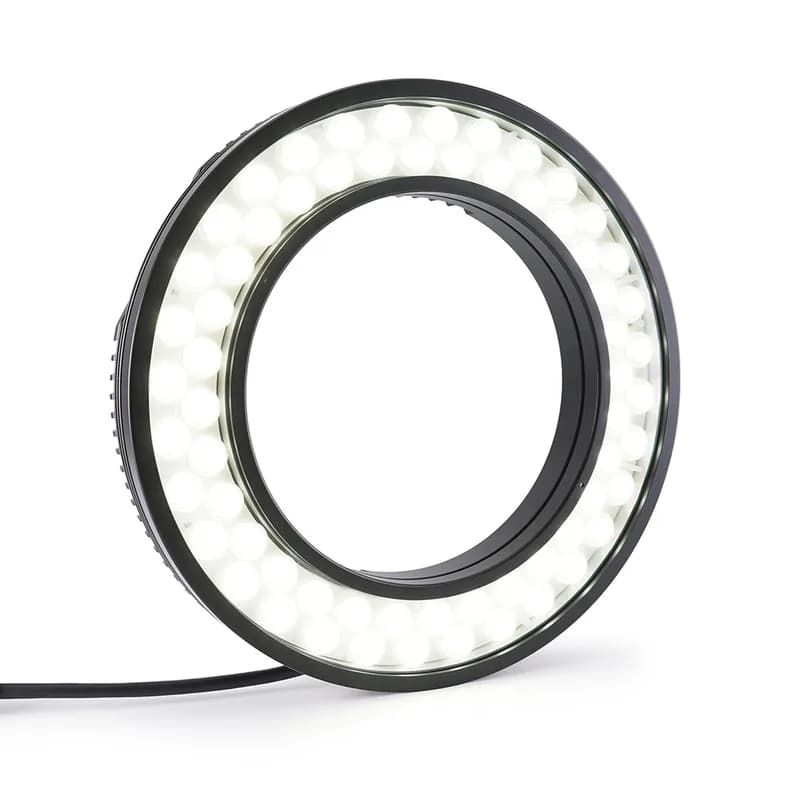

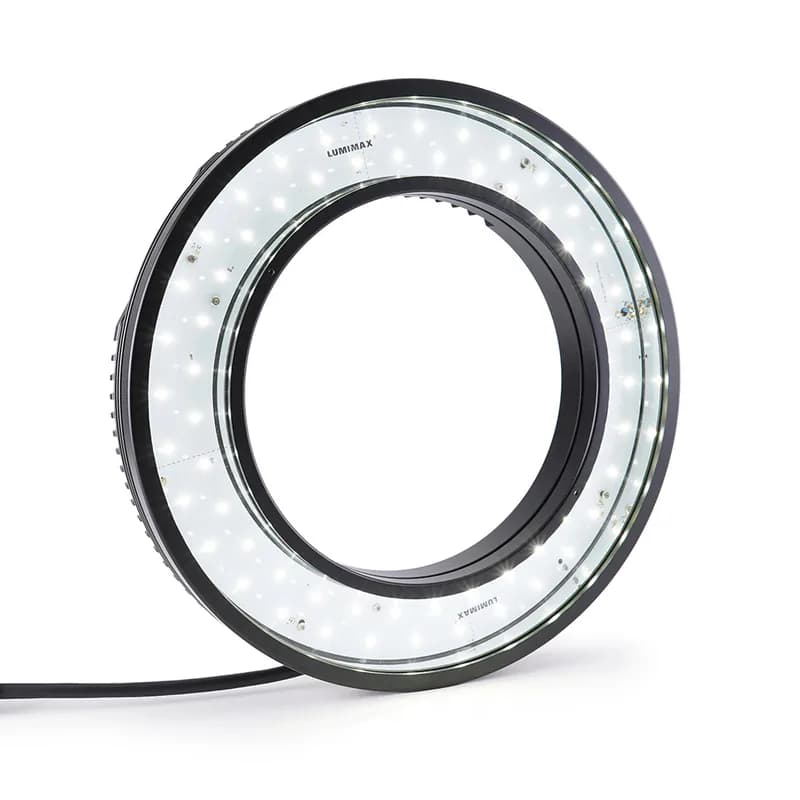

LRHP160 Large Ring Light
LMX-LRHP160FL-WUltra-high-performance multi-row ring light, moderate to large sizes - 160mm inner diameter.
- Light colour | wavelength
- 470 to 850 nm, white
- Power-LED
- 64 High Power LEDs
- Light field size
- 175 x 235
About the LMX-LRHP160FL-W
Introduction
A large-format dual-row ring with a 160 mm inner diameter, for extended working distances and large fields of view.
The LRHP160 is the large-format ring in the LUMIMAX dual-row high-power family: 64 High Power LEDs in two rows around a 160 mm inner diameter, built for large parts and long working distances. The controller is built in, running continuous or strobe from a single cable — up to 1467 W at the light field in a strobe pulse.
Built for large fields and long reach
The 160 mm inner diameter is the point of the LRHP160: it clears a large part or a wide field of view, and the 64 dual-row High Power LEDs keep the intensity up across it. Its wide 120° spread lights a broad area, and even at a full 1000 mm working distance the strobe still reaches 359591 lx — the reach that a smaller ring cannot give.
Integrated controller and colour
The controller is on the ring: brightness set on the unit, switching over a TTL or PLC input, one cable in and no separate box. Continuous mode runs 30–34 W at the light field against 824–1467 W in strobe. Colour spans White at 5500 K through Red 625 nm, Blue 470 nm and Green 528 nm to Infrared 850 nm, across 80 catalogue part numbers.
Applications
Large-field, long-reach high-power incident ring lighting for machine vision, including strobed inspection — large-part surface and code reading, presence and absence, and wide field-of-view systems.
Where it fits
The LRHP160 is the largest size in the LUMIMAX dual-row high-power ring family, above the LRHP66 and LRHP100. Where a large part or a long working distance defeats a smaller ring, this is the large-format fit.
Specifications
Operation
- Operating mode (varies by part number)
- Continuous and switching mode | Strobe mode
- controller (varies by part number)
- Integrierter lightscontroller | Integrierter strobe controller
Environment
- Ingress protection
- IP64
- Allowed ambient temperature
- 5 to 45 °C, non-condensing
- Operating temperature at 21°C (by operating mode)
- continuous 47, 49 °C · strobe 35–47 °C
- Risk Group (by operating mode)
- continuous 0, 1, 2 · strobe 0, 1
Mechanical
- Dimensions (Ø x h in mm)
- 250 x 31
- Material housing | window
- Aluminium, anodised | PMMA
Electrical
- Operating voltage
- 19 to 30 V DC wide-range voltage input
- Maximum current consumption (by operating mode)
- continuous 1.4, 1.5, 1.7 A · strobe 0.6, 0.7, 0.8, 0.9 A
- Maximum electrical power at light field (by operating mode)
- continuous 30, 31, 34 W · strobe 824–1467 W
- Electrical connection
- 150 mm connection cable with M16 12-pin plug
- Brightness control via potentiometer
- 0 % (left stop) to 100 % (right stop) brightness # Note: automatic deactivation at VC > 1 V DC
- Brightness control via analogue VC input
- VC = 2 to 10 V DC (0 % to 100 % brightness) # Note: Turn potentiometer to left stop
- Maximum pulse current (varies by part number)
- 2.1 A for 14 ms | 2.1 A for 15 ms | 2.1 A for 16 ms | 2.1 A for 2 ms | 2.1 A for 20 ms | 2.1 A for 22 ms | 2.1 A for 3 ms | 2.1 A for 5 ms | (+3 more)
- TTL-Trigger
- High level = 3 to 30 V DC
- SPS-Trigger
- High level = 15 to 30 V DC
- Trigger slope
- Rising slope
- Switch-on delay
- 100 % brightness within a maximum of 5 µs
- Flash duration 1 (varies by part number)
- Von 10 bis 100 µs | Von 20 bis 220 µs | Von 50 bis 750 µs
- Flash frequency (varies by part number)
- 10, 35, 100 Hz
- TTL switching input
- High level = 3 to 30 V DC
- PLC switching input
- High level = 15 to 30 V DC
- Switching mode
- Switching time follows the switching signal # Connect + ON / OFF and GND ON / OFF
- Continuous mode
- Assign + ON / OFF permanently with high signal, e. g. by applying to operating voltage # Connect GND ON / OFF
- Switch-on delay_switching
- 100 % brightness within a maximum of 200 µs # (first pulse delay after initial operation 3 ms)
Optical
- Light field size (inner Ø x outer Ø in mm)
- 175 x 235
- Light colour | wavelength (varies by part number)
- Blue | 470 nm | Green | 528 nm | Infrared | 850 nm | Red | 625 nm | White | 5500 K
- Light guidance (varies by part number)
- Directed with 12° ancillary lenses <_Blau_> | Directed with 31° ancillary lenses <_Pink_> | Directed with 49° ancillary lenses <_Gold_> | Directed, 120° LED beam angle (without ancillary lenses) | Directed, 150° LED beam angle (without ancillary lenses)
- Power-LED
- 64 High Power LEDs
- Illuminance at 100 mm
- continuous 6829–31664 lx · strobe 289250–373203 lx
- Illuminance at 200 mm
- continuous 5271–131400 lx · strobe 50122.4–749319 lx
- Illuminance at 500 mm
- continuous 1184–43478.7 lx · strobe 11551.3–603372 lx
- Illuminance at 1000 mm
- continuous 330.9–25912 lx · strobe 3770.5–359591 lx
- Illuminance at 2000 mm
- continuous 946.2–9601 lx · strobe 1171.2–133237 lx
- Irradiance at 100 mm
- continuous 61–111 W/m² · strobe 919.3–1585.5 W/m²
- Irradiance at 200 mm
- continuous 40.6–456.8 W/m² · strobe 363.7–5358.8 W/m²
- Irradiance at 500 mm
- continuous 8.8–158.1 W/m² · strobe 77.5–1854.4 W/m²
- Irradiance at 1000 mm
- continuous 2.5–89.2 W/m² · strobe 25.3–1071.3 W/m²
- Irradiance at 2000 mm
- continuous 7.7–33.3 W/m² · strobe 13.5–396.9 W/m²
- Beam
- 120°
- Intensity
- High
General
- Weight (kg) (varies by part number)
- 1.04, 1.15
Application
- Applications
- Inspection / Machine Vision
