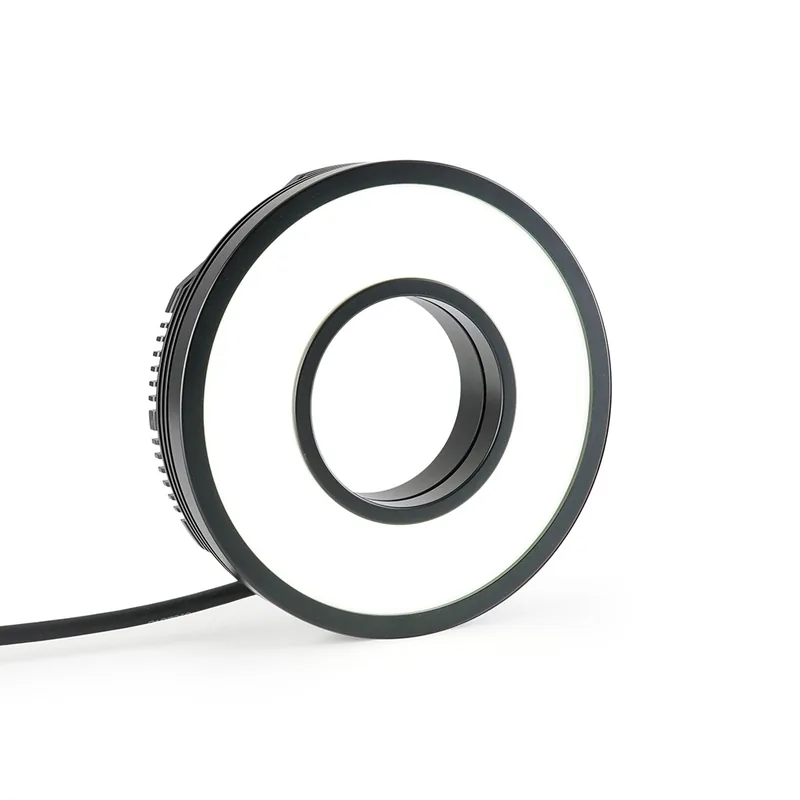

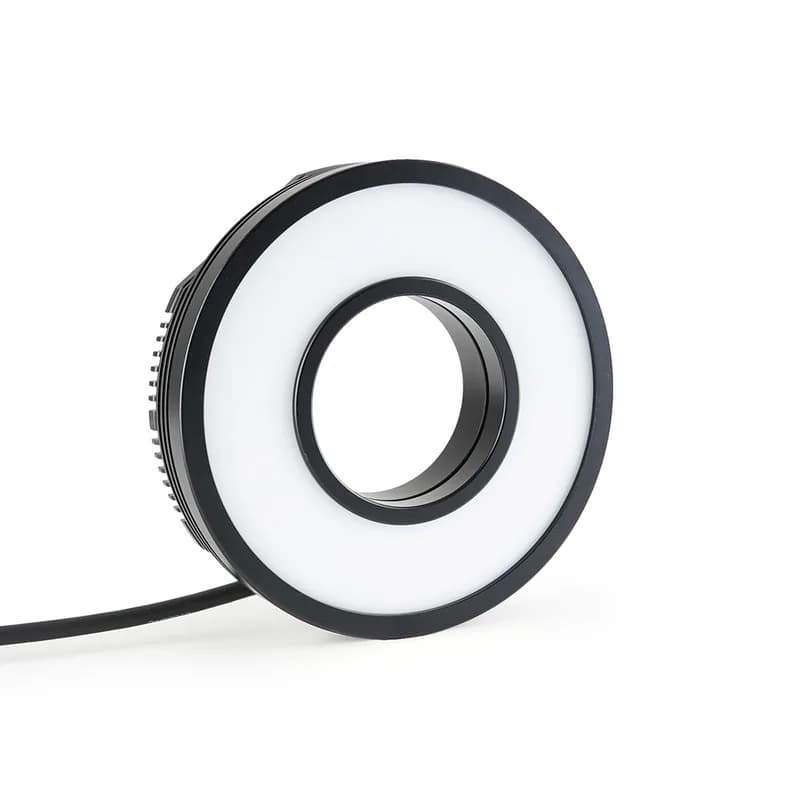

LRHP66 Ring Light

LMX-LRHP66

Ultra-high-performance multi-row ring light, moderate to large sizes - 66mm inner diameter, IP64.

Light colour | wavelength: 470 to 850 nm, white
Power-LED: 32 High Power LEDs
Light field size: 78 x 135

Overview

About the LMX-LRHP66

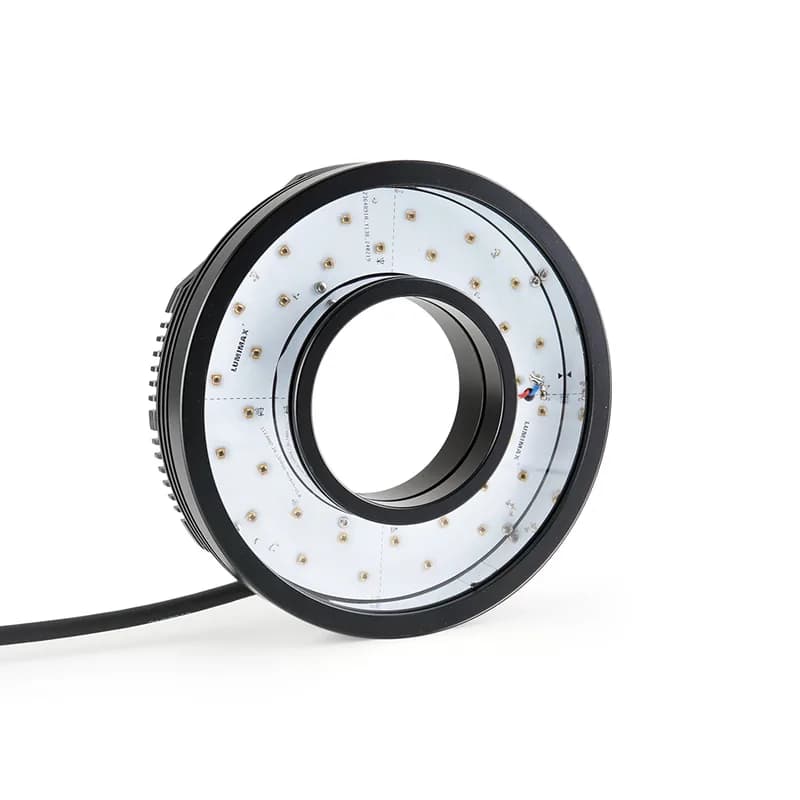

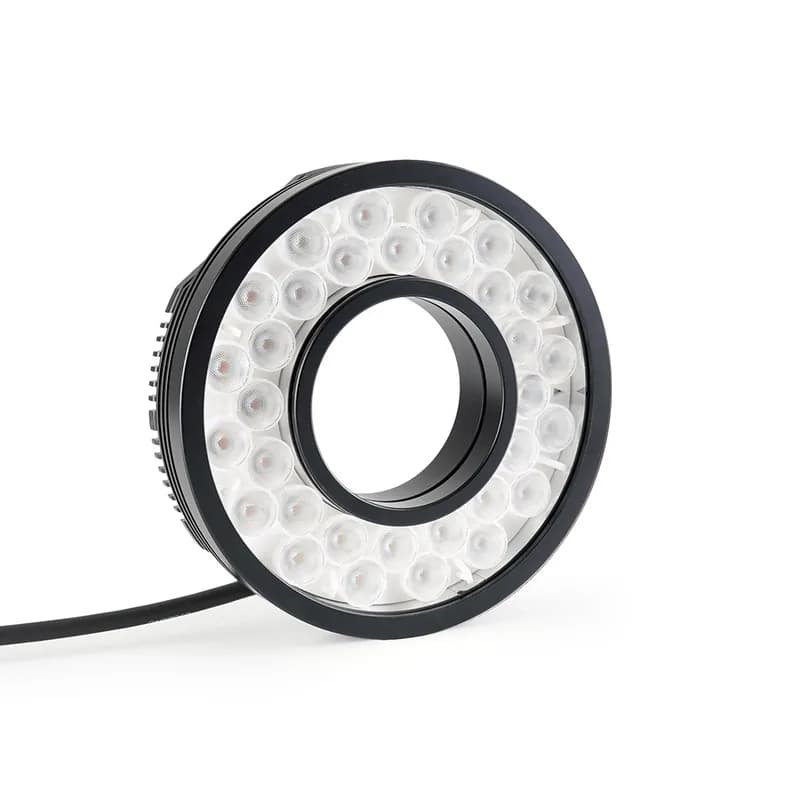

The LRHP66 is the 66mm size in the LUMIMAX High Performance ring light range, a camera-mounted partial bright field light for flat, matte and reflective surfaces. A multi-row LED arrangement gives wide coverage without visible hot spots, and the series reaches light output up to 2 million lux. Interchangeable Lens Kits and lens-mounted accessories adapt the beam.

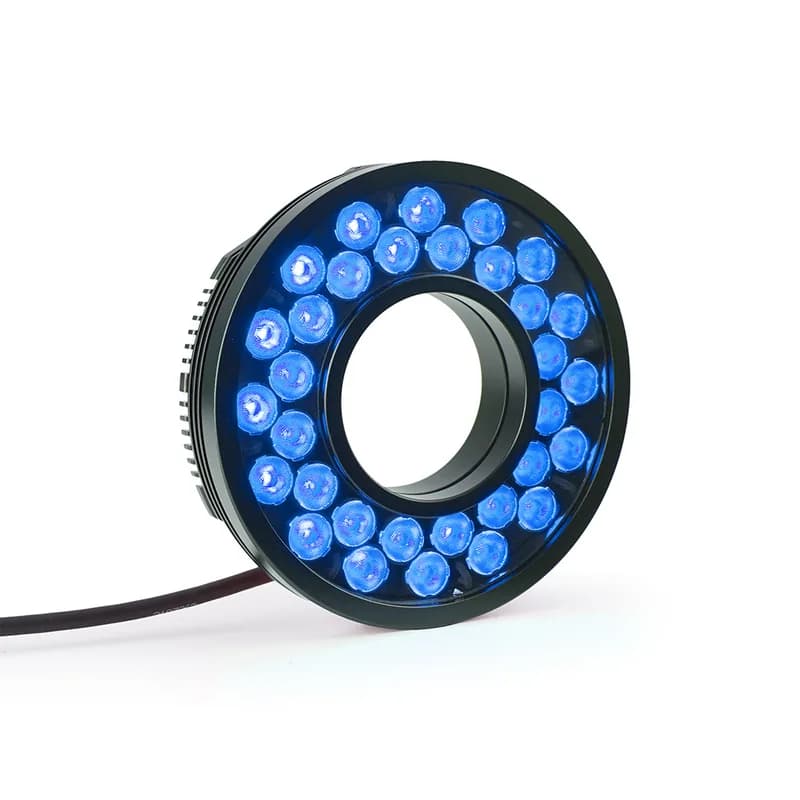

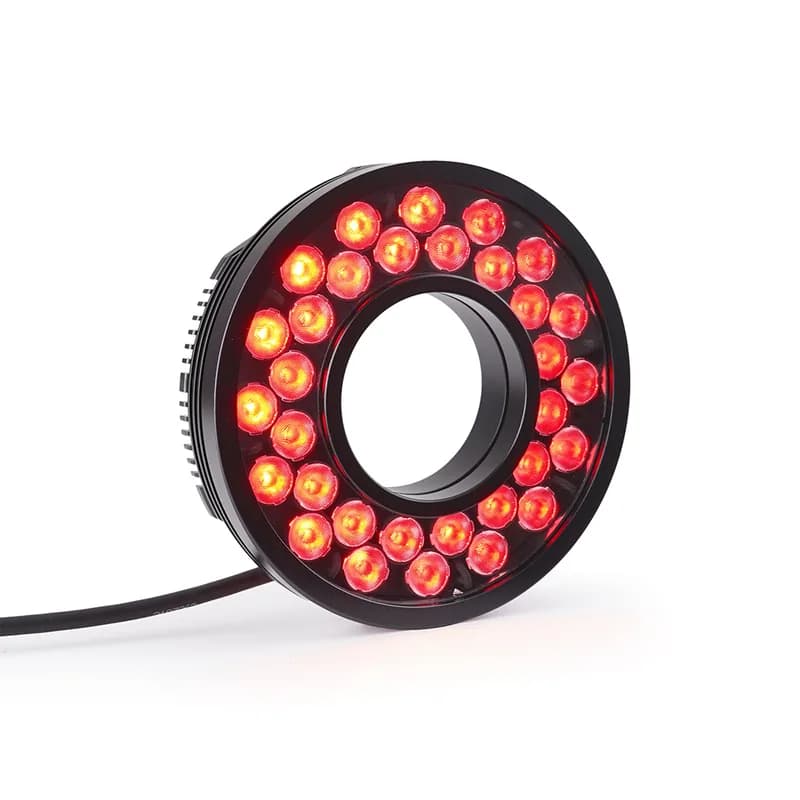

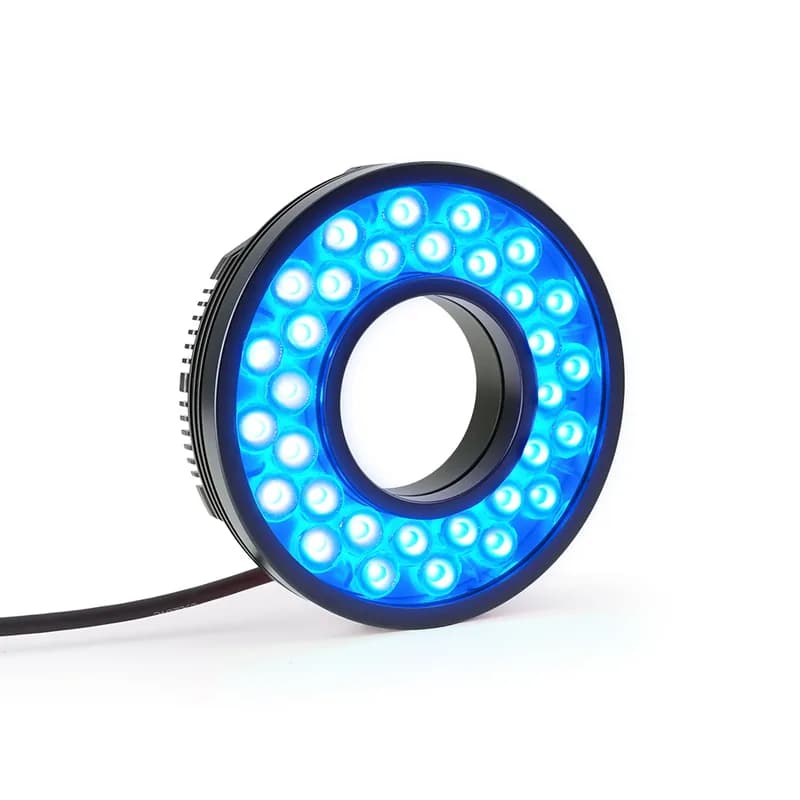

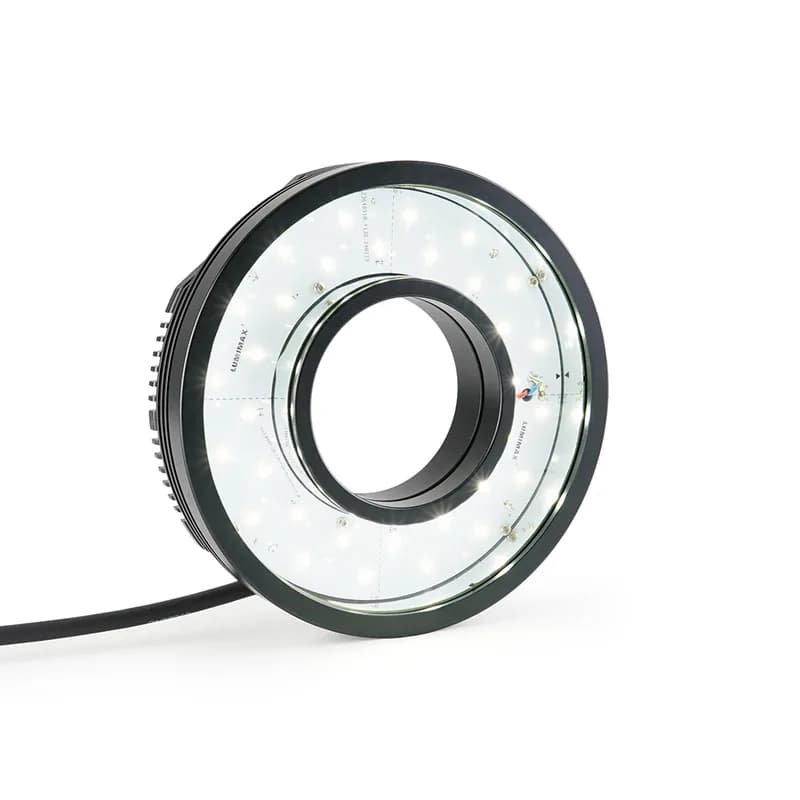

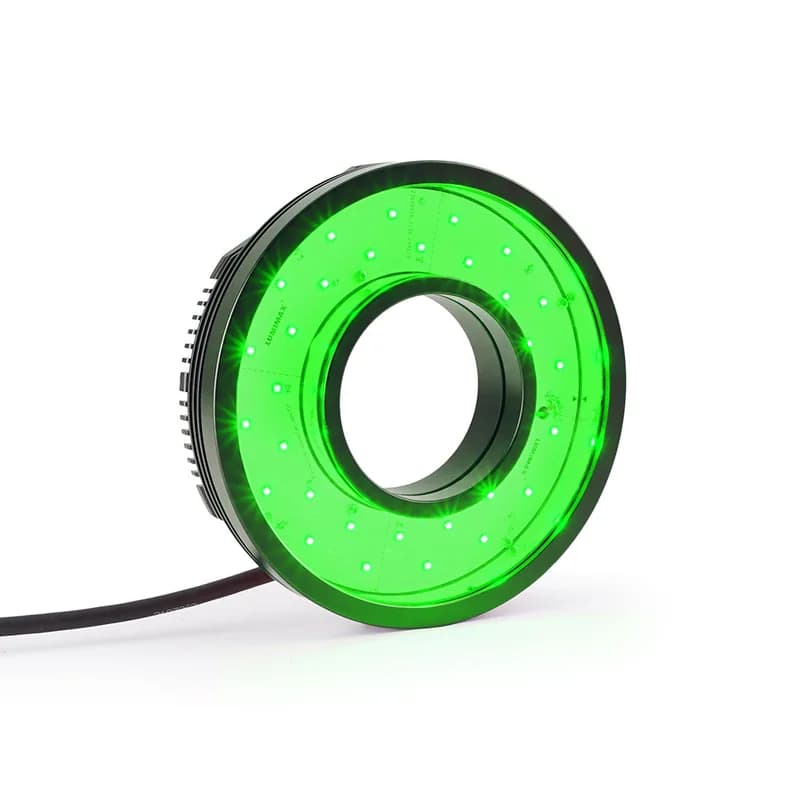

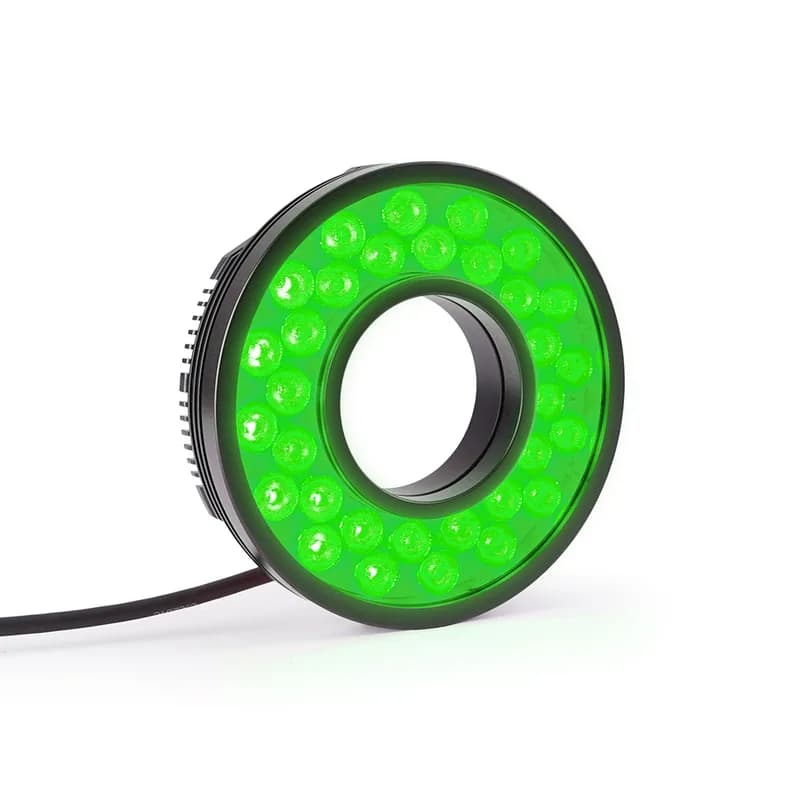

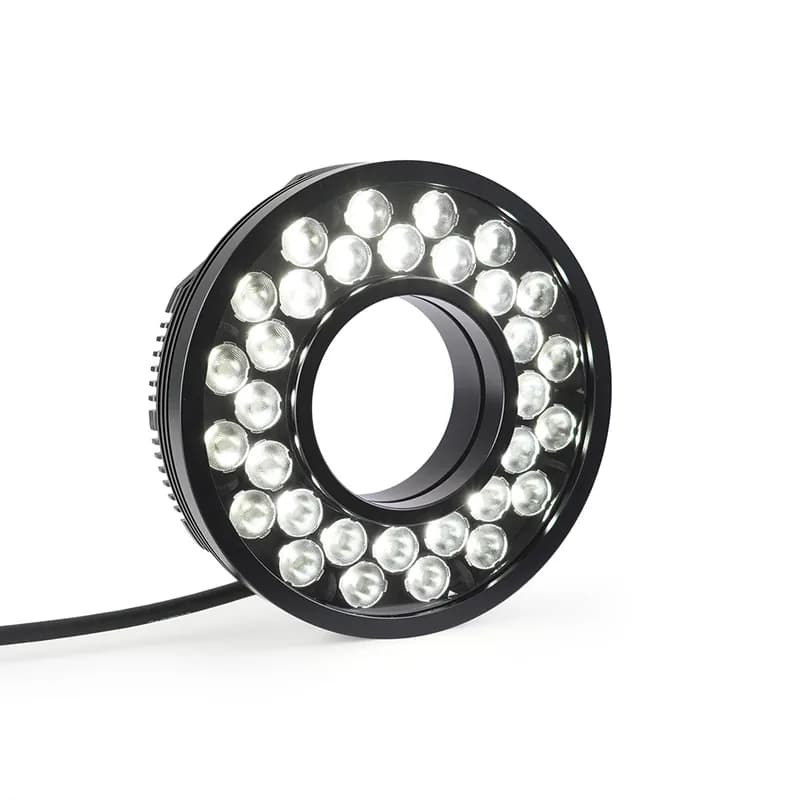

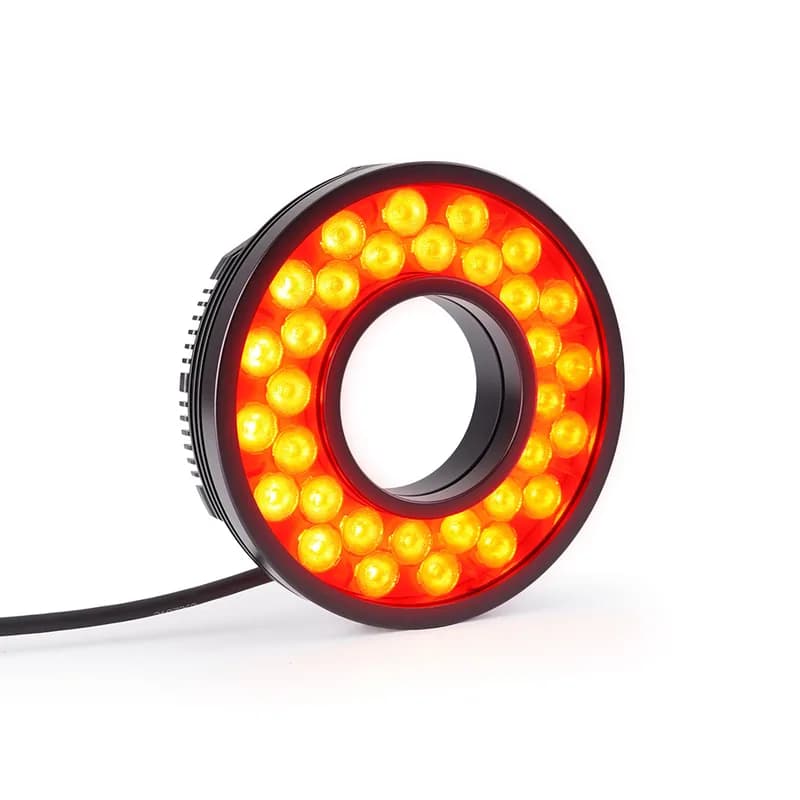

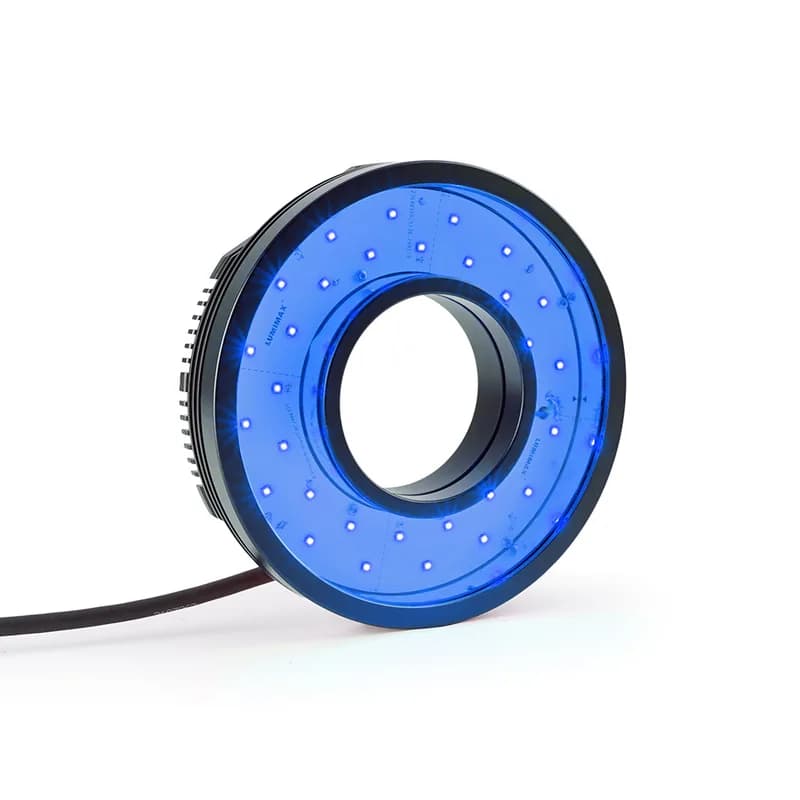

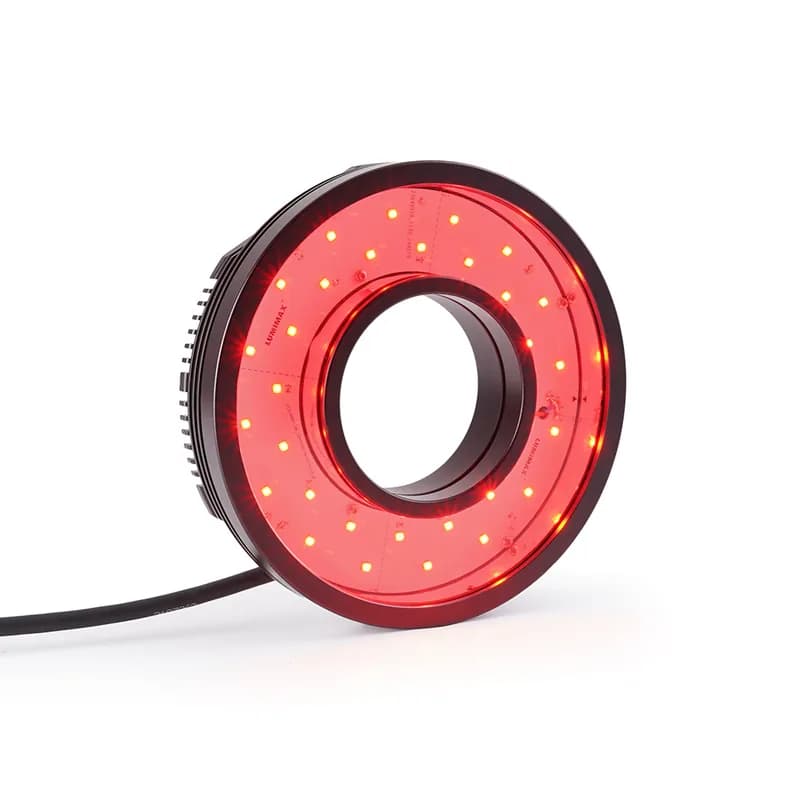

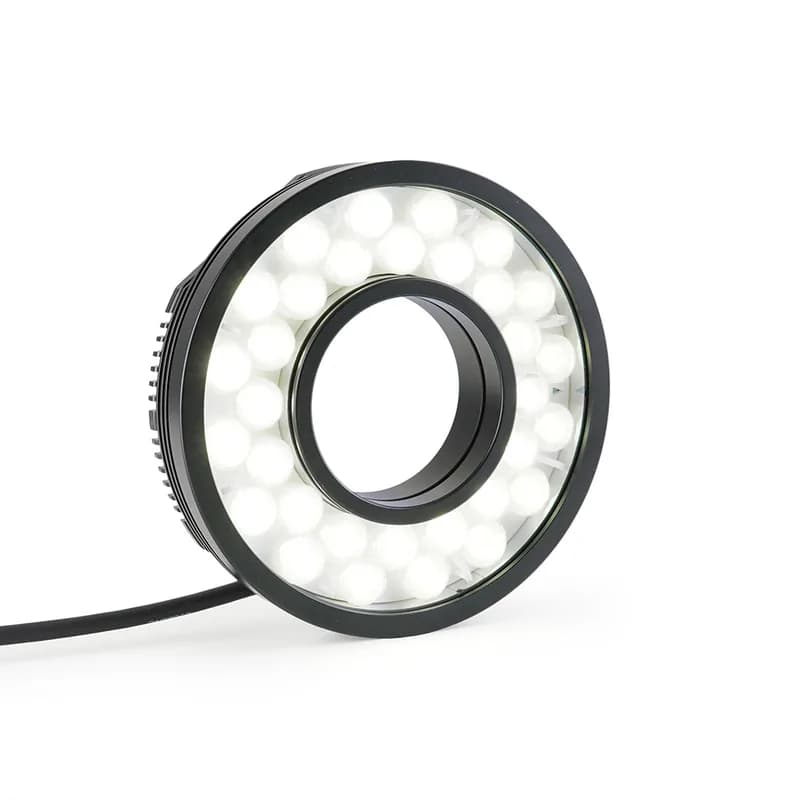

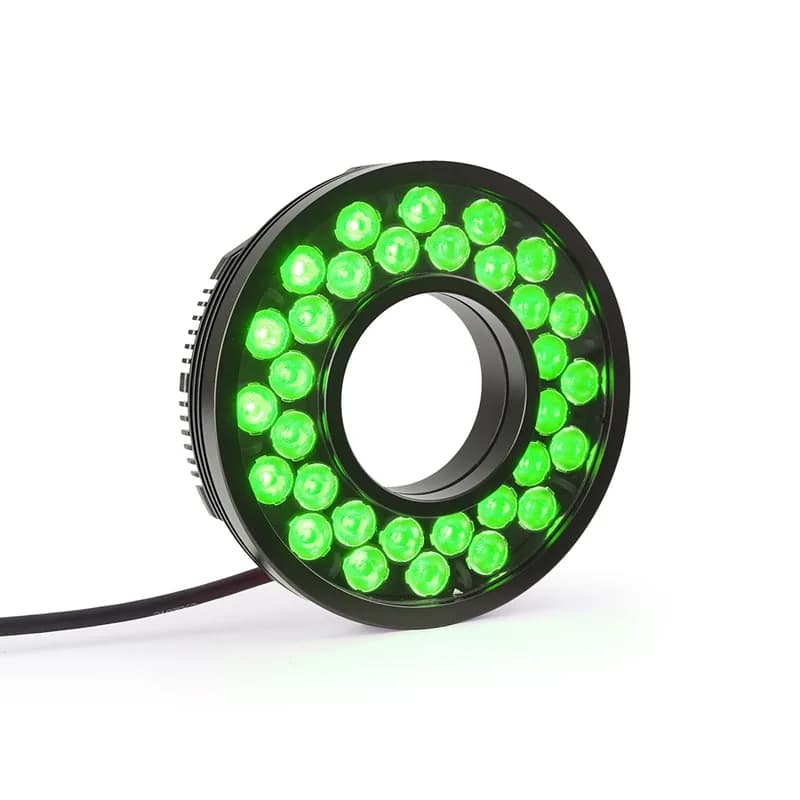

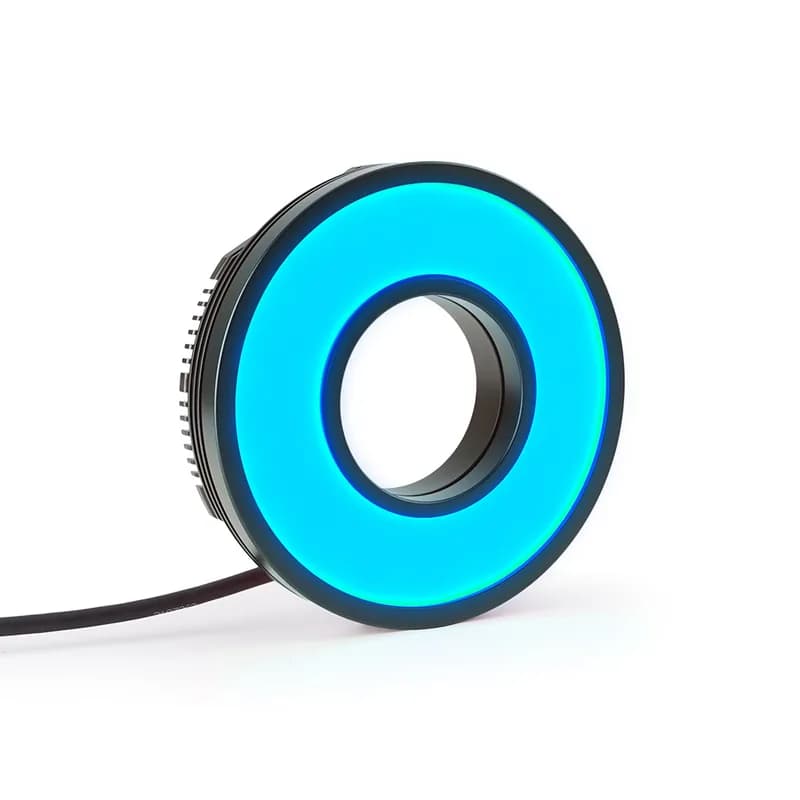

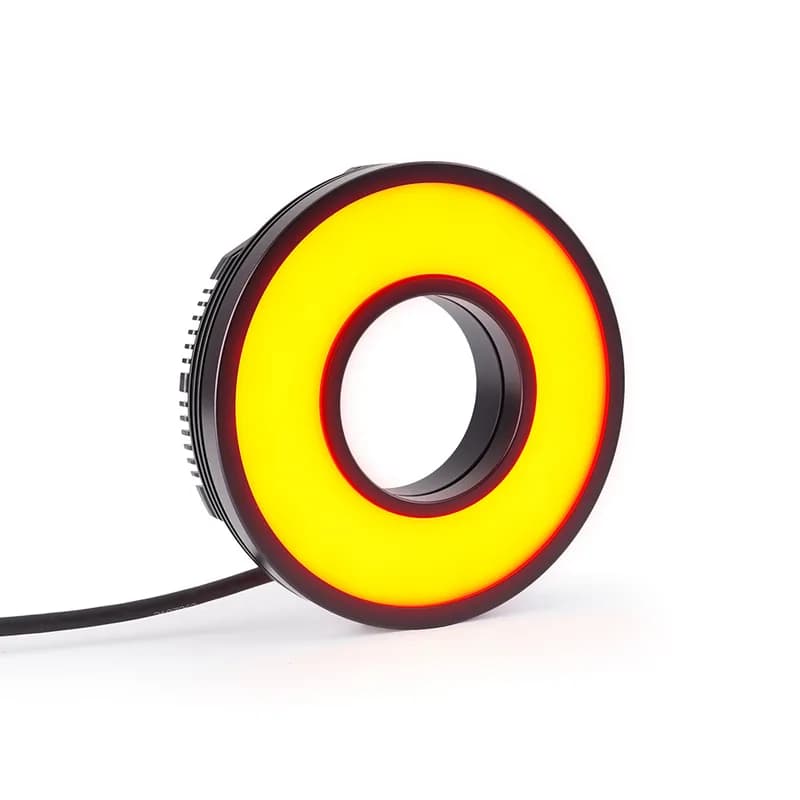

Five colours are orderable: blue at 470nm, green at 528nm, red at 625nm, white at 5500K and infrared at 850nm. Light direction comes from 12, 31 or 49 degree ancillary lenses, or from bare 120 and 150 degree LED beam angles. Units run continuous and switching or strobe, with flash times from 10 to 100us, 20 to 220us or 50 to 750us.

A representative strobe article puts 32 High Power LEDs behind a 78mm by 135mm light area for 3328 W/m2 at 0.2m, 1.1A at 24 V DC and a 2A pulse for 25ms. The head is 150mm across, 31mm high and 600g, rated IP64, wired through an M16 12-pin plug with TTL and PLC triggers, and rated above 80,000 hours.

Specifications

Operation

Operating mode (varies by part number): Continuous and switching mode | Strobe mode
controller (varies by part number): Integrierter lightscontroller | Integrierter strobe controller

Environment

Ingress protection: IP64
Allowed ambient temperature: 5 to 45 °C, non-condensing
Operating temperature at 21°C (by operating mode): continuous 48, 50 °C · strobe 29, 36, 37 °C
Risk Group (by operating mode): continuous 0, 1, 2 · strobe 0, 1

Mechanical

Dimensions (Ø x h in mm): 150 x 31
Material housing | window: Aluminium, anodised | PMMA

Electrical

Operating voltage: 19 to 30 V DC wide-range voltage input
Maximum current consumption (by operating mode): continuous 0.7, 0.8 A · strobe 1.1 A
Maximum electrical power at light field (by operating mode): continuous 14, 15, 16 W · strobe 255–455 W
Electrical connection: 150 mm connection cable with M16 12-pin plug
Brightness control via potentiometer: 0 % (left stop) to 100 % (right stop) brightness # Note: automatic deactivation at VC > 1 V DC
Brightness control via analogue VC input: VC = 2 to 10 V DC (0 % to 100 % brightness) # Note: Turn potentiometer to left stop
Maximum pulse current (varies by part number): 1 A for 5 ms | 1.1 A for 3 ms | 1.3 A for 4 ms | 1.5 A for 3 ms | 1.5 A for 4 ms | 1.5 A for 8 ms | 1.6 A for 3 ms | 1.8 A for 22 ms | (+2 more)
TTL-Trigger: High level = 3 to 30 V DC
SPS-Trigger: High level = 15 to 30 V DC
Trigger slope: Rising slope
Switch-on delay: 100 % brightness within a maximum of 5 µs
Flash duration 1 (varies by part number): Von 10 bis 100 µs | Von 20 bis 220 µs | Von 50 bis 750 µs
Flash frequency (varies by part number): 10, 35, 100 Hz
TTL switching input: High level = 3 to 30 V DC
PLC switching input: High level = 15 to 30 V DC
Switching mode: Switching time follows the switching signal # Connect + ON / OFF and GND ON / OFF
Continuous mode: Assign + ON / OFF permanently with high signal, e. g. by applying to operating voltage # Connect GND ON / OFF
Switch-on delay_switching: 100 % brightness within a maximum of 200 µs # (first pulse delay after initial operation 3 ms)

Optical

Light field size (Inner Ø x outer Ø in mm): 78 x 135
Light colour | wavelength (varies by part number): Blue | 470 nm | Green | 528 nm | Infrared | 850 nm | Red | 625 nm | White | 5500 K

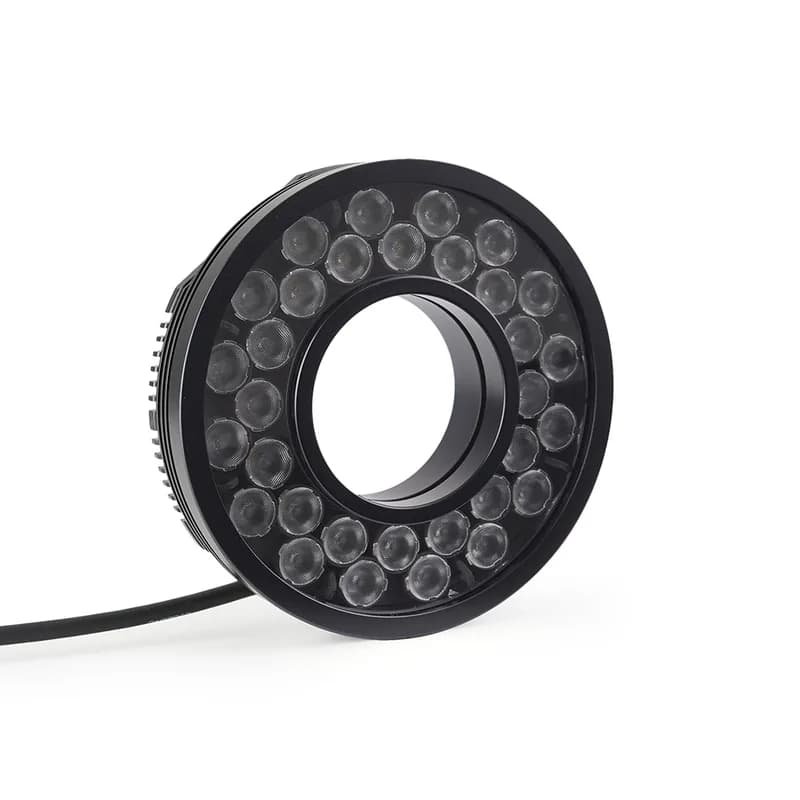

Light guidance (varies by part number): Directed with 12° ancillary lenses <_Blau_> | Directed with 31° ancillary lenses <_Pink_> | Directed with 49° ancillary lenses <_Gold_> | Directed, 120° LED beam angle (without ancillary lenses) | Directed, 150° LED beam angle (without ancillary lenses)
Power-LED: 32 High Power LEDs
Illuminance at 100 mm: continuous 8846–181873 lx · strobe 69333.1–708301 lx
Illuminance at 200 mm: continuous 3010–99837.7 lx · strobe 24227.6–846779 lx
Illuminance at 500 mm: continuous 579.7–47785 lx · strobe 4669.5–554112 lx
Illuminance at 1000 mm: continuous 622.3–16166 lx · strobe 1529.8–183471 lx
Irradiance at 100 mm: continuous 66.7–771.5 W/m² · strobe 554.4–7517.9 W/m²
Irradiance at 200 mm: continuous 21.9–324.7 W/m² · strobe 145.2–3485.9 W/m²
Irradiance at 500 mm: continuous 4–150.7 W/m² · strobe 38.8–1705.6 W/m²
Irradiance at 1000 mm: continuous 4.3–57.1 W/m² · strobe 21.1–563.9 W/m²
