LUMIMAX · BAR LIGHTS
LSB150
LMX-LSB150Miniaturised bar light with moderate intensity for tight, multi-sided mounting at short to medium distances - 150mm long, IP64.
- Light colour | wavelength
- 470 to 850 nm, white
- Power-LED
- 12 High Power LEDs
- Light field size
- 145 x 15
LSB150 Small Bar Light
Introduction

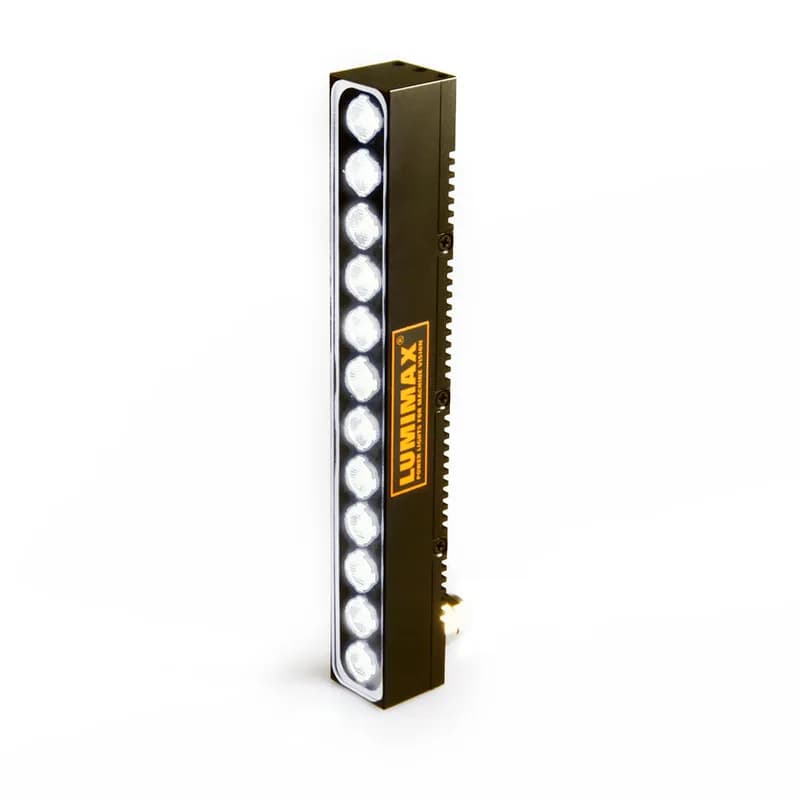

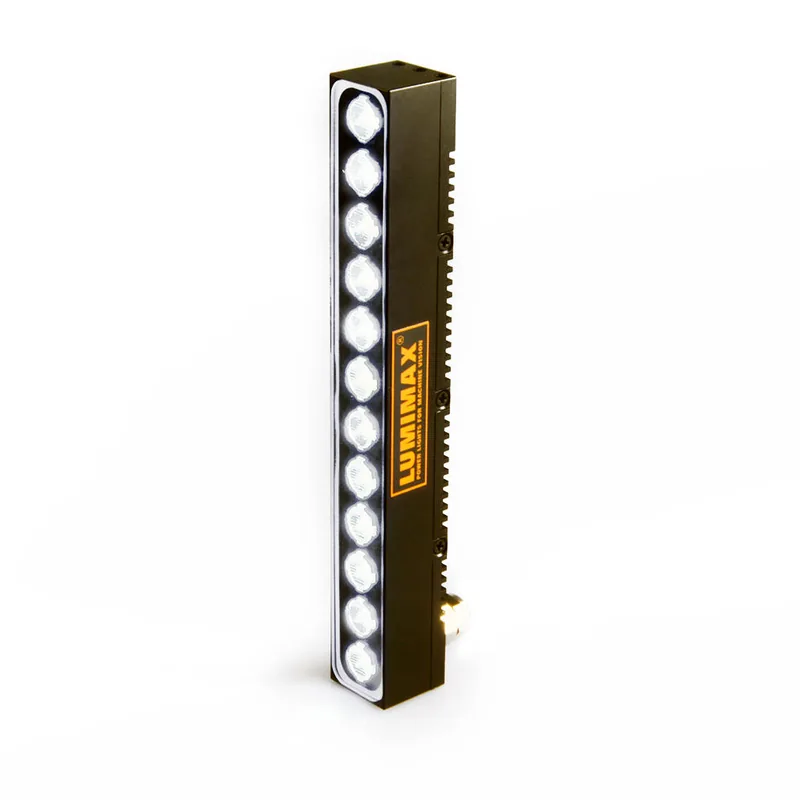

LSB150 is a 150 x 20 x 20 mm bar light carrying twelve high-power LEDs over a 145 x 15 mm light field.
It runs in continuous, switching or strobe mode depending on the variant ordered, on a wide-range 19 to 30 V DC input.
A family, not a single part
There are 53 catalogue part numbers under LSB150. The body, the light field and the input voltage are common; light colour, light guidance, operating mode and power draw are not.
Light colours are blue 470 nm, green 528 nm, red, infrared 850 nm and white. Light guidance is directed through 16° ancillary lenses, with the lens option varying by part number.
Power draw runs from 2 W continuous to 39 W in strobe, current from 0.1 to 0.20 A.
Specify the part number, not the family — the differences between variants are the specification.
Strobe
With an external FLC1 series controller (104.0053.xx):
The 5 µs to full brightness is the number that matters on a moving line: the light is at full output before the shutter has meaningfully opened.
Build
Anodised aluminium housing with a PMMA window, sealed to IP64. Ambient 5 to 45 °C, non-condensing.
Case temperature at 21 °C ambient reaches 26 to 40 °C in continuous operation and 26 °C in strobe.
Connection is a 1.0 m cable with an M8 4-pin plug for the FLC1 controller, varying by part number.
Specifications
Operation
- Operating mode (varies by part number)
- Continuous and switching mode | Strobe mode
- controller (varies by part number)
- External strobe controller series FLC1 (104.0053.xx) available as accessory | Integrierter lightscontroller
Environment
- Ingress protection
- IP64
- Allowed ambient temperature
- 5 to 45 °C, non-condensing
- Operating temperature at 21°C (by operating mode)
- continuous 26, 36, 38, 40 °C · strobe 26 °C
- Risk Group (by operating mode)
- continuous 0, 1, 2 · strobe 0, 1
Mechanical

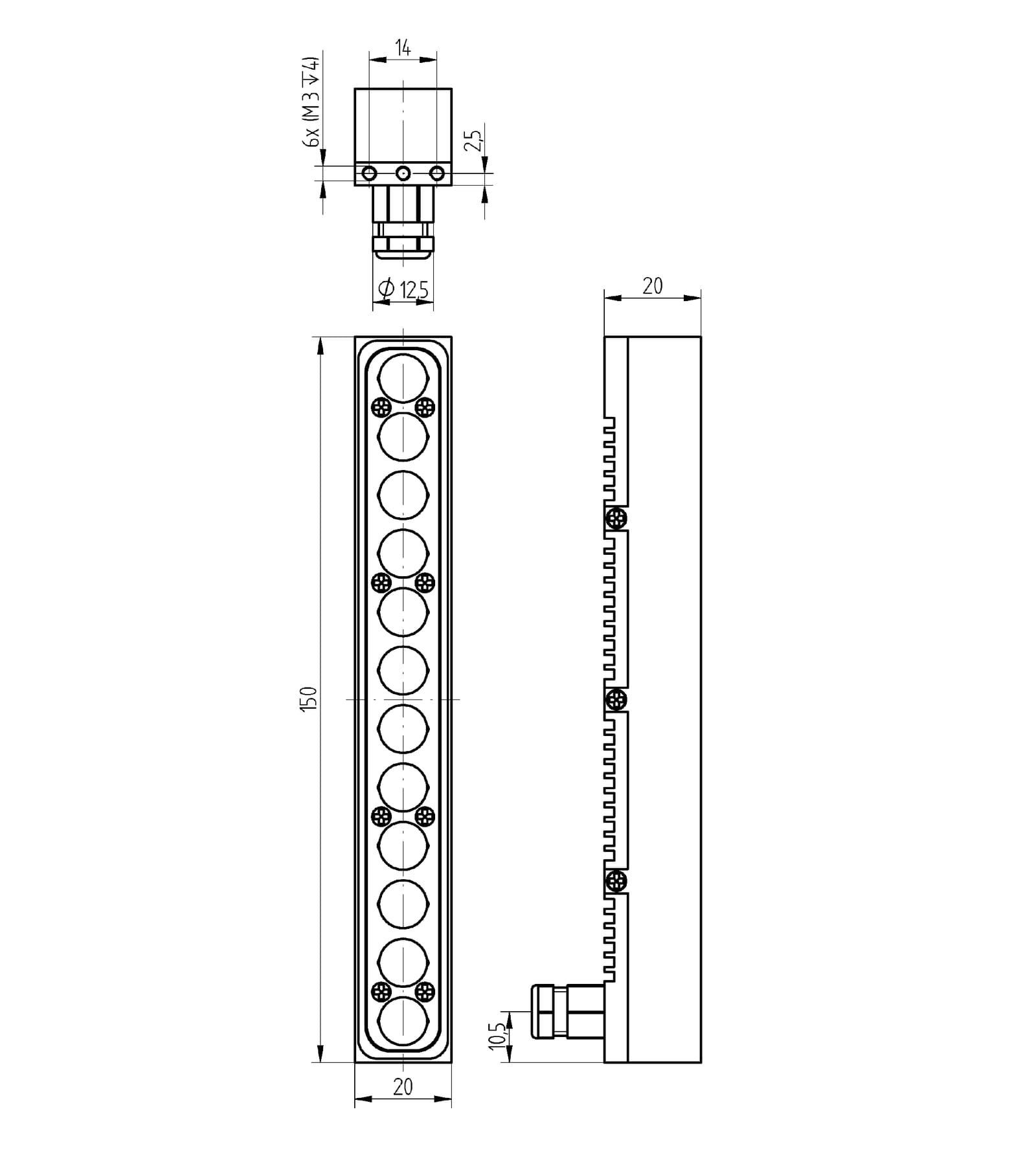

- Dimensions (l x w x h in mm)
- 150 x 20 x 20 (h = 60 mm with cable incl. bending radius)
- Material housing | window
- Aluminium, anodised | PMMA
Electrical
- Operating voltage (varies by part number)
- 19 to 30 V DC wide-range voltage input | 19 to 30 V DC wide-range voltage input *
- Maximum current consumption (varies by part number)
- 0.1 A | 0.2 A * | 0.20 A
- Maximum electrical power at light field (varies by part number)
- 2 W | 24 W * | 3 W | 30 W * | 32 W * | 39 W *
- Electrical connection (varies by part number)
- 1.0 m cable with M8 4-pin plug for connection to FLC1 controller series | 400 mm connection cable with M8 3-pin plug | 450 mm connection cable with M8 3-pin plug
- TTL-Trigger
- High level = 3 to 30 V DC *
- SPS-Trigger
- High level = 15 to 30 V DC *
- Trigger slope
- Rising slope *
- Switch-on delay
- 100 % brightness within a maximum of 5 µs *
- Flash duration 1
- 100 µs | 220 µs | 750 µs *
- Flash frequency
- 100 Hz | 35 Hz | 10 Hz *
- PLC switching input
- High level = 15 to 30 V DC
- Switching mode
- Switching time follows the switching signal # Connect + ON / OFF
- Continuous mode
- Assign + ON / OFF permanently with high signal, e. g. by applying to operating voltage
- Switch-on delay_switching
- 100 % brightness within a maximum of 200 µs
- Operating mode
- Continuous and switching mode
- Controller
- Integrierter lightscontroller
Optical
- Light field size (l x w in mm)
- 145 x 15
- Light colour | wavelength (varies by part number)
- Blue | 470 nm | Green | 528 nm | Infrared | 850 nm | Red | 625 nm | White | 5900 K | White | 6000 K | White | 7800 K
- Light guidance (varies by part number)
- Directed with 16° ancillary lenses <_Blau_> | Directed with 23° ancillary lenses <_Pink_> | Directed with 44° ancillary lenses <_Gold_> | Directed with 48x19° ancillary lenses <_Schraffur_> | Directed, 80° LED beam angle (without ancillary lenses) | Directed, 90° LED beam angle (without ancillary lenses) | Highly diffuse incident light
- Power-LED
- 12 High Power LEDs
- Illuminance at 100 mm
- continuous 3143–45738 lx · strobe 24744–480757 lx
- Illuminance at 200 mm
- continuous 965.1–23114 lx · strobe 8119–243746 lx
- Illuminance at 500 mm
- continuous 183.2–6959 lx · strobe 1587–70135 lx
- Irradiance at 100 mm
- continuous 9.6–165.4 W/m² · strobe 151.4–1457 W/m²
- Irradiance at 200 mm
- continuous 2.9–84.8 W/m² · strobe 51.2–738.8 W/m²
- Irradiance at 500 mm
- continuous 0.6–24.1 W/m² · strobe 10.1–213.7 W/m²
General
- Country of origin
- Federal Republic of Germany
- Weight (kg) (by operating mode)
- continuous 0.13 · strobe 0.16
Environmental
- Operating temperature
- 5 to 45 °C, non-condensing
